USER MANUAL GCPM 461 S HW B&S EINHELL

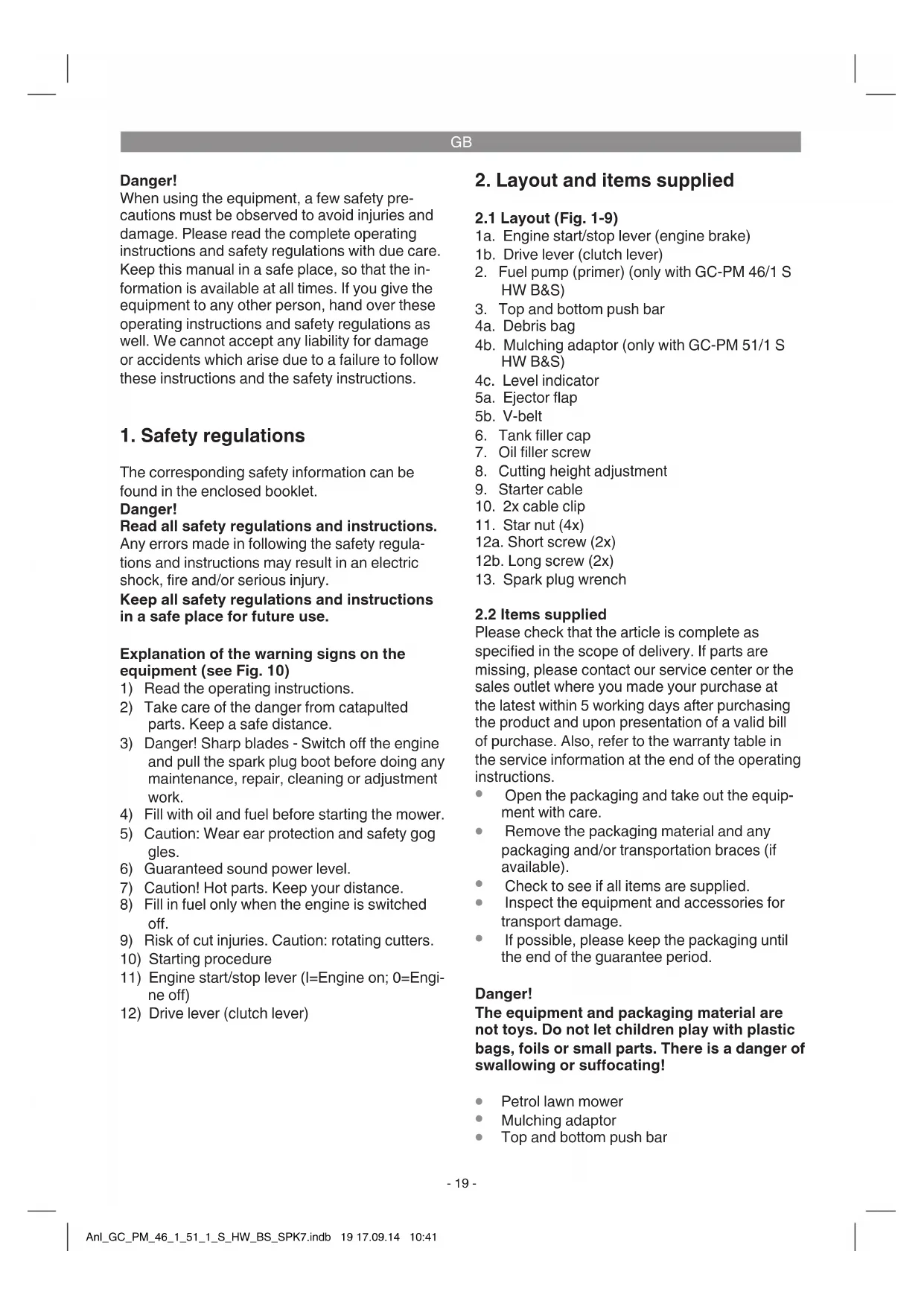

1. Safety regulations

2. Layout and items supplied

5. Before starting the equipment

7. Cleaning, maintenance, storage, transport and ordering of spare parts

8. Disposal and recycling

Danger! When using the equipment, a few safety pre- cautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the in- formation is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet. Danger! Read all safety regulations and instructions. Any errors made in following the safety regula- tions and instructions may result in an electric shock, re and/or serious injury. Keep all safety regulations and instructions in a safe place for future use. Explanation of the warning signs on the equipment (see Fig. 10)

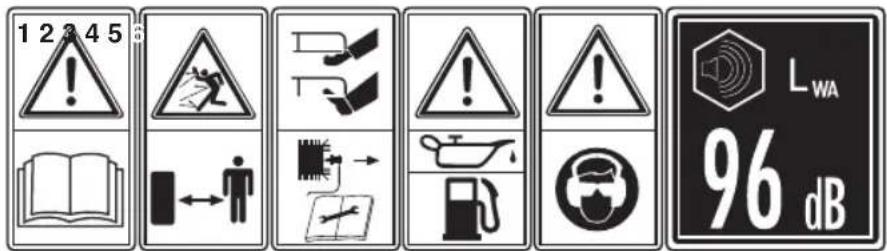

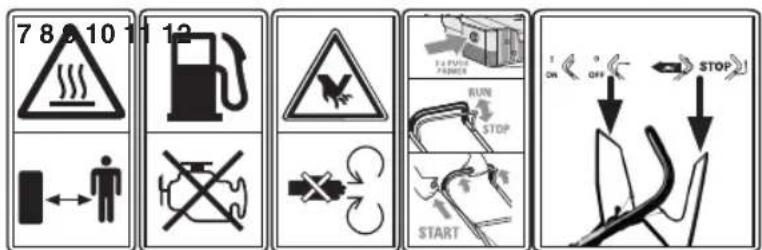

1) Read the operating instructions.

2) Take care of the danger from catapulted

parts. Keep a safe distance.

3) Danger! Sharp blades - Switch o the engine

and pull the spark plug boot before doing any maintenance, repair, cleaning or adjustment work.

4) Fill with oil and fuel before starting the mower.

5) Caution: Wear ear protection and safety gog

7) Caution! Hot parts. Keep your distance.

8) Fill in fuel only when the engine is switched

9) Risk of cut injuries. Caution: rotating cutters.

2. Layout and items supplied

2. Fuel pump (primer) (only with GC-PM 46/1 S

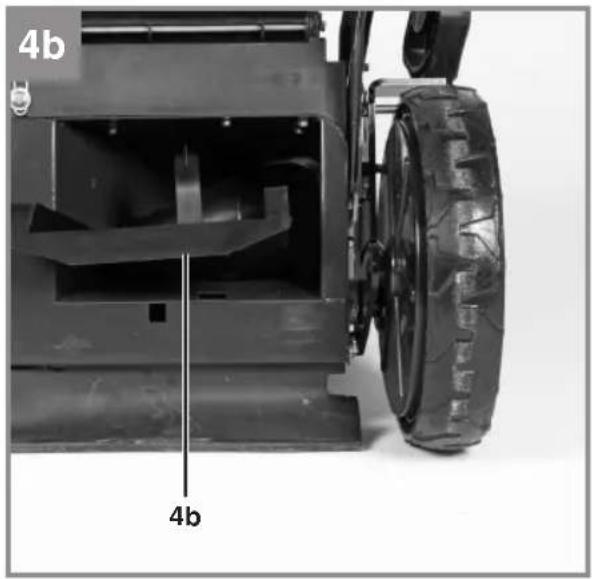

4a. Debris bag 4b. Mulching adaptor (only with GC-PM 51/1 S HW B&S) 4c. Level indicator 5a. Ejector ap 5b. V-belt

8. Cutting height adjustment

Please check that the article is complete as specied in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

Open the packaging and take out the equip- ment with care.

Remove the packaging material and any packaging and/or transportation braces (if available).

Check to see if all items are supplied.

Inspect the equipment and accessories for transport damage.

If possible, please keep the packaging until the end of the guarantee period. Danger! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suocating!

Petrol service manual

Original operating instructions

The equipment may only be used for the tasks it is designed to handle. Any other use is deemed to be a case of misuse. The user/operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this. The petrol lawn mower is intended for private use i.e. for use in home and gardening environments. Private use of the lawn mower refers an annual operating time generally not exceeding that of 50 hours, during which time the machine is pri- marily used to maintain small-scale, residential lawns and home/hobby gardens. Public facilities, sporting halls, and agricultural/forestry applica- tions are excluded. Please note that our equipment has not been de- signed for use in commercial, trade or industrial applications. Our warranty will be voided if the equipment is used in commercial, trade or indust- rial businesses or for equivalent purposes. The operating instructions as supplied by the ma- nufacturer must be kept and referred to in order to ensure that the lawn mower is properly used and maintained. The instructions contain valuable information on operating, maintenance and servi- cing conditions. Warning! Due to the high risk of bodily injury to the user, the petrol lawn mower must not be used to carry out the following work: Trim bushes, hedges or shrubs, to cut scaling vegetation, plan- ted roofs, or balcony-grown grass, to clean (suck up) dirt and debris o walkways, or to chop up tree or hedge clippings. Moreover, the lawn mo- wer may not be used as a power cultivator to level out high areas such as molehills. For safety reasons, the lawn mower may not be used as a drive unit for other work tools or toolkits of any kind.

Note: The enclosed manual from Briggs & Stratton pro- vides detailed technical data on the engine! GC-PM 46/1 S HW B&S Engine type: . Single cylinder four-stroke engine, 140 ccm Engine output (2800 min

sound power (measured) .............. 92.6 dB(A)

uncertainty ..........................................3.4 dB Wear ear-mus. The impact of noise can cause damage to hea- ring. Vibration emission value a

GC-PM 51/1 S HW B&S Engine type: . Single cylinder four-stroke engine, 150 ccm Engine output (2800 min

Danger! Sound and vibration

sound power (measured) .............. 92.9 dB(A)

uncertainty ..........................................5.1 dB Wear ear-mus. The impact of noise can cause damage to hea- ring. Vibration emission value a

Long work periods should be avoided due to the development of high noise and vibration levels. Keep the noise emissions and vibrations to a minimum.

Only use appliances which are in perfect wor- king order.

Service and clean the appliance regularly.

Adapt your working style to suit the appliance.

Do not overload the appliance.

Have the appliance serviced whenever ne- cessary.

Switch the appliance off when it is not in use. Caution! Residual risks Even if you use this electric power tool in accordance with instructions, certain resi- dual risks cannot be rules out. The following hazards may arise in connection with the equipment’s construction and layout:

2. Health damage caused by hand-arm vib-

rations if the equipment is used over a pro- longed period or is not properly guided and maintained.

5. Before starting the equipment

5.1 Assembling the components

Some parts of the equipment come disassem- bled. For quick and easy assembly, read and follow the instructions below. Note! You will need the following additional tools (not supplied) for assembly, and also for mainte- nance work:

One flat oil drip tray (for changing the oil)

One 1 liter measuring jug (oil/petrol resistant)

One funnel (suitable for the tank’s petrol filler neck)

Household wipes (to wipe up oil/petrol resi- due; dispose of these at a filling station)

One petrol suction pump (plastic, available from DIY stores)

One oil can with hand pump (available from DIY stores)

1. Fit the lower and upper push bar (Item. 3) as

shown in Fig. 3a-3c. For fastening choose one of the holes to suit the required height of the push bar. Important! The identical height must be set on both sides.

2. Insert the grip of the starter cable (Item 9) into

the hook provided for that purpose as shown in Fig. 3d.

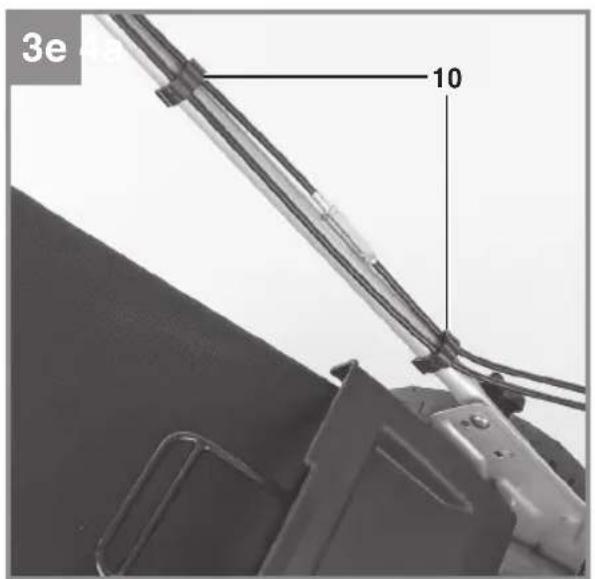

3. Fasten the actuator cables to the push bar

with the supplied cable clips (Item 10) as shown in Fig. 3e.

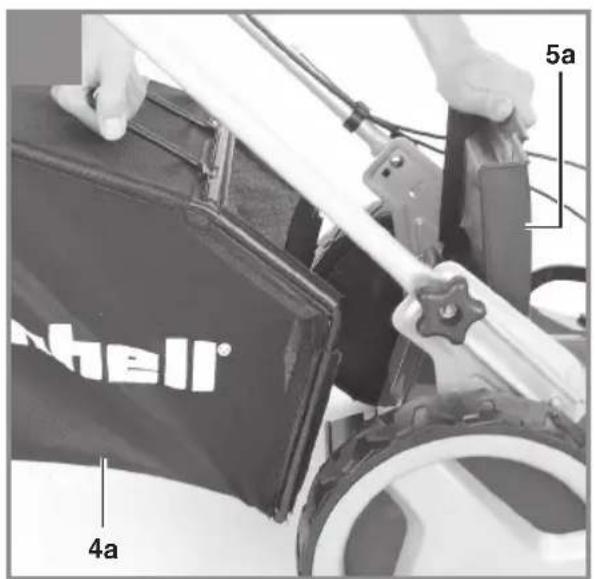

4. Lift the ejector ap (Item 5a) with one hand

and hook in the grass bag (Item 4a) as shown in Fig. 4a. 5.2. Adjusting the cutting height Warning! Adjust the cutting height only when the engine has been switched o.

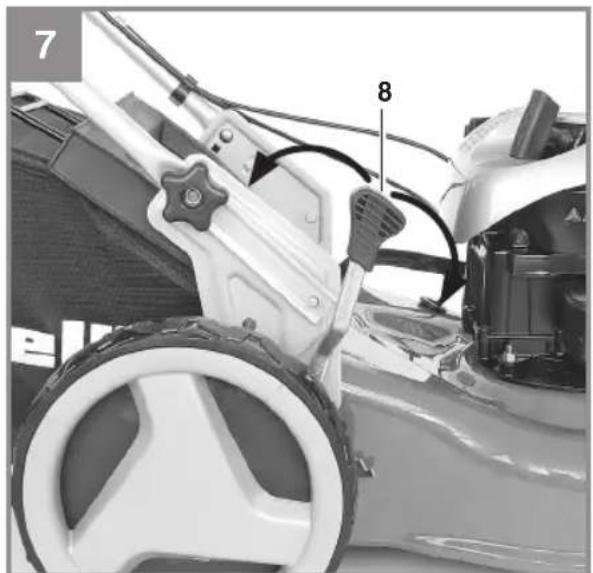

The cutting height is centrally adjusted with the cutting height adjustor lever (Fig. 7/Item 8). Different cutting heights can be selected.

Actuate the adjustor lever and pull it to the required position. Let the lever click into po- sition. Anl_GC_PM_46_1_51_1_S_HW_BS_SPK7.indb 21 17.09.14 10:41GB

Note! The engine comes without oil and petrol. Therefore, be sure to add oil and petrol befo- re starting the engine. The enclosed engine manual from Briggs & Stratton provides maintenance information and maintenance interval information on the engine.

Warning: Never use more than one safety petrol

can. Do not smoke when refueling. Switch o the engine before refueling and allow the engine to cool down for a few minutes. Ensure that the ignition cable is connected to the spark plug. Carrying out a safety test on the engine start/ stop lever The lawn mower comes equipped with an engi- ne start/stop lever (Fig. 5a/Item 1a) in order to prevent it from starting up unintentionally and to ensure that the engine and blade stop quickly in case of danger. The lever must be actuated (Fig. 5b) before the lawn mower is started. When the engine start/stop lever is released, it must return to its initial position (Fig. 5a). Before you start mowing, you should run through this process several times in order to ensure that the lever and actuator cables are working pro- perly. Repeat the test several times after the engine has started up. When the engine start/stop lever is released, the engine must stop within a few se- conds. If not, contact Customer Service.

Danger: The blade begins to rotate as soon as

the engine is started.

6.1 Starting the engine

For detailed information on starting the engi- ne, refer to the enclosed manual from Briggs & Stratton. Drive unit Drive lever/clutch lever (Fig. 5a/Item 1b): If you press this (Fig. 5c) the clutch for the drive will be closed and the lawnmower will start to move with the engine running. Release the drive lever in good time to stop the moving lawnmower. Practice starting and stopping before you use the mower for the rst time until you are familiar with controlling the mower.

6.2 Tips on mowing properly

Danger! Never open the chute ap when the grass bag has been detached (to be emptied) and the engine is still running. The rotating blade can cause serious injuries! Always carefully fasten the chute ap and debris bag. Switch o the engine before you remove them. Whenever you need to perform any kind of adjustment, maintenance or repair work, switch o the engine and wait until the blade no longer rotates. Pull o the spark plug con- nector. Mowing The engine is congured for an optimal grass cut- ting speed, for ejecting grass into the debris bag, and for many years of use. Only use a sharp blade that is in good condition. This will prevent the grass blades from fraying and the lawn from turning yellow. Try to mow in straight lines for a nice, clean look. The swaths should overlap each other by a few centimeters in order to avoid stripes. Keep the underside of the mower housing clean and remove grass build-up. Deposits not only make it more dicult to start the mower; they decrease the quality of the cut and make it harder for the equipment to bag the grass. Always mow along inclines (not up and down). You can prevent the lawn mower from slipping down by holding a position at an angle upwards. Anl_GC_PM_46_1_51_1_S_HW_BS_SPK7.indb 22 17.09.14 10:41GB

Select the cutting height according to the length of the grass. If necessary, mow a number of times so that you never cut more than 4cm of grass in one go. Switch o the engine before doing any checks on the blade. Keep in mind that the blade continues to rotate for a few seconds after the engine has been switched o. Never attempt to manually stop the blade. Regularly check to see if the blade is securely attached, is in good condition and is sharp. If the contrary is the case, sharpen the blade or replace it. In the event that the blade strikes an object, immediately switch o the lawn mower and wait for the blade to come to a com- plete stop. Then inspect the condition of the blade and the blade mount. Replace any parts that are damaged. Mulching (Fig. 4b; only with GC-PM 51/1 S HW B&S) In mulching mode the cuttings are shredded in the enclosed mower housing and then spread back onto the lawn. It is not necessary to gather and dispose of the grass. Mulching is only possible if the lawn is relatively short. Optimum results can be achieved only with a mulching blade (available as an accessory). To use the mulching function, disconnect the deb- ris bag, slide the mulching adaptor into the ejector opening (Item 4b) and close the ejector opening.

6.3 Switching o the engine

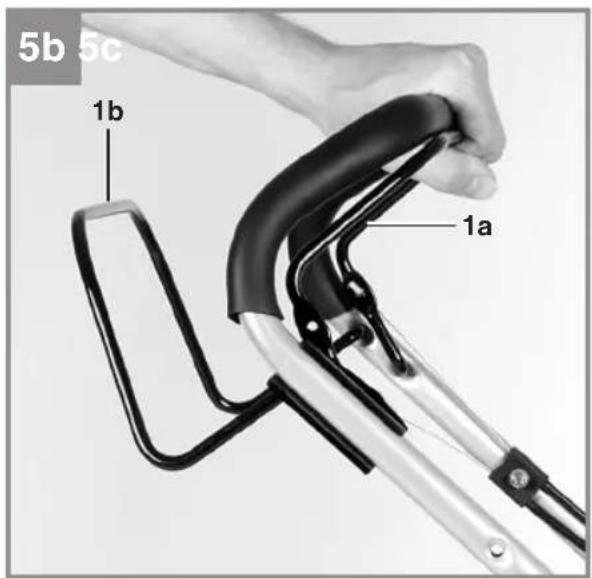

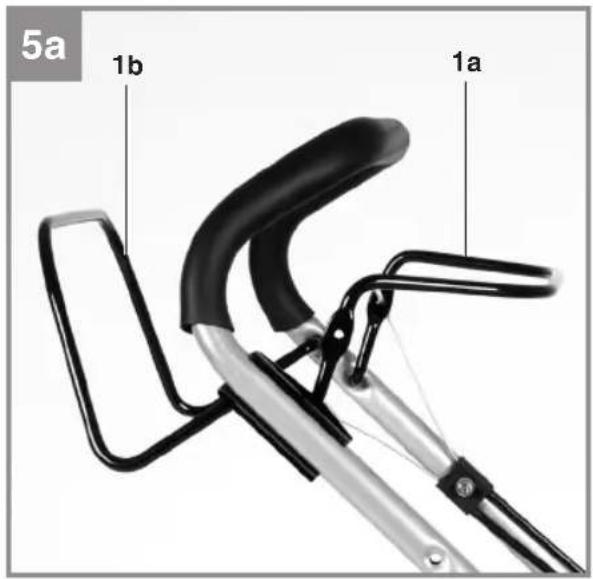

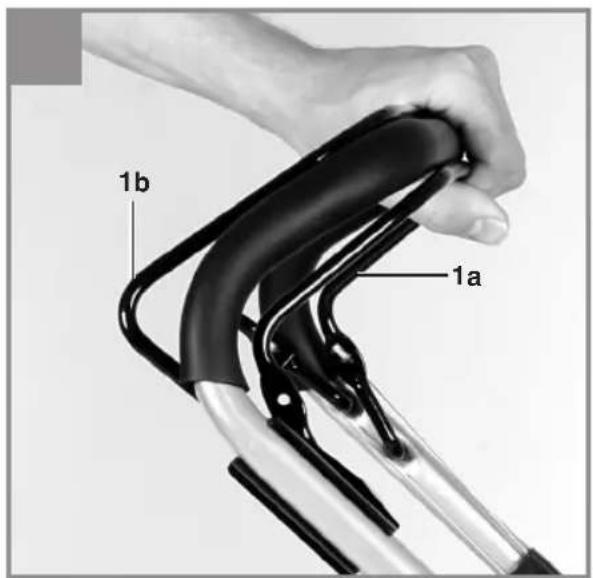

All you have to do to switch o the engine is release the engine start/stop lever (Fig. 5a/ Item 1a). Pull o the spark plug connector from the spark plug in order to prevent the engine from starting. Before you start the engine again, check the cable of the engine brake. Check that the actuator cable is correctly tted. If the switch-o cable is kinked or damaged, it must be replaced.

6.4 Emptying the debris bag

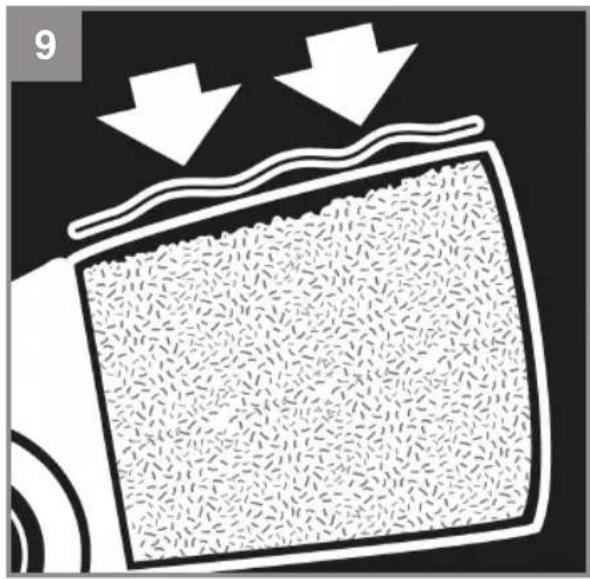

When the debris bag is full, the air throughput will be low and the level indicator (4c) will be up close against the debris bag (Fig. 9). Empty the debris bag and clear out the ejector chute. Danger! Before taking o the debris bag, switch o the engine and wait until the blade has come to a stop. To take o the grass basket, use one hand to lift up the chute ap and the other to grab onto the basket carry-handle. Remove the basket (Fig. 4a). For safety reasons, the chute ap automatically falls down after removing the grass basket and closes o the rear chute opening. If any grass remains in the opening, it will be easier to restart the engine if you pull the mower back approxi- mately 1m. Do not use your hands or feet to remove clippings in or on the mower housing, but instead use suita- ble tools such as a brush or a hand broom. In order to ensure that the majority of grass clip- pings are picked up, the inside of both the grass bag and especially the air grill must be cleaned after each use. Reattach the grass bag only when the engine is switched o and the blade is stopped. Using one hand, lift up the chute ap, while grab- bing onto the basket handle with the other. Hang in the basket from the top.

7. Cleaning, maintenance, storage,

transport and ordering of spare parts Danger! Never work on or touch any current-conducting parts of the ignition system while the engine is running. Pull the spark plug boot from the spark boot before doing any maintenance or assembly work. Never carry out any work on the equipment while the engine is running. Work that is not de- scribed in these operating instructions, should only be carried out by authorized workshops.

The lawn mower should be cleaned thoroughly every time after it has been used. This applies in particular to its underside and the blade mount. Tilt the lawn mower to the rear by pressing down the push bar. Note: Before tilting the lawn mower, use a petrol extraction pump to drain all the fuel out of the fuel tank. Do not tilt the lawn mower by more than 90 degrees. It is easiest to remove dirt and grass immediately after mowing. Dried grass remnants and dirt may impair the mowing ope- ration. Check whether the grass ejector chute is Anl_GC_PM_46_1_51_1_S_HW_BS_SPK7.indb 23 17.09.14 10:41GB

free of grass residues and clear out as required. Never clean the lawn mower using a water jet or a high-pressure cleaner. Ensure that no water can get into the interior of the equipment. Do not use aggressive cleaning agents such as cold cleaners or petroleum ether.

Note: Dispose of soiled maintenance material and operating materials at the appropriate collec- tion point.

The enclosed engine manual from Briggs & Stratton provides maintenance information and maintenance interval information on the engine.

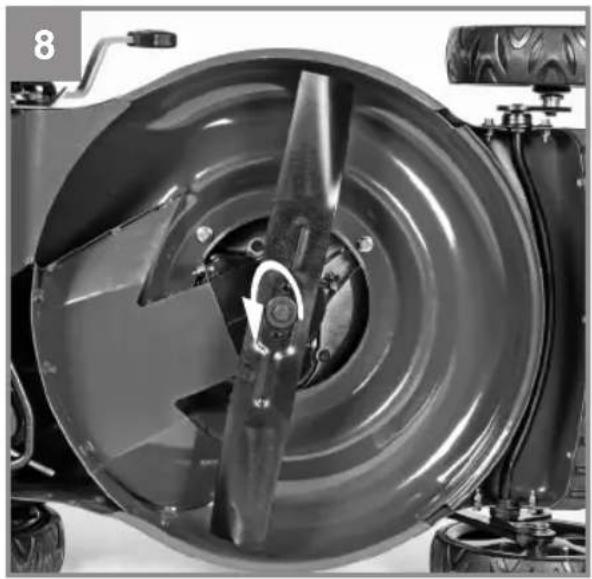

For safety reasons, have all blade sharpening, balancing and mounting work carried out by an authorized service center. To achieve optimal re- sults, we recommend having the blades checked once a year. Changing the blades (Fig. 8) When changing the cutting unit, be sure to use only genuine replacement parts. The identication mark on the blade must correspond with the num- ber specied in the spare parts list. Never install a blade from a dierent manufactu- rer. Damaged blades If, in spite of all caution, the blade comes into con- tact with an obstacle, switch o the engine imme- diately and pull o the spark plug connector. Tilt the lawn mower to the rear and check the blade for damage. Damaged or bent blades must be replaced. Never straighten a bent blade. Never work with bent or heavily worn blades as this will result in vibrations, causing further damage to the mower. Warning! Risk of injury when working with a da- maged blade.

7.2.3 Axles and wheel hubs

Grease should be applied to the axles and wheel hubs once per season. To do so, remove the wheel caps with a screwdri- ver and loosen the fastening screws on the wheels.

7.2.4 Care and adjustment of the actuator

cables Oil the actuator cables at regular intervals and check that they move easily.

7.2.4 Inspecting the V-belt

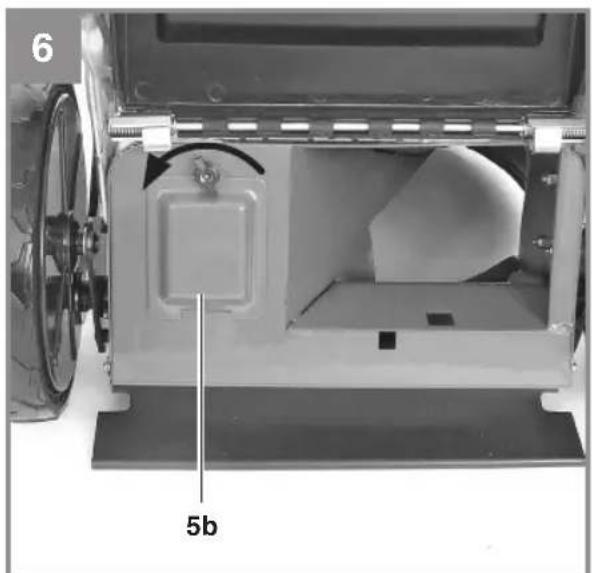

Remove the blade as described in 7.2.2. To inspect the V-belt you must remove the V-belt cover (Fig. 12/Item 5b).

After carrying out any repair or maintenance work, ensure that all safety parts are installed and in perfect condition. Keep potentially hazardous parts out of reach of other persons and children. Note! In accordance with the German Product Liability Act, we are not liable for any damages if they result from improper repairs to the product or if parts are replaced by items other than genuine parts or parts approved by us. Furthermore, we are not liable for any damages if they result from improper repairs to the product. Arrange for your customer service or an authorized workshop to do the work. The same applies to accessory parts.

7.2.7 Operating times

Please observe the regulations concerning lawn mower operating times, which may dier from town to town.

7.3 Preparing the mower for long-term

storage Warning! Do not empty the petrol tank in enc- losed areas, near re or when smoking. Petrol fumes can cause explosions and re.

1. Drain the petrol tank using a petrol extraction

2. Start the engine and run it until the tank and

fuel line are completely empty and the engine stalls. The enclosed engine manual from Briggs & Stratton provides maintenance information and maintenance interval information on the engine.

3. Clean the cooling ns of the cylinder and the

4. Be sure to clean the entire equipment to pro-

5. Store the equipment in a well-ventilated

7.4 Preparing the mower for transport

Warning! Do not empty the petrol tank in enc- losed areas, near re or when smoking. Petrol fumes can cause explosions and re.

1. Drain the petrol tank using a petrol extraction

2. Always let the engine run until it has used up

the remainder of petrol in the tank.

3. Empty the engine oil from the warm engine.

The enclosed engine manual from Briggs & Stratton provides maintenance information and maintenance interval information on the engine.

4. Remove the spark plug connector from the

5. Clean the cooling ns of the cylinder and the

6. Unhook the starter cable from the hook (Fig.

3c). Slacken the connection shown in Fig. 3b on the left and right of the push bar and swing down the upper push bar. Make sure that the actuator cables do not get kinked when the bar is pulled up.

7. Wedge a few layers of corrugated cardboard

between the upper and lower push bars and the engine in order to prevent any chang.

8. Secure the load suciently so that it cannot

slip and cause damage or injuries during transportation.

7.5 Consumables, wear materials and spare

parts Spare parts, consumables and wear materials such as engine oil, V-belts, spark plugs, air lter inserts, petrol lters, batteries and blades are not covered by the warranty.

7.6 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

Article number of the machine

Identification number of the machine

Replacement part number of the part required For our latest prices and information please go to www.isc-gmbh.info

8. Disposal and recycling

The equipment is supplied in packaging to pre- vent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council oces. Anl_GC_PM_46_1_51_1_S_HW_BS_SPK7.indb 25 17.09.14 10:41GB

Warning: Switch o the engine and pull out the spark plug boot before making any checks or adjust-

Warning: If, after making an adjustment or repair to the engine, you let it run for a few minutes, remem-

ber that the exhaust and other parts will get hot. Do not touch these parts as they may burn you. Important. If problems arise in connection with the engine, please refer to the enclosed manual from Briggs & Stratton. Fault Possible cause Remedy The equipment does not operate smoothly and vibra- tes intensively - Bolts loose - Blade attachment is loose - Blade imbalanced - Check bolts - Check blade attachment - Replace blade The engine does not start - Engine start/stop lever is not pressed - Throttle lever in wrong position (if provided) - Spark plug defective - Fuel tank empty - Fuel pump (primer) not actuated (if provided) - Press the engine start/stop lever - Check setting (if provided) - Replace spark plug - Top up fuel - Actuate the fuel pump (primer) (if provided) Engine does not run smoothly - Air lter dirty - Spark plug dirty - Clean the air lter - Clean the spark plug Lawn turns yellow, uneven cut - Blade is not sharp - Cutting height too small - Engine speed too low - Sharpen blade - Adjust to the proper height - Set the throttle lever to max. (if pro- vided) Grass chute is not clean - Engine speed too low - Cutting height too small - Blade is worn - Grass bag is clogged - Set the throttle lever to max. - Set properly - Replace the blade - Empty the grass bag The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH. Subject to technical changes Anl_GC_PM_46_1_51_1_S_HW_BS_SPK7.indb 26 17.09.14 10:41GB

Service information We have competent service partners in all countries named on the guarantee certicate whose contact details can also be found on the guarantee certicate. These partners will help you with all service re- quests such as repairs, spare and wearing part orders or the purchase of consumables. Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables. Category Example Wear parts* Air lter, Bowden cables, grass basket, tires, drive clutch Consumables* Blades Missing parts

• Not necessarily included in the scope of delivery! In the eect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Ple- ase ensure that you provide a precise description of the problem and answer the following questions in all cases:

Did the equipment work at all or was it defective from the beginning?

Did you notice anything (symptom or defect) prior to the failure?

What malfunction does the equipment have in your opinion (main symptom)? Describe this malfunction. Anl_GC_PM_46_1_51_1_S_HW_BS_SPK7.indb 27 17.09.14 10:41GB

Warranty certicate Dear Customer, All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. You can also contact us by telephone using the service number shown. Please note the following terms under which guarantee claims can be made:

1. These guarantee conditions regulate additional guarantee services. Your statutory guarantee claims

are not aected by this guarantee. Our guarantee is free of charge to you.

2. Our guarantee only covers defects suered by the device which have been veriably caused by a

material or manufacturing fault and is limited to the rectication of such defects or the replacement of the device at our discretion. Please note that our devices are not designed for use in commercial, trade or professional applica- tions. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

- Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by ex- posing the device to abnormal environmental conditions or by lack of care and maintenance. - Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for ex- ample by dropping it). - Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

4. The guarantee is valid for a period of 24 months starting from the purchase date of the device. Gu-

arantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts tted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts tted. This also applies if an on-site service is used.

5. Please report the defective device on the following internet address to register your guarantee claim:

www.isc-gmbh.info. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement device. Of course, we are also happy oer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address. Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions. Anl_GC_PM_46_1_51_1_S_HW_BS_SPK7.indb 28 17.09.14 10:41F
