USER MANUAL UC 36YSL HiKOKI

SAFETY INSTRUCTIONS AND INSTRUCTION MANUAL

WARNING

IMPROPER OR UNSAFE use of this battery charger can result in death or serious bodily injury!

This manual contains important information about product safety. Please read and understand this manual BEFORE operating the power tool. Please keep this manual available for other users and owners before they use the battery charger. This manual should be stored in safe place.

INSTRUCTIONS DE SECURITE ET MODE D'EMPLOI

A VERTISSEMENT

IMPORTANT SAFETY INSTRUCTIONS 3

MEANINGS OF SIGNAL WORDS 3

SAFETY 4

IMPORTANT SAFETY INSTRUCTIONS FOR BATTERY CHARGER 4

IMPORTANT SAFETY INSTRUCTIONS FOR USE OF THE BATTERY, BACK PACK POWER SUPPLY AND BATTERY CHARGER 5

DISPOSAL OF THE EXHAUSTED BATTERY/BACK PACK POWER SUPPLY 6

SERVICE AND REPAIRS 14

PARTS LIST 42

TABLE DES MATIÈRES

Français

Page Page

CONSIGNES DE SECURITE IMPORTANTES 15

SIGNIFICATION DES MOTS D'AVERTISSEMENT 15

SECURITE 16

CONSIGNES DE SECURITE IMPORTANTES POUR LE CHARGEUR DE BATTERIE 16

CONSIGNES DE SECURITE IMPORTANTES POUR L'UTILISATION DE LA BATTERIE, SYSTEME D'ALIMENTATION DE BATTERIE À DOS ET DU CHARGEUR DE BATTERIE ....18

MISE AU REBUT D'UNE BATTERIE USEE/ SYSTÉME D'ALIMENTATION DE BATTERIE À DOS 19

UTILISATION ET ENTRETIEN 20

MODELE 20

NOM DES PARTIES 20

SPECIFICATIONS 20

UTILISATIONS 21

MÉTHODE DE RECHARGE 21

IMPORTANT SAFETY INSTRUCTIONS

Read and understand all of the safety precautions, warnings and operating instructions in the instruction manual before operating or maintaining this battery charger.

Most accidents that result from battery charger operation and maintenance are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs, and by observing appropriate safety procedures.

Basic safety precautions are outlined in the "SAFETY" section of this instruction manual and in the sections which contain the operation and maintenance instructions.

Hazards that must be avoided to prevent bodily injury or machine damage are identified by WARNINGS on the battery charger and in this instruction manual.

NEVER use this battery charger in a manner that has not been specifically recommended by metabo HPT.

MEANINGS OF SIGNAL WORDS

WARNING indicates a potentially hazardous situations which, if ignored, could result in death or serious injury.

CAUTION indicates a potentially hazardous situations which, if not avoided, may result in minor or moderate injury, or may cause machine damage.

NOTE emphasizes essential information.

SAFETY

IMPORTANT SAFETY INSTRUCTIONS FOR BATTERY CHARGER

WARNING: Death or serious bodily injury could result from improper or unsafe use of battery chargers. To avoid these risks, follow these basic safety instructions:

READ ALL INSTRUCTIONS

1. SAVE THESE INSTRUCTIONS: This manual contains important safety and operating instructions for battery charger Model UC36YSL.
2. Before using battery charger, read all instructions and cautionary markings on (1) battery charger, (2) battery and back pack power supply, and (3) product using battery and back pack power supply.
3. CAUTION-To reduce risk of injury, charge only metabo HPT rechargeable battery types BSL14, BSL18, BSL25 and BSL36 series, and type BL36200. Other type of batteries may burst causing personal injury and damage.
4. Do not expose battery charger to rain or snow.
5. Use of an attachment not recommended or sold by the battery charger manufacturer may result in a risk of fire, electric shock, or injury to persons.
6. To reduce risk of damage to electric plug and cord, pull by plug battery charger.
7. Make sure cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.
8. An extension cord should not be used unless absolutely neces extension cord could result in a risk of fire and electric shock.

If extension cord must be used make sure:

a. That blades of extension cord are the same number, size, and shape as those of plug on battery charger:
b. That extension cord is properly wired and in good electrical condition; and
c. That wire size is large enough for AC ampere rating of battery charger as specified in Table 1.

Table 1 RECOMMENDED MINIMUM AWG SIZE FOR EXTENSION CORDS FOR BATTERY CHARGERS

AC Input rating amperes*		AWG size of cord
Equal to or greater than	but less than	Length of cord, feet (Meter)
		25 (7.5)	50 (15)	100 (30)	150 (45)
0	2	18	18	18	16
2	3	18	18	16	14
3	4	18	18	16	14

• If the input rating of a battery charger is given in watts rather than in amperes, the corresponding ampere rating is to be determined by dividing the watt voltage rating—for example:

$$ \frac {1 , 2 5 0 \text {w a t t s}}{1 2 5 \text {v o l t s}} = 1 0 \text {a m p e r e s} $$

1. Do not operate battery charger with damaged cord or plug-replace them immediately.
2. Do not operate battery charger if it has received a sharp blow, been dropped, or otherwise damaged in any way; take it to a quali ed serviceman.
3. Do not disassemble battery charger; take it to a qualified serviceman when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fire.
4. To reduce risk of electric shock, unplug charger from receptacle before maintenance or cleaning. Removing the battery or back pack power supply will not reduce this risk.
5. This battery charger might be attached to metabo HPT battery or back pack power supply operated tools as a standard accessory. In this case, please confirm Instruction Manual of the metabo HPT battery or back pack power supply operated tools before using the battery charger.

IMPORTANT SAFETY INSTRUCTIONS FOR USE OF THE BATTERY, BACK PACK POWER SUPPLY AND BATTERY CHARGER

You must charge the battery or back pack power supply before you can use the power tool. Before using the model UC36YSL battery charger, be sure to read all instructions and cautionary statements on it, the battery, the back pack power supply and in this manual.

CAUTION: USE ONLY metabo HPT BATTERY TYPES BSL14, BSL18, BSL25 AND BSL36 SERIES AND TYPE BL36200. OTHER TYPES OF BATTERIES MAY BURST AND CAUSE INJURY!

Follow these instructions to avoid the risk of injury:

WARNING: Improper use of the battery, back pack power supply or battery charger can lead to serious injury.

To avoid these injuries:

1. NEVER disassemble the battery and back pack power supply.
2. NEVER incinerate the battery and back pack power supply, even if it is damaged or is completely worn out. The battery and back pack power supply can explode in a fire.
3. NEVER short-circuit the battery and back pack power supply.
4. NEVER insert any objects into the battery charger's air vents. Electric shock or damage to the battery charger may result.
5. NEVER charge outdoors. Keep the battery and back pack power supply away from direct sunlight and use only where there is low humidity and good ventilation.
6. NEVER charge when the temperature is below 14^ (-10^) or above 104^ (40^) .

7. NEVER connect two battery chargers together.

8. NEVER insert foreign objects into the hole for the battery, adaptor of the back pack power supply or the battery charger.

9. NEVER use a booster transformer when charging.
10. NEVER use DC power to charge.
11. NEVER store the battery, back pack power supply or battery charger in places where the temperature may reach or exceed 104^ (40^) .
12. ALWAYS operate charger on standard household electrical power (120 volts). Using the charger on any other voltage may overheat and damage the charger.
13. ALWAYS wait at least 15 minutes between charges to avoid overheating the charger.
14. ALWAYS disconnect the power cord from its receptacle when the charger is not in use.

DISPOSAL OF THE EXHAUSTED BATTERY/BACK PACK POWER SUPPLY

WARNING:

Do not dispose of the exhausted battery/back pack power supply. The battery/back pack power supply may explode if either is incinerated. The product that you have purchased contains a rechargeable battery/back pack power supply. The battery/back pack power supply are recyclable. At the end of their useful life, under various state and local laws, it may be illegal to dispose of this battery/back pack power supply into the municipal waste stream. Check with your local solid waste officials for details in your area for recycling options or proper disposal.

SAVE THESE INSTRUCTIONS AND MAKE THEM AVAILABLE TO OTHER USERS AND OWNERS OF THIS TOOL!

The information contained in this instruction manual is designed to assist you in the safe operation and maintenance of the battery charger.

NEVER operate, or attempt any maintenance on the battery charger unless you have first read and understood all safety instructions contained in this manual.

Some illustrations in this instruction manual may show details or attachments that differ from those on your own battery charger.

MODEL

UC36YSL

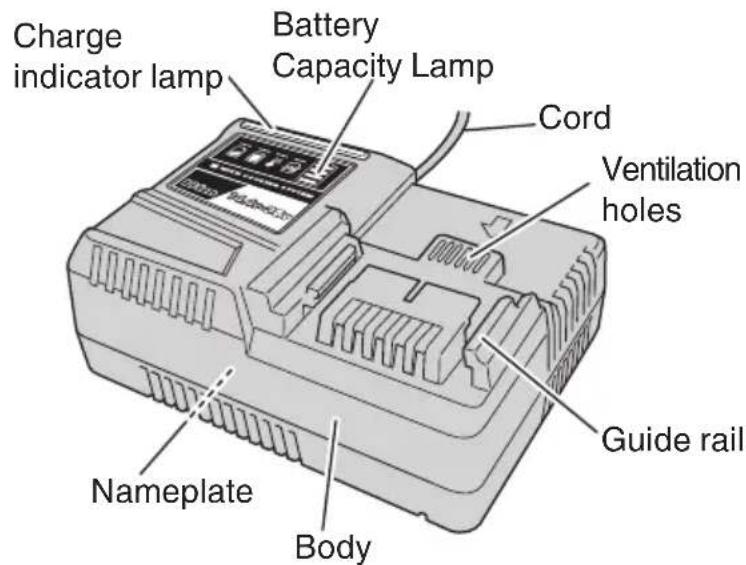

NAME OF PARTS

Fig. 1

SPECIFICATIONS

Model UC36YSL
Input power source Single phase:	AC 120 V 60 Hz
Charger	Charging voltage ..................... DC 14.4 - 36 V Charging current............ DC 6.0 A
Weight 2.0 lbs. (0.9 kg)

APPLICATIONS

For charging the metabo HPT batteries types BSL14, BSL18, BSL25 and BSL36 series and back pack power supply type BL36200.

CHARGING METHOD

NOTE: Before plugging into the receptacle, make sure the following points.

The power source voltage is stated on the nameplate.
The cord is not damaged.

WARNING: Do not charge at voltage higher than indicated on the nameplate. If charged at voltage higher than indicated on the nameplate, the charger will burn up.

1. Connect the battery charger's power cord to the receptacle.

When connecting the plug of the charger to a receptacle, the charge indicator lamp will blink in red. (At 1-second intervals).

WARNING: Do not use the electrical cord if damaged. Have it repaired immediately.

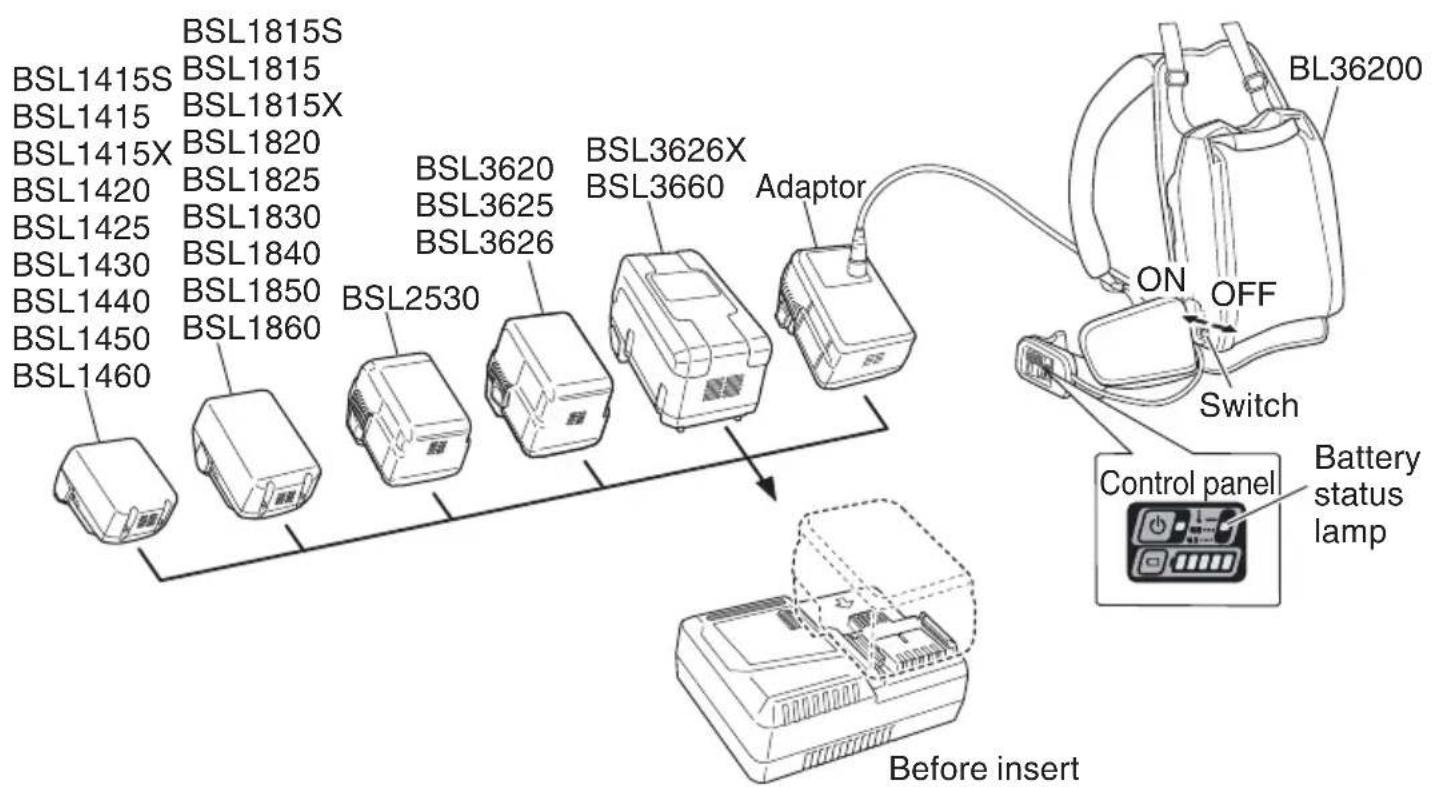

1. Insert the battery or adaptor of back pack power supply into the charger.

Firmly insert the battery into the charger as shown in Fig. 2.

Place the back pack power supply in a horizontal position and turn it on by the switch on the side. Firmly insert the adaptor into the charger until the line is visible, as shown in Fig. 2.

NOTE:

If the charge indicator lamp of the charger lights in red (high temperature standby status) when the adaptor is inserted into the charger, check that the battery status lamp on the back pack power supply control panel is lit in red.

If the battery status lamp is OFF, the back pack power supply switch may be turned OFF.

If the back pack power supply switch is turned OFF, disconnect the adaptor and turn on the switch before reinserting the adaptor.

Fig. 2

3. Charging

When inserting a battery or back pack power supply in the charger, the charge indicator lamp will light up continuously in blue.

When the battery or back pack power supply becomes fully recharged, the charge indicator lamp will light up continuously in green. (See Table 2)

(1) Charge indicator lamp indication

The indications of the charge indicator lamp will be as shown in Table 2, according to the condition of the charger, rechargeable battery or back pack power supply.

Table 2

Indications of the charge indicator lamp
Charge indicator lamp (RED / BLUE / GREEN / PURPLE)	Before charging	Blinks (RED)	Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds)	Plugged into power source
	While charging	Lights (BLUE)	Lights continuously
	Charging complete	Lights (GREEN)	Lights continuously (Continuous buzzer sound: about 6 seconds)
	Overheat standby	Blinks (RED)	Lights for 0.3 seconds. Does not light for 0.3 seconds. (off for 0.3 seconds)	Battery or back pack power supply overheated. Unable to charge. (Charging will commence when battery or back pack power supply cools)
	Charging impossible	Flickers (PURPLE)	Lights for 0.1 seconds. Does not light for 0.1 seconds. (off for 0.1 seconds) (Intermittent buzzer sound: about 2 seconds)	Malfunction in the battery or back pack power supply or the charger

NOTE:

When standby for cooling battery, UC36YSL cools the overheated battery by cooling fan.

(2) About the Battery Capacity Lamp

The charge capacity of a battery that is charging can be checked using the battery capacity indicator lamp. The lamp's indications for the battery capacity are as shown in Table 3.

Table 3

State of lamp Battery capacity

Blinks Battery capacity at less than 25%

Blinks Battery capacity at less than 50%

Blinks Battery capacity at less than 75%

Blinks Battery capacity at more than 75%

Lights Charging complete

NOTE

A short time after charging is complete, the battery capacity lamp turns off.

NOTE

• When the back pack power supply is being charged, the charger's battery capacity lamp does not light up.

Use the remaining capacity indicator lamp on the back pack power supply's switch panel as an estimate of how much charge time remains.

If the back pack power supply is being charged and the charge indicator lamp blinks red (high temperature standby status), allow the back pack power supply to cool for about 5 minutes or turn the switch on the side of it ON.

(3) Regarding the temperature of the rechargeable battery and back pack power supply. The temperature for rechargeable batteries and back pack power supply are as shown in the Table 4, and batteries and back pack power supply that have become hot should be cooled for a while before being recharged.

Table 4

Rechargeable batteries and back pack power supply	Temperature which the battery and back pack power supply can be recharged
BSL1415S, BSL1415, BSL1415X, BSL1420, BSL1425, BSL1430, BSL1440, BSL1450, BSL1460	14°F — 122°F (-10°C — 50°C)
BSL1815S, BSL1815, BSL1815X, BSL1820, BSL1825, BSL1830, BSL1840, BSL1850, BSL1860
BSL2530
BSL3620, BSL3625, BSL3626, BSL3626X, BSL3660
BL36200

(4) Regarding recharging time

Table 5 shows the recharging time required according to the battery and back pack power supply.

Table 5 Recharging time (approx.) at 20^

Battery capacity (Ah)		Battery voltage
		14.4 V 18	V 25.2 V 36 V
Li-ion Battery	1.3 Ah 15 min. 15 min. — —
	1.5 Ah 15 min. 15 min. — —
	2.0 Ah 20 min. 20 min. 20 min. 20 min. — —
	2.5 Ah 25 min. 25 min. — — 25 min.
	2	.	6	A	h — —
	3.0 Ah	30 min.	30 min.	30 min.	— —
	4.0 Ah 40 min. 40 min. — —
	5.0 Ah 50 min. 50 min. — —
	6.0 Ah 60 min. 60 min. — —			60 min.
Back pack power supply	21 Ah	—	—	—	3 hours

NOTE: The recharging time may vary according to the ambient temperature.

1. Disconnect battery charger from the receptacle.

CAUTION:

Do not pull the plug out of the receptacle by pulling on the cord.

Make sure to grasp the plug when removing from receptacle to avoid damaging cord.

1. Hold the charger firmly and pull out the battery or adaptor of back pack power supply.

NOTE:

Be sure to pull out the battery or adaptor of back pack power supply from the charger after use, and then keep it.
When the back pack power supply is not in use, switch it OFF.

Regarding electric discharge in case of new batteries or back pack power supplies, etc.

As the internal chemical substance of new batteries or back pack power supplies and batteries or back pack power supplies that have not been used for an extended period is not activated, the electric discharge might be low when using them the first and second time. This is a temporary phenomenon, and normal time required for recharging will be restored by recharging the batteries or back pack power supplies 2 - 3 times.

How to make the batteries and back pack power supplies perform longer.

(1) Recharge the batteries and back pack power supplies before they become completely exhausted.

When you feel that the power of the tool becomes weaker, stop using the tool and recharge its battery and back pack power supplies. If you continue to use the tool and exhaust the electric current, the battery and back pack power supplies may be damaged and its life will become shorter.

(2) Avoid recharging at high temperatures.

A rechargeable battery and back pack power supplies will be hot immediately after use. If such a battery and back pack power supplies are recharged immediately after use, its internal chemical substance will deteriorate, and the battery and back pack power supplies life will be shortened. Leave the battery and back pack power supplies for a while, and recharge them after they have cooled.

CAUTION:

• If the battery and back pack power supplies are charged while it is heated because it has been left for a long time in a location subject to direct sunlight or because the battery and back pack power supply have just been used, the charge indicator lamp of the charger lights for 0.3 seconds, does not light for 0.3 seconds (off for 0.3 seconds). In such a case, first let the battery cool, then start charging.
• When the charge indicator lamp flickers (at 0.2-second intervals), check for and take out any foreign objects in the charger's battery connector. If there are no foreign objects, it is probable that the battery, back pack power supply or charger is malfunctioning. Take it to your authorized Service Center.
• Since the built-in microcomputer takes about 3 seconds to confirm that the battery and back pack power supply being charged with UC36YSL is taken out, wait for a minimum of 3 seconds before reinserting it to continue charging. If the battery is reinserted within 3 seconds, the battery and back pack power supply may not be properly charged.
• Do not block the ventilation holes with cloth or other materials while charging.

BEFORE USE

Check the work area to make sure that it is clear of debris and clutter.

Clear the area of unnecessary personnel. Ensure that lighting and ventilation is adequate.

MAINTENANCE AND INSPECTION

CAUTION: Pull out battery or back pack power supply before doing any inspection or maintenance.

1. Check the screws

Loose screws are dangerous. Regularly inspect them and make sure they are tight.

CAUTION: Using this battery charger with loosened screws is extremely dangerous.

1. Check for dust

Dust may be removed with a soft cloth or a cloth dampened with soapy water.

Do not use bleach, chlorine, gasoline or thinner, for they may damage the plastics.

3. Service parts list

CAUTION:

Repair, modification and inspection of metabo HPT power tools must be carried out by a metabo HPT Authorized Service Center. This Parts List will be helpful if presented with the tool to the metabo HPT Authorized Service Center when requesting repair or other maintenance operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.

MODIFICATIONS

metabo HPT power tools are constantly being improved and modified to incorporate the latest technological advancements.

Accordingly, some parts (i.e. code numbers and/or design) may be changed without prior notice.

STORAGE

Storing in a place below 104^ (40^) and out of the reach of children.

SERVICE AND REPAIRS

All quality power tools will eventually require servicing or replacement of parts because of wear from normal use. To assure that only authorized replacement parts will be used, all service and repairs must be performed by a metabo HPT AUTHORIZED SERVICE CENTER, ONLY.

NOTE: Specifications are subject to change without any obligation on the part of the metabo HPT.
