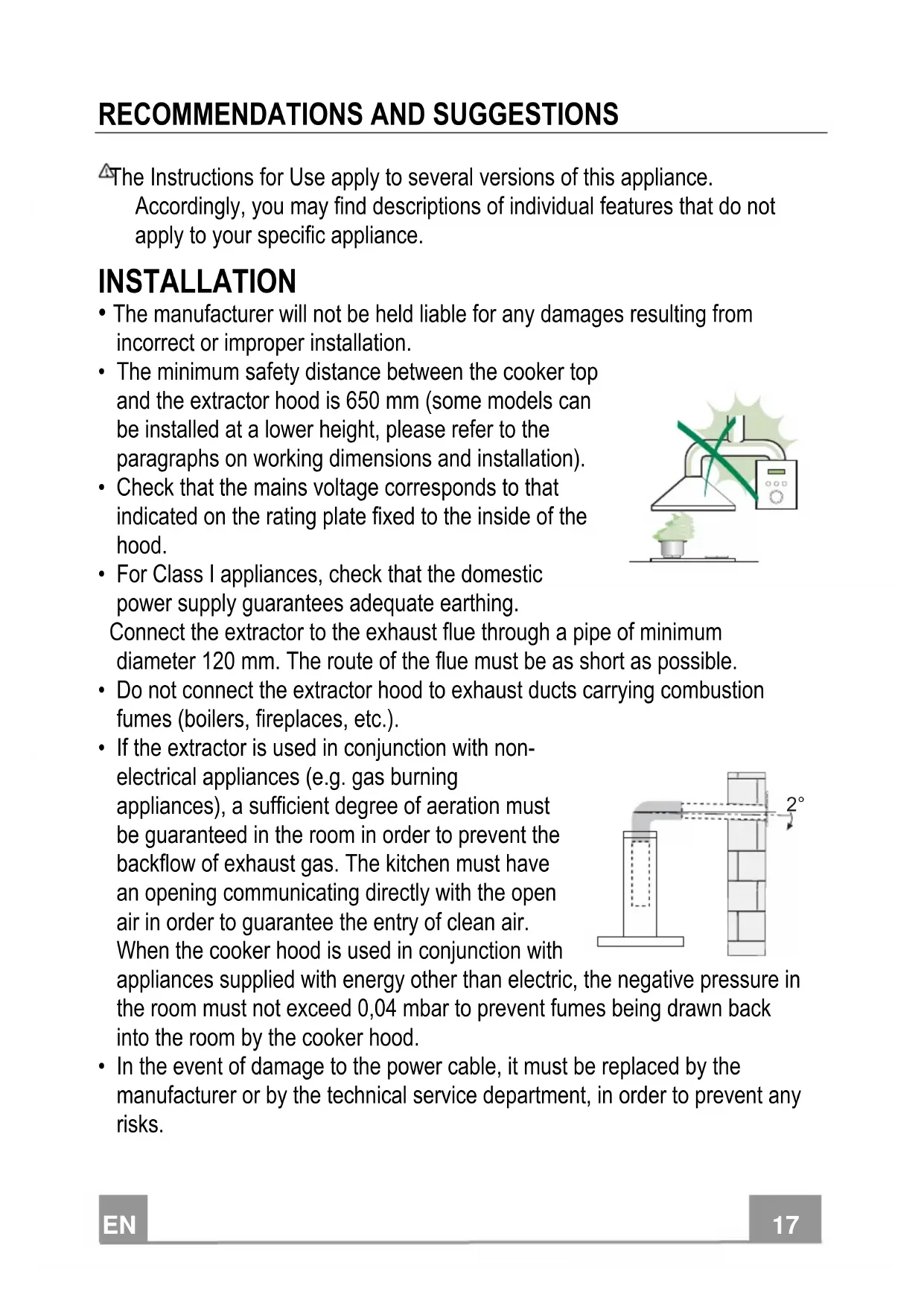

RECOMMENDATIONS AND SUGGESTIONS

The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance. INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.

• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).

• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.

• For Class I appliances, check that the domestic power supply guarantees adequate earthing. Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.

• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).

• If the extractor is used in conjunction with non- electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.

• In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks. 2°EN

• If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled.

• Use only screws and small parts in support of the hood.

Warning: Failure to install the screws or fixing device in accordance with

these instructions may result in electrical hazards.

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm. USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.

• Never use the hood for purposes other than for which it has been designed.

• Never leave high naked flames under the hood when it is in operation.

• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.

• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

• Do not flambè under the range hood; risk of fire.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.EN

• “CAUTION: Accessible parts may become hot when used with cooking appliances.” MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.

• Clean and/or replace the Filters after the specified time period (Fire hazard).

• The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.

• The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.

• Clean the hood using a damp cloth and a neutral liquid detergent. The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.EN

INSTALLATION Wall drilling and bracket fixing Due to the complexity in installing the hood, we suggest to do it minimum in two people

When installing the hood in recycling version it has to be taken into consideration that space re- maining between the hood and the upper limit (ceiling or self) is at least 8-10 cm. On the wall, draw:

• a Vertical line up to the ceiling or upper limit, at the centre of the area in which the hood is to be fitted;

• a Horizontal line at a minimum of 826 mm above the Cooker Top; .

• As indicated, mark a reference point at 100 mm to the right of the vertical reference line.

• Repeat this operation on the other side, checking that the two marks are level.

• As indicated, mark a reference point at 390 mm above the horizontal reference line, and at 100 mm to the right of the vertical reference line.

• Repeat this operation on the other side, checking that the two marks are level.

• Drill at the points marked, using a ø 10 mm drill bit.

• Insert the plugs 11 into the holes.

Wall drilling and bracket fixing

When installing the hood in recycling version it has to be taken into consideration that space re- maining between the hood and the upper limit (ceiling or self) is at least 8-10 cm.

• a Vertical line up to the ceiling or upper limit, at the centre of the area in which the hood is to be fitted;

• a Horizontal line at a minimum of 1050 mm above the Cooker Top; .

• As indicated, mark a reference point at 100 mm to the right of the vertical reference line.

• Repeat this operation on the other side, checking that the two marks are level.

• As indicated, mark a reference point at 390 mm above the horizontal reference line, and at 100 mm to the right of the vertical reference line.

• Repeat this operation on the other side, checking that the two marks are level.

• Drill at the points marked, using a ø 10 mm drill bit.

• Insert the plugs 11 into the holes.

Hood support mounting

• Lean the hood support 3 against the wall making sure that holes in the hood support correspond to those in the wall.

• Block the hood support to the wall using 4 12a (5 x 70) screws supplied with the hood.

• Before fastening the screws definitively make sure that the support is well-levelled. Only after this operation proceed with the definitive tightening of the screws.

12a Air outlet connection in the ducting version When installing the hood in ducting version, basing on the in- staller’s choice, a rigid or a flexible pipe with a ø 150 o 120 mm is used in order to connect the hood to the air outlet piping. The pipe connection can be made on the upper part or on the back side of the hood. AIR OUTLET ON THE BACK SIDE OF THE HOOD

• When drilling the air outlet hole in the wall proceed in accor- dance with the scheme in the paragraph concerning the wall drilling.

• In case the connection is made with a ø 120 mm pipe insert the reduction flange 9 on the hood body outlet.

• Fix the pipe with an adequate quantity of pipe clamps. This material is not supplied together with the hood.

• Remove the charcoal filter if present. AIR OUTLET ON THE UPPER PART OF THE HOOD

• In case the connection of the hood to the air outlet piping is made with a ø 150 mm pipe then use a rigid or a flexible pipe.

• In case the connection is made with a ø 120 mm pipe insert the reduction flange 9 on the hood body outlet.

• Fix the air outlet reduction 8c to the air outlet hole of the hood support with the screws supplied together with the hood.

• Connect the hood to the piping with a rigid or a flexible pipe.

• Fix the pipe with an adequate quantity of pipe clamps. This material is not supplied together with the hood.

ø 150 Hood body mounting Ducting version

• In case the air outlet connection on the upper part of the hood has been chosen it will be necessary to remove the pre-cut piece.

• Lean the hood body on the support and fix it laterally with the 4 12b screws.

• Cover the screw seats with the plugs 13 supplied with the hood. Recycling version

• Remove the pre-cut piece.

• Lean the hood body on the support and fix it laterally with the 4 12b screws.

• Cover the screw seats with the plugs 13 supplied with the hood.

• Place the directioned grid 8 on the pipe and make sure that it is correctly installed.

• Fix the directioned grid 8 with the screws 12e supplied to- gether with the hood.

• Make sure that the charcoal filters are present.EN

• Connect the hood to the mains through a twopole switch having a contact gap of at least 3 mm.

• Open the lighting unit by pulling on the notch.

• Remove the filters one at a time by pushing them towards the back of the group and pulling down at the same time.

• Being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan.

• Connect the control connector Cmd.

• Connect the Spotlights connector Lux to the socket provided behind the lighting unit cover.

• Replace the filters, make sure that the handle is visible on the outside, and the lighting unit.

Control panel Button Function Display A Turns the suction motor on and off at speed one. Displays the set speed B Decreases the working speed. Displays the set speed C Increases the working speed. Displays the set speed D Activate intensive speed from any other speed, including motor off. This speed is set to operate for 6 minutes, after which the system returns to the speed that was set before. Suitable to deal with maximum levels of cooking fumes. Displays HI and the time remaining once very second. Press and hold the button for approximately 5 seconds, with all the loads turned off (Motor and Lights), to turn the Activated Charcoal Filter alarm On and Off. FC+Punto (2 flashes)–Alarm On. FC+Punto (1 flash)–Alarm Off. E 24H function Turns the suction motor on at speed one and effects one 10 minute extraction every hour. Displays 24 and the spot at the bottom right flashes once every second, while the motor is running. It is disabled by pressing the button. When the filters alarm is triggered, the alarm can be reset by pressing and holding this button for approximately 3 seconds. These indications are only visible when the motor is turned off. FF flashes three times.

When the procedure terminates, the indication shown previously turns off: FG indicates the need to wash the metal grease filters. The alarm is triggered after the Hood has been in operation for 100 working hours. FC indicates the need to change the activated charcoal filters, and also to wash the metal grease filters. The alarm is triggered after the Hood has been in operation for 200 working hours. F Delay function Activate automatic switch-off with a 30’ delay. Suitable to complete elimination of residual odours. Can be activated from any position, and is disabled by pressing the button or turning the motor off. Displays the operating speed and the spot at the bottom right flashes once a second. Press and hold the button for approximately 5 seconds, with all the loads turned off (Motor and Lights), to turn the Remote Control On and Off. IR+Punto (2 flashes)–Alarm On. IR+Punto (1 flash)–Alarm Off. G Turns the lighting system on and off at maximum intensity. H Turns the Courtesy Lighting on and off.EN

MAINTENANCE REMOTE CONTROL (OPTIONAL) The appliance can be controlled using a remote control powered by a 1.5 V carbon-zinc alkaline batteries of the standard LR03- AAA type (not included).

• Do not place the remote control near to heat sources.

• Used batteries must be disposed of in the proper manner. Cleaning the Comfort Panels

• Pull the Comfort Panel to open it.

• Disconnect the panel from the hood canopy by sliding the fix- ing pin lever.

• The comfort panel must never be washed in a dishwasher.

• Clean the outside by using a damp cloth and neutral liquid de- tergent.

• Clean the inside as well by using a damp cloth and neutral de- tergent; do not use wet cloths or sponges, or jets of water; do not use abrasive substances.

• When the above operation has been completed, hook the panel back to the hood canopy and close it by turning the knob in the opposite direction. Metal grease filters They can be washed in the dishwasher, and need to be cleaned whenever the FG sign appears on the display or at least once every 2 months use, or more frequently if use is particularly intensive. Resetting the alarm signal

• Turn the Lights and the Suction motor off, then disable the 24h function, if enabled.

• Press button E (see the paragraph on Use). Cleaning the Filters

• Open the Comfort panels by pulling on the recess.

• Remove the Filters one at a time, pushing them towards the back of the unit and at the same time pulling downward.

• Wash the Filters without bending them, and leave them to dry completely before replacing. (If the surface of the filter changes colour as time goes by, this will have absolutely no effect on the efficiency of the filter itself.)

• Replace, taking care to ensure that the handle faces forwards.

Activated Charcoal Filter (Recirculation Version) It cannot be washed or regenerated, and must be changed when the FC symbol on the display appears, or at least once every 4 months. The Alarm signal, if it has been activated, only appears when the Suction motor is turned on. Activating the alarm signal

• In Recirculation Version Hoods, the Filter Saturation Alarm must be activated on installation or at a later date.

• Turn the Lights and the Suction Motor off.

• Press D and hold for approximately 5 Seconds:

Resetting the alarm signal

• Turn the Lights and the Suction motor off, then disable the 24h function, if enabled.

• Press button E (see the paragraph on Use). Changing the Filter

• Open the Comfort panels by pulling on the recess.

• Remove the Metal grease filters.

• Remove the saturated charcoal filter by releasing the fixing hooks.

• Fit the new filter and fasten it in its correct position.

• Replace the Metal grease filters.

• Close the Comfort panels.

Warning: This appliance is fitted with a white LED lamp classed

as 1M according to EN 60825-1: 1994 + A1:2002 + A2:2001 standards; maximum optical power emitted @439nm: 7µW. Do not look directly at the light through optical devices (binoculars, magnifying glasses…).

• For replacement contact technical support. ("To purchase con- tact technical support")FR
