USER MANUAL Precisionist 98B267 Bulova

Thank you for purchasing your new Bulova timepiece. Since 1875, Bulova has been committed to providing the right quality and style for a rapidly changing world, delivering exceptional design enhanced by superior technology. Your new Bulova has been precision-engineered and crafted of the finest materials. The following pages provide instructions on how to set and care for your new watch to ensure years of trouble-free timekeeping.

• Bulova and the tuning fork symbol are registered trademarks of Bulova Corporation and its Subsidiaries.

SETTING WATCHES HAVING 2 OR 3 HANDS ONLY (TWO POSITION CROWN).

Pull out the setting crown to position #2. Set the hands on time by turning the crown. Push the crown back in to position #1.

SETTING WATCHES WITH A PRINTED CALENDAR (3 POSITION CROWNS)

IN POSITION #1 OUT POSITION #3 1. Pull out the setting crown to position #3. Move the hands forward by turning the crown. Observe the date as the hands move past 12 o'clock. When the date changes it is midnight on the watch. Set the hands to correct A.M. or P.M. time. Push the crown back in to position #1 INTERMEDIATE 2. Pull the crown out to position #2 for calendar quick setting. The second hand will keep moving. Turn the crown in one direction to adjust the date to the desired number. Turn the crown in the oppo

site direction if your watch has a day of the week display. After setting, push the crown back in to position #1.

NOTE - Do NOT make this day/date adjustment when the time on the watch indicates between 9 P.M. and 4 A.M. as it will become incorrect due to the engagement of the changing mechanism. It would then become necessary to readjust the calendar.

OPERATING THE CHRONOGRAPH (CHRONO)

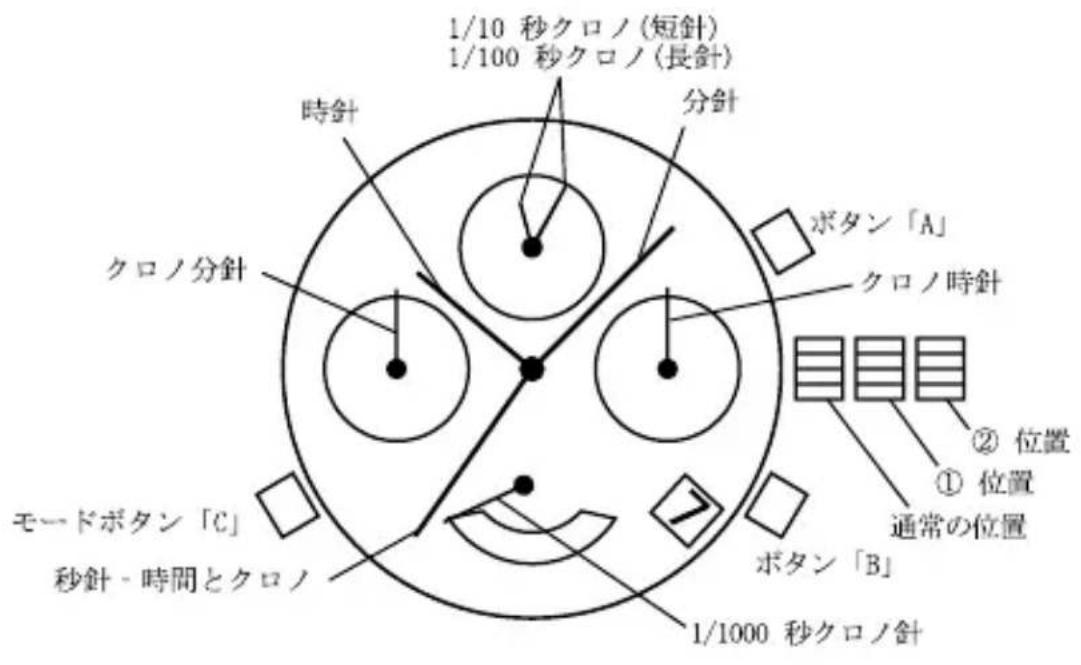

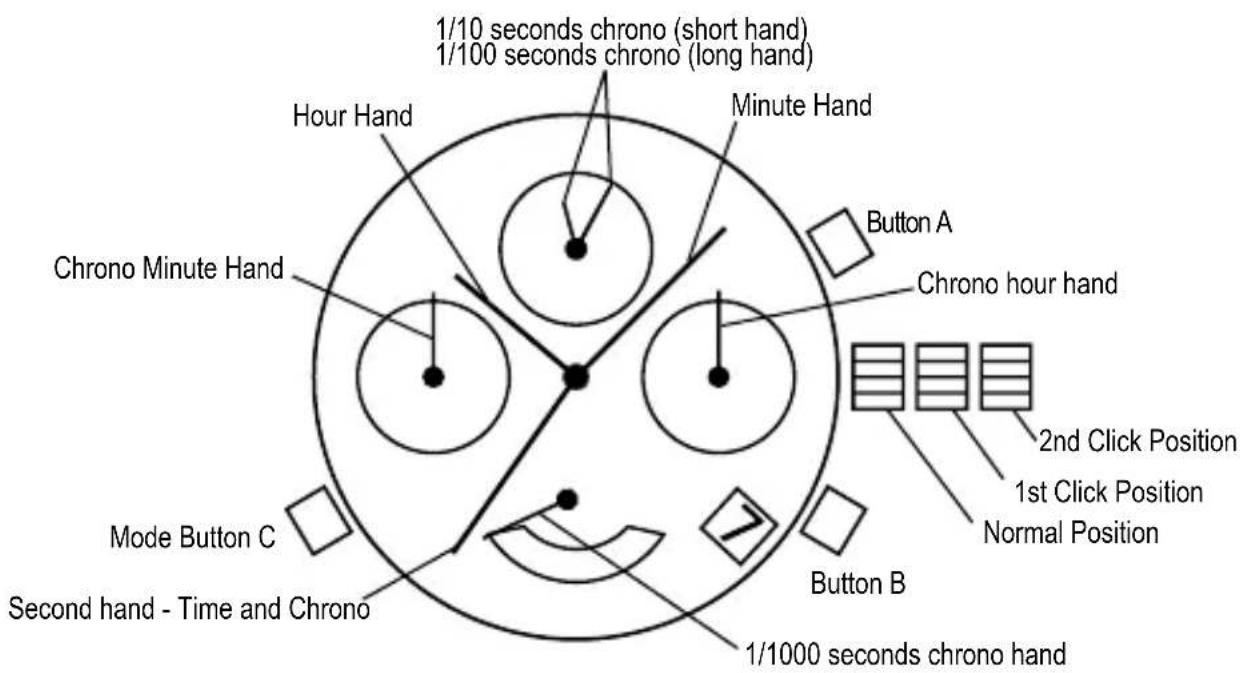

PLEASE REFER TO THE PRECEDING DIAGRAM WHEN READING THE FOLLOWING INSTRUCTIONS.

A) SETTING THE TIME

1. Pull the crown out to the second click position
2. Turn the crown clockwise to set the hour and minute hands.
3. The date changes at approximately midnight, so be sure to set the hands to the correct A.M. or P.M. time.
4. Push the crown back in to the normal position.

1. Pull the crown out to the first click position.
2. Turn the crown clockwise to quickly correct the date. Do not use this function between the hours of 9 P.M. and 3 A.M. because the date changing mechanism is engaged and the date correction will not be accurate.
3. Push the crown back in to the normal position.

C) OPERATING THE CHRONOGRAPH (CHRONO)

1. Push the Mode Button "C" to change the mode of the watch to chronograph timing. The long second hand will move slowly to the 12 o'clock starting position. Unlike the smooth operation of the second hand during normal timing, this hand will move in one second increments during chrono timing.
2. Check that the other chrono hands are in their correct zero starting position.

If not, go directly to section "E" below to reset the hands correctly, then come back to this instruction. If yes, then you may use the chronograph as follows.

1. Push button "A" to start the chronograph timing. Push it again to stop the Chronograph. The maximum timing is 12 hours.

2. You may "ADD" times together by starting and stopping the chronograph repeatedly.

3. After timing is completed, push button "B" to return the chronograph hands to the starting position.
4. To return to normal time mode, push Mode button "C". The second hand will resume keeping the previously set time.

D) READING THE CHRONOGRAPH

1. When you stop the Chronograph timing by pushing button "A", the Chronograph hands will indicate the final reading in hours, minutes, seconds, 1/10 seconds, 1/100 seconds and 1/1000 seconds.
2. To read the final timing, use the last number located BEFORE the hand position of each hand. The exceptions are the Chrono seconds and the 1/1000 seconds which will read at the exact mark on its respective dial.

SAMPLE OF THE CHRONOGRAPH READING:

Hand

Position Reading

Chrono hours Between 4 and 5 4 hours

Chrono minutes Between 3 and 4 3 minutes

Chrono seconds at 12 12 seconds

Chrono 1/10 seconds* Between 6 and 7 6/10 of a second

Chrono 1/100 seconds* Between 1 and 2 1/100 seconds

Chrono 1/1000 seconds** at "04" position 4/1000 seconds

• The 1/10 and 1/100 chrono hands move for 30 seconds only at the beginning of the timing. After 30 seconds they will stop and wait for the end of the timing. They will then indicate the elapsed time.

** The 1/1000 chrono hand will not move to indicate the reading until the end of the timing. For the above sample hand positions, the exact chrono reading is:

4 hours, 3 minutes and 12.614 seconds.

E) CORRECTING THE CHRONO HANDS POSITION IF NECESSARY

If the chrono hand positions are not correctly located at the zero starting point (12 o'clock for all chrono hands except for the 1/1000 retrograde hand which should start at the "000" mark), then proceed as follows:

1. Pull the crown out to the first click position. Push and hold button "A" to correct the 1/10 chrono hand and the 1/100 hand to the zero or 12 o'clock position. There will be a delay of about 3 seconds before the hands start to move.
   NOTE: These hands are permanently synchronized so that one revolution of the 1/100 hand equals one tenth of a revolution of the 1/10 second hand.
2. Pull the crown out to the second click position. Push and hold button "A" to correct the 1/1000 retrograde hand to the "000" starting position. There will be a 3 second delay as above
3. With the crown still in the second click position, Push and hold button "B" to correct the chrono second hand to the zero or 12 o'clock position. There will be a 3 second delay before the hand moves.
4. Push the crown back in to the normal position.
5. After the necessary corrections, go back to section "C") for chrono operation.

HOW TO USE THE TACHYMETER (ON SOME MODELS)

The Chrono second hand only is used for this function.

Step 1. Push and release button "A", precisely at the start of a measured kilometer (mile).
Step 2. At the end of the measured kilometer (mile), push and release button "A" again
Step 3. The Hand position, on the numbered scale at the dial perimeter, indicates your speed in kilometers (miles) per hour.
Step 4. Reset by pushing and releasing button "B".

HOW TO USE THE ELAPSED TIME INDICATOR

If your watch is equipped with a rotatable outer dial with one-minute graduations, this can be used in various ways to check elapsed time. For example if a diver has a 30-minute air supply, he can set the outer ring so that the triangle is in line with the minute hand when he submerges. The minute hand will then indicate on the outer ring the length of time that the diver has been under water.

SCREW-DOWN CROWN

If your watch includes a screw-down crown, you have additional assurance that it will remain watertight. To make the crown operational, it must be turned toward you until the threads are disengaged. Then, instructions for setting must be followed. To reseal the crown, press in until threads engage. Turn away from you until tight.

ABOUT THE POWER CELL

Your new Quartz Watch has a fresh power cell designed to provide maximum reliability for approximately a year under normal use. If the cell is not replaced before it is exhausted, the watch will simply stop. The mechanism should not be harmed in any manner. However, when the power cell becomes exhausted, it should be removed at your earliest convenience to diminish the possibility of leakage. Never store your watch with an exhausted power cell in it. The watch should be brought to an authorized Bulova dealer for replacement of the power cell. For best performance, the proper power cell should be used.

Note: When the crown is in the "OUT" position, the motor and hands stop. Only the quartz crystal continues to vibrate, using very little power. If the watch is to be stored for a length of time, it is recommended that the crown be left in the "OUT" position to prolong battery life. This does not apply to models with two hands only.

DEEP WATER LIMITED WARRANTY

Supplementary and subject to all the provisions and duration of the basic Bulova watch limited warranty, deep sea watches are further warranted not to leak when submerged in water to the depth shown on the dial, provided crystal and crown remain intact and the case has been unopened. In order to assure the preservation of your watch's water resistance, particularly in those instances where the element of safety is involved, have it checked occasionally by a competent watch technician and serviced or repaired, if necessary.

In addition, the wearer should avoid manipulation of the crown when submerged.

WATER RESISTANCE

Watch models marked only "Water Resistant" on the case back, without additional depth markings are not to be used for swimming. For swimming, models that have the additional marking of "50m," "100m" or "200m" are recommended.

300 METER WATER RESISTANCE (MARKED 300m)

This product is recommended for recreational use only. The depth in meters shown on the watch does not indicate the diving depth of the watch, but indicates the air pressure used in the water resistance testing of the product in accordance with industry standards.

BULOVA LIMITED 3-YEAR WARRANTY: Your new Bulova timepiece is warranted only to the original owner by Bulova for 3 years from date of purchase. The warranty only comes into force if the warranty card is fully and correctly completed by an Authorized Bulova dealer at the time of purchase and/or you provide original proof of purchase. Coverage: The warranty covers parts of the watch that have failed due to original defects in materials or workmanship under normal use, or, Bulova at its option, will replace the watch with a comparable watch. This warranty does not cover: 1. Periodic Service and Maintenance for Mechanical Bulova watches; 2. Damage resulting from improper handling, abnormal use, alteration, negligence or lack of care of the watch; 3. Normal wear and tear and aging including deterioration and scratches to the watch finish (case, bracelet, crown or crystal); 4. The battery, crystal or strap; 5. Water damage if the model is not marked "water-resistant" and moisture or water damage to watch which are improperly resealed after opening of the case; 6. Improperly or incorrectly performed Service and Maintenance, repairs or servicing voids the warranty. Any Service and Maintenance, repairs or servicing which requires opening of the case, must be performed by a properly qualified technician, preferably an Authorized Bulova Dealer or by Bulova.

All implied warranties, including any implied warranty of merchantability are limited to the duration of the expressed limited warranty. Bulova is not liable for any consequential or incidental damages and any recovery may not exceed the amount paid for the watch. This warranty gives you specific legal rights; you may also have other rights which vary from jurisdiction to jurisdiction, so the limitations in this warranty may not apply to you.

IF SERVICE IS REQUIRED:

Bulova timepieces have been engineered to provide years of use with minimal need for service. In the unlikely event that service is needed, first have the battery tested to be sure it still has sufficient power. If this does not correct the problem, depending on the place of purchase of your timepiece, follow the appropriate repair instructions below.

Packaging and Mailing Instructions: Send the watch in a durable box with protective wrapping to protect against shock, with postage prepaid and insured for the full replacement value to the address listed below depending on your location. The watch must be presented along with a duly completed warranty card and/or copy of your original proof of purchase. Include information regarding the service or repair requested with your name, address, phone number and email address. For the safety of your watch do not include the words "Bulova" or "Watch" on the outside of the package. Do not send in the original box. To download the Service Form to send in with your watch, look in the Service Center section of our web site www.bulova.com.

POST-WARRANTY SERVICE:

Bulova's staff of watchmakers are expert at repairing and restoring Bulova timepieces. For repairs outside of warranty, an estimate detailing such cost will be mailed or emailed to you prior to proceeding with repair. Chargeable work will not be commenced until Bulova has received your approval. You may authorize Bulova to proceed with the repair by mailing in a check, cash or money order. In the U.S. and CANADA a $12.00 charge will be assessed to cover evaluation, postage and handling for post warranty repair estimates that are refused and for repairs not covered under the warranty terms.

SERVICE ADDRESSES:

FOR WATCHES SOLD IN THE U.S. ONLY:

Send to: Service Department, 26-15 Brooklyn Queens Expy, Woodside, New York 11377 FOR WATCHES SOLD IN CANADA ONLY:

Send to: Service Department, 39 Casebridge Court, Toronto, Ontario, Canada M1B 5N4 FOR WATCHES SOLD IN COUNTRIES OTHER THAN THE U.S. OR CANADA:

Departamento de Servicio, Avenida Insurgentes Sur 730 Piso 14 Col. Del Valle Del. Benito Juarez, C.P. 03100 Mexico, D.F.

Tel: [phone]

United Kingdom Service Centre, 8 Woodshots Meadow, Croxley Green Business Park, Watford, Hertfordshire WD18 8YU

Please check our website www.bulova.com for operating instructions in additional languages and for global service center locations.
