Product type	Digital watch
Brand	Calypso
Model	K5617 Tweens
Display	Hours, minutes, month, date, day of week, PM
Backlight	Electroluminescent (EL)
Alarm	Yes, with audible signal
Stopwatch	Yes, with lap measurement function
Timer	Yes
Hourly chime	Yes
Time format	12h/24h switchable
Second time zone	Yes
Accuracy	±30 seconds per month at 25 °C
Operating temperature	10 °C to 40 °C
Power source	Button cell battery (CR2032 or equivalent)
Water resistance	Not suitable for swimming or diving
Case material	Resin or plastic
Glass	Mineral
Approximate weight	50 g
Approximate diameter	40 mm
Care	Soft cloth and clean water, avoid chemicals
Reparability	Do not open the case yourself, entrust to a watchmaker
Available colors	Multiple colors (Tweens range)

Frequently Asked Questions - K5617 Tweens Calypso

How to set the time on the Calypso K5617 Tweens watch?

Use the SET button to enter setting mode. Press repeatedly to select parameters (hour, minute, month, date) and use the MODE button to adjust.

How to turn on the backlight?

Press the LIGHT button to activate the electroluminescent light. The brightness decreases over time.

How to use the stopwatch?

Press MODE to switch to stopwatch mode. Use START/STOP to start/stop and SET to record a lap.

Is the watch waterproof?

No, it is not designed for swimming or diving. Avoid pressing the buttons underwater and remove it before swimming.

How to change the battery?

The battery must be replaced by a professional. Do not attempt to open the case yourself.

What to do if condensation appears under the glass?

Have the watch checked immediately by a watchmaker. Moisture can damage the electronic components.

How to clean the watch?

Wipe it with a soft cloth and clean water. Do not use soap or chemicals.

How to set the alarm?

In setting mode, select the alarm with the SET button, then adjust the time with MODE. Activate it by pressing START/STOP.

How to switch between 12h and 24h format?

Press and hold the SET button until the display flashes, then press MODE to change the format.

How to use the second time zone?

Press MODE repeatedly until the second time zone is displayed. Use SET to set it like the main time.

USER MANUAL K5617 Tweens Calypso

3. HOW TO DISPLAY CALENDAR

eannnnnne

NORMAL TIME CHRONOGRAPH ALARM

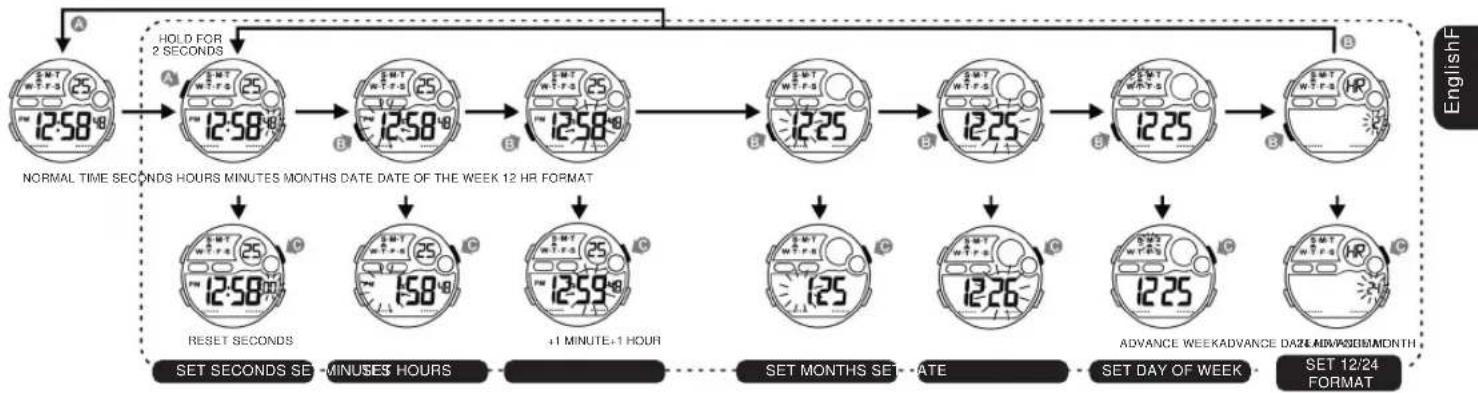

4. HOW TO SET NORMAL TIME

e

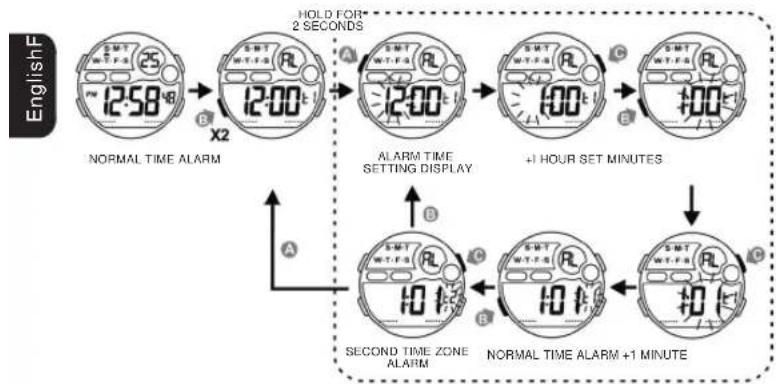

5. HOW TO SET ALARM TIME

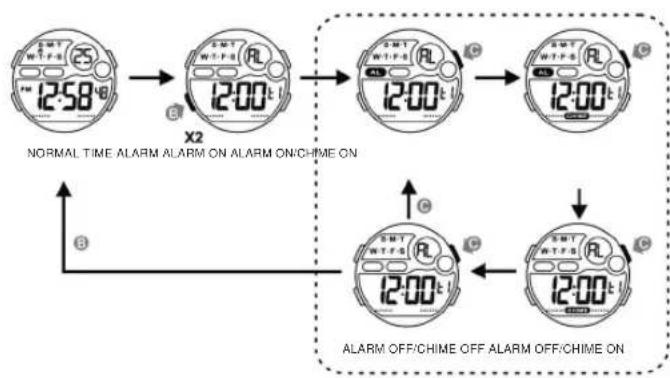

6. HOW TO USE ALARM AND CHIME DISPLAY

22

23

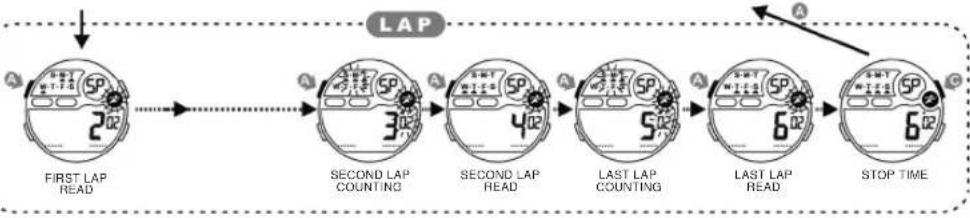

7. HOW TO USE THE CHRONOGRAPH

eannnnnne

NORMAL TIME CHRONOGRAPH START RUNNING STOP RESET NORMAL TIME

RONCOGRAPH START RUNNING STOP RESET NORMAL TIME

RT RUNNING STOP RESET NORMAL TIME

BEFORE 30 MINUTES

1/100 SECONDS
1/10 SECONDS
SECONDS H

SECONDS MINUTES

24

Ennnnne

25

8. HOW TO USE TIMER

SET TIMER

IOLD FOR SECONDS

Before the setting 10 seconds, there is an alarm (B) per second

More the setting 10 seconds, is a 1:1AM (B) per second.
By pressing C button to start and stop

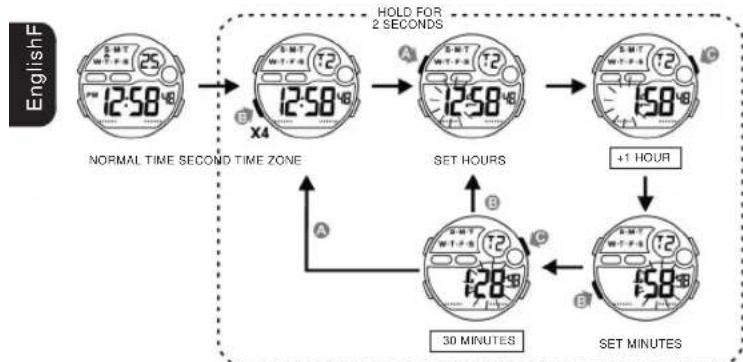

9. HOW TO SET SECOND TIME ZONE

10. HOW TO USE EL LIGHT

28

NOTE:

1) The backlight of the watch employs an electro-luminescent (EL) light, watch tends to lose illuminating power after very long use.
2) The illumination provided by backlight may be hard to see when viewed under direct sunlight.

29

11. CARE OF YOUR WATCH

1) This watch contains precise electronic components. Never attempt to open the case or remove the back cover.
2) Do not operate push buttons below the surface of the water when swimming or diving.
3) Should water or condensation appear in the watch, immediately have the watch checked. Water can corrode electronic parts inside the case.
4) Avoid severing impact: The watch is designed to with stand impact under normal use. It is inadvisable to subject it to severe impact of rough usage or drops onto hard surfaces.
5) Avoid exposing the watch to temperature extremes.
6) Clean the watch with a soft cloth and clean water only. Avoid using chemicals, especially soap.
7) Keep your watch away from the conditions of strong electric field and static electricity.

12. FEATURES AND SPECIFICATIONS

1) Standard display mode: Hour, minutes, seconds, month, day of week.
2)Function:

• Month, date AM/PM and Electro-Luminiscent light.ll
• Alarm function with buzzer signal output.
  Chronograph function with lap operation.
• Hourly chime.II
  12/24 hour format switch option.1
  Timer.1
  Second time zone.

3) Accuracy at normal temperature (25^)± 30 seconds a month.
4) Normal operating temperature range: 10^ - 40^

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch making products must be selectively collected for processing. You may therefore

dispose of your quartz watch making products at any of our retail outlets or any other authorized collection point. The selective collection, processing, rating and recycling of these products helps contribute to safeguarding the environment and protecting our health.

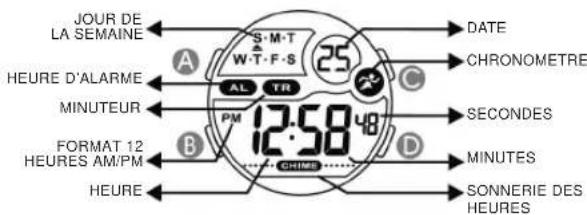

1. AFFICHAGE NORMALE ET BOUTON D'UTILISATION

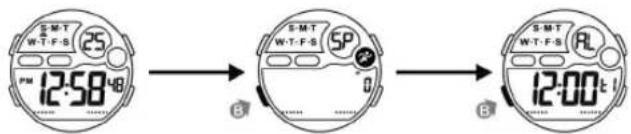

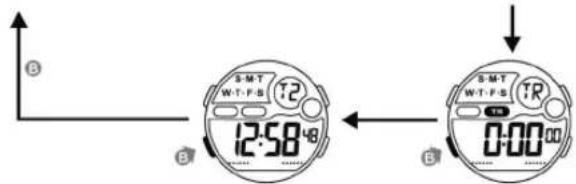

2.COMMENT CHANGER LE MODE D'AFFICHAGE

3.COMMENT AFFICHER LE MOIS, LA DATE

HEURE NORMALE CHRONOMETRE ALARME

DEUXIEME ZONE D'HEURE MINUTEUR

34

HEURE NORMALE MOIS DATE

35

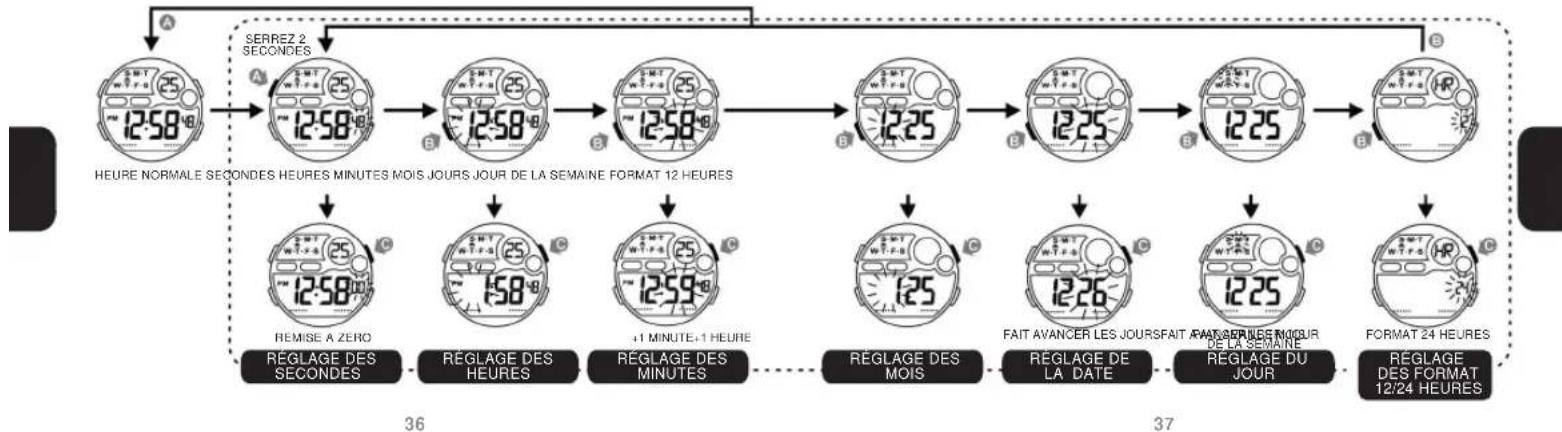

4.COMMENT REGLER L'HEURE NORMALE

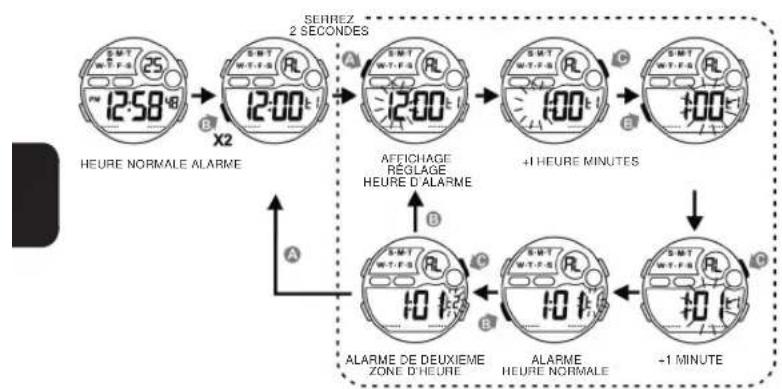

5.COMMENT RÉGLER L'ALARME

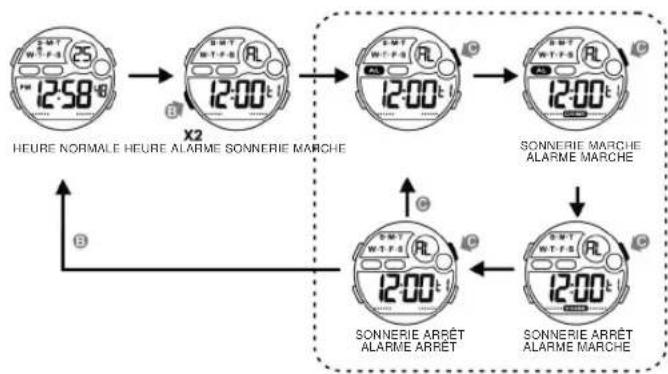

6. COMMENT UTILISER L'AFFICHAGE ALARME ET CARILLON

38

39

7.COMMENT UTILISER LE CHRONOMETRE

AVANT 30 MINUTES

30 MINUTES

SECONDES MINUTES

HEURES

IRE 1TEMPS INTERMEDIAIRE

FONCTION TEMPS INTERMEDIAIRE

20TEMPS INTERMEDIARE COMPTE

LIRE 2: TEMPS INTERMEDIARY

DERINIER CHRONIC LIPID COMPRETE

DERINER CHRONOMETRE

INDICATION CHRONOMETRE

8. POUR UTILISER LE MINUTEUR DU COMPTE A REBOURS

POUR REGLER LE MINUTEUR DE COMPTE A REBOURS

HEURE NORMALE MINUTEUR RÉGLAGE DES HEURES +1 HEURE RÉGLAGE DES MINUTES -1 MINUTE RÉGLAGE DES SECONDES -1 SECONDE

MINUTEURDEMARRAGE

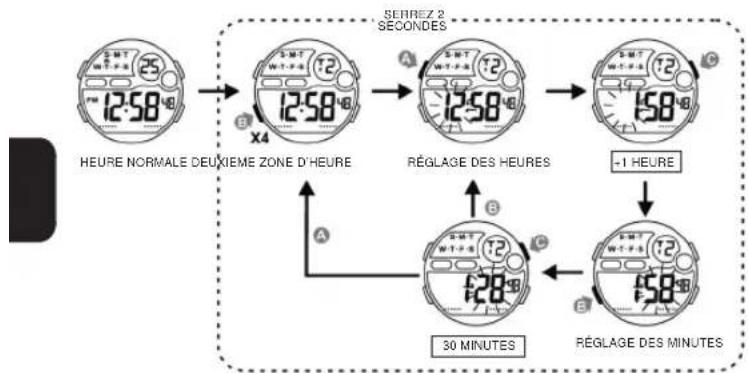

9.COMMENT REGLER L'HEURE D'UNE DEUXIEME ZONE

10. COMMENT ALLUMER LA LUMIERÉ ELECTRO-LUMINISCENTE

44

NOTE:
