USER MANUAL BFG551 DENVER

www.denver-electronics.com www.facebook.com/denverelectronics ENGLISH If the user manual is not printed in your local language, then please enter our website to see if it is found online under the model you have. The website address is: www.denver-electronics.comENG-1

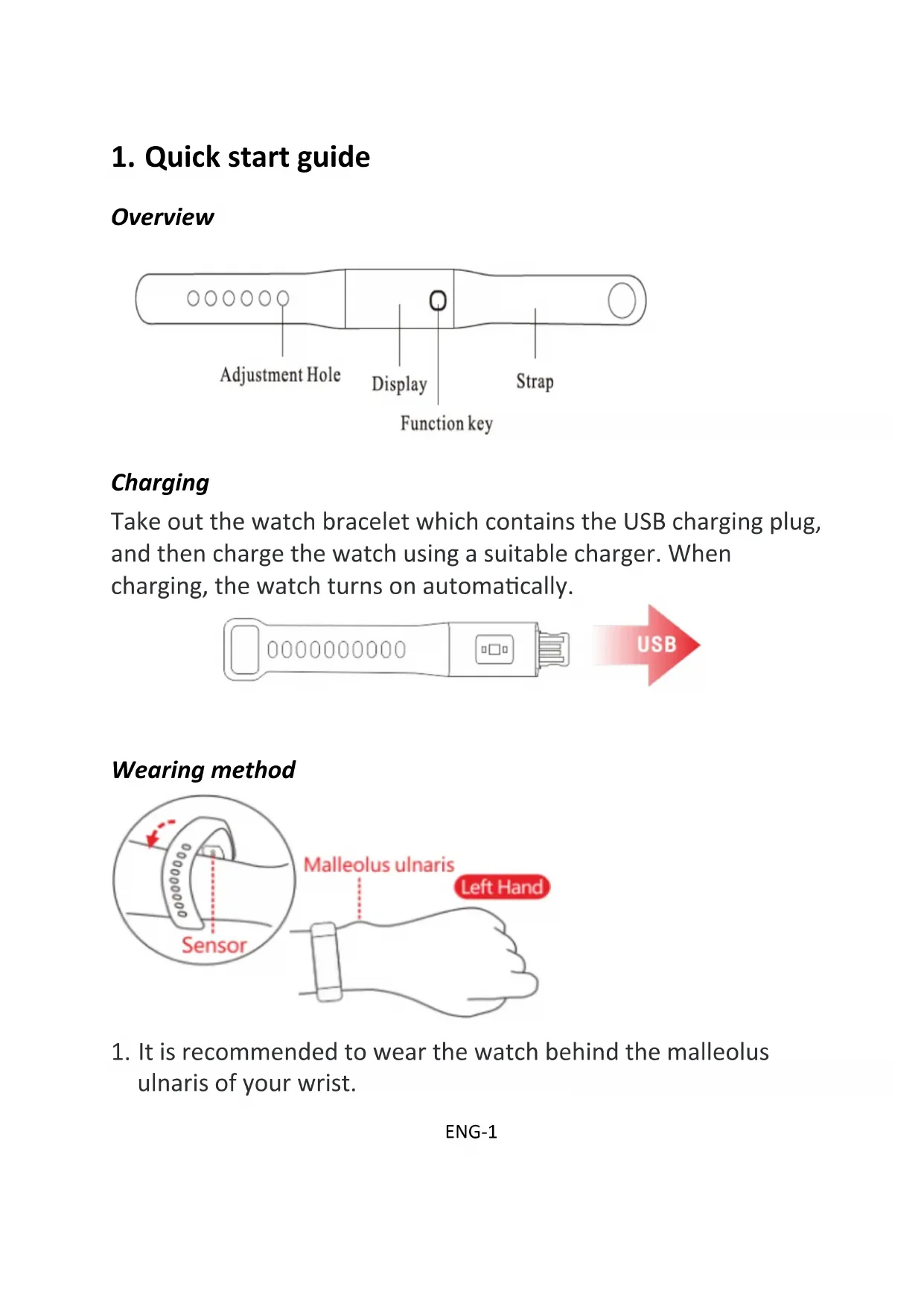

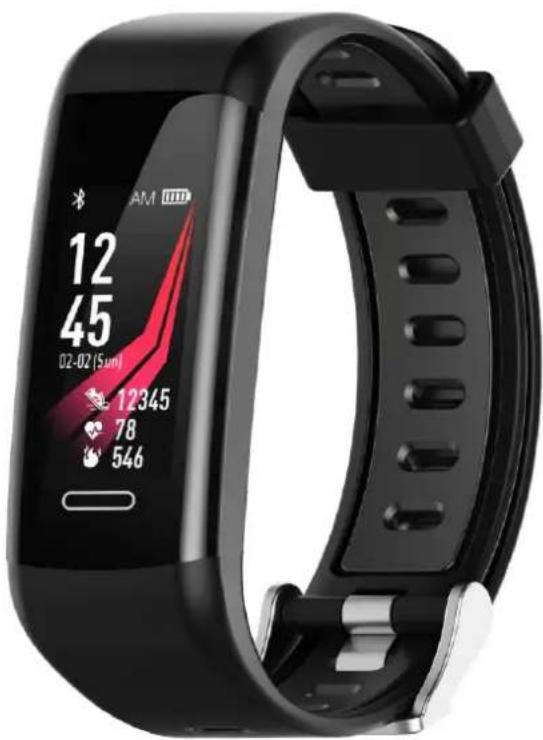

1. Quick start guide

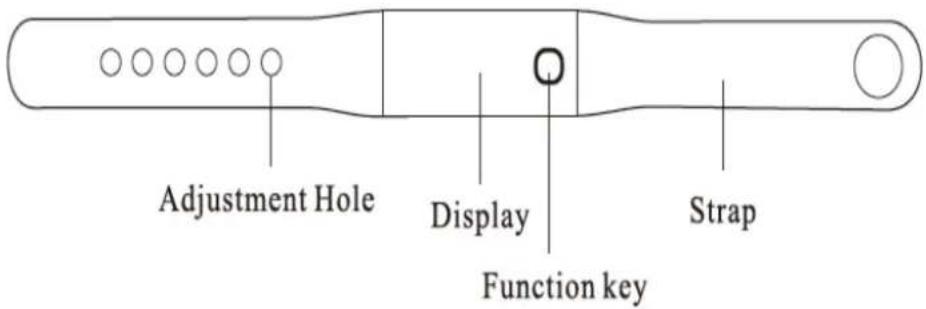

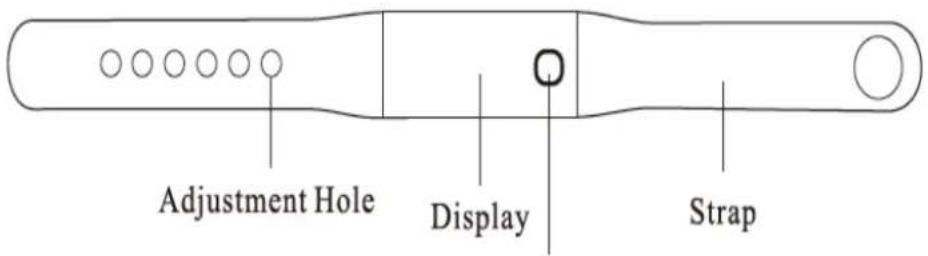

Overview Charging Take out the watch bracelet which contains the USB charging plug, and then charge the watch using a suitable charger. When charging, the watch turns on automatically.

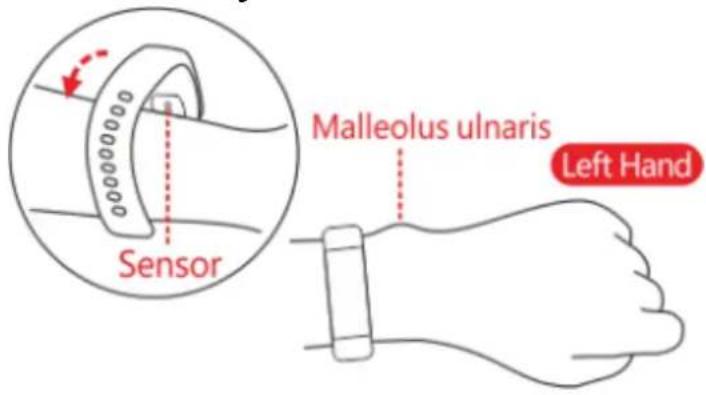

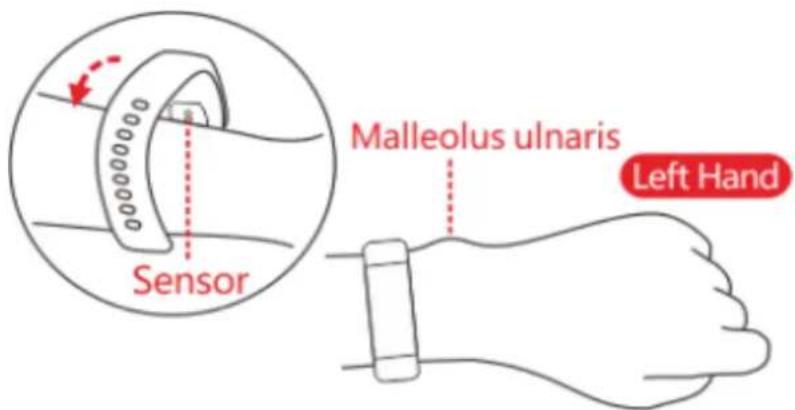

1. It is recommended to wear the watch behind the malleolus

ulnaris of your wrist.ENG-2

2. Keep the sensor of the watch close to your skin.

watch vibrates and turns on.

2. To turn off the watch, go to “More” menu to access the power

off option. Basic operation

1. Press repeatedly the function key to toggle through the main

2. Long press the function key to confirm selection, or to enter

3. The screen automatically turns off after some seconds of

inactivity. You may set auto off time for the screen via the App.

4. Switch to the heart rate interface to automatically measure

your heart rate. To stop measuring your heart rate, just exit the heart rate interface. Install the App

1. To synchronize data between the watch and your smart phone,

install “Denver Smart Life” app to connect the watch to your smart phone.

2. Scan the following QR codes to install “Denver Smart Life” app.

You can also search and download “Denver Smart Life” app from App store or Google Play Store on your smart phone.ENG-3

Connect the watch with your smart phone

1. Enable Bluetooth on your smart phone.

2. Launch “Denver Smart Life” on your smart phone, set your

profile in the Settings option.

3. Tap “Connect device” in the Settings option.

4. Select the name of this watch to connect.

5. Follow on-screen instructions to complete connection of the

watch. Disconnect the watch from your smart phone

1. Launch “Denver Smart Life” on your smart phone.

2. Tap “Disconnect device” in the Settings option.

3. Un-pair the watch through the Bluetooth settings of your smart

phone. Operational introduction You can raise hand or press the function key to turn on the screen. Press repeatedly the function key to switch main menu pages. Long press the function key to confirm selection.ENG-4

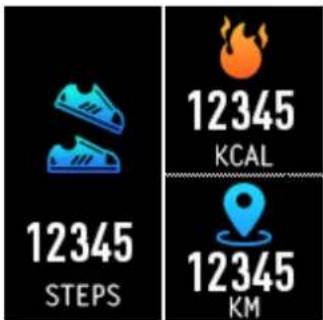

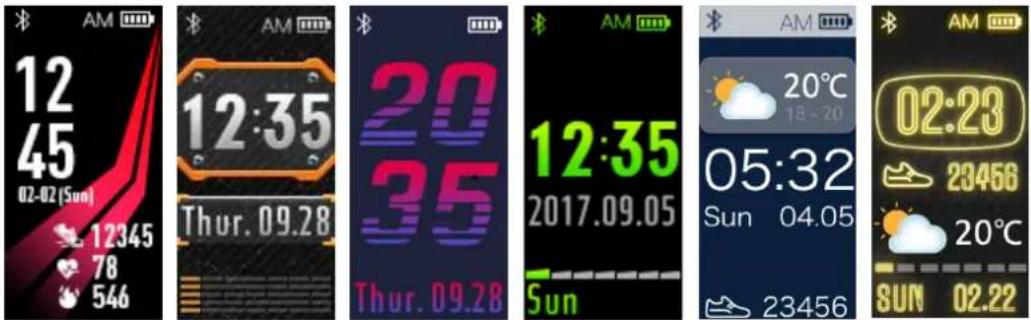

Watch face Go to the “More” menu, then access the “Dial” page to select your favorite watch face. Pedometer The watch can record your daily activity automatically. Press the function key to switch between steps, calories and distance pages. The data measured can be synchronized to the App. Heart rate Press the function key to switch to the heart rate page, and it starts measuring your heart rate. The date measured can be synchronized to the App.ENG-5

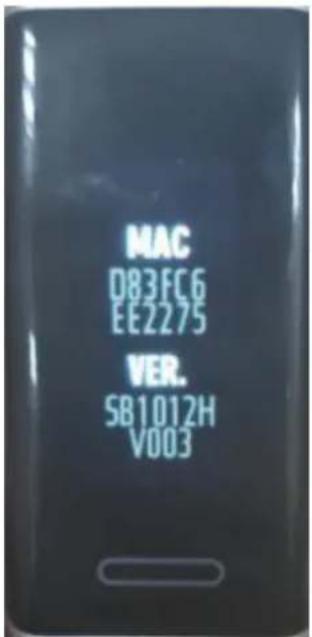

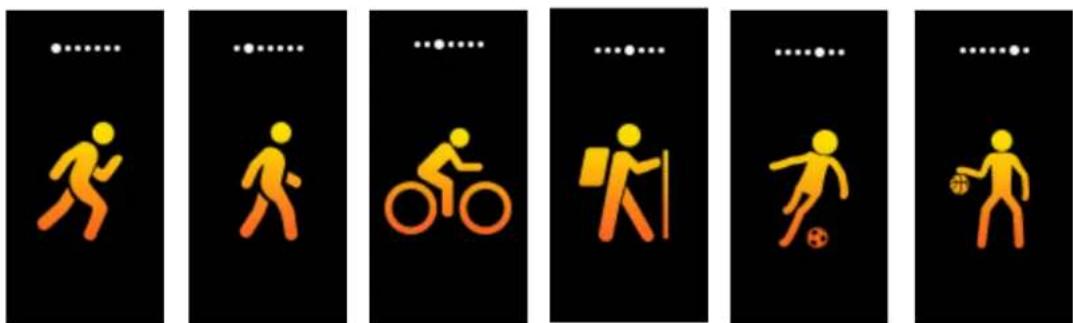

Message Press the function key to switch to the message page. The notification includes incoming calls, and new messages from SMS, QQ, Wechat and Whatsapp. Multi-SportENG-6 On the Sports page, long press the function key to enter a particular sport mode. The watch has six multi-sports: walking, running, cycling, hiking, basketball, and football. To exit a sport mode, long press the function key and the data is recorded. Note: If the sport time is less than 1mins, the data will not be recorded. More features Long press the function key to enter sub-options of the “More” page. The options include the following features/interfaces: camera, dial, GPS switch, reset watch, power off, and exit interface. About Long press the function key to show the BT Mac address, device name and firmware version of the watch.ENG-7

Power Off Long press the function key to power off the watch.

Find Phone If the watch is connected to the App, the “Find Phone” page has more options. Long press the function key, then your Android phone rings. If you use an iPhone, you must display your “Denver Smart Life” app on the screen of iPhone.ENG-8

Sedentary Reminder Set detailed requirements on the App for sedentary reminder, such as start/end time, interval and repeat setting. When the sedentary time arrives, the watch will vibrate to remind you.

Water warning Set detailed requirements on the App for water drinking reminder, such as start/end time, interval and repeat setting. When water drinking time arrives, the watch will vibrate. Alarm You can set five alarms on the App. When alarm time arrives, the wristband vibrates and the alarm icon on the watch screen isENG-9 animated.

Toggle GPS Long press the function key, you can turn on or off the watch GPS. Reset Long press the function key, you can reset your watch. Gesture control You can set the gesture control style on the App to turn on the watch screen. Raising hand: while raising your hand, the screen is turned on. Turning wrist: while turning your wrist toward you, the screen is turned onENG-10 Please notice - All products are subject to change without any notice. We take reservations for errors and omissions in the manual. ALL RIGHTS RESERVED, COPYRIGHT DENVER ELECTRONICS A/S

Electric and electronic equipment and included batteries contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment and batteries) is not handled correctly. Electric and electronic equipment and batteries is marked with the crossed out trash can symbol, seen below. This symbol signifies that electric and electronic equipment and batteries should not be disposed of with other household waste, but should be disposed of separately. As the end user it is important that you submit your used batteries to the appropriate and designated facility. In this manner you make sure that the batteries are recycled inENG-11 accordance with legislature and will not harm the environment. All cities have established collection points, where electric and electronic equipment and batteries can either be submitted free of charge at recycling stations and other collection sites, or be collected from the households. Additional information is available at the technical department of your city. Hereby, Inter Sales A/S declares that the radio equipment type BFG-551 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.denver-electronics.com and then click the search ICON on top line of website. Write model number: BFG-551 Now enter product page, and red directive is found under downloads/other downloads. Operating Frequency Range: 2.402 GHz-2.480 GHz Max Output Power: 4.0dBm Warning Lithium battery inside
