Product type	Smartwatch (smartwatch)
Brand and model	Denver SW360GO
Screen	Color touch screen
Battery	Built-in lithium polymer
Charging time	Approximately 2 hours
Operating temperature	0 °C to 40 °C
Smartphone compatibility	iOS 10.0 or higher, Android 5.0 or higher
Connectivity	Bluetooth
Required app	Denver Smart Life Plus
Main functions	Activity, heart rate, sleep, sports, messages, alarm, weather, remote camera, music control, sedentary reminder, stopwatch, timer, menstrual tracking
Sports modes	Multiple modes with data recording
Sleep monitor	Automatic from 9:00 PM to 9:00 AM, total/light/deep duration
Watch faces	Multiple interchangeable watch faces
Available languages	Adjustable on the watch (ABL Language)
Package contents	Watch, charging cable, user guide
Safety	Do not open, keep out of reach of children, avoid extreme temperatures, do not expose to water (not mentioned)
Maintenance and cleaning	Clean with a soft, dry cloth
Repairability	Any repair must be carried out by qualified personnel
Operating frequency	2.402 ~ 2.480 GHz
Max output power	2.22 dBm

Frequently Asked Questions - SW360GO DENVER

How to charge the Denver SW360GO watch?

Before first use, fully charge the watch. Connect the charging cable to the contacts on the back of the watch, then plug the other end into a power source. Full charging takes about 2 hours.

How to connect the watch to my smartphone?

Download the Denver Smart Life Plus app from the App Store or Google Play. Enable Bluetooth on your smartphone, open the app and create your profile. Tap 'Connect Smartwatch' and select your watch from the list.

How to change the watch face?

From the main watch face, long press on the screen, then swipe left or right to choose another face. Release to confirm.

How to measure my heart rate?

From the menu, tap the 'Heart Rate' icon. The watch will display your current heart rate. To exit, swipe left to right.

How to set an alarm?

You can set alarms from the Denver Smart Life Plus app or directly on the watch. In the menu, tap 'Alarm', set the time and confirm. The watch will vibrate at the set time.

How to use the remote camera function?

Open the Denver Smart Life Plus app on your smartphone, then tap the 'Camera' icon on the watch. The watch will trigger the remote photo capture.

How to view notifications?

From the main watch face, swipe left to right to display notifications (calls, SMS, social networks). Messages are automatically deleted after reading.

How to find my lost phone?

In the shortcut menu, tap the 'Find Phone' icon. Your smartphone will emit a sound even if it is in silent mode.

How to reset the watch?

Go to 'Settings' > 'Reset' on the watch. All data will be erased and the watch will return to factory settings.

What sports modes are available?

The watch offers several sports modes (walking, running, cycling, etc.). Tap the 'Sport' icon to see them. You can start a workout and data will be recorded if the goal is reached.

USER MANUAL SW360GO DENVER

Abstract geometric logo with a stylized letter 'D' inside a hexagonal shape (no text or symbols)

denver

SW-360 SMARTWATCH

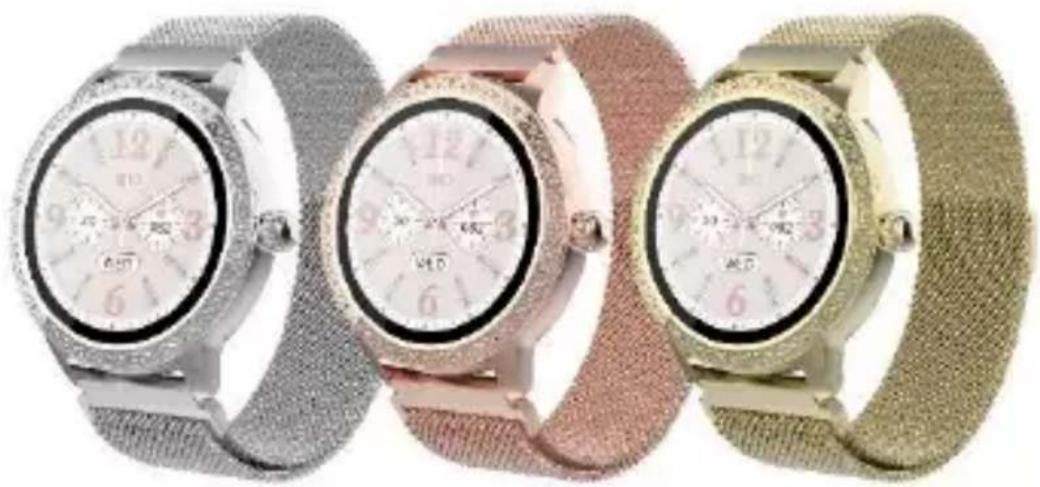

Three luxury wristwatches in different colors and designs, displayed side by side (no visible text or symbols)

www.denver.com

www.facebook.com/denver.eu

ENGLISH

If the user manual is not printed in your local language, then please visit our website to see if it is available online for the device you have. Our website address is:

www.denver.eu

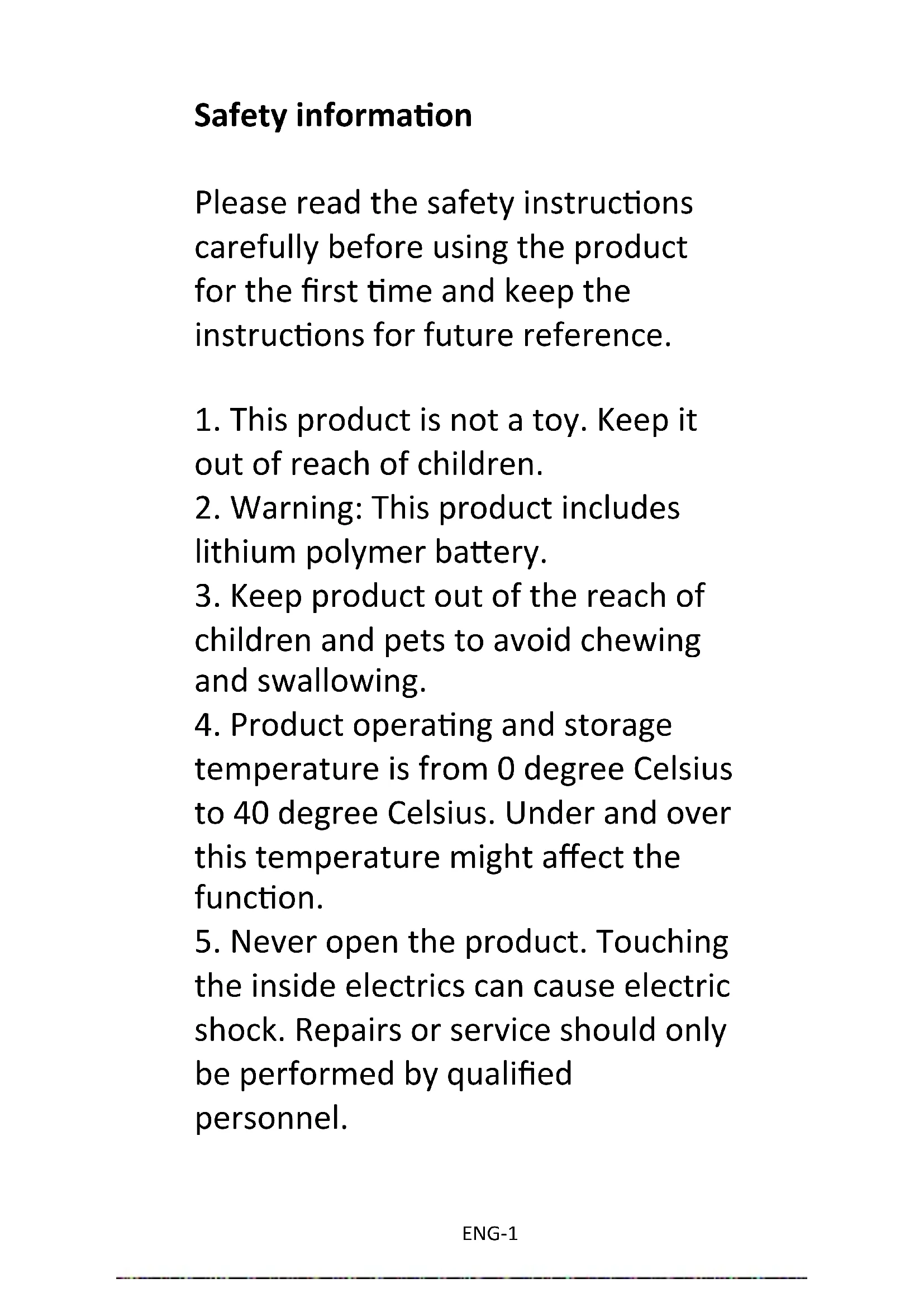

Safety information

Please read the safety instructions carefully before using the product for the first time and keep the instructions for future reference.

1. This product is not a toy. Keep it out of reach of children.
2. Warning: This product includes lithium polymer battery.
3. Keep product out of the reach of children and pets to avoid chewing and swallowing.
4. Product operating and storage temperature is from 0 degree Celsius to 40 degree Celsius. Under and over this temperature might affect the function.

5. Never open the product. Touching the inside electrics can cause electric shock. Repairs or service should only be performed by qualified personnel.

6. Please remove the Smart watch in case of any leakage or excessive heat from the product to avoid burns or rash.

7. Using other accessories than the ones delivered with the product can cause abnormal functionality.

1. In the box

• 1 x Smartwatch
• 1 x Charging Cable
• 1 x User's Guide

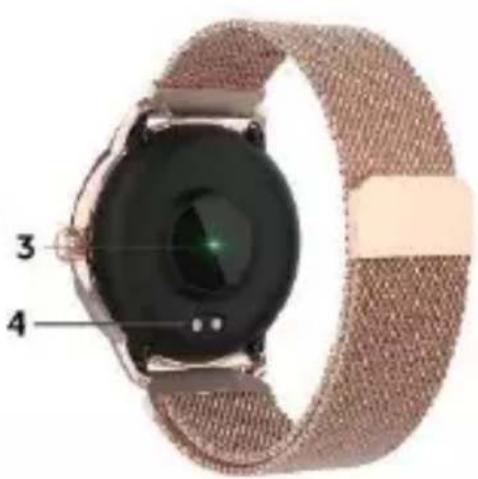

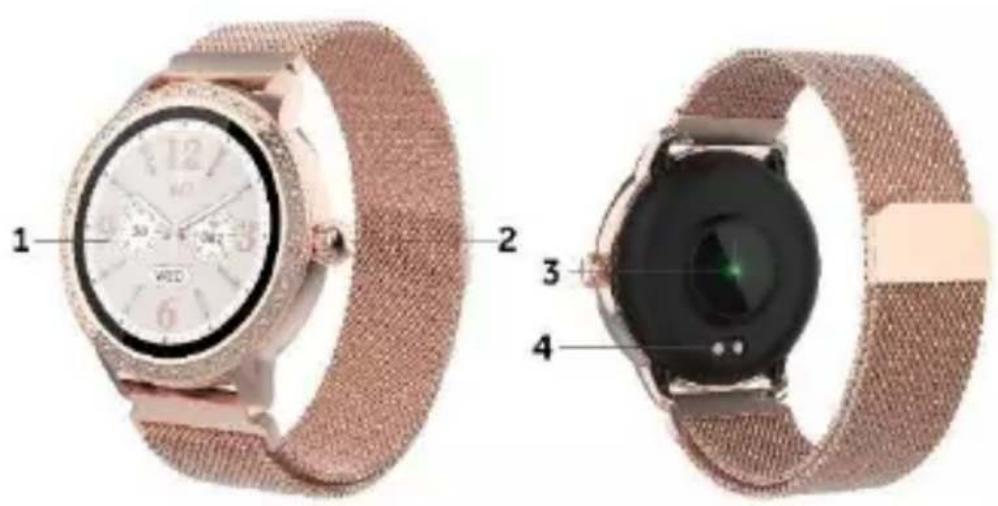

2. Front and Back View

1) Touch screen: shows watch data, swipe or touch the screen to select the functions
2) Side button: press and hold the side button to power on, press to return to clock face or turn the display off/on
3) Heart rate sensor
4) Charging contacts

1 2 3 4

ENG-3

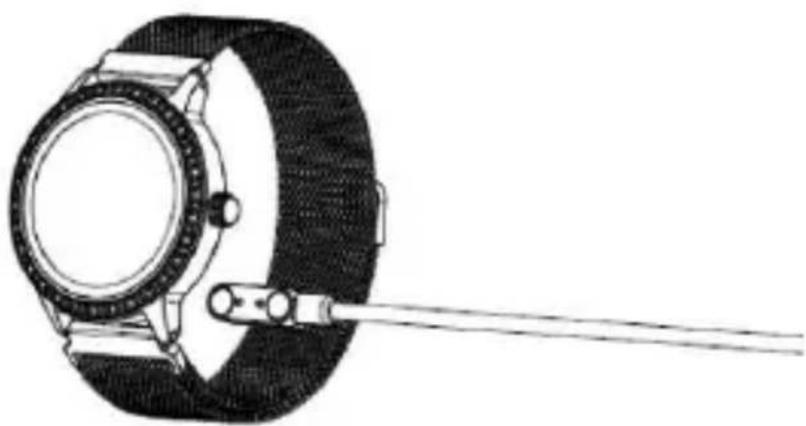

3. Charging Your Smartwatch

1) Before using your smartwatch for the first time, please make sure it is fully charged.

2) The smartwatch will take approximately 2 hours to fully charge. Once a power charger is connected, the smartwatch will charge automatically.

3) Make sure the charging pins on the charging cable fit correctly onto the charging contacts at the back of your Smartwatch, then connect the other end to a power source.

Line drawing of a wristwatch with a strap and cable attachment (no text or symbols)

4. Install, Connect or Disconnect the App

1) Before downloading the “Denver Smart Life Plus” app, please make sure that it is compatible with your smartphone. The app works with iOS 10.0 or above and Android 5.0 or above.

2) Search for the “Denver Smart Life Plus” app in the Apple Store or Google Play or scan the following QR code to install.

QR code image containing encoded data, no visible human-readable text

3) Turn on Bluetooth on your smartphone, open the “Denver Smart Life Plus” app and set your profile. Then tap “Connect Smartwatch” in settings and choose your smartwatch to connect.

4) To disconnect your smartwatch, please go to the app settings and tap “Disconnect Smartwatch”.

For iPhone, you also need to go to “Bluetooth” in your iPhone Settings to “Forget This Device”.

5. Use Instructions

Press and hold the side button for 3 seconds to turn on your smartwatch. Swipe up/down or left/right to see more options.

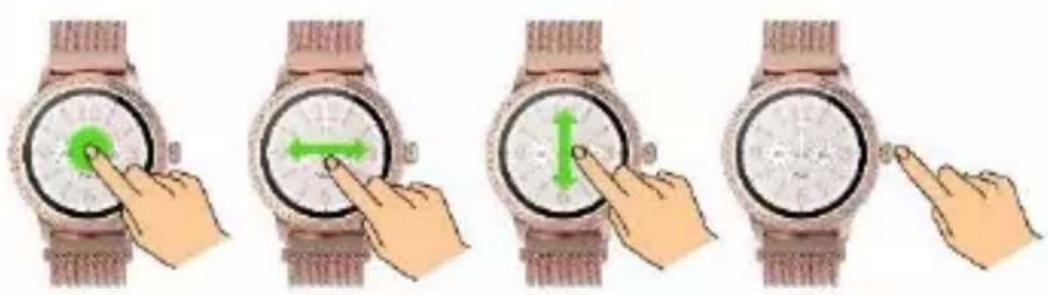

Four illustrated frames showing a hand interacting with a wristwatch, demonstrating the step-by-step change in finger movement (no text or symbols present)

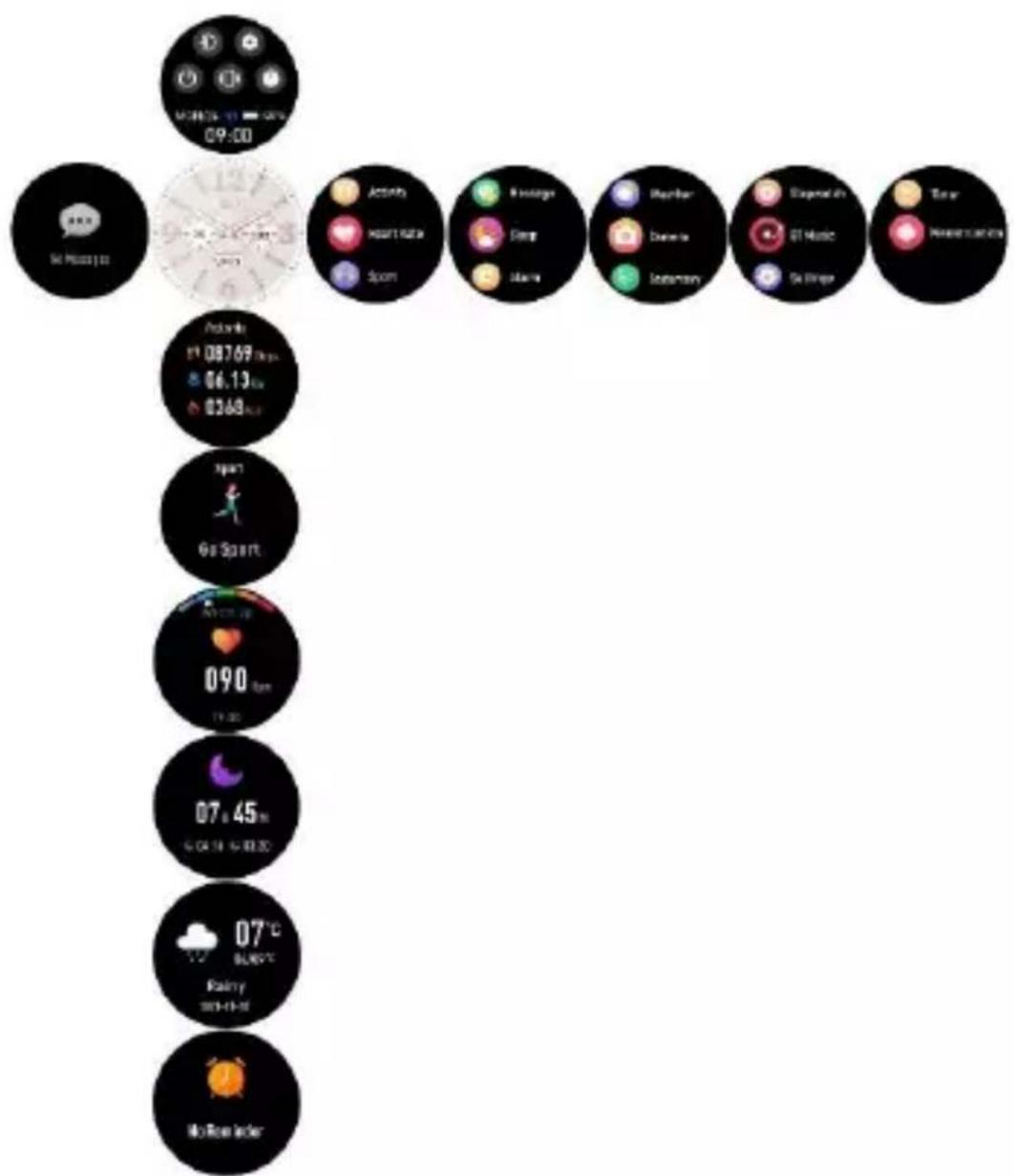

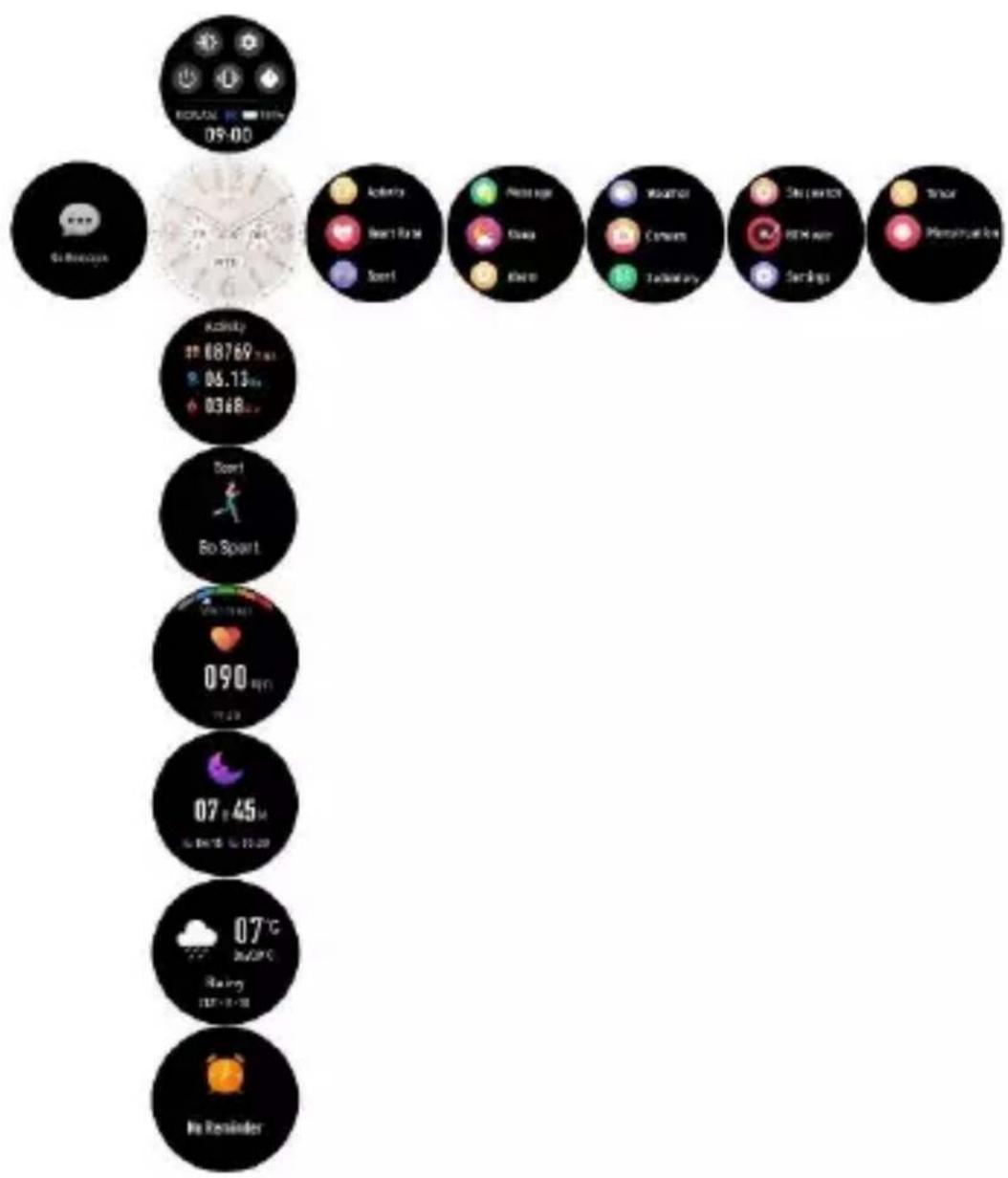

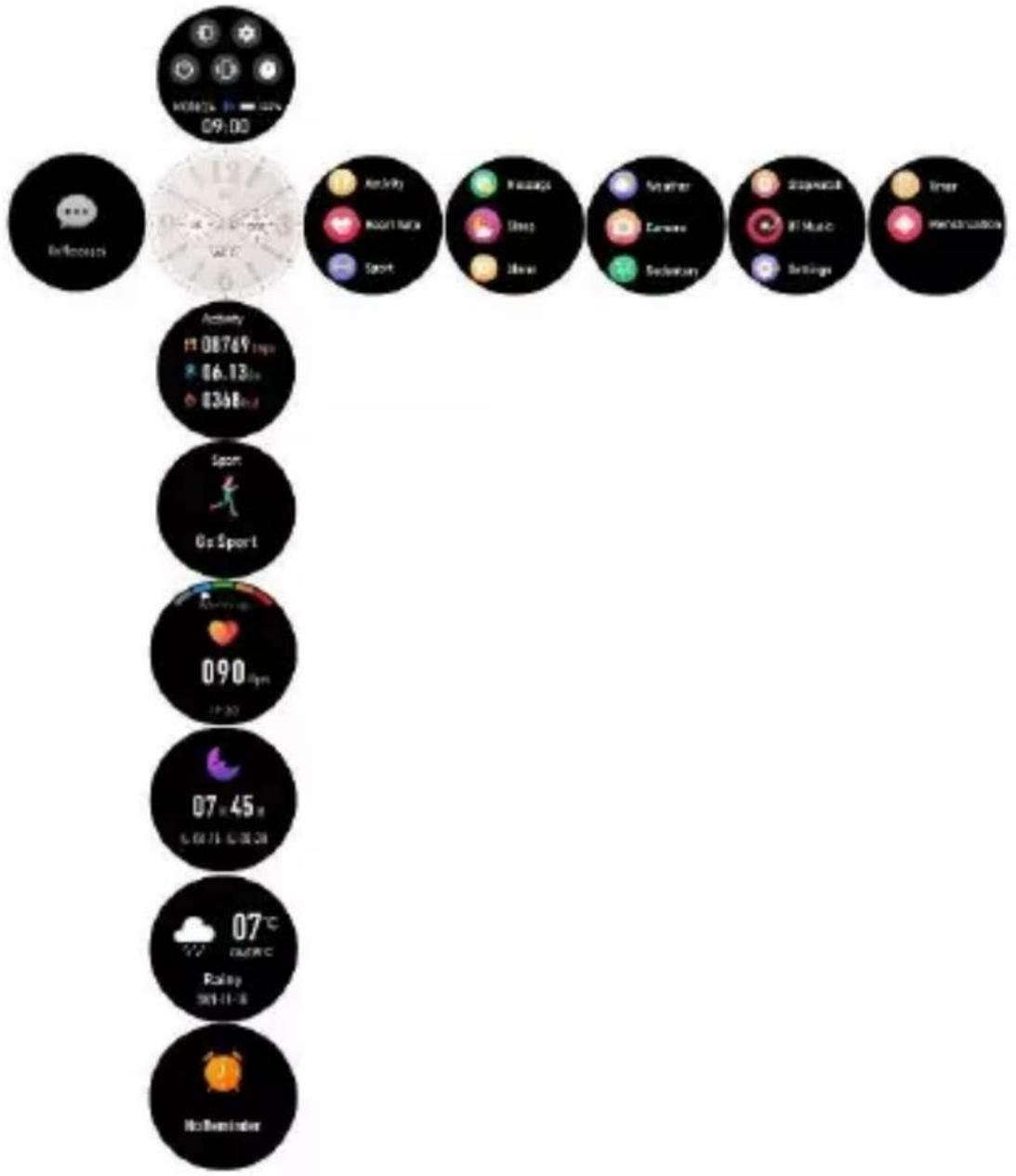

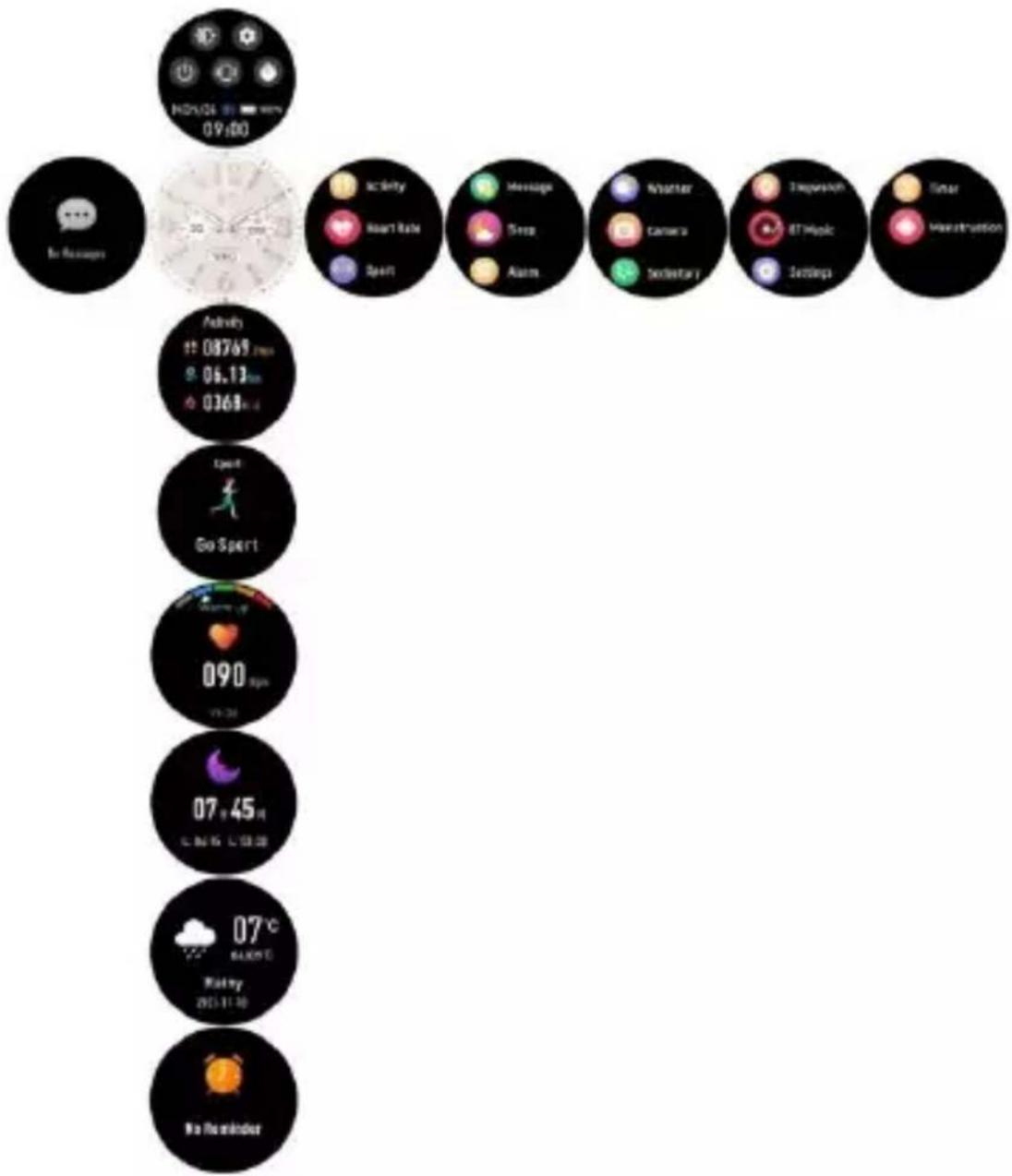

1. Main Menu


09:00 Comfort Air Quality Heart Rate Sport Hot Water Sound Air Quality Air Quality 06:13 03:08 Sport Go Sport Weathering 09:45 07:45 07°C Merry BE TOK No Reminder

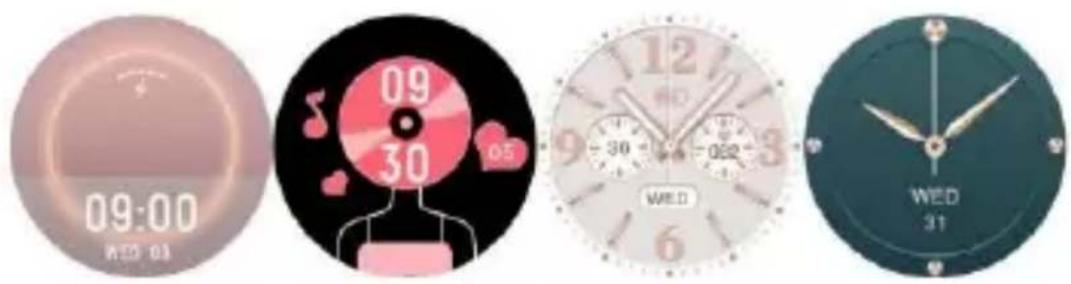

6.1 After turning on the smartwatch, the clock face is displayed. Press and hold and swipe left and right to choose a different clock face.

09:00 WED ON 09 30 05 12 WED 30 082 WED 6 31 WED 31

ENG-7

6.2 Shortcuts

MON/24 09:00

Screen brightness; tap the tness icon to adjust (+/-) then brightness.

Settings.

Find phone; to find your tphone.

Switch off your smartwatch.

Stopwatch.

6.3 Messages: Slide from left to right on the clock face for checking your phone calls, SMS, QQ, WeChat, WhatsApp, Facebook and Twitter notifications, etc. The messages will be automatically deleted after you read them.

No Messages

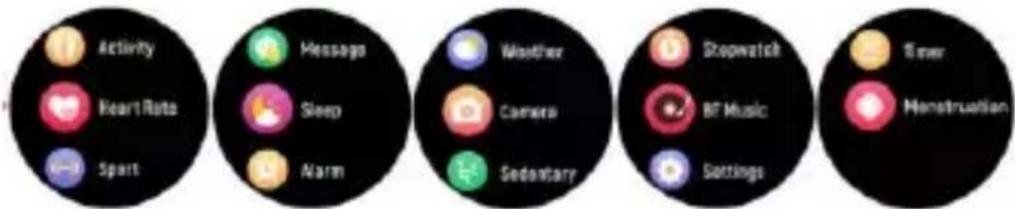

6.4 When the clock face is displayed, slide to the left to enter and view all menus.

Tap the icon to enter in the sub menu. Slide from left to right to return to the previous menu.

Activity Heart Rate Spirt Messags Sleep Warm Weather Camera Sedentary Stopwatch BT Music Settings Tow Henestration

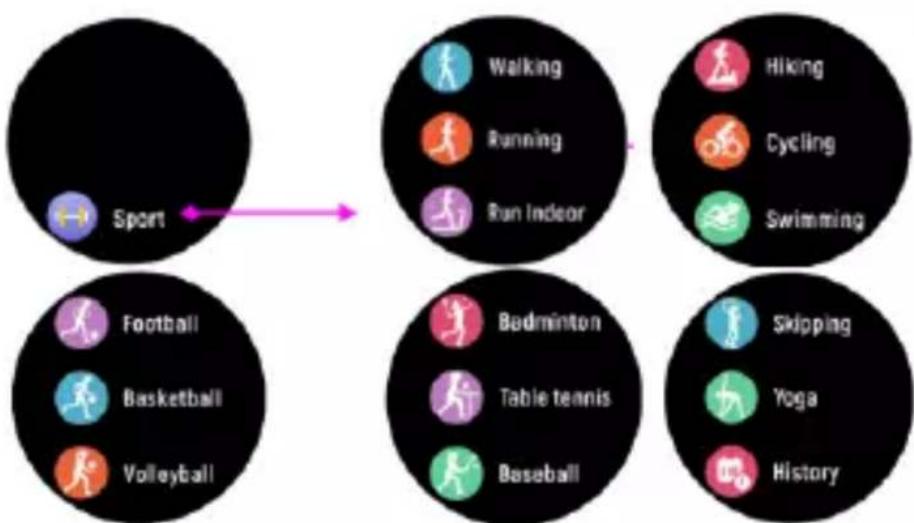

6.5 Sport: Tap the icon to enter the multiple sport modes. If you want to exit the sport menus, slide from left to right on the screen and tap the “” icon to finish your sport and save the sport data.

A reminder will pop up if your sport data has achieved your set goal. Too

little data will not be saved.

5.0 km Achieve the goal!

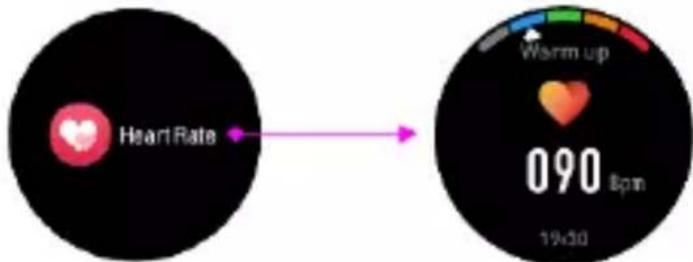

6.6 Heart rate monitor, tap the icon to monitor your current heart rate. To exit the heart rate monitor, slide from left to right on the screen.

Heart Rate Warm up 090 Bpm 19:30

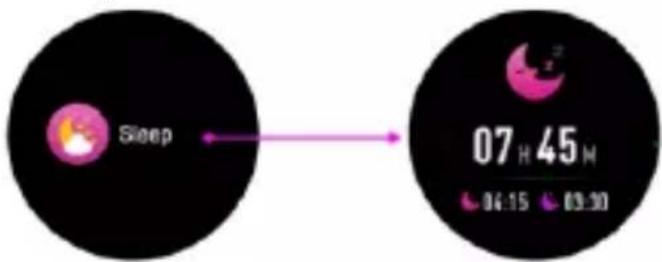

6.7 Sleep monitor, monitor your sleep between 9:00 p.m. and 9:00 a.m. automatically. When you get up the next day, the smartwatch will display your sleep report about the time of total sleep, light sleep and deep sleep.

Sleep 07 H 45 M 04:15 03:30

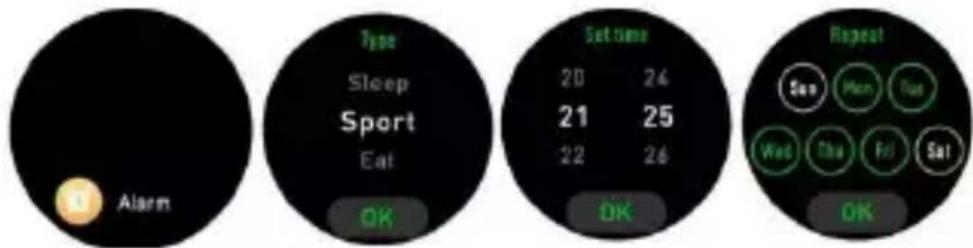

6.8 Alarm, you can set reminders in both the “Denver Smart Life Plus” app and the smartwatch itself. When the alarm time arrives, the alarm icon is animated and the smartwatch will vibrate.

Alarm Type Sleep Sport Eat OK Set time 20 24 21 25 22 26 OK Repeat Sat Mon Sun Wed Cha Fri Sat OK

6.9 Weather, the smartwatch will display the weather when the connection with the app is established.

07°C 06/09°C Rainy 2021-11-18

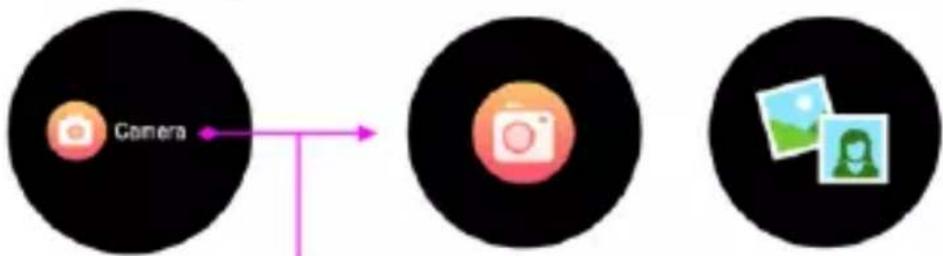

6.10 Camera, open the “Denver Smart Life Plus” app and then tap the camera icon on your smartwatch, you can take pictures remotely from your smart watch.

ENG-11

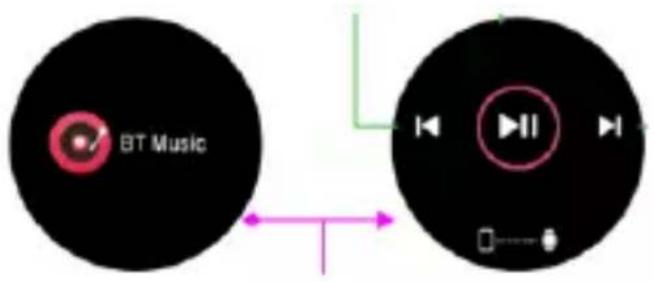

6.11 BT Music, tap the icon to control the music on your phone. You can select the previous/next song, and play/pause music. To exit music playback control, slide from left to right on the screen.

BT Music

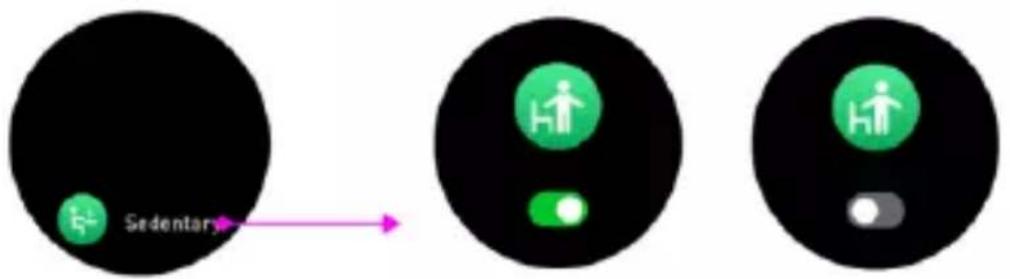

6.12 Sedentary, set the time interval (minutes), start time and end time in the app. You can turn on or off the sedentary reminder on your watch. Slide from left to right on the screen to exit.

Sedentar

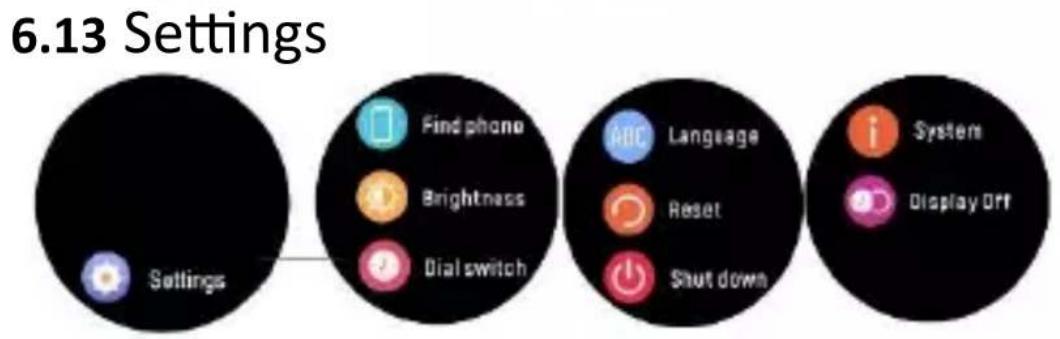

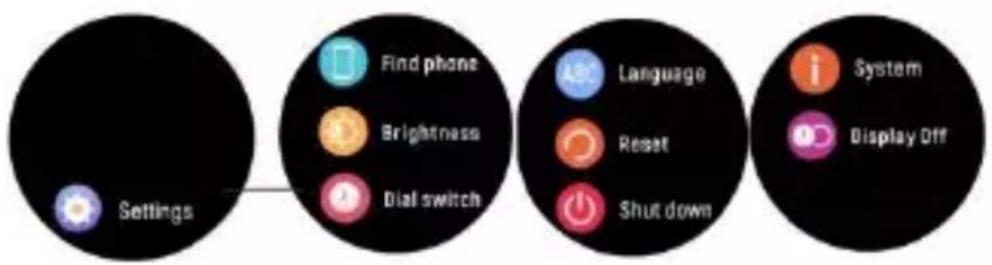

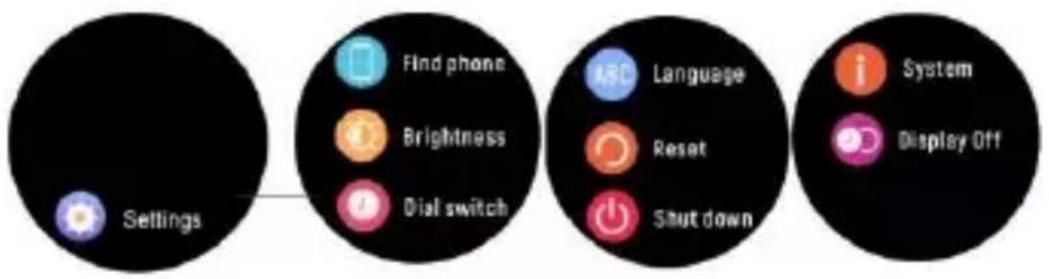

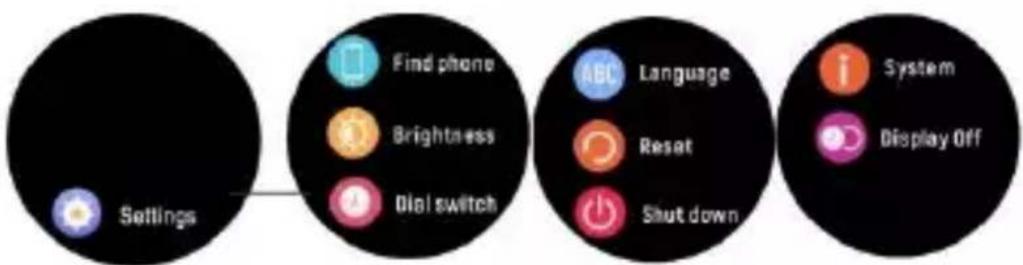

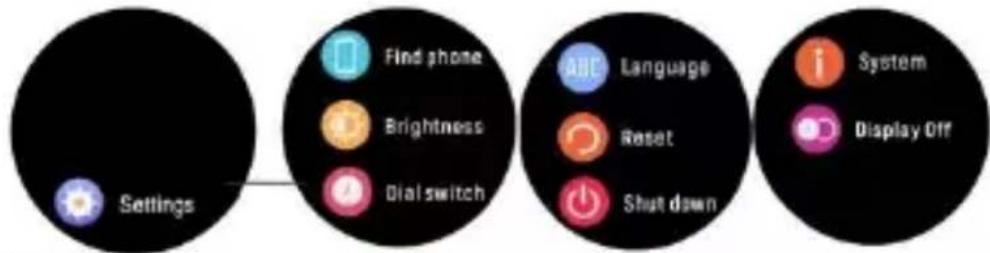

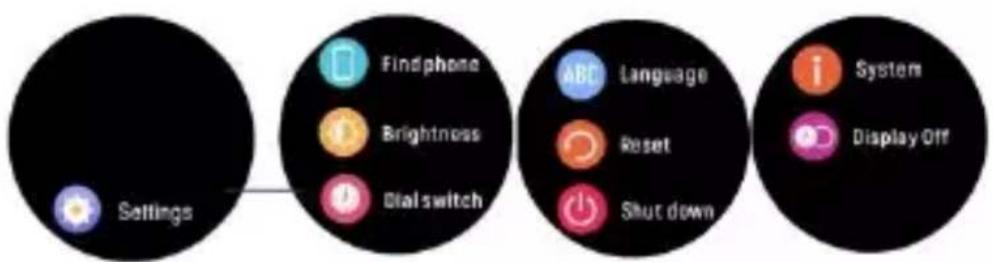

6.13 Settings Settings Find phone Brightness Dial switch Language Reset Shut down System Display Off

Find phone, find your smartphone.

Brightness, tap the brightness icon to adjust (+/-) the screen brightness.

Dial switch, swipe left and right to choose a different clock face.

Language, set the display language of your watch.

Reset, all data on the watch will be cleared.

Shut down.

System, to find the MAC address, name, and software version of your smartwatch.

Display off, choose the display duration up to 300s.

Display off 60 300 s 05 OK

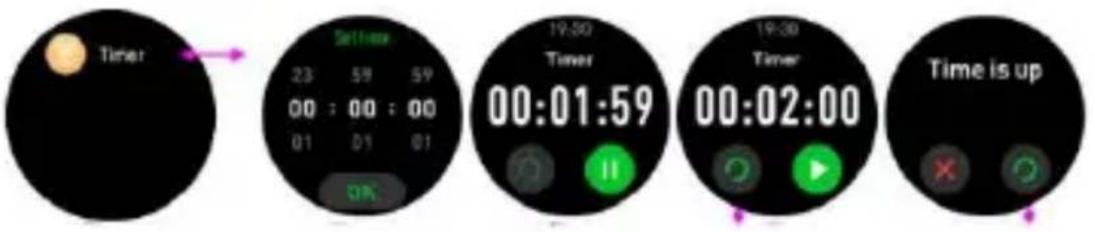

6.14 Timer

Timer 23 59 59 00 : 00 : 00 01 01 01 OK 19:30 Timer 00:01:59 19:30 Timer 00:02:00 Time is up

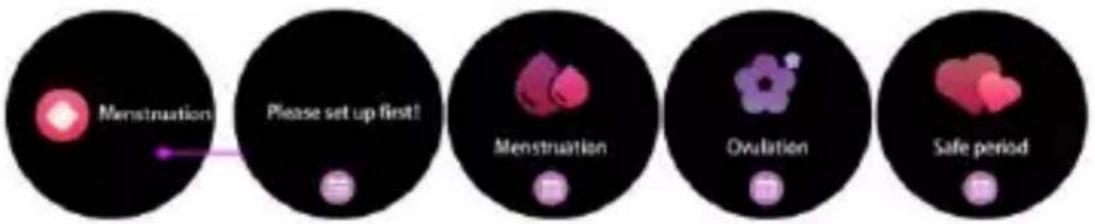

6.15 Menstruation

Please notice - All products are subject to change without any notice. We take reservations for errors and omissions in the manual.

ALL RIGHTS RESERVED, COPYRIGHT DENVER A/S

denver.eu

Electric and electronic equipment and included batteries contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment and batteries) is not handled correctly.

Electric and electronic equipment and batteries is marked with the crossed out trash can symbol, seen above. This symbol signifies that electric and electronic equipment and batteries should not be disposed of with other household waste, but should be disposed of separately.

As the end user it is important that you submit your used batteries to the appropriate and designated facility. In this manner you make sure that the batteries are recycled in accordance with legislature and will not harm the environment.

All cities have established collection points, where electric and electronic equipment and batteries can either be submitted free of charge at recycling stations and other collection sites, or be collected from the households. Additional

information is available at the technical department of your city.

Hereby, Denver A/S declares that the radio equipment type SW-360 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:

denver.eu and then click the search ICON on topline of website. Write model number: SW-360. Now enter product page, and RED directive is found under downloads/other downloads.

Operating Frequency Range:

2.402\~2.480 GHz

Max Output Power: 2.22 dBm

DENVER A/S

Omega 5A, Soeften

DK-8382 Hinnerup

Denmark

www.facebook.com/denver.eu

denver

SW-360 SMARTWATCH

Three luxury wristwatches in different colors and designs, displayed side by side (no visible text or symbols)

Line drawing of a wristwatch with a strap and cable attachment (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Illustration of four steps of a wristwatch with a hand pointing to the screen (no text or symbols present)

6. Hauptmenü

5.0 in Achieve the goal!

Alarm Type Sleep Sport Eat OK Set time 20 24 21 25 22 26 OK Repeat Sat Mon Sun Wed Thu Fri Sat OK

6.12 Einstellungen

Settings Find phone Brightness Dial switch Language Reset Shut down System Display Off

Abstract geometric logo with a stylized letter 'D' inside a hexagonal shape (no text or symbols)

denver

SW-360 SMARTUR

Three luxury wristwatches in different colors and designs, displayed on a patterned strap (no visible text or symbols)

Line drawing of a wristwatch with a strap and cable, no text or symbols present

4. Installation, tilslutning og frakobling af appen

1. Inden du downloader appen "Denver Smart Life Plus", skal du sikre dig, at den er kompatibel med din smartphone. Appen fungerer med iOS 10.0 eller nyere og Android 5.0 eller nyere.

2. Søg efter appen "Denver Smart Life Plus" i Apple Store eller Google Play, eller scan følgende QR-kode for at installere.

QR code image containing encoded data, no visible human-readable text

Four-panel illustration showing a hand interacting with a wristwatch, displaying the left face and right side of the dial (no text or symbols present)

6. Hovedmenu

09:00 No Message Activity 11 08769 hours 86.13 sec 8368 sec Go Sport Irrit 090 sec 07:45 s C 04:15 C 15:31 Rainy 302:11:16 No Re winter

DEN-9

5.0 fm Achieve the goal!

Alarm Type Sleep Sport Eat OK Set time 20 24 21 25 22 26 OK Repeat Sat Mon Tue Wed Thu Fri Sat OK

6.13 Indstillinger

Abstract geometric logo with a stylized letter 'D' inside a hexagonal shape (no text or symbols)

denver

SW-360 SMARTWATCH

Three luxury wristwatches in different colors and designs, displayed side by side (no visible text or symbols)

Technical diagram of a smartwatch showing front and side views with labeled parts

NED-3

3. Uw smartwatch opladen

Line drawing of a wristwatch with a strap and cable attachment (no text or symbols)

4. De app installeren, verbinden of loskoppelen

QR code image containing encoded data, no visible human-readable text

Four sequential illustrations of a wristwatch with hand gestures indicating left and right motion (no text or symbols)

1. Hoofdmenu


MOBID 20 09:00 No Message Activity Heart Rate Spent Message Sleep Water Camera Settings Takeout ET Music Settings Error Reconstruction Active 11:00:769 15:00:13 13:00:368 Go Sport Irr 09:00:45 07:00:45 07°C Rainy 30:11:18 No Re Winter

5.0 km Achieve the goal!

Alarm Type Sleep Sport Eat OK Set time 20 24 21 25 22 26 OK Repeat San Max Tsc Wed Thu Fri Sat OK

6.13 Instellingen

Settings Find phone Brightness Dial switch Language Reset Shut down System Display Off

Three luxury wristwatches with textured bands and metallic designs, displayed side by side (no visible text or symbols)

Technical diagram of a smartwatch with labeled parts including front and side views

FRA-3

Line drawing of a wristwatch with a strap and cable attachment (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Four illustrated frames showing a hand interacting with a wristwatch, demonstrating the step-by-step change in finger movement (no text or symbols present)

6. Menu principal

MON 02 01:03 Air Time Night Time Passage Snap Playtray Ismert Insuritam Takeout Tear No Remember Air Time Night Time Passage Snap Playtray Ismert Insuritam Takeout Tear No Remember

5.0 Km Achieve the goal!

Alarm Type Sleep Sport Eat OK Set time 20 24 21 25 22 26 OK Repeat Sat Home Sat Wed Thu Fri Sat OK

FRA-13

6.13 Paramètres

Settings Find phone Brightness Dial switch ABC Language Reset Shut down System Display Off

Three luxury wristwatches in different colors and designs, displayed side by side (no visible text or symbols)

Guía de usuario

(ESPAÑOL)

Technical diagram of a smartwatch with labeled parts including front and side views

ESP-3

3. Carga del smartwatch

Line drawing of a wristwatch with a strap and cable, no text or symbols present

QR code image containing encoded data, no visible human-readable text

Illustration showing four steps of a wristwatch with green directional arrows indicating movement or change.

6. Menú Principal

05:00 Go Remote Alooney Smart Talk Sport Message Class Robot Camera Technology SIN LADARK REM Air Settings Toor RemoteAction Alooney 31:08:69 7:32 86.13m 83:68m Sport Bo Sport 090 m/s 77:29 07:45 m/s 5.5 GHz 12:29 07°C Rising 12:18:18 No Reminder

5.0 cm Achieve the goal!

Alarm Type Sleep Sport Eat OK Set time 20 24 21 25 22 26 OK Repeat Sat Men Too Wed Thu Fri Sat OK

Settings Findphone Brightness Dial switch ABC Language Reset Shut down System Display Off

Three luxury wristwatches with textured designs and gold accents, displayed side by side (no visible text or symbols)

Guida utente

(ITALIANO)

Technical diagram of a smartwatch with labeled parts including front, side, and interior views

ITA-3

Line drawing of a wristwatch with a strap and cable attachment (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Four-step illustration of a hand interacting with a wristwatch, showing finger movement and directional arrows (no text or symbols)

6. Menu Principale

09:00 Sai Huaqiao Jeeth Heart Note Spom Kingsge Ding Mars Rambier Davens Leaemery Stapchatn ST Music Se Bringe Taur Wabtecino Avanta 11 08769 hrs 86.13 hrs 8268 hrs Spom Go Sport 090 hrs 11:00 07:45 hrs GOLDERS Rainy 07°C BLUEC Air Room order

5.0 km Achieve the goal!

Alarm Type Sleep Sport Eat OK Set time 20 24 21 25 22 26 OK Repeat Sun Men Sat Wed Thu Fri Sat OK

Three luxury wristwatches with textured designs and gold accents, displayed side by side (no visible text or symbols)

Close-up of a luxury wristwatch with a textured strap and circular dial, labeled 1 and 2 (no visible text or symbols on the watch face)

3 4

3. Carregar o Smartwatch

Line drawing of a wristwatch with a strap and cable, no text or symbols present

QR code image containing encoded data, no visible human-readable text

Four illustrated frames showing a hand interacting with a wristwatch, displaying the left face with green arrows (no text or symbols)

1. Menu Principal


MENCK 09:00 09:00 Be Sanger Leekily Meatsys Sono Asyn Nayaher Bamara Sono store Cayward ST Music Terry Kanming Airfly 12 03769 mm 8 05.13 m 3 0368 m Sport Bo Sport 090 Box 07:45 m 6 K 9.5 00:00 07°C Rainy 225 11:10 He Be Meinder

5.0 Achieve the goal!

Alarm Type Sleep Sport Eat OK Settime 20 24 21 25 22 26 OK Repeat Sun Mon Sun Wed Thu Fri Sat OK

POR-12

Settings Find phone Brightness Dial switch Language Reset Shut downs System Display Off

Symbol of a trash bin crossed out by a diagonal line (no text or numbers present)

Three luxury wristwatches in different colors and designs, displayed side by side (no visible text or symbols)

Användarhandbok

(SVENSKA)

Technical diagram of a smartwatch with labeled parts including front, side, and interior views

3. Laddar din smartklocka

Technical line drawing of a wristwatch with attached sensor strap (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Illustration of four hand gestures on a wristwatch, showing progressive movement with arrows (no text or symbols)

1. Huvudmeny


09:00 Wireless Activity 11:08:69 Hz 06.13 Hz 03:48 Go Sport 09:00 12:30 07:45 08:11:30 07°C Rainy 30:11-3 No Reminder

5.0 km Achieve the goal!

Alarm Type Sleep Sport Eat OK Set time 20 24 21 25 22 26 OK Repeat Sat Men 1ay Wed Thu Fri Sat OK

6.13 Inställningar

Settings Findphone Brightness Dial switch Language Reset Shut down System Display Off

Hitta telefon – hitta din smarttelefon.

Abstract geometric logo with a stylized letter 'D' inside a hexagonal shape (no text or symbols)

denver

SW-360 ÄLYKELLO

Three luxury wristwatches in different colors and designs, displayed side by side (no visible text or symbols)

Käyttöopas

(SUOMI)

Turvallisuustiedot

Technical diagram of a smartwatch with labeled parts including front, side, and interior views

FIN-3

Technical line drawing of a wristwatch with a strap and mechanical component (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Four sequential illustrations of a wristwatch with hand gestures pointing at the dial (no text or symbols)

1. Päävalikko


MONDAY 09:00 8:18:00 Activity Heart Data Sport Message Shop Java Weather Camera Setenta Starwatch Air Music Settings New Activity 12:06:49 05.13 03:58 So Sport 09:00 07:45 我爱生活吧! 07°C OURTY Hanging 200/10/18 No Randomer!

Football Basket ball Volleyball

Badminton Table tennis Baseball

Skipping Yoga History

5.0 km Achieve the goal!

6.13 Asetukset

Settings Find phone Brightness Dial switch Language Reset Shut down System Display Off

Abstract geometric logo with a stylized letter 'D' inside a hexagonal shape (no text or symbols)

denver

SW-360 SMARTKLOKKE

Three luxury wristwatches in different colors and designs, displayed side by side (no visible text or symbols)

Brukerveiledning

(NORSK)

Technical diagram of a smartwatch with labeled parts including front, side, and interior views

Line drawing of a wristwatch with strap and cable attachment (no text or symbols)

4. Installere, tilkoble eller frakoble appen

1) Før nedlasting av «Denver Smart Life Plus»-appen, må du sørge for at den er kompatibel med smarttelefonen din. Appen fungerer med iOS 10.0 eller over og Android 5.0 eller over.

QR code image containing encoded data, no visible human-readable text

Four sequential illustrations of a wristwatch with hand gestures indicating finger movement (no text or symbols)

6. Hovedmeny

MONTS 09:00 No Messages Activity Meal Rate Sprint Message Stop Alarm Weather Consents societary Compression Air Music Settings Temp Named Numbers Activity 11 08769 Post 56.13pm 2368 pm Spot Go Spot 090 hrs 17:00 07:45 PM L 04:11 L 08:28 07°C BLUOIC Rainy 305-11:30 No Reminder

5.0 Ks Achieve the goal!

Alarm Type Sleep Sport Eat OK Set time 20 24 21 25 22 26 OK Repeat San Mon Tue Wed Thu Fri Sat OK

6.9 Væ r; smartklokken viser væ ret när forbindelsen med appen er etablert.

07°C 06/09°C Rainy 2021-11-18

6.13 Innstillinger

Settings Find phone Brightness Dial switch Language Reset Shut down System Display Off

Finn telefon; finn smarttelefonen din.

Abstract geometric logo with a stylized white letter 'D' inside a black hexagon (no text or symbols)

denver

ZEGAREK INTELIGENTNY SW-360

Three luxury wristwatches in different colors and designs, displayed side by side (no visible text or symbols)

Technical diagram of a smartwatch with labeled parts including front, side, and interior views

Line drawing of a wristwatch with a strap and mechanical clip (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Four-panel illustration showing a hand interacting with a wristwatch, displaying the left face and right side of the dial (no text or symbols)

6. Menu główne

Screenshot of a mobile app interface displaying a grid of app icons with timestamps and status labels, likely for a weather or health monitoring system.

5.0 Km Achieve the goal!

Alarm Type Sleep Sport Eat OK Set time 20 24 21 25 22 26 OK Repeat Sun Men Tue Wed Tax Fri Sat OK

6.13 Ustawienia

Three luxury wristwatches in different colors and designs, displayed side by side (no visible text or symbols)

Korisnički vodič

(HRVATSKI)

Technical diagram of a smartwatch with labeled parts including front and side views

3. Punjenje pametnog sata

1) Prije prve upotrebe pametnog sata provjerite je li napunjen do kraja.

Technical line drawing of a wristwatch with a strap and cable attachment (no text or symbols)

4. Ugradite, spojite ili odspojite aplikaciju

1) Prije preuzimanja aplikacije "Denver Smart Life Plus" provjerite je li kompatibilna s vašim pametnim telefonom. Aplikacija radi s iOS 10.0 ili novijim i sustavom Android 5.0 ili novijim.

2) Potražite aplikaciju "Denver Smart Life Plus" u Apple Storeu ili Google Playu ili skenirajte sljedeći QR kod za instalaciju.

3) Uključite Bluetooth na svom pametnom telefonu, otvorite aplikaciju "Denver Smart Life Plus" i postavite svoj profil. Nakon toga u postavkama dodirnite "Connect Smartwatch" i odaberite svoj pametni sat za povezivanje.

Four sequential illustrations of a wristwatch with hand gestures indicating finger movement (no text or symbols)

1. Glavni izbornik


NOV 04 01 00 PM 09:00 No Messages Activity Heart Rate Spent Message See Alarm Master Camera Secretary Inspired BT Music Settings Star Maxstrustion Activity 08769 hrs 06.13 pm 0368 pm Go Spert Spent Go Spert 090 hrs 07:45 pm LNG L 53:28 07°C BalANCE Ratney 2013-11-10 No Is Meinder

6.1 Nakon uključivanja pametnog sata prikazuje se lice sata. Pritisnite i držite te prijeđite prstom ulijevo i udesno za odabir drugog lica sata.

09:00 WED 03 09 30 05 12 9 30 02 WED 6 WED 31

6.2 Prečice

MDN/24 09:00

Svjetlina zaslona; dodirnite ikonu svjetline za podešavanje (+/-) svjetline zaslona.

Postavke.

Pronađi telefon, za pronalaženje svojeg pametnog telefona.

5.0 fm Achieve the goal!

Alarm Type Sleep Sport Eat OK Set time 20 24 21 25 22 26 OK Repeat Sun Mon Tue Wed Thu Fri Sat OK

6.13 Postavke

Settings Find phone Brightness Dial switch Language Reset Shut down System Display Off

Pronadite telefon, pronadite svoj pametni telefon.

(Push "2" for support)

E-Mail

For technical questions, please write

to:

[e-mail]

For all other questions please write

to: [e-mail]

Germany

Denver Germany GmbH Service

Gutenbergstrasse 1

94036 Passau

Phone: [phone]

E-Mail

[e-mail]

Fairfixx GmbH

Repair and service

E-Mobility/Hoverboards/Balancebo

ards, Smartphones & Tablets)

Tel.: [phone]

Denver A/S Spain S.A
