USER MANUAL UC 36YRSL HiKOKI

Technical line drawing of a mechanical component with internal slots and housing (no text or symbols)

SAFETY INSTRUCTIONS AND INSTRUCTION MANUAL

WARNING

IMPROPER OR UNSAFE use of this battery charger can result in death or serious bodily injury!

This manual contains important information about product safety. Please read and understand this manual BEFORE operating the power tool. Please keep this manual available for other users and owners before they use the battery charger. This manual should be stored in safe place.

INSTRUCTIONS DE SECURITE ET MODE D'EMPLOI

AVERTISSEMENT

IMPORTANT SAFETY INSTRUCTIONS .... 3

MEANINGS OF SIGNAL WORDS 3

SAFETY 4

IMPORTANT SAFETY INSTRUCTIONS FOR BATTERY CHARGER 4

IMPORTANT SAFETY INSTRUCTIONS FOR USE OF THE BATTERY, BACK PACK POWER SUPPLY AND BATTERY CHARGER .... 5

DISPOSAL OF THE EXHAUSTED BATTERY/BACK PACK POWER SUPPLY 6

SERVICE AND REPAIRS 13

PARTS LIST....38

TABLE DES MATIÈRES

Français

Page Page

CONSIGNES DE SÉCURITÉ IMPORTANTES ..... 14

SIGNIFICATION DES MOTS D'AVERTISSEMENT....14

SÉCURITÉ 15

CONSIGNES DE SÉCURITÉ IMPORTANTES POUR LE CHARGEUR DE BATTERIE .... 15

CONSIGNES DE SÉCURITÉ IMPORTANTES POUR L'UTILISATION DE LA BATTERIE, SYSTÈME D'ALIMENTATION DE BATTERIE À DOS ET DU CHARGEUR DE BATTERIE ..... 17

MISE AU REBUT D'UNE BATTERIE USÉE/ SYSTÈME D'ALIMENTATION DE BATTERIE À DOS .... 18

UTILISATION ET ENTRETIEN....19

MODÈLE....19

NOM DES PARTIES 19

SPÉCIFICATIONS....19

UTILISATIONS 20

MÉTHODE DE RECHARGE 20

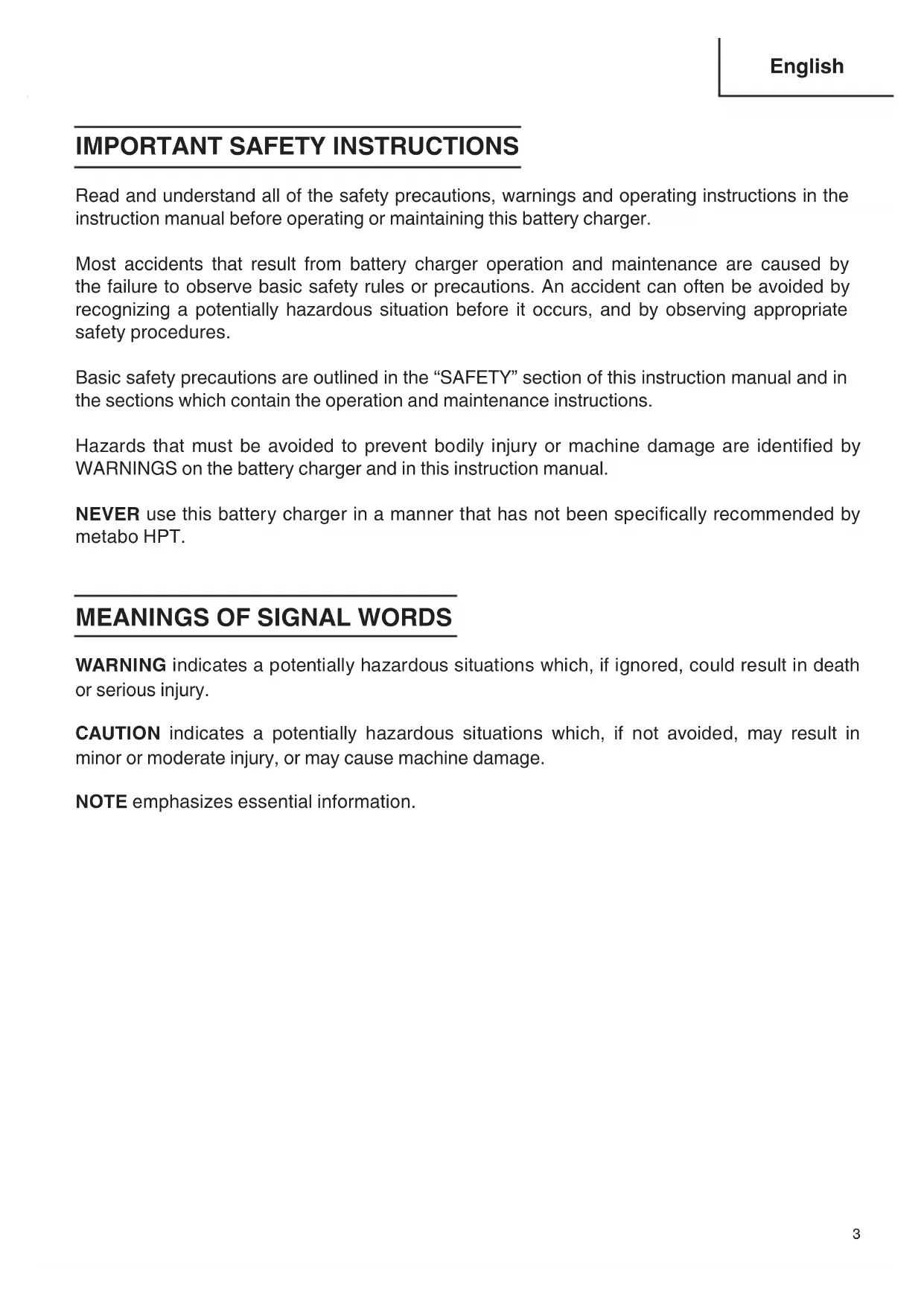

IMPORTANT SAFETY INSTRUCTIONS

Read and understand all of the safety precautions, warnings and operating instructions in the instruction manual before operating or maintaining this battery charger.

Most accidents that result from battery charger operation and maintenance are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs, and by observing appropriate safety procedures.

Basic safety precautions are outlined in the “SAFETY” section of this instruction manual and in the sections which contain the operation and maintenance instructions.

Hazards that must be avoided to prevent bodily injury or machine damage are identified by WARNINGS on the battery charger and in this instruction manual.

NEVER use this battery charger in a manner that has not been specifically recommended by metabo HPT.

MEANINGS OF SIGNAL WORDS

WARNING indicates a potentially hazardous situations which, if ignored, could result in death or serious injury.

CAUTION indicates a potentially hazardous situations which, if not avoided, may result in minor or moderate injury, or may cause machine damage.

NOTE emphasizes essential information.

SAFETY

IMPORTANT SAFETY INSTRUCTIONS FOR BATTERY CHARGER

WARNING: Death or serious bodily injury could result from improper or unsafe use of battery chargers. To avoid these risks, follow these basic safety instructions:

READ ALL INSTRUCTIONS

1. SAVE THESE INSTRUCTIONS: This manual contains important safety and operating instructions for battery charger Model UC36YRSL.
2. Before using battery charger, read all instructions and cautionary markings on (1) battery charger, (2) battery and back pack power supply, and (3) product using battery and back pack power supply.
3. ⚠️ CAUTION-To reduce risk of injury, charge only metabo HPT rechargeable battery types BSL14, BSL18, BSL25 and BSL36 series, and type BL36200. Other type of batteries may burst causing personal injury and damage.
4. Do not expose battery charger to rain or snow.
5. Use of an attachment not recommended or sold by the battery charger manufacturer may result in a risk of fire, electric shock, or injury to persons.
6. To reduce risk of damage to electric plug and cord, pull by plug battery charger.
7. Make sure cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.
8. An extension cord should not be used unless absolutely neces extension cord could result in a risk of fire and electric shock.

If extension cord must be used make sure:

a. That blades of extension cord are the same number, size, and shape as those of plug on battery charger:
b. That extension cord is properly wired and in good electrical condition; and
c. That wire size is large enough for AC ampere rating of battery charger as specified in Table 1.

Table 1 RECOMMENDED MINIMUM AWG SIZE FOR EXTENSION CORDS FOR BATTERY CHARGERS

AC Input rating amperes*		AWG size of cord
Equal to or greater than	but less than	Length of cord, feet (Meter)
		25 (7.5)	50 (15)	100 (30)	150 (45)
0	2	18	18	18	16
2	3	18	18	16	14
3	4	18	18	16	14

* If the input rating of a battery charger is given in watts rather than in amperes, the corresponding ampere rating is to be determined by dividing the wat voltage rating—for example:

$$ \frac {1 , 2 5 0 \text { watts }}{1 2 5 \text { volts }} = 1 0 \text { amperes } $$

1. Do not operate battery charger with damaged cord or plug-replace them immediately.
2. Do not operate battery charger if it has received a sharp blow, been dropped, or otherwise damaged in any way; take it to a qualified serviceman.
3. Do not disassemble battery charger; take it to a qualified serviceman when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fire.
4. To reduce risk of electric shock, unplug charger from receptacle before maintenance or cleaning. Removing the battery or back pack power supply will not reduce this risk.
5. This battery charger might be attached to metabo HPT battery or back pack power supply operated tools as a standard accessory. In this case, please confirm Instruction Manual of the metabo HPT battery or back pack power supply operated tools before using the battery charger.

IMPORTANT SAFETY INSTRUCTIONS FOR USE OF THE BATTERY, BACK PACK POWER SUPPLY AND BATTERY CHARGER

You must charge the battery or back pack power supply before you can use the power tool. Before using the model UC36YRSL battery charger, be sure to read all instructions and cautionary statements on it, the battery, the back pack power supply and in this manual.

CAUTION: USE ONLY metabo HPT BATTERY TYPES BSL14, BSL18, BSL25 AND BSL36 SERIES AND TYPE BL36200. OTHER TYPES OF BATTERIES MAY BURST AND CAUSE INJURY!

Follow these instructions to avoid the risk of injury:

WARNING: Improper use of the battery, back pack power supply or battery charger can lead to serious injury.

To avoid these injuries:

1. NEVER disassemble the battery and back pack power supply.
2. NEVER incinerate the battery and back pack power supply, even if it is damaged or is completely worn out. The battery and back pack power supply can explode in a fire.
3. NEVER short-circuit the battery and back pack power supply.
4. NEVER insert any objects into the battery charger's air vents. Electric shock or damage to the battery charger may result.
5. NEVER charge outdoors. Keep the battery and back pack power supply away from direct sunlight and use only where there is low humidity and good ventilation.
6. NEVER charge when the temperature is below 32^ F ( 0^ C) or above 104^ F ( 40^ C).

7. NEVER connect two battery chargers together.

8. NEVER insert foreign objects into the hole for the battery, adaptor of the back pack power supply or the battery charger.

9. NEVER use a booster transformer when charging.
10. NEVER use an engine generator or DC power to charge.
11. NEVER store the battery, back pack power supply or battery charger in places where the temperature may reach or exceed 104^ F ( 40^ C).
12. ALWAYS operate charger on standard household electrical power (120 volts). Using the charger on any other voltage may overheat and damage the charger.
13. ALWAYS wait at least 15 minutes between charges to avoid overheating the charger.
14. ALWAYS disconnect the power cord from its receptacle when the charger is not in use.

DISPOSAL OF THE EXHAUSTED BATTERY/BACK PACK POWER SUPPLY

WARNING:

Do not dispose of the exhausted battery/back pack power supply. The battery/back pack power supply may explode if either is incinerated. The product that you have purchased contains a rechargeable battery/back pack power supply. The battery/back pack power supply are recyclable. At the end of their useful life, under various state and local laws, it may be illegal to dispose of this battery/back pack power supply into the municipal waste stream. Check with your local solid waste officials for details in your area for recycling options or proper disposal.

SAVE THESE INSTRUCTIONS AND

MAKE THEM AVAILABLE TO OTHER USERS

AND

OWNERS OF THIS TOOL!

The information contained in this instruction manual is designed to assist you in the safe operation and maintenance of the battery charger.

NEVER operate, or attempt any maintenance on the battery charger unless you have first read and understood all safety instructions contained in this manual.

Some illustrations in this instruction manual may show details or attachments that differ from those on your own battery charger.

MODEL

UC36YRSL

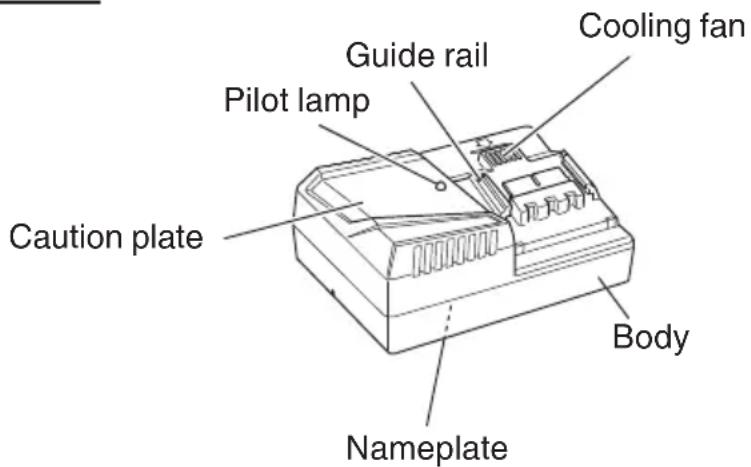

NAME OF PARTS

Cooling fan Guide rail Pilot lamp Caution plate Body Nameplate

Fig. 1

SPECIFICATIONS

Model UC36YRSL
Input power source Single phase: AC 120 V 60 Hz
Charging time	BSL1415, BSL1415X, BSL1815, BSL1815X	Approx. 30 minutes
	BSL1430, BSL1830, BSL2530, BSL3620	Approx. 60 minutes
	BSL1440, BSL1840 Approx. 80 minutes
	BL36200 Approx. 10 hours
Charger	Charging voltage ...... DC 14.4 - 36 VCharging current...... BSL3620, BL36200: DC 2.0 AOther batteries: DC 3.0 A
Weight	1.5 lbs. (0.7 kg)

APPLICATIONS

For charging the metabo HPT batteries types BSL14, BSL18, BSL25 and BSL36 series and back pack power supply type BL36200.

CHARGING METHOD

NOTE: Before plugging into the receptacle, make sure the following points.

○ The power source voltage is stated on the nameplate.
○ The cord is not damaged.

WARNING: Do not charge at voltage higher than indicated on the nameplate. If charged at voltage higher than indicated on the nameplate, the charger will burn up.

1. Insert the plug of battery charger into the receptacle.

When the plug of battery charger has been inserted into the receptacle, pilot lamp will blink in red. (At 1-second intervals)

Black and white illustration of a hand with a lightning bolt symbol (no text or numbers)

WARNING: Do not use the electrical cord if damaged. Have it repaired immediately.

1. Insert the battery or adaptor of back pack power supply into the charger.

Firmly insert the battery into the charger until the line is visible, as shown in Fig. 3.

Place the back pack power supply in a horizontal position and turn it on by the switch on the side. Firmly insert the adaptor into the charger until the line is visible, as shown in Fig. 3.

NOTE:

If the pilot lamp of the charger lights in green (high temperature standby status) when the adaptor is inserted into the charger, check that the battery status lamp on the back pack power supply control panel is lit in red.

If the battery status lamp is OFF, the back pack power supply switch may be turned OFF.

If the back pack power supply switch is turned OFF, disconnect the adaptor and turn on the switch before reinserting the adaptor.

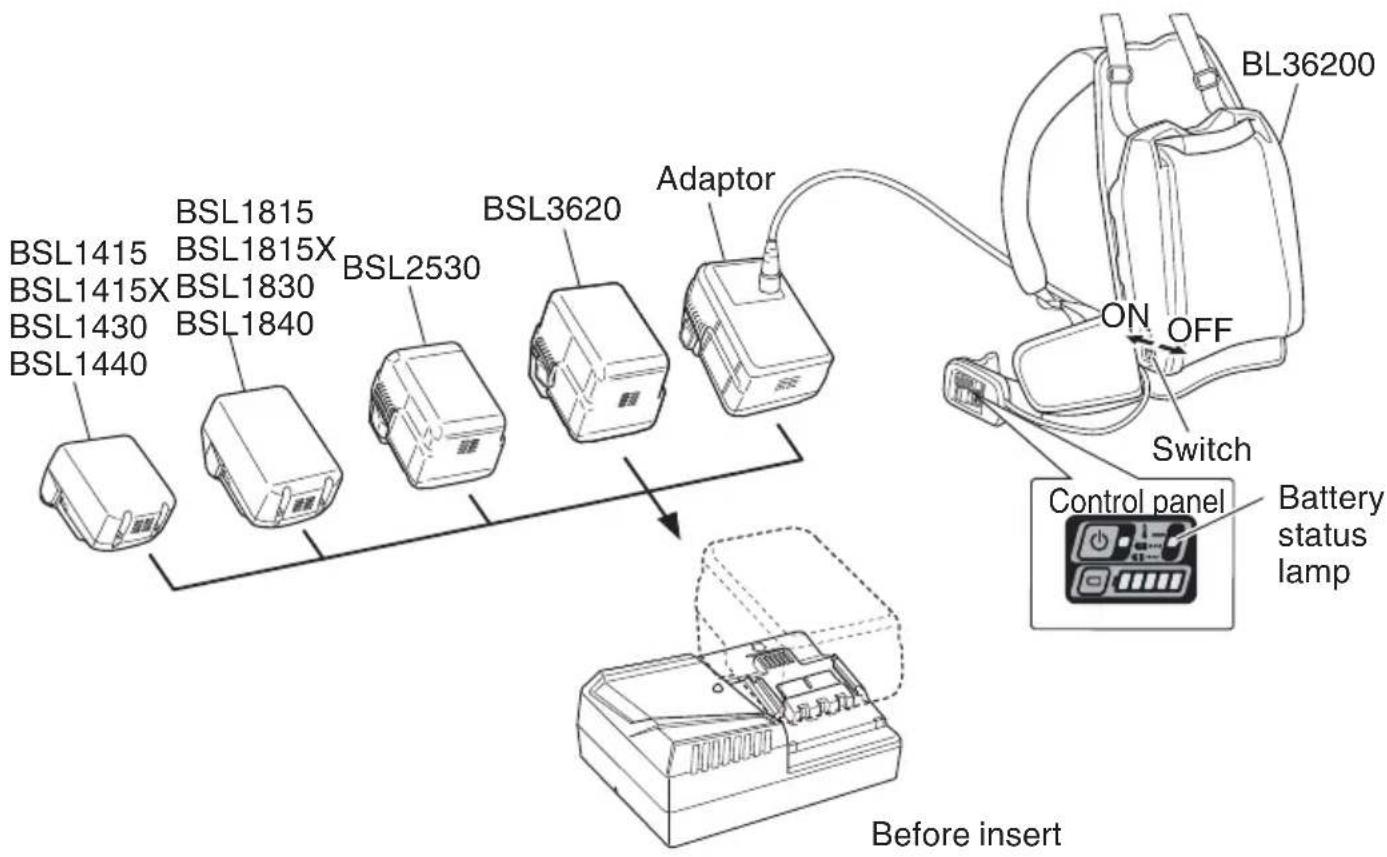

BSL1415 BSL1815 BSL1415X BSL1815X BSL1430 BSL1830 BSL1440 BSL1840 BSL2530 BSL3620 Adaptor BL36200 ON OFF Switch Control panel Battery status lamp Before insert

Fig. 2

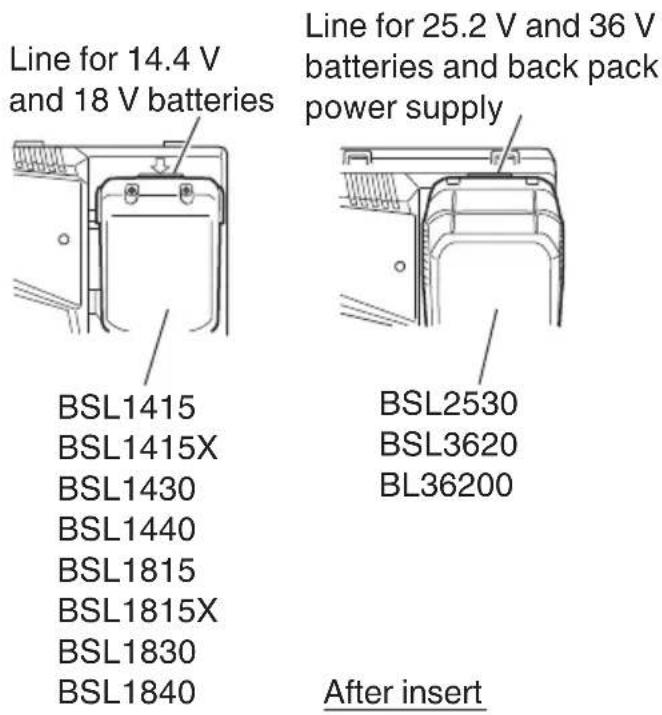

Line for 14.4 V and 18 V batteries BSL1415 BSL1415X BSL1430 BSL1440 BSL1815 BSL1815X BSL1830 BSL1840 After insert Line for 25.2 V and 36 V batteries and back pack power supply BSL2530 BSL3620 BL36200

Fig. 3

3. Charging

When inserting a battery or back pack power supply in the charger, the pilot lamp will light up continuously in red.

When the battery or back pack power supply becomes fully recharged, the pilot lamp will blink in red. (At 1-second intervals.) (See Table 2)

(1) Lamp indication

The indications of the pilot lamp will be as shown in Table 2, according to the condition of the charger, rechargeable battery or back pack power supply.

Table 2

Indications of the pilot lamp
The pilot lamp lights or blinks in red.	Before charging	Blinks	Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds)
	While charging	Lights	Lights continuously
	Charging complete	Blinks	Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds)
	Charging impossible	Flickers	Lights for 0.1 seconds. Does not light for 0.1 seconds. (off for 0.1 seconds)	Malfunction in the battery or back pack power supply or the charger
The pilot lamp lights in green.	Overheat standby	Lights	Lights continuously	Battery or back pack power supply overheated. Unable to charge. (Charging will commence when battery or back pack power supply cools)

NOTE:

When standby for cooling battery, UC36YRSL cools the overheated battery by cooling fan.
☐ The cooling fan does not rotate while the back pack power supply is charging.

(2) Regarding the temperature of the rechargeable battery and back pack power supply.

The temperature for rechargeable batteries and back pack power supply are as shown in the Table 3, and batteries and back pack power supply that have become hot should be cooled for a while before being recharged.

Table 3

Rechargeable batteries and back pack power supply	Temperature which the battery and back pack power supply can be recharged
BSL1415, BSL1415X, BSL1430, BSL1440, BSL1815, BSL1815X, BSL1830, BSL1840, BSL2530, BSL3620, BL36200	32°F — 122°F(0°C — 50°C)

(3) Regarding recharging time

Table 4 shows the recharging time required according to the battery and back pack power supply.

Table 4 Recharging time (approx.) at 20°C

Battery voltage	Battery capacity (Ah)
	Li-ion Battery Back pack power supply
	1.5 Ah 2.0	Ah 3.0 Ah 4.0	Ah 21 Ah
14.4 V	30 min.	—	60 min.	80 min.	—
18 V	30 min.	—	60 min.	80 min.	—
25.2 V	—	60 min. —		—
36 V	—	60 min.	—	—	10 hours

NOTE: The recharging time may vary according to the ambient temperature.

1. Disconnect battery charger from the receptacle.

CAUTION:

Do not pull the plug out of the receptacle by pulling on the cord.

Make sure to grasp the plug when removing from receptacle to avoid damaging cord.

1. Hold the charger firmly and pull out the battery or adaptor of back pack power supply.

NOTE:

☐ Be sure to pull out the battery or adaptor of back pack power supply from the charger after use, and then keep it.
○ When the back pack power supply is not in use, switch it OFF.

How to make the batteries and back pack power supply perform longer.

(1) Recharge the batteries and back pack power supply before they become completely exhausted.

When you feel that the power of the tool becomes weaker, stop using the tool and recharge its battery and back pack power supply. If you continue to use the tool and exhaust the electric current, the battery and back pack power supply may be damaged and its life will become shorter.

(2) Avoid recharging at high temperatures.

A rechargeable battery and back pack power supply will be hot immediately after use. If such a battery and back pack power supply are recharged immediately after use, its internal chemical substance will deteriorate, and the battery and back pack power supply life will be shortened. Leave the battery and back pack power supply for a while, and recharge them after they have cooled.

CAUTION:

- When the battery charger has been continuously used, the battery charger will be heated, thus constituting the cause of the failures. Once the charging has been completed, give 15 minutes rest until the next charging.

• If the battery and back pack power supply are charged while it is heated because it has been left for a long time in a location subject to direct sunlight or because the battery and back pack power supply have just been used, the pilot lamp of the charger lights up green. In such a case, first let the battery and back pack power supply cool, then start charging.
• When the charge status flickers in red (at 0.2-seconds intervals), check for and take out any foreign objects in the charger's battery connector. If there are no foreign objects, it is probable that the battery, back pack power supply or charger is malfunctioning. Take it to your authorized Service Center.
• Since the built-in microcomputer takes about 3 seconds to confirm that the battery and back pack power supply being charged with UC36YRSL is taken out, wait for a minimum of 3 seconds before reinserting it to continue charging. If the battery is reinserted within 3 seconds, the battery and back pack power supply may not be properly charged.

BEFORE USE

Check the work area to make sure that it is clear of debris and clutter.

Clear the area of unnecessary personnel. Ensure that lighting and ventilation is adequate.

MAINTENANCE AND INSPECTION

CAUTION: Pull out battery or back pack power supply before doing any inspection or maintenance.

1. Check the screws

Loose screws are dangerous. Regularly inspect them and make sure they are tight.

CAUTION: Using this battery charger with loosened screws is extremely dangerous.

1. Check for dust

Dust may be removed with a soft cloth or a cloth dampened with soapy water.

Do not use bleach, chlorine, gasoline or thinner, for they may damage the plastics.

1. Service parts list

CAUTION:

Repair, modification and inspection of metabo HPT power tools must be carried out by a metabo HPT Authorized Service Center.

This Parts List will be helpful if presented with the tool to the metabo HPT Authorized Service Center when requesting repair or other maintenance operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.

MODIFICATIONS

metabo HPT power tools are constantly being improved and modified to incorporate the latest technological advancements.

Accordingly, some parts (i.e. code numbers and/or design) may be changed without prior notice.

STORAGE

Storing in a place below 104°F (40°C) and out of the reach of children.

SERVICE AND REPAIRS

All quality power tools will eventually require servicing or replacement of parts because of wear from normal use. To assure that only authorized replacement parts will be used, all service and repairs must be performed by a metabo HPT AUTHORIZED SERVICE CENTER, ONLY.

NOTE: Specifications are subject to change without any obligation on the part of the metabo HPT.

CONSIGNES DE SÉCURITÉ IMPORTANTES

Black and white illustration of a hand with a lightning bolt symbol, no text or labels present.

Technical line drawing of a mechanical component with no visible text or symbols

BSL1415
BSL1415X
BSL1430
BSL1440
BSL1815
BSL1815X
BSL1830
BSL1840

Technical line drawing of a mechanical component with no visible text or symbols

BSL2530
BSL3620
BL36200
Après insertion
Fig. 3

3. Chargement

Black and white illustration of a hand with a lightning bolt symbol (no text or numbers)

Technical line drawing of a mechanical component with no visible text or symbols

BSL1415

BSL1415X

BSL1430

BSL1440

BSL1815

BSL1815X

BSL1830

BSL1840

Technical line drawing of a mechanical component or bracket (no text or symbols)

BSL2530

BSL3620

BL36200

Exploded view diagram of an electronic device with numbered components for identification

A B C D

1 335295 1

2 335291 1

3 333507 1 T3.15A / 250V

4 949553 4 M3

5 329045 1

6 329043 1

7 993963 4 M3 × 12

9 329041 1

10 326358 4 D3 × 18

11 327173 4

12 335336 1

13 328531 1

14 335294 1

15 327174 5 D3×8

16——1

17 335292 1 "3"

18 333239 1

19 327175 2 D3 × 25

20 326809 1

21 333238 1

22 —— 1

Line drawing of a quill pen with inkwell (no text or symbols)

Please contact Koki Holdings America Ltd. at 1-800-59-TOOLS (toll free), or metabo HPT AUTHORIZED POWER TOOL SERVICE CENTER regarding COLLECTION.

Pour le RAMASSAGE, contacter Koki Holdings America Ltd. au 1-800-59-TOOLS (appel gratuit), ou UN SERVICE APRÈS-VENTE D'OUTILS ÉLECTRIQUE AGRÉÉ PAR metabo HPT.

Shinagawa Intercity Tower A, 15-1, Konan 2-chome, Minato-ku, Tokyo 108-6020, Japan

Distributed by

Koki Holdings America Ltd.

1111 Broadway Ave, Braselton, Georgia, 30517

Koki Holdings America Ltd. Canadian Branch

3405 American Drive, Units 9-10, Mississauga, ON, L4V 1T6
