USER MANUAL Z 454X HUSQVARNA

Seat Adjustment Lever

(Applies to Z400X only)

SERVICE JOURNAL ..................................... 38Congratulations Thank you for purchasing a Husqvarna ride- on mower. This machine is built for superior e󰀩ciency to rapidly mow primarily large areas. A control panel easily accessible to the operator and a hydrostatic transmission regulated by steering controls both contribute to the machine’s performance. This manual is a valuable document. Read the contents carefully before using or servicing the machine. The following of instructions (use, service, maintenance) by all who operate this machine is important for the safety of the operator and others. It can also considerably increase the life span of the machine and increase its resale value. If you sell your machine, be sure to give the operator manual to the new owner. The nal chapter of this operator manual provides a Service Journal. Make sure that service and repair work are documented. A correctly kept service journal reduces service costs for the maintenance and a󰀨ects the machine’s resale value. Please contact your dealer for more information. Take the operator manual along when the machine is taken to your dealer for service. General In this operator manual, left and right, backward and forward are used in relation to the machine’s usual driving direction. Continuous dedication to improve our products require that specications and design are subject to change without notice. Driving and Transport on Public Roads Check applicable road tra󰀩c regulations before transporting on public roads. If the machine is transported, you must always use approved fastening equipment and make sure that the machine is correctly attached. DO NOT operate this machine on public roadways. Towing If machine is equipped with a tow hitch, use much more caution when towing. Do not let children or others in or on the towed equipment. Make wide turns to avoid jack-kning. Travel slowly and leave more distance to stop. Do not tow on sloped ground. The weight of the towed equipment may cause loss of traction and loss of control. Obey the manufacturer's recommendation for weight limits for towed equipment. Do not tow near ditches, canals, and other hazards. Operating This machine is constructed only for mowing grass on lawns and even ground without obstacles such as stones, tree stumps, etc. The machine can also be used for other tasks when equipped with special accessories provided by the manufacturer. Operating instructions for the accessories are provided with delivery. All other types of uses are incorrect. The manufacturer’s directions concerning operation, maintenance, and repairs must be carefully followed. Lawn mowers and all power equipment, can be potentially dangerous if used improperly. Safety requires good judgement, careful use in accordance with these instructions and common sense. The machine must only be operated, maintained, and repaired by persons familiar with the machine’s special characteristics and who are also knowledgeable about the safety instructions. Use only approved repair parts to maintain this machine. Accident prevention regulations, other general safety regulations, occupational safety rules, and tra󰀩c regulations must be followed without fail. Unauthorized modications to the design of the machine may absolve the manufacturer from liability for resulting personal injury or property damage.

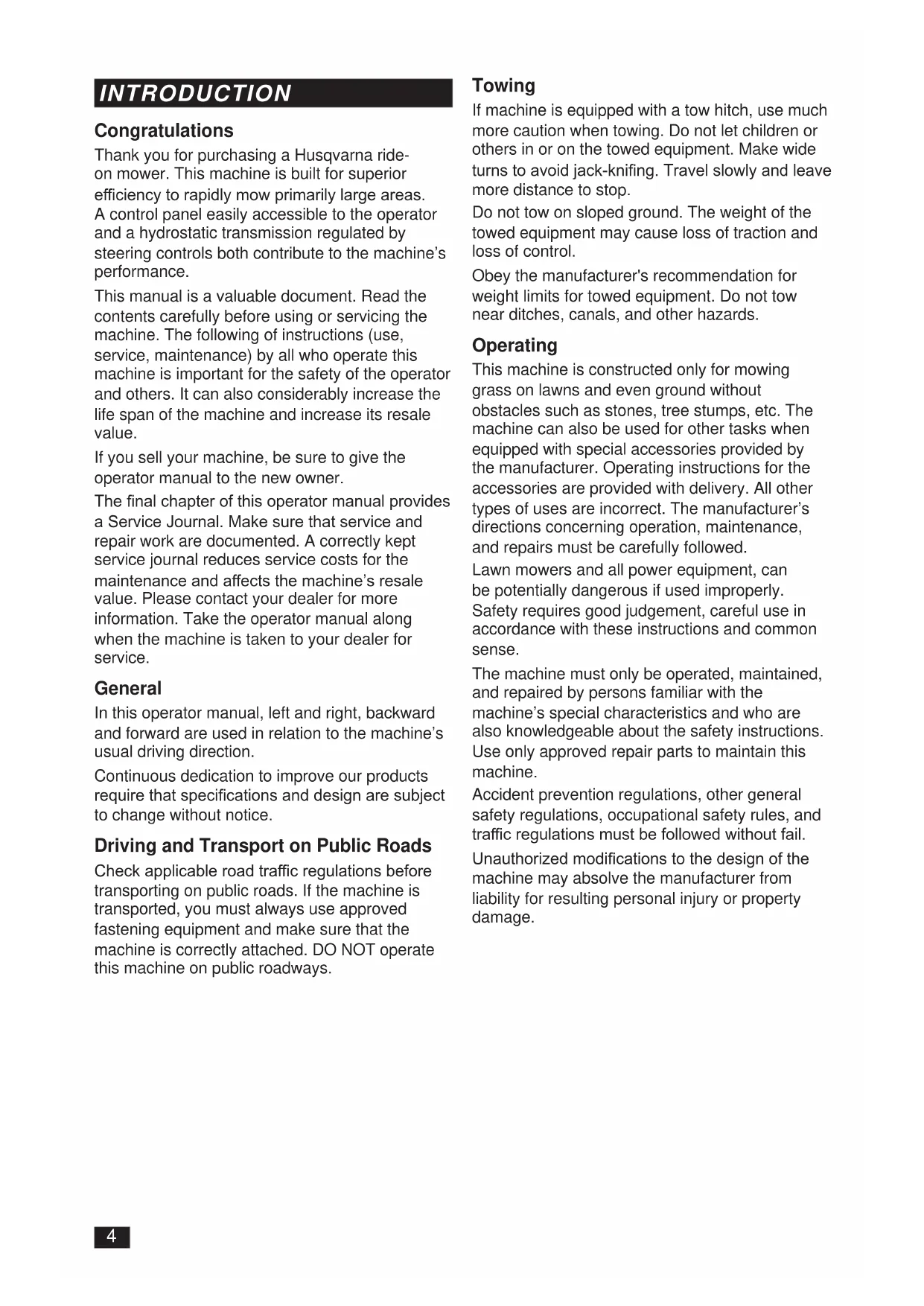

INTRODUCTIONGood Service Husqvarna's products are sold throughout the world and only in specialized retail stores with complete service. This ensures that you as a customer receive only the best support and service. Before the product is delivered, the machine has, for example, been inspected and adjusted by your retailer. See the certicate in the Service Journal in this operator manual. When you need spare parts or support in service questions, warranty issues, etc., consult the following professional: Manufacturing Number The machine’s manufacturing number can be found on the printed plate axed to the engine compartment. Stated on the plate, from the top are:

• The machine’s serial number (Serial no.) Please have the type designation and serial number available when ordering spare parts. This manual belongs to the machine with the manufacturing number: Engine Transmission The engine’s manufacturing number is stamped on one of the valve covers. The plate states:

• Code Please have these available when ordering spare parts. The wheel motors and hydrostatic pumps have a barcode decal a󰀩xed at the rear.

INTRODUCTIONReverse Neutral Fast Slow Choke Fuel Park Brake Danger Use protective glasses Use protective gloves Wear hearing protection Do not stand here Read Operator Manual Shut o󰀨 engine, remove key before maintenance or repair Keep a safe distance from the machine Use on slopes no greater than 10° No passengers Whole body exposure to thrown objects Severing of ngers and toes Do not open or remove safety shields with engine running Careful backing up, watch for other people Careful going forward, watch for other people These symbols are found on the machine and in the operator manual. Study them carefully until you know what they mean. WARNING! Xxxx xxxxxx xxxxx xxxx xxxxxxxxx xxxxxx xxxxxxxxx. Used in this publication to tell the reader of a risk of personal injury or death, particularly if the reader neglects to obey the instructions in the manual. IMPORTANT INFORMATION Xxxx xxxxxx xxxxx xxxx xxxxxxxxx xxxxxx xxxxxxxxx. Used in this publication to tell the reader of a risk of material damage, particularly if the reader neglects to obey the instructions in the manual. Used also when there is a possibility for misuse or misassembly. R N Warning! Do not touch parts Warning! Do not use without deector or grass catcher Warning! Use caution when lifting the cover Warning! Battery acid is corrosive, explosive and ammable Noise emissions to the surroundings in accordance with the European Union’s directive. The machine’s emission is stated in the chapter TECHNICAL DATA and on decals.

SYMBOLS AND DECALSSafety Instructions These instructions are for your safety. Read them carefully.

WARNING! THIS CUTTING MACHINE

CAN AMPUTATE HANDS AND FEET AND

THROW OBJECTS. FAILURE TO OBEY

EQUIPMENT. Carefully read and obey all the safety instruction that follow. IMPORTANT INFORMATION The American Academy of Pediatrics recommends that children be a minimum of 16 years of age before operating a riding lawn mower. Protecting Children Tragic accidents can occur if the operator is not alert to the presence of children. Children are frequently attracted to the machine and the mowing activity. Do not think that children will stay where you last saw them.

• Keep children out of the mowing area and in the watchful care of a responsible adult other than the operator.

• Be alert and turn machine o󰀨 if a child enters the area.

• Before and while backing, look behind and down for small children.

• Do not carry children, even with the blades shut o󰀨. They can fall o󰀨 and be seriously injured or interfere with safe machine operation. Children who have been given rides in the past can suddenly come into the mowing area to ride again and be run over or backed over by the machine.

• Do not let children operate the machine.

• Use extreme care when going near blind corners, shrubs, trees, or other objects that can block your view of a child. General Operation

• Read, understand, and obey all instructions on the machine and in the manual before starting.

• It is recommended that someone knows that you are mowing and can give aid if there is an injury or accident.

• Those who operate, maintain, and/or service this machine must rst read and understand this Operator Manual. Local laws can regulate the age of the user. The owner is responsible for training the users of this equipment.

• The owner and operator of this equipment can prevent accidents and is responsible for accidents or injuries occurring to themselves, other persons and/or property.

• Do not put hands or feet near rotating parts or under the machine. Keep away from the discharge opening at all times.

• Only let responsible adults, who are familiar with the instructions, to operate the machine.

• Clean the area of objects such as rocks, toys, wire, etc., which could be picked up and thrown by the blades.

• Be sure the area is has no bystanders before operating. Stop machine if someone enters the area.

• Do not mow in reverse unless fully necessary. Always look down and behind before and while backing.

• Do not point discharged material toward someone. Avoid discharging material against a wall or obstruction. Material can ricochet back toward the operator. Stop the blades when going across gravel surfaces.

• Do not operate machine without the full grass catcher, discharge guard, or other safety devices in place and working.

• Slow down before turning.

• Always turn o󰀨 blades, move the steering control lever out to the park brake position, stop engine and remove keys before dismounting.

• Do not carry passengers. The machine is only intended for use by one person.

• Operate the machine only in daylight or good articial light.

SAFETY• Disengage blades when not mowing. Shut o󰀨 engine and wait for all parts to come to a full stop before cleaning the machine, removing the grass catcher or unclogging the discharge guard.

• Do not operate the machine while under the inuence of alcohol or drugs.

• Look for tra󰀩c when operating near or going across roadways.

• Use more care when loading or removing the machine into a trailer or truck.

• Always wear eye protection when operating machine. WARNING! When using the machine, approved personal protective equipment must be used. Personal protective equipment cannot remove the risk of injury but it will reduce the degree of injury if an accident does occur. Speak to your retailer for aid in choosing the right equipment.

• Wear correct Personal Protective Equipment (PPE) while operating this machine, including (at a minimum) sturdy footwear, eye protection, and hearing protection. Do not mow in shorts and/or footwear with open toes.

• Data shows that operators age 60 years and above are involved in a large percentage of riding mower-related injuries. These operators must evaluate if they can safely operate the riding mower su󰀩ciently to protect themselves and others from serious injury.

• Obey the manufacturer’s recommendation for wheel weights or counterweights.

• Keep machine free of grass, leaves or other debris buildup which can touch hot exhaust or engine parts and burn. Do not let the mower deck plow leaves or other debris that can cause a buildup to occur. Clean oil or fuel spillage before operating or storing the machine.

• Let machine cool before storage. Personal Safety Equipment

• Make sure that rst aid equipment is near at hand when using the machine.

• Do not use the machine when barefoot.

• Always wear protective shoes or boots. Steel toe caps are recommended.

• Always wear approved protective glasses or a full visor when assembling or driving.

• Always wear gloves when handling the blades.

• Do not wear loose clothing that can become caught in moving parts.

• Use ear protectors to avoid damage to hearing. Slope Operation Slopes are a major cause related to loss of control and tip-over accidents, which can result in severe injury or death. Operation on slopes requires more care. If you cannot back up the slope or if you feel uneasy on it, do not mow it.

• Mow up and down slopes (10 degrees maximum), not across.

• Look for holes, ruts, bumps, rocks, or other hidden objects. Uneven terrain could overturn the machine. Tall grass can hide obstacles.

• Select a low ground speed so it will not be necessary to stop while on the slope.

• Do not mow on wet grass. Tires can lose traction.

• Avoid starting, stopping, or turning on a slope. If the tires lose traction, disengage the blades and continue slowly straight down the slope.

• Move slowly and gradually on slopes. Do not make sudden changes in speed or direction, which could cause machine to roll over.

• Use more care while operating machine with grass catchers or other attachments; the stability of the machine can be e󰀨ected.

• Do not use on steep slopes.

• Do not try to stabilize the machine by putting a foot on the ground.

• Do not mow near drop-o󰀨s, ditches, or embankments. The machine could suddenly roll over if a wheel is over the edge or the edge caves in. WARNING! Do not drive up or down hills with slopes greater than 10 degrees. Do not drive across slopes.

SAFETYSafe Handling of Gasoline To avoid personal injury or damage to property, use care in handling gasoline. Gasoline is very ammable and the vapors are explosive. WARNING! The engine and the exhaust system become very hot during operation. There is a risk for burns if touched. Let engine and exhaust system to cool before refueling.

• Do not fuel the machine indoors.

• Extinguish all cigarettes, cigars, pipes, and other sources of ignition.

• Use only approved gasoline containers.

• Do not remove gas cap or add fuel with the engine running. Let engine cool before refueling.

• Do not keep the machine or fuel container where there is an open ame, spark or pilot light such as on a water heater or other appliance.

• Before you start refueling, keep the risk of static electricity to a minimum by touching a metal surface.

• Do not ll containers in a vehicle or on a truck or trailer bed with plastic liner. Always put containers on the ground away from the vehicle when lling.

• Do not put too much fuel in the tank. Replace gas cap and tighten securely.

• Remove gas-powered equipment from the truck or trailer and refuel it on the ground. If this is not possible, refuel such equipment with a portable container, rather than from a gasoline dispenser nozzle.

• Keep the nozzle in contact with the rim of the fuel tank or container opening at all times until fueling is complete. Do not use a nozzle lock- open device.

• If fuel is spilled on clothing, change clothing immediately.

• Do not start the engine near spilled fuel.

• Do not use gasoline as a cleaning agent.

• If leaks occur in fuel system, the engine must not be started until problem has been resolved.

• Check the fuel level before each use and leave space for the fuel to expand, because the heat from the engine and the sun can otherwise cause the fuel to expand and overow. General Maintenance

• Do not use the machine indoors or in spaces lacking correct ventilation. The exhaust fumes contain carbon monoxide, an odorless and poisonous lethal gas.

• Make sure that the equipment is in good condition and that all nuts and bolts, especially those fastening the blade attachments, are correctly tightened and torqued. CAUTION! Use protective glasses for maintenance work.

• Maintain or replace safety and instruction labels as necessary.

• Do not interfere with the intended operation of or reduce the protection given by a safety device. Check their operation regularly. DO NOT operate a machine with a safety device that does not operate correctly.

• Check grass catcher components and the discharge guard frequently and replace with manufacturer’s recommended parts when necessary. WARNING! The engine must not be started when the driver’s oor plate or protective plates for the mower deck’s drive belt is removed.

• Do not change the settings of engine controllers and avoid running the engine at overly high engine speeds. If you run the engine too fast, machine components could be damaged.

• To reduce the risk of re, keep machine free of grass, leaves or other debris buildup. Clean oil or fuel spills and remove fuel-soaked debris. Let machine cool before storing.

• Stop to do an inspection of the equipment if you run over or into anything. If necessary, make repairs before starting.

• Do not make adjustments or repairs with the engine running.

• The blades are sharp and can cause cuts and gashes. Wrap blades or use protective gloves when handling them.

• Check the park brake’s operation regularly. Adjust and service as necessary.

• Do not work with the starter circuit if there is spilled fuel.

SAFETY• Make sure that the fuel ller cap is mounted tightly and no ammable substances are kept in an open vessel.

• Sparking can occur when working with the battery and the heavy cables of the starter circuit. This can cause battery explosion, re or eye injury. Sparking will not occur after the grounding cable (normally negative, black) is removed from the battery.

• Disconnect the grounding cable from the battery rst and reconnect it last.

• Do not make a bridge short circuit across the starter relay to run the starter.

• Be very careful when handling battery acid. Acid on skin can cause serious corrosive burns. If you spill battery acid on your skin, rinse immediately with water.

• Acid in the eyes can cause blindness, contact a doctor immediately.

• Be careful when servicing the battery. Explosive gases form in the battery. Do not do maintenance on the battery when smoking or near open ames or sparks. The battery can explode and cause serious injury or damage.

• The machine is tested and approved only with the equipment originally supplied or recommended by the manufacturer. Only use approved repair parts for the machine.

• The mulch blades must only be used in familiar areas when higher quality mowing is necessary.

• Regularly clean the deck and the underside of the deck. Avoid spraying engine and electrical components with water. Transport

• The machine is heavy and can cause serious crushing injuries. Be more careful when it is loaded on or removed from a vehicle or trailer.

• Use full width ramps for loading machine into a trailer or truck.

• The two front and rear tie down straps must be used and directed down and out from the machine.

• Check and abide by local tra󰀩c regulations before transporting the machine on roads.

• Use an approved trailer to transport the machine. Turn o󰀨 the fuel supply. Fasten the machine down with approved devices such as bands, chains or straps.

• Do not tow this machine, it can cause damage to the drive system.

• Do not tow trailers, etc. with this mower. They can jackknife or overturn, causing damage to the mower and possible serious injury to the operator.

• Load the unit onto truck or trailer by driving up ramps of su󰀩cient strength using a slow speed. Do not lift! The machine is not intended to be lifted by hand.

• When loading or removing this machine, do not use more than the maximum recommended operation angle of 10 degrees. WARNING! Use extreme care when loading the machine into a truck or trailer using ramps. There is the possibility of serious injury or death if the machine falls o󰀨 the ramps. IMPORTANT INFORMATION The park brake is not su󰀩cient to lock the machine in place during transport. Make sure the machine is correctly fastened to the transport vehicle. Always reverse the machine onto the transport vehicle to avoid tipping it over. Towing If machine is equipped with a tow hitch, use much more caution when towing. Do not let children or others in or on towed equipment. Make wide turns to avoid jack-kning. Travel slowly and leave more distance to stop. Do not tow on sloped ground. The weight of the towed equipment may cause loss of traction and loss of control. Follow the manufacturer’s recommendation for weight limits for towed equipment. Do not tow near ditches, canals, and other hazards. Spark Arrestor This mower is equipped with an internal combustion engine and must not be used on or near unimproved forested, bush covered or grassy lands unless the engine’s system is equipped with a spark arrestor meeting applicable local or state laws. Federal laws apply on federal lands. If a spark arrestor is used, it must be maintained in good working order by the operator. A spark arrestor for the mu󰀪er is available through your authorized Husqvarna dealer.

SAFETYRollover Protection System The Rollover Protection System (ROPS) increases the basic weight of the unit by 25 kg (55 lb).

• Do not use ROPS as a lifting, attaching or anchoring point.

• Do not use ROPS for wrecking or towing.

• Do not exceed maximum gross vehicle weight (GVW) of: 618 kg (1362 lb).

• Read the operator manual before use.

• Securely fasten the seat belt if the unit has a ROPS.

• Be certain the seat belt operates correctly and can be released quickly in the event of an emergency.

• Keep folding ROPS in the raised and locked position and use the seat belt when operating the machine.

• Lower a folding ROPS temporarily only when absolutely necessary. Do NOT wear the seat belt when the ROPS is folded down.

• Check carefully for overhead clearance (i.e. before driving under trees, electrical wires, through doorways) while loading into a truck or trailer.

• Keep the ROPS in safe operating condition by periodically inspecting for damage and keeping all mounting fasteners tight. Check all bolts, including on the seat belt, for correct torque before each use.

• Check the ROPS structure for damage before each use. If any part of the ROPS is damaged, the entire ROPS must be replaced.

• DO NOT remove the ROPS.

• Where possible, avoid operating the unit near ditches, embankments and holes.

• Reduce speed when turning, crossing slopes and on rough, slick or muddy surfaces. Stay o󰀨 slopes too steep for safe operation.

• Watch where you are going, especially at row ends, on roads and around trees.

• Do not permit others to ride.

• Operate mower smoothly, no jerky turns, starts or stops.

• When mower is stopped, engage park brake securely.

• ROPS bar is NOT intended for use in sub zero temperatures. WARNING! Please note that there is NO roll over protection when the ROPS is folded down.

SAFETYThis operator manual describes the Husqvarna Zero Turn Rider. The rider is tted with a four- stroke overhead valve engine. Power transmission from the engine is made via belt-driven hydraulic pumps. Using the left and right steering controls, the ow is regulated and thereby the direction and speed.

CONTROLSSteering Control Levers The machine’s speed and direction are continuously variable using the two steering controls. The steering controls can be moved forward or back about a neutral position. There is a neutral / parking brake position which sets the parking brake when the steering controls are moved out. When both controls are in the neutral position (N), the machine stands still. By equally moving both controls forward or backward, the machine moves in a straight line forward or backward. Park Brake Forward Neutral Reverse For example, to turn right while moving forward, move the right control towards the neutral position. The rotation of the right wheel is reduced and the machine turns to the right. Zero turn can be achieved by moving one control backward (behind the neutral position) and carefully moving the other steering control forward from its neutral position. The rotation direction when zero turning is determined by which steering control is moved backward behind the neutral position. If the left steering control is pulled backward, the machine turns to the left. Use more care when using this maneuver. If the steering controls are in uneven positions when standing still or do not t in the slots for moving the controls out, they can be adjusted. IMPORTANT INFORMATION The machine must stand still when engaging the park brake. Always engage the park brake before dismounting. Release the park brake before moving the mower. WARNING! The machine can turn very fast if one steering control is moved much further forward than the other. Throttle Control The throttle controls the engine speed and the rate of rotation of the blades, assuming the blade switch is pulled out. The control is moved forward or back to increase or decrease the engine speed. To prevent the risk of fouling the spark plugs, do not idle the engine for long periods. USE FULL THROTTLE WHEN MOWING, for best mower performance and battery charging. Ignition Switch The ignition switch is used to start and stop the engine. On models with headlights, turn the key clockwise to ACCESSORY for headlight use.

CONTROLSFuses Fuses are on the right hand side of the machine and are accessed by tilting the seat forward. Fuses are at pin fuses type as used in automobiles. The 20 A is the primary fuse. The

7.5 A is for the mower deck coupling.

Fuel Shut O󰀨 Valve Blade Switch To engage the mower deck, pull the knob out; mower blades are disengaged when the knob is pressed down. Service Meter Seat Adjustment Lever (Applies to Z400X only) Choke Control The choke control is used for cold starts to give the engine a richer fuel mixture. For cold starts, pull the control up. The service meter displays the total number of hours the engine has run and shows when the engine and mower need servicing. After every 50 hours of operation, an oil can icon will appear and stay on for two hours, before an automatic reset occurs. To manually reset the meter, turn the key o󰀨 and on ve times at one second intervals. To service the engine and mower, see the Service Journal of this manual. Note: The service meter operates (clocks hours) only when the engine is running. Be sure to turn the key o when the unit is not in use, to prevent meter hours from accumulating. The seat can be adjusted lengthways. The lever under the front edge of the seat is moved to the left (as seen by the driver in the seat), to adjust the seat backward or forward. IMPORTANT INFORMATION Seat must not be adjusted while unit is in motion. The fuel shut o󰀨 valve is just forward of the rear fuel tank mount bracket. The valve is o󰀨 when the handle tab is turned perpendicular to the fuel line.

CONTROLSCutting Height Pedal The desired cutting height is set with the height pin. The cutting height pedal releases the deck lift to place the deck at the selected height. For transport, push the lift pedal fully forward until the deck lift latches in the transport (highest) position. Tracking If the mower is not tracking straight, check the air pressure in both rear tires. Recommended air pressure for the rear tires is 15 psi (1 bar).

1. Tracking adjustments are made using the

2. For preliminary tracking adjustment, move

unit to an open, unobstructed area such as an empty parking lot or open eld.

3. Turn the tracking bolts in as far as possible.

4. Back the tracking bolts out 4 full turns. Any

more than four turns could damage the unit.

5. Test operate unit by driving it at full throttle

and the full forward position on both motion control levers. Gradually turn in the tracking bolt on the right hand side until the unit noticeably starts drifting right.

6. Drive forward at full throttle with both motion

control levers in the full forward position. Gradually turn in the tracking bolt (left side) until unit tracks straight. Hydro Release Levers Transmission bypass levers must be engaged when pushing or pulling the machine. Transmissions are put into bypass mode by rotating the levers to the horizontal position. The bypass levers are located at the front of both transmissions. See Manual Transport in the Operation section. IMPORTANT INFORMATION Always raise the deck to the highest position for transport. Fuel Tank Read the safety instructions before refueling. The capacity for the tank is ve gallons. Regularly check the gas cap gasket for damage and keep the cap correctly tightened. The engine will run on a minimum of 87-octane unleaded gasoline (no oil mix). Environmentally adapted alkylate gasoline can be used. See Technical Data concerning ethanol fuel. Methanol fuel is not allowed. Do not use E85 alcohol based fuel. Damage to the engine and components can occur. When operating in temperatures below 32°F, use fresh, clean winter grade gasoline to ensure good cold weather starting.

CONTROLSWARNING! Gasoline is very ammable. Observe caution and ll the tank outdoors (see the safety section). IMPORTANT INFORMATION Experience shows that alcohol blended fuels (called gasohol, ethanol or methanol) can attract moisture which leads to separation and formation of acids during storage. Acidic gas can damage the fuel system of an engine while in storage. To avoid engine problems, the fuel system must be emptied before storage of 30 days or longer. Drain the gas tank, start the engine and let it run until the fuel lines and carburetor are empty. Use fresh fuel the next season. See Storage for more information. Do not use engine or carburetor cleaners in the fuel tank or permanent damage can occur. WARNING! Fill to the bottom of the ller neck. Do not add too much gasoline. Wipe o󰀨 spilled oil or fuel. Do not keep, spill or use gasoline near an open ame. WARNING! The engine and the exhaust system become very hot during operation. There is a risk for burns if touched. Let engine and exhaust system to cool before refueling.

CONTROLSRead the Safety section and following pages, if you are unfamiliar with the machine. Training Due to unique steering capabilities, zero turn mowers are far more maneuverable than typical riding mowers. Review this section fully before trying to move the mower under its own power. When rst operating the mower or until becoming comfortable with controls, use a reduced throttle speed and reduced ground speed. DO NOT move control levers to the furthest forward or reverse positions during initial operation. First time users must become familiar with the mower’s movement on a hard surface, such as concrete or asphalt BEFORE trying to operate on turf. Until the operator becomes comfortable with the mower controls and zero turn, overly aggressive maneuvers can damage turf. Steering To move forward and rearward The direction and speed of the mower’s movements are e󰀨ected by the movement of the control lever(s) on each side of mower. The left lever controls the left wheel. The right lever controls the right wheel. First time users must push the mower (see Moving Machine By Hand in the Operation section) to an open, at area without other persons, vehicles or obstacles nearby. To move the unit under its own power, the operator must sit in the seat and start the engine (see Before Starting in the Operation section). Adjust the engine speed to idle, do not engage the blades at this time. Pull control levers inward. As long as the control levers have not been moved forward or to the rear, the mower will not move. Slowly move the two control levers forward slightly. This will let the mower start moving forward in a straight line. Pull the control levers back to the neutral position and stop the mower from moving. Pull back slightly on control levers, allowing the mower to move to the rear. Push the control levers forward to the neutral position to stop the mower from moving. To turn to the right While moving in a forward direction, pull the right lever back towards the neutral position while maintaining the position of the left lever, this will slow the rotation of the right wheel and cause the machine to turn in that direction. To turn to the left While moving in a forward direction pull the left lever back towards the neutral position while maintaining the position of the right lever, this will slow the rotation of the left wheel and cause the machine to turn in that direction. To zero turn While moving in a forward direction, rst pull the two control levers back until the mower stops or slows dramatically. Then by alternating one lever slightly to the forward position and the other in the reverse position, complete the turn. Roll Bar Operate the unit with the roll bar in the raised and locked position and use the seat belt. There is no rollover protection when the roll bar is down. If it is necessary to lower roll bar, do not wear the seat belt. Raise the roll bar as soon as clearance permits. WARNING! The seat belt must be used when the roll bar is in upright position. WARNING! Make sure the work area is free of stones and other objects that could be thrown by the rotating blades. Before Starting

1. Read the sections on Safety and Controls

before starting the machine.

2. Do the daily maintenance before starting (see

Maintenance Schedule in the Maintenance section).

3. Check that there is su󰀩cient fuel in the fuel

4. Adjust the seat to the desired position.

5. Set the deck cutting height by inserting the lift

pin into the desired cut height.

OPERATIONThe following conditions must be fullled before the engine can be started:

• The blade switch must be pressed downward into the disengaged position.

• The park brake must be applied, by having both control levers in the outboard (park brake on) position.

• Both steering controls must be in the locked (outer) neutral / parking brake position. Starting the Engine

2. Raise the mower deck to the transport

position by locking the lift pedal forward.

4. Move the steering controls outward to the

locked (outer) neutral / parking brake position.

5. Move throttle control to the middle position. If

the engine is cold, pull the choke control up.

6. Open the fuel tank valve.

7. Push in and turn the ignition key to the start

position. IMPORTANT INFORMATION Do not run the starter for more than ve seconds each time. If the engine does not start, wait approximately ten seconds before retrying.

8. When the engine starts, immediately release

the ignition key back to the run position. Slowly push in the choke control knob, if it was used to start a cold engine.

9. Set the engine speed with the throttle. Let

the engine to run at a moderate speed, approximately mid throttle, for a short time before use. USE FULL THROTTLE WHEN MOWING (no choke). Running

1. Move the steering controls in, out of the

neutral /parking brake position. NOTE: The mower has an operator presence system. If the engine is running and the operator tries to leave the seat without rst engaging the park brake, the engine will shut

2. Release the foot pedal latch to lower the deck

to the set cutting height.

3. Move throttle control to full throttle.

4. Engage the mower deck by pulling the blade

switch up. WARNING! Make sure that no one is near mower when engaging blade switch.

5. Rotate the control levers inward and slowly

move both control levers slightly forward to move forward in a straight line. Stopping the Engine

1. Move the throttle to the minimum position

2. Move the steering controls outward.

3. Disengage the mower deck by pressing the

4. Raise the mower deck by pressing the foot

pedals forward to the transport position.

5. Engage the park brake by moving the control

levers outward into the park brake position. If the engine has been worked hard, let it to idle at least 60 seconds and get to a normal operating temperature before stopping. To prevent fouling the spark plugs, avoid idling the engine for longer periods.

6. Turn the ignition key to the stop position and

remove the key. Always remove the key when leaving the mower to prevent unauthorized use. IMPORTANT INFORMATION Leaving the ignition switch in a position than OFF will cause the battery to be discharged. Operating on Hills Read the Safety Instructions Driving on Slopes in the Safety section.

• Use the slowest speed possible before starting up or down hills.

OPERATION• Avoid stopping or changing speed on hills.

• If stopping is necessary, pull drive levers into the neutral position and push outward. Engage the park brake.

• To restart movement, release the park brake.

• Pull the control levers back to the center of the mower and push forward to regain forward motion.

• Make all turns slowly. WARNING! Do not drive the rider on terrain that slopes more than 10 degrees. Mow slopes up and down, never side to side. Avoid sudden directional changes. Mowing Tips

• Observe and ag rocks and other xed objects to avoid collisions.

• Begin with a high cutting height and reduce it until the desired mowing result is attained. Cut the average lawn to 6.35 cm during the cool season and over 7.62 cm during the hot months. For healthier and better looking lawns, mow frequently after moderate growth.

• For best cutting performance, mow grass over

15.24 cm in height twice. Make the rst cut

relatively high; the second to the desired height.

• The mowing result will be best with a high engine speed (the blades turn rapidly) and low speed (the rider moves slowly). If the grass is not too long and dense, the driving speed can be increased without negatively a󰀨ecting the mowing result.

• The nest lawns are obtained by mowing frequently. The lawn becomes more even and the grass clippings more evenly distributed over the mown area. The total time taken is not increased as a higher operating speed can be used without poor mowing results.

• When mowing large areas, start by turning to the right so that clippings will discharge away from shrubs, fences, driveways, etc. After one or two rounds, mow in the opposite direction making left hand turns until nished.

• Avoid mowing wet lawns. The mowing result is poorer because the wheels sink into the soft lawn, clumps build, and grass clippings fasten under the cowling.

• Hose the mower deck underside with water after each use. When cleaning, the mower deck shall be raised into the transport position. Make sure the mower is cooled and the engine is o󰀨.

• Use compressed air to clean top surface of the deck. Avoid ooding water on top surface, engine and electrical components.

• When the mulching kit is used, it is important that the mowing interval is frequent. Moving Machine By Hand When pushing or pulling the mower, engage the bypass levers. The bypass levers are located at the front of each transmission.

1. Lower the deck if needed.

2. Move the steering controls inward out of the

park brake position.

4. Rotate each bypass lever to the horizontal

6. Push the mower using the sturdy feature of

the mower's structure. Do not push the mower with the control levers.

7. To reengage the transmission, rotate the

bypass levers to the vertical position.

OPERATIONLoad the machine into truck or trailer by driving up ramps in low gear. DO NOT LIFT! The machine is not intended to be lifted by hand. WARNING! Once the bypasses are engaged, and the steering controls are moved in to release the parking brake, the unit is free to roll and potentially injure someone. WARNING! Use more care when loading the machine into a truck or trailer using ramps. There is the possibility of dangerous injury or death if the machine falls o󰀨 the ramps. WARNING! Do not make adjustments unless:

• the engine is stopped,

• the ignition key is removed,

• the park brake is engaged

OPERATIONMaintenance Schedule Following is a list of maintenance procedures that must be performed on the machine. For those points not described in this manual, visit an authorized service workshop. An annual service ● = Described in this manual ♦ = Not described in this manual ■ = Refer to the engine manufacturer’s manual

First change after 8-10 hours. When operating with a heavy load or at high ambient temperatures, replace every 50 hours.

In dusty conditions, cleaning and replacement are necessary more frequently.

Performed by authorized service workshop. carried out by an authorized service workshop is recommended to maintain your machine in the best possible condition and to ensure safe operation. Read General Maintenance in the Safety section. WARNING! Before performing service or adjustment:

• Engage the park brake.

• Place the blade switch in the disengaged position.

• Turn the ignition switch to OFF position and remove the key.

• Make sure the blades and all moving parts have completely stopped. MAINTENANCE DAILY AT LEAST ONCE EACH YEAR MAINTENANCE INTERVAL IN HOURS BEFORE AFTER 25 50 100 300 CHECK Park brake for adjustment

Engine’s oil level (each refueling)

For fuel and oil leakages

For loose hardware (screws, nuts)

For mower deck damage

CLEAN Engine cooling air intake

Below the mower deck

Around belts, belt pulleys

Air cleaner foam pre-lter

Air cleaner paper lter cartridge

ALSO Examine mu󰀪er/spark arrestor

Start the engine & blades, listen for unusual sounds

MAINTENANCE● = Described in this manual ♦ = Not described in this manual ■ = Refer to the engine manufacturer’s manual

First change after 8-10 hours. When operating with a heavy load or at high ambient temperatures, replace every 50 hours.

In dusty conditions, cleaning and replacement are necessary more frequently.

Performed by authorized service workshop. IMPORTANT INFORMATION The mower has a 12-volt negative grounded system. The other vehicle must also be a 12-volt negative grounded system. Do not use your mower to start other vehicles. WARNING! Do not short battery terminals by allowing a wrench or other objects to contact both terminals at the same time. Before connecting battery, remove metal bracelets, wristwatch bands, rings, etc. Positive terminal must be connected rst to prevent sparks from accidental grounding. MAINTENANCE DAILY AT LEAST ONCE EACH YEAR MAINTENANCE INTERVAL IN HOURS BEFORE AFTER 25 50 100 300 CHECK Throttle cable for adjustment

Mower deck for adjustment

Condition of belts, belt pulleys

Caster wheels (at 200 hour intervals)

Engine valve clearance

Air cleaner foam pre-lter

ALSO Do the 300-hour service

MAINTENANCECleaning the battery and terminals Battery Removal Corrosion and dirt on the battery and terminals can cause the battery to lose power.

1. Lift and rotate the seat fully forward until

2. Remove the bolt and nut from the battery

bracket and remove the bracket from the battery.

3. Using a wrench, disconnect the BLACK

battery cable then the RED battery cable.

4. Carefully remove the battery from the mower

and clean if required.

5. Rinse the battery with plain water and dry.

6. Clean the terminals and battery cable ends

7. Reinstall battery with terminals in the same

position as prior to removal.

8. Connect RED battery cable rst to positive (+)

10. Fasten the battery in place with bracket

removed in Step 2. IMPORTANT INFORMATION Do not open or remove caps or covers. Adding or checking level of electrolyte is not necessary. Always use two wrenches for the terminal screws. CAUTION! Always wear eye protection when around batteries. CAUTION! Lead-acid batteries generate explosive gases. Keep sparks, ame and smoking materials away from batteries. Battery If the battery is too weak to start the engine, it must be recharged. Jumper Cable Use

1. Connect each end of the RED cable to the

POSITIVE (+) terminal on each battery, taking care not to short against chassis.

2. Connect one end of the BLACK cable to the

NEGATIVE (-) terminal of the fully charged battery.

3. Connect the other end of the BLACK cable

to a good CHASSIS GROUND on the mower with the discharged battery, away from the fuel tank and battery. To remove cables, reverse order

1. Remove BLACK cable rst from chassis and

then from the fully charged battery.

2. Remove RED cable last from both batteries.

The mower has a maintenance free battery and does not need servicing. However, periodic charging of the battery with an automotive type battery charger will extend its life.

• Keep battery and terminals clean.

• Keep battery bolts tight.

• See chart for charging times. STD BATTERY STATE

MAINTENANCEV-belts Check the belts every 100 hours of operation. Check for severe cracking and large nicks. The belt will show some small cracks in normal operation. The belts are not adjustable. Replace the belts if they begin to slip from wear. Deck Belt Removal

1. Park on a level surface and apply the parking

brake. Lower the deck to the lowest cutting position.

2. Remove all belt shielding.

3. Remove the debris that has accumulated

around the cutter housings and the deck surface.

4. Push inward on the idler arm to release the

tension on the belt.

5. Slip the belt over the top of the cutter housing

pulleys and remove the belt from the deck. Deck Belt Installation NOTE: For ease in installing the deck belt, refer to the routing decal on the top of the deck.

1. Wrap the deck belt around the electric clutch

pulley located on the engine shaft.

2. Route the belt forward and up onto the deck.

3. Place the belt around the idler pulley.

4. Wrap the belt around the stationary idler

pulley and around the mandrel housings.

5. Push inward on the idler arm and carefully

route the belt over the stationary idler pulley. Once the belt is properly routed, slowly release the idler arm to tension the belt.

6. Make sure the belt routing matches the deck

decal and that the belt does not have any twists.

7. Reinstall all belt shielding.

Safety System The machine has a safety system that prevents starting or driving under the following conditions. The engine can only be started when:

• the mower deck is disengaged.

• the steering controls are in the outer, locked neutral / parking brake position. IMPORTANT INFORMATION To be able to drive, the driver must be seated and move both steering levers in toward each other at the same time, otherwise the engine will stop. Make daily inspections to ensure that the safety system works by attempting to start the engine when one of the conditions is not met. Change the conditions and try again. If the machine starts when one of these conditions is not met, turn the machine o󰀨 and repair the safety system before using the machine again. Make sure the engine stops when the park brake is released and the operator leaves the seated position. Check that the engine stops if the mower blades are engaged and the driver temporarily moves o󰀨 the driver’s seat. Park Brake and Steering Visually check that no damage is found on the lever, links, or switches belonging to the park brake. Do a standstill test and check that there is su󰀩cient braking. For park brake adjustments, contact the Husqvarna service workshop. WARNING! Faulty adjustment will result in reduced braking and can cause an accident. Tire Pressures All tires must be at 15 psi / 103 kPa / 1 bar. IMPORTANT INFORMATION DO NOT add a tire liner or foam ll material to the tires. Excessive loads created by foam lled tires will cause premature failures. Only use tires specied by Husqvarna.

MAINTENANCEPump Belt The transmissions drive belt tension is adjustable. The tension spring should be compressed to a length between 1.38 and 1.50 inches. Replacing Pump Belt Park the mower on a level surface. Engage the park brake by moving the steering controls outward. Belt Removal From the top side of the deck:

1. Remove the deck belt (see Deck Belt

Removal in this section of the manual).

2. Tilt seat forward to access fan covers.

Remove both fan covers. From the underside of the mower:

3. Remove clutch stop to access the belt.

4. Loosen tension spring nuts on eyebolt to shift

the arm and create slack in the belt.

5. Remove belt from the engine and pump

pulleys. Lift belt over the top of the fans. Belt Installation

1. If the pump is not locked in the extended

position, do Step 4 from the above instructions again.

2. Slip the belt over the fans and put it between

3. Place the belt over the right and left idler

4. Place the belt on the engine pulley.

5. Install and tighten the clutch stop.

6. Adjust drive belt linkage tensioner to achieve

a spring length between 1.38 and 1.50 inches.

Cutting Blades CAUTION! Blades are sharp. Protect your hands with gloves and/or wrap blades with a heavy cloth when handling. The sharpening of blades must be carried out by an authorized service workshop. For the best mowing e󰀨ect, it is important that the blades are well sharpened and not damaged. Replace blades that have been bent or cracked when hitting obstacles. Let the service workshop decide whether a blade with large nicks can be repaired/ground or must be replaced. Balance the blades after sharpening. Check the blade mounts. Blade Replacement

1. Remove blade bolt by turning it counter

2. Install new or re-sharpened blade with

stamped GRASS SIDE facing toward the ground/grass (down) or THIS SIDE UP facing the deck and cutter housing.

3. Install and tighten the blade bolt correctly.

4. Torque the blade bolt to 45-55 ft/lb (61-75

Nm). IMPORTANT INFORMATION The special blade bolt is heat treated. Replace it with a Husqvarna bolt if necessary. Do not a use lower grade hardware than specied.

MAINTENANCEAdjusting the Mower Deck Leveling Deck Adjust the deck while the mower is on a level surface. Make sure the tires are inated to the correct pressure. See Tire Pressures in Maintenance section. If tires are under or over inated, the deck cannot be correctly adjusted. Faulty mower deck adjustments will cause an uneven mowing result. Four slots control the height and pitch of the mower deck. Adjust the deck slightly higher in the rear. NOTE: To ensure precision in the leveling procedure, the mower deck drive belt must be installed before leveling the deck.

1. Wear heavy gloves. Turn each outer blade tip

to align with the deck side to side.

2. Measure from the oor surface up to the

bottom of the blade tip on the discharge side of the mower deck. Record this measurement. Move to the opposite side; check that measurement is the same. If adjustment is required, loosen the locknut on the top of the rear links and adjust until both side to side measurements are equal. Retain measurement.

3. Turn both outer blades to align with the deck

front-to-rear. Reposition the front mounting bolts up or down until the rear blade tips are positioned 1/8" to 3/8" higher in the rear than the front blade tips.

4. Conrm measurements once again. The

blade tip height must be equal side-to-side. In the rear, blade tips must be 1/8" to 3/8" higher than the front measurement. In the front, blade tips must be equal from side-to-side. NOTE: This will place the mower deck in a standard measurement position. Depending on the type of grass being mowed or environmental conditions, more adjustments can be necessary to get the desired cut. Powertrain Regular external maintenance of the powertrain should include the following:

1. Check each transmission oil level. When the

engine is cold, the oil level should touch the bottom of each transmission oil dipstick.

2. Examine the vehicle drive belt, idler pulley(s),

and idler spring(s). Ensure that no belt slippage can occur. Slippage can cause low input speed to the transmissions.

3. Examine each transmission cooling fan

for broken or bent blades. Remove any obstructions such as grass clippings, leaves or dirt.

4. Examine the park brake and vehicle linkage to

make sure they work correctly.

5. Examine the vehicle control linkage to the

directional control arm on the transmissions. Also, make sure the control arm is correctly fastened to the trunnion arm of the transmissions.

6. Examine the bypass levers on the transmissions

and make sure they rotate freely. IMPORTANT INFORMATION Any servicing dealer attempting a warranty repair must have prior approval before conducting maintenance of a Parker® product, unless the servicing dealer is a current Authorized Parker™ Service Center.

MAINTENANCECleaning Regular cleaning, especially under the mower deck, will increase the machine’s life-span. Clean the machine directly after use (after it is cooled), before the debris sticks. Do not spray water on the top of the mower deck. Use compressed air to clean the top side of the mower deck. Do not use a high pressure washer or steam cleaner. Avoid spraying engine and electrical components with water. Clean the underside of the deck with normal water pressure. Do not rinse hot surfaces with cold water. Let unit cool before washing. CAUTION! Always wear eye protection when cleaning and washing. Hardware Check daily. Examine the machine for loose or missing hardware. Caster Wheels Check every 200 hours. Check that wheels turn freely. Foam lled tires or solid tires will void the warranty. To replace, remove the nut and caster bolt. Pull the wheel out of the yoke and take care with the spacer. Install in reverse order. Tighten the caster bolt and torque to 45 ft/lb (61 Nm). NOTE: Tire must turn freely but axle spacers must not. If wheels do not turn freely take the unit to the dealer for service. Anti-scalp Rollers Anti-scalp rollers are correctly adjusted when they are slightly o󰀨 of the ground when the deck is at the desired cutting height. Anti-scalp rollers keep the deck in the correct position to prevent scalping in most terrain conditions. Do not adjust the rollers to support the deck. The rollers must be approximately 1/4" (6.5 mm) from ground. IMPORTANT INFORMATION Adjust anti-scalp rollers with the mower on a at level surface. To avoid deck damage, the anti-scalp rollers must not be adjusted to support the deck.

MAINTENANCEGeneral Remove the ignition key to prevent unintentional movements during lubrication. When lubricating with an oil can, it must be lled with engine oil. When lubricating with grease, unless otherwise stated, use high grade molybdenum disulde grease. For daily use, the machine must be lubricated twice weekly. Wipe away excess grease after lubrication. It is important to avoid getting lubricant on the belts or the drive surfaces on the belt pulleys. If this happens, clean them with spirits. If the belt continues to slip after cleaning, it must be replaced. Gasoline or other petroleum products must not be used to clean belts. Qualied Hydraulic Oils If Parker™ HT-1000 oil is used continually, the oil and lters must be changed every 750 hours. If Castrol™ Syntec 5W-50, Amsoil AW ISO 68, or Shell™ TTF-SB oils are used, the oil and lters must be changed every 500 hours after the initial 750 hour oil and lter change. Lubrication Schedule If a premium grade synthetic engine oil with a minimum viscosity grade of 15W40 is used, then the oil and lters must be changed every 250 hours after the initial 750 hour oil and lter change. IMPORTANT INFORMATION Use minimal lubrication and remove excess lubricant so that is does not come into contact with belts or belt pulley drive surfaces. WARNING! Escaping hydraulic oil under pressure can have su󰀩cient force to penetrate the skin, causing serious injury. If injured by escaping uid, see a doctor at once. Serious infection or reaction can develop if proper medical treatment is not administered immediately. 12/12 Every year 1/52 Every Week 1/365 Every day Lubricate with grease gun Filter change Oil change Level check

Initial hydraulic oil and lter change at 100 hrs, every 400 hrs thereafter Change engine oil every 50 hours

LUBRICATIONWheel and Deck Zerks Use only good quality bearing grease. Grease from well-known brand names (petrochemical companies, etc.) usually maintains a good quality. Front Wheel Mount Lubricate 3-4 strokes with a grease gun on each set of wheel mounts. Front Wheel Bearings Lubricate 3-4 strokes with a grease gun on each set of wheel bearings. Deck Spindles Lower the cutting deck completely. If a grease gun without rubber hose is used, the foot plate must be removed to access the center spindle. Lubricate with a grease gun, 2-3 strokes per spindle. Engine oil change NOTE: Change the engine oil when the engine is warm. Refer to the engine owner’s manual for the correct replacement oil and lter change recommendations. WARNING! The engine drain plug is near to the mu󰀪er. To prevent burns, the engine should be shut o󰀨 and allowed to cool slightly so the engine is still warm but the adjacent surfaces and oil are not.

1. Park on a level surface. Engage park brake.

2. Clean the dirt and debris from the area around

3. Remove the cap/dipstick.

4. Find the drain hose at the right rear of the

engine. Place a su󰀩ciently sized container under the end of the drain hose and remove the oil drain plug.

5. Let the used oil fully drain from the engine.

6. Replace and tighten the drain hose plug.

7. Fill the engine with new oil to the bottom of

the ll tube threads. Check the level with the dipstick.

8. Replace and tighten the oil ll cap when the

9. To discard the used oil, refer to local disposal

10. Refer to the Service Journal for oil checking

and changing intervals and change recommendations.

LUBRICATIONOil and Filters Change The hydraulic oil and lters must be replaced every 250 to 750 hours or once per year, depending on the type of oil used. See Qualied Hydraulic Oils in the Lubrication section for a list of approved oils or refer to the transmission manufacturers service manual. Due to the risk of impurities entering the system, all transmission work should be performed by an authorized service workshop. The following procedure is performed with the transmissions installed in the mower and the mower on level ground. Apply the pump release valve for each transmission and set the park brake.

1. Thoroughly clean the unit free of grass and

other debris. Clean any loose debris from around the perimeter of the lter.

2. Remove breather / dipstick.

3. Place an oil drain pan (12" or more diameter

and 8 qt. capacity is optimal) beneath the oil lter.

4. Using a socket and ratchet, remove lter plug

and O-ring assembly.

5. Using a strong magnet or pair of needle nose

pliers, remove the oil lter.

6. Install the new lter.

7. Install lter plug and O-ring assembly. Torque

lter plug to 115–135 in/lbs.

8. Repeat steps on the opposite side.

9. Drain old oil lters of all free owing oil prior

to disposal. Place used oil in appropriate containers and dispose of it in accordance with laws in your area.

10. Fill transmission with Paker HT-1000

transmission oil or other approved hydraulic uid.

11. The cold uid level should touch the bottom of

the breather / dipstick.

12. Install breather / dipstick and torque to 18–30

in./lbs. Transmission Purging Purge procedures must be implemented if the hydrostatic system has been opened for maintenance or when more oil has been added to the system. Due to the e󰀨ects air has on e󰀩ciency in hydrostatic drive applications, it is critical to purge the system. Resulting symptoms of air in hydrostatic systems may be:

• Lack of power or drive after short term operation.

• High operation temperature and excessive expansion of oil.

• Shortened component life. Before starting, make sure the oil tank is at the proper oil level. If not, ll to the specications outlined above. Perform the procedure rst with the vehicle drive wheels o󰀨 the ground, then repeated under normal operating conditions. See Moving Machine By Hand in the Operation section for bypass linkage adjustments.

1. Disengage the brake if activated.

2. With the bypass linkage open and the

engine running at fast idle, slowly move the directional control in both forward and reverse directions (5 or 6 times). As air is purged from the unit, the oil level will drop.

3. With the bypass linkage closed and the

engine running, slowly move the directional control in both forward and reverse directions (5 to 6 times). Check the oil level and add oil as required after stopping the engine.

4. It may be necessary to repeat Steps 2 and 3

until all the air is completely purged from the system. When the hydraulic drive operates at normal noise levels and moves smoothly forward and reverse at normal speeds, the hydraulic drive is considered purged.

5. After the vehicle has been used two times, the

oil level must be checked while the oil is cold and adjusted accordingly.

LUBRICATIONEngine will not start Blade switch is engaged Steering controls are not locked in the neutral / parking brake position Dead battery Contamination in the carburetor or fuel line Fuel supply shuto󰀨 valve is closed or in the wrong position Clogged fuel lter or fuel line Ignition system faulty Starter does not turn the engine over Dead battery Battery terminal cable contacts are defective Blown fuse Fault in the starter safety circuit. See Safety System in the Maintenance Section Engine runs rough Faulty carburetor Clogged fuel lter or jet Choke is activated with a warm engine Clogged ventilation valve on the fuel cap Fuel tank nearly empty Fouled spark plugs Rich fuel mixture or fuel-air mixture. Wrong fuel type Water in fuel Clogged air lter Engine seems weak Clogged air lter Fouled spark plugs Carburetor incorrectly adjusted Air trapped in hydraulic system Machine vibrates Blades are loose Blades are incorrectly balanced Engine is loose Engine overheats Clogged air intake or cooling ns Engine overloaded Poor ventilation around engine Defective engine speed regulator Too little or no oil in the engine Contamination in the fuel line Fouled spark plugs Battery not charging Battery terminal cable contacts are defective Charging lead is disconnected Fault in engine charging system Mower moves slowly, unevenly, or not at all Bypass lever(s) engaged Transmission drive belt is slack or o󰀨 Air trapped in hydraulic system Mower deck not engaging Drive belt for the mower deck is loose Electromagnetic coupling contact is loose Blade switch is faulty or loose from cable contact Blown fuse Transmission leaks oil Damaged seals, housing, or gaskets Air trapped in hydraulic system Uneven mowing results Unequal air pressures in tires Bent blades Suspension for the mower deck is uneven Blades are dull Driving speed too high Grass is too long Grass has collected under the mower deck

TROUBLESHOOTING Problem / CauseWinter Storage The machine must be readied for storage at the end of the mowing season, or if it will not be in use for more than thirty days. Fuel allowed to stand for long periods of time (thirty days or more) can leave sticky residues that can plug the carburetor and disrupt engine function. Fuel stabilizers are an permitted option as regards to the sticky residues that can occur during storage. Add stabilizer to the fuel in the tank or in the storage container. Always use the mixing ratios specied by the manufacturer of the stabilizer. Run the engine for at least ten minutes after adding the stabilizer so that it reaches the carburetor. Do not empty the fuel tank and the carburetor if a stabilizer has been added. WARNING! Do not store an engine with fuel in the tank indoors or in poorly ventilated spaces where fuel vapor can come in contact with open ames, sparks, or a pilot light such as in a boiler, hot water tank, clothes dryer, etc. Handle the fuel with care. It is very ammable and can cause serious personal injury and property damage. Drain the fuel into an approved container outdoors and store far away from open ame or sources of ignition. Do not use gasoline for cleaning. Use a degreaser and warm water. To ready the machine for storage:

1. Thoroughly clean the machine, especially

under the mower deck. Touch up damage to the paint and spray a thin layer of oil on the underside of the mower deck to avoid corrosion.

2. Inspect the machine for worn or damaged

parts and tighten nuts or screws that may have become loose.

3. Change the engine oil; dispose of properly.

4. Empty the fuel tanks or add a fuel stabilizer.

Start the engine and let it run until the carburetor is drained of fuel or the stabilizer has reached the carburetor.

5. Remove the spark plug and pour about a

tablespoon of engine oil into the cylinder. Turn over the engine so that the oil is evenly distributed and then ret the spark plug.

6. Lubricate all grease zerks, joints, and axles.

7. Remove the battery. Clean, charge, and store

the battery in a cool place, but protect it from direct cold.

8. Store the machine in a clean, dry place and

cover it for extra protection. Service When ordering spare parts, please specify the purchase year, model, type, and serial number. Always use genuine Husqvarna spare parts. An annual check-up at an authorized service workshop is a good way to ensure that the machine performs its best the following season.

STORAGE33 SCHEMATICEC Declaration Of Conformity We, Husqvarna AB, SE 561 82 Huskvarna, SWEDEN, declare under our sole responsibility that the represented product: complies fully with the following EU directives and regulations: Description Combustion-engine-powered ride-on lawn mower with seated operator Brand Husqvarna Platform / Type / Model Z454x Batch Serial number dating 2019 and onwards Directive/Regulation Description 2006/42/EC “relating to machinery” 2014/30/EU “relating to electromagnetic compatibility” 2000/14/EC; 2005/88/EC “relating to outdoor noise” 2011/65/EU Restriction of use of certain hazardous substances. Harmonized standards and/or technical specications applied are as follows;

In accordance with directive 2000/14/EC, Annex V, the declared sound values are stated in the technical data section of this manual and in the signed EC Declaration of Conformity. The supplied combustion-engine-powered ride- on lawn mower with seated operator conforms to the example that underwent examination. CONFORMITYENGINE Manufacturer Briggs & Stratton Type Commercial Endurance Power 16.9 kW @ 2800

The power rating as declared by the engine manufacturer is the average gross power output at the specied RPM of a typical production engine for the engine model measured using SAE Standards for engine gross power. Refer to the engine manufacturer engine specications.

Sound Level, Measured 105 dB Sound Level, Guaranteed 105 dB

Action Date, mtr reading, stamp, sign Charge and connect the battery

Adjust the tire pressure of all wheels to 15 PSI (1 bar)

Mount the steering controls in the normal position

Connect the contact box to the cable for the seat’s safety switch

Check hydraulic oil level

Check hydraulic hoses for kinking or leaks

Check that the right amount of oil is in the engine

Adjust the position of the steering controls

Fill with fuel and open the fuel shut o󰀨 valve

Check that there is drive to both wheels

Check mower deck pitch and adjustment

Check: Safety switch for the park brake

Safety switch for the mower deck

Safety switch in the seat

Safety switch in the steering controls

Park brake functionality and adjustment

Engine high idle speed

Inform the customer about: Need and advantages of following the service schedule

Need and advantages of leaving the machine for service

E󰀨ects of service and maintaining a service journal on the machine’s resale value

Application areas for mulching

Fill in the sales papers, etc. Delivery service has been carried out No remaining notes Certied:

SERVICE JOURNALAFTER 10 HOURS

Action Date, mtr reading, stamp, sign Change the engine oil

DAILY SERVICE Action Date, mtr reading, stamp, sign Clean debris from mower

Check engine oil level

Check the tire pressures

Check underside of deck

Check fuel system for leaks

Inspect safety guards and shields

Check brake adjustment

25-HOUR SERVICE Action Date, mtr reading, stamp, sign Check the fuel pump’s air lter

Check the tire pressures

Lubricate according to lubrication chart

Check/clean the engine’s cooling air intake

Clean the air cleaner’s foam pre-lter

50-HOUR SERVICE Action Date, mtr reading, stamp, sign Do the 25-hour service

Clean / replace the air cleaner’s paper lter cartridge (shorter intervals for dusty operating conditions)

Lubricate according to lubrication chart

SERVICE JOURNAL100-HOUR SERVICE

Action Date, mtr reading, stamp, sign Do the 25-hour service

Do the 50-hour service

Change the engine oil lter

Replace the fuel lter

Check / tighten caster wheel axle bolts (at 200 hour intervals)

300-HOUR SERVICE Action Date, mtr reading, stamp, sign Do the 25-hour service

Do the 50-hour service

Do the 100-hour service

Clean the combustion chamber and grind the valve seats

Check the engine valve clearance

Action Date, mtr reading, stamp, sign Clean the engine’s cooling air intake (at 25 hour intervals)

Replace the air cleaner’s foam pre-lter (at 50 hour intervals)

Change the engine oil (50 hours)

Replace the engine oil lter (100 hours)

Clean / change the spark plugs (100 hours)

Change the fuel lter (100 hours)

Check the engine valve clearance

(Aplicable solo al Z400X)

aree applicative del mulching.

WAARSCHUWING! DEZE MACHINE

LETSEL. WAARSCHUWING! KINDEREN
