USER MANUAL T540 XP II HUSQVARNA

English Symbols on the mac hine:

WARNING! Chainsaws can be dangerous! Careless or improper use can result in ser ious or f atal injury to the operator or others. Please read the operator’s manual carefully and make sure y ou understand the instructions before using the machine. Always wear:

• Approved protective helmet

• Approved hearing protection

• Protective goggles or a visor Both of the operator

s hands must be used to operate the chainsa

Never operate a chainsaw holding it with one hand only

Never let the guide bar tip come in contact with an y object.

ARNING! Kickback may occur when the nose or tip of the guide bar touches an object, and cause a lightning f ast re verse reaction, kicking the guide bar up and towards the operator. May cause serious personal injury. Recommended cutting equipment in this example:

Bar length 16 inches - Max. nose radius 9 Teeth - Chain type Husqvarna H37 Other approved bar and chain combinations in Oper ator’s Manual. Measured maximum kickback value without tr iggering the brake, for the bar and chain combination on the label. Measured maximum kickback value without chain brak e for the bar and chain combination on the label. Chain brake, activated (right) Chain brak e, not activated (left) Air purge Refuelling. Adjustment of the oil pump Chain oil fill. Working position. Choke. Handle insert size. Always use the recommended spar k plug type! Use of the wrong spark plug can damage the piston/cylinder. Check that the spark plug is fitted with a suppressor.

Other symbols/decals on the mac hine refer to special certification requirements for certain markets.

The rating plate showing serial number. yyyy is the production year, ww is the productionweek. yyyywwxxxxxKEY

Symbols in the operator’

Switch off the engine before carrying out an y chec ks or maintenance. Always wear approved protective glov es. Regular cleaning is required. Visual check. Protective goggles or a visor must be

Refuelling. Filling with oil and adjusting oil flow. The chain brake must be engaged when the chainsa w is star ted.

WARNING! Kickback may occur when the nose or tip of the guide bar touches an object, and cause a lightning fast reverse reaction, kicking the guide bar up and towards the operator. May cause serious personal injury.

A III The Emissions Compliance P eriod referred to on the Emission Compliance label indicates the n umber of oper ating hours for which the engine has been shown to meet Federal and California emissions requirements. Maintenance, replacement, or repair of the emission control de vices and system ma y be performed by any nonroad engine repair establishment or individual. The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.CONTENTS

English Contents KEY TO SYMBOLS Symbols on the machine:

WHA T IS WHAT? What is what on the chainsa w? ............................ 6

Fitting the bar and chain

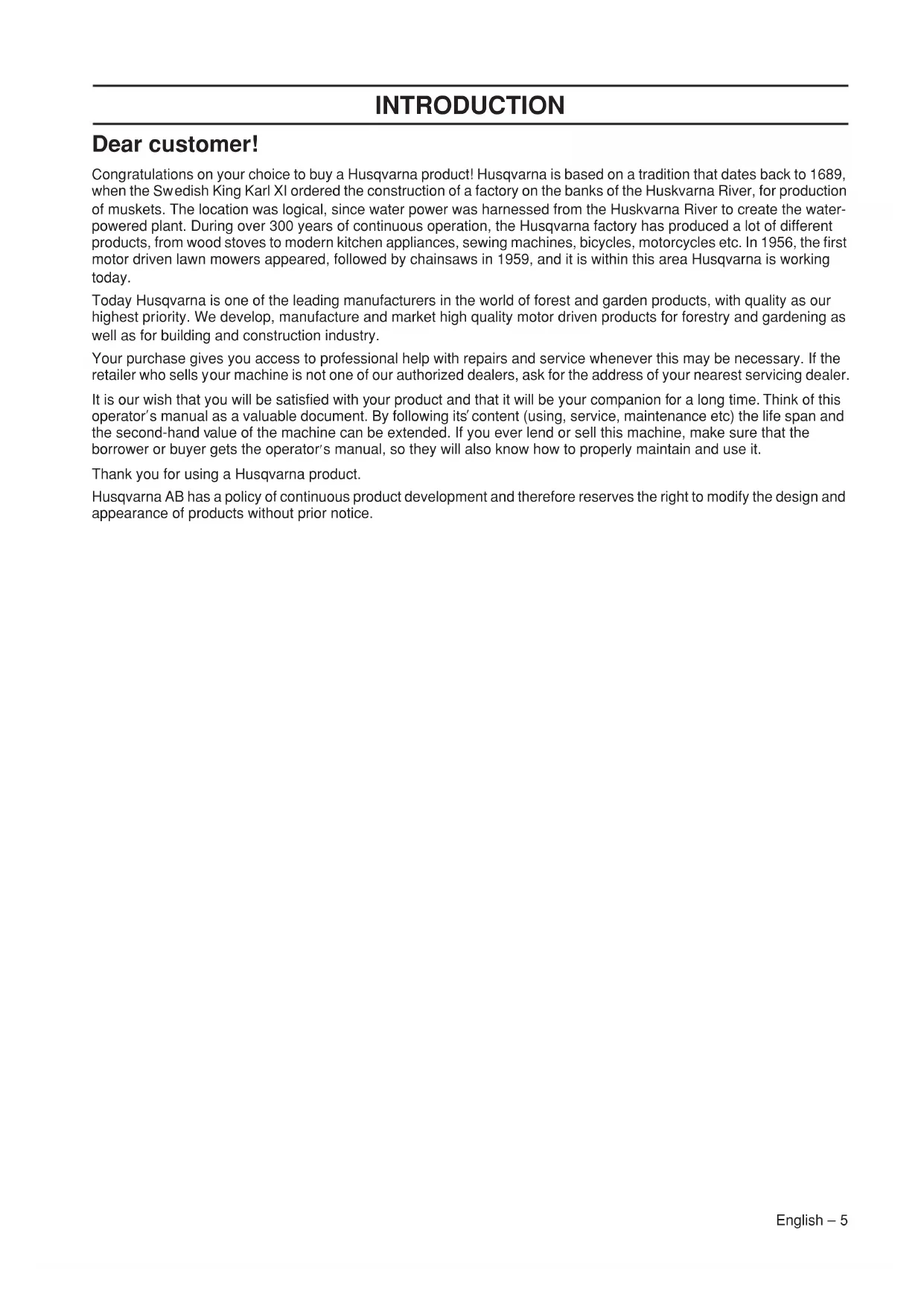

INTR ODUCTION Dear customer! Cong ratulations on your choice to buy a Husqvarna product! Husqvarna is based on a tradition that dates back to 1689, when the Sw edish King Karl XI ordered the construction of a factory on the banks of the Huskvarna River, for production of muskets. The location was logical, since water power was harnessed from the Huskvarna River to create the water- powered plant. During over 300 years of continuous operation, the Husqvarna factory has produced a lot of different products, from wood stoves to modern kitchen appliances, sewing machines, bicycles, motorcycles etc. In 1956, the first motor driven lawn mowers appeared, followed by chainsaws in 1959, and it is within this area Husqvarna is working today. Today Husqvarna is one of the leading manufacturers in the world of forest and garden products, with quality as our highest pr iority. We develop, manufacture and market high quality motor driven products for forestry and gardening as well as for building and construction industry. Your purchase gives you access to professional help with repairs and service whenever this may be necessary. If the retailer who sells y our machine is not one of our authorized dealers, ask for the address of your nearest servicing dealer. It is our wish that you will be satisfied with your product and that it will be your companion for a long time. Think of this oper ator

s manual as a valuable document. By following its

content (using, service, maintenance etc) the life span and the second-hand v alue of the machine can be extended. If you ever lend or sell this machine, make sure that the borrower or buyer gets the operator

s manual, so they will also know how to properly maintain and use it. Thank you for using a Husqvarna product. Husqvarna AB has a policy of continuous product development and therefore reserves the right to modify the design and appearance of products without prior notice.6

English WHA T IS WHA

What is what on the c hainsaw?

Front hand guard 2 Stop switch 3 Information and warning decal 4 Top handle 5 Filter cover 6 Choke control 7 Rope eyelet 8 Air purge 9 Fuel tank 10 Fuel level window 11 Starter handle 12 Starter housing 13 Front handle 14 Chain oil tank 15 Bar tip sprocket 16 Saw chain 17 Guide bar 18 Throttle trigger 19 Throttle trigger lockout 20 Belt eyelet 21 Clutch cover 22 Chain tensioning screw 23 Product and serial number plate 24 Chain catcher 25 Spiked bumper 26 Oil pump adjustment screw 27 Guide-bar cover 28 Operator’s manual 29 Combination spannerGENERAL SAFETY PRECA UTIONS English

Please read this manual carefully.

• Check that the cutting equipment is correctly fitted and adjusted. See instructions under the heading Assembly.

• Refuel and start the chainsaw. See the instructions under the headings Fuel Handling and Star ting and Stopping.

• Do not use the chainsaw until sufficient chain oil has reached the chain. See instructions under the heading Lubricating cutting equipment.

• Long-term exposure to noise can result in permanent hear ing impairment. So always use approved hearing protection.

ARNING! Under no circumstances may the design of the machine be modified without the permission of the manufacturer. Always use genuine accessories. Non-authorized modifications and/or accessories can result in serious personal injury or the death of the operator or others. Your warranty may not cover damage or liability caused by the use of non- authorized accessories or replacement parts.

ARNING! A chainsaw is a dangerous tool if used carelessly or incorrectly and can cause serious, even fatal injuries. It is very important that you read and understand the contents of this operator’s manual.

ARNING! The inside of the muffler contain chemicals that may be carcinogenic. Avoid contact with these elements in the event of a damaged muffler.

ARNING! Long term inhalation of the engine’s exhaust fumes, chain oil mist and dust from sawdust can represent a health risk.

ARNING! This machine produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants consult their physician and the medical implant manufacturer before operating this machine.

ARNING! Keep handles dry, clean and free of oil.

ARNING! Beware of carbon monoxide poisoning. Operate the chainsaw in well ventilated areas only.

ARNING! Do not attempt a pruning or limbing operation in a standing tree unless specifically trained to do so.GENERAL SAFETY PRECA UTIONS

English Impor tant Always use common sense It is not possib le to cover every conceivable situation you can f ace when using a chainsaw. Always exercise care and use your common sense. Avoid all situations which you consider to be beyond your capability. If you still feel uncertain about operating procedures after reading these instructions, you should consult an expert before continuing. Do not hesitate to contact your dealer or us if you have any questions about the use of the chainsaw. We will willingly be of service and provide you with advice as well as help you to use your chainsaw both efficiently and safely. Work is constantly in progress to improve the design and technology - impro vements that increase your safety and efficiency. Visit your dealer regularly to see whether you can benefit from new features that have been introduced.

ersonal protective equipment

Approved protective helmet

• Gloves with saw protection

• Trousers with saw protection

• Use appropriate protections for arm.

• Boots with saw protection, steel toe-cap and non-slip sole

• Always have a first aid kit nearby. IMPORTANT! This chainsaw for tree-service is designed for pruning and dismantling standing tree cro wns. You should only use the saw with the bar and chain combinations we recommend in the chapter Technical data. National regulation can restrict the use of the machine. Never use the machine if you are fatigued, while under the influence of alcohol or drugs, medication or anything that could affect your vision, alertness, coordination or judgement. Wear personal protective equipment. See instructions under the heading ”P ersonal protective equipment”. Do not modify this product or use it if it appears to have been modified by others. Never use a machine that is faulty. Carry out the safety checks, maintenance and service instructions described in this manual. Some maintenance and service measures must be carried out by trained and qualified specialists. See instructions under the heading Maintenance. Never use any accessories other than those recommended in this man ual. See instructions under the headings Cutting equipment and Technical data. CAUTION! Always wear protective glasses or a face visor to reduce the risk of injury from thrown objects. A chainsaw is capable of throwing objects, such as wood chips, small pieces of wood, etc, at great force. This can result in serious injury, especially to the eyes.

WARNING! Running an engine in a confined or badly ventilated area can result in death due to asphyxiation or carbon monoxide poisoning.

WARNING! Faulty cutting equipment or the wrong combination of bar and saw chain increases the risk of kickback! Only use the bar/saw chain combinations we recommend, and follow the filing instructions. See instructions under the heading Technical data.

WARNING! Most chainsaw accidents happen when the chain touches the operator. You must use approved personal protective equipment whenever you use the machine. Personal protective equipment cannot eliminate the risk of injury but it will reduce the degree of injury if an accident does happen. Ask your dealer for help in choosing the right equipment. CAUTION! Never use a chainsaw by holding it with one hand. A chainsaw is not safely controlled with one hand; you can cut yourself. Always have a secure, firm grip around the handles with both hands.GENERAL SAFETY PRECAUTIONS English – 9• Fire Extinguisher and ShovelGenerally clothes should be close-fitting without restricting your freedom of movement.This top handle chainsaw is designed specifically for tree surgery and maintenance in the tree. Due to the special compact handle design (closely spaced handles), there is an increased risk of losing control. For this reason these special chainsaws should be used only for work in a tree by persons who are trained in special cutting and working techniques and who are properly secured (lift bucket, ropes, safety harness). Regular chainsaws (with wider spaced handles) are recommended for all other cutting work at ground level. Machine′′

s safety equipment In this section the machine’s safety features and their function are explained. For inspection and maintenance see instructions under the heading Checking, maintaining and servicing chainsaw safety equipment. See instructions under the heading, What is what?, to find where these parts are located on your machine.The life span of the machine can be reduced and the risk of accidents can increase if machine maintenance is not carr ied out correctly and if service and/or repairs are not carried out professionally. If you need further information please contact your nearest servicing dealer. Chain brake and front hand guard Your chainsaw is equipped with a chain brake that is designed to stop the chain if you get a kickback. The chain brake reduces the risk of accidents, but only you can prevent them.Take care when using your saw and make sure the kic kback zone of the bar never touches any object.• The chain brake (A) can either be activated manually (by your left hand) or automatically by the inertia release mechanism.• The brake is applied when the front hand guard (B) is pushed forwards.• This movement activates a spring-loaded mechanism that tightens the brake band (C) around the engine drive system (D) (clutch drum).IMPORTANT! Sparks can come from the muffler, the bar and chain or other sources. Always have fire extinguishing tools available if you should need them. Help prevent forest fires. WARNING! Working in a tree requires the use of special cutting and working techniques which must be observed in order to reduce the increased risk of personal injury. Never work in a tree unless you have received specific, professional training for such work, including training in the use of safety and other climbing equipment, such as harnesses, ropes, belts, climbing irons, snap hooks, carabiners, etc.

WARNING! Never use a machine with defective safety components. Safety equipment must be inspected and maintained. See instructions under the heading Checking, maintaining and servicing chainsaw safety equipment. If your machine does not pass all the checks, take the saw to a servicing dealer for repair.

• The front hand guard is not designed solely to activate the chain brake. Another important feature is that it reduces the risk of your left hand hitting the chain if you lose grip of the front handle.

• The chain brake must be engaged when the chainsaw is star ted to prevent the saw chain from rotating.

• Use the chain brake as a ”parking brake” when starting and when moving over short distances, to reduce the risk of moving chain accidentally hitting your leg or anyone or anything close by.

• To release the chain brake pull the front hand guard bac kwards, towards the front handle.

• Kickback can be very sudden and violent. Most kic kbacks are minor and do not always activate the chain brake. If this happens you should hold the chainsaw firmly and not let go.

• The way the chain brake is activated, either manually or automatically b y the inertia release mechanism, depends on the force of the kickback and the position of the chainsaw in relation to the object that the kickback zone of the bar strikes. If you get a violent kickback while the kickback zone of the bar is f arthest away from you the chain brake is designed to be activated by the inertia in the kickback direction. If the kickback is less violent or the kickback zone of the bar is closer to y ou the chain brake is designed to be activated manually by the movement of your left hand.

• In the felling position the left hand is in a position that mak es manual activation of the chain brake impossible. With this type of grip, that is when the left hand is placed so that it cannot affect the movement of the front hand guard, the chain brake can only be activated by the inertia action.GENERAL SAFETY PRECAUTIONS English – 11 Will my hand always activate the chain brake during a kickback? No. It takes a certain force to move the hand guard forward. If your hand only lightly touches the front guard or slips over it, the force may not be enough to trigger the chain brake. You should also maintain a firm grip of the chainsaw handles while working. If you do and experience a kickback, your hand may never leave the front handle and will not activate the chain brake, or the chain brake will only activate after the saw has swung around a considerable distance. In such instances, the chain brake might not have enough time to stop the saw chain before it touches you.There are also certain positions in which your hand cannot reach the front hand guard to activate the chain brake; for example, when the saw chain is held in felling position. Will my inertia activated chain brake always activate during kickback in the event of a kickback? No. First your brake must be in working order. Second the kickback must be strong enough to activate the chain brake. If the chain brake is too sensitive it would activate all the time which would be a nuisance. Will my chain brake always protect me from injury in the event of a kickback? No. First, the chain brake must be in working order to provide the intended protection. Second, it must be activated during the kickback as described above to stop the saw chain. Third, the chain brake may be activated but if the bar is too close to you the brake might not have enough time to slow down and stop the chain before the chainsaw hits you.Only you and proper working technique can eliminate kickback and its danger. Throttle trigger lockout The throttle lockout is designed to prevent accidental operation of the throttle control. When you press the lock (A) (i.e. when you grasp the handle) it releases the throttle control (B). When you release the handle the throttle control and the throttle lockout both move back to their original positions. This arrangement means that the throttle control is automatically locked at the idle setting. Chain catcher The chain catcher is designed to catch the chain if it snaps or jumps off. This should not happen if the chain is properly tensioned (see instructions under the heading Assembly) and if the bar and chain are properly serviced and maintained (see instructions under the heading General working instructions). Vibration damping system Your machine is equipped with a vibration damping system that is designed to reduce vibration and make operation easier.The machine′s vibration damping system reduces the transfer of vibration between the engine unit/cutting equipment and the machine′s handle unit. The body of the chainsaw, including the cutting equipment, is insulated from the handles by vibration damping units.Cutting hardwoods (most broadleaf trees) creates more vibr ation than cutting softwoods (most conifers). Cutting with cutting equipment that is blunt or faulty (wrong type or badly sharpened) will increase the vibration level.

WARNING! Overexposure to vibration can lead to circulatory damage or nerve damage in people who have impaired circulation. Contact your doctor if you experience symptoms of overexposure to vibration. Such symptoms include numbness, loss of feeling, tingling, pricking, pain, loss of strength, changes in skin colour or condition. These symptoms normally appear in the fingers, hands or wrists. These symptoms may be increased in cold temperatures.GENERAL SAFETY PRECAUTIONS 12 – English Stop switch Use the stop switch to switch off the engine. Muffler The muffler is designed to keep noise levels to a minimum and to direct exhaust fumes away from the user. In areas with a hot, dry climate there is a high risk of fires. Cutting equipment This section describes how to choose and maintain your cutting equipment in order to:

• Reduce the risk of kickback.

• Reduce the risk of the saw chain breaking or jumping off the bar

• Obtain optimal cutting performance.

• Extend the life of cutting equipment.

• Avoid increasing vibration levels. General rules

• Only use cutting equipment recommended by us! See instructions under the heading Technical data.

Keep the chain’s cutting teeth properly sharpened! Follow our instructions and use the recommended file gauge. A damaged or badly sharpened chain increases the risk of accidents.

Maintain the correct depth gauge setting! Follow our instructions and use the recommended depth gauge clearance. Too large a clearance increases the risk of kickback.

Keep the chain properly tensioned! If the chain is slack it is more likely to jump off and lead to increased wear on the bar, chain and drive sprocket.

Keep cutting equipment well lubricated and properly maintained! A poorly lubricated chain is more likely to break and lead to increased wear on the bar, chain and drive sprocket.

WARNING! The exhaust fumes from the engine are hot and may contain sparks which can start a fire. Never start the machine indoors or near combustible material! CAUTION! The muffler gets very hot during and after use. This also applies during idling. Be aware of the fire hazard, especially when working near flammable substances and/or vapours.

WARNING! Never use a saw without a muffler, or with a damaged muffler. A damaged muffler may substantially increase the noise level and the fire hazard. Keep fire fighting equipment handy.GENERAL SAFETY PRECAUTIONS English – 13 Cutting equipment designed to reduce kickback The only way to avoid kickback is to make sure that the kickback zone of the bar never touches anything. By using cutting equipment with ”built-in” kickback reduction and keeping the chain sharp and well- maintained you can reduce the effects of kickback. Guide bar The smaller the tip radius the lower the chance of kickback. Saw chain A chain is made up of a number of links, which are available in standard and low-kickback versions. Some terms that describe the bar and chain To maintain the safety features of the cutting equipment, you should replace a worn or damaged bar or chain with a bar and chain combinations recommended by Husqvarna. See instructions under the heading Technical Data for a list of replacement bar and chain combinations we recommend. Guide bar

• Chain pitch (inches). The spacing between the drive links of the chain m ust match the spacing of the teeth on the bar tip sprocket and drive sprocket.

• Number of drive links. The number of drive links is deter mined by the length of the bar, the chain pitch and the number of teeth on the bar tip sprocket.

• Chain oil hole and hole for chain tensioner. The bar

ust be matched to the chainsaw design. Saw chain

• Chain pitch (inches)

WARNING! Faulty cutting equipment or the wrong combination of bar and saw chain increases the risk of kickback! Only use the bar/saw chain combinations we recommend, and follow the filing instructions. See instructions under the heading Technical data. IMPORTANT! No saw chain design eliminates the danger of kickback.

WARNING! Any contact with a rotating saw chain can cause extremely serious injuries.GENERAL SAFETY PRECAUTIONS 14 – English Sharpening your saw chain and adjusting depth gauge setting General information on sharpening cutting teeth

• Never use a blunt chain. When the chain is blunt you have to exert more pressure to force the bar through the wood and the chips will be very small. If the chain is very blunt it will produce wood powder and no chips or shavings.

• A sharp chain eats its way through the wood and produces long, thic k chips or shavings.

• The cutting part of the chain is called the cutter and consists of a cutting tooth (A) and the depth gauge (B). The cutters cutting depth is determined by the difference in height between the two (depth gauge setting). When you sharpen a cutting tooth there are four important

actors to remember. 1 Filing angle 2 Cutting angle 3 File position 4 Round file diameter It is very difficult to sharpen a chain correctly without the

ight equipment. We recommend that you use our file gauge. This will help you obtain the maximum kickback reduction and cutting performance from your chain. See instructions under the heading Technical data for inf ormation about sharpening your chain. Sharpening cutting teeth To sharpen cutting teeth you will need a round file and a file gauge. See instructions under the heading Technical data for information on the size of file and gauge that are recommended for the chain fitted to your chainsaw.

• Check that the chain is correctly tensioned. A slack chain will mo ve sideways, making it more difficult to sharpen correctly.

• Always file cutting teeth from the inside face. Reduce the pressure on the retur n stroke. File all the teeth on one side first, then turn the chainsaw and file the teeth on the other side.

WARNING! Departure from the sharpening instructions considerably increases the risk of kickback.GENERAL SAFETY PRECAUTIONS English – 15

• File all the teeth to the same length. When the length of the cutting teeth is reduced to 5/32 inch (4 mm) the chain is worn out and should be replaced. General advice on adjusting depth gauge setting

• When you sharpen the cutting tooth (A) the depth gauge setting (C) will decrease. To maintain optimal cutting performance the depth gauge (B) has to be filed down to achieve the recommended depth gauge setting. See instructions under the heading Technical data to find the correct depth gauge setting for your particular chain. Adjustment of depth gauge setting

• The cutting teeth should be newly sharpened before adjusting the depth gauge setting. We recommend that you adjust the depth gauge setting every third time you sharpen the cutting teeth. NOTE! This recommendation assumes that the length of the cutting teeth is not reduced excessively.

• You will need a flat file and a depth gauge tool. We recommend that y ou use our depth gauge tool to acheive the correct depth gauge setting and bevel for the depth gauge.

• Place the depth gauge tool over the chain. Detailed inf ormation regarding the use of the depth gauge tool, will be found on the package for the depth gauge tool. Use the flat file to file off the tip of the depth gauge that protrudes through the depth gauge tool. The depth gauge setting is correct when you no longer feel resistance as you draw the file along the depth gauge tool. Tensioning the saw chain The more you use a chain the longer it becomes. It is therefore important to adjust the chain regularly to take up the slack. Check the chain tension every time you refuel. NOTE! A

w chain has a running-in period during which you should check the tension more frequently. Tension the chain as tightly as possible, but not so tight that y ou cannot pull it round freely by hand.

• Loosen the bar nut that holds the clutch cover and chain br ake. Use the combination spanner.

• Raise the tip of the bar and stretch the chain by tightening the chain tensioning screw using the

WARNING! The risk of kickback is increased if the depth gauge setting is too large!

WARNING! A slack chain may jump off the bar and cause serious or even fatal injury.GENERAL SAFETY PRECAUTIONS 16 – English combination spanner. Tighten the chain until it does not sag from the underside of the bar.

• Use the combination spanner to tighten the bar nut while holding up the tip of the bar . Check that you can pull the saw chain round freely by hand, and that there is no slack on the underside of the bar. The position of the chain tensioning screw on our chainsa ws varies from model to model. See instructions under the heading What is what? to find out where it is on your model. Lubricating cutting equipment Chain oil Chain oil must demonstrate good adhesion to the chain and also maintain its flow characteristics regardless of whether it is warm summer or cold winter weather. As a chainsaw manufacturer we have developed an optimal chain oil which has a v egetable oil base. We recommend the use of our own oil for both maximum chain life and to minimise environmental damage. If our own chain oil is not available, standard chain oil is recommended. Never use waste oil! Using waste oil can be dangerous to you and damage the machine and environment. Filling with chain oil

• All our chainsaws have an automatic chain lubrication system. On some models the oil flow is also adjustable.

• The saw chain oil tank and the fuel tank are designed so that the fuel r uns out before the saw chain oil. However, this safety feature requires that you use the right sort of chain oil (if the oil is too thin it will run out before the fuel), and that you also use the recommended cutting equipment (a bar that is too long will use more chain oil). Checking chain lubrication

• Check the chain lubrication each time you refuel. Aim the tip of the bar at a light coloured surface about 20 cm (8 inches) a way. After 1 minute running at 3/4 throttle you should see a distinct line of oil on the light surface. If the chain lubrication is not working:

• Check that the oil channel in the bar is not obstructed. Clean if necessar

WARNING! Poor lubrication of cutting equipment may cause the chain to snap, which could lead to serious, even fatal injuries. IMPORTANT! When using vegetable based saw chain oil, dismantle and clean the groove in the bar and saw chain before long-term storage. Otherwise there is a risk of the saw chain oil oxidizing, which will result in the saw chain becoming stiff and the bar tip sprocket jamming.GENERAL SAFETY PRECAUTIONS English – 17

• Check that the groove in the edge of the bar is clean. Clean if necessary.

• Check that the bar tip sprocket turns freely and that the lubr icating hole in the tip sprocket is not blocked. Clean and lubricate if necessary. If the chain lubrication system is still not working after carr ying out the above checks and associated measures you should contact your servicing dealer. Chain drive sprocket The clutch drum is fitted with a Spur sprocket (the chain sprocket is welded on the drum). Regularly check the degree of wear on the drive sprocket. Replace if wear is excessive. Replace the drive sprocket whenever you replace the chain. Checking wear on cutting equipment Check the chain daily for:

• Visible cracks in rivets and links.

• Whether the chain is stiff.

• Whether rivets and links are badly worn. Replace the saw chain if it exhibits any of the points abo ve. We recommend you compare the existing chain with a new chain to decide how badly the existing chain is worn. When the length of the cutting teeth has worn down to only 5/32 inch (4 mm) the chain must be replaced. Guide bar Check regularly:

• Whether there are burrs on the edges of the bar. Remo ve these with a file if necessary.

• Whether the groove in the bar has become badly

• Whether the tip of the bar is uneven or badly worn. If a hollow forms on the underside of the bar tip this is due to running with a slack chain.GENERAL SAFETY PRECAUTIONS 18 – English

• To prolong the life of the bar you should turn it over daily.

WARNING! Most chainsaw accidents happen when the chain touches the operator. Wear personal protective equipment. See instructions under the heading ”Personal protective equipment”. Do not tackle any job that you feel you are not adequately trained for. See instructions under the headings Personal protective equipment, How to avoid kickback, Cutting equipment and General working instructions. Avoid situations where there is a risk of kickback. See instructions under the heading Machine

s safety equipment. Use the recommended protective equipment and check its condition. See instructions under the headings Technical data and General safety precautions. Check that all the chainsaw safety features are working. See instructions under the headings General working instructions and General safety precautions. Never use a chainsaw by holding it with one hand. A chainsaw is not safely controlled with one hand. Always have a secure, firm grip around the handles with both hands.ASSEMBLY English – 19 Fitting the bar and chain

• Check that the chain brake is in disengaged position by moving the front hand guard towards the front handle.• Unscrew the bar nut and remove the clutch cover (chain brake). Take off the transportation guard.• Fit the bar over the bar bolt. Place the bar in its rearmost position. Place the chain over the drive sprocket and in the groove on the bar. Begin on the top side of the bar. • Make sure that the edges of the cutting links are acing forward on the top edge of the bar.• Fit the clutch cover (chain brake) and locate the chain adjuster pin in the cut-out in the bar. Check that the drive links of the chain fit correctly on the drive sprocket and that the chain is in the groove on the bar. Tighten the bar nut finger-tight.• Tension the chain by turning the chain tensioning scre w clockwise using the combination spanner. See instructions under the heading Tensioning the chain.• The chain is correctly tensioned when there is no slac k on the underside of the bar, and it can still be turned easily by hand. Tighten the bar nut with the combination spanner while holding up the tip of the bar. • When fitting a new chain, the chain tension has to be chec ked frequently until the chain is run-in. Check the chain tension regularly. A correctly tensioned chain ensures good cutting performance and long life.Note: If clutch cover is difficult to remove, tighten bar ut(s), engage brake and rerelease (an audible click will be heard if released properly). Assembling the handle insert
• To make the upper handle suit different hand sizes, the chainsaw is available with three different handle insert sizes - M, L and XL. The L size is fitted to the chainsaw when it is delivered. Contact your service workshop to change the size of the handle insert. Assembling the belt eyelet The chainsaw is fitted with two eyelets on the rear edge of the chainsaw cover, a rope eyelet and a belt eyelet. The rope eyelet is fitted on delivery.The belt eyelet is not fitted on delivery and is used by chainsaw users as a simple way to fasten the saw to a belt or a harness. For more information, please see the Working techniques section.To fit a belt eyelet - contact your servicing dealer. WARNING! Always wear gloves, when working with the chain.FUEL HANDLING 20 – English Fuel Note! The machine is equipped with a two-stroke engine and must always be run using a mixture of gasoline and two-stroke oil. It is important to accurately measure the amount of oil to be mixed to ensure that the correct mixture is obtained. When mixing small amounts of fuel, even small inaccuracies can drastically affect the ratio of the mixture. Gasoline

• Use good quality unleaded gasoline.

• The lowest recommended octane grade is 87 ((R ON+MON)/2). If you run the engine on a lower octane grade than 87 so-called knocking can occur. This gives rise to a high engine temperature and increased bearing load, which can result in serious engine damage.

• When working with continuous high revs (e.g. limbing) a higher octane is recommended. Husqvarna alkylate fuel Husqvarna recommends the use of Husqvarna alkylate fuel for best performance. The fuel contains less harmful substances compared to regular fuel, which reduces harmful exhaust fumes. The fuel provides low amount of residues when combusted which keeps the engine parts cleaner and optimizes the engine life. Husqvarna alkylate fuel is not available in all markets. Ethanol fuel HUSQVARNA recommends commercial available fuel with maximum 10% ethanol content. Running-in Avoid running at a too high speed for extended periods during the first 10 hours. Two-stroke oil

• For best results and performance use HUSQVARNA two-stroke engine oil, which is specially formulated for our air-cooled two stroke-engines. Mixture 1:50 (2%).

• If HUSQVARNA two-stroke oil is not available, you

y use another two-stroke oil of good quality that is intended for air cooled engines. Contact your dealer when selecting an oil.

• Never use two-stroke oil intended for water-cooled outboard engines , sometimes referred to as outboard oil.

• Never use oil intended for four-stroke engines. Mixing

• Always mix the gasoline and oil in a clean container intended for fuel.

• Always start by filling half the amount of the gasoline to be used. Then add the entire amount of oil. Mix (shake) the fuel mixture. Add the remaining amount of gasoline.

• Mix (shake) the fuel mixture thoroughly before filling the machine’ s fuel tank.

• Do not mix more than one month’s supply of fuel at a time

• If the machine is not used for some time the fuel tank should be emptied and cleaned. Chain oil

• We recommend the use of special oil (chain oil) with good adhesion characteristics.

• Never use waste oil. This results in damage to the oil pump , the bar and the chain.

• It is important to use oil of the right grade (suitable viscosity range) to suit the air temperature.

• In temperatures below 32°F (0°C) some oils become too viscous. This can overload the oil pump and result in damage to the oil pump components.

• Contact your servicing dealer when choosing chain oil.

WARNING! Always ensure there is adequate ventilation when handling fuel. Gasoline, litre Two-stroke oil, litre 2% (50:1)

2 1/2 2 1/2 6 1/2 5 12 7/8FUEL HANDLING English – 21 Fueling Clean the area around the fuel cap. Clean the fuel and chain oil tanks regularly. The fuel filter must be replaced at least once a year. Contamination in the tanks causes malfunction. Make sure the fuel is well mixed by shaking the container before refuelling. The capacities of the chain oil tank and fuel tank are carefully matched. You should therefore always fill the chain oil tank and fuel tank at the same time. Removing fuel cap and chain oil cap

• Press down on the textured area of the flip lever and lift to an upright position.• Loosen the cap by turning it counterclockwise.• Remove the cap. Replacing fuel cap and chain oil cap
• Insert the cap with the flip lever in an upright position.• Tighten the cap securely by turning it clockwise.• Fold the flip lever down. WARNING! Taking the following precautions, will lessen the risk of fire:Always stop the engine and let it cool for a few minutes before refueling.Do not smoke and do not place any hot objects in the vicinity of fuel.When refuelling, open the fuel cap slowly so that any excess pressure is released gently.Tighten the fuel cap carefully after refueling.Always move the machine away from the refueling area and source before starting. WARNING! Fuel and fuel vapor are highly flammable. Take care when handling fuel and chain oil. Be aware of the risks of fire, explosion and those associated with inhalation.IMPORTANT! Always replace a damaged cap.FUEL HANDLING 22 – English Fuel safety

• Never refuel the machine while the engine is running.

• Make sure there is plenty of ventilation when refuelling or mixing fuel (gasoline and 2-strok e oil).

• Move the machine at least 10 ft (3 m) from the refuelling point before starting it.

• Never start the machine: 1 If you have spilled fuel or chain oil on the machine. Wipe off the spillage and allo w remaining fuel to evaporate. 2 If you have spilled fuel on yourself or your clothes, change y our clothes. Wash any part of your body that has come in contact with fuel. Use soap and water. 3 If the machine is leaking fuel. Check regularly for leaks from the fuel cap and fuel lines

Transport and storage

• Always store the chainsaw and fuel so that there is no risk of leakages or fumes coming into contact with sparks or naked flames from electrical equipment, electric motors, relays/switches, boilers and the like.

• Always store fuel in an approved container designed

• For longer periods of storage or for transport of the chainsa w, the fuel and chain oil tanks should be emptied. Ask where you can dispose of waste fuel and chain oil at your local gas station.

• The guide bar cover must always be fitted to the cutting attachment when the machine is being

ansported or in storage, in order to prevent accident contact with the sharp chain. Even a non-moving chain can cause serious cuts to yourself or persons you bump into with an exposed chain.

• Secure the machine during transport. Long-term storage Empty the fuel/oil tanks in a well ventilated area. Store the fuel in approved cans in a safe place. Fit the guide bar cover. Clean the machine. See instructions under the heading Maintenance schedule. Ensure the machine is cleaned and that a complete service is carried out before long-term storage.

WARNING! Never use a machine with visible damage to the spark plug guard and ignition cable. A risk of sparking arises, which can cause a fire.STARTING AND STOPPING English – 23 Starting and stopping Starting The chain brake should be activated when starting the chainsaw. Activate the chain brake by pushing the front hand guard forwards. Cold engine Air purge: Press the primer bulb repeatedly until fuel begins to fill the bulb. The bulb need not be completely filled.Choke: Set the choke control in the choke position.Grip the front handle with your left hand and push the chainsaw to the ground. Grip the starter handle with your right hand and pull out the starter cord slowly until you feel a resistance (as the starter pawls engage) and then pull firmly and rapidly. Never wrap the starter cord around your handCAUTION! Do not pull the starter cord all the way out and do not let go of the starter handle when the cord is fully extended. This can damage the machine.Pull the choke control back as soon as the engine fires which can be heard through a ”puff” sound. Keep on pulling the cord powerfully until the engine starts. Warm engine Air purge: Press the primer bulb repeatedly until fuel begins to fill the bulb. The bulb need not be completely filled.Start throttle position: Activate start throttle setting by moving the choke control to the choke position and then pulling it back again.Grip the front handle with your left hand and push the chainsaw to the ground. Grip the starter handle with your right hand and pull out the starter cord slowly until you feel a resistance (as the starter pawls engage) and then pull WARNING! Note the following before starting:The chain brake must be engaged when the chainsaw is started to reduce the chance of contact with the moving chain during starting. Never start a chainsaw unless the bar, chain and all covers are fitted correctly. Otherwise the clutch can come loose and cause personal injuries.Place the machine on firm ground. Make sure you have a secure footing and that the chain cannot touch anything.If you need to start the chainsaw in the tree, see instructions under the heading Starting the saw in the tree, under the section Working techniques.Keep people and animals well away from the working area.Long term inhalation of the engine’s exhaust fumes, chain oil mist and dust from sawdust can represent a health risk.STARTING AND STOPPING 24 – English firmly and rapidly until the engine starts. Never wrap the starter cord around your hand CAUTION! Do not pull the starter cord all the way out and do not let go of the starter handle when the cord is fully extended. This can damage the machine. As the chain brake is still activated the engine must return to idling speed as soon as possib le by disengaging the throttle latch in order to avoid unnecessery wear on the clutch assembly. Note! Reset the chain brake by pulling the front hand guard bac k (marked ”PULL BACK TO RESET”) towards the front handle. The chainsaw is now ready for use.

• Never start a chainsaw unless the bar, chain and all

vers are fitted correctly. See instructions under the heading Assembly. Without a bar and chain attached to the chainsaw the clutch can come loose and cause serious injury.

• The chain brake should be activated when starting. Se instr uctions under the heading Start and stop. Do not drop start. This method is very dangerous because you may lose control of the saw.

• Never start the machine indoors. Exhaust fumes can be dangerous if inhaled.

• Observe your surroundings and make sure that there is no r isk of people or animals coming into contact with the cutting equipment.

• Always hold the saw with both hands. The right hand should be on the top handle , and the left hand on the front handle. All people, whether right or left handed, should use this grip. Use a firm grip with thumbs and fingers encircling the chainsaw handles. Stopping The engine is stopped by pushing the stop switch to the stop position.WORKING TECHNIQUES English – 25 Before use: 1 Check that the chain brake works correctly and is not damaged.2 Check that the throttle trigger lockout works correctly and is not damaged.3 Check that the stop switch works correctly and is not damaged.4 Check that all handles are free from oil.5 Check that the anti vibration system works and is not damaged.6 Check that the muffler is securely attached and not damaged.7 Check that all parts of the chainsaw are tightened correctly and that they are not damaged or missing.8 Check that the chain catcher is in place and not damaged.9 Check the chain tension. General working instructions During tree maintenance work above ground level the chainsaw must be secured. Secure the chainsaw by attaching a safety line to the rope eyelet on the chainsaw.Wear personal protective equipment. See instructions under the heading ”Personal protective equipment”. Basic safety rules 1 Look around you:• To ensure that people, animals or other things cannot aff ect your control of the machine.• To make sure that none of the above might come within reach of your saw or be injured by falling trees.CAUTION! Follow the instructions above, but do not use a chain saw in a situation where you cannot call for help in case of an accident.2 All tree maintenance work above ground level must be carr ied out by two or more persons with the right training (see instructions under the heading Important). At least one person should be on the ground to carry out safe rescue procedures and/or get help should an emergency arise.

IMPORTANT!This section describes basic safety rules for using a chainsaw. This information is never a substitute for professional skills and experience. If you get into a situation where you feel unsafe, stop and seek expert advice. Contact your chainsaw dealer, servicing dealer or an experienced chainsaw user. Do not attempt any task that you feel unsure of! Before using a chain saw you must understand the eff ects of kickback and how to avoid them. See instructions under the heading How to avoid kickback.Before using a chain saw you must understand the difference between cutting with the top and bottom edges of the bar. See instructions under the headings How to avoid kickback and Machine’s safety equipment.WORKING TECHNIQUES 26 – English 3 During tree maintenance work above ground level, the working area should always be secured and marked out with signs, tape or the like. The person(s) on the ground should always inform the person(s) working above before they enter the secure working area. 4 Do not use the machine in bad weather, such as dense f og, heavy rain, strong wind, intense cold, etc. Working in bad weather is tiring and often brings added risks, such as icy ground, unpredictable felling direction, etc. 5 Take great care when removing small branches and

void cutting bushes (i.e. cutting many small branches at the same time). Small branches can be grabbed by the chain and thrown back at you, causing serious injury. 6 Make sure you can move and stand safely. Check the area around y ou for possible obstacles (roots, rocks, branches, ditches, etc.) in case you have to move suddenly. Take great care when working on sloping ground. 7 Take great care when cutting a tree that is under tension. A tree that is under tension may spring back to its normal position before or after being cut. If you position yourself incorrectly or make the cut in the wrong place the tree may hit you or the machine and cause you to lose control. Both situations can cause serious personal injury. 8 Before moving your chain saw switch off the engine and loc k the chain using the chain brake. Carry the chain saw with the bar and chain pointing backwards. Fit a guard to the bar before transporting the chain saw or carrying it for any distance. 9 When you put the chain saw on the ground, lock the

w chain using the chain brake and ensure you have a constant view of the machine. Switch the engine off before leaving your chain saw for any length of time. General rules 1 If you understand what kickback is and how it happens then you can reduce or eliminate the element of surprise. By being prepared you reduce the risk. Kickback is usually quite mild, but it can sometimes be very sudden and violent. 2 Always hold the chainsaw firmly with your right hand on the top handle and y our left hand on the front handle. Wrap your fingers and thumbs around the handles. You should use this grip whether you are right-handed or left-handed. This grip minimizes the effect of kickback and lets you keep the chainsaw under control. 3 Most kickback accidents happen during limbing. Make sure y ou are standing firmly and that there is nothing in the way that might make you trip or lose your balance. Lack of concentration can lead to kickback if the kic kback zone of the bar accidentally touches a branch, nearby tree or some other object. Have control over the workpiece. If the pieces you intend to cut are small and light, they can jam in the

WARNING! Sometimes chips get stuck in the clutch cover causing the chain to jam. Always stop the engine before cleaning.WORKING TECHNIQUES English – 27 saw chain and be thrown towards you. Even if this does not need to be a danger, you may be surprised and lose control of the saw. Never saw stacked logs or branches without first separating them. Only saw one log or one piece at a time. Remove the cut pieces to keep your working area safe.

Never use the chainsaw above shoulder height and avoid cutting with the tip of the bar. Never use the chainsaw one-handed! 5 Always use a fast cutting speed, i.e. full throttle. 6 If you have to cut branches or the like that are above shoulder height, a w orking platform or scaffold tower is recommended. 7 Take great care when you cut with the top edge of the bar , i.e. when cutting from the underside of the object. This is known as cutting with a pushing chain. The chain tries to push the chainsaw back towards the user. If the saw chain is jamming, the saw may be pushed back at you. 8 Unless the user resists this pushing force there is a

isk that the chainsaw will move so far backwards that only the kickback zone of the bar is in contact with the tree, which can lead to a kickback. Cutting with the bottom edge of the bar, i.e. from the top of the object do wnwards, is known as cutting on the pull stroke. In this case the chainsaw pulls itself towards the tree and the front edge of the chainsaw body rests naturally on the trunk when cutting. Cutting on the pull stroke gives the operator better control over the chainsaw and the position of the kickback zone. 9 Follow the instructions on sharpening and maintaining

our bar and chain. When you replace the bar and chain use only combinations that are recommended by us. See instructions under the headings Cutting equipment and Technical data.WORKING TECHNIQUES 28 – English Working with tree-service chainsaws from a rope and harness This chapter sets out working practices to reduce the risk of injury from tree-service chainsaws when working at height from a rope and harness. While it may form the basis of guidance and training literature, it should not be regarded as a substitute for formal training. General requirements working at height Operators of tree-service chainsaws working at height from a rope and harness should never work alone. A competent ground worker trained in appropriate emergency procedures should assist them. Operators of tree-service chainsaws for this work should be tr ained in general safe climbing and work positioning techniques and shall properly equipped with harnesses, ropes, strops, karabiners and other equipment for maintaining secure and safe working positions for both themselves and the saw. Preparing to use the chainsaw in the tree The chainsaw should be checked, fuelled, started and warmed up by the ground worker and the chain brake should be engaged before it is sent up to the operator in the tree. The chainsaw should be fitted with a suitable strop for attaching to the operator’s harness: a) attach the rope around the rope eyelet on the rear of the chainsa

Note! The chainsaw should be attached to the harness by using chainsaw strop 577 43 80-01 or similar shock absorbing device. b) provide suitable karabiners to allow indirect (i.e. via the strop) and direct attachment (i.e . at the attachment point on the saw) of saw to the operators harness. CAUTION! The belt eyelet is not dimensioned for use with a so-called saf ety rope. Use the rope eyelet for this purpose. c) ensure the saw is securely attached when it is being sent up to the oper ator. d) ensure the saw is secured to the harness before it is disconnected from the means of ascent. The chainsaw should only be attached to the recommended attachment points on the harness. These may be at mid-point (front or rear) or at the sides. Where possible attaching the chainsaw to centre rear mid-point will keep it clear of climbing lines and support its weight centrally down the operator’s spine. When moving the saw from any attachment point to another , operators should ensure it is secured in the new position before releasing it from the previous attachment point. Using the chainsaw in the tree An analysis of accidents with these chainsaws during tree-service operations shows the primary cause as being inappropriate one-handed use of the chainsaw. In the vast majority of accidents, operators fail to adopt a secure work position witch allows them to hold both handles of the chainsaw. This results in an increased risk of injury due to:

• not having a firm grip on the saw if it kicks back.

• a lack of control of the saw such that it is more liable to contact climbing lines and oper ators body (particularly the left hand and arm)

• loosing control from insecure work position resulting in contact with the sa w (unexpected movement during operation of the saw)WORKING TECHNIQUES English – 29 Securing the work position for two-handed use To allow the operator to hold the saw with both hands, they should as general rule, aim for secure work position where they are operating the saw at:

• hip level when cutting horizontal sections.

• solar plexus level when cutting vertical sections. Where the operator is working close into vertical stems with a lo w lateral forces on their work position, then a good footing may be all that is needed to maintain a secure work position. However as operators move away from the stem, they will need to take steps to remove or counteract the increasing lateral forces by, for example, a re-direct of the main line via a supplementary anchor point or using an adjustable strop direct from the harness to a supplementary anchor point. Gaining a good footing at the working position can be assisted b y use of a temporary foot stirrup created from an endless sling. Starting the saw in the tree When starting the saw in the tree, the operator should: a) apply the chain brake before starting. b) hold saw on either the left or right of the body when star ting: 1 on the left side hold the saw with the left hand on the front handle and thr ust the saw away from the body while holding the pull starter cord in the other hand. 2 on the right side, hold the saw with the right hand on either handle and thr ust the saw away from the body while holding the pull starter cord in the left hand. The chain brake should always be engaged before

wering a running saw onto its strop. Operators should always check the saw has sufficient fuel before undertaking critical cuts. One-hand use of the chainsaw Operators should not use tree service chainsaws one- handed in place of unstable work positioning or in preferance to a handsaw when cutting small diameter wood at the branch tips. Tree service chainsaws should only be used one-handed where:

• the operator cannot gain a work position enabling two- handed use; and

• they need to support their working position with one hand; and

• the saw is being used at full stretch, at right angles to and out of line with the oper ator’s body. Operators should never:

• cut with the kickback zone at the tip of the chainsaw guide bar

• ‘hold and cut’ sections.

• attempt to catch falling sections.

• Cut in the tree when he/she is only secured with one rope , always use 2 secured lines. Freeing a trapped saw If the saw should become trapped during cutting, operators should:

• switch off the saw and attach it securely to the tree inboard (i.e . towards the truck side) of the cut or to a separate tool line.

• pull the saw from the kerf whilst lifting the branch as necessar

• if necessary, use a handsaw or second chainsaw to release the tr apped saw by cutting a minimum of 30 cm away from the trapped saw. Whether a handsaw or a chainsaw is used to free a stuck

w, the release cuts should always be outboard (toward the tips of the branch), in order to prevent the saw being taken with the section and further complicating the situation.WORKING TECHNIQUES 30 – English Basic cutting technique General

• Always use full throttle when cutting!

• Reduce the speed to idle after every cut (running the engine f or too long at full throttle without any load, i.e. without any resistance from the chain during cutting, can lead to serious engine damage).

• Cutting from above = Cutting with a pulling chain.

• Cutting from below = Cutting with pushing chain. Cutting with a pushing chain increases the risk of kickback. See instructions under the heading How to avoid kickback. Terms Cutting = General term for cutting through wood. Limbing = Cutting branches off a felled tree. Splitting = When the object you are cutting breaks off bef ore the cut is complete. There are five important factors you should consider before making a cut: 1 Make sure the cutting equipment will not jam in the cut. 2 Make sure the object you are cutting will not split. 3 Make sure the chain will not strike the ground or any other object dur ing or after cutting. 4 Is there a risk of kickback? 5 Do the conditions and surrounding terrain affect how safely you can stand and move about? Two factors decide whether the chain will jam or the object that you are cutting will split: the first is how the object is supported before and after cutting, and the second is whether it is in tension. In most cases you can avoid these problems by cutting in

o stages; from the top and from the bottom. You need to support the object so that it will not trap the chain or split during cutting. The following instructions describe how to handle the common situations y ou are likely to encounter when using a chain saw. Cutting The log is lying on the ground. There is little risk of the chain jamming or the object splitting. However there is a risk that the chain will touch the ground when you finish the cut. Cut all the way through the log from above. Avoid letting the chain touch the g round as you finish the cut. Maintain full throttle but be prepared for what might happen. - If it is possible (can you turn the log?) stop cutting about 2/3 of the w ay through the log. - Turn the log and finish the cut from the opposite side.

WARNING! If the chain jams in the cut: stop the engine! Don’t try to pull the chainsaw free. If you do you may be injured by the chain when the chainsaw suddenly breaks free. Use a lever to open up the cut and free the chainsaw.WORKING TECHNIQUES English – 31 The log is supported at one end. There is a high risk that it will split. Start by cutting from below (about 1/3 of the way through). - Finish by cutting from above so that the two cuts meet. The log is supported at both ends. There is a high risk that the chain will jam. - Start by cutting from above (about 1/3 of the way through). - Finish by cutting from below so that the two cuts meet. Limbing When limbing thick branches you should use the same approach as for cutting. Cut difficult branches piece by piece. Felling technique for tree tops Safe distance During tree maintenance work above ground level, the working area must always be secured and marked out with signs, tape or the like. The safe distance between the top of the tree that is to be felled and the nearest workplace must be at least 2 1/2 times the height of the tree. Make sure that no-one else is in this risk zone before or during felling. Felling direction The aim is to fell the tree in a position where you can limb and cross-cut the log as easily as possible. You want it to fall in a location where you can stand and move about safely. The main thing to avoid is that the falling tree top should get jammed in another tree. Taking down a ”jammed” tree top is very dangerous (see point 4 in this section). Once you have decided which way you want the top of the tree to f all y ou must assess which way the top of the tree would fall naturally. Several factors affect this:

• Arrangement of branches

WARNING! It takes a lot of experience to fell a tree. Inexperienced users of chain saws should not fell trees. Do not attempt any task beyond your experience level!WORKING TECHNIQUES 32 – English

• Weight of snow You may find you are forced to let the tree-top fall in its natur al direction because it is impossible or dangerous to try to make it fall in the direction you first intended. Another very important factor, which does not affect the

elling direction but does affect your safety, is to make sure the tree has no damaged or dead branches that might break off and hit you during felling. Topping a tree Topping a tree is done using three cuts. First you make the directional cuts, which consist of the top cut and the bottom cut, then you finish with the felling cut. By placing these cuts correctly you can control the felling direction very accurately. Directional cuts To make the directional cuts you begin with the top cut. Aim using the chain saw’s felling direction mark (1) towards a predetermined target in an appropriate direction (2). Try to maintain your position in the tree on the right side and cut on the pull stroke. Ensure that you can see the bar during the whole part of your operation. Next make the bottom cut so that it finishes exactly at the end of the top cut. The directional cuts should run 1/4 of the diameter through the tr unk and the angle between the top cut and bottom cut should be 60 ° - 70°. The line where the two cuts meet is called the directional cut line . This line should be perfectly horizontal and at right angles (90 °) to the chosen felling direction. Felling cut The felling cut is made from the opposite side of the tree and it must be perfectly horizontal. Try to take a correct position so you are able to cut on the pull stroke. Make the felling cut about 0-1.5 inches (0-3 cm) above the bottom directional cut. Use full throttle and bring the bar and chain slowly into the tree . Make sure the tree does not start to move in the opposite direction to your intended felling direction. Drive a wedge or breaking bar into the cut as soon as it is deep enough. Finish the felling cut parallel with the directional cut line so that the distance between them is at least 1/10 of the

WARNING! During critical felling operations, hearing protectors should be lifted immediately when sawing is completed so that sounds and warning signals can be heard.

1WORKING TECHNIQUES English – 33trunk diameter. The uncut section of the trunk is called the felling hinge.The felling hinge controls the direction that the tree falls in.All control over the felling direction is lost if the felling hinge is too narrow or non-existent, or if the directional cuts and felling cut are badly placed.We recommend that you use a bar that is longer than the diameter of the tree, so that you can make the felling cut and directional cuts with single cutting strokes. See the Technical data section to find out which lengths of bar are recommended for your saw.There are methods for felling trees with a diameter larger than the bar length. However these methods involve a much greater risk that the kickback zone of the bar will come into contact with the tree. Freeing a tree that has fallen badly Cutting trees and branches that are in tensionPreparations:Work out which side is in tension and where the point of maximum tension is (i.e. where it would break if it was bent even more).Decide which is the safest way to release the tension and whether you are able to do it safely. In complicated situations the only safe method is to put aside your chain saw and use a winch.General advice:Position yourself so that you will be clear of the tree or branch when the tension is released.Make one or more cuts at or near the point of maximum tension. Make as many cuts of sufficient depth as necessary to reduce the tension and make the tree or branch break at the point of maximum tension.Never cut straight through a tree or branch that is in tension! How to avoid kickback

WARNING! Unless you have special training we advise you not to fell trees with a diameter larger than the bar length of your saw!

WARNING! Kickback can happen very suddenly and violently; kicking the chainsaw, bar and chain back at the user. If this happens when the chain is moving it can cause very serious, even fatal injuries. It is vital you understand what causes kickback and that you can avoid it by taking care and using the right working technique.WORKING TECHNIQUES 34 – English What is kickback? The word kickback is used to describe the sudden reaction that causes the chainsaw and bar to jump off an object when the upper quadrant of the tip of the bar, known as the kickback zone, touches an object. Kickback always occurs in the cutting plane of the bar. Nor mally the chainsaw and bar are thrown backwards and upwards towards the user. However, the chainsaw may move in a different direction depending on the way it was being used when the kickback zone of the bar touched the object. Kickback only occurs if the kickback zone of the bar touches an object. Cutting the trunk into logs See instructions under the heading Basic cutting technique.MAINTENANCE English – 35 General The user must only carry out the maintenance and service work described in this manual. More extensive work must be carried out by an authorized service workshop. Carburetor adjustment Your Husqvarna product has been designed and manufactured to specifications that reduce harmful emissions. AutoTune The engine is equipped with AutoTune, so manual adjustment of the carburettor’s H and L needles and the T-screw no longer applies. Both needles and the T-screw have been removed. AutoTune is a function that adjusts the carburettor electronically, always resulting in optimal adjustment. Function

• The carburetor governs the engine’s speed via the throttle control. Air and fuel are mixed in the carburetor. The air/fuel mixture is adjustable.• The automatic adjustment of the carburettor means that the engine is adapted to local conditions, e.g. the climate, altitude, petrol and the type of 2-stroke oil. This function is controlled by AutoTune. Engine adjustment The following steps should be taken when the chain saw is started for the first time or when outside circumstances change (fuel, altitude, air filter etc.):Start the engine. Accelerate the engine and saw a number of cuts in a thick log (3-5 min.).The chain saw must be run (8,000 - 12,000 rpm) the entire time so that the carburettor can adjust itself. Conditions NOTE! There is an integrated speed governor in the ignition system that limits the maximum speed. When the speed governor is activated, you will get the same sound experience as when the chain saw 4-cycles. Checking, maintaining and servicing chainsaw safety equipment Chain brake and front hand guard Checking brake band wear• Brush off any wood dust, resin and dirt from the chain brake and clutch drum. Dirt and wear can impair operation of the brake.• Regularly check that the brake band is at least 0.024 inch (0,6 mm) thick at its thinnest point.Checking the front hand guard• Make sure the front hand guard is not damaged and that there are no visible defects such as cracks.• Move the front hand guard forwards and back to make sure it moves freely and that it is securely anchored to the clutch cover. WARNING! If the saw chain rotates while idling, contact your servicing dealer. Do not use the chain saw until it has been properly adjusted or repaired.Note! All servicing and repair work on the machine requires special training. This is especially true of the machine′s safety equipment. If your machine fails any of the checks described below we recommend you to contact our servicing dealer.MAINTENANCE 36 – English Checking the brake trigger

• Place the chainsaw on firm ground and start it. Make sure the chain does not touch the ground or any other object. See instructions under the heading Starting and stopping.

• Grasp the chainsaw firmly, wrapping your fingers and thumbs around the handles

• Apply full throttle and activate the chain brake by tilting

our left wrist forward onto the front hand guard. Do not let go of the front handle. The chain should stop immediately. Throttle trigger lockout

• Make sure that the throttle trigger is locked at idle setting when the throttle trigger lockout is released.

• Press the throttle lockout and make sure it returns to its original position when you release it.

• Check that the throttle trigger and throttle lockout

ve freely and that the return springs work properly.

• Start the chain saw and apply full throttle. Release the throttle control and chec k that the chain stops and remains stationary. If the chain rotates when the throttle trigger is in the idle position, contact your servicing dealer. Chain catcher

• Check that the chain catcher is not damaged and is firmly attached to the body of the chainsaw.MAINTENANCE English – 37 Vibration damping system

• Regularly check the vibration damping units for cracks or deformation.

• Make sure the vibration damping units are securely attached to the engine unit and handle unit. Stop switch

• Start the engine and make sure the engine stops when you move the stop switch to the stop setting. Muffler

• Never use a machine that has a faulty muffler.

• Regularly check that the muffler is securely attached to the machine. The muffler is designed to reduce the noise level and to direct the exhaust gases away from the operator. The exhaust gases are hot and can contain sparks, which may cause fire if directed against dry and combustible material. The muffler is equipped with a special spark arrestor screen. The spark arrestor screen should be cleaned once a month. This is best done with a wire brush. A blocked screen will cause the engine to overheat and may lead to serious damage. Note! The screen must be replaced if it is damaged. If the screen is b locked the machine will overheat and this will cause damage to the cylinder and piston. Never use a machine with a muffler that is in poor condition. Never use a muffler if the spark arrestor screen is missing or defective.MAINTENANCE 38 – English Starter housing Changing a broken or worn starter cord
• Loosen the screws that hold the starter against the crankcase and remove the starter.• Pull out the cord approx. 30 cm (12 inches) and hook it into the notch in the rim of the pulley. Release the recoil spring by letting the pulley rotate slowly backwards.• Undo the bolt in the centre of the pulley and remove the pulle

• Hold the starter handle and pull the starter cord so that at least 10mm (0.40”) of the spring guide is visible. Press the starter handle cover at the same time and slide it out of the starter handle.• If the starter cord is broken inside the starter handle, press down the cover and push it sideways with the combination spanner.• Insert and fasten a new starter cord to the pulley. Wind approx. 3 turns of the starter cord on the starter pulley. Fit the starter pulley against the return spring so that the ends of the return spring hook into the starter pulley. Fit the screw into the centre of the starter pulley.• Insert the starter cord through the hole in the starter housing. Insert the starter cord through the starter handle and the spring guide. WARNING! When the recoil spring is wound up in the starter housing it is under tension and can, if handled carelessly, pop out and cause personal injury.Care must be exercised when replacing the return spring or the starter cord. Wear protective glasses and protective gloves. 10mmMAINTENANCE English – 39• Make a simple knot with approximately 10mm (0.40”) of the free end protruding (1). Turn the protruding part parallel to the starter cord and press down the knot into its position in the spring guide (2).• Pull the starter cord against the starter handle so at least 10mm (0.40”) of the spring guide is visible. Insert the starter handle cover.• Assemble the starter and tighten the screws. Tensioning the recoil spring
• Hook the starter cord in the notch in the pulley and turn the starter pulley about 2 turns clockwise.Note! Check that the pulley can be turned an additional 1/2 turn when the starter cord is pulled all the way out. Changing a broken recoil spring
• Lift up the starter pulley. See instructions under the heading Changing a broken or worn starter cord. Remember that the recoil spring is coiled under tension in the starter housing.• Remove the cassette with the recoil spring from the star ter.
• Lubricate the recoil spring with light oil. Fit the cassette with recoil spring in the starter. Fit the starter pulley and tension the recoil spring. Fitting the starter
• To fit the starter, first pull out the starter cord and place the starter in position against the crankcase. Then slowly release the starter cord so that the pulley engages with the pawls.• Fit and tighten the screws that hold the starter. Air filter The air filter must be regularly cleaned to remove dust and dirt in order to avoid:• Carburettor malfunctions.• Starting problems.• Loss of engine power.• Unnecessary wear to engine parts• Excessive fuel consumption.• Remove the air filter after taking off the air filter cover. When refitting make sure that the air filter seals tightly 10mm

10mmMAINTENANCE 40 – English against the filter holder. Clean the filter by brushing or shaking it. The filter can be cleaned more thoroughly by washing it in

ater and detergent. An air filter that has been in use for a long time cannot be cleaned completely. The filter must therefore be replaced with a new one at regular intervals. A damaged air filter must always be replaced. A HUSQVARNA chain saw can be equipped with different types of air filters according to working conditions, weather, season, etc. Contact your servicing dealer for advice. Spark plug The spark plug condition is influenced by:

• An incorrect fuel mixture (too much or incorrect type of oil).

• A dirty air filter. These factors cause deposits on the spark plug electrodes , which may result in operating problems and starting difficulties. If the machine is low on power, difficult to start or runs poor ly at idle speed: always check the spark plug first before taking any further action. If the spark plug is dirty, clean it and check that the electrode gap is 0.020 inch (0,5 mm). The spark plug should be replaced after about a month in operation or earlier if necessary. Note! Always use the recommended spark plug type! Use of the wrong spar k plug can damage the piston/cylinder. Check that the spark plug is fitted with a suppressor. Needle bearing lubrication The clutch drum has a needle bearing on the output shaft. This needle bearing must be lubricated regularly (once a week). When lubricating, remove the clutch cover by loosening the bar n ut. Lay the saw on its side with the clutch drum upwards. Lubrication involves grease being squirted into the centre of the cr ankshaft using a grease gun. Adjustment of the oil pump The oil pump is adjustable. Adjustments are made by turning the screw with a screwdriver. Turning the screw clockwise will increase the oil flow, turning it anticlockwise will reduce the oil flow. The oil tank should become nearly empty by time fuel is used up . Be sure to refill the oil tank every time when refueling the saw.

WARNING! The engine must be stopped when making adjustments.MAINTENANCE English – 41 Cooling system To keep the working temperature as low as possible the machine is equipped with a cooling system. The cooling system consists of: 1 Air intake on the starter. 2 Air guide plate. 3 Fins on the flywheel. 4 Clutch cover Clean the cooling system with a brush once a week, more often in demanding conditions . A dirty or blocked cooling system results in the machine overheating which causes damage to the piston and cylinder. Winter use Running problems can occur when using the machine in the cold and snowy conditions caused by:

• Too low engine temperature.

• Icing of the air filter and carburetor. Special measures are therefore often required:

• Partly mask the air inlet on the starter to increase the

orking temperature of the engine. Temperature -5°°

F) or colder For running the machine in cold weather or powder snow, a special cover is available, which is mounted on the starter housing. This reduces the intake of cold air and prevents large amounts of snow from being sucked in. Part number: 579 38 48-01.

CAUTION! If the special winterising kit has been fitted or any measures have been taken to increase the temperature these changes must be reversed before the machine is used in normal temperature conditions. Otherwise there is a risk of overheating, resulting in severe damage to the engine.42 – English MAINTENANCE Trouble shooting Starting failure Check Possible Cause Action Starter pawls Binding pawls Adjust or replace the pawls. Clean around the pawls. Contact a servicing dealer. Fuel tank Incorrect fuel type Drain it and use correct fuel. Sparking (no spark) Spark plug contaminated or wet Make sure that the spark plug is dry and clean. Spark plug gap incorrect. Clean the spark plug. Check that the electrode gap is correct. Make sure that the spark plug is fitted with a suppressor. Refer to technical data for correct electrode gap

Spark plug Spark plug loose. Retighten the spark plug Engine starts but does not keep running. Check Possible Cause Possible action Fuel tank Incorrect fuel type Drain it and use correct fuel. Carburetor Engine will not idle properly. Contact your servicing dealer. Air filter Clogged air filter Clean the air filter. Fuel filter Clogged fuel filter Replace the fuel filter.English – 43 MAINTENANCE Maintenance schedule The following is a list of the maintenance that must be performed on the machine. Most of the items are described in the Maintenance section. Daily Maintenance Weekly maintenance Monthly maintenance Clean the outside of the machine. Check the cooling system weekly. Check the brake band on the chain

ake for wear. Replace when less than 0.024 inch (0,6 mm) remains at the most worn point. Check that the components of the throttle tr igger work safely. (Throttle lockout and throttle trigger.) Check the starter, starter cord and retur n spring. Check the clutch centre, clutch drum and clutch spring for wear. Clean the chain brake and check that it oper ates safely. Make sure that the chain catcher is undamaged, and replace it if necessary. Check that the vibration damping elements are not damaged. Clean the spark plug. Check that the electrode gap is 0.020 inch (0,5 mm). The bar should be turned daily for more e ven wear. Check the lubrication hole in the bar, to be sure it is not clogged. Clean the bar groove. Lubricate the clutch drum bearing. Clean the outside of the carburetor. Check that the bar and chain are getting sufficient oil. File off any burrs from the edges of the bar

Check fuel hose for cracks or other damage. Change if necessary. Check the saw chain with regard to visible cracks in the rivets and links, whether the saw chain is stiff or whether the rivets and links are abnormally worn. Replace if necessary. Clean or replace the spark arrestor screen on the m uffler. Empty the fuel tank and clean the inside. Sharpen the chain and check its tension and condition. Check the drive sprocket for excessive wear and replace if necessary. Clean the carburetor compartment. Empty the oil tank and clean the inside

Check all cables and connections. Check that nuts and screws are tight. Check that the stop switch works correctly

Check that there are no fuel leaks from the engine, tank or fuel lines. Check the condition of the air filter. Check that the chain does not rotate when the engine is idling.44 – English TECHNICAL DATA Technical data NOTE! This spark ignition system complies with the Canadian ICES-002 standard. Recommended cutting equipment for USA Following is a list of recommended cutting equipment for Husqvarna chainsaw model T540 XP II. This chainsaw model equipped with either of the listed bar and saw chain combination(s), fulfills the requirements according to ANSI B175.1- 2012 (Gasoline Powered Chain Saws - Safety Requirements). The following list is the chainsaw manufacturers recommendations. There may be other combinations available, which will also achie ve kickback reduction. Chainsaw model Husqvarna T540 XP II met the kickback performance requirements of ANSI B175.1-2012 when tested with the combinations of bars and saw chains listed below. The saw chain Husqvarna H37 is also classified as a low kickback saw chain since it met the requirements for low kickback saw chain outlined in ANSI B175.1-2012. We recommend to use only the listed combinations of bars and chains for chainsaw model Husqvarna T540 XP II. Other chainsaw models may not meet the kickback requirements when equipped with the listed guide bar and saw chain combinations. Recommended cutting equipment for Canada Following is a list of recommended cutting equipment for the Husqvarna chainsaw model T540 XP II. The listed combination(s) of powerhead, guide bar and saw chain meet all requirements outlined in Canadian Standards Assosiation Z62.1-15 (Chain Saws) and Z62.3-11 (R2016) (Chain Saw Kickback). Furthermore the saw chain Husqvarna H37 is evaluated and listed as a Type C Low Kickback Saw Chain according to the pro visions in Z62.3-11 (R2016). T540 XP II Engine Cylinder displacement, cu.in/cm

2.3/37,7 Cylinder bore, inch/mm 1.57/40 Stroke, inch/mm 1.18/30 Idle speed, rpm 3000 Power, kW/hp @ rpm 1,8/2,5 @ 10 200 Emissions Durability Period according to California Air Resources Board, h.

Ignition system Spark plug NGK CMR6H Electrode gap, inch/mm 0.02/0,5 Fuel and lubrication system Fuel tank capacity, US pint/litre 0.72/0,34 Oil pump capacity at 9,000 rpm, ml/min 5-12,5 Oil tank capacity, US pint/litre 0.42/0,20 Type of oil pump Adjustable Weight Chainsaw without bar, chain and with empty tanks, lb/kg 8,6/3,9 Chain/bar Standard bar length, inch/cm 16”/41 Pitch, inch/mm 3/8" /9,52 Thickness of drive links, inch/mm 0.050/1,3 Drive sprocket type/teeth Spur/6 Chain speed at 133% of maximum engine power speed, ft/s / m/s. 84.6 / 25,8English – 45 TECHNICAL DATA Kickback information The guide bar nose radius is determined by either the maximum number of teeth in the nose sprocket or the corresponding maximum nose radius of a solid bar. As we are listing the maximum guide bar nose radius, you may use a guide bar with smaller nose radius than in our list. For guide bars of the same length, all sprocket-nose guide bars of the same pitch and having the same number of sprocket teeth may be considered to have equivalent kickback energy. Guide bar and saw chain combinations The following recommended combinations of bar and saw chain are type approved for your chainsaw. Saw chain filing and file gauges Guide bar Saw chain Length, inch Pitch, inch Gauge, inch Max. nose radius Type Drive link count

46 – English Safety precautions for chain saw users (ANSI B175.1-2012 Annex C) Kickback safety precautions With a basic understanding of kickback, you can reduce or eliminate the element of surprise. Sudden surprise contributes to accidents. Keep a good firm grip on the saw with both hands, the

ight hand on the rear handle, and the left hand on the front handle, when the engine is running. Use a firm grip with thumbs and fingers encircling the chain saw handles. A firm grip will help you reduce kickback and maintain control of the saw. Don’t let go. Make sure that the area in which you are cutting is free from obstacles . Do not let the nose of the guide bar contact a log, branch, or any other obstacle which could be hit while you are operating the saw. Cut at high engine speeds. Do not overreach or cut above shoulder height. Follow manufacturer’s sharpening and maintenance instructions for the saw chain. Only use replacement bars and chains specified by the manufacturer or the equivalent. Other safety precautions Do not operate a chain saw when you are fatigued. Use safety footwear; snug-fitting clothing, protective glo ves, and eye, hearing and head protection devices. Use caution when handling fuel. Move the chain saw at least 10 feet (3 m) from the fueling point before starting the engine. Do not allow other persons to be near the chain saw when star ting or cutting with the chain saw. Keep bystanders and animals out of the work area. Do not start cutting until you have a clear work area, secure f ooting and a planned retreat path from the falling tree. Keep all parts of your body away from the saw chain when the engine is r unning. Before you start the engine, make sure that the saw chain is not contacting anything. Carry the chain saw with the engine stopped, the guide bar and saw chain to the rear, and the muffler away from your body. Do not operate a chain saw that is damaged, improperly adjusted, or not completely and securely assemb led. Be sure that the saw chain stops moving when the throttle control trigger is released. Shut off the engine before setting the chain saw down. When cutting a limb that is under tension be alert for spr ingback so that you will not be struck when the tension in the wood fibers is released. Keep handles dry, clean and free of oil or fuel mixture. Operate the chain saw only in well-ventilated areas. Do not operate a chain saw in a tree unless you have been specifically tr ained to do so. Do not operate a chain saw above shoulder height. All chain saw service, other than the items listed in the oper ator’s/owner’s safety and maintenance instructions, should be performed by competent chain saw service personnel. (For example, if improper tools are used to remove the flywheel or if an improper tool is used to hold the flywheel in order to remove the clutch, structural damage to the flywheel could occur and subsequently cause the flywheel to burst.) When transporting your chain saw, use the appropriate guide bar guard. Use extreme caution when cutting small size brush and saplings because slender material may catch the saw chain and be whipped toward you or pull you off balance.

WARNING! Kickback may occur when the nose or tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut. Tip contact in some cases may cause a lightning fast reverse reaction, kicking the guide bar up and back towards the operator. Pinching the saw chain along the top of the guide bar may push the guide bar rapidly back towards the operator. Either of these reactions may cause you to lose control of the saw which could result in serious personal injury. Do not rely exclusively upon the safety devices built into your saw. As a chain saw user, you should take several steps to keep your cutting jobs free from accident or injury.

WARNING! Do not operate a chain saw with one hand! Serious injury to the operator, helpers, bystanders or any combination of these persons may result from one-handed operation. A chain saw is intended for two-handed use.English – 47 Note: This Annex is intended primarily for the consumer or occasional user. IMPORTANT: This product is compliant with U.S. EPA Phase 3 regulations for exhaust and evaporative emissions. To ensure EPA Phase 3 compliance, we recommend using only genuine Husqvarna brand replacement parts. Use of non-compliant replacement parts is a violation of federal law.

YOUR WARRANTY RIGHTS AND

OBLIGATIONS The EPA (U.S. Environmental Protection Agency), CARB (California Air Resources Board), Environment Canada and Husqvarna Forest & Garden are pleased to explain the emissions control system’s warranty on your 2017- 2018* small off-road engine. In U.S. and Canada, small off-road engines must be designed, built, and equipped to meet the applicable Federal or California stringent anti- smog standards. Husqvarna Forest & Garden must warrant the emissions control system on your small off- road engine for the period of time listed below provided there has been no abuse, neglect or improper maintenance of your small off-road engine. Your emission control system may include parts such as the carburetor, fuel-injection system, the ignition system, catalytic convertor, fuel tanks, fuel lines, fuel caps, valves, canisters, filters, vapor hoses, clamps, connectors, and other associated emission-related components. For engines less than or equal to 80 cc, only the fuel tank is subject to the evaporative emission control warranty requirements of this section (California only). Where a warrantable condition exists, Husqvarna Forest & Garden will repair your small off-road engine at no cost to you including diagnosis, parts and labor. MANUFACTURER′′

S WARRANTY COVERAGE The emissions control system is warranted for two years. If any emissions-related part on your small off-road engine is defective, the part will be repaired or replaced by Husqvarna Forest & Garden. OWNER′′

• As the small off-road engine owner, you are responsible for performance of the required maintenance listed in your operator’s manual. Husqvarna Forest & Garden recommends that you retain all receipts covering maintenance on your small off-road engine, but Husqvarna Forest & Garden cannot deny warranty solely for the lack of receipts or your failure to ensure the performance of all scheduled maintenance.

• As the small off-road engine owner, you should

wever be aware that Husqvarna Forest & Garden may deny you warranty coverage if your small off-road engine or a part has failed due to abuse, neglect, or improper maintenance or unapproved modifications.

• You are responsible for presenting your small off-road engine to a Husqv arna Forest & Garden distribution center or service center as soon as the problem exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days. If you have any questions regarding your warranty coverage, you should contact Husqvarna Forest & Garden in USA at 1-800-487-5951, in CANADA at 1- 800-805-5523 or send e-mail correspondence to emissions@husqvarnagroup.com.

WARRANTY COMMENCEMENT DATE

The warranty period begins on the date the engine or equipment is delivered to an ultimate purchaser.

Husqvarna Forest & Garden warrants to the ultimate purchaser and each subsequent owner that the engine or equipment is designed, built, and equipped so as to conform with all applicable regulations adopted by EPA and CARB, and is free from defects in materials and workmanship that causes the failure of a warranted part for a period of two years.

REPAIR OR REPLACEMENT OF PARTS Repair or replacement of any warranted part under the warranty must be performed at no charge to the owner at a warranty station. Warranty services or repairs will be provided at all Husqvarna Forest & Garden distribution centers that are franchised to service the subject engines. Throughout the emissions warranty period of two years, Husqvarna Forest & Garden must maintain a supply of warranted parts sufficient to meet the expected demand for such parts. WARRANTY PERIOD Any warranted part that is scheduled for replacement as required in the maintenance schedule, is warranted for the period of time prior to the first scheduled replacement point for that part. If the part fails prior to the first scheduled replacement, the part will be repaired or replaced by Husqvarna Forest & Garden at no cost. Any such part repaired or replaced under warranty is warranted for the remainder of the period prior to the first scheduled replacement point for the part. Any warranted part that is not scheduled for replacement as required in the maintenance schedule, is warranted for two years. If any such part fails during the period of warranty coverage, it will be repaired and replaced by Husqvarna Forest & Garden at no cost. Any such part repaired or replaced under the warranty is warranted for the remaining warranty period. Any warranted part that is scheduled only for regular inspection in the maintenance schedule will be warranted for a period of two years. A statement in such written instructions to the effect of ”repair or replace as necessary” will not reduce the period of warranty coverage. Any such part repaired or replaced under warranty will be warranted for the remaining warranty period. DECLARACIÓN DE GARANTÍA DE CONTROL DE EMISIONES FEDERAL Y CALIFORNIANA48 – English DIAGNOSIS The owner must not be charged for diagnostic labor that leads to the determination that a warranted part is in fact defective, provided that such diagnostic work is performed at a warranty station. CONSEQUENTIAL DAMAGES Husqvarna Forest & Garden is liable for damages to other engine components proximately caused by a failure under warranty of any warranted part.

EMISSION WARRANTY PARTS LIST

1 Carburetor and internal parts 2 Intake pipe, airfilter holder and carburetor bolts. 3 Airfilter and fuelfilter covered up to maintenance schedule

Spark Plug, covered up to maintenance schedule 5 Ignition Module 6 Fuel tank, line and cap

All failures caused by abuse, neglect or improper maintenance are not covered.

ADD -ON OR MODIFIED PARTS

Add-on or modified parts that are not exempted by CARB or EPA may not be used. The use of any non-exempted add-on or modified parts will be grounds for disallowing a warranty claim. Husqvarna Forest & Garden will not be liable to warrant failures of warranted parts caused by the use of a non-exempted add-on or modified part.

If you have any questions regarding your warranty rights and responsibilities, you should contact your nearest authorized servicing dealer or call Husqvarna Forest & Gardenin USA at 1-800-487-5951, in CANADA at 1-800- 805-5523 or send e-mail correspondence to emissions@husqvarnagroup.com.

WHERE TO GET WARRANTY SERVICE

Warranty services or repairs are provided through all Husqvarna Forest & Garden authorized servicing dealers.

MAINTENANCE, REPLACEMENT AND
