1.2.1 Complete Operator’s Manual

A complete operator's manual is available on Husqvarna’s website www.husqvarna.com. It is more in detail about e.g. instructions about installation, maintenance, troubleshooting and menu structure.

1.2.2 Product description

Note: Husqvarna regularly updates the appearance and function of the products. Refer to Support on page 2

The product is a robotic lawn mower. The product has a battery power source and cuts the grass automatically. Collection of grass is not necessary. The operator selects the operation settings with the buttons on the keypad. The display shows the selected and possible operation settings, and the operating mode of the product. The boundary wire and the guide wire control the movement of the product within the work area.

Connect is a mobile application that makes it possible to select the operation settings remotely. Refer to Connectivity on page 14

How big an area the product can keep cut depends primarily on the condition of the blades and the type, growth and moisture of the grass. The shape of the yard is also significant. If the yard mainly consists of open lawn areas, the product can mow more per hour than if the yard consists of several small lawns separated by trees, flower beds and passages. For working capacity, refer to Technical data on page 19

It is recommended to allow the product to mainly mow in dry weather to obtain the best possible result. The product can also mow in rain, however wet grass easily sticks on the product and there is a greater risk of slipping in steep slopes. The blades must be in good condition to obtain the best mowing result. In order to keep the blades sharp for as long as

1352 - 001 - 09.12.2019possible it is important to keep the lawn free from branches, small stones and other objects. Replace the blades regularly. Refer to To replace the blades on page 16

1.4 Movement pattern

The movement pattern of the product is random. This means that the lawn is mown evenly without any mowing lines.

430XH/450XH use GPS-assisted navigation to start mowing in a place in the yard where it has not been lately. For the other models you might have to set remote start settings to make sure that the lawn is cut evenly, refer to the complete Operator’s Manual on Husqvarna’s website. When the product hits an obstacle or approaches the boundary wire the product reverses and selects a new direction. Sensors at the front and back will sense when the product is approaching the boundary wire. The front always passes the boundary wire by a specific distance before the product turns around. The distance can be changed to adapt to the installation if required. The STOP button on the top of the product is mainly used to stop the product when it’s running. When the STOP button is pushed a hatch opens, behind which there is a control panel. The STOP button remains pushed in until the hatch is closed again. This together with the START button acts as a start inhibitor. Note: Always push the START button before closing the hatch to start the product. If the START button is not pushed, a message beep is heard and the product will not start. Note: When the product is started for the first time, a start-up sequence begins which includes a number of important basic settings, refer to To do the basic settings in the complete Operator’s Manual on Husqvarna’s website.

1.6 Finding the charging station

The product can be set to search for the charging station in up to 3 different ways. The product automatically combines these 3 search methods to locate the charging station as fast as possible, but also to avoid as much tracks forming as possible. 1352 - 001 - 09.12.2019 Introduction - 31.7 Product overview Automower® 430XH Automower® 450XH

The numbers in the figure represent:

8. Replaceable cover

9. Rating plate (incl. product identification

13. Chassis box with electronics, battery and

19. LED for operation check of the charging

station and boundary wire

20. Charging station

21. Power supply (the appearance may differ

depending on market)

boundary wire (the measurement gauge is broken loose from the box)

24. Screws for securing the charging station

32. Connectors for the loop wire

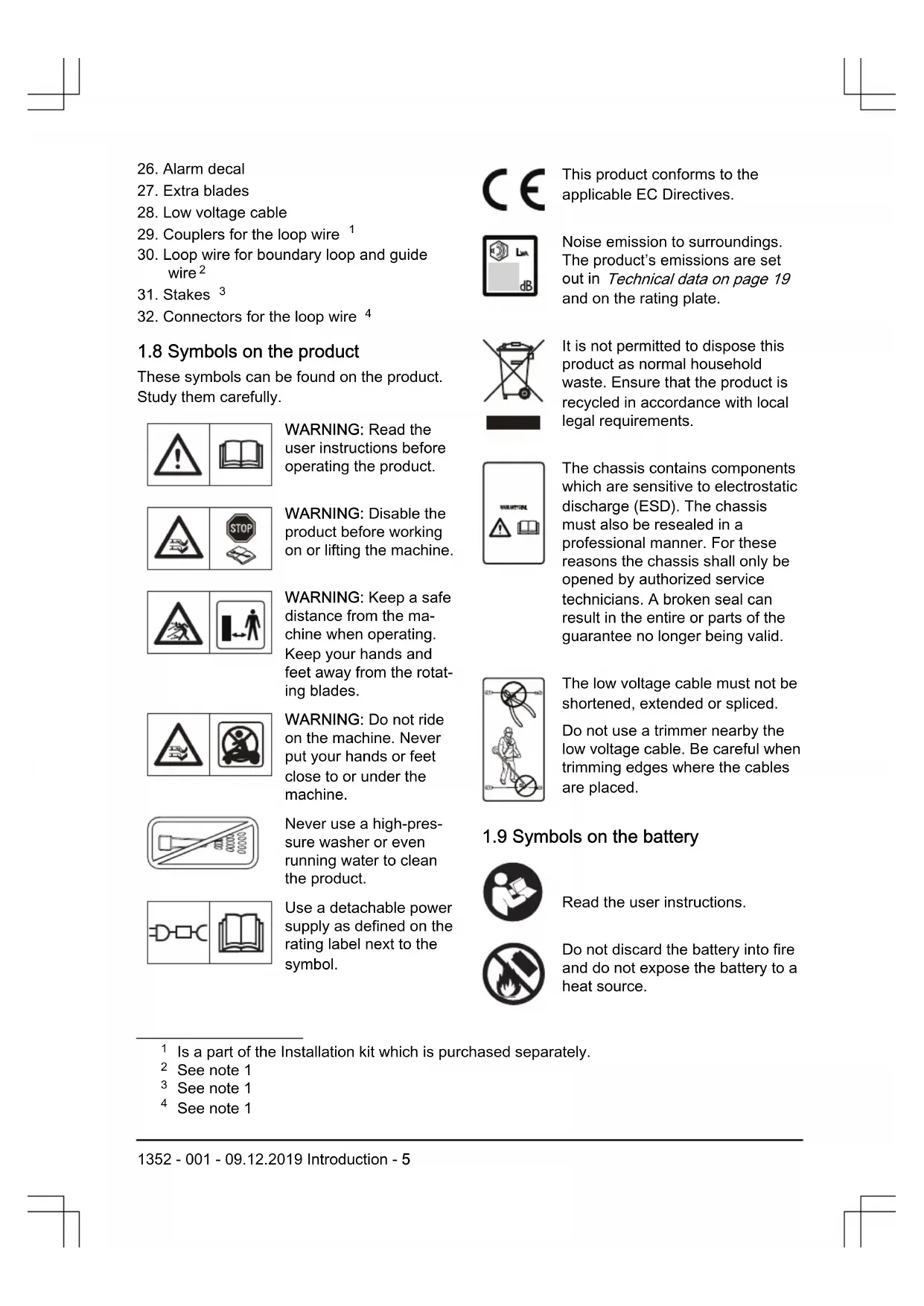

1.8 Symbols on the product

These symbols can be found on the product. Study them carefully.

user instructions before operating the product.

WARNING: Disable the

product before working on or lifting the machine.

WARNING: Keep a safe

distance from the ma- chine when operating. Keep your hands and feet away from the rotat- ing blades.

WARNING: Do not ride

on the machine. Never put your hands or feet close to or under the machine. Never use a high-pres- sure washer or even running water to clean the product. Use a detachable power supply as defined on the rating label next to the symbol. This product conforms to the applicable EC Directives. Noise emission to surroundings. The product’s emissions are set out in Technical data on page 19 and on the rating plate. It is not permitted to dispose this product as normal household waste. Ensure that the product is recycled in accordance with local legal requirements. The chassis contains components which are sensitive to electrostatic discharge (ESD). The chassis must also be resealed in a professional manner. For these reasons the chassis shall only be opened by authorized service technicians. A broken seal can result in the entire or parts of the guarantee no longer being valid. The low voltage cable must not be shortened, extended or spliced. Do not use a trimmer nearby the low voltage cable. Be careful when trimming edges where the cables are placed.

1.9 Symbols on the battery

Read the user instructions. Do not discard the battery into fire and do not expose the battery to a heat source.

Is a part of the Installation kit which is purchased separately.

The following system is used in the Operator’s Manual to make it easier to use:

• Text written in italics is a text that is shown on the display of the product or is a reference to another section in the Operator’s Manual.

• Text written in bold is one of the buttons on the product.

• Text written in UPPERCASE and italics refer to the different operating modes available in the product. 2 Safety

REFERENCE The operator is responsible for accidents or hazards occurring to other people or property. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities (that could affect a safe handling of the product), or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Local regulations may restrict the age of the operator. Cleaning and maintenance shall not be made by children without supervision. Never connect the power supply to an outlet if the plug or cord is damaged. Worn or damaged cord increase the risk of electric shock. Only charge the battery in the included charging station. Incorrect use may result in electric shock, overheating or leaking of corrosive liquid from the battery. In the event of leakage of electrolyte, flush with water/neutralizing agent. Seek medical help if it comes in contact with the eyes. Use only original batteries recommended by the manufacturer. Product safety cannot be guaranteed with other than original batteries. Do not use non-rechargeable batteries. The appliance must be disconnected from the supply mains when removing the battery. 1352 - 001 - 09.12.2019 Safety - 7WARNING: The product can be dangerous if used incorrectly.

the product when persons, especially children, or animals, are in the work area.

hands and feet away from the rotating blades. Never put your hands or feet close to or under the product when the motor is running.

WARNING: In the event

of an injury or accident seek medical help.

• The product may only be used with the equipment recommended by the manufacturer. All other types of use are incorrect. The manufacturer’s instructions with regard to operation/maintenance and repair must be followed precisely.

• Warning signs shall be placed around the work area if the product is used in public areas. The signs shall have the following text: Warning! Automatic lawnmower! Keep away from the machine! Supervise children! Warning! Automatic lawnmower! Keep away from the machine! Supervise children! Warning! Automatic lawnmower! Keep away from the machine! Supervise children!

• Use the PARK function or switch off the main switch when persons, especially children, or pets are in the work area. It is possible to program the product for use during hours when the area is free from activity, e.g. at night.

• If the product starts to vibrate abnormally. Always switch off the product with the main switch button and inspect for damage before staring the product again.

• The product may only be operated, maintained and repaired by persons that are fully conversant with its special characteristics and safety regulations. Please read the Operator’s Manual carefully and make sure you understand the instructions before using the product.

• It is not permitted to modify the original design of the product. All modifications are made at your own risk.

• Check that there are no foreign objects such as stones, branches, tools or toys on the lawn. If the blades hit foreign objects the blades can be damaged. Always switch off the product with the main switch before clearing a blockage. Inspect the product for damage before staring the product again.

1352 - 001 - 09.12.2019• Start the product according to the instructions. When the main switch is set to 1; make sure to keep your hands and feet away from the rotating blades. Never put your hands and feet under the product.

• Never touch moving hazardous parts, such as the blade disc, before it has come to a complete stop.

• Never lift up the product or carry it around when the main switch is in position 1.

• The product must never be allowed to collide with persons or other living creatures. If a person or other living creature comes in the product’s way it shall be stopped immediately.

• Do not put anything on top of the product or its charging station.

• Do not allow the product to be used with a defective guard, blade disc or body. Neither should it be used with defective blades, screws, nuts or cables. Never connect a damaged cable, or touch a damaged cable before it is disconnected from the supply.

• Do not use the product if the main switch does not work.

• Always switch off the product using the main switch when the product is not in use. The product can only start when the main switch is set to 1 and the correct PIN code has been entered.

• The product must never be used at the same time as a sprinkler. Use the Schedule function so the product and sprinkler never run simultaneously.

• Husqvarna does not guarantee full compatibility between the product and other types of wireless systems such as remote controls, radio transmitters, hearing loops, underground electric animal fencing or similar.

• The built-in alarm is very loud. Be careful, especially if the product is handled indoors.

• Metal objects in the ground (for example reinforced concrete or anti-mole nets) can result in a stoppage. The metal objects can cause interference with the loop signal which then can lead to a stoppage.

• Operation and storage temperature is 0-50 °C / 32-122 °F. Temperature range for charging is 0-45 °C / 32-113 °F. Too high temperatures might cause damage to the product.

WARNING: Lithium-ion batteries

can explode or cause fire if disassembled, short-circuited, exposed to water, fire, or high temperatures. Handle carefully, do not dismantle, open the battery or use any type of electrical/ mechanical abuse. Avoid storage in direct sunlight. For more information about the battery, refer

Battery on page 15 3 Installation

3.1 Connecting the power supply

Take the following into consideration when planning where to place the power supply:

• Close to the charging station

• Protection from rain

• Protection from direct sunlight 1352 - 001 - 09.12.2019 Installation - 9WARNING: The product is only to be used with a power supply unit supplied by Husqvarna. When connecting the power supply, only use a wall socket that is connected to an earth fault-breaker (RCD).

WARNING: Risk of Electric Shock.

Install only to an earth-fault breaker (RCD) when connecting the power supply to the wall socket. For USA/ CANADA: Use a covered Class A GFCI receptacle (RCD) that has an enclosure that is weatherproof with the attachment plug cap inserted or removed.

WARNING: No parts of the power

supply must be changed or tampered with. The low voltage cable must not be shortened or extended. Low-voltage cables of different lengths are available as accessories.

WARNING: The power supply

cable and extension cable must be outside the work area to avoid damage to the cables.

WARNING: Do not under any

circumstances mount the power supply at a height where there is a risk it can be submerged in water (at minimum 30 cm / 12" from the ground). It is not permitted to place the power supply on the ground. min 30 cm / 12”

WARNING: Use the plug to

disconnect the charging station, for instance before cleaning the charging station or repairing the loop wire.

WARNING: Place the low voltage

cable and adjust the cutting height so that the blades on the blade disc can never come in contact with the cable.

WARNING: To reduce the risk of

damage to electrical components, disconnect all connections to the charging station (power supply, boundary wire and guide wires) if there is a risk of a thunderstorm.

WARNING: Do not encapsulate

the power supply. Condensed water can harm the power supply and increase the risk of electrical shock. For more instructions on how to do a proper installation, refer to chapter Installation in the complete Operator's manual on Husqvarna's website www.husqvarna.com.

All commands and settings for the product are made via the control panel. All functions are accessed via a number of menus. The control panel consists of a display and a keypad. All information is shown on the display and all input is done using the buttons.

1352 - 001 - 09.12.2019Note: The display texts are shown in English in the manual, but you will see the texts on the product display in the chosen language.

When the STOP button has been pushed and the hatch is opened, the following information is displayed:

displayed if the product is not in any specific operating mode, for example if the product has just been switched on. If the STOP button is pushed the product displays what it did prior to the stop, for example MOWING

• Date and clock show the current time.

• The satellite symbol is shown when the GPS-supported navigation is activated. Symbol (A) is shown when the symbol has made contact with a sufficient number of GPS satellites. Symbol (B) shows when the product has not made contact with a sufficient number of GPS satellites. Symbol (A) blinks during the first days the product is working, as it is collecting GPS information about the installation. A B

• The ECO symbol is displayed if the product is set in ECO mode

• The black clock symbol (A) is shown when the product is not allowed to mow due to a Schedule setting. If the product is not allowed to mow due to Weather timer , symbol (B) is shown. If the operation mode Override schedule

chosen, symbol (C) is shown. A B C

• The battery status shows the remaining battery charge. If the product is loading, a flash is also shown over the battery symbol (A). If the product is placed in the charging station without charging, (B) is shown. A B

• The height adjustment setting is displayed as a scale/numerical value.

The keypad consists of 6 groups of buttons:

• The START button is used to activate the product. This is normally the last button to be pushed before closing the hatch.

• The BACK and OK buttons are used to navigate in the menu. The OK button is also used to confirm settings.

• The arrow button are used to navigate in the menu but also to make selections in certain setting options.

• The MENU button is used to go to the main menu.

• The PARK button is used to send the product to the charging station.

• The number buttons are used to enter settings, for example PIN code, time or exit direction. 1352 - 001 - 09.12.2019 Installation - 113.5 Menu structure The main menu for the product offers 8 options.

There are a number of submenus under each option. You can access all the functions to set the product settings via the submenus. Certain submenus contain options that are ticked off to the left. This means that these options are selected. Check or uncheck the box by pushing the OK button.

3.7 Browse between menus

Browse through the main menu and submenus with the help of the arrow buttons. Enter values and times using the number buttons and confirm each selection with the OK button. Push BACK to go up a step in the menu or keep the MENU button pushed in for 2 seconds to go directly to the main menu.

Schedule The lawn should not be cut too often to obtain the best mowing result. Consequently, it is important to limit the operating time using the Schedule function if the work area is less than the product’s work capacity. The Schedule function is also an ideal tool to control which periods the product should not mow, for example when children are playing on the lawn. Cutting height The cutting height can be varied from MIN (1) to MAX (9). During the first week after a new installation, the cutting height must be set to MAX to avoid damaging the loop wire. After this, the cutting height can be lowered one step every week until the desired cutting height has been reached. Security In this menu, settings relating to security and the connection between the product and the charging station can be made. There are 3 security levels to choose from: Low

Messages Historical fault and information messages can be read in this menu. For some of the most common fault messages, there are tips and advice to help you rectify the fault. Weather timer This function allows the product to automatically adjust its mowing times based on how much the lawn grows. When the weather is good for grass growth, the product mows more often and when grass growth is low the product automatically spends less time on the lawn. Installation This menu function is used to customize the installation. For many work areas there is no need to alter the factory settings, but depending on the lawn complexity the mowing result can be improved by making manual settings. Settings This selection allows you to make changes to the general product settings such as date and time.

12 - Installation 1352 - 001 - 09.12.2019You can also switch on/off

ECO mode and Spiral cutting , or save your settings in different Profiles

Husqvarna recommends to let ECO mode be turned on to save energy and avoid interference with other equipment. Accessories This menu handles the settings for the product accessories, for example Automower

Connect. Contact your local Husqvarna representative for information on what accessories are available for your product. 4 Operation

4.1 To switch on, stop and switch off

• To switch on the product set the main switch to

. The product can only start if it is switched on and the correct PIN code has been entered.

• To stop to product, push the STOP button on top of the product. The product stops and the blade motor stops.

• To switch off the product set the main switch to

4.2 Operation selection START

Push the START button to select one of the following operating modes:

Main area: The standard operating mode where the product mows and charges automatically.

Secondary area . When mowing secondary areas this setting must be chosen. If the product charges in the Secondary area mode, it will fully charge, drive out about 50 cm / 20 in. and then stop. This indicates that it is charged and ready to start mowing. If the main work area has to be cut after charging, it is appropriate to switch the operation selection to Main area before placing the product in the charging station.

Override Schedule . Any Schedule settings made can be temporarily overridden by selecting Override schedule . It is possible to override the Schedule for 24 h or 3 days.

Spot Cutting . The product works in a spiral pattern to cut the grass where it has been mown less than in other parts of the lawn. The Spot Cutting function is activated with the START button. You can select how the product should continue to work once mowing is finished by pressing right arrow and then specifying Main Area

When the PARK button is pushed the following operation selections can be chosen.

Park until further notice: The product stays in the charging station until another operating mode is selected by pushing the START button.

Start again in 3 hours: The product stays in the charging station for three hours and 1352 - 001 - 09.12.2019 Operation - 13then automatically returns to normal operation. This operation mode is suitable when there is a need to pause operation, for example for temporary irrigation or for games on the lawn.

Start with Schedule: The product stays in the charging station until the next Schedule setting permits operation. This operating mode is suitable if one wishes to cancel an ongoing mowing cycle and allow the product to stay in the charging station until the next day. This option is not displayed if there are no Schedule settings.

You can communicate with your product through the mobile application Automower

Connect is available for your mobile device and tablet (Apple or Android). With Automower

Connect activated, new icons will be displayed on the product’s display. For more detailed information, refer to complete Operator's manual. Note: All countries do not support Automower

Connect because of legal reasons and regional specified cellular systems. The included Automower

Connect lifetime service only applies if there is a third part sub-supplier of 2G/3G/4G available in the operational area.

Connect brings the menu system to your mobile device, making it easy to read and change the product settings remotely. Through this application, you can receive the product's current status and send commands to the product from anywhere in the world. In case of theft, you get an alarm and are be able to track your product's position.

4.4.2 Getting started

Download the Automower Connect app from AppStore or GooglePlay. Once you have downloaded the app, you can specify an e- mail address and a password to create an account. You will receive a validation e-mail to the e-mail address you specified. Follow the instructions in the e-mail within 24 hours to validate your account. If not validated within 24 hours, you will have to create your account again. When the account has been created in the app you can pair the product and your smartphone.

Connect Select the function Accessories

New pairing . When the app prompts you to do so, enter the 6-digit code shown on the product display. Also enter your chosen name of the product into the app. Automower

Connect is always connected to your product as long as the mobile device have contact with the mobile network and the product is charged and the product is switched on.

4.5 Adjusting the cutting height

If the grass is long, let the product start mowing at the MAX cutting height. Once the grass is shorter, you can gradually lower the cutting height. CAUTION: During the first week after a new installation, the cutting height must be set to MAX to avoid damaging the loop wire. After this, the cutting height can be lowered one step every week until the desired cutting height has been reached.

4.5.1 To adjust the cutting height

The cutting height can be varied from MIN to MAX in 9 steps.

1. Push the STOP button to stop the product

5. Increase/Decrease the cutting height with

For better operation and longer service life, make sure to clean the product regularly and replace worn parts. The product does not operate satisfactorily in slopes if the wheels are blocked with grass. Use a soft brush to clean the product. For the cover use a damp, soft sponge or cloth to clean and if it is very dirty it may be necessary to use a mild soap solution. Husqvarna recommends to use a special cleaning and maintenance kit, available as accessory. Contact your local Husqvarna representative for more information.

WARNING: When the product is

turned upside down the Main switch must always be in the

position. The main switch should be set in the

position during all work on the mower’s chassis, such as cleaning or replacing the blades.

WARNING: Use the plug to

disconnect the charging station before any maintenance, or cleaning of charging station or power supply. CAUTION: Press STOP and pull the product out of the charging station before lifting it. Do not lift the product when it is parked in the charging station. This can damage the charging station and/or the product. CAUTION: Never use a high- pressure washer or even running water to clean the product. Never use solvents for cleaning.

WARNING: Only charge the

product using a charging station and power supply which is intended for it. Incorrect use may result in electric shock, overheating or leakage of corrosive liquid from the battery. In the event of leakage of electrolyte flush with water and seek medical help if it comes in contact with the eyes etc.

WARNING: Use only original

batteries recommended by the manufacturer. Product safety cannot be guaranteed with other batteries. Do not use non-rechargeable batteries. CAUTION: The battery must be charged fully before winter storage. If the battery is not fully charged it can be damaged and in certain cases be rendered useless. The charging time can vary depending on, among other factors, the ambient temperature. Below indicates that the battery is getting old and eventually needs replacing:

• The operating time for the product is shorter than normal between charges. This leads to more charging cycles than normal, which increases the risk of tracks forming near the charging station.

• The product is frequently found standing out on the lawn with Empty battery message. This indicates that the product does not have battery capacity enough to find the charging station. 1352 - 001 - 09.12.2019 Maintenance - 15The battery is fine as long as the product maintains a well-cut lawn. Note: Battery life is dependent on the length of the season and how many hours a day the product is operating. A long season or many hours of use a day means that the battery must be replaced more regularly. Contact your local Husqvarna representative to replace the battery.

5.3 Replace the blades

WARNING: Use blades and

screws of the right type. Husqvarna can only guarantee safety when using original blades. Only replacing the blades and reusing the screw can result in a screw wearing during mowing. The blades can then be propelled from under the body and cause serious injury. Replace worn or damaged parts for safety reasons. Even if the blades are intact, they should be replaced on a regular basis for the best mowing result and low energy usage. All 3 blades and screws must be replaced at the same time to obtain a balanced cutting system. Use Husqvarna original blades embossed with the crowned H-mark logotype, refer to Warranty on page 22

1. Set the main switch to position

2. Turn the product upside down. Place the

product on a soft and clean surface to avoid scratching the body and the hatch.

3. Rotate the skid plate so that its holes

align with the screws for the blade.

4. Remove the 3 screws. Use a straight slot

or cross-tip screwdriver.

5. Remove each blade and screw.

6. Fasten new blades and screws.

7. Check that the blades can pivot freely.

In case of malfunction, a message will appear on the display. For more detailed information on messages, refer to the complete Operator’s manual on Husqvarna’s website (www.husqvarna.com). If the same message appears often or if you still cannot find the reason for the fault, contact your local Husqvarna representative. Breaks in the loop wire are usually the result of unintentional physical damage to the wire such as when gardening with a shovel. Breaks can also be due to the wire being stretched excessively during installation. A wire break can be located by gradually halving the distance of the loop where the break may have occurred, until there is only a very short section of the wire left. Refer to the complete Operator’s manual on Husqvarna’s website (www.husqvarna.com).

16 - Troubleshooting

1352 - 001 - 09.12.20196.1.1 Indicator lamp in the charging station For a fully functional installation, the indicator lamp in the charging station must emit a solid or flashing green light. If something else appears, follow the troubleshooting guide below. There is more help on www.husqvarna.com. If you still need help, please contact your local Husqvarna representative. Light Cause Action Green solid light Good signals. No action required. Green flashing light The signals are good and ECO mode is activated. No action required. Blue flashing light The boundary loop is not connected to the charging station. Check that the boundary wire con- nectors are fitted properly to the charging station. Break in the boundary loop. Find out where the break is. Replace the damaged section of the loop with a new loop wire, and splice using an original coupler. Red flashing light Interruption in the charging station’s antenna. Contact your local Husqvarna repre- sentative. Red solid light Fault in the circuit board or incorrect power supply in the charging station. The fault should be rectified by an authorized service technician. Contact your local Husqvarna repre- sentative. 7 Transportation, storage and disposal

The supplied Li-ion batteries obey the Dangerous Goods Legislation requirements.

• Obey all applicable national regulations.

• Obey the special requirement on package and labels for commercial transportations, including by third parties and forwarding agents.

• For how to remove the battery, refer to the complete Operator's manual on www.husqvarna.com.

7.1.1 How to lift and move the product

To safely move from or within the work area:

1. Push the STOP button to stop the

product. If security is set to the medium or high level the PIN code has to be entered. The PIN code contains four digits and is selected when you start the product for the first time. Refer to complete Operator's manual.

2. Set the main switch in position

1352 - 001 - 09.12.2019 Transportation, storage and disposal - 173. Carry the product by the handle under the product with the blade disc away from the body.

The product must be cleaned carefully before putting it away for the winter. Refer to Cleaning on page 15

CAUTION: The battery must be charged fully before winter storage. If the battery is not fully charged it can be damaged and in certain cases be rendered useless. Place the product in the charging station with the hatch open until the battery icon in the display shows that the battery is fully charged. Then set the main switch to

Check the condition of wear items such as blades and bearings in the rear wheel. Rectify if necessary to make sure the product is in good condition prior to next season. Store the product standing on all wheels and place it in a dry, frost-free environment, preferably in the products’s original packaging. You can also hang the product on a Husqvarna original wall hanger. Contact your Husqvarna representative for more information about available wall hangers.

7.2.2 The charging station

Store the charging station and power supply indoors. The boundary wire and the guide wire can be left in the ground.

1. Disconnect the charging station's power

supply from the mains.

2. Release the connector lock and pull the

3. Disconnect the boundary and guide wire

contacts from the charging station. The ends of the wires should be protected from damp, for example by putting them in a container with grease. If it is not possible to store the charging station indoors, the charging station must be connected to the mains, the boundary wire and the guide wires the entire winter.

7.3 Environmental information

The symbol on the Husqvarna product indicates that this product cannot be treated as domestic waste. It should instead be left at a suitable recycling centre to recycle its electronic components and batteries. The battery must be removed from the product before it is scrapped. For disassembly of the battery see the complete Operator's manual on Husqvarna’s website. For more detailed information about recycling this product, contact your municipality, your domestic waste service or the shop from where you purchased the product.

18 - Transportation, storage and

Power supply, V/28 V DC 100-240 100-240 Low voltage cable length, m / ft 10 / 33 10 / 33 Mean energy consumption at maximum use 18 kWh/month for a work area of 3200 m

/ 0.8 acre 23 kWh/month for a work area of 5000 m

Charging current, A DC 4.2 7 Average mowing time, min 145 270 Average charging time, min 50 60 Boundary wire antenna Automower

450XH Operating Frequency Band, Hz 300-80000 300-80000 Maximum Radio-frequency power, mW @60m

Maximum active output power to antennas in the frequency band in which the radio equip- ment operates. 1352 - 001 - 09.12.2019 Technical data - 19Noise emissions measured in the environment as sound power

450XH Measured sound power noise level, dB (A) 56 60 Guaranteed sound power noise level 59 62 Sound pressure noise level at the operator’s ear, dB (A)

450XH Robotic lawn mower IPX4 IPX4 Charging station IPX1 IPX1 Power supply IPX4 IPX4

Noise emissions in the environment measured as sound power (L

) in conformity with EC directive 2000/14/EC and New South Wales legislation (Protection of the Environment Op- erations Regulation 2017, Noise Control). The guaranteed sound power level includes var- iation in production as well as variation from the test code with 1-3 dB(A). Noise emission data can be found on the rating label and in the Technical data chapter.

Connect 2G Power Class 4 (for GSM/E-GSM) 33 dBm Power Class 1 (for DCS/ PCS) 30 dBm Power Class E2 (for GSM/E-GSM bands) 27 dBm Power Class E2 (for DCS/PCS bands) 26 dBm Automower

Connect 4G Power Class 3 23 dBm Husqvarna AB does not guarantee full compatibility between the product and other types of wireless systems such as remote controls, radio transmitters, hearing loops, underground electric animal fencing or similar. The products are made in England or the Czech Republic. See information on the rating plate. Refer to Introduction on page 2 9 Warranty

Husqvarna warranty covers this product's functionality for a period of 2 years from date of purchase. The warranty covers serious faults relating to materials or manufacturing faults. Within the warranty period, we will replace the product or repair it at no charge if the following terms are met:

• The product and the charging station may only be used in compliance with the instructions in this Operator’s Manual. This manufacturer's warranty does not affect warranty entitlements against the dealer/retailer.

• End-users or non-authorized third parties must not attempt to repair the product. Examples of faults which are not included in the warranty:

• Damage caused by water seepage from using a high-pressure washer, or from being submerged under water, for example when heavy rain forms pools of water.

• Damage caused by lightning.

• Damage caused by improper battery storage or battery handling.

• Damage caused by using a battery that is not a Husqvarna original battery.

• Damage caused by not using Husqvarna original spare parts and accessories, such as blades and installation material.

• Damage to the loop wire.

• Damage caused by non-authorized changing or tampering with the product or its power supply. The blades and wheels are seen as disposable and are not covered by the warranty. If an error occurs with your Husqvarna product, please contact Husqvarna customer service for further instructions. Please have the receipt and the product’s serial number at hand when contacting Husqvarna customer service.

10.1 Supplier's Declaration of

Conformity Issuer: Husqvarna AB, Drottninggatan 2, S-561 82 Huskvarna, Sweden www.husqvarnagroup.com. Responsible party: Husqvarna Professional Products, Inc. 9335 Harris Corners Parkway Suite 500 Charlotte, NC 28269 United States U.S. Contact information: Michael Campbell, Sr Director Quality, test compliance, Telephone: +1 704 597 5000.

10.2 Compliance requirements

module). The Bluetooth module is located on the HMI- board (PCBA) in the upper chassis. It must only be accessed by an authorized service technician.

WARNING: To comply with RF

exposure requirements, please maintain a separation distance of at least 20 cm/7 inches from any part of the product. Models with a hatch: The supplied label shall be attached to the product according to figure below. Husqvarna Automower ConnectThis device contains the moduleFCC ID: XPY1CGM5NNN Models without a hatch: The supplied label shall be attached to the product according to figure below Husqvarna Automower

Connect This device contains the module

Note: Changes or modifications made to this equipment not expressly approved by Husqvarna may void the FCC authorization to operate this equipment. Note: This device complies with Part 15 of the FCC Rules [and with Industry Canada licence-exempt RSS standard(s)]. Operation is subject to the following two conditions: this device may not cause harmful interference, and this device must accept any interference received, including interference that may cause undesired operation. 1352 - 001 - 09.12.2019 Applicable to US/CA market - 23Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Connect This device contains the module

Connect This device contains the module

is a trademark owned by Husqvarna AB. Copyright
