TFK1543FG2 - Freezer TELEFUNKEN - Free user manual and instructions

Features	Details
Product type	Freezer
Net capacity	154 liters
Energy class	A+
Dimensions (W x D x H)	55 x 60 x 85 cm
Weight	40 kg
Cooling system	Static cooling
Noise level	42 dB
Additional features	Storage basket, interior lighting
Usage	Ideal for storing frozen food
Maintenance	Manual defrost recommended
Annual energy consumption	250 kWh
Warranty	2 years
Safety measures	Protection against electrical overloads
General information	Product complies with European safety standards

Frequently Asked Questions - TFK1543FG2 TELEFUNKEN

How do I set the temperature of the TELEFUNKEN TFK1543FG2 freezer?

To set the temperature, use the thermostat located inside the freezer. Turn the knob to the right to lower the temperature and to the left to increase it.

What should I do if the freezer is not working?

First, check that the freezer is properly plugged in and that the outlet is working. Also make sure the door is properly closed and the seals are in good condition.

How do I defrost the TELEFUNKEN TFK1543FG2 freezer?

To defrost, unplug the freezer, empty its contents, and let the ice melt naturally. Use a container to collect the defrost water.

What is the capacity of the TELEFUNKEN TFK1543FG2 freezer?

The TELEFUNKEN TFK1543FG2 freezer has a net capacity of about 143 liters.

How do I clean the inside of the freezer?

Unplug the freezer and empty it. Use a mixture of warm water and mild soap to clean the inside. Be sure to rinse and dry thoroughly before plugging it back in.

Is the noise from the freezer normal?

A slight operating noise is normal, but if the noise is loud or unusual, check that the freezer is level and that nothing is touching it.

What should I do if the interior light does not turn on?

Check if the freezer is powered and if the bulb is defective. If necessary, replace the bulb with a new compatible one.

How can I tell if the food is still good after a power outage?

If the freezer door remained closed, food can stay frozen for about 24 hours. Check the temperature and appearance of the food before consuming it.

Is there a warranty for the TELEFUNKEN TFK1543FG2 freezer?

Yes, the freezer is generally covered by a two-year warranty. Please refer to the provided documentation for more details.

How can I optimize the use of the freezer to save energy?

Make sure not to overload the freezer, keep the door closed as much as possible, and defrost regularly to maintain energy efficiency.

USER MANUAL TFK1543FG2 TELEFUNKEN

Symbol of a trash bin crossed with diagonal lines, no text or labels present

Illustration of four hands performing a manual cable manipulation technique (no text or symbols present)

Cartoon illustration of a character peeking out of a door, with arms and legs being twisted (no text or symbols)

n

Simple line drawing of two bottles and a glass with explosion effects (no text or symbols)

Cartoon illustration of a distressed container with arms and legs, holding a box labeled 'KG' (no text or symbols beyond the label)

Simple line drawing of a hand holding a smiling square character (no text or symbols)

TEIL 2. FUNKTIONEN

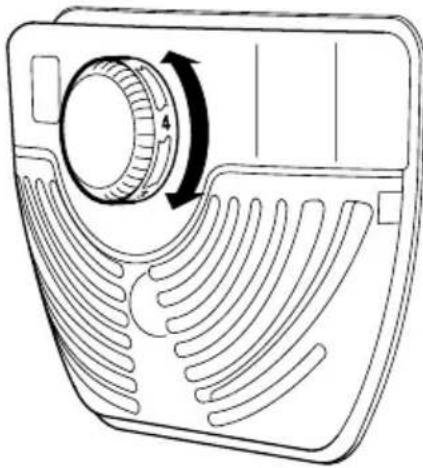

Temperaturregelung

Line drawing of a portable device with a rotary knob and curved ventilation slots (no text or symbols)

Diagram of a camera lens with a red arrow pointing to the aperture (no text or symbols present)

Line drawing of a container being inserted into a tray with circular wells (no text or symbols)

Illustration of hands holding a grid-like object with curved arrows indicating rotation (no text or symbols)

Illustration of two hands holding teeth with a black X symbol indicating a dental or dental procedure (no text or labels)

Plastikschaber

Line drawing of a mechanical tool or bracket (no text or symbols)

Simple line drawing of a bottle mounted on a stand (no text or symbols)

Lieferumfang

Cartoon illustration of a smiling refrigerator with sunglasses and a mortar, giving thumbs up (no text or symbols)

Simple line drawing of a smiling emoji on a square object held by a hand (no text or symbols)

Cartoon illustration of a smiling refrigerator with hands cleaning it, accompanied by a small bottle and cup (no text or symbols)

Simple line drawing of a multi-tiered kitchen appliance with a red X symbol (no text or labels)

Cartoon illustration of a smiling book character with arms and a puffer, next to two smaller puffer illustrations (no text or symbols)

Illustration of a hand cleaning a metal rack (no text or symbols)

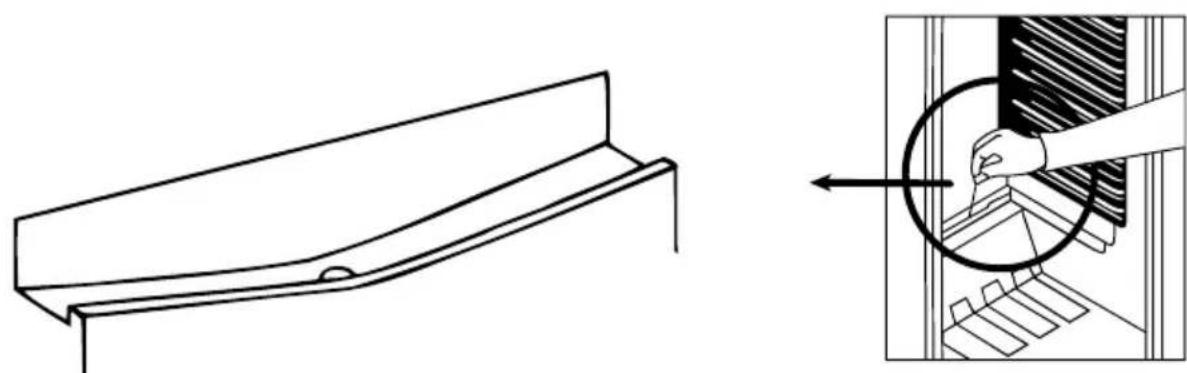

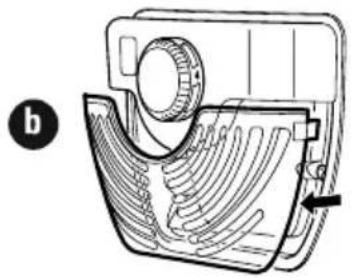

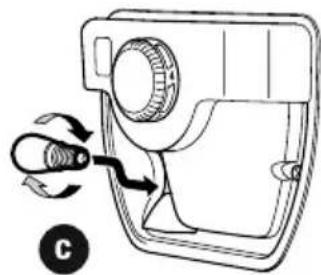

Abtauen Kühlteil;

Technical line drawing of a structural component and its magnified cross-section showing internal components (no text or symbols)

Diagram of a device with internal channels and a labeled component (a), no text or symbols present.

Technical line drawing of a mechanical device with internal channels and a circular component (no text or symbols)

Diagram of a device with a sensor or connector inserted into a housing, showing directional arrows (no text or symbols)

Simple line drawing of two children playing a game with a large block (no text or symbols)

Labeled diagram of a refrigerator interior showing numbered compartments and storage areas

Old and out-of-order fridges 21

Safety warnings 21

Installing and operating your fridge 22

Before Using your Fridge 22

THE VARIOUS FUNCTION AND POSSIBILITIES.... 23

Thermostat setting 23

Super switch 23

Warnings for Temperature Settings.... 24

Accessoires 24

Ice tray 24

Bottle holder 25

Plastic scraper 25

Scope of delivery 26

ARRANGING FOOD IN THE APPLIANCE 27

Refrigerator compartment 27

Freezer compartment 27

CLEANING AND MAINTENANCE 28

Defrosting 29

Replacing the light bulb 30

SHIPMENT AND REPOSITIONING 30

Repositioning the Door 30

BEFORE CALLING YOUR AFTER SALES SERVICE 31

Tips for saving energy 32

Data sheet for cooling devices.... 33

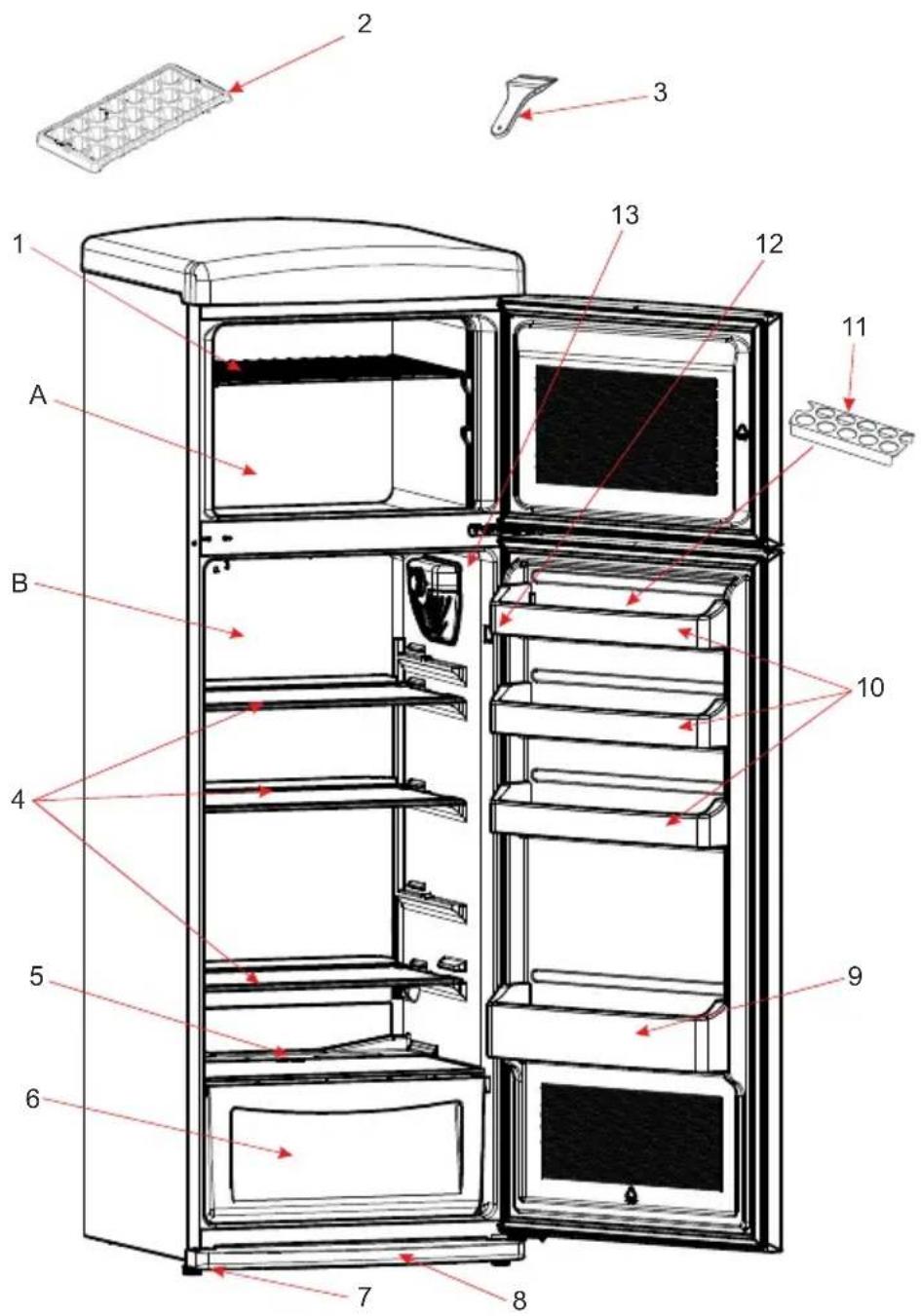

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS .....34

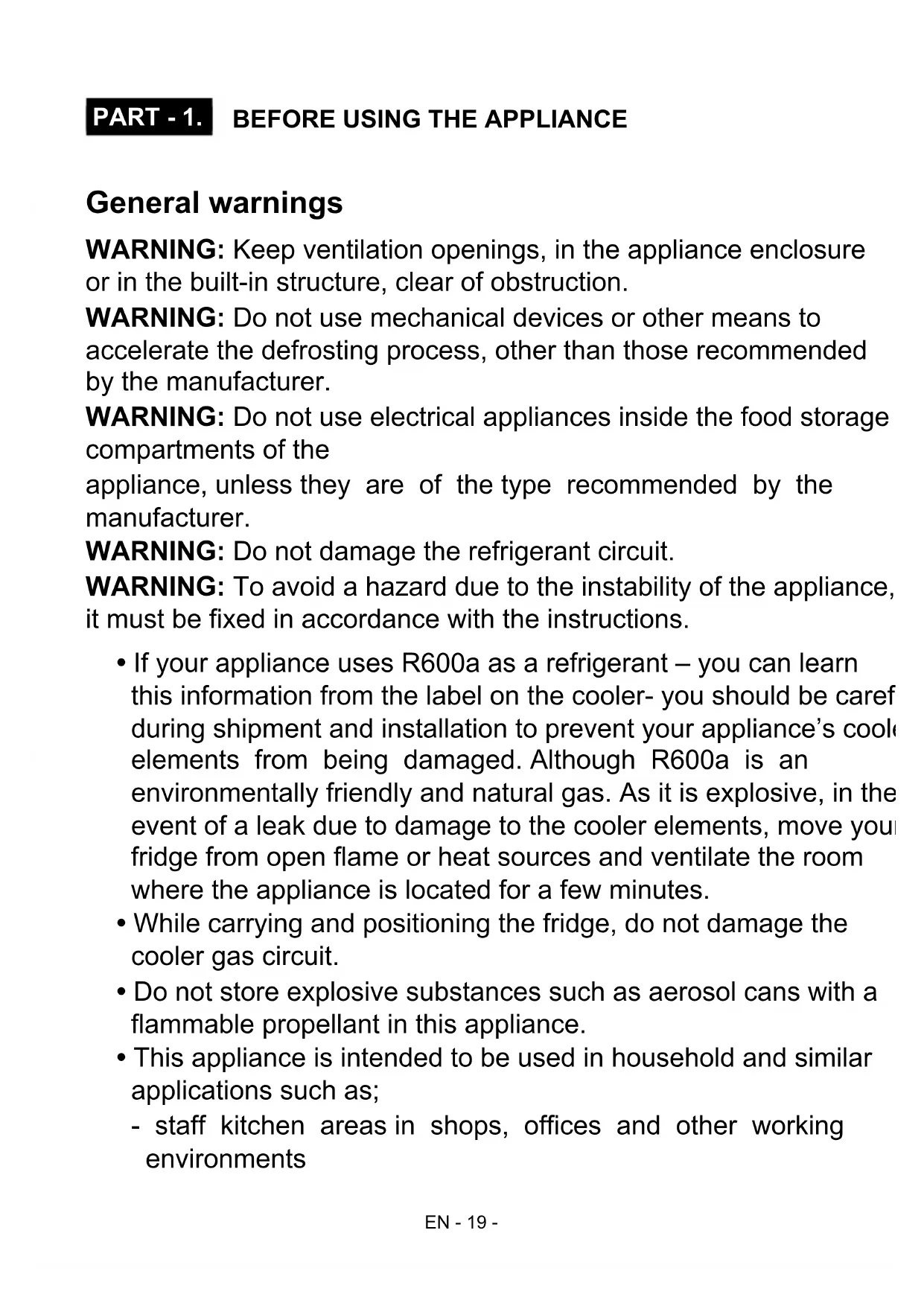

General warnings

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside the food storage compartments of the

appliance, unless they are of the type recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: To avoid a hazard due to the instability of the appliance, it must be fixed in accordance with the instructions.

- If your appliance uses R600a as a refrigerant – you can learn this information from the label on the cooler- you should be careful during shipment and installation to prevent your appliance’s cooling elements from being damaged. Although R600a is an environmentally friendly and natural gas. As it is explosive, in the event of a leak due to damage to the cooler elements, move your fridge from open flame or heat sources and ventilate the room where the appliance is located for a few minutes.

- While carrying and positioning the fridge, do not damage the cooler gas circuit.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- This appliance is intended to be used in household and similar applications such as;

- staff kitchen areas in shops, offices and other working environments

• farm houses and by clients in hotels, motels and other residenti type environments
• bed and breakfast type environments;
• catering and similar non-retail applications

- If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

- A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have it installed by an authorized electrician.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.

Old and out-of-order fridges

- If your old fridge has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.

Symbol of a trash bin crossed out by diagonal lines, no text or labels present

- Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.

Please ask your municipal authority about the disposal of the WEEE for the reuse, recycle and recovery purposes.

Notes:

- Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.

- Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.

- This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for the losses to be occurred.

- This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for the losses to be occurred in the contrary case.

Safety warnings

- Do not use multiple receptacles or extension cord.

- Do not plug in damaged, torn or old plugs.

- Do not pull, bend or damage the cord.

Illustration showing three different techniques for using a tool, with no visible text or symbols.

- This appliance is designed for use by adults, do not allow children to play with the appliance or let them hang off the door.

- Do not plug-in or out the plug from the receptacle with wet hands to prevent electrocution!

- Do not place glass bottles or beverage cans in the freezer department. Bottles or cans may explode.

- Do not place explosive or flammable material in your fridge for your safety. Place drinks with higher alcohol amount vertically and by closing their necks tightly in the fridge department.

- When taking ice made in the freezer department, do not touch it, ice may cause ice burns and/or cuts.

- Do not touch frozen goods with wet hands! Do not eat ice-cream and ice cubes immediately after you have taken them out of the freezer department!

Cartoon illustration of a person inside a door, showing arms and legs (no text or symbols)

Illustration of a hand holding a smiling face, a crossed-out hand holding a crossed-out object, and a camera with a smiling face (no text or symbols)

Simple line drawing of two bottles and a glass with bubbles, no text or symbols present

- Do not re-freeze frozen goods after they have melted. This may cause health issues like food poisoning.

- Do not cover the body or top of fridge with lace. This affects the performance of your fridge.

- Fix the accessories in the fridge during transportation to prevent damage to accessories.

Installing and operating your fridge

Before starting to use your fridge, you should pay attention to the following points:

- Operating voltage for your fridge is 220-240 V at 50Hz.

- We do not take the responsibility of the damages that occur due to ungrounded usage.

- Place your fridge in a place that it would not be exposed to direct sunlight.

- Your appliance should be at least 50 cm away from stoves, Gas ovens and heater cores, and should be at least 5 cm away from electrical ovens.

- Your fridge should never be used outdoors or left under the rain.

- When your fridge is placed next to a deep freezer, there should be at least 2 ~cm between them to prevent humidity on the outer surface.

- Do not place anything on your fridge, and install your fridge in a suitable place so that at least 15 cm is available on the upper side.

- The adjustable front legs should be adjusted to make sure your appliance is level and stable. You can adjust the legs by turning them clockwise (or in the opposite direction). This should be done before placing food in the fridge.

- Before using your fridge, wipe all parts back with warm water added with a tea spoonful of sodium bicarbonate, and then rinse with clean water and dry. Place all parts after cleaning.

• Install the plastic distance guide (the part with black vanes at the rear) by turning it 90° as shown in the figure to prevent the condenser from touching the wall.

- Refrigerator should be placed against a wall with a free distance not exceeding 75 mm.

Cartoon illustration of a distressed container with arms and legs, holding a box labeled 'KG' (no text or symbols beyond the label)

Diagram showing two curved heat exchanger-like structures with internal flow arrows (no text or symbols)

Before Using your Fridge

- When it is operated for the first time or after transportation, keep your fridge in the upright position for 3 hours and plug it on to allow efficient operation. Otherwise, you may damage the compressor.

- Your fridge may have a smell when it is operated for the first time; the smell will fade away when your fridge starts to cool.

Simple line drawing of a hand holding a smiling square character (no text or symbols)

PART - 2.

THE VARIOUS FUNCTION AND POSSIBILITIES

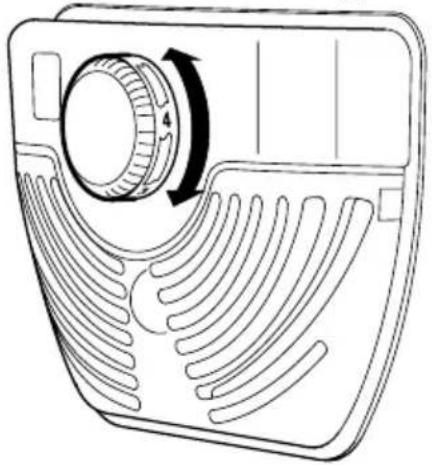

Thermostat setting

Line drawing of a portable air conditioner unit with a rotary dial and ventilation slots (no text or symbols)

• Thermostat automatically regulates the inside temperature of the refrigerator compartment and freezer compartment. By rotating the knob from position 1 to 5, colder temperatures can be obtained. “” position shows thermostat is closed and no cooling will be available.
• For short-term storage of food in the freezer compartment, you can set the knob between 1 and 3 position.
• For long-term storage of food in the freezer compartment, you can set knop 3-4 position.

Note that ; the ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the refrigerator compartment. If required, change the temperature setting.

Important note: Do not try to rotate knob beyond 1 position it will stop your appliance.

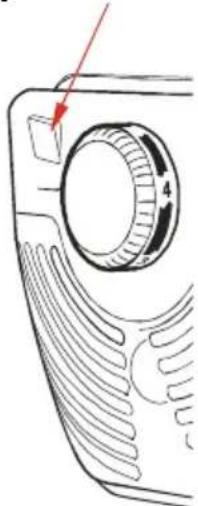

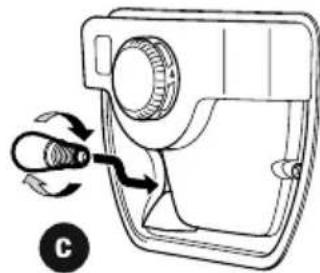

Super switch (If super switch is available)

Technical line drawing of a camera lens component with no visible text or symbols

• Normally set this switch to ‘*position. Except when the ambient temperature is low like in winter.(ie.below 16°C) or when the freezer temperature needs to be maintained lower. In that case, turn the switch to ‘ position ON.
• To set super switch ON that is on the thermostat box, press the switch down to position. The switch will lit.
• When the freezer compartment is cooled down to sufficient temperature, or the weather gets hot, turn the super switch off to save electrical consumption.

- When you first switch on the appliance, for starting a suitable cooling, the appliance should work 24 hours continuously until it cools down to sufficient temperature.

- In this time do not open the door so often and place a lot of food inside the appliance.

If the unit is switched off or unplugged, you must allow at least 5 minutes before restarting or re-plugged the unit in order not to damage the compressor.

Warnings for Temperature Settings

- The ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the refrigerator compartment. If required, change the temperature setting.

- It is not recommended that you operate your fridge in environments colder than 10^ in terms of its efficiency.

- The thermostat setting should be done by taking into consideration how often the fresh food and freezer doors are opened and closed, how much food is stored in the refrigerator, and the environment in which the refrigerator is located.

- Your fridge should be operated up to 24 hours according to the ambient temperature without interruption after being plugged in to be completely cooled. Do not open doors of your fridge frequently and do not place much food inside it in this period.

- While power cut, to prevent any compressor problem you should plug out the refrigerator. You should delay plugging in 5 – 10 minutes after you power supply. Of you plug out the refrigerator for a reason you should wait at least 5 min to replug. It is important for avoiding damage to refrigerator's components.

- Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. It is not recommended that your fridge is operated in the environments which are out of the stated temperature intervals in terms of cooling efficiency.

Climate Class Ambient Temperature (°C)
T	Between 16 and 43 (°C)
ST Between 16 and 38 (°C)
N Between 16 and 32 (°C)
SN	Between 10 and 32 (°C)

Accessoires

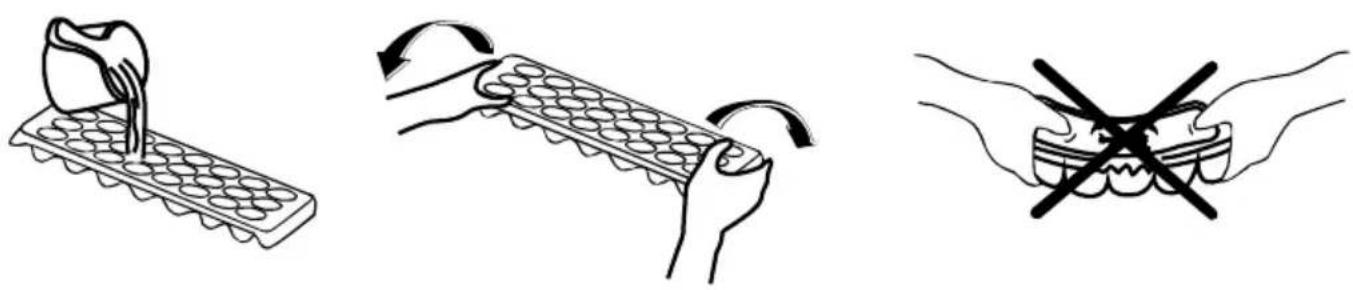

Ice tray

- Fill the ice tray with water and place in freezer compartment.

• After the water completely turned into ice, you can twist the tray as shown below to get the ice cube.

Illustration showing three steps of dental tool manipulation: using toothpick, handling tray with teeth, and removing tooth (no text or symbols)

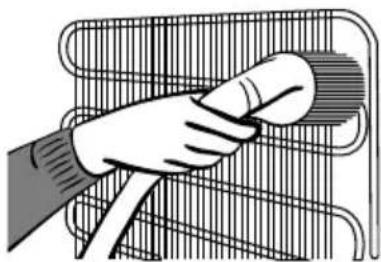

Plastic scraper

After a period of time, frost will build up in certain areas in the freezer compartment. The frost, accumulated in the freezer, should be removed periodically. Use the plastic scraper provided if necessary. Do not use sharp metal objects for this operation. They could puncture the refrigerator circuit and cause irreparable damage to the unit.

Line drawing of a paintbrush with handle and circular end (no text or symbols)

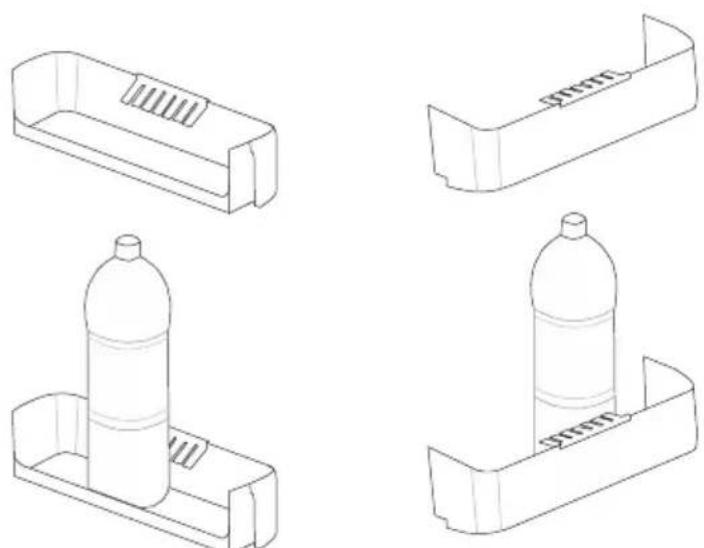

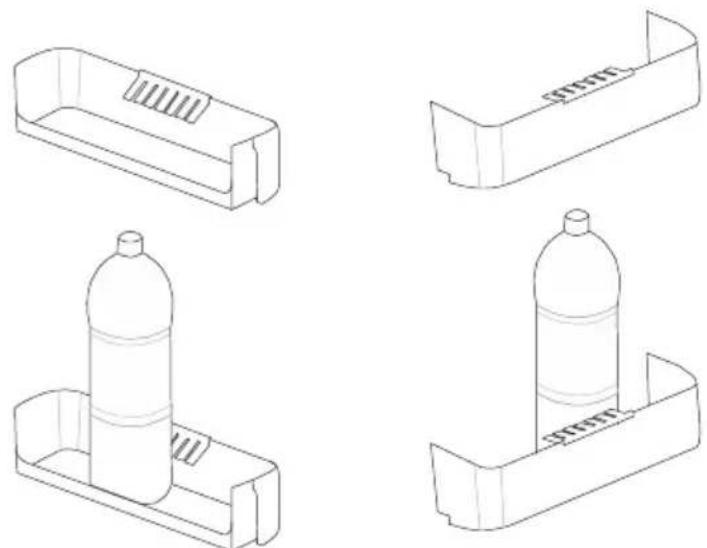

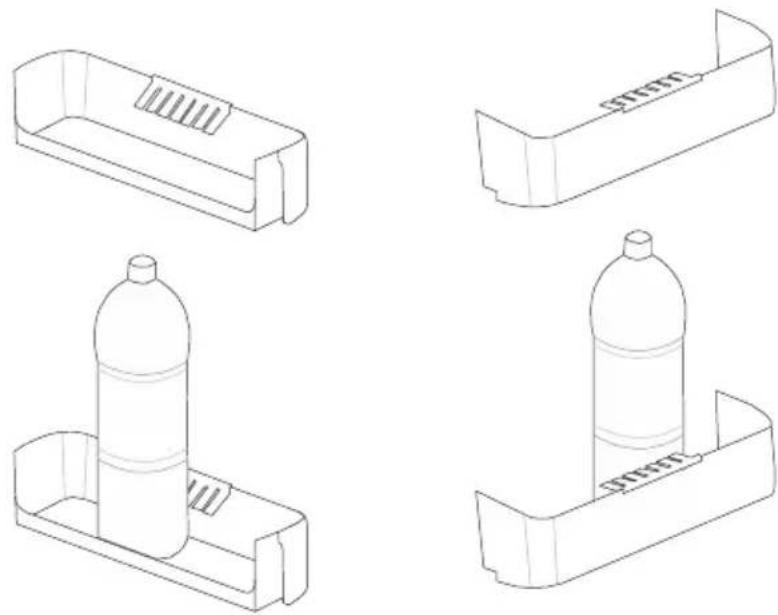

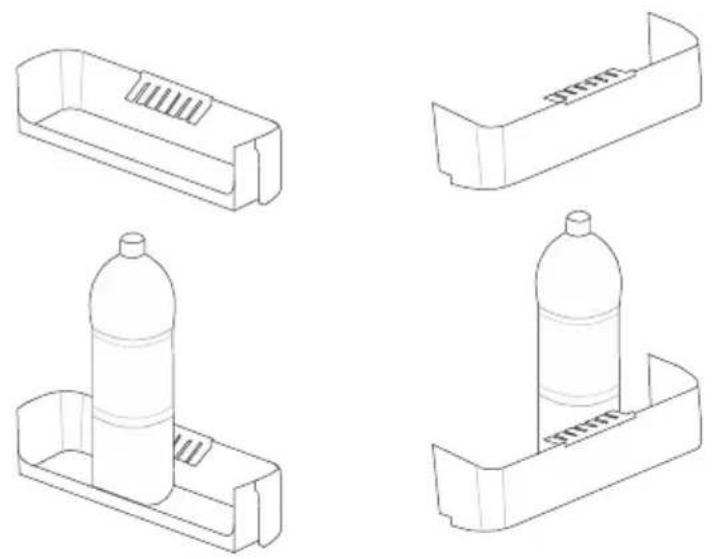

Bottle holder (In some models)

In order to prevent the bottles to slip or fall over you can use the bottle holder. You can also prevent making noise that will be done when you open or close the door.

Simple line drawing of a bottle mounted on a tray (no text or symbols)

Scope of delivery

Scope of delivery Model
	Fridge-freezer
Freezer wire shelf 1
Glass shelves 4
Crisper 1
Door shelves 4
Egg tray 2
Ice cube tray 2
Plastic scraper 1
Warranty documents Yes
User's manual Yes

All written and visual descriptions in the accessories may vary according to the appliance model.

PART - 3. ARRANGING FOOD IN THE APPLIANCE

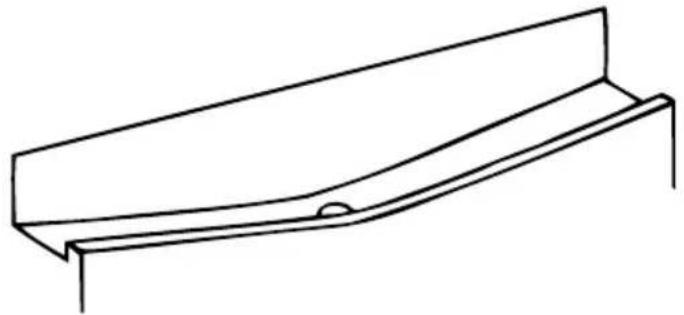

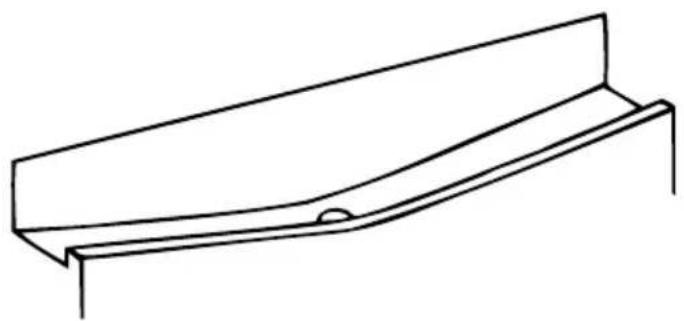

Refrigerator compartment

• To reduce humidity and consequent increase of frost never place liquids in unsealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporator and in time will require more frequent defrosting.
• Never place warm food in the refrigerator. Warm food should be allowed to cool at room temperature and should be arranged to ensure adequate air circulation in the refrigerator compartment.
• Nothing should touch on the back wall as it will cause frost and the packages can stick on the back wall. Do not open the refrigerator door too frequently.
• Arrange the meat and cleaned fish(wrapped in packages or sheets of plastic) which you will use in 1-2 days, in the bottom section of the refrigerator compartment(that is above the crisper) as this is the coldest section and will ensure the best storing conditions.
• You can put the fruits and vegetables into crisper without packing.

Freezer compartment

• The use of freezer is, storing of deep-frozen or frozen foods for long periods of time and making ice cubes.
• To freeze fresh food, ensure that as much of the surface as possible of food to be frozen is in contact with the cooling surface.
• Do not put fresh food with frozen on side by side as it can thaw the frozen food.
• While freezing fresh foods(i.e meat,fish and mincemeat), divide them in parts you will use in one time.
• Once the unit has been defrosted replace the foods into freezer and remember to consume them in as short period of time.
• Never place warm food in the freezer compartment. As it will disturb the frozen foods.
• For storing the frozen foods; the instructions shown on frozen food packages should always be followed carefully and if no information is provided food should not be stored for more than 3 months from the purchased date.
• When buying frozen foods ensure that these have been frozen at suitable temperatures and that the packing is intact.
• Frozen foods should be transported in appropriate containers to maintain the quality of the food and should be returned to the freezing surfaces of the unit in the shortest possible time.
• If a package of frozen food shows the sign of humidity and abnormal swelling it is probable that it has been previously stored at an unsuitable temperature and that the contents have deteriorated.
• The storage life of frozen foods depends on the room temperature, thermostat setting, how often the door is opened, the type of food and the length of time required to transport the product from the shop to your home. Always follow the instructions printed on the package and never exceed the maximum storage life indicated.

Not that; if you want to open again immediately after closing the freezer door, it will not be opened easily. It's quite normal! After reaching equilibrium condition, the door will be opened easily.

PART - 4. CLEANING AND MAINTENANCE

• Make sure to unplug the fridge before starting to clean it.

- Do not wash your fridge by pouring water.

- You can wipe the inner and outer sides with a soft cloth or a sponge using warm and soapy water.

Cartoon illustration of a hand holding a tool interacting with a device (no text or symbols present)

Simple line drawing of a hand holding a smiling emoji inside a rounded square (no text or symbols)

Cartoon illustration of a smiling window with thumbs up and a pencil nearby (no text or symbols)

- Remove the parts individually and clean with soapy water. Do not wash in washing machine.

- Never use flammable, explosive or corrosive material like thinner, gas, acid for cleaning.

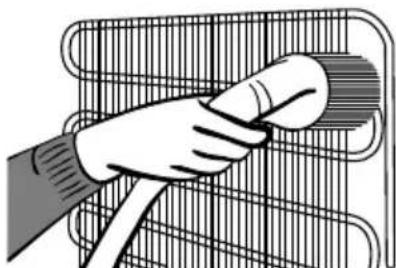

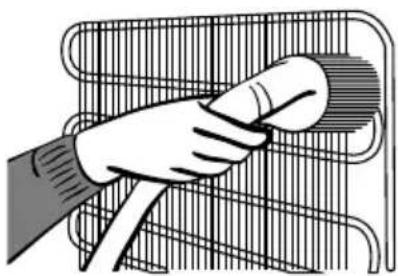

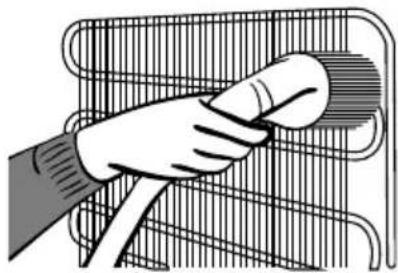

- You should clean the condenser with broom at least once a year in order to provide energy saving and increase the productivity.

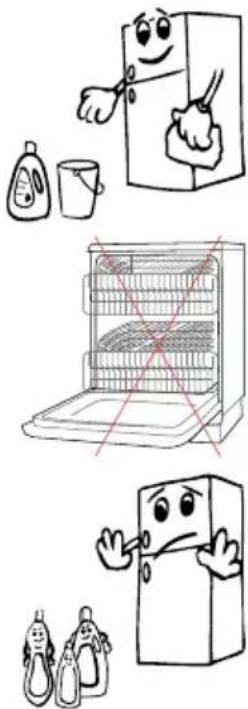

Illustration showing three different behaviors of a refrigerator: cleaning, storage, and cleaning with corresponding food illustrations.

Illustration of a hand cleaning a metal rack with a circular object on top (no text or symbols)

Make sure that your fridge is unplugged while cleaning.

Defrosting

Refrigerator compartment;

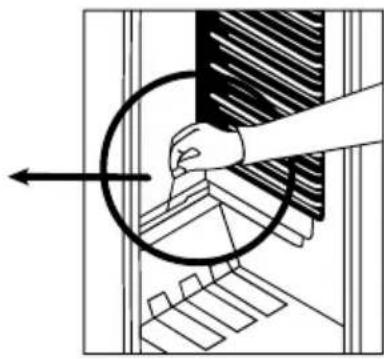

Simple line drawing of a structural beam or support with a small circular hole at one end (no text or symbols)

Diagram showing a hand pressing down on a mechanical component with a circular arrow indicating direction (no text or symbols present)

- Defrosting occurs automatically in refrigerator compartment during operation; the defrost water is collected by the evaporating tray and evaporates automatically.

- The evaporating tray and the defrost water drain hole should be cleaned periodically with defrost drain plug to prevent the water from collecting on the bottom of the refrigerator instead of flowing out.

- You can also pour 1/2 glass of the water to drain hole to clean inside.

Freezer compartment;

The frost, accumulated in the freezer compartment, should be removed periodically. (Use the plastic scraper provided) The freezer compartment should be cleaned in the way as the refrigerator compartment, with the defrost operations of the compartment at least twice a year.

For this;

- The day before you defrost, set the thermostat dial to "5" position to freeze the foods completely.

- During defrosting, frozen foods should be wrapped in several layers of paper and kept in a cool place. The inevitable rise in temperature will shorten their storage life. Remember to use these foods within a relatively short period of time.

- Set thermostat knob to position “.” or unplug the unit; leave the door open until completely defrosted.

- To accelerate the defrosting process one or more basins of warm water can be placed in the freezer compartment.

- Dry the inside of the unit carefully and set the thermostat knob to MAX position.

Replacing the light bulb

When replacing the light of the refrigerator compartment;

1- Unplug your fridge.
2- Remove the cover of the box from the claws using a screwdriver.
3- Replace with a bulb of maximum 15 Watts.

4- Install the cover.

5- Wait for 5 minutes before re-plugging and bring the thermostat to its original position.

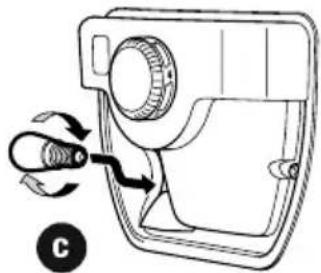

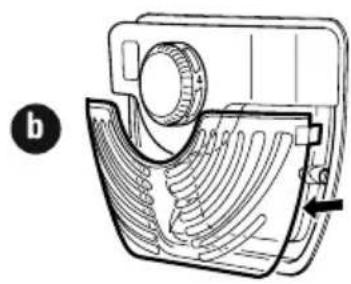

Diagram of a device with internal channels and a labeled component 'a' (no text or symbols beyond label)

b

Technical line drawing of a mechanical component with internal ribs and a circular head (no text or symbols)

Diagram of a device with a scroll wheel and directional arrows indicating motion (no text or symbols)

PART - 5. SHIPMENT AND REPOSITIONING

• Original package and foam may be kept for re-transportation (optionally).
• You should fasten your fridge with thick package, bands or strong cords and follow the instructions for transportation on the package for re-transportation.

- Remove movable parts (shelves, accessories, vegetable bins etc.) or fix them into the fridge against shocks using bands during re-positioning and transportation.

- Carry your fridge in the upright positio.

Simple line drawing of two children playing a game with a large block (no text or symbols)

Repositioning the Door

• It is not possible to change the opening direction of your fridge door, if the door handles on your fridge are installed from the front surface of the door.
• It is possible to change the opening direction of the door on models without any handles.
• If the door opening direction of your fridge may be changed, you should contact the nearest Authorized Service to have the opening direction changed.

PART - 6. BEFORE CALLING YOUR AFTER SALES SERVICE

If your refrigerator is not working properly, it may be a minor problem, therefore check the following, before calling an electrician to save time and money.

What to do if your refrigerator does not operate ;

Check that ;

• There is no power,
• The general switch in your home is disconnected,
• The thermostat setting is on “” position,
• The socket is not sufficient. To check this, plug in another appliance that you know which is working into the same socket.

What to do if your refrigerator performs poorly ;

Check that ;

• You have not overloaded the appliance,
  • The doors are closed perfectly,
• There is no dust on the condenser,
• There is enough place at the rear and side walls.

If there is noise ;

The cooling gas which circulates in the refrigerator circuit may make a slight noise(bubbling sound) even when the compressor is not running. Do not worry this is quite normal. If these sounds are different check that ;

• The appliance is well leveled
- Nothing is touching the rear.
- The stuffs on the appliance are vibrating.

If there is water in the lower part of the refrigerator ;

Check that ;

The drain hole for defrost water is not clogged(Use defrost drain plug to clean the drain hole)

Recommendations

• While power cut, to prevent any compressor problem you should plug out the refrigerator. You should delay plugging in 5 – 10 minutes after you power supply.
• If you plug out the refrigerator for a reason you should wait at least 5 min to replug. It is important for avoiding damage to refrigerator's components.
• The cooling unit of your refrigerator is hidden in the rear wall. Therefore, water droplets or icing may occur on the rear surface of your fridge due to the operation of the compressor in specified intervals. This is normal. There is no need to perform a defrosting operation unless the icing is excessive.
• If you will not use your fridge for a long time (e.g. in summer holidays), put the thermostat to “.” position. After defrosting, clean your fridge and leave the door open to prevent humidity and smell.
• If the problem persists after you have followed all the instructions above, please consult to the nearest Authorised Service.

- The appliance you have purchased is designed for home type use and can be used only at home and for the stated purposes. It is not suitable for commercial or common use. If the consumer use the appliance in a way that does not comply with these features, we emphasise that the producer and the dealer shall not be responsible for any repair and failure within the guarantee period.

- The lifetime of your appliance stated and declared by the Department of the Industry (the period for retaining parts required for the proper functioning of the appliance) is 10 years.

Conformity Information

• This appliance is designed for use at an ambient temperature within the 16^ - 38^ range.
• The appliance is designed in compliance with the, IEC60335-1 / IEC60335-2-24, 2004/108/EC standards.

Tips for saving energy

1- Install the appliance in a coll, well ventilated room, but not in direct sunlight and not near heat source (radiator, cooker.. etc). Otherwise use an insulating plate.
2- Allow ward food and drinks to cool down outside the appliance.
3- When thawing frozen food, place it in the refrigerator compartment. The low temperature of the frozen food will help to cool the refrigerator compartment when it is thawing. So it causes energy saving. If the frozen food is put out, it causes wastage of energy.
4- When placing, drinks and slops they must be covered. Otherwise humidity increases at the appliance. Therefore the working time gets longer. Also covering drinks and slops helps to save smell and taste.
5- When placing food and drinks, open the appliance door as briefly as possible.
6- Keep close the covers of any different temrepature compartment in the appliance (crisper, chiller ...etc ).
7- Door gasket must be clean and pliable. Replace gaskets if worn.

Data sheet for cooling devices

Manufacturer device type		TELEFUNKEN
		Refrigerator-Freezer
Model		TFK1543FG2TFK1543FR2
Energy efficiency class 1)		A++
Power consumption 2)	kWh/year	206
Gross volume	Liters	310
Net volume	Liters	305
Net volume, freezer	Liters	63
Net volume, fridge	Liters	242
Star rating 3)		***
Preservation time in case of failure	min.	1150(-18°C Bis -9°C)
Freezing capacity	kg/24 h	3,5
Climate class 4)		ST/N (16°C-38°C)
Voltage	V/Hz	220 - 240 V/50 Hz
max. Power consumption	Watt	182
Dimensions, height	Mm	1754
Width	Mm	605
Depth	Mm	636

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

Labeled diagram of a refrigerator interior with numbered parts for identification

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

A) Freezer compartment
B) Cooler compartment
1) Freezer shelf
2) Ice tray
3) Plastic Ice scraper

4) Refrigerator shelf
5) Crisper cover
6) Crisper
7) Leveling feet
8) Kick plate

Symbol of a trash bin with crossed lines indicating no waste or restriction (no text or labels)

Illustration of hands using a tool to draw a crack or fracture (no text or symbols present)

Cartoon illustration of a smiling character inside a rectangular door, holding a tool near the door (no text or symbols)

Safety warning illustration showing a smiling face, a crossed-out hand holding a prohibition symbol, and a hand holding a device.

Simple line drawing of two bottles and a glass with explosion effects (no text or symbols)

Cartoon illustration of a distressed container character with arms and legs, holding a label 'KG' (no text or symbols on the character itself)

Simple line drawing of a hand holding a smiling square character (no text or symbols)

SECTION 2. FONCTIONS ET POSSIBILITES DIVERSES

Line drawing of a portable projector with a circular dial and curved blades (no text or symbols)

Technical line drawing of a camera lens with no visible text or symbols

Illustration showing three steps of dental tool manipulation: using a toothbrush, moving a tooth with arrows, and removing teeth with a black X (no text or symbols)

Line drawing of a mechanical part with a handle and mounting hole (no text or symbols)

Cartoon illustration of a hand washing clothes from a door (no text or symbols)

Simple line drawing of a hand holding a smiling emoji on a square (no text or symbols)

Cartoon illustration of a smiling cube character giving thumbs up next to a mortar and pestle (no text or symbols)

Illustration showing three different food safety behaviors: a refrigerator with cleaning, a washing machine with liquid, and a baby bottle with a sad expression.

Illustration of a hand cleaning a metal grate (no text or symbols)

Technical line drawing of a mechanical component and its magnified cross-section showing internal components (no text or symbols)

Diagram of a device casing with internal channels and a central knob, labeled 'a' (no text or symbols on the diagram itself)

b

Technical line drawing of a mechanical component with internal ribs and a circular head (no text or symbols)

Diagram of a device casing with a knob and scroll, showing mechanical components and directional arrows (no text or symbols)

SECTION 5. TRANSPORT ET CHANGEMENT DE PLACE

Transport Et Changement De La Place

Simple line drawing of two children holding a large rectangular object (no text or symbols)

Labeled diagram of a refrigerator interior showing numbered compartments and storage areas

- bed and breakfast e simili,

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Illustration showing three different techniques for using a tool, with no visible text or symbols.

Cartoon illustration of a character inside a refrigerator (no text or symbols)

Illustration of a hand holding a smiling face icon, a crossed-out hand symbolizing no violations, and a prohibition sign (no text present)

Simple line drawing of two bottles and a glass with bubbles, no text or symbols present

Cartoon illustration of a distressed container character holding a box labeled 'KG', with no readable text or symbols.

Simple line drawing of a smiling square character holding a rounded rectangular object, with a hand reaching out (no text or symbols)

PARTE 2. FUNZIONI E POSSIBILITA'

Line drawing of a portable air conditioner unit with a rotary dial and ventilation slots (no text or symbols)

Diagram of a camera lens with a red arrow pointing to the aperture (no text or symbols present)

Illustration showing three steps of dental tool manipulation: using a tooth model, handling a grid tray, and removing teeth with a black cross (no text or symbols)

Line drawing of a mechanical tool or bracket with a handle and mounting hole (no text or symbols)

Simple line drawing of a bottle mounted on a stand (no text or symbols)

Illustration of a hand cleaning a kitchen appliance with a knife (no text or symbols)

Cartoon illustration of a smiling rectangular character giving thumbs up and holding a bowl with a tool (no text or symbols)

Cartoon illustration of a refrigerator with a smiling face, accompanied by a small bottle and a cup (no text or symbols)

Line drawing of a refrigerator with open door and side shelves, no text or symbols present

Cartoon illustration of a smiling refrigerator and two smaller characters (no text or symbols)

Illustration of a hand holding a circular object over a grid-like structure (no text or symbols)

Sbrinamento

Scomparto frigo:

Simple line drawing of a mechanical component or bracket (no text or symbols)

Diagram showing a hand pressing down on a mechanical component with a circular arrow indicating direction (no text or symbols present)

Diagram of a device with internal channels and a labeled component (a), no readable text or symbols present.

b

Technical line drawing of a mechanical component with internal ribs and a circular head (no text or symbols)

Diagram of a device component with labeled parts and directional arrows indicating rotation or movement

PARTE 5.

TRASPORTO E SPOSTAMENTO DELL'APPARECCHIO

Simple line drawing of two children playing a large board (no text or symbols)

Labeled diagram of a refrigerator interior showing numbered compartments and storage areas

Pure electrical circuit lines without any symbols

Illustration of three hands performing a knot or knotting technique, showing different hand positions and motion patterns (no text or symbols)

Cartoon illustration of a character opening a door, with arms and legs bent (no text or symbols)

Cartoon illustration of a distressed container character holding a box labeled 'KG', with no readable text or symbols beyond the label.

Simple line drawing of a hand holding a smiling square character (no text or symbols)

Line drawing of a portable radio device with a rotary knob and ventilation slots (no text or symbols)

Simple line drawing of a car's front window with sun and gear (no text or symbols)

Illustration showing three steps of dental tool manipulation: using toothpick, handling egg trays, and removing teeth (no text or symbols)

Plastic schraper

Line drawing of a paintbrush with handle and circular end (no text or symbols)

Simple line drawing of a bottle mounted on a tray (no text or symbols)

Cartoon illustration of a hand holding a bird near a box with a sad face (no text or symbols)

Cartoon illustration of a smiling refrigerator with a toothbrush and toothpaste brush (no text or symbols)

Simple line drawing of a hand holding a smiling face emoji (no text or symbols)

Cartoon illustration of a smiling refrigerator with hands reaching toward a bottle and cup (no text or symbols)

Line drawing of a refrigerator interior with no text or symbols

Cartoon illustration of a smiling refrigerator with arms and legs, accompanied by two baby silhouettes (no text or symbols)

Illustration of a hand cleaning a metal grate (no text or symbols)

Ontdooien Koelingscompartiment

Technical line drawing of a mechanical component with an inset showing a magnified view of a gear or workpiece (no text or symbols present)

Diagram of a device with internal channels and a labeled component 'a' (no text or symbols beyond label)

Technical line drawing of a mechanical device with internal ribbed structure (no text or symbols)

Diagram of a device with labeled parts and directional arrows indicating rotation or movement

DEEL 5.

TRANSPORT EN WIJZIGING VAN DE INSTALLATIEPOSITIE

Simple line drawing of two children playing a large board (no text or symbols)

Labeled diagram of a refrigerator interior showing numbered compartments and storage areas
