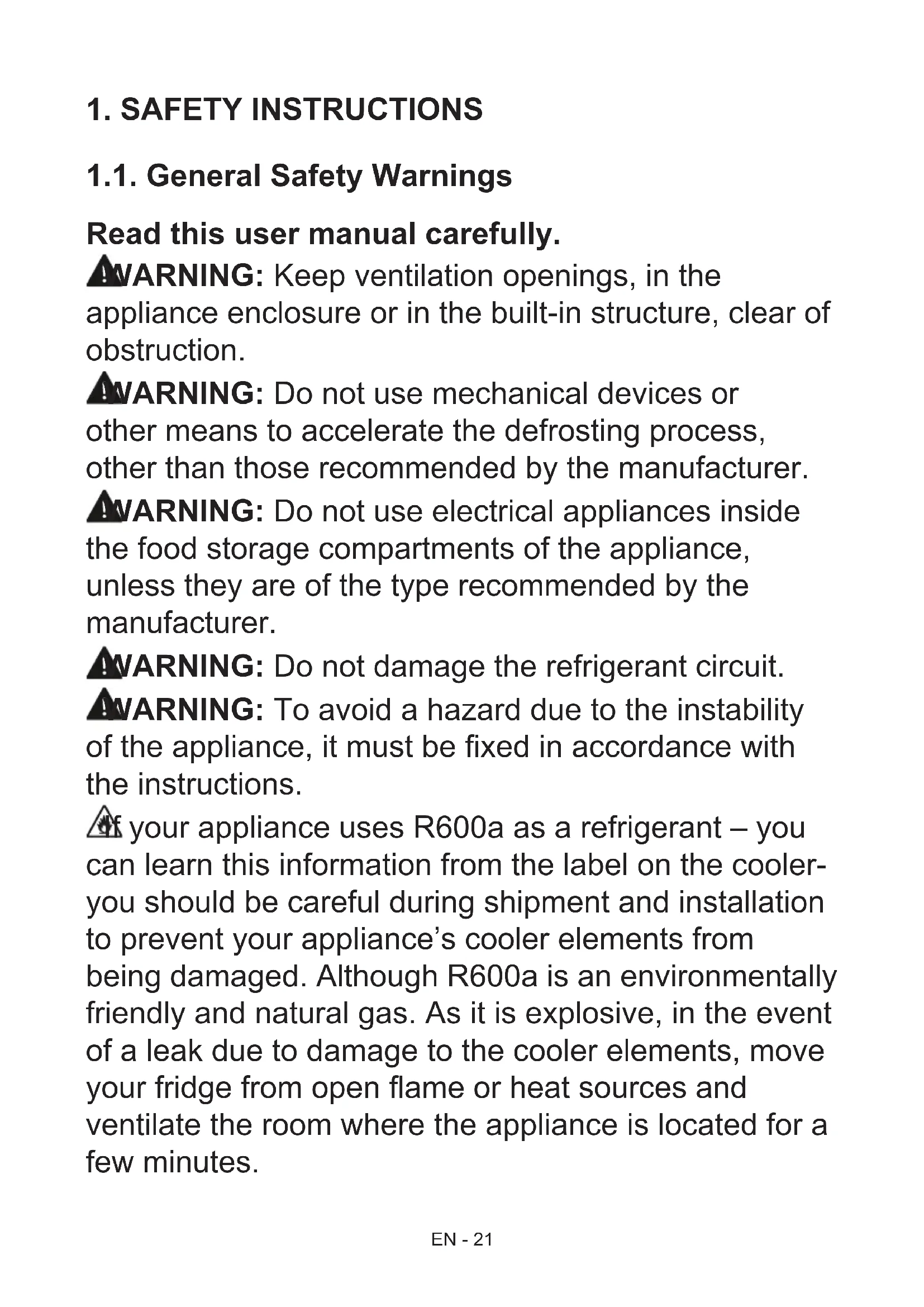

1.1. General Safety Warnings Read this user manual carefully.

WARNING: Keep ventilation openings, in the

appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or

other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside

the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: To avoid a hazard due to the instability

of the appliance, it must be xed in accordance with the instructions. If your appliance uses R600a as a refrigerant – you can learn this information from the label on the cooler- you should be careful during shipment and installation to prevent your appliance’s cooler elements from being damaged. Although R600a is an environmentally friendly and natural gas. As it is explosive, in the event of a leak due to damage to the cooler elements, move your fridge from open ame or heat sources and ventilate the room where the appliance is located for a few minutes.EN - 22

• While carrying and positioning the fridge, do not damage the cooler gas circuit.

• Do not store explosive substances such as aerosol cans with a ammable propellant in this appliance.

• This appliance is intended to be used in household and similar applications such as; – staff kitchen areas in shops, ofces and other working environments – farm houses and by clients in hotels, motels and other residential type environments – bed and breakfast type environments – catering and similar non-retail applications

• If the socket does not match the freezer fridge plug, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.

• A specially grounded plug has been connected to the power cable of your freezer fridge. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have it installed by an authorized electrician.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazard involved. Children shall not play with the appliance. CleaningEN - 23 1.2. Installation Warnings Before starting to use your fridge freezer, you should pay attention to the following points:

• The operating voltage for your fridge freezer is 220-240 V at 50Hz.

• The plug must be accessible after installation.

• Your fridge freezer may have a smell when it is operated for the rst time. This is normal and the smell will fade away when your fridge freezer starts to cool.

• Before connecting your fridge freezer, ensure that the information on the data plate (voltage and connected load) matches that of the mains electricity supply. If in doubt, consult a qualied electrician.

• Insert the plug into a socket with an efcient ground connection. If the socket has no ground contact or the plug does not match, we recommend that you consult a qualied electrician for assistance.

• The appliance must be connected with a properly installed fused socket. Power supply (AC) and voltage at the operating point must match with the details on the name plate of the appliance (name plate is located on the inside left of the appliance).

• We do not accept responsibility for any damages that occur due to ungrounded usage.

• Place your fridge freezer where it will not be exposed to direct sunlight.

• Your fridge freezer should never be used outdoors or exposed to rain.

• Your appliance should be at least 50 cm away from stoves, gas ovens and heater cores, and at least 5 cm away from electrical ovens.

• When your fridge freezer is placed next to a deep freezer, there should be at least 2 cm between them to prevent humidity forming on the outer surface.

• Do not place heavy items on the appliance.

• Clean the appliance thoroughly, especially the interior, before use (see Cleaning and Maintenance).

• The installation procedure into the kitchen unit is given in the installation manual. This product is intended to be used in proper kitchen units only.

• Use the adjustable front legs to make sure your appliance is level and stable. You can adjust the legs by turning them in either direction. This should be done before placing food in the fridge freezer.

• Before using your fridge freezer, wipe all parts with a solution of warm water and a teaspoon of sodium bicarbonate, then rinse with clean water and dry. Place all parts in the fridge after cleaning.

• Install the plastic distance guide (the part with black vanes at the rear) by turning it 90° (as shown in the and user maintenance, shall not be made by children without supervision.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualied persons in order to avoid a hazard.

• This appliance is not intended for use at altitudes exceeding 2000 m.EN - 24 gure) to prevent the condenser from touching the wall.

• The fridge freezer should be placed against a wall with a free space not exceeding 75 mm.

• When using your fridge for the rst time, or after transportation, keep it in an upright position for at least 3 hours before plugging into the mains. This allows efcient operation and prevents damage to the compressor.

• Your fridge may have a smell when it is operated for the rst time. This is normal and the smell will fade away when your fridge starts to cool. 1.3. During Usage

• Do not use multiple receptacles or extension cord.

• Do not plug in damaged, torn or old plugs.

• Do not pull, bend or damage the cord.

• This appliance is designed for use by adults, do not allow children to play with the appliance or let them hang off the door.

• Do not plug-in or out the plug from the receptacle with wet hands to prevent electrocution!

• Do not place glass bottles or beverage cans in the freezer compartment. Bottles or cans may explode.

• Do not place explosive or ammable material in your freezer fridge for your safety. Place drinks with higher alcohol amount vertically and by closing their necks tightly in the fridge compartment.

• When taking ice made in the freezer compartment, do not touch it, ice may cause ice burns and/or cuts.

• Do not touch frozen goods with wet hands! Do not eat ice-cream and ice cubes immediately after you have taken them out of the freezer compartment!

• Do not re-freeze frozen goods after they have melted. This may cause health issues like food poisoning.

• Do not cover the body or top of freezer fridge with lace. This affects the performance of your freezer fridge.

• Fix the accessories in the freezer fridge during transportation to prevent damage to accessories. Old and Out-of-order Fridges

• If your old fridge or freezer has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.

• Old fridges and freezers may contain isolation material and refrigerant with CFC or HFC. Therefore, take care not to harm environment when you are discarding your old fridges. CE Declaration of conformity

• We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced. Disposal of your old appliance The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city of ce, your household waste disposal service or the shop where you purchased the product. Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.EN - 25

• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.

• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specied purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for the losses to be occurred.

• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for the losses to be occurred in the contrary case.

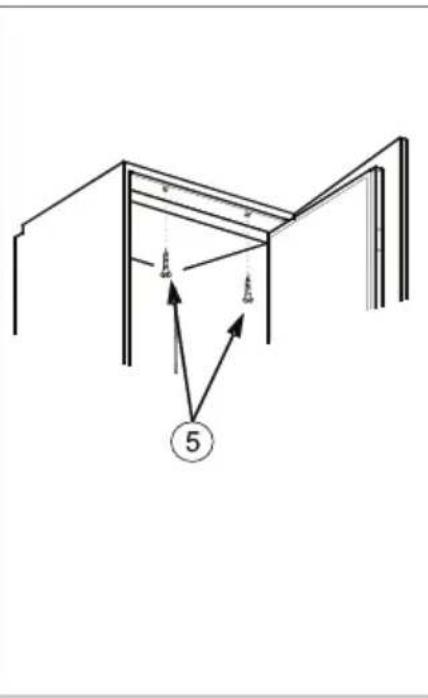

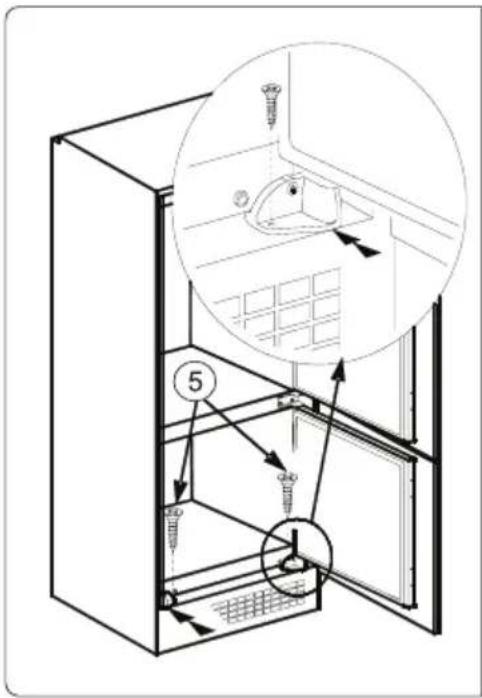

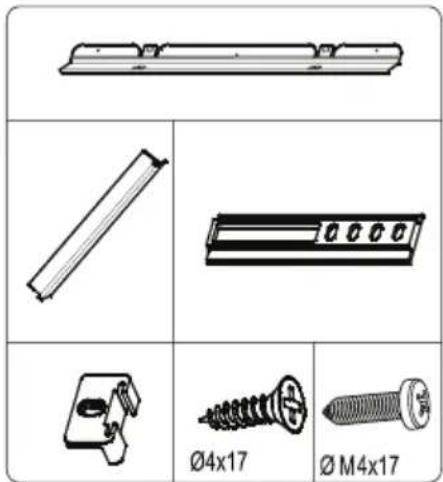

2.1. Installation instaructions and door reversibility

• Before installation, read the instructions carefully.

• Fit the refrigerator/freezer in stable kitchen units only.

• If necessary, reverse the door according to instructions.

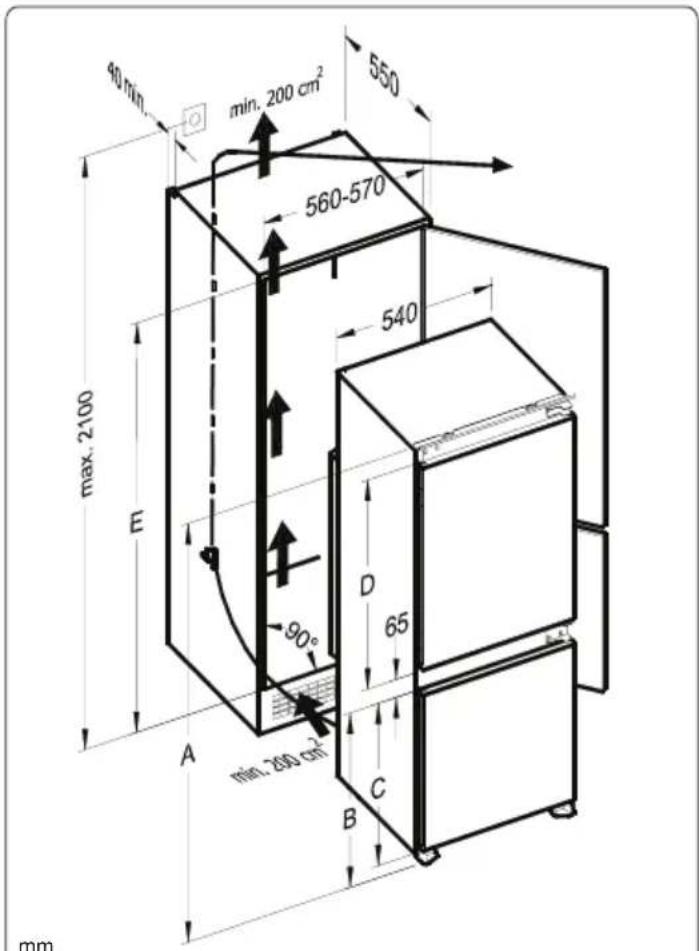

• Check the installation dimensions according to g.C. The position of the joint between the unit doors must be level with the position of the joint between the appliance doors.

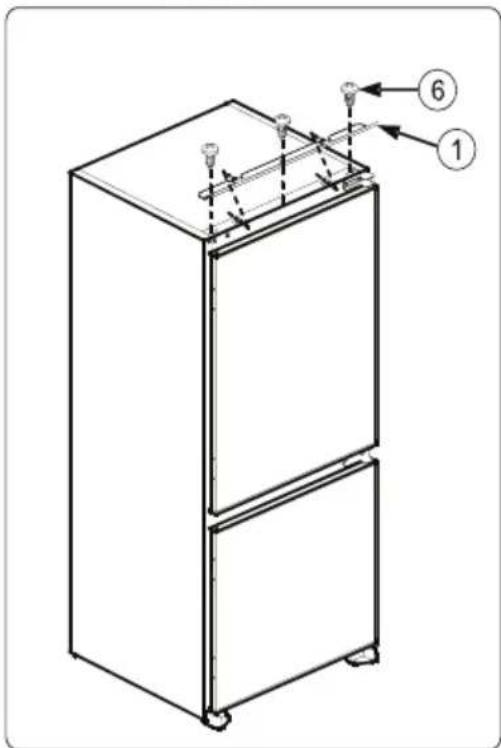

into slot and screw by screws

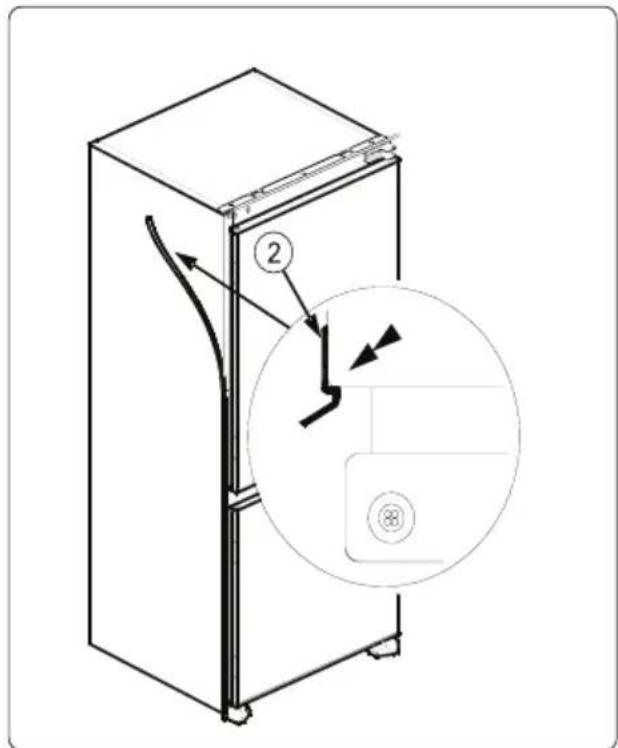

3. Pass the power cord through ventilation

shaft and position it so that the appliance could be easily plugged in once it has been installed. (g.B - g.C)

located on the side panel of the appliance and stick it on reverse side of the door hinges of the appliance. (g.D - g.E)

5. Raise appliance and slide into kitchen

unit. Push appliance to the reverse side of door hinges providing that trim gasket

covers space between appliance and the kitchen unit.

6. Align front feet with front surface of

7. Screw the front feet by using screws

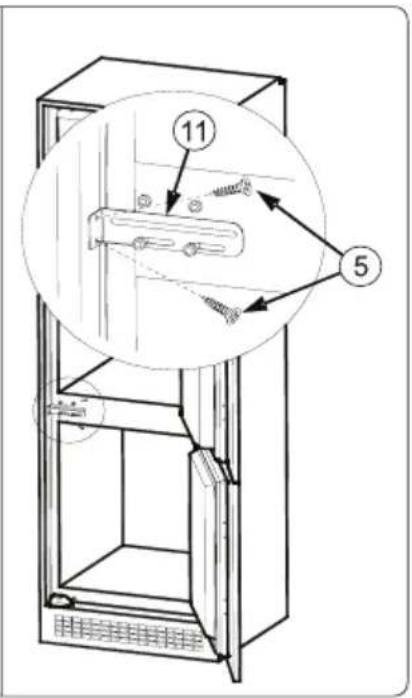

to kitchen unit using screws

, as leaned to kitchen unit by using screws

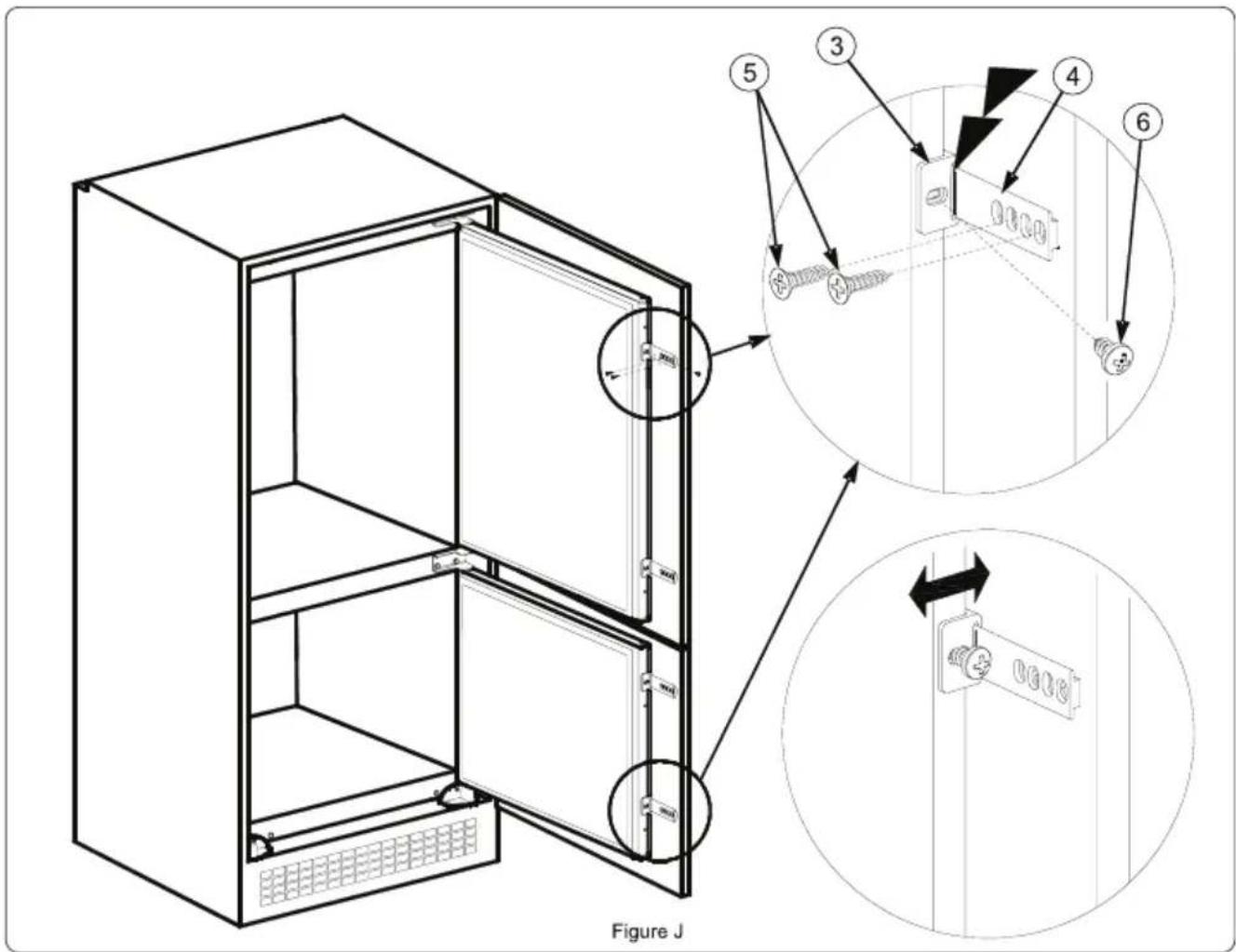

to appliance doors with screws

. Lean appliance doors to unit door as it is opened at right angle. Slide rails

to the unit doors with screws

between unit itself and unit doors by adjusting guides

and screw it to opposite side rmly and take to safe place.

to safe place. Screw back xing bracket

to empty holes on opposite side.

and close onto cabinet.

and screw together onto cabinet rmly.

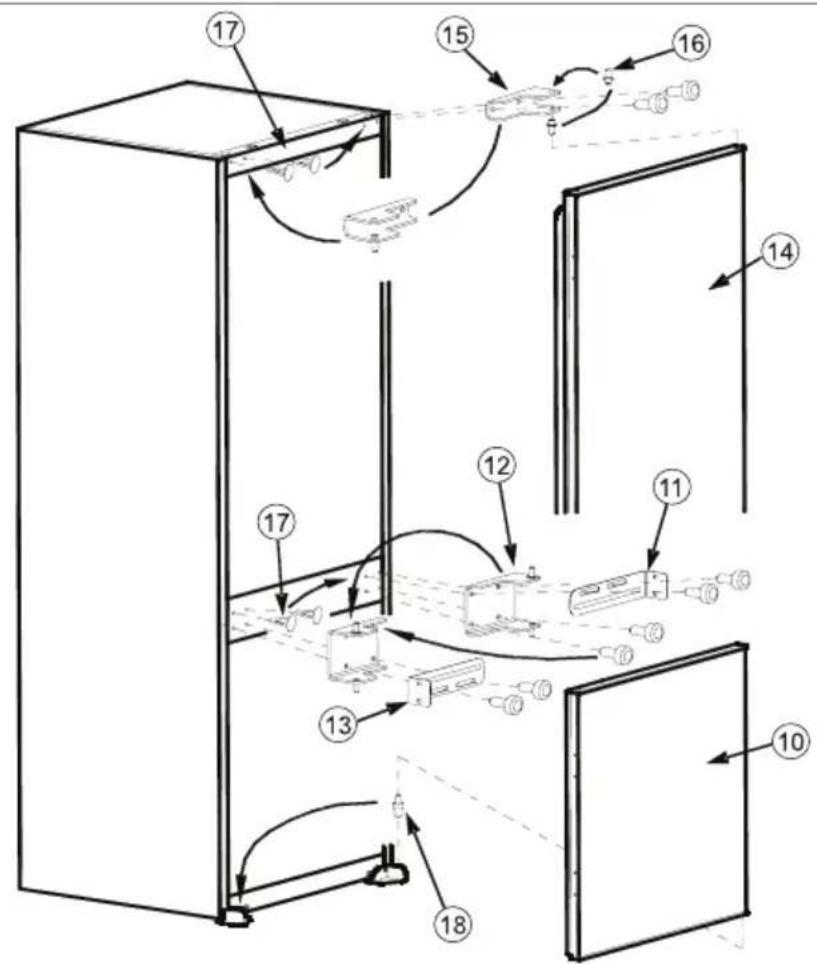

and then screw upper door hinge

rmly onto opposite side of original position.EN - 29

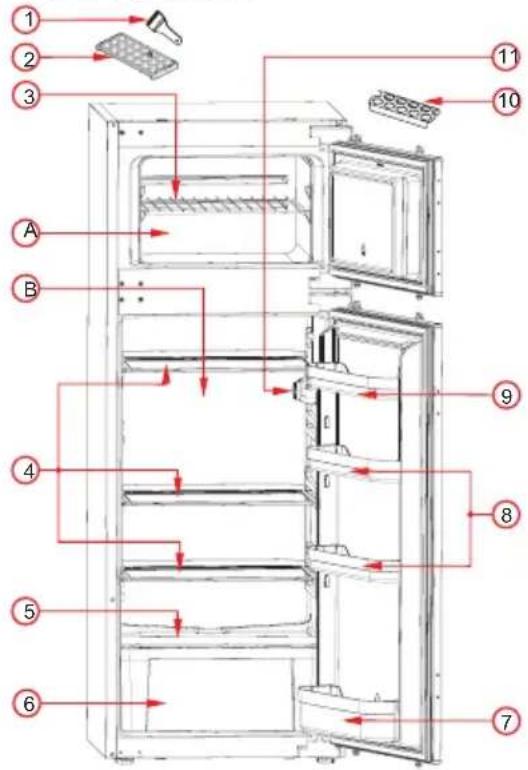

3. DESCRIPTION OF THE

APPLIANCE This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model. A) Freezer compartment B) Fridge compartment

3) Freezer compartment shelf

4) Fridge compartment shelves

4. USING THE APPLIANCE

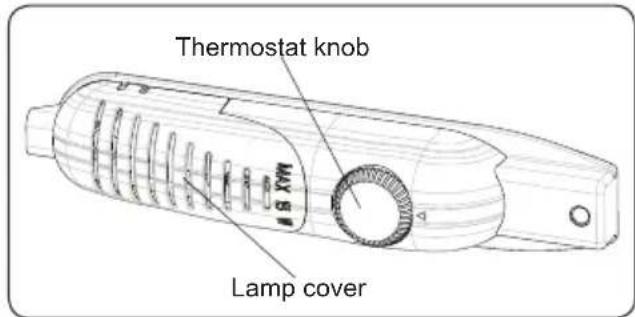

4.1. Thermostat Setting Thermostat automatically regulates the inside temperature of the refrigerator compartment and freezer compartment. By rotating the knob from position 1 to 5, colder temperatures can be obtained. Lamp cover Thermostat knob

• The “ “ position shows thermostat is closed and no cooling is available.

• For short-term storage of food in the freezer compartment, you can set the knob between minimum and medium position (1-3).

• For long-term storage of food in the freezer compartment, you can set knob medium position.(3-4)

• Note that; the ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the refrigerator and freezer compartments. If required, change the temperature setting.

• When you rst switch on the appliance, you should ideally try to run it without any food in for 24 hours and not open the door. If you need to use it straight away, try not to put much food inside.

• If the unit is switched off or unplugged, you must allow at least 5 minutes before restarting in order not to damage the compressor.

• The freezer of the refrigerator cools down to -18°C and less.

• This appliance is designed for use at an ambient temperature within the 16°C - 32°C range. Climate class Ambient temperature

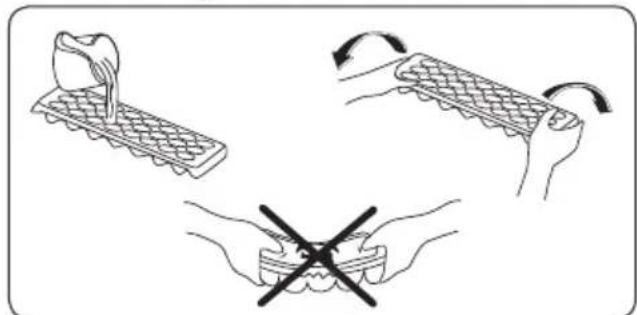

• Fill the ice tray with water and place in freezer compartment.

• After the water completely turned into ice, you can twist the tray as shown below to get the ice cube. All written and visual descriptions in the accessories may vary according to the appliance model.

5. FOOD STORAGE GUIDANCE

5.1. Refrigerator Compartment The refrigerator compartment is used for storing fresh food for few days.

• Do not place food in direct contact with the rear wall of the refrigerator compartment. Leave some space around the food to allow the circulation of air.

• Do not place hot food or evaporating liquid in the refrigerator.

• Always make sure food is wrapped or stored in closed containers before placing in the refrigerator.

• To reduce humidity and avoid formation of frost, never place liquids in unsealed containers in the refrigerator.

• We recommend that you loosely wrap meat and store it on the glass shelf just above the vegetable bin, where the air is cooler.

• Store fruit and vegetable items loose in the crisper containers.

• To prevent the cold air escaping, try not to open the door too often, and not leave the door open for a long time. Food Maximum Storing time Where to place in the fridge compartment Vegetables and fruits 1 week Vegetable bin Meat and

Wrapped in plastic foil or bags or in a meat container (on the glass shelf) Fresh cheese

3 - 4 Days In special door shelf

Butter and margarine 1 week In special door shelf Bottled products milk and yoghurt Until the expiry date recommended by the producer In special door shelf Eggs 1 month In the egg shelf Cooked food All shelves 5.2. Freezer Compartment The freezer compartment is used for freezing fresh food and for storing frozen food for the period of time indicated on packaging, and for making ice cubes.

• When freezing fresh food, wrap and seal the food properly; the packaging should be air tight and shouldn’t leak. Special freezer bags, aluminum foil (heavy grade, if in doubt double wrap), polythene bags and plastic containers are ideal.

• Do not allow the fresh food to be frozen to come into contact with the already frozen food.

• Always mark the date and the content on the pack and do not exceed the stated storage time.

• In case of a power failure or malfunction, the freezer compartment will maintain a sufciently low temperature for food storage. However, avoid opening the freezer door to slow down the temperature rise within the freezer compartment.

• The maximum amount of fresh foods that can be loaded in the freezer within 24 hours is indicated on the name plate (seeEN - 31 Freezing Capacity).

• Never place warm food in the freezer compartment.

• When purchasing and storing frozen food products, ensure that the packaging is not damaged.

• The storage time and the recommended temperature for storing frozen food is indicated on the packaging. For storing and using, follow the manufacturer’s instructions. If no information is provided, food should not be stored for more than 3 months.

• Place frozen food in the freezer compartment as soon as possible after buying it.

• Once the food has thawed, it must not be refrozen; you must cook it as quickly as possible in order to consume or to freeze once again. Meat and sh Preparation Maximum Storing time (month) Stea Wrapping in a foil 6 - 8 Lamb meat Wrapping in a foil 6 - 8 Veal roast Wrapping in a foil 6 - 8 Veal cubes In small pieces 6 - 8 Lamb cubes In pieces 4 - 8 Minced meat In packages without using spices 1 - 3 Giblets (pieces) In pieces 1 - 3 Bologna sausage /salami Should be packaged even if it has membrane Chicken and turkey Wrapping in a foil 4 - 6 Goose and Duck Wrapping in a foil 4 - 6 Deer, Rabbit, Wild Boar In 2.5 kg portions and as llets 6 - 8 Freshwater shes (Salmon, Carp, Crane, Siluroidea) After cleaning the bowels and scales of the sh, wash and dry it; and if necessary, cut the tail and head.

Lean sh; bass, turbot, ounder 4 Fatty shes (Tunny, Mackarel, bluesh, anchovy)

Shellsh Cleaned and in bags 4 - 6 Caviar In its package, aluminium or plastic container

Snail In salty water, aluminum or plastic container

NOTE: Frozen meat should be cooked as fresh meat after being thawed. If the meat is not cooked after being thawed, it should never be frozen again.EN - 32 Vegetables and Fruits Preparation Maximum Storing time (months) String beans and beans Wash and cut to small pieces and boil in water

Beans Hull and wash and boil in water 12 Cabbage Cleaned and boil in water 6 - 8 Carrot Clean and cut to slices and boil in water 12 Pepper Cut the stem, cut into two pieces and remove the core and boil in water

Spinach Washed and boil in water 6 - 9 Cauliower Take the leaves apart, cut the heart into pieces, and leave it in water with a little lemon juice for a while

Eggplant Cut to pieces of 2cm after washing 10 - 12 Corn Clean and pack with its stem or as sweet corn

Apple and pear Peel and slice 8 - 10 Apricot and Peach Cut into two pieces and remove the stone 4 - 6 Strawberry and Blackberry Wash and hull 8 - 12 Cooked fruits Adding 10 % of sugar in the container 12 Plum, cherry, sourberry Wash and hull the stems 8 - 12 Maximum Storing time (months) Thawing time in room temperature (hours) Thawing time in oven (minutes) Bread 4 - 6 2 - 3 4-5 (220-225 °C) Biscuits 3 - 6 1 - 1,5 5-8 (190-200 °C) Pastry 1 - 3 2 - 3 5-10 (200-225 °C) Pie 1 - 1,5 3 - 4 5-8 (190-200 °C) Phyllo dough 2 - 3 1 - 1,5 5-8 (190-200 °C) Pizza 2 - 3 2 - 4 15-20 (200 °C) Dairy Products Preparation Maximum Storing time (months) Storing Conditions Packet (Homogenize) Milk In its own packet 2 - 3 Pure Milk – In its own packet Cheese-excluding white cheese In slices 6 - 8 Original package may be used for short storing period. It should be wrapped in foil for longer periods. Butter, margarine In its package 6EN - 33

• Disconnect the unit from the power supply before cleaning.

• Do not clean the appliance by pouring water.

• Make sure that no water enters the lamp housing and other electrical components.

• The appliance should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water.

• Clean the accessories separately with soap and water Do not clean them in the dishwasher.

• Do not use abrasive products, detergents or soaps. After washing, rinse with clean water and dry carefully. When you have nished cleaning, reconnect the plugto the mains supply with dry hands.

• Clean the condenser with a broom at least twice a year. This will help you to save on energy costs and increase productivity.

6.1.1. Refrigerator Compartment

• Defrosting occurs automatically in refrigerator compartment during operation; the defrost water is collected by the evaporating tray and evaporates automatically.

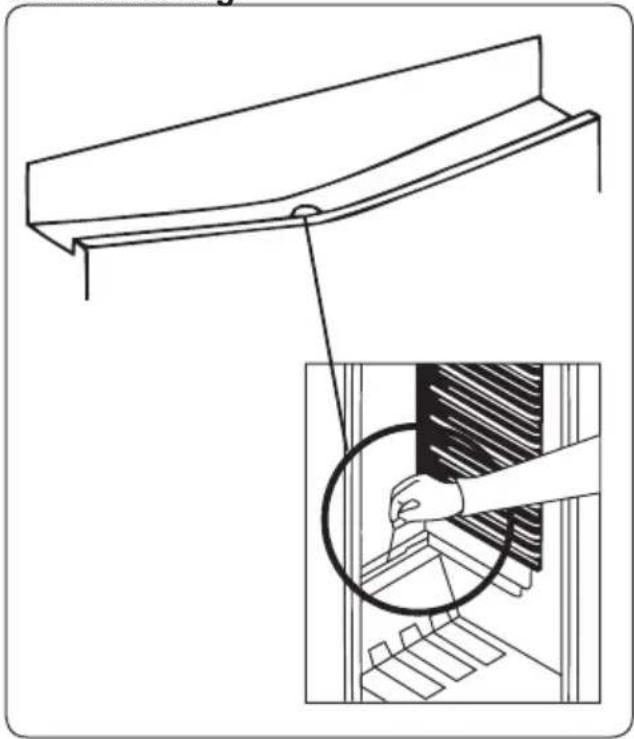

• The evaporating tray and the defrost water drain hole should be cleaned periodically with defrost drain plug to prevent the water from collecting on the bottom of the refrigerator instead of owing out.

• You can also pour 1/2 glass of the water to drain hole to clean inside.

6.1.2. Freezer Compartment

The frost, accumulated in the freezer compartment, should be removed periodically. (Use the plastic scraper provided) The freezer compartment should be cleaned in the way as the refrigerator compartment, with the defrost operations of the compartment at least twice a year. For this;

• The day before you defrost, set the thermostat dial to “5” position to freeze the foods completely.

• During defrosting, frozen foods should be wrapped in several layers of paper and kept in a cool place. The inevitable rise in temperature will shorten their storage life. Remember to use these foods within a relatively short period of time.

• Set thermostat knob to position “•” or unplug the unit; leave the door open until completely defrosted.

• To accelerate the defrosting process one or more basins of warm water can be placed in the freezer compartment.

• Dry the inside of the unit carefully and set the thermostat knob to MAX position.EN - 34 6.2. Replacing the Light Bulb When replacing the bulb of the refrigerator compartment;

1. Unplug the unit from the power supply,

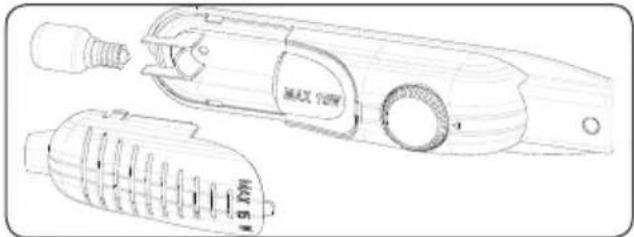

2. Press the hooks on the sides of the light

cover top and remove the light cover

3. Change the present light bulb with a new

one of not more than 15 W.

4. Replace the light cover and after waiting

5 minutes plug the unit. Replacing LED Lighting If your refrigerator has LED lighting contact the help desk as this should be changed by authorized personnel only.

REPOSITIONING 7.1. Transportation and Changing of Installation Position

• Original package and foam may be kept for re-transportation (optionally).

• You should fasten your freezer fridge with thick package, bands or strong cords and follow the instructions for transportation on the package for re-transportation.

• Remove movable parts (shelves, accessories, vegetable bins etc.) or x them into the freezer fridge against shocks using bands during re-positioning and transportation. Carry your freezer fridge in the upright position. 7.2. Door Reversal

• It depends on which fridge freezer you have as to whether it is possible the reverse the doors.

• It is not possible where handles are attached at the front of the appliance.

• If your model does not have handles it is possible to reverse the doors, but this needs to be completed by authorised personnel. Please call authorised service.

If your refrigerator is not working properly, it may be a minor problem, therefore check the following. The appliance does not operate, Check if:

• There is a power failure,

• The mains plug is not plugged in properly, or is loose

• The thermostat setting is on position “ “,

• The socket is defective. To check this, plug in another appliance that you know is working into the same socket. The appliance performs poorly Check if:

• You have overloaded the appliance,

• The doors are not closed properly,

• There are not enough ventilation ducts on the kitchen unit as mentioned in the Installation Manual. If there is noise; The cooling gas which circulates in the refrigerator circuit may make a slight noise (bubbling sound) even when the compressor is not running. Do not worry, this is quite normal. If you hear different noises, check if:

• The appliance is installed rmly as described in the Installation Manual.

• The objects on the appliance are vibrating. f there is water in the lower part of the refrigerator Check if: The drain hole for the water is not cloggedEN - 35 (use defrost drain plug to clean the drain hole). If your fridge is not cooling sufciently enough; Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of stated temperatures value. This will reduce the cooling efciency of the fridge. Recommendations

• The cooling unit of your refrigerator is hidden at the rear of the appliance. Therefore, water droplets or icing may occur on the rear surface of your fridge due to the operation of the compressor at specied intervals. This is normal, there is no need to perform a defrosting operation unless the icing is excessive.

• If the appliance will not be used for a long time (for example during the summer holidays), set the thermostat knob to position “ “. Defrost and clean the refrigerator leaving the door open to prevent the formation of mildew and smells

9. TIPS FOR SAVING ENERGY

1. Install the appliance in a cool, well

ventilated room , but not in direct sunlight and not near a heat source (radiator, cooker etc). Otherwise use an insulating plate.

2. Allow warm food and drinks to cool down

outside the appliance.

3. When thawing frozen food, place it in

the refrigerator compartment. The low temperature of the frozen food will help to cool the refrigerator compartment when it is thawing. This will help to save energy. If the frozen food is put out, it results in a waste of energy.

4. Cover drinks or other liquids when

placing them in the appliance Otherwise humidity increases in the appliance. Therefore, the working time gets longer. Also covering drinks and other liquids helps to preserve smell and taste.

5. Try to avoid keeping the doors open for

long periods or opening the doors too frequently as warm air will enter the cabinet and cause the compressor to switch on unnecessarily often.

6. Keep the covers of the different

temperature compartments (crisper, chiller etc) closed.

7. Door gasket must be clean and pliable.
