USER MANUAL KTFG1542FW2 TELEFUNKEN

Installing and operating your fridge........................................... 6 Before Using your Fridge

Freezer Temperature Settings

SHIPMENT AND REPOSITIONING

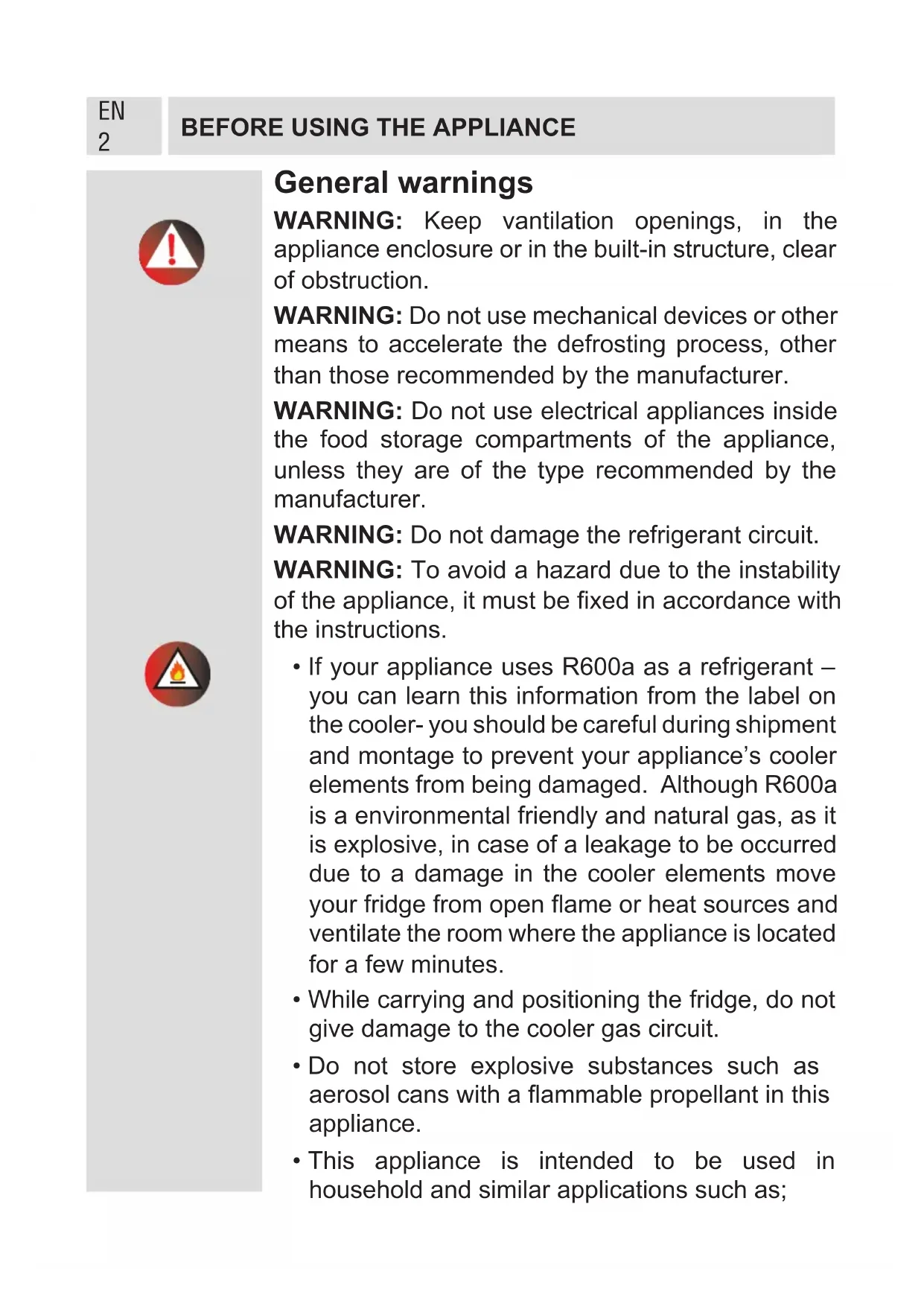

WARNING: Keep vantilation openings, in the

appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other

means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside

the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: To avoid a hazard due to the instability

of the appliance, it must be xed in accordance with the instructions.

• If your appliance uses R600a as a refrigerant – you can learn this information from the label on the cooler- you should be careful during shipment and montage to prevent your appliance’s cooler elements from being damaged. Although R600a is a environmental friendly and natural gas, as it is explosive, in case of a leakage to be occurred due to a damage in the cooler elements move your fridge from open ame or heat sources and ventilate the room where the appliance is located for a few minutes.

• While carrying and positioning the fridge, do not give damage to the cooler gas circuit.

• Do not store explosive substances such as aerosol cans with a ammable propellant in this appliance.

• This appliance is intended to be used in household and similar applications such as;

- staff kitchen areas in shops, ofces and other working environments - farm houses and by clients in hotels, motels and other residential type environments - bed and breakfast type environments; - catering and similar non-retail applications

• If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, its service agent or similar qualied persons in order to avoid a hazard.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have it installed by an authorized electrician.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understandt the hazard involved. Children shall not play with the appliance. Cleaning and user maintenance, shall not be made by children without supervision.

• If the supply cord is demaged, it must be replaced by the manufacturer, its service agent or similar qualied persons in order to avoid a hazard.

Old and out-of-order fridges

• If your old fridge has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.

• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridge. Please ask your municipal authority about the disposal of the WEEE for the reuse, recycle and recovery purposes. Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible of the damage occurred due to misuse.

• Follow all instructions on your appliance and instruction manual and keep this manual in a safe place to resolve the problems that may occur in the future.

• This appliance is produced to be used at houses and it can only be used in house and for the specied purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for the losses to be occurred.

• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for the losses to be occurred in the contrary case.EN

• Do not plug in damaged, torn or old plugs.

• Do not pull, bend or damage the cord.

• This appliance is designed for use by adults, do not allow children to play with the appliance or let them to hang over the door.

• Do not plug-in or out the plug from the receptacle with wet hands to prevent electrocution!

• Do not place glass bottles or beverage cans in the freezer department. Bottles or cans may explode.

• Do not place explosive or ammable material in your fridge for your safety. Place drinks with higher alcohol amount vertically and by closing their necks tightly in the fridge department.

• When taking ice made in the freezer department, do not touch it, ice may cause ice burns and/or cuts.

• Do not touch frozen goods with wet hands! Do not eat ice- cream and ice cubes immediately after you take them out of the freezer department!

• Do not re-freeze the frozen goods after being melted. This may cause health issues like food poisoning.

• Do not cover the body or top of fridge with lace. This affects the performance of your fridge.

• Fix the accessories in the fridge during transportation to prevent damage to accessories.EN

Installing and operating your fridge Before starting to use your fridge, you should pay attention to the following points:

• Operating voltage for your fridge is 220-240 V at 50Hz.

• Mains cord of your fridge has a grounded plug. This plug should be used with a grounded receptacle that has a 16 ampere fuse minimum. If you don’t have a receptacle conrming with this, please have it done by a qualied electrician.

• We do not take the responsibility of the damages that occur due to ungrounded usage.

• Place your fridge in a place that it would not be exposed to direct sunlight.

• Your appliance should be at least 50 cm away from stoves, Gas ovens and heater cores, and should be at least 5 cm away from electrical ovens.

• Your fridge should never be used outdoors or left under the rain.

• When your fridge is placed next to a deep freezer, there should be at least 2 cm between them to prevent humidity on the outer surface.

• Do not place anything on your fridge, and install your fridge in a suitable place so that at least 15 cm is available on the upper side.

• The adjustable front legs should stabilized in an appropriate height to allow your fridge operate in a stable and proper way. You can adjust the legs by turning them clockwise (or in the opposite direction). This should be done before placing food in the fridge.

• Before using your fridge, wipe all parts with warm water added with a tea spoonful of sodium bicarbonate, and then rinse with clean water and dry. Place all parts after cleaning.

• Install the distance adjustment plastic (the part with black vanes at the rear) by turning it 90° as shown in the gure to prevent the condenser from touching the wall.

• Refrigerator should be placed against a wall with a free distance not exceeding 75 mm.EN

Before Using your Fridge

• When it is operated for the rst time or after transportation, keep your fridge in the upright position for 3 hours and plug it on to allow efcient operation. Otherwise, you may damage the compressor.

• Your fridge may have a smell when it is operated for the rst time; the smell will fade away when your fridge starts to cool.EN

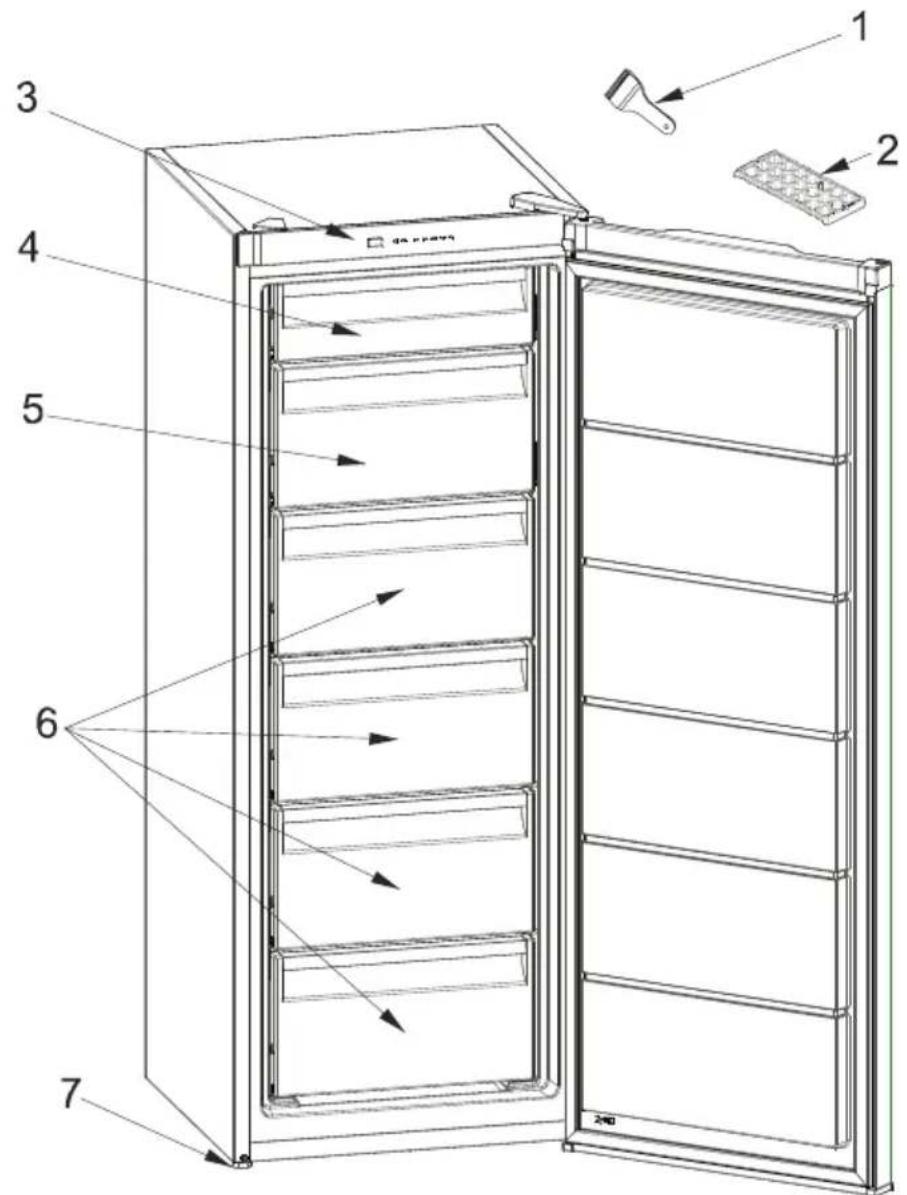

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

3. Freezer control panel

4. Freezer upper room cover

5. Freezer bottom room cover

6. Freezer compartment drawers

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS Product part list Mark / Model TELEFUNKEN Freezer Freezer baskets 4 Plastic ice blade 1 Ice tray 1 User manual / Installation booklet Yes Warranty documents YesEN

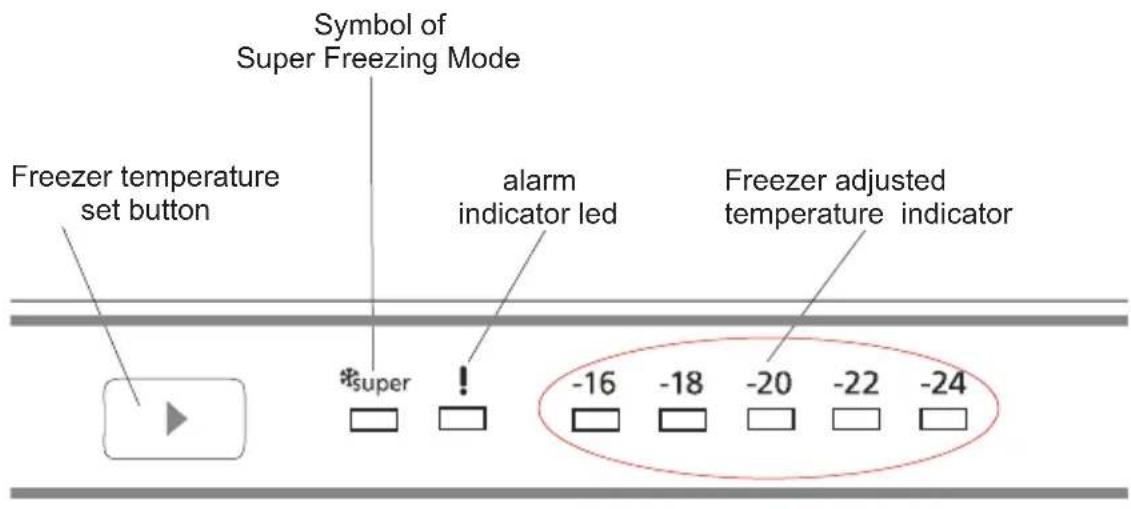

USAGE INFORMATION Control panel Freezer temperature set button Symbol of Super Freezing Mode alarm indicator led Freezer adjusted temperature indicator Freezer partition temperature setting button This button allows setting temperature of the freezer. In order to set values for freezer partition, press this button. Use this button also to activate SF mode. Alarm light In case of a problem within the fridge, the alarm led will release red light Super Freezer Mode When would it be used?

• To freeze huge quantities of food.

• To freeze fast food.

• To freeze food quickly.

• To store seasonal food for a long time. How to use?

• Press temperature set button until super freezing light comes on.

• Super freezing led will light during this mode.

• Maximum amount of fresh food (in kilograms) to be frozen within 24 hours is shown on the appliance label.

• For optimal appliance performance in maximum freezer capacity, set the appliance to active SF mode 3 hours before you put the fresh food into the freezer.EN

USAGE INFORMATION During this mode:

• If you press temperature set button, the mode will be cancelled and the setting will be restored from -16. Note: “Super Freezer” mode will be automatically cancelled after 30 hours or when freezer sensor temperature drops beneath -32 °C. Freezer Temperature Settings

• The initial temperature of the Setting Display is -18°C.

• Press freezer setting button once.

• Every time you press the button, the setting temperature will decrease. (-16°C, -18°C, -20°C,.. super freezing)

• If you press freezer setting button until super freezer symbol is displayed on Freezer Settings Display and you do not press any button within the following 3 seconds, Super Freezing will blink.

• If you keep on pressing, it will restart from last value. Warnings About Temperature Adjustments

• Your temperature adjustments will not be deleted when an energy breakdown occurs.

• Do not pass to another adjustment before completing an adjustment

• Temperature adjustments should be made according to the frequency of door openings, the quantity of food kept inside the freezer and ambient temperature of the place of your freezer.

• Your freezer should be operated up to 24 hours according to the ambient temperature without interruption after being plugged in to be completely cooled.

• Do not open doors of your freezer frequently and do not place much food inside it in this period.

• A 5 minute delaying function is applied to prevent damage to the compressor of your freezer, when you take the plug off and then plug it on again to operate it or when an energy breakdown occurs. Your freezer will start to operate normally after 5 minutes.

• Your freezer is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness. Climate class Ambient (

CLEANING AND MAINTENANCE

• Makesuretounplugthefridgebeforestartingtoclean it.

• Do not wash your fridge by pouring water.

• You can wipe the inner and outer sides with a soft cloth or a sponge using warm and soapy water.

• Remove the parts individually and clean with soapy water. Do not wash in washing machine.

• Never use ammable, explosive or corrosive material like thinner, gas, acid for cleaning.

• You should clean the condenser with broom at least once a year in order to provide energy saving and increase the productivity. Makesurethatyourfridgeisunpluggedwhilecleaning.EN

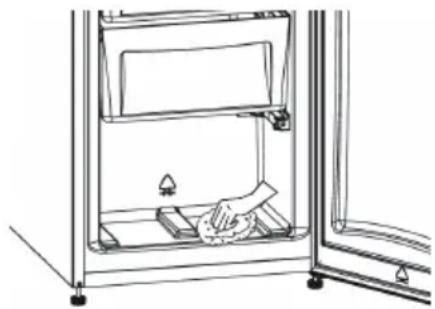

Defrosting the Freezer compartment Freezerdefrostprocess

• Small amounts of frost will accumulate inside the freezer depending upon the length of time during which the door is left open or the amount of moisture introduced. It is essential to ensure that no frost or ice is allowed to form at places where it will affect the close tting of the door seal. This might allow air to penetrate the cabinet, thus encouraging continuous running of the compressor. Thin frost formation is quite soft and can be removed with a brush or plastic scraper. Do not use metal or sharp scrapers, mechanical devices or other means to accelerate the defrosting process. Remove all dislodged frost from the cabinet oor. For the removal of thin frost it is not necessary to switch off the appliance.

• For the removal of heavy ice deposits disconnect the appliance from the mains supply and empty the contents into cardboard boxes and wrap in thick blankets or layers of paper to keep them cold. Defrosting will be most effective if carried out when the freezer is nearly empty, and it should be carried out as quickly as possible to prevent undue increase in temperature of the contents.

• Do not use metal or sharp scrapers, mechanical devices or other means to accelerate the defrosting process. An increase in temperature of frozen food packages during defrosting will shorten the storage life. Provided that the contents are well wrapped and placed in a cool area they should keep for several hours.

• Dry the inside of the compartment with a sponge or a clean cloth.

• To accelerate the defrosting process place one or more basins of warm water in the freezer compartment.

• Examine the contents when replacing them in the freezer and if some of the packages have thawed out it should be eaten within 24 hours or be cooked and re-frozen.

• After defrosting has nished clean the inside with a solution of warm water with a little bicarbonate of soda and then dry thoroughly. Wash all removable parts in the same way and reassemble. Reconnect the appliance to the mains supply and leave for 2 to 3 hours on setting number 24 before introducing the food back into the freezer.

ARRANGING FOOD IN THE APPLIANCE

• The use of freezer is, storing of deep-frozen or frozen food for long periods of time and making ice cubes.

• Do not put fresh and warm food to the freezer door shelves to be frozen. Only use for storage of frozen food.

• Do not put fresh and warm food with frozen food side by side as it can thaw the frozen food.

• While freezing fresh food (i.e. meat, sh and mincemeat) divide them in parts in order to use in one time.

• For storing the frozen food; the instructions shown on frozen food packages should always be followed carefully and if no information is provided, food should not be stored for more than 3 months from the purchased date.

• When buying frozen food ensure that these have been frozen at suitable temperatures and that the packing is intact.

• Frozen food should be transported in appropriate containers to maintain the quality of the food and should be returned to the freezing surfaces of the unit in the shortest possible time.

• If a package of frozen food shows the sign of humidity and abnormal swelling it is probable that it has been previously stored at an unsuitable temperature and that the contents have deteriorated.

• The storage life of frozen food depends on the room temperature, thermostat setting, how often the door is opened, the type of food and the length of time required to transport the product from the shop to your home. Always follow the instructions printed on the package and never exceed the maximum storage life indicated.

• While freezing food; Maximum amount of fresh food (in kg) that can be frozen in 24 hours is indicated on the appliance label.

• For optimum appliance performance to reach maximum freezing capacity, after loading the fresh food into freezer press SF button. When the SF mode nishes, freezer will continue to operate according to last set value. Attention; In order to save energy, When freezing small amounts of food, reset the set value to desired value to desired position. (Recommendation) For A++ models; If freezer has a shelf that indicated with (**) symbol is suitable for storing ice cream and frozen food with short storage time. The top shelf of your freezer that indicated with (**) symbol is suitable for storing ice cream and frozen food with short storage time.EN

• Original package and foam may be kept for re- transportation (optionally).

• You should fasten your fridge with thick package, bands or strong cords and follow the instructions for transportation on the package for re-transportation.

• Remove movable parts (shelves, accessories, vegetable bins etc.) or x them into the fridge against shocks using bands during re-positioning and transportation. Carryyourfridgeintheuprightposition. Repositioning the door

• It is not possible to change the opening direction of your fridge door, if the door handles on your fridge are installed from the front surface of the door.

• It is possible to change the opening direction of the door on models without any handles.

• If the door opening direction of your fridge may be changed, you should contact the nearest Authorised Service to have the opening direction changed.

If your freezer is not working properly, it may be a minor problem, therefore check the following, before calling an electrician to save time and money. What to do if your appliance does not operate; Check that;

• The general switch in your home is disconnected ,

• The socket is not sufcient. To check this, plug in another appliance that you know which is working into the same socket. What to do if your appliance performs poorly; Check that;

• You have not overloaded the appliance ,

• The freezer temperature set to -16.

• The doors are closed perfectly ,

• There is no dust on the condenser ,

• There is enough place at the rear and side walls. If there is noise; The cooling gas which circulates in the refrigerator circuit may make a slight noise (bubbling sound) even when the compressor is not running. Do not worry this is quite normal. If these sounds are different check that;

• The appliance is well levelled

• Nothing is touching the rear.

• The stuffs on the appliance are vibrating. Recommendations

• To stop the appliance completely, unplug from main socket (for cleaning and when the doors are left open) Conformity Information

• This appliance is designed for use at an ambient temperature within the 10°C - 43°C range.

• The appliance is designed in compliance with the EN62552, IEC60335-1 / IEC60335-2-24, 2004/108/EC standards.EN

1. Install the appliance in a coll, well vantilated room , but not in direct

sunlight and not near heat source (radiator, cooker.. etc). Otherwise use an insulating plate.

2. Allow ward food and drinks to cool down outside the appliance.

3. When placing, drinks and slops they must be covered. Otherwise

humidity increases at the appliance. Therefore the working time gets longer. Also covering drinks and slops helps to save smell and taste.

4. When placing food and drinks, open the appliance door as briey

5. Keep close the covers of any different temrepature compartment in

the appliance (Freezer baskets, ice blade, ice tray ...etc ).

1. Between A(low consumption) to G (high consumption)

2. Energy consumption of 186 kWh per year, calculated on the basis

of results obtained in 24 hours under normalised test conditions. Real energy consumption depends on the conditions in which the equipment is used as well as where it is placed.

(*) One Star storage is for the frozen food which keeps the inner temparature lower than -6 °C. (**) Two Star storage is for the frozen food which keeps the inner temparature lower than - 12 °C. (***) Tree Star storage is for the frozen food which keeps the inner temparature lower than - 18 °C. (****) FOUR Star storage is for the freezing the food from +18 TO – 18 °C. It also keeps the foods under 3 star storage conditions. Climate class Ambient (

4. Your fridge is designed to operate in the ambient temperature intervals stated

in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness. Conformity Information

• This appliance is designed for use at an ambient temperature within the 10°C - 43°C range.

• The appliance is designed in compliance with the EN62552, IEC60335- 1 / IEC60335-2-24, 2004/108/EC standards.DE
