Technical Specifications	AURIOL IAN 323077 binoculars, 10x magnification, 42 mm objective diameter, field of view at 1000 m: 114 m, roof prism, anti-reflective coating.
Usage	Ideal for nature observation, sports, concerts, and outdoor events.
Maintenance and Repair	Clean the lenses with a soft cloth, avoid prolonged exposure to moisture, store in a case when not in use.
Safety	Do not look directly at the sun, avoid shocks and drops to prevent damage.
General Information	Weight: approximately 600 g, dimensions: 150 x 120 x 50 mm, 2-year warranty.

Frequently Asked Questions - IAN 323077 AURIOL

How can I clean the lenses of my AURIOL IAN 323077 binoculars?

Use a dry microfiber cloth to gently wipe the lenses. Avoid using chemicals or solvents.

What should I do if my AURIOL IAN 323077 binoculars are blurry?

Make sure the lenses are clean. Use the focus wheel to adjust the sharpness, and check that the eyepieces are properly positioned.

Are the AURIOL IAN 323077 binoculars waterproof?

These binoculars are not fully waterproof but are splash resistant. Avoid prolonged immersion in water.

How do I adjust the distance between the eyepieces?

To adjust the distance between the eyepieces, spread or bring them closer until you get a comfortable view without double images.

What is the field of view of the AURIOL IAN 323077 binoculars?

The field of view is 114 m at 1000 m. This means you can see 114 meters wide at a distance of 1000 meters.

Can I use my AURIOL IAN 323077 binoculars with glasses?

Yes, you can use them with glasses. Adjust the eyepieces by pulling or pushing the eyecups to compensate for the thickness of your glasses.

Where can I find the user manual for my AURIOL IAN 323077 binoculars?

The user manual is usually included in the packaging. You can also download it from the manufacturer’s website.

What should I do if my AURIOL IAN 323077 binoculars won’t focus?

Check that the focus wheel is turned correctly. If the problem persists, you may need to contact customer service for repairs.

USER MANUAL IAN 323077 AURIOL

Operation and safety notes

FR BE

JUMELLES DE CHASSE 8X60

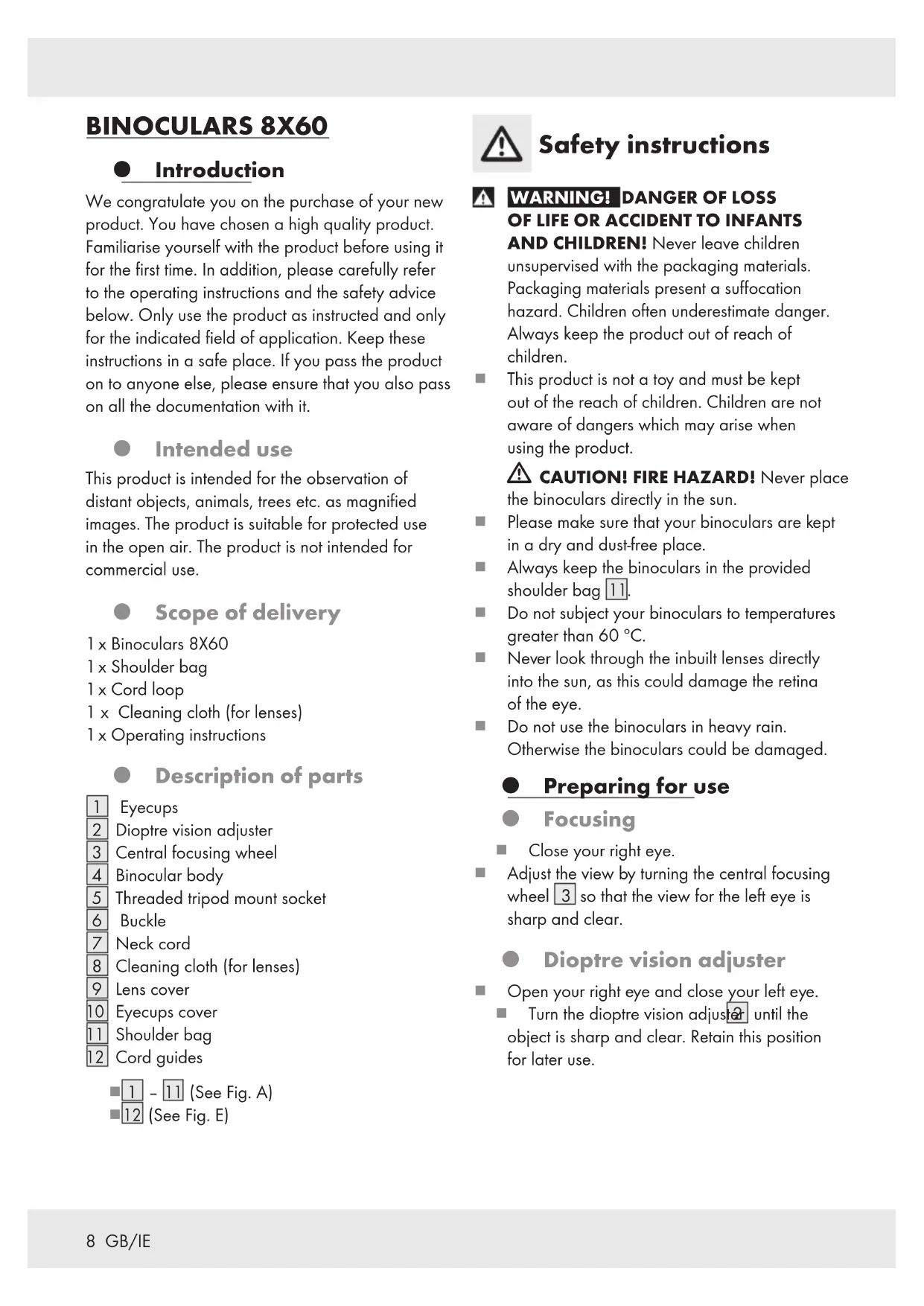

GB/IE Operation and safety notes Page 8

We congratulate you on the purchase of your new product. You have chosen a high quality product. Familiarise yourself with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This product is intended for the observation of distant objects, animals, trees etc. as magnified images. The product is suitable for protected use in the open air. The product is not intended for commercial use.

Scope of delivery

1×Binoculars8X60
1 x Shoulder bag
1 x Cord loop
1 x Cleaning cloth (for lenses)
1 x Operating instructions

Description of parts

1 Eyecups
2 DiopTre vision adjuster
3 Central focusing wheel
4 Binocular body
5 Threaded tripod mount socket
6 Buckle
7 | Neck cord
8 Cleaning cloth (for lenses)
Lens cover
10 Eyecups cover
11 Shoulder bag
12 Cord guides

1 -11 (See Fig.A) 12 (See Fig.E

Safety instructions

WARNING! DANGER OF LOSS OF LIFE OR ACCIDENT TO INFANTS

AND CHILDREN! Never leave children unsupervised with the packaging materials. Packaging materials present a suffocation hazard. Children often underestimate danger. Always keep the product out of reach of children.

This product is not a toy and must be kept out of the reach of children. Children are not aware of dangers which may arise when using the product.
CAUTION! FIRE HAZARD! Never place the binoculars directly in the sun.
Please make sure that your binoculars are kept in a dry and dust-free place.
Always keep the binoculars in the provided shoulder bag [1].
Do not subject your binoculars to temperatures greater than 60^ .
Never look through the inbuilt lenses directly into the sun, as this could damage the retina of the eye.
- Do not use the binoculars in heavy rain. Otherwise the binoculars could be damaged.

Preparing for use

Focusing

Close your right eye.

Adjust the view by turning the central focusing wheel 3 so that the view for the left eye is sharp and clear.

Dioptre vision adjuster

Open your right eye and close your left eye.
Turn the dioptre vision adjust until the object is sharp and clear. Retain this position for later use.

+ Focus on a closer object

- Focus on a more distant object

0 No adjustment

Adjustment for eye positions

Hold your binoculars with both hands and move the binocular body (see Fig. B) until the two circles are superimposed to form one full circle (see Fig. C).

Fold down the eyecup if you wear eyeglasses.

After use: Before stowing away the product, fold up the eyecups.

Adjusting the neck cord

Thread the ends of the neck coa through the buckles 6 (see Fig. D).
Thread the ends of the neck cord through the cord guides [12] (see Fig. E).
Then thread the ends of the neck cor through the buckles 6 (see Fig. F+G).
Pull the neck cord tight on both sides of the buckle 6. This fixes the neck cord 7 on the buckles 6 (see Fig. G).

Use with a tripod

① Note: The tripod and the tripod adapter are not included with the product. They can be purchased separately from your specialist dealer.
Observe the operating instructions supplied with your tripod during its assembly and use.
- Connecting the tripod adapter: Unscrew the protective cap from the threaded tripod mount socket 5. Do not misplace the protective cap, keep it at a safe place.

Screw the threaded connector of the tripod adapter clockwise into the threaded tripod mount socket 5 on the binoculars. Then connect the tripod to the attached tripod adapter.

After use, separate the tripod from the tripod adapter. Then unscrew the threaded connector of the tripod adapter anticlockwise out of the threaded tripod mount socket 5 on the binoculars. Before stowing away the product, screw the protective cap again onto the threaded tripod mount socket 5.

Cleaning and care

Never take your binoculars apart for cleaning.
Clean the binocular lenses with the provided cleaning cloth 8 or use a soft threadless cloth.
Do not press hard when cleaning the delicate lens surface.
If the lenses are still dirty, dampen the cloth with a little clear alcohol (methylated spirit).
During periods of non-use: Always cover the eyecups 1 and the lenses by the eyecups cover 10 and the lens cover 9 respectively. This helps to avoid scratches on the lenses.
Clean the binocular body with a dry, lint-free cloth.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 5 years from the date of purchase. Should this product show any fault in materials or manufacture within 5 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase.

You will find the item number on the rating plate, an engraving, on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

Service Great Britain

Tel.:

08000569216

E-Mail: [e-mail]

Service Ireland

Tel.:

1800200736

E-Mail:[e-mail]
