| Product Type | iPod dock with DIGITAL MEDIA PORT interface |
| Brand | Sony |
| Model | TDM-IP10 |
| iPod Compatibility | iPod touch, iPod nano (1st to 3rd gen.), iPod classic, iPod 4th/5th gen., iPod mini |
| Power Supply | DC 5 V, 600 mA (via DIGITAL MEDIA PORT connector) |
| Dimensions (L x H) | Approx. 80 x 22 mm |
| Weight | Approx. 174 g (cable included) |
| Cable length | 1 m |
| Main function | iPod audio playback via DMPORT compatible AV system |
| Battery charging | Yes, when the unit is powered on |
| Video output | Not supported |
| Control | iPod keys, AV system keys and AV system remote control |
| Power on | Automatic with connected AV system |
| Included dock adapters | Yes, 1 set |
| Cleaning | Soft cloth slightly dampened with mild detergent |
| Safety | Do not install in a confined space; disconnect if any problem occurs |
| Operating temperature | Not specified, avoid extreme heat/cold |
Frequently Asked Questions - TDM-IP10 SONY
User questions about TDM-IP10 SONY
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Audio Accessories in PDF format for free! Find your manual TDM-IP10 - SONY and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. TDM-IP10 by SONY.
USER MANUAL TDM-IP10 SONY
DIGITAL MEDIA PORT Adapter
Operating Instructions
Mode d'emploi
Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.
The nameplate is located on the bottom exterior.
Install this system so that the power cord can be unplugged from the wall socket immediately in the event of trouble.
Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and
other European countries with separate collection systems)
This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.
The manufacturer of this product is Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan. The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.
For the customers in Europe
The validity of the CE marking is restricted to only those countries where it is legally
enforced, mainly in the countries EEA (European Economic Area).
On copyrights
- iPod is a trademark of Apple Inc., registered in the U.S. and other countries.
- All other trademarks and registered trademarks are of their respective holders. In this manual, ^TM and ^ marks are not specified.
Compatible iPod models
The compatible iPod models are as follows. Update your iPod to use the latest software before you use it.
iPod touch
iPod nano 3rd generation (video)
iPod classic
iPod nano 2nd generation (aluminum)
iPod 5th generation (video)
iPod nano 1st generation
iPod 4th generation (color display)
iPod 4th generation
iPod mini
Notes
- This unit is designed for iPod only. You can not connect any other portable audio players.
- Sony cannot accept responsibility in the event that data recorded to iPod is lost or damaged when using an iPod connected to this unit.
- For details on supplied iPod Dock Adapters, refer to the instructions supplied with the Dock Adapters. When you use other iPod models, a compatible Dock Adapter from Apple Inc. will need to be purchased separately.
- This product has been designed specifically to work with iPod and has been certified to meet Apple performance standards.
Table of Contents
Overview. 5
Getting Started
1: Checking supplied items...6
2: List of parts locations......6
3: Installing the TDM-iP10...7
Controlling the iPod
Performing basic operations. 10
Additional Information
Troubleshooting 11
Precautions 12
Specifications. 13

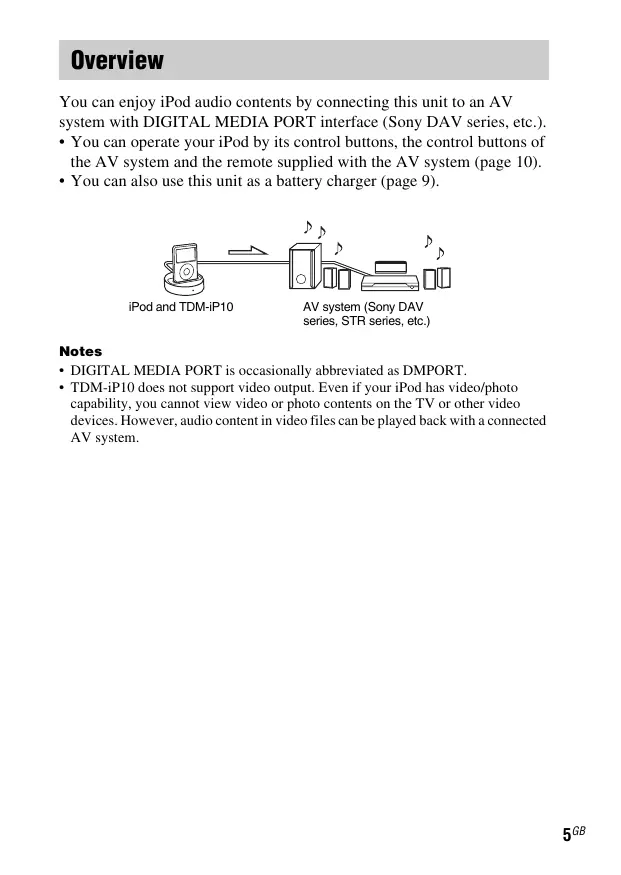

Overview
You can enjoy iPod audio contents by connecting this unit to an AV system with DIGITAL MEDIA PORT interface (Sony DAV series, etc.).
- You can operate your iPod by its control buttons, the control buttons of the AV system and the remote supplied with the AV system (page 10).
- You can also use this unit as a battery charger (page 9).
Notes
- DIGITAL MEDIA PORT is occasionally abbreviated as DMPORT.
- TDM-iP10 does not support video output. Even if your iPod has video/photo capability, you cannot view video or photo contents on the TV or other video devices. However, audio content in video files can be played back with a connected AV system.
Getting Started
1: Checking supplied items
Unit (1)
Operating Instructions (1)
iPod Dock Adapters (1 set)
For details on supplied iPod Dock Adapters, refer to the instructions supplied with the Dock Adapters.
2: List of parts locations
1 DIGITAL MEDIA PORT cable (page 7)
2 iPod connector (page 8)
3 Power indicator: Lights up in green while the power is supplied (page 9).

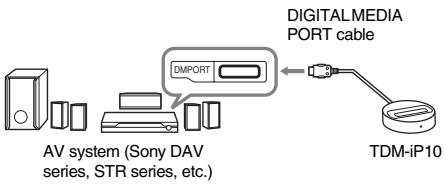

3: Installing the TDM-iP10
Connect and position the TDM-iP10 as illustrated below.
Note
This unit turns on/off automatically whenever the connected AV system (DAV series, etc.) turns on/off.
To connect/disconnect the unit
To remove the DIGITAL MEDIA PORT cable from the DMPORT jack, press both side buttons.
Connecting
1 Connect the DIGITAL MEDIA PORT cable of this unit to the DIGITAL MEDIA PORT jack of an AV system (DAV series, etc.). Make sure the AV system is turned off before connecting.
2 Turn on the AV system with a DIGITAL MEDIA PORT jack connected to this unit, and select the DIGITAL MEDIA PORT function.
Disconnecting
Before disconnecting, turn off the AV system.
To put the iPod into the unit's connector
1 Choose the iPod Dock Adapter that fits your iPod. For details on supplied iPod Dock Adapters, refer to the instructions supplied with the Dock Adapters.
2 Insert the Dock Adapter into the unit.
3 Put the iPod into the unit's connector.
Notes
- When placing or removing the iPod, handle the iPod in the same angle as that of the iPod connector on this unit and do not twist or sway the iPod to prevent connector damage.
- Do not carry the unit with an iPod set on the connector. Doing so may cause a malfunction.
- When placing or removing the iPod, brace the unit with one hand and take care not to press the controls of the iPod by mistake.
To use the unit as a battery charger
You can use the unit as a battery charger. While the POWER indicator lights up, the battery is charging. The charging status appears in the iPod display. For details, see the user's guide of your iPod.
To remove the iPod Dock Adapter
To remove the iPod Dock Adapter, pull it up with your fingernail or a flat object using the slot inside the adapter.
Controlling the iPod
Performing basic operations
You can operate your iPod by its control buttons, the control buttons of a connected AV system with a DIGITAL MEDIA PORT interface (Sony DAV series, etc.), and the remote supplied with the AV system.
Notes
- To use an iPod, refer to the user's guide of your iPod.
- Before disconnecting the iPod, pause playback.
Basic Operations
The following operations are available with the AV system or the remote.
| Press | To |
| ▶ | Start play. |
| I/I | Pause play. |
| ↑/↓ | Works much like running your thumb around the Click Wheel on the iPod counterclockwise (clockwise). |
| →/(⊕)/ENTER | Works much like the center button on the iPod. |
| Press | To |
| I←/→ | Press and release to skip to the next (previous) song/video or chapter of audiobook/podcast. Hold down to fast-rewind (fast-forward). |
| ←/→ | Fast-forward (fast-rewind) play. |
| ←/MENU/ DISPLAY/RETURN | Works much like the Menu button on the iPod. |
| VOLUME +/- | Adjusts the volume level. |
Notes
- Point the remote at the AV system.
Depending on the connected AV system, the operation or buttons may differ. Refer to the AV system's operating instructions.
While playing video, you cannot use / . You can fast-rewind (fastforward) by holding down 1≤slant 1≤slant 1 - To change the volume level, use the volume controls on the connected AV system or the remote. The volume level does not change even if adjusted on the iPod.
- It may take time to start playback depending on the contents.
Additional Information
Troubleshooting
Should you encounter a problem with your unit, find your problem in the troubleshooting checklist below and take the indicated corrective action. If the problem persists, contact your Sony dealer. Note that if service personnel changes some parts during repair, these parts may be retained. When bringing the system in for repairs, be sure to bring in the entire system.
This product is a system product, and the entire system is needed to determine the location requiring repair.
The remote does not function.
- Remove any obstacles.
- Point the remote at the AV system (DAV series, etc.)'s sensor.
- The distance between the remote and the AV system is too far.
- Replace the battery.
- Make sure the iPod* is securely connected.
- Select the DMPORT function on the AV system.
- Turn on and off the AV system.
Video/photo image from the iPod does not appear on the TV screen.
- The unit does not support video output. Even if your iPod has video/photo capability, you cannot view video or photo content on the TV or other video devices.
There is no sound.
- Check the connections.
- Make sure the unit is securely connected.
- Make sure the iPod* is securely connected.
- Make sure the iPod* is playing music.
- It may take time to start playback depending on the contents.
There is severe hum or noise.
- Move the unit away from the source of noise.
The sound is distorted.
- Reduce the volume of the connected AV system.
- Set the "EQ" setting of the iPod to "Off" or "Flat".
Precautions
On safety
Should any solid object or liquid fall into the system, unplug the system and have it checked by qualified personnel before operating it any further.
On placement
- Do not place the unit in an inclined position.
-
Do not place the unit in locations where it is;
-
Extremely hot or cold
- Dusty or dirty
- Very humid
- Subject to vibrations
-
Subject to direct sunlight.
-
Use caution when placing the unit on surfaces that have been specially treated (with wax, oil, polish, etc.) as staining or discoloration of the surface may result.
On heat buildup
- Although the unit heats up during operation, this is not a malfunction.
- Place the unit in a location with adequate ventilation to prevent heat buildup in the unit.
If you have any questions or problems concerning your unit, please consult your nearest Sony dealer.
Cleaning the unit
Clean the unit with a soft cloth slightly moistened with mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent such as thinner, benzine or alcohol.
Specifications
General
Power requirements:
DC IN: 5 V,
600mA (via
DIGITAL MEDIA
PORT)
Dimensions: Approx. 80×
22(h) mm
Mass: Approx. 174g
(includes cable)
Cable length: 1m
Design and specifications are subject to change without notice.
