USER MANUAL SnapShot Limited Black 5.0 S Dörr

SnapShot Limited 5.0S & Limited Black 5.0S

SnapShot Limited 5.0S & SnapShot Limited Black 5.0S

SnapShot Limited 5.0S & SnapShot Limited Black 5.0S

Game & Surveillance Camera

THANK YOU for choosing this DORR quality product.

Please read the instruction manual and safety hints carefully before first use. Keep this instruction manual together with the device for future use. If other people use this device, make this instruction manual available. This instruction manual is part of the device and must be supplied with the device in case of sale.

DOR is not liable for damages caused by improper use or the failure to observe the instruction manual and safety hints.

01 SAFETY HINTS

• Your camera is fitted with a weatherproof housing according to protection class IP54 (dust and splash waterproof). So the camera can be used outdoors. Nevertheless protect the camera from extreme weather conditions and direct sunlight. Make sure to use fresh batteries of the same type and brand only. When inserting the batteries please respect the correct polarity (+/-) . Please remove batteries when device is not in use for a longer period. Also note capture "Safety Hints for Batteries".
• Do not use re-chargeable batteries. They may lead to malfunction.
• LED bulbs cannot be replaced.
• Do not drop the camera onto a hard surface. Do not use the camera if it has been dropped. In this case a qualified electrician should inspect the camera before you use it again.
• Do not attempt to repair the devise by yourself. Risk of electrical shock! When service or repair is required, contact qualified service personnel.
• Do not open the camera housing (except the protective cover and the battery cover) – the warranty will become void. The housing may only be opened by qualified DÖRR GmbH staff.
• People with cardiac pacemakers, defibrillators or any other electrical implants should maintain a minimum distance of 30cm , as the device generates magnetic fields.
• People with physical or cognitive disabilities should use the camera with supervision.
• Do not use the camera nearby mobile phones and devices that generate strong electromagnetic fields (e.g. electric engines).
• Avoid touching the camera lens with your fingers.
• Protect the camera against extensive dirt. Never use aggressive cleansing agents or benzine to clean the camera. We recommend a soft microfiber cloth to clean the outer parts of the camera and the camera lens. Make sure to remove batteries before cleaning.
• Store the camera in a dust-free, dry and cool place.
• This device is not a toy. To prevent accidents and suffocation keep the device, the accessories and the packing materials away from children and pets.
• If the camera is defective or without any further use, dispose of the camera according to the Waste Electrical and Electronic Equipment Directive WEEE. For further information, please contact your local authorities.

Only use high-quality batteries of popular brands. When inserting the batteries, please respect the correct polarity (+/-) . Do not insert batteries of different types and always replace all batteries at the same time. Do not combine used batteries with fresh batteries. Please remove batteries when device is not in use for a longer period. Do not throw the batteries into fire, do not short-circuit and do not disassemble them! Never charge non-rechargeable batteries - risk of explosion! Remove empty batteries immediately from the device to avoid the leaking of battery acid. Remove leaking batteries from the device immediately. Clean the contacts before inserting fresh batteries. Risk of battery acid burn! In case of contact with battery acid, rinse the affected area immediately with water and contact a doctor. Batteries can be dangerous to life if swallowed. Keep batteries away from small children and pets. Do not dispose of batteries in household waste (see also capture "Disposal of Batteries/Accumulators").

03 | ① PRIVACYPOLICY

In every country, legal data protection rules apply. As these rules may vary per country, please contact the appropriate authorities to learn about the latest privacy policy in your country. In any case kindly note:

• Do not observe public areas.
• Respect the general right of privacy.
• Do not publish pictures showing individuals without having their permission.
• Make aware of the observed areas with a sign and inform your neighbours and visitors if necessary.

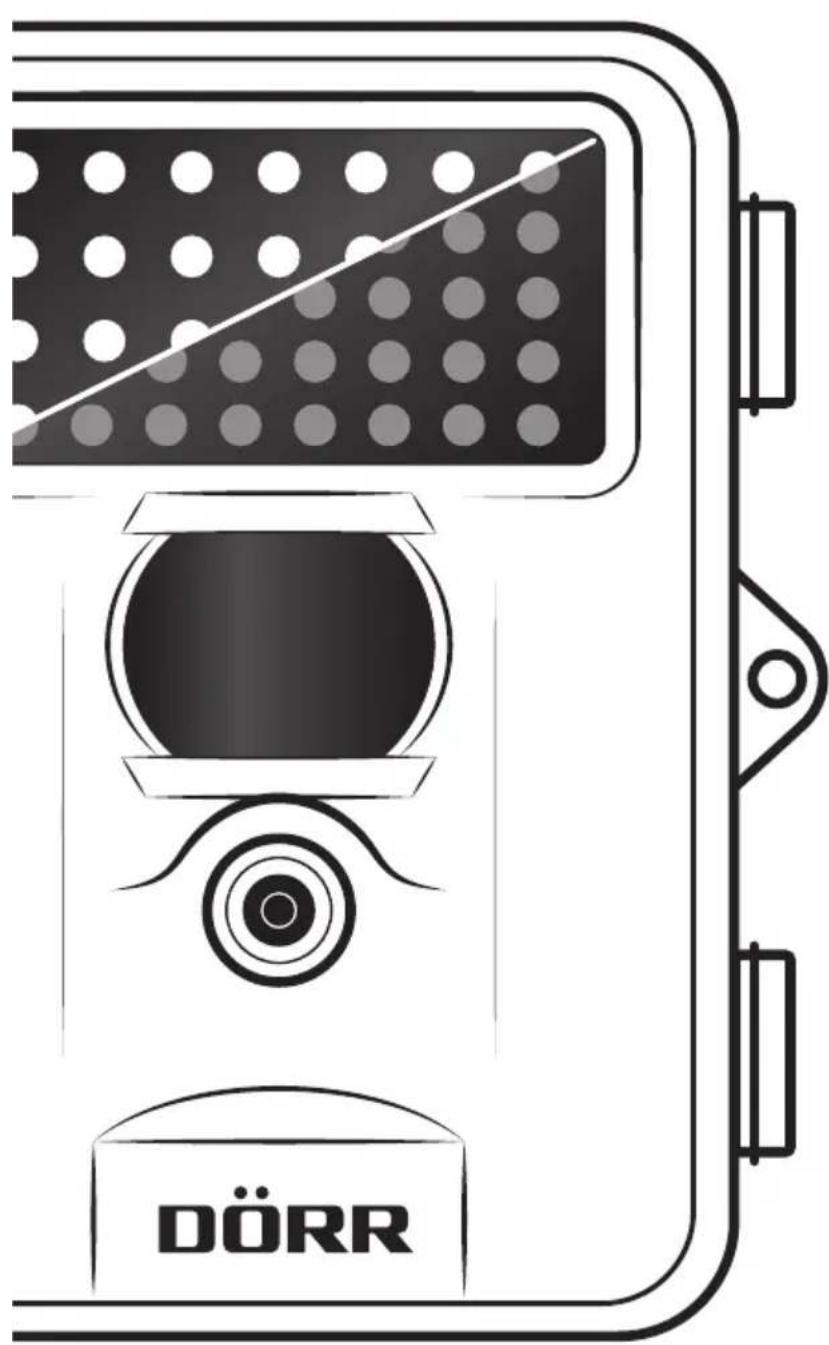

1 Infrared flash
2 LED indicator
3 PIR Motion Sensor
4 Camera lens
5 LCD display
6 Menu Button

7 Arrow buttons (menu control)
8 OK button
9 ON/OFF switch + setup
10 DC 6V connection
11 Mini USB port
12 SD card slot

13 Battery compartment
14 14 " thread mount
15 Eyelet for U-lock
16 Tension locks

05 | FIRST USE

1. Open the camera releasing the lateral tension locks (16).
2. Make sure that the On/O switch (9) is on OFF position.

CAUTION

To avoid camera damages always make sure that camera is switched off (9 = OFF) when inserting batteries or changing SD card.

1. Insert 4 or 8 AA/1,5V batteries (optional) into the battery compartment (13). Respect correct polarity (+/-). Make sure to use fresh high-quality batteries of same brand. To setup the camera, 4 batteries (6V) are sufficient. In observation mode please use 8 batteries.

CAUTION

Do not use re-chargeable batteries. They may lead to malfunction.

1. Insert a SD/SDHC memory card (optional) with the label facing upwards into the SD card slot (12). Make sure that the SD card is formatted and unlocked. The camera supports SD/SDHC cards from 2GB to 32 GB.

IMPORTANT

Please make sure to format and to unlock the SD card before use! To format the SD card with the camera, please refer to chapter 09 "FORMATTING"

1. Slide the On/O switch (9) to "SETUP" position. The Display shows the basic settings:

Camera symbol Single picture mode

5M (Factory setting) Resolution 5 Mega Pixels (3 MP / 5 MP selectable)

Battery symbol Battery status

[00000/00000m] Stored pictures/free capacity

06 | SETUP

In order to change the camera settings slide the On/OFF switch (9) to "SETUP" position and press the "MENU" button (6). The LCD display (5) shows a list of various menu options:

1. Press the arrow buttons (7) on to switch between the registers (CAM, PIR, SYS).
2. Press the arrow buttons (7) or to select the menu point. The selected menu point is marked white.
3. Press the arrow buttons (7) or to change the menu point.
4. To save your settings press the the "OK" button (8). To leave setup without saving, press the "MENU" button (6).

07 | CAMERA SETTINGS CAM

CAMERA/VIDEO MODE

Select between single photo or video shooting.

1. Press the arrow button (7) to select "Camera Mode".
2. Press the arrow buttons (7) or select "Photo" or "Video".
3. Save with "OK" button (8).

Video quality 640 x 480 Pixels

Video length 10 seconds (not changeable)

PICTURE RESOLUTION

Select between 3 MP or 5 MP picture resolution.

1. Press the arrow button (7) to select Photo Size "5MP".
2. Press the arrow buttons (7) or to select "3MP"
3. Save with "OK" button (8).

NUMBER OF SHOTS

Select number of shots per motion.

1. Press the arrow button (7) to select "Photo burst".
2. Press the arrow buttons (7) or to select "1 Photo" "2 Photos" or "3 Photos".
3. Save with "OK" button (8).

08 | MOTION SENSOR SETTINGS PIR

SENSITIVITY

Choose the sensitivity of the motion sensor or turn the sensor off.

1. Press the arrow button (7) to select "Sensitivity".
2. Press the arrow button (7) oder to select "Normal", "High", "Low" or "Off".
3. Save with "OK" button (8).

TRIGGERINTERVAL

Select time (5 sec to 60 min) when PIR sensor is deactivated after a shot.

1. Press the arrow button (7) to select "Trigger Interval".
2. Press the arrow buttons (7) or to select time.
3. Save with "OK" button (8).

TIME LAPSE

Set the interval of continuous photo shooting. Camera shoots photos during this time setting (5 sec to 8 h) regardless of the motion sensor. If selected "OFF" the camera triggers upon motion. This setting is useful e.g. for observing a larger area in a certain period.

1. Press the arrow button (7) to select "Time Lapse".
2. Press the arrow buttons (7) or to select time.
3. Save with "OK" button (8).

TIMER (START-STOP)

The camera only takes photos/videos within the selected time frame. In the remaining time camera does not take photos/videos and does not react to motion (same for "Time Lapse" mode).

1. Press the arrow button (7) to select "Start-Stop"
2. Press the arrow button (7) or to select "Off" or "On".
3. To deactivate select "Off" and confirm with "OK" button (8).

4. To activate select "On" and confirm with "OK" button (8). Display shows two fields to enter the start and stop time:

5. With the arrow buttons (7) enter the start time.

6. With the arrow button (7) switch to the "Stop" field. With the arrow buttons (7) or enter the stop time.

7. After setting save with "OK" button (8). Now the camera only works in the selected time frame.

09 | SYSTEM SETTINGS SYS

DATE AND TIME

The date has to be set in the format dd.mm/yyyy. Time has to be set in 24 hours format.

1. Press the arrow button (7) to select "Enter". Press the "OK" button (8) to enter the setting mode:
2. With the arrow buttons (7) ▲ or enter the date.
3. With the arrow button (7) switch to the next number.
4. After setting save with "OK" button (8).

TIME STAMP

Displays date, time, lunar phase, temperature, battery status onto each picture.

Timestamp is always active and can not be changed.

LANGUAGE

Choose either German, English or French language for the camera menu.

1. Press the arrow button (7) to select "Language".
2. Press the arrow buttons (7) or to select "English", "German" or "French".
3. Save with "OK" button (8).

BEEP TONE

Activate or deactivate the beep tone for the control buttons.

1. Press the arrow button (7) to select "Beep".
2. Press the arrow buttons (7) or to select "Off" or "On".
3. Save with "OK" button (8).

OVERWRITE FUNCTION

Camera may overwrite old pictures with new ones when SD card is full or alternatively quit function.

1. Press the arrow button (7) to select "Over Write".
2. Press the arrow buttons (7) or to select "Off" or "On".
3. Save with "OK" button (8).

FORMATTING

This function deletes all files from the SD card and reformats the card.

Before formatting make sure that there are no fi les on the SD card you might need!

1. Press the arrow button (7) to select "Format".
2. Press the "OK" button (8) to select "Enter".
3. Press the arrow buttons (7) or to select "Yes"
4. To start formatting press the "OK" button (8).

While formatting LCD display (5) shows "Please wait".

FACTORY SETTING

This sets all parameters to "factory defaults" except date & time.

1. Press the arrow button (7) to select "Default Set".
2. Save with "OK" button (8).

When settings are completed, press "MENU" (6) to return to start menu.

FILE NAME

Pictures and videos will be named continuously, starting with IMG0001.jpg (picture) or IMAG0001.avi (video).

TEST SHOOTING

To take a test shot manually enter the setup mode (9), press the arrow button (7) and release with "OK" button (8).

10 | MOUNTING AND DIRECTING THE CAMERA

MOUNTING

Mount the camera to a tree, pole or any suitable object using the supplied fixing belt. Do not fix the belt finally at this stage. For security reasons you may obtain cable lock optionally. Best distance to object is 3 - 10 meters. Larger distances are also possible, however with less reliability of motion sensor. We recommend to take a few test shots and to finally fix the camera afterwards.

DIRECTING

The camera needs to be well directed for proper pictures.

1. Hang up camera in about 0,75 - 1 m height, slightly tilting ahead. The camera lens (4) should now point to where the photographic object is expected to show-up.
2. Set the On/Off switch (9) to "SETUP" and close the camera housing. If you move in front of the camera the LED indicator (2) is flashing red and the motion sensor is active. The red LED (2) will flash as long as you are moving within the detection area.
3. We recommend taking several test photos to see the area covered by the camera. For this purpose, turn the camera off first. Then slide the On/Off switch (9) to "ON" position and close the camera. After 15 - 30 seconds the camera is ready.

4. Move with normal speed through detection area. The camera triggers now.

5. The picture can be viewed with a Laptop or PC. There are 2 options:

a) Connect the camera directly to computer using an optional USB cord. Plug the USB cord into the Mini USB port (11) of the camera and connect with USB port at your computer.

b) Remove the memory card from the camera and read out pictures with an external card reader (optional).

1. We recommend to direct the camera in a way that the object will be in the center of the picture. You may have to re-adjust the camera and take another test shot.

Tip To change the camera angle you can use e.g. a small wooden wedge between camera and trunk.
7. Once the camera position is correct, the fixing belt can be tightened to hold the camera firmly
8. Switch the camera off after test shooting.

START SURVEILLANCE

Slide the On/O button (9) to "ON" position and close the camera housing. After 15 - 30 seconds camera is ready and it records according to your settings and upon movement.

CAMERA CHECK UP

Options to check if the camera has taken pictures:
1. Open the camera housing and turn o camera. After about 2 seconds slide the On/Off button (9) to "SETUP" position.
2. The LCD display (5) shows the start screen. The lower line shows the number of pictures taken and the remaining memory. Example: [0034/1846].
3. It is recommended to check the battery status as well. When capacity goes down, it will be more difficult to achieve correctly illuminated night shots. In case of doubt, replace batteries by new ones.

Model	SnapShot Limited 5.0S	SnapShot Limited Black 5.0S
Item No	204468 204469
Display LCD 3,5 cm/1/4" (for menu settings only)
Housing protection class IP54 (dust and splash waterproof)
Picture resolution 3.0 MP or 5.0 MP
Flash Infrared/28 LEDs/850nm Infrared/40 LEDs Black Vision/940nm
Motion sensor range 20 m
Flash range up to 15 m
Functions Photo, Video, Continuous shooting mode
Trigger time 0,9 sec
Power source 8x AA batteries (optional)
	DC 6V port for external battery (optional)
Memory card	SD memory card up to 32 GB (optional)
Operation temperature	-10 to +40°C
Dimensions	125 x 100 x 70 mm
Weight	252 g (w/o batteries)

12 SCOPE OF DELIVERY

1x Game & Surveillance Camera
1x Mounting strap
1x Quick instruction

Memory card	The camera only works with an SD card. There are SD cards which may not harmonize with the DÖRR Snapshot and may affect function of camera. Usually it already helps to use another SD card of different brand or different capacity. The camera supports SD cards up to 32 GB.
Lens rattles	The camera lens is covered with a filter which allows coloured pictures at daylight and black & white shots at night. When camera is turned off the filter is not fixed which can cause the rattle noise. However, this is no defect!
Weather protection	Although the camera is weatherproof and well-suited for outdoor use, we recommend to mount it at a secured place, so not on the weather side or in the direct sunshine. After long periods of humidity, caused by rain or fog, the camera should be stored in a dry area for a few days. Dust and splash waterproof according to protection class IP54.
Motion sensor	The motion sensor will react under certain circumstances and within a certain range. In general the range of recognition is slightly larger than the range covered by the image. The recognition of the objects depends on temperature, vegetal cover, reflecting surfaces and more circumstances. Under optimum conditions, a perfectly oriented camera and high sensitivity level adjustment, the recognition range can be up to 12 - 15 m. Usually, you may expect a range of 10 m. It can take a few attempts to find the proper position for your camera. When you test the motion sensor reaction, be aware of the facts that animals are usually remarkably smaller than human beings. So they may not be recognized.
Light conditions	Avoid direct back light, as you do in normal photography. When you choose the camera position, make sure that there will be no direct back light and also that the camera will not be placed in the shadow.
Technical changes	Specifications and design are subject to change without notice. Latest manuals please download here: http://download.doerrfoto.info/manuals/Snapshot_20manuals/

DISPOSAL OF BATTERIES/ACCUMULATORS

Batteries are marked with the symbol of a crossed out bin. This symbol indicates that empty batteries or accumulators which can no longer be charged, should not be disposed of with household waste. Waste batteries may contain harmful substances that can cause damage to health and to the environment. Please use the return and collection systems available in your country for the disposal of the waste batteries.

WEEE INFORMATION

The Waste Electrical and Electronic Equipment Directive (WEEE Directive) is the European community directive on waste electrical and electronic equipment, which became European law in February 2003. The main purpose of this directive is to prevent electronic waste. Recycling and other forms of waste recovery should be encouraged to reduce waste. The symbol (trash can) on the product and on the packing means that used electrical and electronic products should not be disposed of with general household waste. It is your responsibility to dispose of all your electronic or electrical waste at designated collection points. Disposing of this product correctly will help to save valuable resources and it is a significant contribution to protect our environment as well as human health. For more information about the correct disposal of electrical and electronic equipment, recycling and collection points please contact your local authorities, waste management companies, your retailer or the manufacturer of this device.

ROHS CONFORMITY

This product is compliant with the European directive 2011/65/EU of June 08, 2011 for the restriction of use of certain hazardous substances in electrical and electronic equipment (RoHS) and its amendments.

CE MARKING

The CE marking complies with the European directives. You can download the relative EU declaration of conformity with following link: http://www.doerrfoto.de/info/EG-Konformitätserklarungen

SnapShot Limited 5.0S & SnapShot Limited Black 5.0S

5M (Réglage usine) Résolution 5 Megapixels (3 MP / 5 MP sclectionable)

SnapShot Limited 5.0S & SnapShot Limited Black 5.0S
