USER MANUAL SnapShot Black 8MP TFT Dörr

Your camera is fitted with a weatherproof housing according to protection class IP54 (dust and splash waterproof). So the camera can be used outdoors. Nevertheless protect the camera from extreme weather conditions and direct sunlight.

Make sure to use fresh batteries of the same type and brand only. When inserting the batteries please respect the correct polarity (+/-). Please remove batteries when device is not in use for a longer period. Also note capture "Safety Hints for Bat- teries".

LED bulbs cannot be replaced.

Do not drop the camera onto a hard surface. Do not use the camera if it has been dropped. In this case a qualified electrician should inspect the camera before you use it again.

Do not attempt to repair the devise by yourself. Risk of electrical shock! When service or repair is required, contact qualified service personnel.

Do not open the camera housing (except the protective cover and the battery cover). The warranty will become void. In case of defect contact an authorized service agent.

Do not use the camera nearby mobile phones and devices that generate strong electromagnetic fields (e.g. electric engines).

People with physical or cognitive disabilities should use the camera with supervision.

People with cardiac pacemakers, defibrillators or any other electrical implants should maintain a minimum distance of 15 to 20 cm, as the device generates magnetic fields.

Avoid touching the camera lens with your fingers.

Protect the camera against extensive dirt. Never use aggressive cleansing agents or benzine to clean the camera. We recommend a soft microfiber cloth to clean the outer parts of the camera and the camera lens. Make sure to remove batteries before cleaning.

Store the camera in a dust-free, dry and cool place.

This device is not a toy. To prevent accidents and suffocation keep the device, the accessories and the packing materials away from children and pets.

If the camera is defective or without any further use, dispose of the camera according to the Waste Electrical and Electronic Equipment Directive WEEE. For further information, please contact your local authorities.

02 | SAFETY HINTS FOR BATTERIES

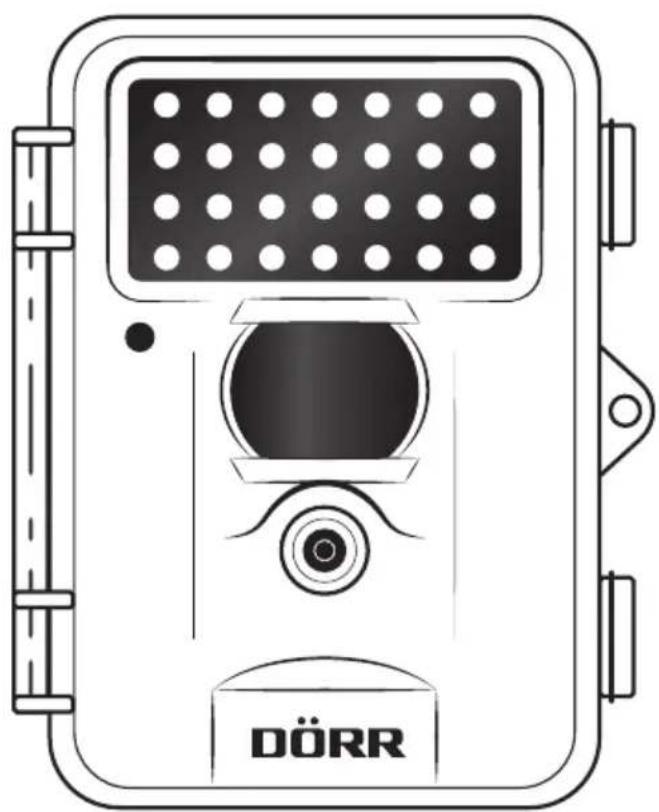

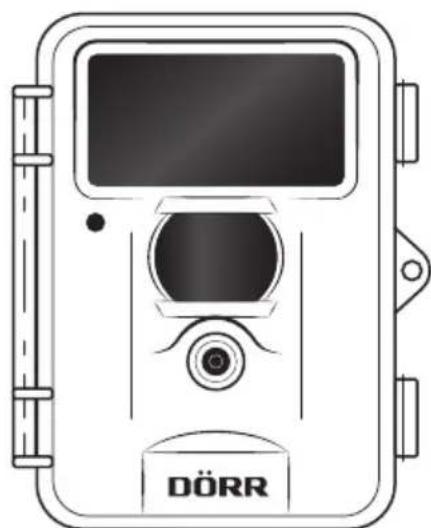

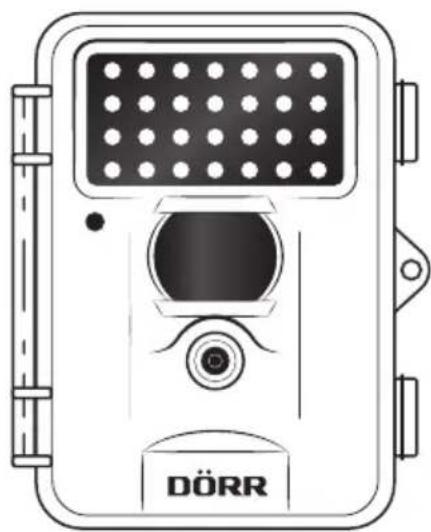

Only use high-quality batteries of popular brands. When inserting the batteries, please respect the correct polarity (+/-). Do not insert batteries of di erent types and always replace all batteries at the same time. Do not combine used batteries with fresh batteries. Please remove batteries when device is not in use for a longer period. Do not throw the batteries into fi re, do not short-circuit and do not disassemble them! Never charge non-rechargeable batteries – risk of explosion! Remove empty batteries immediately from the device to avoid the leaking of battery acid. Remove leaking batteries from the device immedia- tely. Clean the contacts before inserting fresh batteries. Risk of battery acid burn! In case of contact with battery acid, rinse the a ected area immediately with water and contact a doctor. Batteries can be dangerous to life if swallowed. Keep batteries away from small children and pets. Do not dispose of batteries in household waste (see also capture "Disposal of Batteries/ Accumulators").16 03 | NOMENCLATURE (PAGE 2 - 3) 04 | FIRST USE

1. Open the camera releasing the lateral tension locks (16).

2. Make sure that the On/O switch (9) is on OFF position.

CAUTION To avoid camera damages always make sure that camera is switched o (9=OFF) when inserting batteries or changing SD card.

3. Insert 8 x AA/1,5V batteries into battery compartment. Respect correct polarity (+/-).

CAUTION Do not use re-chargeable batteries. They may lead to malfunction.

4. Insert a SD card with the label facing upwards into the SD card slot (12). Make sure that the SD card is unlocked and

5. Slide the On/O switch (9) to "SETUP" position. The Display shows the basic settings:

Camera symbol Single picture mode 5M (Factory setting) Resolution 5 Mega Pixels (3 MP / 5 MP / 8 MP selectable) Battery symbol Battery status [00000/00000m] Stored pictures/free capacity 05 | SETUP In order to change the camera settings slide the On/OFF switch (9) to ""SETUP" position and press the "MENU" button (6).The LCD display (5) shows a list of various menu options:

1. Press the arrow buttons (7) or to switch between the registers (CAM, PIR, SYS).

2. Press the arrow buttons (7)

or to select the menu point. The selected menu point is marked white.

3. Press the arrow buttons (7)

or to change the menu point.

Battery compartment ¼" thread mount Eyelet for U-lock Tension locks Camera Mode Photo MENUExit OKSave17

Select between single photo or video shooting.

3. Save with "OK" button (8).

Video quality 640 x 480 Pixels Video length 5 - 60 seconds selectable PICTURE RESOLUTION Select between 3 MP, 5 MP or 8 MP picture resolution.

1. Press the arrow button (7)

to select Photo Size "5MP".

2. Press the arrow buttons (7)

or to select "3MP" or "8MP".

3. Save with "OK" button (8).

Select number of shots per motion.

1. Press the arrow button (7)

to select "Photo burst".

2. Press the arrow buttons (7) or to select "1 Photo" "2 Photos" or "3 Photos".

3. Save with "OK" button (8).

3. Save with "OK" button (8).

TRIGGER INTERVAL Select time (1 sec to 60 min) when PIR sensor is deactivated after a shot.

1. Press the arrow button (7)

to select "Trigger Interval".

3. Save with "OK" button (8).

TIME LAPSE Set the interval of continuous photo shooting. Camera shoots photos during this time setting (5 sec to 8 h) regardless of the motion sensor. If selected "OFF" the camera triggers upon motion. This setting is useful e.g. for observing a larger area in a certain period.

3. Save with "OK" button (8).18

TIMER (START-STOP) The camera only takes photos/videos within the selected time frame. In the remaining time camera does not take photos/videos and does not react to motion (same for "Time Lapse" mode).

1. Press the arrow button (7)

to select "Start-Stop"

2. Press the arrow button (7)

or to select "Off" or "On".

3. To deactivate select "Off" and confi rm with "OK" button (8).

4. To activate select "On" and confirm with "OK" button (8). Display shows two fields to enter the start and stop time:

With the arrow buttons (7) or enter the start time.

With the arrow button (7) switch to the "Stop" fi eld. With the arrow buttons (7) or enter the stop time.

5. After setting save with "OK" button (8). Now the camera only works in the selected time frame.

The date has to be set in the format dd.mm.yyyy. Time has to be set in 24 hours format.

1. Press the arrow button (7)

to select "Enter". Press the "OK" button (8) to enter the setting mode:

switch to the next number.

4. After setting save with "OK" button (8).

to select "Time Stamp".

2. Press the arrow buttons (7)

or to select "On" or "Off".

3. Save with "OK" button (8).

PASSWORD Secure the camera with password, to avoid misuse. The password is needed every time the camera is switched on. Default password is 0000. With the arrow buttons (7) and select "On" or "O ". Press the "OK" button (8) to display the default pass- word. The individual numbers can be changed with the arrow keys (7) or . To save your new password press the "OK" button (8). The next time the camera will be switched on, the password will be requested. Note your password carefully, without the password the camera cannot be operated. LANGUAGE Choose either German, English or French language for the camera menu.

or to select "English", "German" or "French".

3. Save with "OK" button (8).

BEEP TONE Activate or deactivate the beep tone for the control buttons.

or to select "Off" or "On".

3. Save with "OK" button (8).19

OVERWRITE FUNCTION Camera may overwrite old pictures with new ones when SD card is full or alternatively quit function.

1. Press the arrow button (7)

to select "Over Write".

2. Press the arrow buttons (7)

or to select "Off" or "On".

3. Save with "OK" button (8).

FORMATTING This function deletes all fi les from the SD card and reformats the card. Before formatting make sure that there are no fi les on the SD card you might need!

1. Save with "OK" button (8).

When settings are completed, press "MENU" (6) to return to start menu.

09 | WATCHING PHOTOS/VIDEOS ON DISPLAY

Press the "OK" button (8) while in "SETUP" mode (9) to watch the latest photo. Press the arrow buttons (7) or to browse through your photos and video recordings. For videos the video preview image will be displayed only – the video cannot be played. Press the OK button (8) to get back to start screen. DELETE PHOTO OR VIDEOS: Press the "MENU" button (6) to delete fi les. Press the arrow button (7) or to select "Delete One" or "Delete All". Confi rm with the "OK" button (8). CAUTION Deleted images cannot be restored! FILE NAME Pictures and videos will be named continuously, starting with IMG0001.jpg (picture) or IMAG0001.avi (video). TEST SHOOTING To take a test shot manually enter the setup mode (9), press the arrow button (7) and release with "OK" button (8).20

10 | MOUNTING AND DIRECTING THE CAMERA

MOUNTING Mount the camera to a tree, pole or any suitable object using the supplied fi xing belt. Do not fi x the belt fi nally at this stage. For security reasons you may obtain cable lock optionally. Best distance to object is 3 - 10 meters. Larger distances are also possible, however with less reliability of motion sensor. We recommend to take a few test shots and to fi nally fi x the camera afterwards. DIRECTING The camera needs to be well directed for proper pictures. 1. Hang up camera in about 0,75 - 1 m height, slightly tilting ahead. The camera lens (4) should now point to where the photo- graphic object is expected to show-up. 2. Set the On/Off switch (9) to "SETUP" and close the camera housing. If you move in front of the camera the LED indicator (2) is flashing red and the motion sensor is active. The red LED (2) will flash as long as you are moving within the detection area. 3. We recommend taking several test photos to see the area covered by the camera. For this purpose, turn the camera off first. Then slide the On/Off switch (9) to "ON" position and close the camera. After 15 - 30 seconds the camera is ready.

4. Move with normal speed through detection area. The camera triggers now.

5. The picture can be viewed on the LCD display (5) directly (please refer to capture 09) or with a Laptop or PC. There are 2 options: a) Connect the camera directly to computer using the supplied USB cord. Plug the USB cord into the Mini USB port (11) of the camera and connect with USB port at your computer. b) Remove the memory card from the camera and read out pictures with an external card reader (optional). 6. We recommend to direct the camera in a way that the object will be in the center of the picture. You may have to re-adjust the camera and take another test shot. Tip To change the camera angle you can use e.g. a small wooden wedge between camera and trunk.

7. Once the camera position is correct, the fixing belt can be tightened to hold the camera firmly

8. Switch the camera off after test shooting.

START SURVEILLANCE Slide the On/O button (9) to "ON" position and close the camera housing. After 15 - 30 seconds camera is ready and it records according to your settings and upon movement.

Options to check if the camera has taken pictures:

1. Open the camera housing and turn o camera. After about 2 seconds slide the On/Off button (9) to "SETUP" position.

2. The LCD display (5) shows the start screen. The lower line shows the number of pictures taken and the remaining memory. Example: [0034/1846]. 3. It is recommended to check the battery status as well. When capacity goes down, it will be more diffcult to achieve correctly illuminated night shots. In case of doubt, replace batteries by new ones.21 11 | TECHNICAL SPECIFICATIONS Model SnapShot Limited 8 MP TFT SnapShot Limited Black 8 MP TFT Item No 204473 204474 Display LCD 3,5 cm / ¼" Housing Protection class IP54 (dust and splash waterproof) Picture resolution 3.0 MP, 5.0 MP or 8.0 MP Flash Infrared / 28 LEDs Infrared / 40 LEDs Black Vision Motion sensor range up to approx. 20 m Flash range up to 12 m up to 8 m Functions Photo, video, continuous shooting mode Trigger time 1,3 sec Power source 8x AA batteries (optional) DC 6V port for external battery (optional) Memory card SD memory card up to 32 GB (optional) Operation temperature -10 to +40°C Dimensions 125 x 100 x 70 mm Weight 252 g (w/o batteries)22 Memory card The camera only works with an SD card. There are SD cards which may not harmonize with the DÖRR SnapShot and may a ect function of camera. Usually it already helps to use another SD card of di erent brand or di erent capacity. The camera supports SD cards up to 32 GB. Lens rattles The camera lens is covered with a fi lter which allows coloured pictures at daylight and black & white shots at night. When camera is turned o the fi lter is not fi xed which can cause the rattle noise. However, this is no defect! Weather protection Although the camera is weatherproof and well-suited for outdoor use, we recommend to mount it at a secured place, so not on the weather side or in the direct sunshine. After long periods of humidity, caused by rain or fog, the camera should be stored in a dry area for a few days. Dust and splash waterproof accor- ding to protection class IP54. Motion sensor The motion sensor will react under certain circumstances and within a certain range. In general the range of recognition is slightly larger than the range covered by the image. The recognition of the objects de- pends on temperature, vegetal cover, refl ecting surfaces and more circumstances. Under optimum condi- tions, a perfectly oriented camera and high sensitivity level adjustment, the recognition range can be up to 12 - 15 m. Usually, you may expect a range of 10 m. It can take a few attempts to fi nd the proper position for your camera. When you test the motion sensor reaction, be aware of the facts that animals are usually remarkably smaller than human beings. So they may not be recognized. Light conditions Avoid direct back light, as you do in normal photography. When you choose the camera position, make sure that there will be no direct back light and also that the camera will not be placed in the shadow. Technical changes Specifi cations and design are subject to change without notice. Latest manuals please download here: http://download.doerrfoto.info/manuals/Snapshot_20manuals/ 12 | HINTS & TIPS23 13 | DISPOSAL, CE MARKING, EU DECLARATION OF CONFORMITY
