USER MANUAL SnapShot Limited Black 5.0 S Dörr

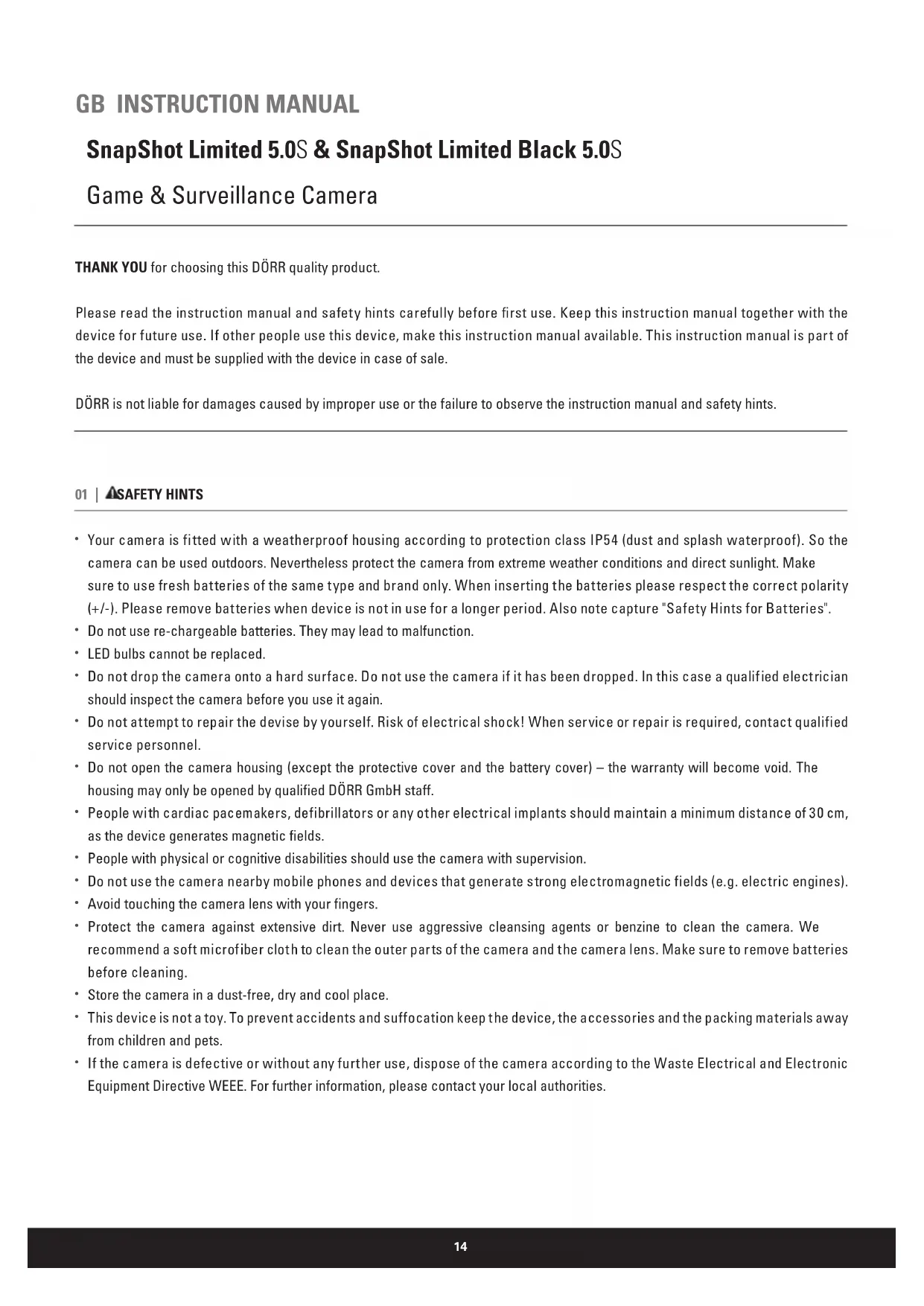

Your camera is fitted with a weatherproof housing according to protection class IP54 (dust and splash waterproof). So the camera can be used outdoors. Nevertheless protect the camera from extreme weather conditions and direct sunlight. Make sure to use fresh batteries of the same type and brand only. When inserting the batteries please respect the correct polarity (+/-). Please remove batteries when device is not in use for a longer period. Also note capture "Safety Hints for Batteries".

Do not use re-chargeable batteries. They may lead to malfunction.

LED bulbs cannot be replaced.

Do not drop the camera onto a hard surface. Do not use the camera if it has been dropped. In this case a qualified electrician should inspect the camera before you use it again.

Do not attempt to repair the devise by yourself. Risk of electrical shock! When service or repair is required, contact qualified service personnel.

Do not open the camera housing (except the protective cover and the battery cover) – the warranty will become void. The housing may only be opened by qualified DÖRR GmbH staff.

People with cardiac pacemakers, defibrillators or any other electrical implants should maintain a minimum distance of 30 cm, as the device generates magnetic fields.

People with physical or cognitive disabilities should use the camera with supervision.

Do not use the camera nearby mobile phones and devices that generate strong electromagnetic fields (e.g. electric engines).

Avoid touching the camera lens with your fingers.

Protect the camera against extensive dirt. Never use aggressive cleansing agents or benzine to clean the camera. We recommend a soft microfiber cloth to clean the outer parts of the camera and the camera lens. Make sure to remove batteries before cleaning.

Store the camera in a dust-free, dry and cool place.

This device is not a toy. To prevent accidents and suffocation keep the device, the accessories and the packing materials away from children and pets.

If the camera is defective or without any further use, dispose of the camera according to the Waste Electrical and Electronic Equipment Directive WEEE. For further information, please contact your local authorities.15

02 | SAFETY HINTS FOR BATTERIES

Only use high-quality batteries of popular brands. When inserting the batteries, please respect the correct polarity (+/-). Do not insert batteries of dierent types and always replace all batteries at the same time. Do not combine used batteries with fresh batteries. Please remove batteries when device is not in use for a longer period. Do not throw the batteries into fire, do not short-circuit and do not disassemble them! Never charge non-rechargeable batteries – risk of explosion! Remove empty batteries immediately from the device to avoid the leaking of battery acid. Remove leaking batteries from the device imme- diately. Clean the contacts before inserting fresh batteries. Risk of battery acid burn! In case of contact with battery acid, rinse the aected area immediately with water and contact a doctor. Batteries can be dangerous to life if swallowed. Keep batteries away from small children and pets. Do not dispose of batteries in household waste (see also capture "Disposal of Batteries/ Accumulators"). 03 | PRIVACY POLICY In every country, legal data protection rules apply. As these rules may vary per country, please contact the appropriate autho- rities to learn about the latest privacy policy in your country. In any case kindly note:

Do not observe public areas.

Respect the general right of privacy.

Do not publish pictures showing individuals without having their permission.

Make aware of the observed areas with a sign and inform your neighbours and visitors if necessary.16 04 | NOMENCLATURE (PAGE 2 - 3) 05 | FIRST USE

1. Open the camera releasing the lateral tension locks (16).

2. Make sure that the On/O switch (9) is on OFF position.

CAUTION To avoid camera damages always make sure that camera is switched o (9 = OFF) when inserting batteries or changing SD card. 3. Insert 4 or 8 AA/1,5V batteries (optional) into the battery compartment (13). Respect correct polarity (+/-). Make sure to use fresh high-quality batteries of same brand. To setup the camera, 4 batteries (6V) are sufficient. In observation mode please use 8 batteries. CAUTION Do not use re-chargeable batteries. They may lead to malfunction. 4. Insert a SD/SDHC memory card (optional) with the label facing upwards into the SD card slot (12). Make sure that the SD card is formatted and unlocked. The camera supports SD/SDHC cards from 2GB to 32 GB. IMPORTANT Please make sure to format and to unlock the SD card before use! To format the SD card with the camera, please refer to chapter 09 “FORMATTING”

5. Slide the On/O switch (9) to "SETUP" position. The Display shows the basic settings:

Camera symbol Single picture mode 5M (Factory setting) Resolution 5 Mega Pixels (3 MP / 5 MP selectable) Battery symbol Battery status [00000/00000m] Stored pictures/free capacity 06 | SETUP In order to change the camera settings slide the On/OFF switch (9) to ""SETUP" position and press the "MENU" button (6).The LCD display (5) shows a list of various menu options:

Battery compartment ¼" thread mount Eyelet for U-lock Tension locks Camera Mode Photo MENUExit OKSave17

1. Press the arrow buttons (7) or to switch between the registers (CAM, PIR, SYS).

2. Press the arrow buttons (7)

or to select the menu point. The selected menu point is marked white.

3. Press the arrow buttons (7)

or to change the menu point.

Select between single photo or video shooting.

3. Save with "OK" button (8).

Video quality 640 x 480 Pixels Video length 10 seconds (not changeable) PICTURE RESOLUTION Select between 3 MP or 5 MP picture resolution.

1. Press the arrow button (7)

to select Photo Size "5MP".

3. Save with "OK" button (8).

Select number of shots per motion.

1. Press the arrow button (7)

to select "Photo burst".

2. Press the arrow buttons (7) or to select "1 Photo" "2 Photos" or "3 Photos".

3. Save with "OK" button (8).

3. Save with "OK" button (8).

TRIGGER INTERVAL Select time (5 sec to 60 min) when PIR sensor is deactivated after a shot.

1. Press the arrow button (7)

to select "Trigger Interval".

3. Save with "OK" button (8).

TIME LAPSE Set the interval of continuous photo shooting. Camera shoots photos during this time setting (5 sec to 8 h) regardless of the motion sensor. If selected "OFF" the camera triggers upon motion. This setting is useful e.g. for observing a larger area in a certain period.18

3. Save with "OK" button (8).

TIMER (START-STOP) The camera only takes photos/videos within the selected time frame. In the remaining time camera does not take photos/videos and does not react to motion (same for "Time Lapse" mode).

1. Press the arrow button (7)

to select "Start-Stop"

2. Press the arrow button (7)

or to select "Off" or "On".

3. To deactivate select "Off" and confi rm with "OK" button (8).

4. To activate select "On" and confirm with "OK" button (8). Display shows two fields to enter the start and stop time:

With the arrow buttons (7) or enter the start time.

With the arrow button (7) switch to the "Stop" fi eld. With the arrow buttons (7) or enter the stop time.

5. After setting save with "OK" button (8). Now the camera only works in the selected time frame.

The date has to be set in the format dd.mm.yyyy. Time has to be set in 24 hours format.

1. Press the arrow button (7)

to select "Enter". Press the "OK" button (8) to enter the setting mode:

switch to the next number.

4. After setting save with "OK" button (8).

TIME STAMP Displays date, time, lunar phase, temperature, battery status onto each picture. Timestamp is always active and can not be changed. LANGUAGE Choose either German, English or French language for the camera menu.

or to select "English", "German" or "French".

3. Save with "OK" button (8).

BEEP TONE Activate or deactivate the beep tone for the control buttons.

or to select "Off" or "On".

3. Save with "OK" button (8).19

OVERWRITE FUNCTION Camera may overwrite old pictures with new ones when SD card is full or alternatively quit function.

1. Press the arrow button (7)

to select "Over Write".

2. Press the arrow buttons (7)

or to select "Off" or "On".

3. Save with "OK" button (8).

FORMATTING This function deletes all fi les from the SD card and reformats the card. Before formatting make sure that there are no fi les on the SD card you might need!

1. Save with "OK" button (8).

When settings are completed, press "MENU" (6) to return to start menu. FILE NAME Pictures and videos will be named continuously, starting with IMG0001.jpg (picture) or IMAG0001.avi (video). TEST SHOOTING To take a test shot manually enter the setup mode (9), press the arrow button (7) and release with "OK" button (8).

10 | MOUNTING AND DIRECTING THE CAMERA

MOUNTING Mount the camera to a tree, pole or any suitable object using the supplied fixing belt. Do not fi x the belt finally at this stage. For security reasons you may obtain cable lock optionally. Best distance to object is 3 - 10 meters. Larger distances are also possible, however with less reliability of motion sensor. We recommend to take a few test shots and to finally fix the camera afterwards. DIRECTING The camera needs to be well directed for proper pictures. 1. Hang up camera in about 0,75 - 1 m height, slightly tilting ahead. The camera lens (4) should now point to where the photo- graphic object is expected to show-up. 2. Set the On/Off switch (9) to "SETUP" and close the camera housing. If you move in front of the camera the LED indicator (2) is flashing red and the motion sensor is active. The red LED (2) will flash as long as you are moving within the detection area. 3. We recommend taking several test photos to see the area covered by the camera. For this purpose, turn the camera off first. Then slide the On/Off switch (9) to "ON" position and close the camera. After 15 - 30 seconds the camera is ready.

4. Move with normal speed through detection area. The camera triggers now.20

5. The picture can be viewed with a Laptop or PC. There are 2 options:

a) Connect the camera directly to computer using an optional USB cord. Plug the USB cord into the Mini USB port (11) of the camera and connect with USB port at your computer. b) Remove the memory card from the camera and read out pictures with an external card reader (optional). 6. We recommend to direct the camera in a way that the object will be in the center of the picture. You may have to re-adjust the camera and take another test shot. Tip To change the camera angle you can use e.g. a small wooden wedge between camera and trunk.

7. Once the camera position is correct, the fixing belt can be tightened to hold the camera firmly

8. Switch the camera off after test shooting.

START SURVEILLANCE Slide the On/O button (9) to "ON" position and close the camera housing. After 15 - 30 seconds camera is ready and it records according to your settings and upon movement.

Options to check if the camera has taken pictures:

1. Open the camera housing and turn o camera. After about 2 seconds slide the On/Off button (9) to "SETUP" position.

2. The LCD display (5) shows the start screen. The lower line shows the number of pictures taken and the remaining memory. Example: [0034/1846]. 3. It is recommended to check the battery status as well. When capacity goes down, it will be more diffcult to achieve correctly illuminated night shots. In case of doubt, replace batteries by new ones.21 Model SnapShot Limited 5.0S SnapShot Limited Black 5.0S Item No

Display LCD 3,5 cm/¼" (for menu settings only) Housing protection class IP54 (dust and splash waterproof) Picture resolution 3.0 MP or 5.0 MP Flash Infrared/28 LEDs/850nm Infrared/40 LEDs Black Vision/940nm Motion sensor range 20 m Flash range up to 15 m Functions Photo, Video, Continuous shooting mode Trigger time 0,9 sec Power source 8x AA batteries (optional) DC 6V port for external battery (optional) Memory card SD memory card up to 32 GB (optional) Operation temperature -10 to +40°C Dimensions 125 x 100 x 70 mm Weight 252 g (w/o batteries) 11 | TECHNICAL SPECIFICATIONS

12 | SCOPE OF DELIVERY

1x Game & Surveillance Camera 1x Mounting strap 1x Quick instruction22 Memory card The camera only works with an SD card. There are SD cards which may not harmonize with the DÖRR SnapShot and may aect function of camera. Usually it already helps to use another SD card of dierent brand or dierent capacity. The camera supports SD cards up to 32 GB. Lens rattles The camera lens is covered with a filter which allows coloured pictures at daylight and black & white shots at night. When camera is turned o the filter is not fixed which can cause the rattle noise. However, this is no defect! Weather protection Although the camera is weatherproof and well-suited for outdoor use, we recommend to mount it at a secured place, so not on the weather side or in the direct sunshine. After long periods of humidity, caused by rain or fog, the camera should be stored in a dry area for a few days. Dust and splash waterproof accor- ding to protection class IP54. Motion sensor The motion sensor will react under certain circumstances and within a certain range. In general the range of recognition is slightly larger than the range covered by the image. The recognition of the objects de- pends on temperature, vegetal cover, reflecting surfaces and more circumstances. Under optimum condi- tions, a perfectly oriented camera and high sensitivity level adjustment, the recognition range can be up to 12 - 15 m. Usually, you may expect a range of 10 m. It can take a few attempts to find the proper position for your camera. When you test the motion sensor reaction, be aware of the facts that animals are usually remarkably smaller than human beings. So they may not be recognized. Light conditions Avoid direct back light, as you do in normal photography. When you choose the camera position, make sure that there will be no direct back light and also that the camera will not be placed in the shadow. Technical changes Specifications and design are subject to change without notice. Latest manuals please download here: http://download.doerrfoto.info/manuals/Snapshot_20manuals/ 13 | HINTS & TIPS23 14 | DISPOSAL, CE MARKING, EU DECLARATION OF CONFORMITY
