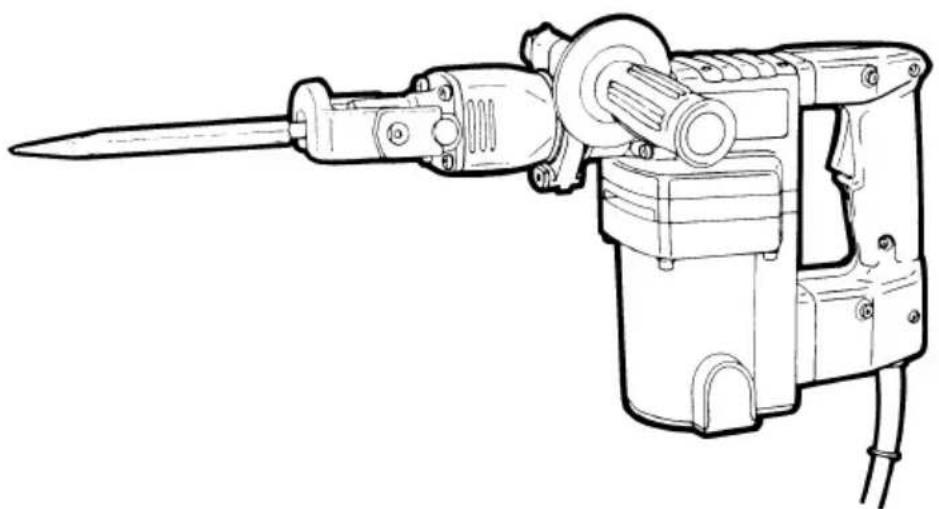

USER MANUAL H 41SA HITACHI

Demolition Hammer
Hammer
Marteau de demolition
Demolitore
Hakhamer
Martillo

H 41SA

Read through carefully and understand these instructions before use.
These Anleitung vor Benutzung des Werkzeugs sorgfältig durchlesen und verstehen.
Lire soigneusement et bien assimiler ces instructions avant usage.
Prima dell'uso leggere attentamente e comprehende queste instruzioni.
Deze gebruiksaanwijzing s.v.p. voor gebruik zorgvuldig doorlezen.
Leer cuidadosamente y comprende estas instrucciones antes del uso.

Handling instructions Bedienungsanleitung Mode d'emploi Instruzioni per l'uso Gebruiksaanwijzing Instrucciones de manejo

	English Deutsch Français
1	Tool shank Werkzeugschaft Queue d'outil
2	Tool retainer Werkzeugrückhalter Tige de retenue de l'outil
3	Tool retainer edge Werkzeugrückhalterkante Bord de la tige de l'outil
4	Push button Drucktaste Poussoir
5	Front cover Frontdeckel Couvercle frontal
6	Retainer (tool holer) Rückhalter (Werkzeughalter) Tige de retenue (fixation de l'outil)
7	Outlet Auslβ Sortie

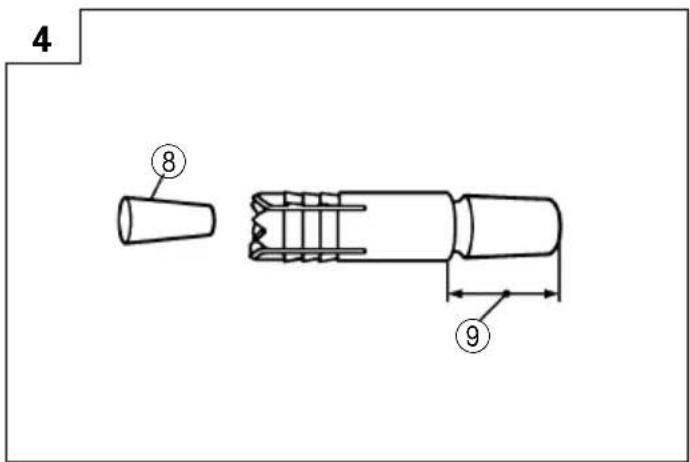

8	Plug	Expansionskonus	Bouchon
9	Snap off this portion after driving in the self-drilling anchor.	Brechen Sie diese Teil nach dem Eindrehen des Selfstbohr-Ankers ab.	Détacher cette portion après avoir enforcé l'ancre auto-perceuse.

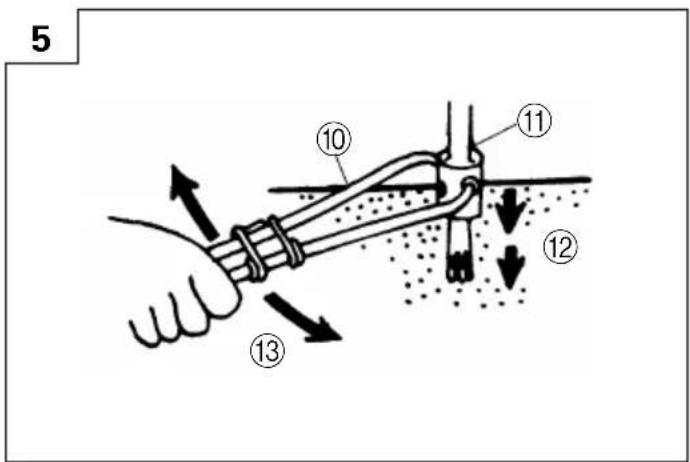

10	Turning handle	Drehgriff	Poignée de rotation
11	Anchor adapter	Anker-adapter	Raccord d'ancre

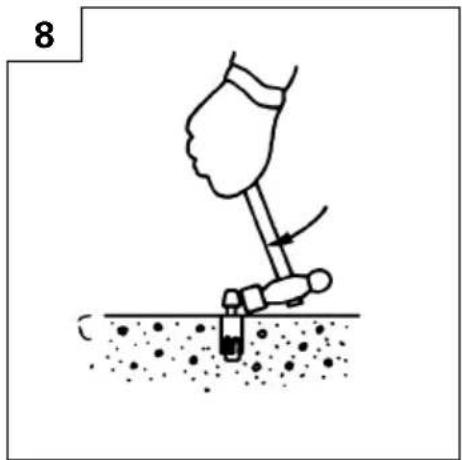

12	Striking by hammer Schlagen mit dem Hammer Frappe par marteau
13	Move right and left	Nach links und rechts bewegen	Déplacer à droit et à gauche

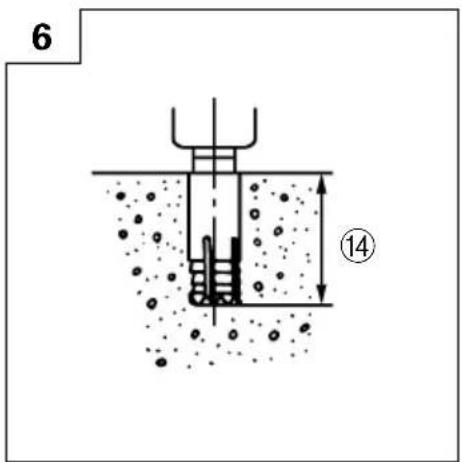

14	Hole depth Bohrlochtiefe	Profondeur de trou

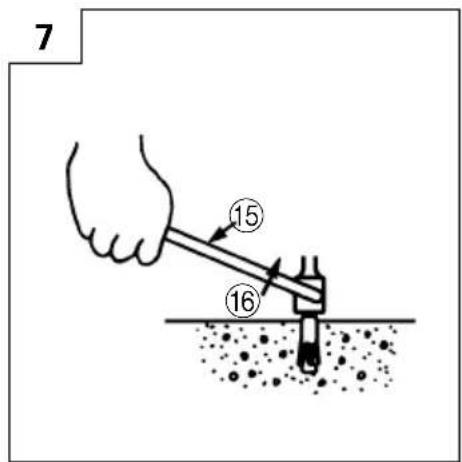

15	Drift key	Austreibkeil	Mandrin
16	Wrench out Herausdrehen	Arracher

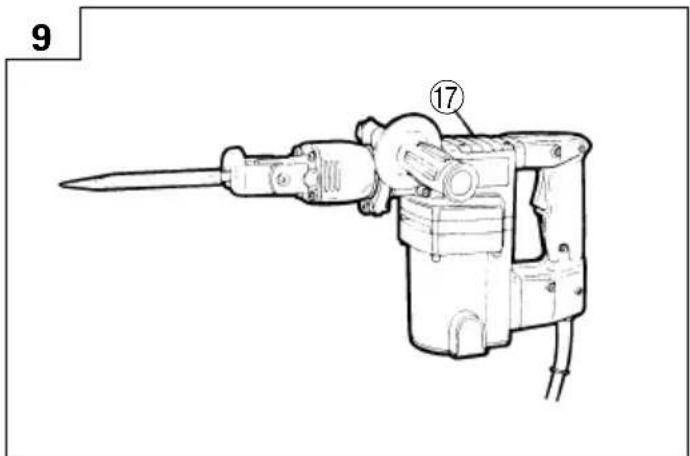

17	Crank cover	Kurbeldeckel	Couvercle de manivelle

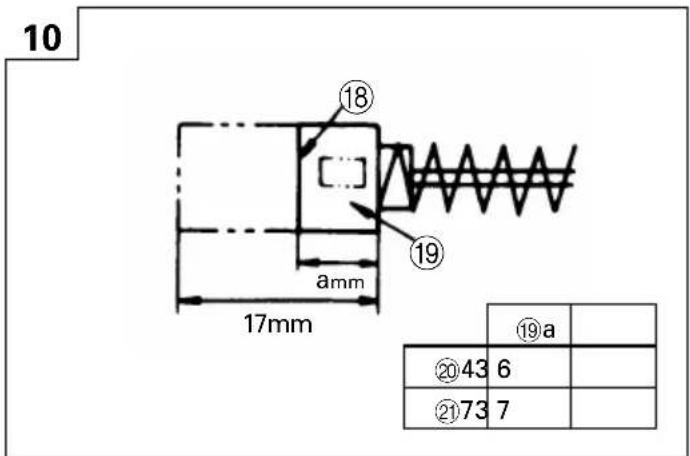

18	Wear limit	Verschleißgrenze	Limite d'usure
19	No. of Carbon brush	Nr. der kohlebürste	No. de balai en carbone
20	Usual carbon brush	Gewöhnliche Kohlebürste	Balai en carbone ordinaire
21	Auto-stop carbon brush	Auto-Stop Kohlebürest	Balai en carbone à arrêt automatique
	Italiano	Nederland	Espanol
1	Gambo dell'utensile	Boorschacht	Barrena
2	Sostegno utensile	Gereedschaphourder	Retén de herramienta
3	Bordo sostegno untensile	Rand gereedschaphourder	Borde del retén de herramienta
4	Pulsante	Druktoets	Botón pulsador
5	Coperchio anteriore Voorzijde Cubierta delantera
6	Sostegno (portautensile)	Houder (voor gereedschap)	Retén (soporte de herramienta)
7	Uscita	Uitlaatopening	Salida
8	Tappo Plug	Tapón
9	Far saltare esta parte après l'infissaggio nell'ancora auto-trapanante.	Breek dit gedeelte af nadat het anker ingedreven is.	Quitar esta porción afterwards de incrustar el anclaje de perforación propia.
10	Manico a giro	Draaihendel Manija para girar
11	Adattatore dell'ancoraggio	Ankeradaptor	Adaptador de anclaje
12	Percussione con martello Drijven net hamer Golpea	con martillo
13	Muoverebero verso destra e sinistra	Beweeg maar links en rechts	Mover a la derecha e izquierda
14	Profondità del foro	Gatdiepte	Profundidad del orificio
15	Chiave del punteruolo	Drijfsleutel	Cuña sacamecha
16	Liberare	Trek uit	Extraer
17	Coperchio dell'incastellatura	Bedekking	Cubierta del motor
18	Limite d'usura	Slijtage-limiet	Limite de desgaste
19	Numero delle spazzole di carbone	Nr. van koolborstel	No. de contacto de carbún
20	Spazzola di carbonecomune	Normale koolborstel	Escobilla de carbún usual
21	Spazzola di carbone ad arresto automatico	Auto-stop koolborstel	Escobilla de carbún de parada automática

	Symbols WARNING The following show symbols used for the machine. Be sure that you understand their meaning before use.	Symbole WARNING Die folgenden Symbole werden für diese Maschine verwendet. Achten Sie daraufuf, diese vor der Verwendung zu verstehen.	Symboles AVENTISSEMENT Les symboles suivants sont utilisés pour l'outil. Bien se familiariser avec leur signification avant d'utilisier l'outil.
	Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.	Lesen Sie s'amtliche Sicherheitschinweise und Anweisungen durch. Wenn die Warnungen und Anweisungen nicht befolgt werden, kann es zu Stromschlag, Brand und/oder ernsthaften Verletzungenkommen.	Lire tous les avertissements de sécurité et toutes les instructions. Tout manquement à observer ces avertissements et instructions peut engender des chocs électriques, des incendies et/ou des blessures graves.
	Only for EU countries Do not dispose of electric tools together with household waste material! In observance of European Directive 2002/96/EC on waste electrical and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.	Nur für EU-Länder Werfen Sie Elektrowerkzeuge nicht in den Hausmüll! Gemäss Europäischer Richtlinie 2002/96/EG über Elektro- und Elektronik-Altgeräte und Umsetzung in nationales Recht müssen verbrauchte Elektrowerkzeuge getrennt gesammelt und einer umweltgerechten Wiederverwertung zugeführten werden.	Pour les pays européens uniquement Ne pas jeter les apparilés électriques dans les ordres menagères! Conformément à la directive européen 2002/96/EG relative aux déchets d'équipements électriques ou électroniques (DEEE), et à sa transposition dans la législation nationale, les apparilés électriques doivent être collectés à part et être soumises à un recyclage respectueux de l'environnement.
	Simboli AVVERTENZA Di seguito mostriamo i simboli usati per la macchina. Assicurarsi di comprendre il significato prima dell'uso.	Symbolen WAARSCHUWING Hieronder staan symboIen aufgebeeld die van toepassing zich op deze machine. U要去 de betekenis hiervan begrijpen voor gebruik.	Símbolos AVENTENCA A continuación se muestran los simblos usados para laquina. Asegúrese de comprehend su significado antes del uso.
	Leggere tutti gli avertimenti di sicurezza e tutte le istruzioni. La mancata osservanza degli avertimenti e delle istruzioni potrebè essere causa di scosse elettriche, incendi e/o gravi lesioni.	Lees alle waarschuwingen en instructies aandachtig door. Nalating om de waarschuwingen en instructies op te volgen kan in een elektrische schok, branden/of ernstig letsel resulteren.	Lea todas las instrucciones y advertencias de seguridad. Si no se siguen las advertencias e instructiones, Podria producirse una descarga electrica, un incendio y/o daños graves.
	Solo per Paesi UE Non gettare le apparecchature elettriche tra i rifiuti domestici. Seconda la Direttiva Europea 2002/96/CE sui rifiuti di apparecchature elettriche ed elettroniche e la sua attuazione in conformità alle norme nazionali, le apparecchature elettriche esausste devono essere raccolte separamente, al fine di essere reimpiegate in modo eco-compatible.	Alleen voor EU-landen Geef elektrisch gereedschap Niet met het huisvuil meel! Volgens de Europese richtlij 2002/96/EG inzake oude elektrische en elektronische apparaten en de toepassing waarvan binnen de nationale wetgeving,Client gestruikt elektrisch gereedschap gezameld en te worden afgevoerd maar een recycle bedrijf dat voldoet aan de geldende milieu-eisen.	Sólo para paises de la Unión Europea jNo deseche los aparatos eletricos jusqu'à los residuos dométricos! De conformidad con la Directiva Europea 2002/96/CE sobre residuos de aparatos eletricos y electrónicos y su aplicacion de acordo con la legislación nacional, las herramrientas eletricas cuya vida útil haya升降ado a su fin sedeferán recoger por separado y trasladar a una planta de reciclaje que cumpla con las exigencias ecologicas.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING

Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit.

Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.

Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool.

Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet.

Never modify the plug in any way.

Do not use any adapter plugs with earthed (grounded) power tools.

Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.

There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.

Keep cord away from heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.

Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.

Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool.

Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.

A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection.

Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.

Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on.

A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times.

This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.

Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

Use of dust collection can reduce dust related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application.

The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off.

Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.

Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.

Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation.

If damaged, have the power tool repaired before use.

Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean.

Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts.

This will ensure that the safety of the power tool is maintained.

PRECAUTION

Keep children and infirm persons away.

When not in use, tools should be stored out of reach of children and inform persons.

DEMOLITION HAMMER SAFETY WARNINGS

1. Wear ear protectors.

Exposure to noise can cause hearing loss.
2. Use auxiliary handles supplied with the tool.
Loss of control can cause personal injury.
3. Do not touch the bit during or immediately after operation. The bit becomes very hot during operation and could cause serious burns.

1. Wear earplugs to protect your ears during operation.
2. Before starting to break, chip or drill into a wall, floor or ceiling, thoroughly confirm that such items as electric cables or conduits are not buried inside.

SPECIFICATIONS

Voltage (by areas)* (110V, 115V, 120V, 127V, 220V, 230V, 240V)
Power Input 810W*
Full-load Impact Rate 3000	min-1
Weight (without cord, side handle) 4.8 kg

• Be sure to check the nameplate on product as it is subject to change by areas.

STANDARD ACCESSORIES

(1) Case 1
(2) Bull Point 1
(3) Side Handle 1

Standard accessories are subject to change without notice.

OPTIONAL ACCESSORIES (sold separately)

Crushing

(1) Bull Point

Overall Length: 280, 450 mm

Asphalt Cutting

(1) Cutter

Surface Roughing

(1) Bushing Tool

(2) Shank

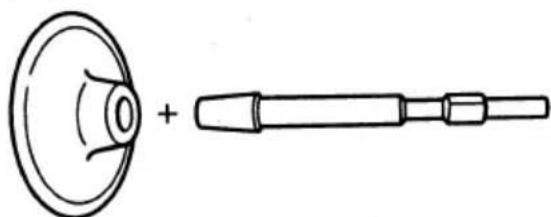

Tamping

(1) Rammer

(2) Shank

Anchor work (for self-drilling anchors)

Anchor size

(for impact)

No. 30 W3/8

No. 40 W1/2

No. 50 W5/8

(1) Anchor Adaptor

(for impact)

(2)Turning Handle

(3) Drift Key

Syringe (for debris removal)

Scooping Work

(1) Scoop

Cylinder case cover (For heat insulation of cylinder case)

Cylinder case cover (rubber)

OHammerGrease A

500 g (in a can)

70 g (in a tube)

30 g (in a tube)

Optical accessories are subject to change without notice.

APPLICATIONS

Breaking concrete, chipping off concrete, grooving, bar cutting, and driving piles.

Application examples:

Installation of piping and wiring, sanitary facility installation, machinery installation, water supply and drainage work, interior jobs, harbor facilities and other civil engineering work.

PRIOR TO OPERATION

1. Power source

Ensure that the power source to be utilized conforms to the power requirements specified on the product nameplate.

2. Power switch

Ensure that the power switch is in the OFF position. If the plug is connected to a power receptacle while the power switch is in the ON position, the power tool will start operating immediately, which could cause a serious accident.

3. Extension cord

When the work area is removed from the power source, use an extension cord of sufficient thickness and rated capacity. The extension cord should be kept as short as practicable.

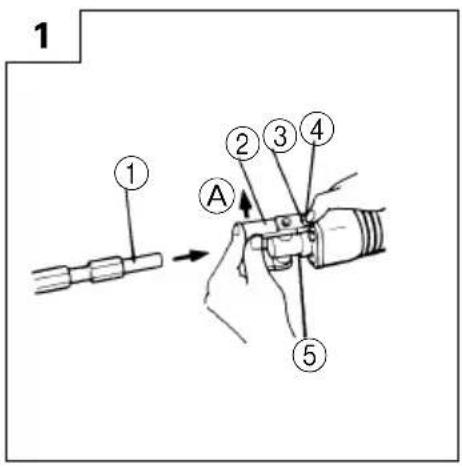

4. Tool Mounting

NOTE:

For tools such as a bull point and a cutter, use only Hitachi genuine parts.

(1) Clean, then smear the tool shank with the grease provided.
(2) Press the push button, slightly lift the tool retainer in the direction of arrow A as shown in Fig. 1 to hook the tool retainer edge with the push button and engage the push button.
(3) Release your finger from the push button and further lift the tool retainer in the direction of arrow A.

NOTE:

First time when the tool retainer is lifted, remove your finger from the push button. If the push button is kept pressed, the edge of the tool retainer comes in contact with your finger and the tool retainer cannot be lifted.

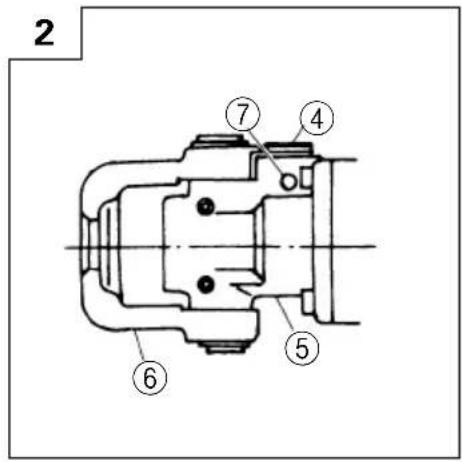

(4) Fully insert the tool shank into the hexagonal hole in the front cover.
(5) Return the tool retainer to secure the tool.

NOTE:

Remove in the reverse order of installation.

WHEN THE PUSH BUTTON DOES NOT OPERATE SMOOTHLY

When the push button does not operate smoothly, please remove dirt from the inside through the outlet using a wire, etc. Then lubricate lubricating oil and push the push button several times to make it operate smoothly.

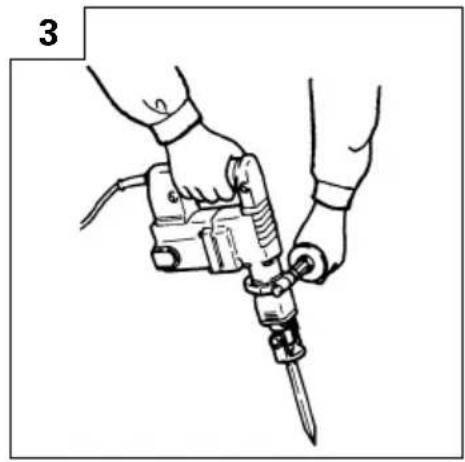

HOW TO USE THE DEMOLITION HAMMER (Fig. 3)

1. After placing the tip of the tool in the base hole, switch ON.
2. By utilizing the weight of the machine and by firmly holding the demolition hammer with both hands, one can effectively control the subsequent recoil motion.

Proceed at a moderate work-rate, the use of too much force will impair efficiency.

DRILLING AND DRIVING-IN OPERATION FOR SELF DRILLING ANCHORS

When self-drilling anchors (Fig. 4) are used, the anchors can be driven in. In this case, use the optional accessories for self-drilling anchors such as the anchor adapter.

1. Attach the turning handle to the anchor adapter and turn the handle back and forth manually (Fig. 5). In this case, the plug is not attached to the anchor.
2. When a predetermined depth has been attained, pull out the anchor tentatively (Fig. 6).
3. By employing the syringe, blow out the debris.
4. Attach the plug to the anchor tip and drive in the anchor again with the demolition hammer.
5. After driving in the anchor, use the drift key to separate the anchor (Fig. 7).
6. By employing a manual hammer or pliers, snap off the tapered portion of the anchor (Fig. 8).

CAUTION:

Since the snapped-off tapered portion will fly out, pay attention to the snapping direction.

GREASE REPLACEMENT

This machine is of full air-tight construction to protect against dust and to prevent lubricant leakage. This machine can be used without grease supplement for an extended period of time. However, perform the grease replacement to maintain the service life. Replace the grease as described below.

1. Grease Replacement Period

You should look at the grease when you change the carbon brush. (See item 4 in the section MAINTENANCE AND INSPECTION.)
Ask for grease replacement at the nearest authorized Hitachi Service Agent.
In the case that you are forced to change the grease by yourself, please follow the following points.

2. How to replace grease

CAUTION:

Before replacing the grease, turn the power off and pull out the power plug.

(1) Remove the crank cover and wipe off the old grease inside (Fig. 9).
(2) Supply 30 g (the standard quantity to cover the connecting rod) of Hitachi Electric Hammer Grease A to the crank case.
(3) After replacing the grease, install the crank case securely.

NOTE:

The Hitachi Electric Hammer Grease A is of the low viscosity type. When the grease is consumed, purchase from an authorized Hitachi Service Agent.

MAINTENANCE AND INSPECTION

1. Inspecting the tool

Since use of a dull tool will degrade efficiency and cause possible motor malfunction, sharpen or replace the tool as soon as abrasion is noted.

2. Inspecting the mounting screws

Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately. Failure to do so could result in serious hazard.

3. Maintenance of the motor

The motor unit winding is the very "heart" of the power tool. Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.

4. Inspecting the carbon brushes (Fig. 10)

The Motor employs carbon brushes which are consumable parts. When they become worn to or near the "wear limit", it could result in motor trouble. When an auto-stop carbon brush is equipped, the motor will stop automatically. At that time, replace both carbon brushes with new ones which have the same carbon brush Numbers shown in the figure. In addition, always keep carbon brushes clean and ensure that they slide freely within the brush holders.

5. Replacing a carbon brush

Loosen the set screw and remove the tail cover. Remove the brush cap and carbon brush. After replacing the carbon brush, do not forget to tighten the brush cap securely and to install the tail cover.

6. Service parts list

CAUTION

Repair, modification and inspection of Hitachi Power Tools must be carried out by a Hitachi Authorized Service Center. This Parts List will be helpful if presented with the tool to the Hitachi Authorized Service Center when requesting repair or other maintenance. In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.

MODIFICATION

Hitachi Power Tools are constantly being improved and modified to incorporate the latest technological advancements.

Accordingly, some parts may be changed without prior notice.

GUARANTEE

We guarantee Hitachi Power Tools in accordance with statutory/country specific regulation. This guarantee does not cover defects or damage due to misuse, abuse, or normal wear and tear. In case of complaint, please send the Power Tool, undismantled, with the GUARANTEE CERTIFICATE found at the end of this Handling instruction, to a Hitachi Authorized Service Center.

NOTE

Due to HITACHI's continuing program of research and development, the specifications herein are subject to change without prior notice.

IMPORTANT

Correct connection of the plug

The wires of the main lead are coloured in accordance with the following code:

Blue: — Neutral

Brown: — Live

As the colours of the wires in the main lead of this tool may not correspond with the coloured markings identifying the terminals in your plug proceed as follows: The wire coloured blue must be connected to the terminal marked with the letter N or coloured black. The wire coloured brown must be connected to the terminal marked with the letter L or coloured red. Neither core must be connected to the each terminal.

NOTE

This requirement is provided according to BRITISH STANDARD 2769:1984.

Therefore, the letter code and colour code may not be applicable to other markets except The United Kingdom.

Information concerning vibration

The measured values were determined according to EN60745.

The typical weighted root mean square acceleration value: 11.5m / s^2

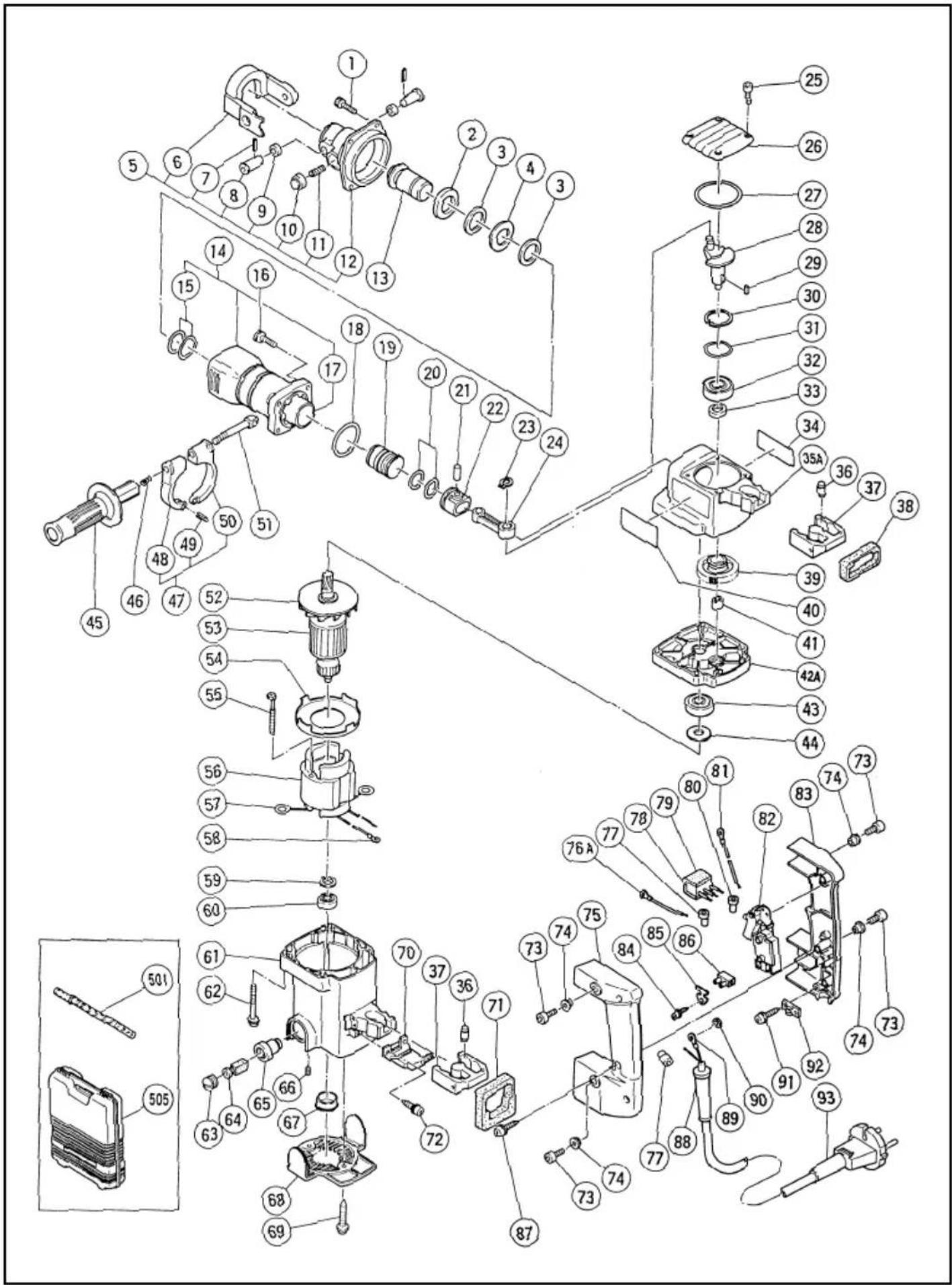

The exploded assembly drawing should be used only for authorized service center.

Item No.	Part Name
1	Nylock High Tension Bolt M7 × 25
2	Damper Washer
3	Damper
4	Washer
5	Front Cover Ass'y
6	Retainer
7	Roll Pin D4 × 20
8	Retainer Pin
9	Damper (B)
10	Pushing Button
11	Set Spring
12	Front Cover
13	Second Hammer
14	Cylinder Case Ass'y
15	O-Ring (A)
16	Nylock Bolt (W/Flange) M6 × 25
17	Cylinder
18	O-Ring (S-48)
19	Striker
20	O-Ring
21	Piston Pin
22	Piston
23	Retaining Ring for D10 Shaft
24	Connecting Rod
25	Seal Lock Hex. Socket Hd. Bolt M4 × 12
26	Crank Cover
27	O-Ring (S-55)
28	Crank Shaft
29	Feather Key 4 × 4 × 10
30	Retaining Ring for D40 Hole
31	O-Ring (S-40)
32	Ball Bearing (6203DDUCMAV2S)
33	Oil Seal
34	Name Plate
35A	Crank Case
36	Handle Damper
37	Transatory Unit
38	Handle Packing (A)
39	First Gear
40	HITACHI Label
41	Needle Bearing (M661)
42A	Gear Cover Ass'y
43	Ball Bearing (6201VVCMP52S)
44	Washer (B)
45	Side Handle
46	Spring
47	Handle Holder Ass'y
48	Handle Holder (B)
49	Roll Pin D6 × 22
50	Handle Holder (A)

Item No.	Part Name
51 Handle Bolt
52 Fan
53 Armature
54 Fan Guide
55 Hex. Hd. Tapping Screw D5×50
56 Stator Ass'y
57 Brush Terminal
58 Terminal
59 Washer (A)
60 Ball Bearing (608VVMC2EPS2L)
61 Housing Ass'y
62 Hex. Socket Hd. Bolt (W/Flange) M5×45
63 Brush Cap
64 Carbon Brush
65 Brush Holder
66 Hex. Socket Set Screw M5×8
67 Bearing Bushing (B)
68 Tail Cover
69 Tapping Screw (W/Flange) D4×16
70 Internal Wire Holder
71 Handle Packing (B)
72 Tapping Screw (W/Washer) D5×20
73 Seal Lock Hex. Socket Hd. Bolt M5×12
74 Distance Piece (B)
75 Handle (B)
76A Internal Wire
77 Connector (50092)
78 Noise Suppressor
79 Support (B)
80 Connector (50091)
81 Internal Wire
82 Switch (A)
83 Handle (A)
84 Tapping Screw (W/Flange) D4×12
85 Holder Plate
86 Pillar Terminal
87 Tapping Screw (W/Flange) D4×25
88 Cord Armor
89 Terminal
90 Washer M4
91 Tapping Screw (W/Flange) D4×16
92 Cord Clip
93 Cord
501 Bull Point	280MM
505 Case

Parts are subject to possible modification without notice due to improvements.

English		Italiano
GUARANTEE CERTIFICATE ①Model No. ②Serial No. ③Date of Purchase ④Customer Name and Address ⑤Dealer Name and Address (Please stamp dealer name and address)		CERTIFICATO DI GARANZIA ①Modello ②N° di serie ③Data di acquisto ④Nome e indirizzo dell'acquirente ⑤Nome e indirizzo del rivenditore (Si prega di apporre il timbro con quosti dati)
Deutsch		Nederlandlands
GARANTIESCHEIN ①Modell-Nr. ②Serien-Nr. ③Kaufdaturn ④Name und Anschrift des Kunden ⑤Name und Anschrift des Handlorders (Bitte mit Namen und Anschrift des Handlorders abstempeln)		GARANTIEBEWIJS ①Modelnummer ②Serienummer ③Datum van aankoop ④Naam en adres van de gebruiker ⑤Naam en adres van de handelaar (Stempel a.u.b. naam en adres vandehandelaar)
François		Espanol
CERTIFICAT DE GARANTIE ①No. de modulo ②No. de série ③Date d'achat ④Nom et adresse du client ⑤Nom et adresse du revendeur (Cachet portant le nom et l'adresse du revendeur)		CERTIFICADO DE GARANTIA ①Número de modelos ②Número de series ③ Fecha de requisión ④Nombre y direccion del cliente ⑤Nombre y direccion del distribuidor (Se ruega poner el sellú del distribuidor con su nombre y direccion)

HITACHI

①
②
③
④
⑤

Hitachi Power Tools Europe GmbH

Siemensring 34, 47877 willich 1, F. R. Germany

Tel: [phone]

Fax: [phone]

URL: http://www.hitachi-powertools.de

Hitachi Power Tools Netherlands B. V.

Brabanthaven 11, 3433 PJ Nieuwegein, The Netherlands

Tel: [phone]

Fax: [phone]

URL: http://www.hitachi-powertools.nl

Hitachi Power Tools (U. K.) Ltd.

Precedent Drive, Rooksley, Milton Keynes, MK 13, 8PJ, United Kingdom

Tel: [phone]

Fax: [phone]

URL: http://www.hitachi-powertools.co.uk

Hitachi Power Tools France S. A. S.

Prac del'Eglantier 22, rue des Crerisiers Lisses, C. E. 1541,

91015 EVRY CEDEX, France

Tel: [phone]

Fax: [phone]

URL: http://www.hitachi-powertools.fr

Hitachi Power Tools Belgium N.V. / S.A.

Koningin Astridlaan 51, 1780 Wemmel, Belgium

Tel: [phone]

Fax: [phone]

URL http://www.hitachi-powertools.be

Hitachi Fercad Power Tools Italia S.p.A

Via Retrone 49-36077, Altavilla Vicentina (VI), Italy

Tel: [phone]

Fax: [phone]

URL: http://www.hitachi-powertools.it

Hitachi Power Tools Iberica, S.A.

C / Migjorn, s/n, Poligono Norte, 08226 Terrassa, Barcelona, Spain

Tel: [phone]

Fax: [phone]

URL: http://www.hitachi-powertools.es
