Product Type	Saber Saw
Brand	Silverline
Model	304583
Rated Voltage	230-240 V ~ 50 Hz
Rated Power	800 W
No-load Speed	0-2600 rpm
Stroke Length	20 mm
Cutting Capacity - Wood	115 mm
Cutting Capacity - Steel	5 mm
Weight	2.8 kg
Power Cord Length	2 m
Protection Class	Double insulation (Class II)
Protection Rating	IP20
Sound Pressure Level (LPA)	76 dB(A)
Sound Power Level (LWA)	87 dB(A)
Weighted Vibration (ah,β)	4.13 m/s²
Weighted Vibration (ah,wB)	3.11 m/s²
Uncertainty K (vibrations)	1.5 m/s²
Sole Plate Adjustment	Yes, tool-free with adjustment screw
Adjustable Handle	Yes, 5 positions
Variable Speed	Yes, by trigger
Continuous Operation	Yes, lock button
Included Accessories	Hex key, wood blade
Maintenance	Cleaning with soft cloth, carbon brush replacement
Warranty	3 years (subject to registration)

Frequently Asked Questions - 304583 SILVERLINE

How to change the blade of the saber saw?

Always unplug the tool. Fully rotate the chuck collar, insert the blade fully into the chuck, then release the collar. Pull on the blade to ensure it is secure. To remove, rotate the collar and pull out the blade.

How to adjust the shoe of the saw?

Ensure the tool is unplugged. Loosen the two shoe adjustment screws with the supplied hex key, set the shoe to the desired height, then retighten the screws.

Can this saw be used for plunge cuts?

Yes, but only on soft materials like wood or plasterboard. Use a blade specifically designed for plunge cutting. Inspect the surface to avoid hidden obstacles.

What materials can this saw cut?

Wood, plasterboard, plastic, mild steel, and non-ferrous metals (with appropriate blades). Max capacity: wood 115 mm, steel 5 mm.

How to maintain the saber saw?

Unplug the tool. Clean with a soft brush or dry cloth. Do not use water. Regularly check screws and power cord. Replace worn carbon brushes.

What to do if the saw does not start?

Check the power supply. If that does not solve the problem, the on/off trigger or carbon brushes may be defective. Contact an authorized Silverline service center.

How to adjust the handle of the saw?

Pull the rotation latch back to disengage the rotating body, turn the handle to the desired position (5 positions), then release the latch to lock.

What are the important safety instructions?

Always wear safety glasses, hearing protection, a dust mask, and gloves. Use insulated handles. Unplug the saw before any adjustments. Ensure the work area is clean and well-lit.

How to use the continuous run button?

Press the trigger, then push the continuous run button. Release the trigger to keep the saw running. To stop, press the trigger again and release it.

What is the warranty of this saw?

Silverline offers a 3-year warranty. Register the product at silverlinetools.com within 30 days of purchase. Keep your purchase receipt. The warranty covers material and manufacturing defects.

USER MANUAL 304583 SILVERLINE

STORM
STORM
STORM
STORM
STORM
STORM
STORM
STORM
STORM
STORM
STORM
STORM
STORM
STORM
STORM

SILVERLINE

800W Reciprocatios 115mm

GB 800W Reciprocating Saw
Scie sabre 800 W
800-W-Säbelsäge

ESP Sierra sable 800 W
800 W Sega a sciabola
800 W reciprozaag

SIRIM

800W Reciprocating Saw 115mm

English 4

Français 10

Deutsch 16

Espanol 22

Italiano 28

Nederlands. 34

Description of Symbols

The rating plate on your tool may show symbols. These represent important information about the product or instructions on its use

Wear hearing protection

Wear eye protection

Wear breathing protection

Wear head protection

Wear hand protection

Read instruction manual

Class II construction (double insulated for additional protection)

Conforms to relevant legislation and safety standards

Environmental Protection

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice

Specification

Input voltage: 230-240V~50Hz

Power: 800W

No load speed: 0 - 2600min

Stroke length: 20mm

Cutting capacity: Wood: 115mm

Steel: 5mm

Protection class:

Ingress protection: IP20

Length of power cord: 2m

Weight: 2.8kg

Sound and vibration information:

Sound pressure L .76dB(A)

Sound power L . 87dB(A)

Uncertainty K: 3dB

Weighted vibration a 13:4.13m/s2

Weighted vibration a. 3.11m / s^2

Uncertainty K: 1.5m/s²

The sound intensity level for the operator may exceed 85dB(A) and sound protection measures are necessary.

As part of our ongoing product development, specifications of Silverline products may alter without notice.

WARNING: Always wear ear protection where the sound level exceeds 85dB(A) and limit the time of exposure if necessary. If sound levels are uncomfortable, even with ear protection, stop using the tool immediately and check the ear protection is correctly fitted and provides the correct level of sound attenuation for the level of sound produced by your tool.

WARNING: User exposure to tool vibration can result in loss of sense of touch, numbness, tingling and reduced ability to grip. Long term exposure can lead to a chronic condition. If necessary, limit the length of time exposed to vibration and use anti-vibration gloves. Do not operate the tool with hands below a normal comfortable temperature, as vibration will have a greater effect. Use the figures provided in the specification relating to vibration to calculate the duration and frequency of operating the tool.

Sound and vibration levels in the specification are determined according to EN60745 or similar international standards. The figures represent normal use for the tool in normal working conditions. A poorly maintained, incorrectly assembled, or misused tool, may produce increased levels of noise and vibration. www.osha.europa.eu provides information on sound and vibration levels in the workplace that may be useful to domestic users who use tools for long periods of time.

General Power Tool SafetyWarnings

WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING: This appliance is not intended for use by persons (including children) with reduced, physical or mental capabilities or lack of experience or knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children must be supervised to ensure that they do not play with the appliance.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work Area Safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control

Electrical Safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock. WARNING: When used in Australia or New Zealand, it is recommended that this tool is ALWAYS supplied via Residual Current Device (RCD) with a rated residual current of 30mA or less.

Personal Safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards

Power Tool Use & Care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation

Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained

WARNING: Before connecting a tool to a power source (mains switch power point receptacle, outlet, etc.) be sure that the voltage supply is the same as that specified on the nameplate of the tool. A power source with a voltage greater than that specified for the tool can result in serious injury to the user, and damage to the tool. If in doubt, do not plug in the tool. Using a power source with a voltage less than the nameplate rating is harmful to the motor.

Reciprocating Saw Safety

• Ensure that lighting is adequate
• Keep the area free of tripping hazards
• Wear appropriate safety equipment including eye protection and gloves to protect against vibration
• Never saw near combustible liquids or gases
• Check for hidden wiring and pipes before sawing
• Use recommended blades only
  Blades must be sharp and not cracked or distorted
• Before starting work, inspect the workpiece and remove all embedded objects such as nails, screws etc
  Support and secure the workpiece correctly
• When cutting cylindrical wood, use clamps that prevent the workpiece from turning
• Use the insulated handles when operating power tools. This protects the operator if the tool accidentally cuts through hidden electrical wiring, causing the tool to become 'live'
  Always stand to one side when operating the saw
• Do not use your hands to remove sawdust, chips or waste close to the blade
• Never reach over the blade to remove waste or off-cuts
• Do not attempt to free a jammed blade until the machine has been disconnected from the power
• Do not attempt to slow or stop a blade with any object. Let the blade come to rest naturally
• If you are interrupted when operating the saw, complete the process and switch off before looking up
  Periodically check the tool for loose nuts, bolts and tighten as necessary

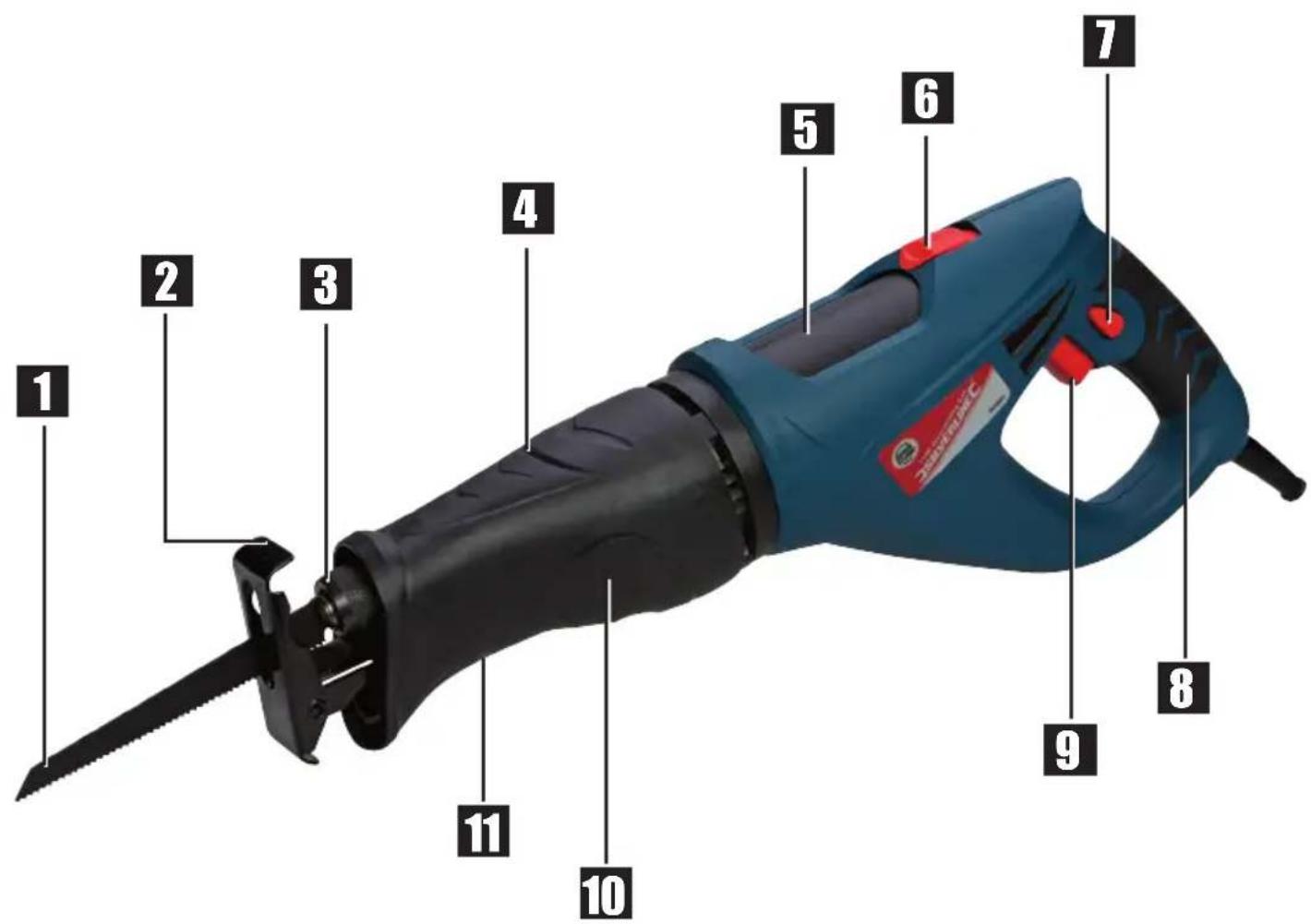

Product Familiarisation

1 Wood Blade
2Voting Shoe
3 Chuck Collar
4 Secondary Grip
5 Rotating Barrel
6 Barrel Locking Switch
7 Lock-On Button
8 Handle
9 Variable Speed Trigger Switch
10 Barrel Grip
11 Shoe Adjustment Screws

Included Accessories:

• 1 x hex key

Intended Use

Reciprocating power saw for light to medium duty cutting of wood, plasterboard, plastic, mild steel, and also non-ferrous metals (requiring the purchase of additional, material-specific saw blades).

Unpacking Your Tool

• Carefully unpack and inspect your tool. Familiarise yourself with all its features and functions
• Ensure that all parts of the tool are present and in good condition. If any parts are missing or damaged, have such parts replaced before attempting to use this tool

Before Use

Fitting a saw blade

WARNING: ALWAYS ensure that the tool is switched off and disconnected from the power supply, before fitting or removing saw blades.
WARNING: ALWAYS wear suitable cut-proof gloves when handling saw blades.
WARNING: DO NOT continue to use blunt, warped or otherwise damaged saw blades. Note: ALWAYS fit a saw blade specific to the material you are cutting.

1. Rotate the Chuck Collar (3) fully anticlockwise, and insert the blade shank as far as it will go into the chuck
2. Release the chuck collar
3. Pull the blade to ensure that it is secure. If it is not locked firmly in place, repeat the above procedure
4. To remove a blade from the chuck, rotate the chuck collar fully anticlockwise, and pull the blade forward, out of the chuck

Adjusting the handle

Note: The Handle (8) orientation of this reciprocating saw can be adjusted to adapt to working conditions and to best suit operator preference.

1. Push the Barrel Locking Switch (6) back to release the Rotating Barrel (5)
2. Rotate the Handle (8) to the position required
3. Release the Barrel Locking Switch. The barrel should lock in position with a click

Note: Rotate the barrel back and forth to check that it cannot move, or that it clicks into the adjacent lock position.

WARNING: DO NOT operate the tool unless the handle is securely locked in one of the 5 pre-set positions.

Adjusting the shoe

WARNING: ALWAYS ensure that the tool is switched off and disconnected from the power supply, before attempting to adjust the shoe.

1. Loosen the two Shoe Adjustment Screws (11) with the supplied hex key
2. Reposition the shoe to shield the length of the blade as required
3. Retighten the Shoe Adjustment Screws

WARNING: Take care not to over-tighten the screws, or you may damage the thread.

Note: Where possible, rest the shoe on the material being cut. Pivot the angle of the shoe to suit the shape of the material.

WARNING: DO NOT operate the reciprocating saw if the adjustable shoe is damaged or not installed.

Operation

WARNING: Always use adequate protective equipment, including eye protection, respiratory and hearing protection, as well as suitable gloves, when working with this tool.
WARNING: When cutting wood, ensure foreign objects, such as nails and screws, are removed from the workpiece before starting to cut.
WARNING: NEVER attempt to cut with a saw blade fitted that is not suitable for the material. NEVER use blunt or otherwise damaged saw blades.

Note: ALWAYS use clamps to secure your workpiece to the workbench wherever possible.

Switching on and off

1. Connect the plug to the power supply
2. Hold the tool securely with both hands by the Handle (8) and Barrel Grip (10), and make sure that you have full control at all times
3. Ensure the tool is not in contact with the workpiece before commencing with switching on
4. Press the Variable Speed Trigger Switch (9) to start the machine

Note: The speed of the blade is controlled by increasing/decreasing pressure on the Variable Speed Trigger Switch (also see 'Adjusting Tool Speed').

1. Release the Variable Speed Trigger Switch to stop the machine

WARNING: ALWAYS remove the saw blade from the cut before switching off.
WARNING: Always wait until the saw blade has stopped moving completely, before putting the machine down. Always disconnect from the power supply after use.

Note: This saw features a Lock-On Button (7), which locks the Variable Speed Trigger Switch (9) in the 'On' position. Press the Variable Speed Trigger Switch fully, and then engage the Lock-On Button for continuous operation. The tool will run on maximum speed. Press the Variable Speed Trigger Switch again, to release the Lock-On Button, and switch the machine off.

WARNING: DO NOT use the lock-on feature when the material requires cutting at reduced speeds (e.g. when cutting metal objects).

Adjusting tool speed

Note: This Silverline reciprocating saw features variable speed control, adjusted by the Variable Speed Trigger Switch (9), which enables it to be used with a variety of different materials, workpieces and objects.

WARNING: ALWAYS adjust the speed according to material requirements. Use appropriate cutting fluid or cooling agent when cutting metals.

• The Variable Speed Trigger Switch (9) is pressure sensitive. The further the Variable Speed Trigger Switch is depressed, the faster the tool speed
  Note: If in doubt about the correct cutting speed, refer to the blade manufacturer's instructions, and follow recommendations specific to the material being cut.

Making general cuts

1. Mark out the cutting line

2. Ensure that the material to be cut is secure. Small workpieces should be held in a vice or clamped to the workbench

3. Hold the saw firmly using both hands, one on the Handle (8), one on the Barrel Grip (10)

4. Make sure that the blade is clear of any obstruction and that the power cord or any extension cord is out of the path of the blade

5. Squeeze the trigger and allow the blade to reach full speed

6. Place the shoe on the workpiece and begin sawing

WARNING: Use ONLY enough pressure to keep the saw cutting. NEVER force the saw blade; allow the blade and the saw to do the work. Use of excessive pressure that causes bending or twisting of the blade may cause the blade to break.

Making plunge cuts

WARNING: Plunge cutting is an advanced technique with higher risk. Only attempt plunge cuts when you are competent and experienced with this technique.
WARNING: ONLY attempt the plunge cutting procedure in soft materials such as wood, plasterboard and similar materials. DO NOT attempt plunge cuts in metal or hard materials. ONLY use blades specifically designed for plunge cutting. If in doubt, refer to the blade manufacturer's instructions.
WARNING: Inspect both sides of the surface you are planning on plunge cutting into. Ensure there are no foreign objects on the underneath, or objects which could be damaged. Be aware of hidden pipe work and cables, when plunge cutting into drywalls, ceilings or floor boards. If pipes or cables may be present, switch off all electrical circuit breakers and shut off water and gas supplies at the relevant mains valves.
WARNING: Blindly plunge cutting into walls, floors and ceilings may lead to serious injury and substantial property damage.

1. Mark the line of the cut
2. Choose a point inside the area to be cut out and place the tip of the blade over that point
3. Rest the front edge of the shoe on the workpiece, so the blade does not make contact with the workpiece surface
4. Hold the tool securely with both hands by the Handle (8) and Barrel Grip (10), and make sure that you have full control at all times
5. Squeeze the Variable Speed Trigger Switch (9) trigger fully, for maximum speed, and allow the blade to reach full speed
6. Slowly lower the blade until it makes contact with the workpiece
7. Continue to cut slowly, until the blade has fully penetrated the thickness of the workpiece
8. Commence with cutting as normal

Metal cutting tips

Note: This saw is capable of cutting metals, such as sheet steel, pipe, steel rods, aluminium, brass and copper.

• ALWAYS use a blade specified for cutting metal
• Be careful not to bend or twist the blade and do not force the cutting action
• ALWAYS use a suitable cutting fluid when sawing soft metals and steel. This keeps the blade cooler, prolongs blade life and makes cutting more efficient
• Clamp the work firmly and cut close to the clamping point to minimise vibration
• When cutting conduit pipe or angle iron, clamp the work in a vice if possible and cut close to the vice
• To cut thin sheet metal, sandwich the sheet between hardboard or plywood and clamp the layers to prevent vibration and tearing of the metal

Accessories

• A full range of material specific saw blades, plunge cutting blades and other accessories is available from your Silverline stockist

Maintenance

WARNING: ALWAYS ensure that the tool is disconnected from the power supply, before cleaning, changing accessories, or carrying out maintenance.

General inspection

Regularly check that all the fixing screws are tight. They may vibrate loose over time
- Inspect the supply cord of the tool, prior to each use, for damage or wear. Repairs should be carried out by an authorised Silverline service centre. This advice also applies to extension cords used with this tool

Cleaning

WARNING: ALWAYS wear protective equipment including eye protection and gloves when cleaning this tool.

• Keep your tool clean at all times. Dirt and dust will cause internal parts to wear quickly, and shorten the device's service life
• Clean the body of your machine with a soft brush, or dry cloth
• Never use caustic agents to clean plastic parts. If dry cleaning is not sufficient, a mild detergent on a damp cloth is recommended

Water must never come into contact with the tool
- Ensure the tool is thoroughly dry before using it.
If available, use clean, dry, compressed air to blow through the ventilation holes (where applicable)

Brushes

Over time the carbon brushes inside the motor may become worn
- Excessively worn brushes may cause loss of power, intermittent failure, or visible sparking
- To replace the brushes, remove the brush access plugs from both sides of the machine. Remove the worn brushes and replaced with new. Replace brush access plugs. Alternatively, have the machine serviced at an authorised Silverline service centre

Note: The brush access caps are located on the Rotating Barrel (5). The Handle (8) must be adjusted to the most outward positions to gain brush access (see 'Adjusting handle position').

Storage

• Store this tool carefully in a secure, dry place out of the reach of children

Disposal

Always adhere to national regulations when disposing of power tools that are no longer functional and are not viable for repair.

• Do not dispose of power tools, or other waste electrical and electronic equipment (WEEE), with household waste
• Contact your local waste disposal authority for information on the correct way to dispose of power tools

Troubleshooting

Problem Possible cause Solution

No function when Variable Speed Trigger Switch (9) is operated	No power Check power supply
	Defective Variable Speed Trigger Switch	Have the Variable Speed Trigger Switch replaced by an authorised Silverline service centre
	Carbon brushes worn	Replace carbon brushes, or have the carbon brushes replaced by an authorised Silverline service centre
Slow cutting performance	Saw blade not suitable for the material being cut Fit compatible saw blade
	Saw blade blunt Fit new saw blade
	Incorrect cutting speed Adjust cutting speed to match material requirements
Saw blade blunts quickly	Saw blade not suitable for the material being cut Fit compatible saw blade
	Too much pressure exerted on to the tool Use less pressure whilst moving the machine
	Cutting speed too fast Reduce cutting speeds to material requirements
	No cutting fluid/cooling agent used when cutting metal Use a suitable cutting fluid when cutting metal

Silverline Tools Guarantee

This Silverline product comes with a 3 year guarantee

Register this product at www.silverlinetools.com within 30 days of purchase in order to qualify for the 3 year guarantee. Guarantee period begins according to the date of purchase on your sales receipt.

Registering your purchase

Registration is made at silverlinetools.com by selecting the Guarantee Registration button. You will need to enter:-

• Your personal details
• Details of the product and purchase information

Once this information is entered your guarantee certificate will be created in PDF format for you to print out and keep with your purchase.

Terms & Conditions

Guarantee period becomes effective from the date of retail purchase as detailed on your sales receipt.

PLEASE KEEP YOUR SALES RECEIPT

If this product develops a fault within 30 days of purchase, return it to the stockist where it was purchased, with your receipt, stating details of the fault. You will receive a replacement or refund.

If this product develops a fault after the 30 day period, return it to:

Silverline Tools Service Centre PO Box 2988

Yeovil BA21 1WU,UK

The guarantee claim must be submitted during the guarantee period.

You must provide the original sales receipt indicating the purchase date, your name, address and place of purchase before any work can be carried out.

You must provide precise details of the fault requiring correction. Claims made within the guarantee period will be verified by Silverline Tools to establish if the deficiencies are related to material or manufacturing of the product.

Carriage will not be refunded. Items for return must be in a suitably clean and safe state for repair, and should be packaged carefully to prevent damage or injury during transportation. We may reject unsuitable or unsafe deliveries.

All work will be carried out by Silverline Tools or its authorized repair agents.

The repair or replacement of the product will not extend the period of guarantee

Defects recognised by us as being covered by the guarantee shall be corrected by means of repair of the tool, free of charge (excluding carriage charges) or by replacement with a tool in perfect working order.

Retained tools, or parts, for which a replacement has been issued, will become the property of Silverline Tools.

The repair or replacement of your product under guarantee provides benefits which are additional to and do not affect your statutory rights as a consumer.

What is covered:

The repair of the product, if it can be verified to the satisfaction of Silverline Tools that the deficiencies were due to faulty materials or workmanship within the guarantee period.

If any part is no longer available or out of manufacture, Silverline Tools will replace it with a functional replacement part.

Use of this product in the EU.

What is not covered:

Silverline Tools does not guarantee repairs required as a result of:

Normal wear and tear caused by use in accordance with the operating instructions eg blades, brushes, belts, bulbs, batteries etc.

The replacement of any provided accessories drill bits, blades, sanding sheets, cutting discs and other related items.

Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the product.

Use of the product for anything other than normal domestic purposes.

Change or modification of the product in any way.

Use of parts and accessories which are not genuine Silverline Tools components.

Faulty installation (except installed by Silverline Tools).

Repairs or alterations carried out by parties other than Silverline Tools or its authorized repair agents.

Claims other than the right to correction of faults on the tool named in these guarantee conditions are not covered by the guarantee.

CE Declaration of Conformity

The undersigned: Mr Darrell Morris

as authorised by: Silverline Tools

Declaresthatthe

Identification code: 304583

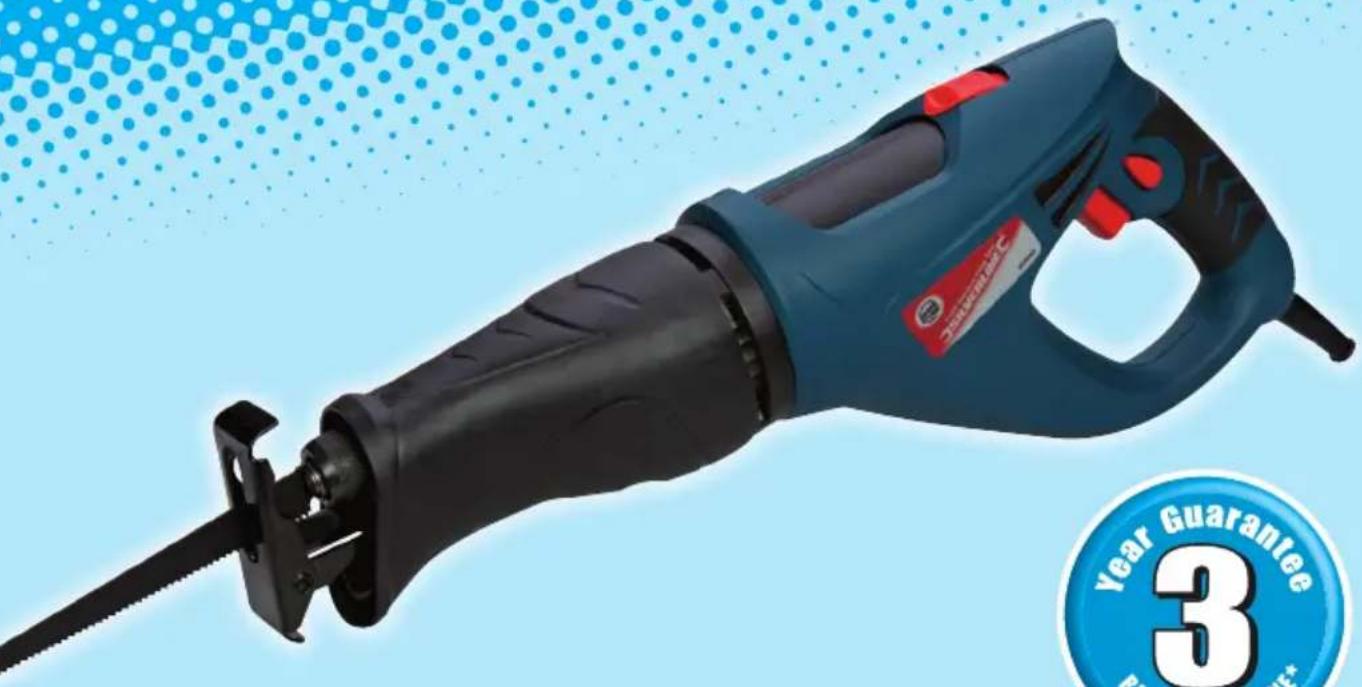

Description: 800W Reciprocating Saw

Conforms to the following Directives:

• Machinery Directive 2006/42/EC
  EMC Directive 2004/108/EC
  RoHS Directive 2011/65/EU
  EN 60745-1:2009+A11:2010
  EN 60745-2-11:2010
  EN 55014-1:2006+A1:2009+A2:2011
  EN 55014-2:1997+A1:2001+A2:2008
  EN 61000-3-2:2008+A1:2009+A2:2009
  EN 61000-3-3:2008

Notified body: Intertek Testing Services, Shanghai, China

The technical documentation is kept by: Silverline Tools

Date: 20/01/14

Signed by:

Director

Name and address of the manufacturer:

Powerbox Ltd., Boundary Way, Lufton Trading Estate, Yeovil, Somerset,

BA22 8HZ, United Kingdom

Organisme notification: Intertek Testing Services, Shanghai, China

Silverline Tools Service Centre

PO Box 2988

Yeovil

Organismo notifications: Intertek Testing Services, Shanghai, China

La documento Tecnica se conserva en: Silverline Tools

Fecha: 20/01/14

Firma:

Director General

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU,GB

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, GB

*Register online within 30 days. Terms & Conditions apply

Garantie de 3 ans
