Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

CONTENT

Technical Data 18

Declaration of Conformity 18

Safety Instructions 19

Hints on Disposal 20

Product Description 21

Control Panel 22

Quick Start Guide 23

Operation 24

Instructions for Brewing Coffee 27

Care and Cleaning 30

Troubleshooting 32

TECHNICAL DATA

Item number 10032095, 10032096
Power supply 220-240 V ~ 50-60 Hz

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

SAFETYINSTRUCTIONS

General instructions

• Inspect the appliance for visible signs of damage before use. Do not use a damaged appliance.
• Do not allow children to use the appliance without supervision.
• Do not leave the appliance unattended during operation.
• Do not pull the mains cable to remove the plug from the socket.
• Persons who due to their physical, mental or motor response abilities are unable to operate the appliance may only use the appliance under supervision or instruction by a responsible person.
• Repairs to the appliance must only be carried out by authorised dealers or by the works customer service. Unqualified repairs can lead to considerable danger for the user. In addition, the warranty will be void.
• Repairs to the appliance during the warranty period must be carried by an authorized customer service, otherwise no warranty shall be granted for direct and indirect damage.
• Faulty parts must only be replaced with original spare parts. Only original spare parts guarantee that the safety requirements are met.
• Never operate the appliance without water, otherwise the appliance will be damaged.

CAUTION

Risk of electric shock! Do not use the appliance if the mains lead or plug is damaged. Do not open the housing and never immerse the appliance or the plug into water or other liquids.

CAUTION

Risk of burns! Keep your face and body parts away from the unit so that you do not spray on hot water. Allow the appliance to cool completely before cleaning.

Requirements for the place of use

• Place the appliance on a dry, flat, waterproof and heat-resistant surface.
• The surface finishes on furniture may contain constituents that can be detrimental to the rubber feet of the appliance. If necessary, place a mat under the feet of the appliance.
• Do not install the appliance in a hot, wet or very humid environment or in the vicinity of infall ammable materials.
• Because of hot surfaces, the appliance must be placed at a location which is out of the reach of children.
• The socket used must be easily accessible to enable quick disconnection of the appliance power circuit in the event of an emergency.

Electrical connection

• Before connecting the appliance, compare the connection data (voltage and frequency) on the rating plate with those of your mains power supply. The data must correspond in order to avoid damage to the appliance. If in doubt, ask your electrical appliance retailer.
• The socket has to be protected by at least a 10 A circuit breaker.
• If the appliance is to be connected to the power supply via an extension cable, the cable cross-section has to be at least 1.5mm^2
• Ensure that the mains cable is undamaged and is not laid over hot surfaces or sharp edges.
• The mains cable must not pulled tightly, bent or come into contact with the hot appliance or hot surfaces.
• Place the cable in such a way as to avoid danger from tripping.
• The electrical safety of the appliance is only assured when it is connected to a properly installed protective earth (PE) conductor system. Connection to a mains socket without PE
• conductor is forbidden. If in doubt, the electrical system must
• be checked by a qualified electrician.
• The manufacturer assumes no liability for injury or damage caused by a missing or interrupted protective earth conductor.

HINTS ON DISPOSAL

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

PRODUCT DESCRIPTION

1 Grinding lid 10 Filter compartment
2 Grinding 11 Filter insert
3 Grinding fineness scale 12 Level indicator
4 Water tank lid 13 Water tank
5 Release button 14 Grinding shaft
6 Control panel with control elements 15 Filter holder with
7 Coffee jug with lid 16 filter compartment flap
8 Hot plate 17 Activated carbon filter
9 Drip protector

Accessories:

• Cleaning brush
• Measuring spoon

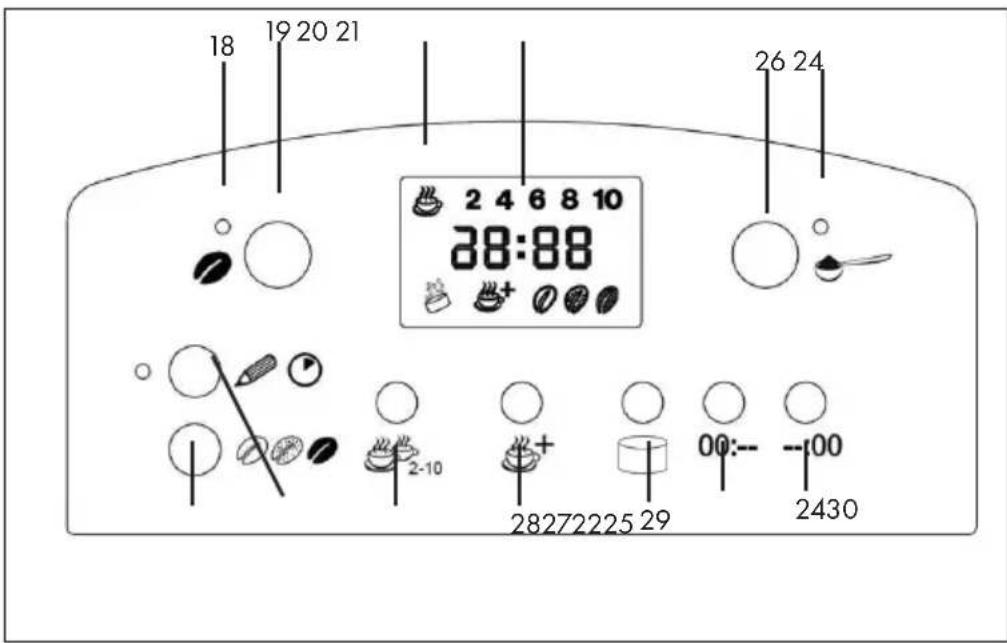

CONTROLPANEL

18"	On/Off indicator lamp
19		Brewing coffee with coffee beans
20	cup symbol
21	Time display
22		Timer button (setting the timer)
23		Timer indicator lamp
24		Coffe Powder Indicator lamp
25		Coffee strength adjustment
26		Brewing coffee with coffee powder
27		Setting the number of cups
28		For extra-strong coffee
29		Switching the fi liter change reminder on and off
30	00:--	Set hour
31	--:00	Set minutes

QUICK START GUIDE

1 Activate the display by pressing any key.
2 Wipe the appliance and the accessories with a slightly damp cloth.
3 Wash the coffee jug (7) with warm water and washing-up liquid.
4 Fill the water tank (13) with fresh water up to mark 10 as described in the section Filling with water.
5 Fill the appliance with coffee as described in the section Filling with coffee beans.
6 Rinse the filter insert (11) with clean water and install it in the appliance as described in the section Inserting the filter.
7 Insert an empty unused filter bag as described in the section Inserting a new filter bag.
8 Place the coffee jug (7) with the lid on the hot plate (8) under the filter compartment (10).
9 Set the number of cups to 10 as described in the section Setting the number of cups.
10 Press the Start button (19) to switch the grinder on.
11 Wait until all the water has run through and the "cup" symbol (20) starts to flash.
12 Empty the coffee jug (7) and pour the coffee away.
13 Wash the coffee jug (7) with warm water and washing-up liquid.

Note: During the initial period of use, odour may be produced by the materials used in the appliance. The odour will diminish after a short period of time.

OPERATION

CAUTION

Danger of burning! Hot steam may escape during operation. Observe the following safety precautions to avoid burning yourself. Keep your body away from escaping steam. Do not open the fiiter compartment during operation.

Important Hints

• Only fill the grinder storage container with and never with water or coffee power.
• Only fill the water tank with water and never with coffee beans or coffee power.

Switching on the display lighting

The blue display lighting goes out 60 seconds after the last keypress except when the appliance is in operation, e.g. coffee is being brewed or kept warm. Press any key to switch on the display lighting. NOTE: Only press the button for the desired action after the lighting goes on.

Setting the time

1 Insert the plug into the socket. The time 12:00 starts flashing on the display.
2 Set the hours by pressing the hour button (30).
3 Set the minutes by pressing the minute button (31).

Note: The time will be stored until either a new time is entered or the plug is removed from the socket for more than a minute.

Filling with water

1 Open the water tank lid (4).
2 Place the grinder cover (1) onto the grinder (2).
3 Fill the necessary amount of water for the number of cups required.
4 Close the water tank lid (4)

Note: The entire amount of water in the tank is always used, independent of the number of cups or the strength of coffee set. Observe the filling level indicator (12) in the water tank. Do not overfit!

Filling with coffee beans

1 Remove the grinder cover (1).
2 Make sure that the water tank lid (4) is closed to prevent coffee beans from falling into the water tank.
3 Pour the coffee beans into the grinder (2). Do not overfill!
4 Replace the cover (1) on the grinder (2).

Inserting a new filter bag

Press the unlocking button (5) to open the filter compartment (10). Place a size 4 filter bag into the filter insert (11). Close the filter compartment (10).

Specifying the number of cups

Press and hold the button (27) until the required number of cups is displayed.

Note: The following settings are possible: 2, 4, 6, 8, or 10 cups. The number of cups set will be stored until either a new number of cups is entered or the plug is removed from the socket for more than a minute.

Setting the coffee strength

Press and hold the button for the coffee strength (25) until the display shows the desired strength.

Note: The following settings are possible: light, medium and strong. The set coffee strength will be stored until either a new coffee is entered or the plug is removed from the socket for more than a minute.

Particularly strong coffee

Press the button for strong coffee (28) to prepare a particularly strong coffee (similar to espresso). The display reads 2-4. Pressing the button (28) switches the number of cups between 2 and 4.

Note: This function can be activated only if 2 or 4 cups of coffee have been set. Press the button (27) to switch this function off. The 2-4 symbol in the display goes off.

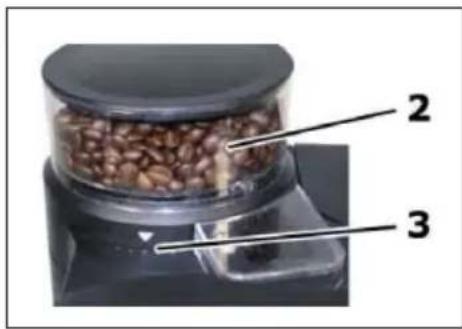

Setting the grinding fineness

The grinding fineness is set by turning the grinder to the right or left (2). Turn the grinder (2) so that the scale arrow of the grinder is pointing to the position with the desired degree of fineness on the scale (3).

• Completely left: fi nest grind.
• Completely right: coarsest grind.

Activated carbon fi ler change

After 70 brewing processes, the symbol for fi lter change starts fl ashing and indicates that the activated carbon fi lter must be replaced. Change the activated carbon fi lter and press the button to confirm the fi lter change.

Removing and fitting the lid of the coffee jug

The appliance is equipped with a glass jug and a lid. To remove the lid, proceed as follows:

123
Open the lid as illustrated.	Turn the lid in the direction of the arrow to release the left-hand pin of the lid from the holder (see detailed illustration). The lid can now be removed.	First insert the right-hand pin into the holder, then turn the lid in the direction of the arrow so that the left-hand pin engages. Close the lid.

INSTRUCTIONS FOR BREWING COFFEE

Requirements for aromatic coffee

If possible, use freshly ground coffee powder for the optimum
flavour.
- Experiment with the amount of coffee powder until you find the flavour you prefer.
- Try various different levels of grinding fineness for the coffee powder. The grinding fineness for the coffee powder influences the aroma of the coffee.
- Fill the water tank with the amount fresh water required for the desired number of cups.
- Clean and descale the appliance at regular intervals. A dirty and/or scaled appliance impairs the aroma.
- Although the hot plate on which the coffee jug stands can keep the coffee hot for some time, we recommend that you pour brewed coffee into a thermos jug and switch off the appliance.

Preparation

• When the appliance is in operation, the coffee jug (7) must be under the filter compartment (10) and the lid of the coffee jug must be fitted correctly. The lid of the coffee jug presses the drip protector (9) upwards, and the coffee can flow from the filter through the lid into the coffee jug.
• The drip protector (9) prevents water running out of the filter when the coffee jug (7) is removed from the appliance

Note: During the brewing process however, the coffee jug (7) should not be removed from the appliance for more than 30 seconds, otherwise the filter will fill up and the coffee will overflow.

• When the brewing process has been completed, the "cup" symbol (20) in the top left of the display starts flashing.

Brewing coffee with coffee beans

Activate the display lighting by pressing any key. The lighting goes out 60 seconds after the last button was pressed.

1 Fill the water tank with water as described in the section Filling with water.
2 Fill the appliance with coffee as described in the section Filling with coffee beans.
3 Insert an empty unused filter bag as described in the section Inserting a new filter bag.
4 Select the desired number of cups as described in the section Setting the number of cups.
5 Set the desired strength of coffee as described in the section Setting the coffee.
6 Set the grinding fineness as described in the section Setting the grinding fineness.
7 Press the Start button (19) to switch on the grinder. The indicator lamp (18) lights up, the freshly ground coffee powder is transported into the filter compartment (10) through the chute and the coffee is brewed.

Press the Start button (19) to stop the brewing process and switch the appliance off. The indicator lamp (18) goes off; the appliance is switched off. The appliance automatically switches itself off after 2 hours

Brewing coffee with coffee powder

Activate the display lighting by pressing any key. The lighting goes out 60 seconds after the last button was pressed.

1 Fill the water tank with water as described in the section Filling with water.
2 Insert an empty unused filter bag as described in the section Inserting a new filter bag. With the help of the measuring spoon supplied (1 level spoon per cup), fill the filter bag with the required amount of coffee powder up to a maximum of 2 cm under the filter edge
3 Press the Start button (26) to start brewing the coffee. The indicator lamp (24) lights up and the coffee is brewed.

Press the Start button (19) to stop the brewing process and switch the appliance off. The indicator lamp (18) goes off; the appliance is switched off. The appliance automatically switches itself off after 2 hours

Brewing coffee using the preset timer

Activate the display lighting by pressing any key. The lighting goes out 60 seconds after the last button was pressed.

1 Press the Timer button (22) and keep the button pressed for about 3 seconds. The indicator lamp (23) starts flashing.
2 Use the hour button (30) and the minute button (31) to set the required starting time.

For brewing coffee with coffee powder:
3 Also press the coffee powder button (26) while as the indicator lamp (23) is still flashing. The indicator lamp for coffee powder (24) lights up. Fill the water tank with water and the filter bag with coffee powder.

Brewing coffee with coffee beans:

3 Make sure that the Coffee Powder indicator lamp (24) is not on. If necessary, press the coffe powder button (26) while the timer indicator lamp (23) is still flashing. The indicator lamp (24) goes off.
4 Set the number of cups, the strength of the coffee and the grinding fineness.
5 Fill water into the water tank and the coffee beans into the grinder.
6 Place an unused, empty filter bag into the filter holder.

Start Timer: Press the Timer button (22) again to activate the preset timer function. You can also wait until the indicator lamp (23) stops flashing and then press the Timer button (22). The indicator lamp (23) lights up permanently and the time selection function is activated. When the preset time is reached, the appliance is switched on automatically.

Stopping the preset timer

In order to stop the timer, press one of the following buttons:

• Timer button (22) - The indicator lamp (23) goes off.
• Coffee Beans button (19) - The indicator lamp (23) goes off and the appliance starts brewing the coffee with coffee beans.
• The Coffee Powder button (26). The Timer indicator lamp (23) goes out and the appliance starts brewing coffee with coffee powder.

After brewing

Carry out the following operations after each use of the appliance in order to retain proper function of the appliance and prevent mould from forming:

CAUTION Danger of burning! Observe the following safety precautions to avoid burning yourself. Always allow the appliance to cool down before cleaning.

Emptying / cleaning the filter

• Press the unlocking button (5) to open the filter compartment (10).
• Remove the fi lter insert (1 1) with the fi lter bag from the fi lter compartment.
• Throw the fi lter bag away and wash the fi lter insert (1 1) and drip protector (9).

CARE AND CLEANING

NOTE: Turn off the unit, and unplug it from the wall outlet before maintenance or cleaning to avoid electric shock.

• Wait until the appliance has cooled down before you start to clean it.
• Never immerse the appliance or the plug into water or other liquids.
• Do not use sharp objects or abrasive cleaning agents to clean the surfaces.
• Clean the fi liter insert (11) and coffee jug (7) after each use. The coffee jug, lid and fi liter insert can be washed in a dish washer. Remove the lid of the coffee jug first as described in the section Removing/fitting the coffee jug lid.
• If necessary, clean the grinder (2) and the grinder cover (1).
• Wipe the housing with a moist cloth. Use a little washing-up liquid to remove any stubborn stains.

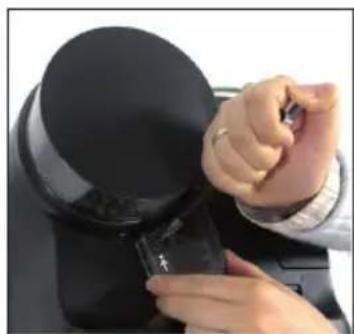

If the grinder shaft becomes blocked during the grinding process

Push the locking button (on the symbol) with a pointed object and remove the lid.

Clean the grinder shaft (14) with the cleaning brush supplied.

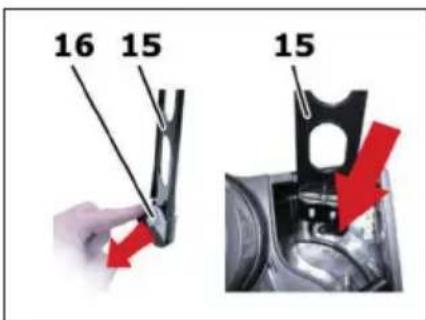

Changing the activated carbon filter

Change the activated carbon filter after brewing 70 times or when the symbol starts flashing in the display. Please proceed as follows:

1 Press the button (29) to switch off the filter change reminder. The symbol on the display goes out.
2 Take the filter holder (15) from the water tank (13) and open the filter container flap and remove the used activated carbon filter.
3 Remove the activated carbon filter (16) from its plastic packaging and thoroughly rinse under running water in order to remove any potential production residues. Place the new filter in the filter container and close the filter container flap. Slide the filter holder (15) into the recess (arrow).

5 Press the button (29) to activate the filter change reminder.

Dscaling

In order not to impair the service life of the appliance and the quality of the coffee, the appliance must be descaled at regular intervals. The descending interval depends on the water hardness (at least every 6 weeks).

• Fill the water tank with water to the 10 mark and add citric acid or vinegar essence (approximately 5% acidic solution).
• Press the Coffe Powder button (26).
• Allow the descending solution to run through the machine.
  Empty the coffee jug (7).

Note: If the appliance is severely scaled, it may be necessary to repeat the descending process. Allow two tank fills of clear water to run through the appliance for rinsing. Wash all removable parts with warm water and washing-up liquid before brewing coffee again.

TROUBLESHOOTING

Problem Possible	le Cause Suggested Solution
No symbol in the display	Not plugged in. Insert the plug.
	No mains power. Check the fuse/socket.
	Display is defective. Contact customer service.
The automatic circuit breaker in the fuse box trips	Too many appliances connected to the same power circuit.	Reduce the number of appliances on the power circuit.
	Appliance defective. Contact customer service.
Water runs out of the appliance	Too much water in the water tank.	Do not overfill the water tank.

Estimado cliente:
