Features	Details
Device type	Portable air conditioner
Cooling capacity	2.6 kW
Energy	Energy class A
Noise level	54 dB(A)
Dimensions	70 x 30 x 35 cm
Weight	30 kg
Additional features	Dehumidification, ventilation, programmable
Usage	Ideal for spaces up to 80 mb2
Maintenance	Washable filters, regular maintenance recommended
Safety	Overheat protection
Warranty	2 years

Frequently Asked Questions - Klimatronic Instapro SUNTEC

How do I set the temperature on the SUNTEC Klimatronic Instapro?

To set the temperature, use the control panel to increase or decrease the desired temperature. Press the "+" or "-" buttons until you reach the desired temperature.

What should I do if the device does not turn on?

Check that the device is properly plugged into a working electrical outlet. Also make sure the fuse is not blown.

Why is the air not cooling properly?

This may be due to a dirty air filter. Clean or replace the filter. Also check that windows and doors are closed to prevent cool air from escaping.

How do I clean the air filter?

Remove the air filter from the device and rinse it with lukewarm water. Let it dry completely before putting it back in place.

The device is making strange noises, what should I do?

Check if the device is on a stable and flat surface. Objects blocking the fans can also cause strange noises. If the problem persists, contact customer service.

How do I change the operating mode (cooling/dehumidification)?

Use the mode button on the control panel to select the desired mode. Available modes include cooling, dehumidification, and ventilation.

Does the device consume a lot of energy?

The SUNTEC Klimatronic Instapro is designed to be energy efficient. However, energy consumption depends on usage and temperature settings.

How do I reset the device?

To reset the device, unplug it for about 5 minutes, then plug it back in. This will reset the default settings.

Does the device work in winter?

The SUNTEC Klimatronic Instapro is mainly designed for cooling. It can also be used for dehumidification in winter, but it is not designed to heat the air.

USER MANUAL Klimatronic Instapro SUNTEC

Exterior view of a Suntec air conditioning unit with grid grille and fan (no visible text or symbols)

Deutsch(German) 3 - 18

English(English) 51 - 66

Nederlands(Dutch) 67 - 84

Italiano (Italian) 85-101

SUNTEC WELLNESS GMBH

INHALT

A TechnisSbite Date4

B Teile Seite 5

Hook the line here Line drops from here Mounting plate Dropping line holes for fixing

Drain port Washer Drain hose (prepare by user)

LED NEAR MONTH FSL COOL OXY PAG SWEET AUTO HOLD NIO LOW PINC SLEEP FAN TIMER SWING MODE ON/OFF

3D diagram of a rectangular air duct with internal ventilation slots, labeled 'a' and rotation arrows (no text or symbols beyond labels)

Reinigen des Luftfilters

SUNTEC WELLNESS GMBH

ÍNDICE

Hook the line here Line drops from hers Mounting plate Dropping line holes for fixing

Drain port Washer Drain hose (prepare by user)

E INSTRUCCIONES DE USO

OFF COLD COLD PAN PAN AUDIO HOLD LOW MINI SLEEP TIME FAN SWING MODE ON/OFF

3D diagram of a cylindrical object with internal structure and directional arrows, no text or symbols present

SUNTEC WELLNESS GMBH

SOMMAIRE

Hook the line here Line drops from here Mounting plate Dropping line holes for fixing

Plaque de montage large pipe drain hose small pipe Serre-tube

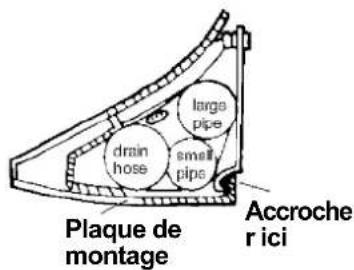

Plaque de montage large pipe small pipe Accroche r ici

Drain port Washer Drain hose (prepare by user)

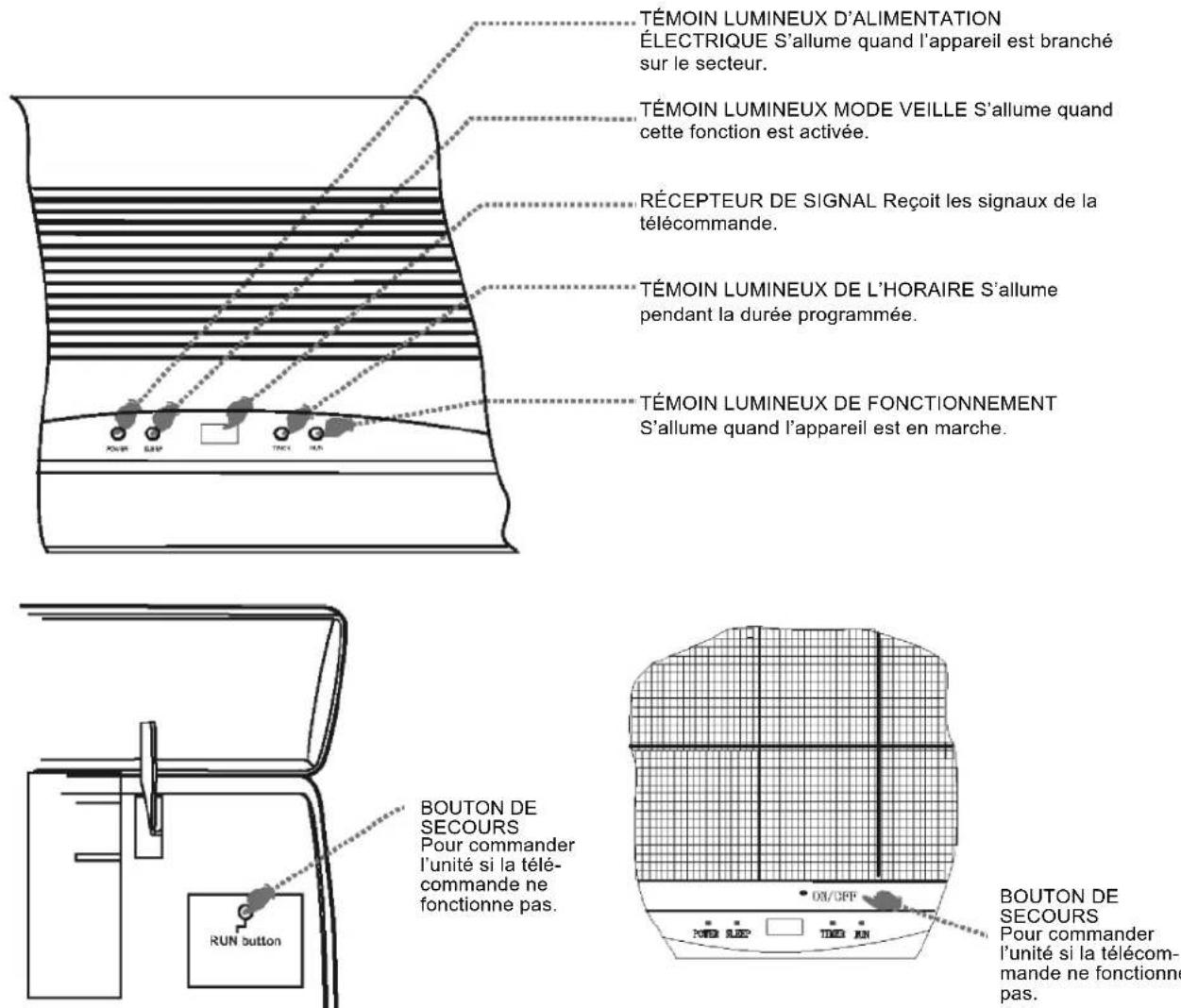

E INSTRUCTIONS D'UTILISATION

Commande et écran

3D diagram of a cylindrical object with internal structure and two curved arrows indicating rotation (no text or symbols)

I CONDITIONS DE GARANTIE

Congratulations on the purchase of your airconditioner. You have acquired a high quality product that, if used responsibly, will give you many years of pleasure. Please read these instructions for use first in order to ensure the maximum life span of your airconditioner.

On behalf of the manufacturer, we provide a 24-month guarantee on all material and production defects. Please enjoy your airconditioner.

Yours sincerely,

SUNTEC WELLNESS GMBH

CONTENTS

A Specifications page 52

B Parts page 53

C Before use page 54

D Installation instructions page 55

E Instructions for use page 59

F Maintenance page 63

G Protection page 63

H Problem solving page 65

I Guarantee conditions page 66

A SPECIFICATIONS

To be used as indication, subject to modifications.

Model SUNTEC-Instapro	Unit	2.6 (reversible)	3.5 (reversible)
Cooling capacity* (BTU/h)		9000	12000
EE Class		A	A
EER		3.22	3.26
Heating capacity (BTU/h)		9500	12500
COP Class		B	C
COP		3.48	3.21
Dehumidification capacity **	L/day	1,0	1,5
Power consumption (cooling)	W	820	1080
Power consumption (heating)	W	800	1140
Mains	Volt/Hz/Ph	220-240,50,1	220-240,50,1
Current	A	3,7	3,6
Maximum airflow	m3/h	530	550
For rooms from...to	m2	9-16	15-23
Dimensions indoor unit (BxTxH)		77*24*18	77*24*18
Dimensions outdoor unit (BxTxH)		76*26*55	76*26*55
Wheight	kg	31	36
Refrigerant/ charge	Typ/gr	R410A	R410A
Noise level indoor unit	db	32-36	34-38
Noise level outdoor unit	db	52	55

INDOOR UNIT

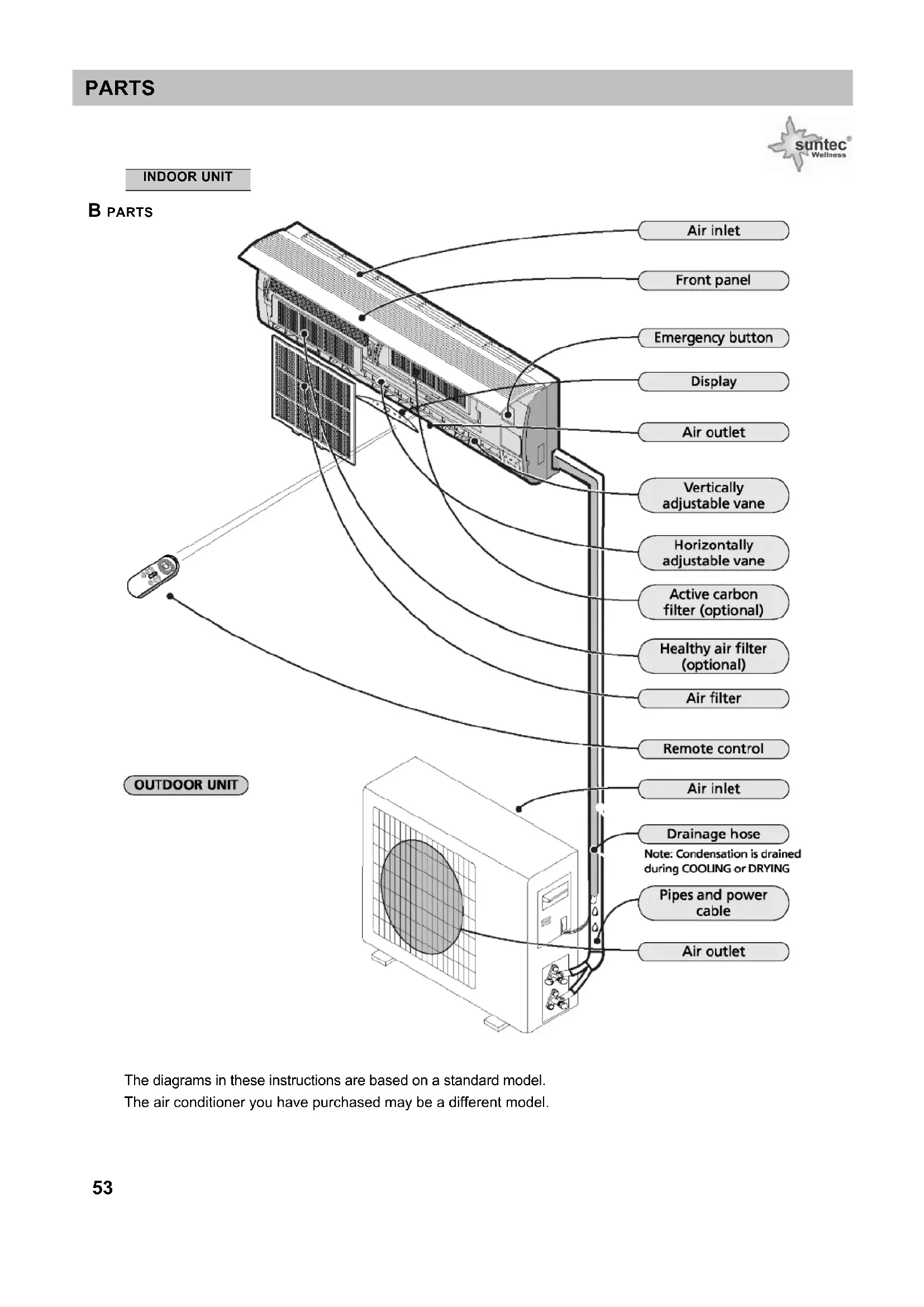

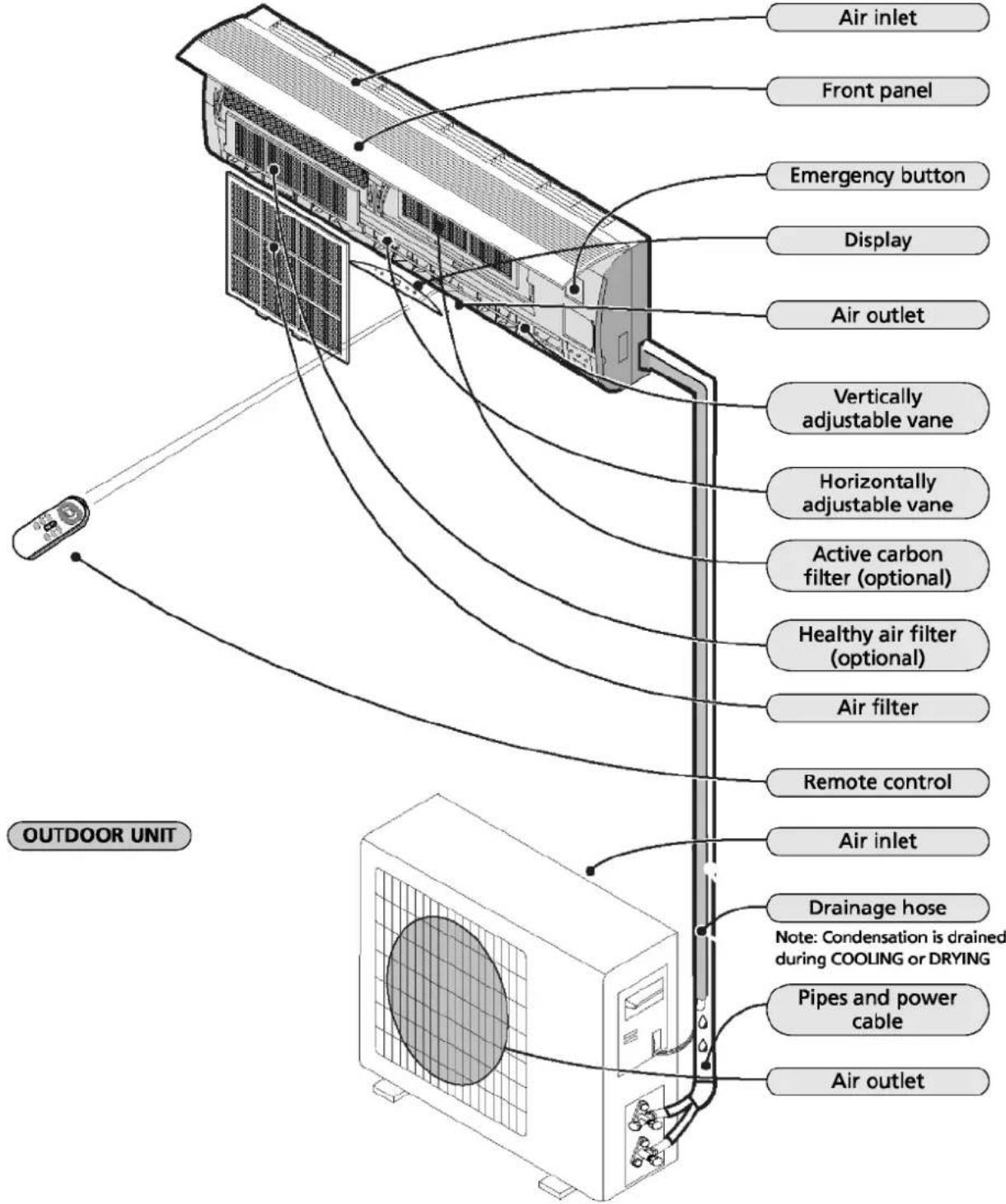

B PARTS

Air inlet Front panel Emergency button Display Air outlet Vertically adjustable vane Horizontally adjustable vane Active carbon filter (optional) Healthy air filter (optional) Air filter Remote control Air inlet Drainage hose Note: Condensation is drained during COOLING or DRYING Pipes and power cable Air outlet OUTDOOR UNIT

The diagrams in these instructions are based on a standard model.
The air conditioner you have purchased may be a different model.

C BEFORE USING

Check and adjust the following before using the air conditioner.

Adjusting the remote control

The manufacturer has NOT preset the remote control heating or cooling options.

The arrow for 'Heat' or 'Cool' on the remote control display will flash after the batteries in the remote control have been replaced.

Depending on the type of air conditioner that you have purchased, the remote control can be adjusted as follows:

Press any button while the 'Heat' arrow is flashing. This sets the heat pump.

Press any button while the 'Cool' arrow is flashing. The setting has been entered for cooling only.

If you do not press any button within 10 seconds, the remote control is automatically preset to the heat pump.

The Heat function can NOT be adjusted with the remote control when the remote control has been preset to Cool Only.

Safety regulations

• Use the correct power supply (see type plate) in order to prevent serious faults, hazards or fire.

- Ensure that the circuit breaker or plug does not become dirty. Connect the plug/circuit breaker to the power cable correctly. Insufficient contact may cause an electric shock or fire.

- Do not switch the unit off with the circuit breaker or by pulling the plug out of the socket. This may produce sparks that could start a fire.

- Do not tie any knots in the power cable or pull the power cable. This may damage or break the cable, causing an electric shock or fire.

- Never insert sticks or any similar object into the unit. The ventilator rotates at high speed and may cause injury.

- It is detrimental to your health to remain in the cold airstream for an extended period of time. We recommend that you allow the airstream to flow freely into the room, without obstruction.

- If a fault occurs, switch the machine off with the remote control before pulling the plug out of the socket.

- Do not carry out any repairs. Incorrect repairs may cause electric shocks, etc.

- Do not place gas burners or ovens in the airstream.

- Do not operate the buttons with wet hands.

- Do not place any objects on the outdoor unit.

D INSTALLATION INSTRUCTIONS

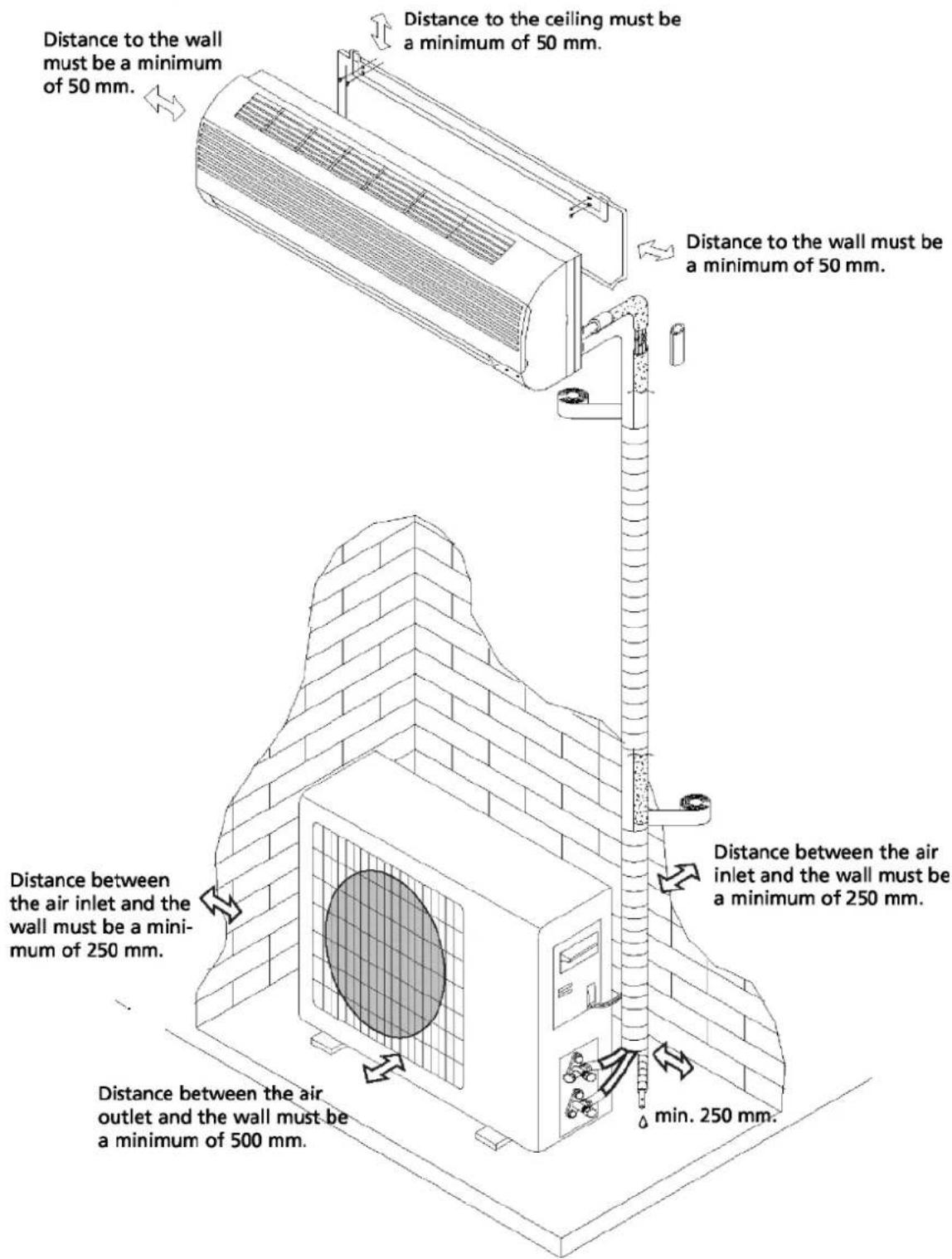

Installation diagram

Distance to the wall must be a minimum of 50 mm. Distance to the ceiling must be a minimum of 50 mm. Distance to the wall must be a minimum of 50 mm. Distance between the air inlet and the wall must be a minimum of 250 mm. Distance between the air outlet and the wall must be a minimum of 500 mm. min. 250 mm.

The diagram above is a simplified illustration of the unit and may differ from the unit that you have purchased.

Select the correct location

No obstacles in the vicinity of the air outlet. The air stream must be allowed to reach the entire room unhindered. It must be possible to install the pipes and drill the hole in the wall at an accessible location. Ensure that there is sufficient distance between the unit, ceiling and wall (refer to Chapter D). It must be possible to remove the air filter easily.

The unit and remote control must be placed at least 1 metre from televisions, radios, etc.

Strip lights may cause faults. Ensure that there is sufficient distance.

Do not place any object in the vicinity of the air inlet. The air intake may not be blocked.

The wall must be strong enough to bear the weight of the unit. The wall construction may not cause any increase in noise and vibrations.

Location for the installation of the outdoor unit

In an accessible, well ventilated location. Do not mount at potentially hazardous locations, e.g. where there is a danger of a gas leak.

Maintain the required distance from the wall.

Do not expose the outdoor unit to greasy dirt or salty sea air. Do not mount in the vicinity of gas pipes.

Do not mount on the street side due to the risk of water splashing onto the unit.

Mount on a fixed foundation in order to prevent excessive noise.

The air outlet must not be obstructed.

INSTALLATION OF THE INDOOR UNIT

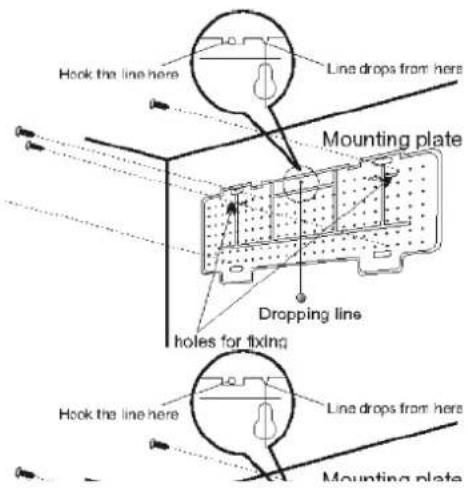

1. Installing the mounting plate

- Fit the mounting plate at the location where the indoor unit will be hung. Take account of the direction of the pipes.

- Place the mounting plate horizontally with the aid of a level indicator or plumb line.

- Drill holes with a depth of 32 mm in order to mount the plate.

- Insert the plastic plugs into the holes and screw the plate into position with self-tapping screws.

- Check that the mounting plate is firmly in position and drill the hole for the pipes.

Hook the line here Line drops from here Mounting plate Dropping line holes for fixing Hook the line here Line drops from here Mounting plate

Note: the shape of the mounting plate may differ per model. However, the installation method is the same.

1. Drilling a hole for wires/pipes - Determine the position of the lead-through hole for the wires/pipes on the basis of the drilling hole in the mounting plate.

- Drill the hole in the wall. The hole must slope a little to the outside.

- Place a pipe sleeve in the hole in order to protect the wall.

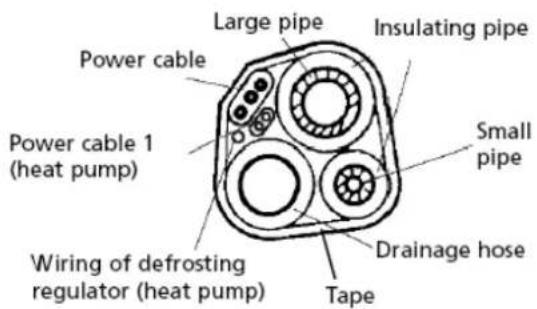

Pipe insulation:

a. Place the drainage hose under the pipe.
b. Use insulating material exceeding 6 mm in thickness.

- The drainage hose must slope downwards slightly in order to allow moisture to drain away easily.

Ensure that the drainage hose is not twisted and does not protrude. The end may not hang in the water.

Large pipe Insulating pipe Power cable Power cable 1 (heat pump) Small pipe Wiring of defrosting regulator (heat pump) Drainage hose Tape

If the drainage hose is extended with a hose, the section running alongside the indoor unit must be insulated.

- If the wire/pipes are on the right hand side, the wires/pipes, power cable and drainage hose must be insulated and fastened to the back of the indoor unit with a pipe clamp.

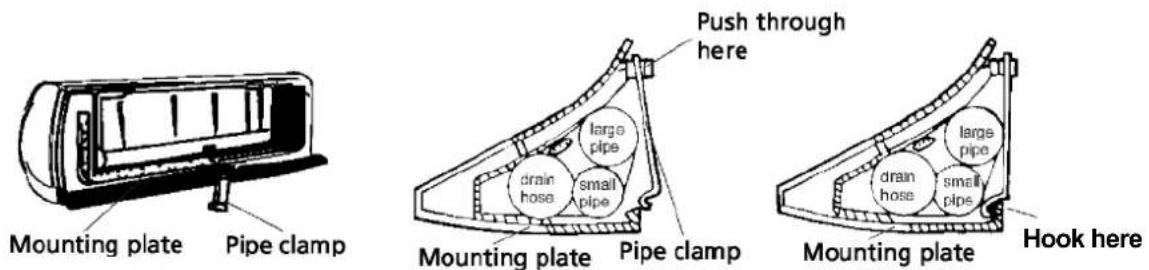

Mounting plate Pipe clamp Push through here large pipe drain hose small pipe Mounting plate Pipe clamp Drain hose small pipe Drain hose large pipe Mounting plate Hook here

OUTDOOR UNIT INSTALLATION

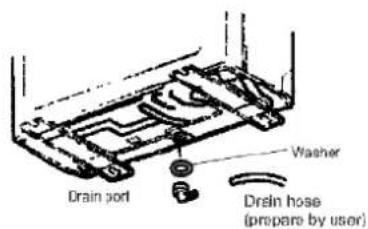

1. Fit the drainage outlet and drainage hose (only for models with a heat pump). Condensation will drip off the outdoor unit when the indoor unit is operating in Heating mode. Fit a drainage outlet and a drainage hose in order to drain the water effectively. Fit the drainage outlet and rubber washer to the base plate of the outdoor unit (see fig.).
2. Installing and fitting the outdoor unit

Bolt the unit to a level and solid base.

Ensure that the unit is mounted securely in order to prevent problems caused by strong wind and vibrations.

1. Connecting the outdoor unit pipes

Remove the covers of the two-way and three-way valve.

Close the pipes separately with the appropriate tightening moment.

1. Outdoor unit cable connection (see previous page)

Drain port Washer Drain hose (prepare by user)

E INSTRUCTIONS FOR USE

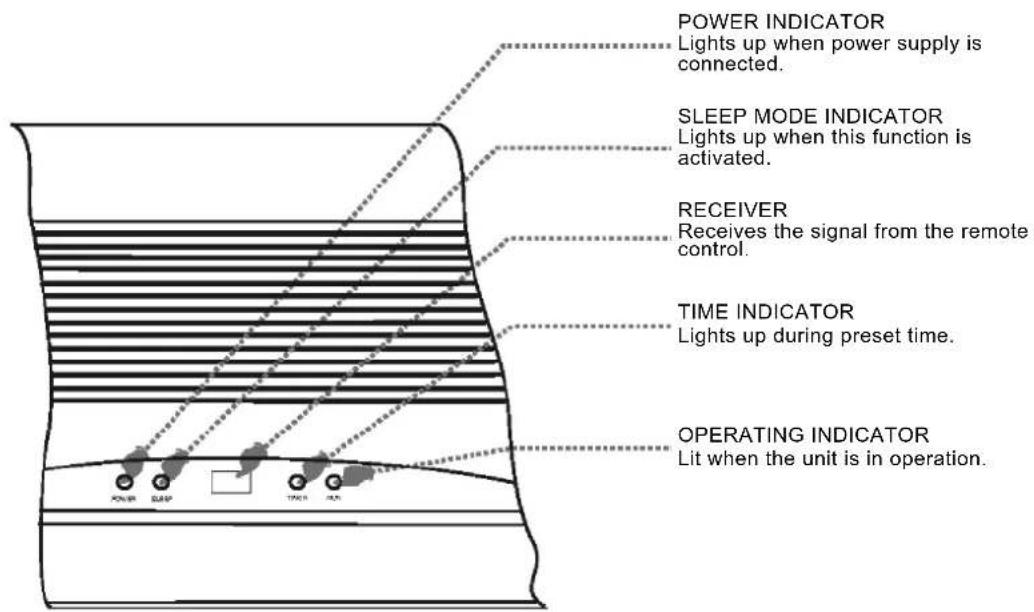

Operation and display

POWER INDICATOR Lights up when power supply is connected. SLEEP MODE INDICATOR Lights up when this function is activated. RECEIVER Receives the signal from the remote control. TIME INDICATOR Lights up during preset time. OPERATING INDICATOR Lit when the unit is in operation.

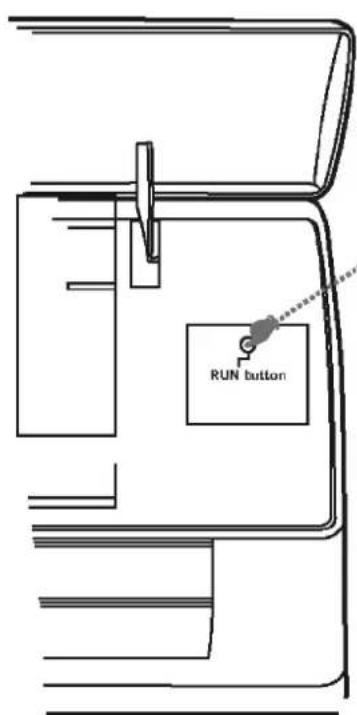

RUN button

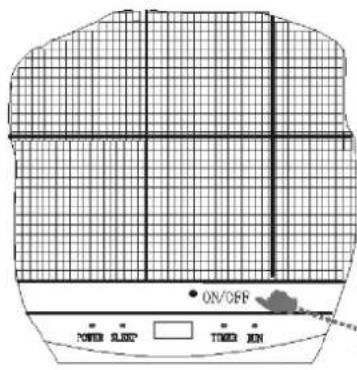

EMERGENCY BUTTON To operate the unit if the remote control is not operational.

ON/OFF POWER SLIPP TIMER JEN

EMERGENCY BUTTON To operate the unit if the remote control is not operational.

Adjustment of automatic restart

The machine has been programmed by the manufacturer to restart automatically.

Following a power cut, the machine will resume operation in the last selected function.

The shapes and positions of the switches and indicators may differ for each model. However, the functions are identical.

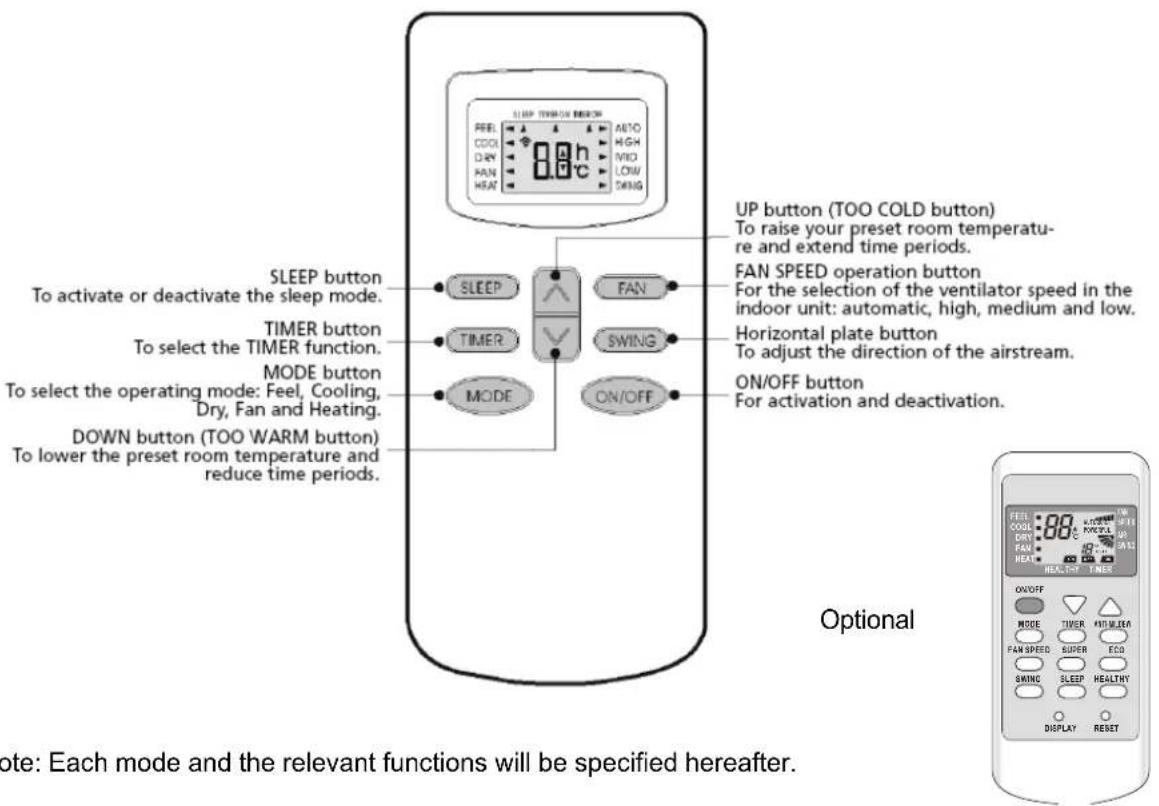

Remote control

The remote control transmits signals to the system.

SLEEP button To activate or deactivate the sleep mode. TIMER button To select the TIMER function. MODE button To select the operating mode: Feel, Cooling, Dry, Fan and Heating. DOWN button (TOO WARM button) To lower the preset room temperature and reduce time periods. UP button (TOO COLD button) To raise your preset room temperatu- re and extend time periods. FAN SPEED operation button For the selection of the ventilator speed in the indoor unit: automatic, high, medium and low. Horizontal plate button To adjust the direction of the airstream. ON/OFF button For activation and deactivation. Optional Note: Each mode and the relevant functions will be specified hereafter.

Note: Each mode and the relevant functions will be specified hereafter.

Placing the batteries

Remove the battery cover in the direction of the arrow.

Place the new batteries as indicated (ensure that the positive (+) and negative poles (-) are in the correct positions. Slide the battery cover back into place.

Note: Use 2 LR03 AAA (1.5 Volt) batteries. Do not use rechargeable batteries. Replace the batteries with new batteries of the same type (see above) when the display starts to fade.

Storage of the remote control and tips for use

The remote control can be placed in a wall-mounted holder.

Note: The remote control holder is optional.

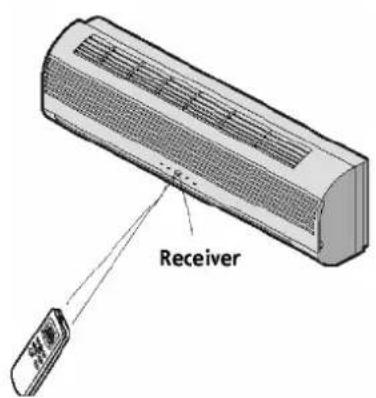

Using the remote

control

Point the remote control at the receiver on the indoor unit of the air conditioner. The air conditioner can be operated in this manner up to a distance of 7 metres.

Receiver

OPERATING INSTRUCTIONS

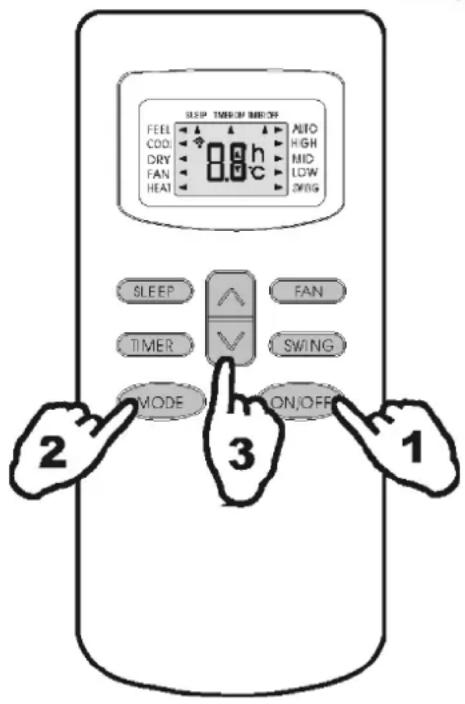

FEEL mode operating procedure

The operating mode is selected automatically (HEATING, DRY, FAN, COOLING), depending on the room temperature at the time the selection takes place.

With the remote control pointed at the air conditioner.

1. Activation Press the ON/OFF/RUN button. The RUN indicator on the indoor unit will light up when the machine receives a signal.

When the unit is not in the FEEL mode.

1. Selecting the FEEL mode Press the MODE selector button. Adjust the MODE to the FEEL setting.

The operating mode and temperature are determined by the indoor temperature.

USE TIME OF MATH FEEL COD DRY FAN HEAT 8.8h NIO HIGH MID LOW SWING SLEEP FAN TIMER SWING MODE ON/OFF 1 2 3

Indoor temperature Operating mode Desired temperature
Less than 20 °C	Heating for `Heat pump' typeVentilator for `cooling only' type	23°C
20 - 26 C Dry 18°C
More than 26°C Cooling	23°C

It is also possible to adjust the temperature while in the FEEL mode. Adjustment is possible to 6 levels with the ↑ button or the ↓ button.

1. Temperature adjustment

Press the ↑ button or the ↓ button.

When the button is pressed, the value of the preset temperature increases by 1^ C.

The indicator will not change after the temperature has been increased by 2^ C.

When the button is pressed, the value of the preset temperature is lowered by 1^ C.

The indicator will not change after the temperature has been lowered by 2^ C.

Note:

It may occur that no air is expelled from the unit while it is in operation.

The unit will not always start operating immediately after the mode has been changed.

TIMER mode

If you program the timer with the TIMER button upon leaving, it will be pleasantly warm when you return home. You can deactivate the timer at night if you wish.

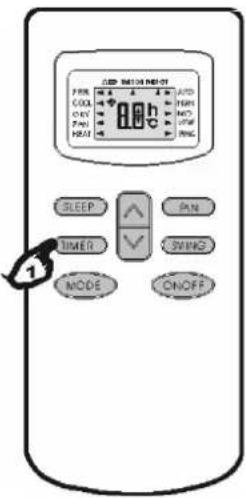

ADJUSTING THE TIMER

To activate the air conditioner at the desired time, follow the procedure specified below (the remote control and air conditioner are switched off):

1. Press the Timer button.
2. Select the desired mode by pressing the Mode button.
3. Select the desired temperature by pressing the ↑↓ button (only possible when the 'cool' or 'heat' mode is selected).
4. Select the ventilator speed (low, medium or high) or automatic mode (only possible when the Feel, Cool or Heat mode is selected) by pressing the Fan button.
   The ventilator always operates in the Auto mode when the Dry mode is selected.
5. Select Swing or no Swing by pressing the Swing button.
6. Press the Timer button ('h' flashes).
7. Use the button to select the time at which the air conditioner must activate (between 0 and 10 hours can be set at every half hour – between 10 and 24 hours can be set at every hour).
8. Press the Timer button ('h' stops flashing) and the preset time appears in the display.
9. Press the Timer button again to delete the selected data from the memory.

BEET SWITCH MODE PWR COOL ONY TIN HOLD AIDS HORN HAPP PINE SLEEP TIMER MODE PAN SWING ONOFF 1

Note: If no buttons are pressed during the programming of the timer function, the remote control will switch off automatically after 10 seconds.

To switch the air conditioner off at the desired time, follow the procedure specified below (the remote control and air conditioner are switched off):

Press the Timer button.

1. Use the button to select the time at which the air conditioner must deactivate (between 0 and 10 hours can be set at every half hour – between 10 and 24 hours can be set at every hour).

2. Press the Timer button ('h' stops flashing), and the preset time will appear in the display.

3. Press the Timer button again to delete the selected data from the memory.

Note: If no buttons are pressed during the programming of the timer function, the remote control will switch off automatically after 10 seconds.

Note: if 'h' is flashing and you press the ON/OFF/RUN button once, the preset temperature will appear in the display. You can now adjust the temperature with the ↑↓ button. Press the Timer button again to display the time, which can now also be adjusted*. If the Timer button is pressed again, the data is stored and the remaining time (that the air conditioner will be in operation) will appear in the display.

* Pressing the ON/OFF/RUN button instead of the Timer button deactivates the remote control.

Note Check that the TIMER INDICATOR on the indoor unit lights up after the timer has been set.

Press the Timer function to check the settings in the display.

F MAINTENANCE

Cleaning the front panel

1 Switch the machine off and remove the plug from the socket.
2 Hold the front panel at position "a" and pull it towards you.
3 Clean with a soft dry cloth.

Use lukewarm water (max. 30^ C) to remove stubborn dirt.

4 Never use volatile substances, such as benzene, or abrasives to remove dirt.
5 Never spray water on the indoor unit.

Dangerous! Electric shock!

6 Replace the front panel and close it by pushing position "b" down.

3D diagram of a rectangular object with internal structure and rotational arrows, no text or symbols present

Cleaning the air filter

The air filter must be cleaned regularly.

Follow this procedure:

1. Switch the machine off completely.

2. Open the front panel.

3. Carefully pull the filter handle towards you.

4. Grip the handle and slide the filter out.

5. Clean and replace the air filter.

To remove stubborn dirt, clean the filter in lukewarm water with detergent. After cleaning, allow the filter to dry completely out of direct sunlight.

1. Close the front panel.

If the air conditioner is operating in an extremely dusty environment, it must be cleaned every two weeks.

SAFETY

G SAFETY

Operating status

The safety components can detect faults and deactivate the unit in the following cases:

HEATING

The outside temperature is above 24°C

The outside temperature is under -7°C

The room temperature is above 27^ C

COOLING

The outside temperature is above 43^ C

The room temperature is under 21°C

DRY

The room temperature is under 18^ C

Warning

If the air conditioner is operating in the COOLING or DRY mode while relative humidity is over 80%, moisture may drip out of the air outlet of the indoor unit (due to a window or door being open, for instance).

Noise

• Install the air conditioner on a solid base in order to prevent excessive noise.
• Install the outdoor unit in such a way that the expelled air does not cause a nuisance for neighbours.
• Do not place obstacles in the path of the air expelled from the outdoor unit, this increases noise.

Safety features

1 The safety feature deactivates the unit in the following cases:

• When the function is stopped or changed while the unit is operating. Wait 3 minutes before switching the air conditioner on again.

• After the plug has been inserted in the socket and the unit has been immediately switched on. The unit will activate after approximately 20 seconds.

• Press the ON/OFF button to restart after the unit has deactivated due to the operation of the safety feature. The Timer must then be reset.

Checks

The following must be checked after the air conditioner has been in use for an extended period of time: - Overheating of the power cable and the plug. Can you smell burning?

• Is there more noise or vibration than normal?
• Does the indoor unit leak water?
• Is the metal housing live?

Switch the air conditioner off in all the above cases! We recommend periodic inspection by a registered installer (at least once every five years).

Feature of the HEATING mode

For heating

When the HEATING function is activated, the airstream will only start to flow from the indoor unit after 2 – 5 minutes.

After Heating

When the Heating function is deactivated, the ventilator of the indoor unit will continue operating for another 2 – 5 minutes.

Defrosting

During HEATING, the machine will defrost automatically in order to ensure optimum operating efficiency. This procedure usually takes 2-10 minutes. The ventilator function stops during defrosting. The HEATING function restarts automatically after defrosting.

The following problems do not always indicate a fault. Please check them before contacting the service department:

Problem	Cause / Solution
The unit does not operate.	The plug is not inserted firmly in the socket.The batteries in the remote control are empty.
No cooled or heated air.	The safety feature has been activated or the fuse has burnt out. Are the air inlets or outlets blocked? Is the air filter dirty?
No effective operation.	Faults (due to static electricity discharges or disruptions in the power supply) will prevent the machine from operating correctly. If this is the case, pull the plug out of the socket, and then reinsert it after 2-3 seconds.
Does not start immediately.	Changing the mode during operation: 3 minute delay.
Unusual odour.	Odour may be caused by another source – furniture, cigarettes, etc. The unit expels air that it has sucked in.
The sound of running water.	Caused by the refrigerant in the air conditioner: this does not indicate a fault.
A creaking sound.	The sound may be caused by the expansion/shrinkage of the front panel as a consequence of temperature fluctuations.
Mist/moisture is expelled from the air outlet.	Condensation/mist is created when the air temperature in the room drops significantly due to the fact that cold air is expelled in the COOLING or DRY mode.
The red compressor indicator flashes constantly and the ventilator in the indoor mode unit ceases to operate.	The unit will switch from the heating mode to the defrosting The indicator light will go out within 10 minutes and the unit will return to the heating mode.

I GUARANTEE

GUARANTEE CONDITIONS

There is a 24-month guarantee on the air conditioner from the purchase date. Within this period, all material and manufacturing defects will be repaired free of charge. The following rules will apply:

We expressly reject all further claims to damage compensation, including claims relating to secondary damage.

Repairing or replacing components within the guarantee period will not extend the guarantee.

The guarantee is invalidated if any modifications have been made to the machine, non original parts have been fitted or repairs have been carried out by third parties.

Components subject to normal wear, such as the filter, are not covered by the guarantee.

The guarantee is valid exclusively when you present the original, dated and unaltered purchase in no ice.

The guarantee does not cover damage caused by actions that deviate from the instructions for use or neglect.

Shipment costs and the risks associated with shipping the air conditioner or parts thereof will always be borne by the buyer.

To prevent unnecessary expense, we recommend that you first always consult the instructions for use carefully. If this does not provide a solution, ask your dealer to repair the air conditioner.

SUNTEC WELLNESS GMBH

INHOUD

A Specificaties pagina 68

B Onderdelen pagina 69

INSTALLATIE BINNENUNIT

Hook the line here Line drops from here Mounting plate Dropping line holes for fixing

Drain port Washer Drain hose (prepare by user)

INSTALLATIE BUITENUNIT

3D diagram of a cylindrical object with internal structure and labeled arrows (a), no readable text or symbols present.

Schoonmaken luchtfilter

SUNTEC WELLNESS GMBH

CONTENUTO

A Specifiche pagina

Hook the line here Line drops from here Mounting plate Dropping line holes for fixing

Technical line drawing of a mechanical component with no visible text or symbols

Inserire qui large pipe small pipe drain hose

Piano di supporto

drain hose small pipe large pipe Eissare qui

Piano di supporto

Drain port Washer Drain hose (prepare by user)

8.8h FEB C300 DHY PAP 8.8h MND HIGH LOW ON/OFF SLEEP TINER MODE ON/OFF FAN SWING 1

3D diagram of a cylindrical object with internal structure and two curved arrows labeled 'a' indicating rotation or force direction (no text or symbols present)
