Features	Details
Device type	Microwave oven
Capacity	22 liters
Microwave power	800 Watts
Number of power levels	5 levels
Grill function	Yes
Dimensions (W x D x H)	48.5 x 39.5 x 27.5 cm
Weight	12 kg
Control type	Manual
Safety system	Child lock
Interior material	Stainless steel
Interior lighting	Yes
Included accessories	Turntable, grill support
Energy consumption	Energy rated A
Warranty	2 years

Frequently Asked Questions - OMW 2221 DS OK

The microwave won\'t turn on, what should I do?

Check that the device is properly plugged into a working electrical outlet. Also make sure the door is properly closed.

How do I set the cooking time?

Use the time setting knob to adjust the desired cooking duration. Press \"Start\" to begin cooking.

Why is the microwave making noise?

A slight noise is normal, but if the noise is loud or unusual, it may indicate a problem. Check that the device is on a flat and stable surface.

Can I use plastic containers in the microwave?

Make sure the plastic containers are labeled as microwave-safe. Avoid plastics that are not heat resistant.

How do I clean the microwave oven?

Use a soft cloth and a mixture of water and vinegar to clean the interior. Avoid abrasive products that could scratch the surface.

The microwave isn\'t heating, what should I do?

Check that the dish is positioned correctly and the door closes properly. If the problem persists, there may be an issue with the magnetron.

How do I defrost food in the microwave?

Use your microwave\'s defrost function. Select the weight of the food for optimal setting.

Is there a child lock function?

Yes, the OK OMW 2221 DS model has a child lock function. Refer to the user manual to learn how to activate it.

What types of food should not be cooked in the microwave?

Avoid cooking eggs in their shell, very fatty foods, or foods that can explode like whole potatoes.

How do I adjust the microwave power?

Use the power button to select the desired level before starting cooking.

USER MANUAL OMW 2221 DS OK

0:00 11 Stop Clear Stop 1 Reset/Reset-Cancel Stop 2 5

08:00 P:00 0:30 C:-1

M_OMV2221D5_14112_V06

www.oriente.com

OMW 2221 DS

20 L MIKROWELLE MIT GRILL // 20L MICROWAVE OVEN WITH GRILL

HORNO MICROONDAS DE 20L CON GRILL //

FOUR MICRO-ONDES 20 L AVEC GRILL

Front view of a microwave oven with control panel and display (no visible text or symbols)

GE DESLAUCHSMAEUNDS
GB 04FESXPHDIG16
SN USB MANUAL 28
ES MANUAL DE INSTRUCCIONES 40
MODE O'EMPLOIS
HIV FELHASZMÁLÓKÖZKÖKYV-GI

IT MANUALE DELL'UTENTE 78
NL GEORIUSANKWUZING 20
FL INSTRUCIA OBSLEDI 100
PT MANUAL DE UTILIZAÇÃO 11
SV PRJSAWORING 124
TR MILLAMM FLAVUZU 136

Labeled diagram of a microwave oven showing interior components and parts

ΨΗΣΙΜΟ ΣΤΗ ΣΧΑΡΑ (ΓΚΡΙΛ)

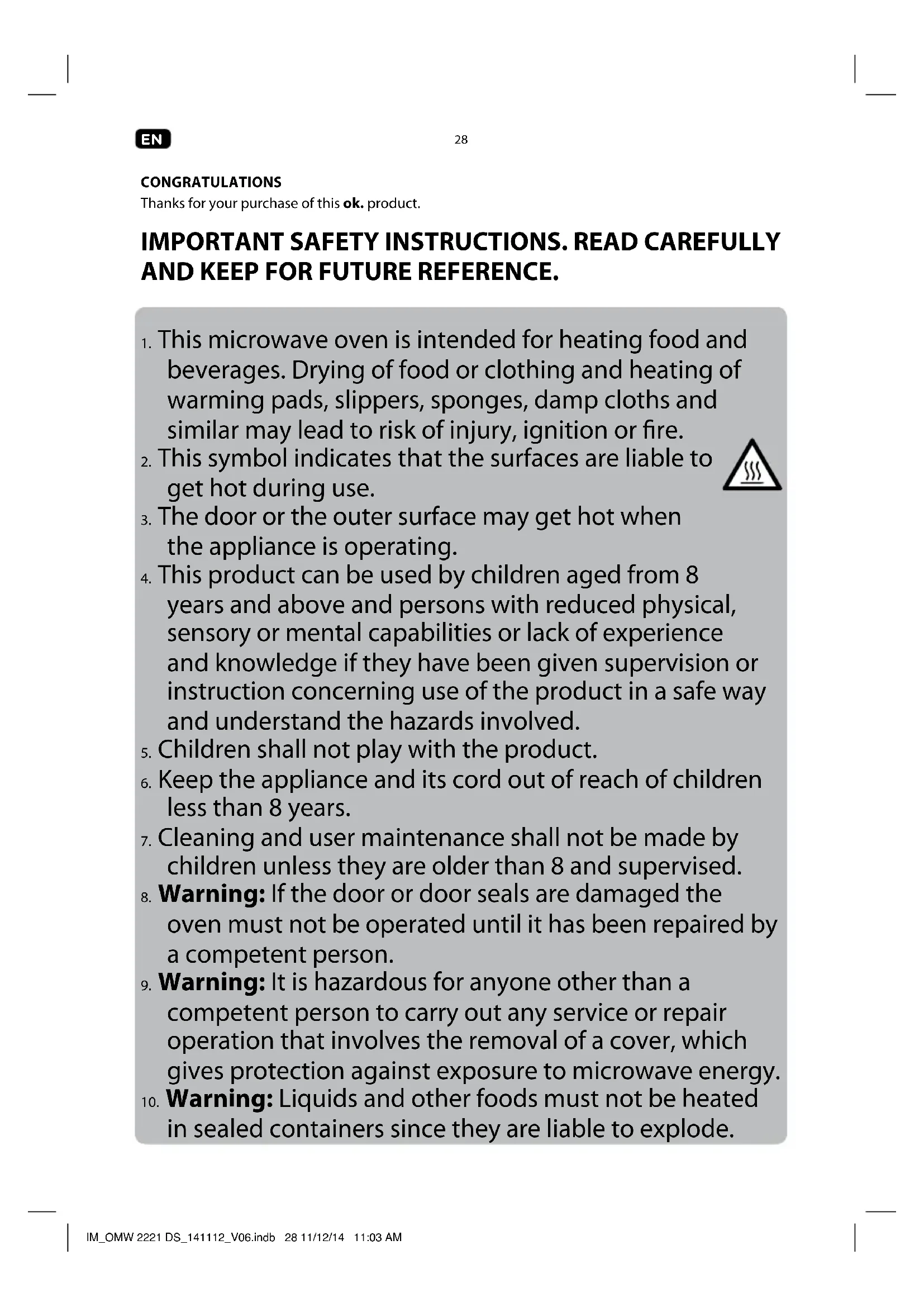

Thanks for your purchase of this ok. product.

IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

1. This microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloths and similar may lead to risk of injury, ignition or fire.

2. This symbol indicates that the surfaces are liable to get hot during use.

1. The door or the outer surface may get hot when the appliance is operating.

2. This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.

3. Children shall not play with the product.

4. Keep the appliance and its cord out of reach of children less than 8 years.

5. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

6. Warning: If the door or door seals are damaged the oven must not be operated until it has been repaired by a competent person.

7. Warning: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover, which gives protection against exposure to microwave energy.

8. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

9. Warning: Only allow children to use the oven without supervision when adequate instructions have been given so that they are able to use the oven in a safe way and understand the hazards of improper use.

10. The appliance is intended to be used freestanding. Do not block any oven vents. The information on adequate space (top/back/sides) for sufficient air circulation can be found in the user manual. Do not install in cabinets.
11. Only use utensils suitable for use in microwave ovens. Do not use containers or cutlery made from or containing metal, aluminium foil, lead crystal glassware, temperature-sensitive plastics, wood, metal clips or wire ties. Do not use bowls with milled rims or plastic pots with the lid only partially removed. Risk of fire!
12. When heating food in plastic or paper containers, keep an eye on the oven due to the risk of ignition.
13. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
14. Microwave heating of beverages can result in delayed eruptive boiling; therefore care must be taken when handling the container. Danger of burns!
15. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption. Loosen the screw top and teat before heating to avoid burns.
16. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended. Eggs may only be cooked in their shell in a specially designed egg-boiling device available from specialist shops.
17. Do not use a steam-cleaning appliance to clean this appliance. Steam could reach the electrical components

EN

and cause a short circuit.

1. The oven should be cleaned regularly and any food deposits removed (see user manual).

2. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

3. Warning: Microwave energy - Do not remove cover.

4. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or similarly qualified persons in order to avoid hazard.

5. The appliance should not be operated by means of an external timer or separate remote-control system.

6. Do not connect the appliance to the mains supply by an extension cord or multi-socket unit. Danger of overheating.

7. Never open the casing of the appliance. Tampering with electrical connections or component and mechanical parts is highly dangerous and can cause operational faults or electric shock.

8. Caution: For appliances with grill mode - Hot surface. Risk of burns! When grilling, the oven interior and exterior, grill element and door can get hot. Only operate the appliance by the appropriate buttons and controls.

9. Warning: For appliances with combination mode - When operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

10. Do not heat up tins in the microwave oven. Pressure can build up and they may explode, resulting in injury or damage.

11. Do not use the appliance for any other purpose than described in this manual, in order to avoid hazardous situations.

12. Before connecting the appliance to a socket outlet, make sure the voltage indicated on the appliance corresponds to your local mains voltage.

13. For safety reasons, this class I appliance is provided with a plug with earth connection. Always connect this appliance to a mains socket outlet with a protective earthing connection.

14. To check food temperature, first interrupt the cooking process. Only use a thermo-meter specifically approved for food use. Never use a thermometer containing mercury or liquid, as these are not suitable for use with very high temperatures and can break very easily.

15. Do not use the appliance if the door hinges are loose, and if holes or cracks are visible in the enclosure, the door or the oven interior.

16. The appliance is not suitable for outdoor use.

17. The appliance is only completely isolated from the mains supply when it is switched off and the plug removed.

18. Never use the appliance to store or dry items that could ignite easily. Moisture evaporates. Risk of fire!

19. Do not use the appliance to heat up cushions or pads filled with cherry kernels, wheat grains, lavender or gel. These pads can ignite when heated, even after they have been removed from the appliance.

20. Exercise caution when cooking or reheating food with a high sugar content. If heated for too long, the sugar may caramelize or ignite.

21. The appliance is not suitable for cleaning or disinfecting items. Items can get extremely hot, and there is a danger of burning when the item is removed from the appliance.

22. Do not use full power to warm empty dishes or to dry out herbs. Do not use the appliance without food or when loaded incorrectly.

23. Never heat undiluted alcohol in the appliance as it can easily ignite. Risk of fire!

24. If the appliance is equipped with a rack and gourmet plate, do not use the rack and gourmet plate at the same time. That would damage the gourmet plate, Always place the gourmet plate directly on the turntable.

25. Do not use this appliance to reheat food in heat-retaining bags intended for normal ovens, such as roasting bags. Such heat-retaining bags usually contain a thin layer of aluminium foil that reflects microwaves. This reflected energy could, in turn, cause the outer paper covering to become so hot that it ignites.

26. Do not use the appliance for deep frying food. Do not leave it unattended when cooking with oils and fats as these can be a fire hazard if allowed to overheat.

27. Wear oven gloves when taking dishes in and out of the appliance, or when handling dishes or food in the appliance. Risk of burning!

28. Never place the hot glass tray (or any other hot cooking containers) on a cold surface, such as a tiled or granite worktop. The glass tray or container could crack or shatter, and the worktop surface could get damaged.

29. Use a suitable heat-resistant mat or pot rest.

30. Do not use the appliance to heat up the room, Due to the high temperatures radiated, objects left near the appliance could catch fire.

31. When using kitchen appliances connected to sockets near the appliance, ensure that the supply cord cannot get trapped in a hot oven door. The hot oven door could melt the cord insulation and be dangerous.

EN

INTENDED USE

This appliance is designed for defrosting, reheating and cooking food. This appliance is only suitable for private household use and it is not designed for commercial purpose. Every other type of use can lead to damage to the appliance or injury.

The appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments,
- farm houses,
- by clients in hotels, motels and other residential type environments, and bed and breakfast type environments.

BEFORE FIRST TIME USE

• Remove all packaging materials.
• Check for completeness and transport damage. In case of damages or incomplete delivery please contact your dealer.
• Clean the appliance (→ Cleaning and care).

COMPONENTS

Fold out front and rear page for product illustrations.

A. Door sealing
B. Door safety interlocks
C. Oven cavity
D. Turntable roller / Shaft
E. Display
F. Control panel
G. Power cord with plug
H. Grill rack
I. Glass tray
J. Feet
K. Oven window
L. Door pull handle

Attention!

• Do not attempt to operate this oven with the door open since open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
• Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
• Do not operate the oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the
  -door (bent),
  -hinges and latches (broken or loose),
  –door sealing and its surfaces.
• The microwave should not be adjusted or repaired by anyone except properly qualified service personnel.
• Warning: It is forbidden to run the appliance without any food inside. It is very dangerous.

BEFORE USE

1 Place the microwave on a flat, stable surface.

2 Leave space for sufficient airflow:

1 Place the microwave on a flat, stable surface.
2 Leave space for sufficient airflow:

minimum installation height	85 cm
above the oven	30 cm
at the back	0 cm
on both sides	20 cm

3 Do not cover or block any openings on the appliance. Do not remove feet.

4 Do not operate the microwave without turntable roller on the shaft and glass tray in proper positions.

5 Connect the appliance to a suitable wall outlet. Unplug when not using for a long time.

Notes:

• Remove all packaging materials, including tape, from the door, cavity, switches, and accessories.
• Do not place the oven where heat, moisture or high humidity are generated, or near combustible materials.
• Make sure that the supply cord is undamaged and does not run under the oven or over any hot or sharp surface.
• The power plug must be readily accessible so that it can be easily disconnected in an emergency.

√ = Materials you can use in an microwave oven

✗ = Materials to be avoided in an microwave oven

The list below is a general guide to help you select suitable utensils:

Cookware Microwave Grill Combi
Heat-resistant glass	√	√	√
Non-heat-resistant glass	×	×	×
Heat-resistant ceramics	√	√	√
Mirowave-safe plastic dishes	√	×	×
Kitchen paper	√	×	×
Metal tray	×	√	×
Metal rack	×	√	×
Aluminium foil and containers	×	√	×

GROUNDING INSTRUCTIONS

• The supply cord of the oven is equipped with a plug with earth connection, which must be plugged into a properly installed and grounded wall outlet.
  • It is recommended that a separate circuit serving only the oven be provided.
• High voltage is dangerous and may result in fire or other accidents, causing property damage or injuries.
• Warning: Improper use of the grounding plug can result in a risk of electric shock.

Notes:

• A short supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
  • If an extension cord is used:

- The electrical rating should be at least as great as the electrical rating of the appliance.

- The extension cord must be a grounding-type 3-wire cord.

- The cord should be arranged so that it will not drape over counter tops or table tops, where it can be pulled on by children or tripped over unintentionally.

CONTROL PANEL

6 Display: Cooking time, power, and clock time are displayed.

7 Micro./Grill/Combi.: Set a microwave, grill or combination cooking program.

Weight/Time Defrost: Set defrost program by weight or time.

Clock/Pre-set: Set clock or cooking delay program.

EN

8 Stop/Clear: Pause/stop operation, and cancel settings or programs.

Start/+30Sec./Confirm: Start operation, increase cooking time at increment of 30 seconds, and confirm settings or programs.

Time-Weight-Auto Menu: Select time or weight settings, and select auto cooking program.

Notes:

• Start/+30Sec./Confirm must be pressed to continue cooking if the door is opened during cooking.
• Once the cooking program has been set and Start/+30Sec./Confirm is not pressed within 1 minute, the current time will be displayed. The setting will be cancelled.
  • The appliance will beep 5 times when cooking is finished.

CLOCK SETTING

9 When the appliance is plugged in, cappears on the display and the appliance beeps once.

10 Press Clock/Pre-Set. Hour digit flashes.

11 Turn Time·Weight·Auto Menu to set hour.

Press Clock/Pre-Set to confirm. Minute digits flash.

Turn Time-Weight-Auto Menu to set the minutes.

Press Clock/Pre-Set to confirm.

Note: During clock setting, if Stop/Clear is pressed, or if there is no operation within 1 minute, the appliance will go back to the previous status automatically.

MICROWAVE COOKING

12 Press Micro./Grill/Combi. once. The default microwave power level appears on the display.

Press Micro./Grill/Combi. repeatedly, or turn Time·Weight·Auto Menu to select desired microwave power.

Display Power level
P 100 100 %
P 80 80 %
P 50 50 %
P 30 30 %
P 10 10 %

13 Press Start/+30Sec./Confirm to confirm.

14 Turn Time·Weight·Auto Menu to adjust the cooking time.

Press Start/+30Sec./Confirm to start microwave cooking.

Note: The microwave can be opened any time during the cooking process. It might be necessary, for example, to turn or stir food, or to check the doneness of the food.

GRILL COOKING

15 Press Micro./Grill/Combi. once. Then press repeatedly until 6 appears on the display.

Or turn Time-Weight-Auto Menu to select desired grill power. Press Start/+30Sec./Confirm to confirm.

Turn Time-Weight·Auto Menu to set the cooking time. Press Start/+30Sec./Confirm to start grill cooking.

Note: After half of the cooking time has passed, the appliance beeps 2 times, indicating it is time to turn food over. After turnover, press Start/+30Sec./Confirm to continue cooking.

COMBINATION COOKING

16 Press Micro./Grill/Combi. once. Then press repeatedly until C-1 or C-2 appears on the display.

Display Power level
C-1	55 % Microwave + 45 % Grill
C-2	36 % Microwave + 64 % Grill

Press Start/+30Sec./Confirm to confirm.

Turn Time-Weight-Auto Menu to adjust the cooking time.

Press Start/+30Sec./Confirm to start combination cooking.

SPEEDY COOKING

17 In waiting state, press Start/+30Sec./Confirm to cook for 30 seconds at 100 % microwave power. Each press will increase time by 30 seconds.

18 In waiting state, turn Time·Weight·Auto Menu left to set cooking time directly.

Press Start/+30Sec./Confirm to start cooking at 100 % microwave power.

Notes:

• During any mode of microwave, grill, combination cooking, and time defrost: Press Start/+30Sec./Confirm to increase time by 30 seconds.
• In Auto Menu mode and weight defrost mode, cooking time cannot be increased by pressing Start/+30Sec./Confirm.

DEFROST BY WEIGHT

19 Press Weight/Time Defrost once. dEF: appears on the display.

20 Turn Time-Weight-Auto Menu to select the food weight between 100 to 2000 g.

Press Start/+30Sec./Confirm to start defrosting.

DEFROST BY TIME

21 Press Weight/Time Defrost 2 times. dEF2 appears on the display.

Turn Time-Weight-Auto Menu to select the cooking time.

Press Start/+30Sec./Confirm to start defrosting.

EN

MULTI-STAGE COOKING

Notes:

• Up to 2 stages of cooking can be set. If one stage is defrosting, it should be set as first stage. After the former stage finishes, the appliance will beep once and starts the latter stage automatically.
  • Auto Menu cannot be set as one of the stages.

For example, if you want to defrost food for 5 minutes, then cook with 80% microwave power for 7 minutes, follow steps 22 - 23.

22 Press Weight/Time Defrost 2 times. dEF2 appears on the display.

Turn Time-Weight-Auto Menu to select the cooking time of 5 minutes.

23 Press Micro./Grill/Combi. once. Turn Time-Weight-Auto Menu to select 80 % microwave power.

Press Start/+30Sec./Confirm to confirm.

Turn Time-Weight-Auto Menu to select the cooking time of 7 minutes.

Press Start/+30Sec./Confirm to start multi-stage cooking.

PRE-SET FUNCTION

Notes:

• To use the pre-set function, the clock must be set first (▶ Clock setting). To cancel the setting before pre-set time arrives, press Stop/Clear once in waiting state.
• Up to 2 stages of cooking can be set. Defrosting cannot be set in pre-set function.

Example: If you want to cook with 80 % microwave power for 7 minutes, follow steps 24 - 25.

24 Press Micro./Grill/Combi. once.

Turn Time-Weight-Auto Menu to select 80 % microwave power.

Press Start/+30Sec./Confirm to confirm.

25 Turn Time-Weight-Auto Menu to select the cooking time of 7 minutes.

Do not press Start/+30Sec./Confirm at this stage.

Press Clock/Pre-Set. Hour digit flashes.

Turn Time-Weight-Auto Menu to set the hour (0 - 23).

Press Clock/Pre-Set to confirm. Minute digits flash.

Turn Time-Weight·Auto Menu to set the minutes (0 - 59).

Press Start/+30Sec./Confirm to confirm.

When the pre-set time arrives, the appliance beeps 2 times. Then, it starts cooking automatically.

AUTO MENU

26 In waiting state, turn Time-Weight-Auto Menu right to choose the menu from Rto . R-B Press Start/+30Sec./Confirm to confirm.

Menu Weight (g) Display Power
R-1REHEAT	200 200		100 %400 400
	600 600
R-2VEGETABLE	200 200		100 %300 300
	400 400
R-3FISH	250 250		80 %350 350
	450 450
R-4MEAT	250 250		100 %350 350
	450 450
R-5PASTA 100 (with water 800 g) 50			80 %
R-6POTATO	200 200		100 %400 400
	600 600
R-7PIZZA 400 400	200 200		100 %
R-BSOUP	200 200		80 %
	400 400

Turn Time-Weight·Auto Menu to select the food weight.

Press Start/+30Sec./Confirm to start cooking.

After cooking done, the appliance beeps 5 times.

CHILD LOCK FUNCTION

27 Enabling the child lock: In waiting state, press and hold Stop/Clear for 3 seconds.

The appliance gives out a long beep, indicating the child lock function is set.

28 Disabling the child lock: In locked state, press and hold Stop/Clear for 3 seconds.

The appliance gives out a long beep, indicating the child lock function is disabled.

EN

INqUIRING FUNCTION

29 Checking the current power: In any cooking state of microwave, grill and combination, press Micro./Grill/Combi. once. The current power appears on the display for 2 to 3 seconds.
30 Checking the current time: In any cooking state, press Clock/Pre-Set once. The current time appears on the display for 2 to 3 seconds.
31 Checking the pre-set time: Press Clock/Pre-Set once. The pre-set time flashes for 2 to 3 seconds. Then, the appliance resumes the clock display.

CLEANING AND CARE

Warning: Cleaning the microwave oven is a significant part of the safe operation of the device and will prevent health hazards.

32 Prior to each cleaning: Switch off the microwave oven and disconnect the power plug.

The device must be cleaned periodically, food residue must be removed. If the device is not cleaned regularly, it can cause wear to the surface and severely reduce the service life. Furthermore, it could result in limited safety and functionality of the device.

• If the door sealing no longer closes reliably due to accumulated food residue, microwave radiation may leak and damage your health.
• Clean the device after use to prevent mould, vermin, as well as leaking microwave radiation.
• Do not use steam cleaners to clean the device! The steam is pressurized and can condensate on the electrical components inside the device and cause short-circuits.
• Do not use any abrasive cleaning agents or metal scrapers to clean the door since they could scratch the surface and cause the glass to shatter.
• Clean the casing with a slightly damp cloth. Please be sure that no water enters the appliance.
• Use a damp cloth to regularly and carefully clean the door sealing, cavity and any adjacent components. Use a damp cloth to wipe off any food residue or splashes.
• The control panel and its controls must never get wet. Clean with a soft, damp cloth. Leave the door open when cleaning the control panel in order to prevent accidental operation.
• If steam condensates or forms drops inside the microwave or on the casing, use a soft cloth to wipe it off. Condensation can occur if moist air meets a cold surface. At very high temperatures, oil and grease can also evaporate and deposit as a grease film after cooling off.
• The glass tray can be removed for cleaning. Clean the tray in warm, soapy water or in the dishwasher.
• The turntable roller and the cavity bottom should be cleaned regularly to prevent excessive noise. Use a mild household cleaner to wipe the surface; allow it to dry. If the turntable roller is removed for cleaning, re-insert it before next use. Regularly clean the door, window and sealing with a damp cloth to remove dirt.
• Odours in the cavity can be neutralized by filling a microwave-suitable cup with water and lemon juice and boiling it in the microwave oven for 5 minutes. Wipe the cavity dry afterwards using a soft cloth.
• In the event that the light bulb inside the cavity must be replaced, please contact qualified service personnel.

TECHNICAL DATA

Rated voltage: 230 V\~, 50 Hz

Rated power input: 1050 W (Micro), 1000 W (Grill)

Rated power output: 700 W

Operation frequency: 2450 MHz

Outside dimensions: H: 258 mm

(approx.) W: 440 mm

D: 330 mm

Turntable diameter: ∅: 255 mm

Oven capacity: 20 litres

Net weight: approx. 11 kg

DISPOSAL

The crossed-out wheeled bin logo requires the separate collection of waste electric and electronic equipment (WEEE). Electric and electronic equipment may contain dangerous and hazardous substances. Do not dispose of this appliance as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

FELICIDADES
