USER MANUAL Dynamic Now NGM

world. Thank you for purchasing NGM Dynamic Now. With this device you can have access the many features of the Android

KitKat® OS to manage your contacts, email, social networks and to discover the opportunities of high-speed Internet thanks to the LTE technology (4G), the latest standard for wireless communication! Discover the full potential of your new "smart" phone. Compared to the usual mono SIM Smartphones, NGM Dynamic Now offers the convenience of Dual SIM that has always characterized the entire range of NGM phones, i.e. the ability to handle two SIM cards and consequently two phone numbers at the same time. You will discover other useful features such as setting the preferred SIM for calls, messages and data connection. By visiting the official website www.ngm.eu you can browse through the whole range of NGM mobile phones, ask for after sales assistance, access the forum for technical assistance and download software updates.

Warning: Data Connection of NGM Dynamic Now is active as soon as you first turn on the

phone (and also after every factory data reset). If you do not have a special or "flat" rate for data connection with your SIM card, you are recommended to turn off data traffic and set up a Wi-Fi connection, in order to avoid additional costs.35ENGLISH Set up

Insert the SIM cards: The SIM cards contain your phone number, PIN codes, links to external services, contacts and other important details. To access the compartment containing the SIM slots, turn off the phone and lift up the cover starting from the bottom slit. Remove the battery and insert the SIM cards into the slots with their gold contacts facing downwards. Insert the memory card: To better manage all the functions of NGM Dynamic Now, you are recommended to use a micro-SD card; insert it into the back side of the phone. After turning off the phone, remove the back cover and the battery and insert the micro-SD, as shown in the figure, with its golden contacts turned downwards.

Warning: insert SIM and SD Card only after removing the battery, in

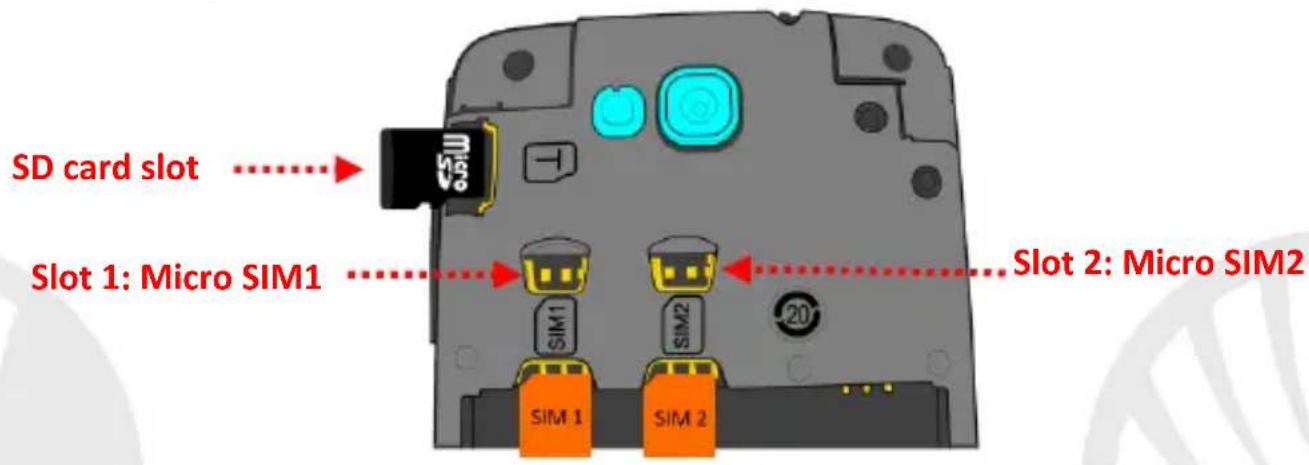

order to prevent data loss. SD card slot Slot 1: Micro SIM1

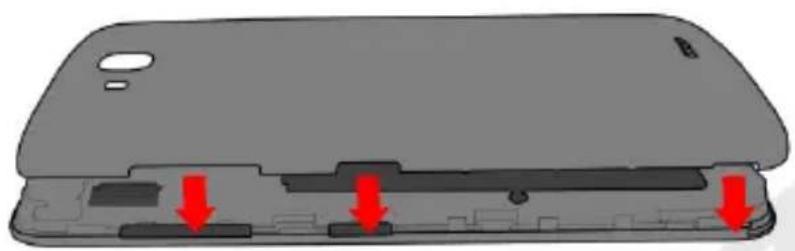

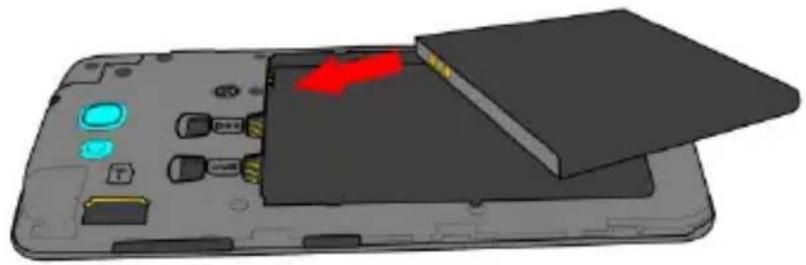

SD card slot Slot 2: Micro SIM236 ENGLISH Inserting the battery Your device is provided with a lithium-ion battery and is designed to be used exclusively with original NGM batteries and chargers. The battery must be inserted into the backside of the phone. Insert the battery into the battery compartment with the contacts facing up, matching those of the phone. When done, put the hind cover back into position as shown in the following illustrations.37ENGLISH Charge the battery Charge the battery before starting to use the device. Use the supplied USB cable and the USB connector on the lower side of the phone. Connect the charger to the provided wall socket adapter, and then the device to the USB cable. You can also charge the phone by connecting it with the PC USB port, but in this case charging will take longer. When the battery is charging, an animated icon on the screen will show the charging progress if the phone is on. Once the battery icon is filled, it is fully charged and the phone can be disconnected from the grid.

Warning: Do not connect the phone to a booting-up or running down PC to avoid voltage

jumps. To preserve the functionality of the product and the integrity of the warranty, we recommend the use of original NGM chargers. Please charge the battery indoors, in a dry and favorable environment. It’s normal for the battery to get slightly warm during the charging process. The battery will reach its full capacity when cycled several times.

Power on, power off and standby To turn on the phone, press and hold the power on/off key To turn off your device, press and hold the same key and confirm by selecting "Shutdown". A quick pressure sets the phone in stand-by mode (screen off) or allows you to go back to the lock screen (see below).38 ENGLISH The main screen: use the touch screen by tapping, holding or dragging a finger across the screen. The main screen is the starting point for using all the applications on your phone. Other pages will be available on the left or on the right of the main screen. To insert widgets and shortcuts onto them: press and hold the desired app icon from the menu and drag it onto the Desktop symbol on the top. By swiping left or right with the held icon you can move towards the other available pages. You can also customize the four widgets next to the central menu icon by pressing, holding and moving them onto the desktop. To delete a shortcut or widget, tap and hold the icon and drag it onto the "X Remove" symbol on the screen. By moving an icon over another, you can create folders on the desktop and by pressing the contextual menu you can change the wallpaper. The main menu: Select an application from the main menu or scroll left/right to view other applications. Press back key to return to the previous screen, press the Home key to return to the main screen. Press the contextual menu to access the phone settings.

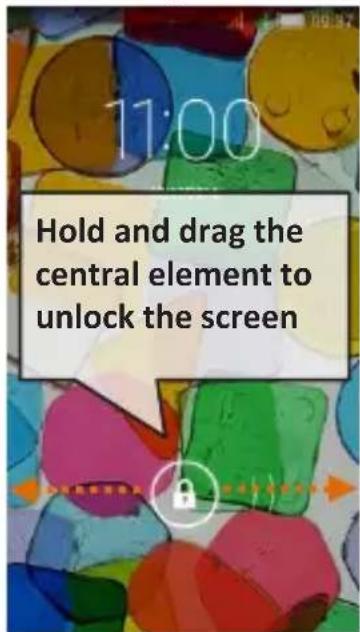

Standby screen Hold and drag the central element to unlock the screen39ENGLISH

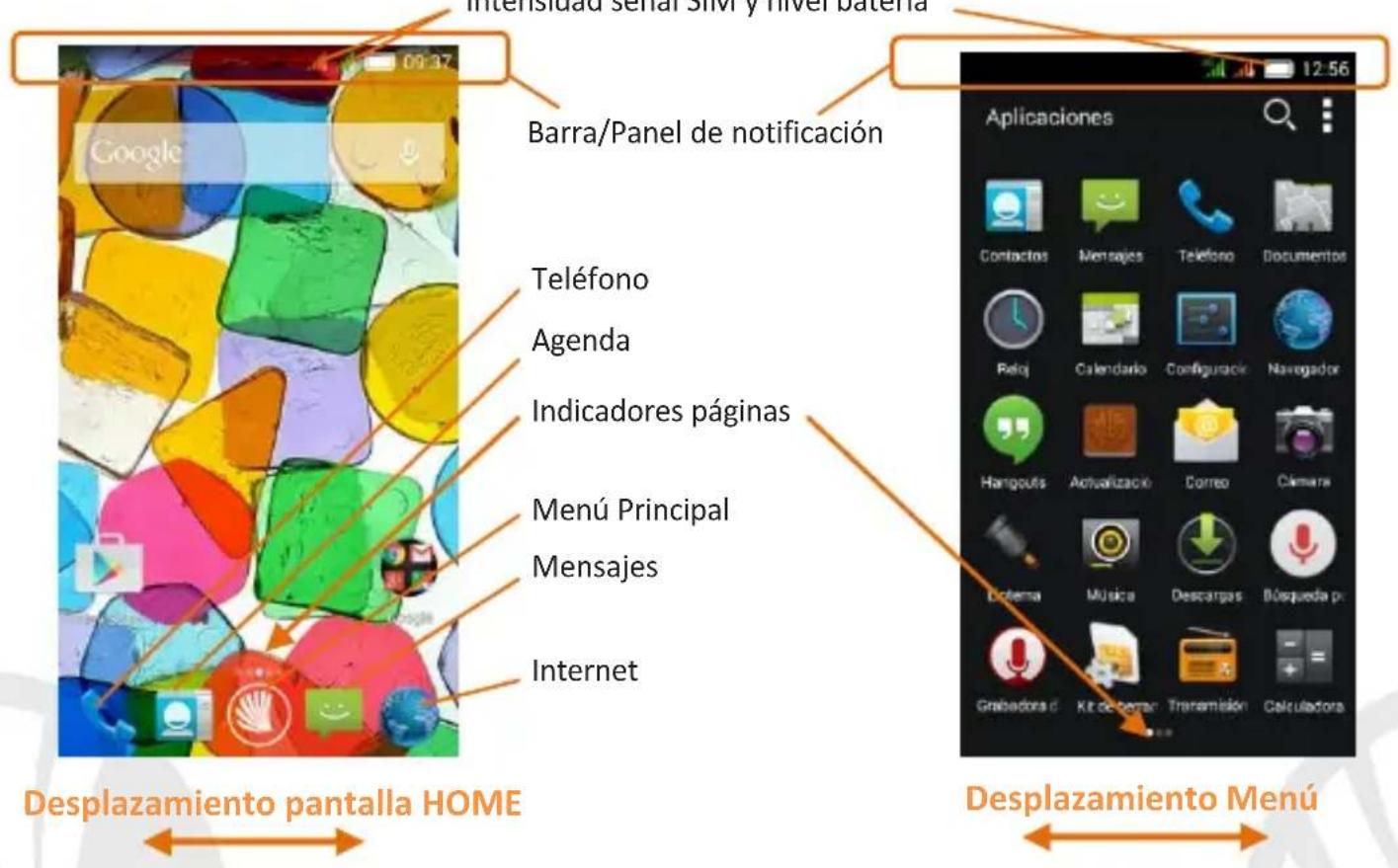

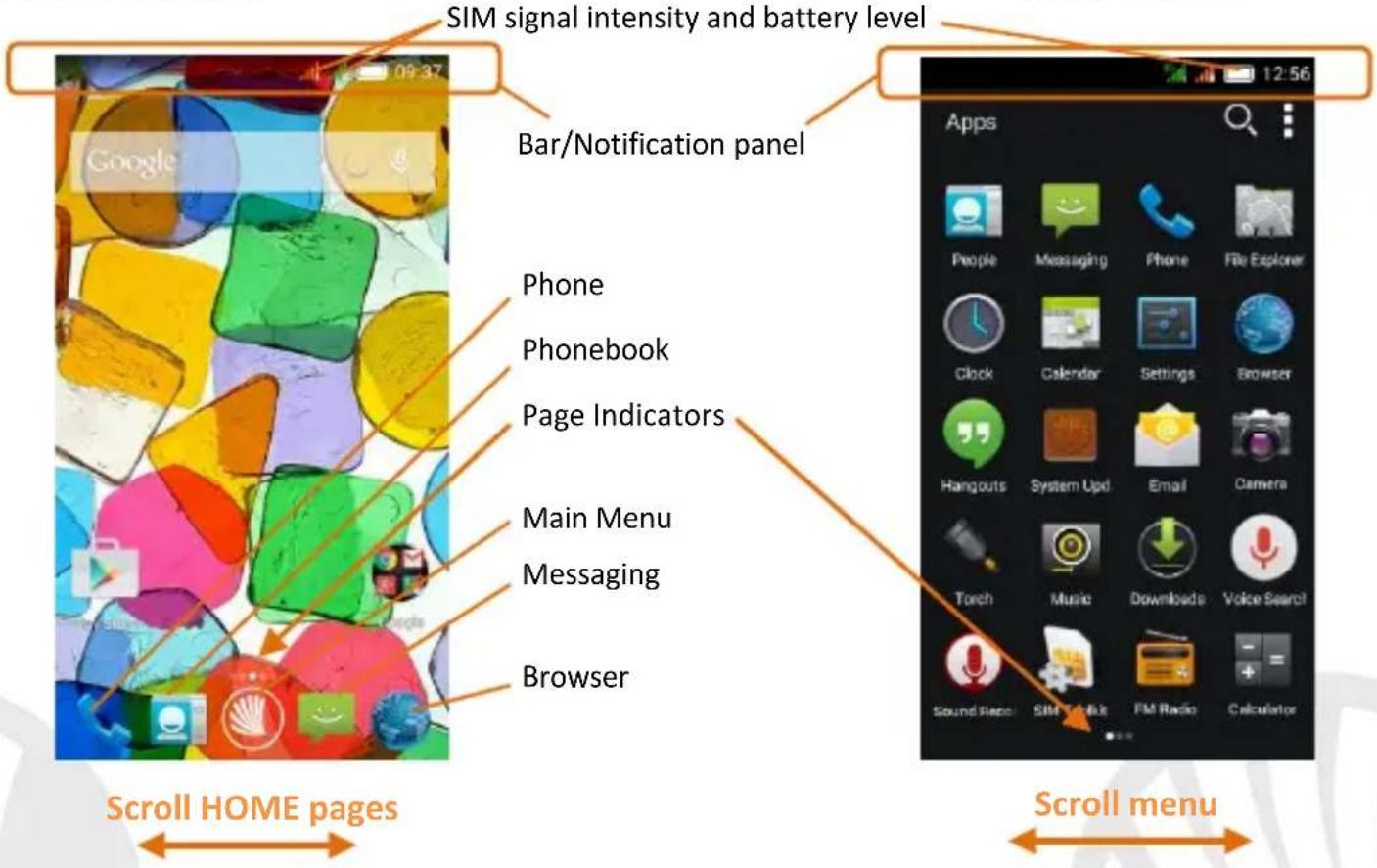

Home Screen Main Menu Bar/Notification panel SIM signal intensity and battery level Page Indicators Phone Phonebook Main Menu Browser Messaging Scroll HOME pages Scroll menu40 ENGLISH

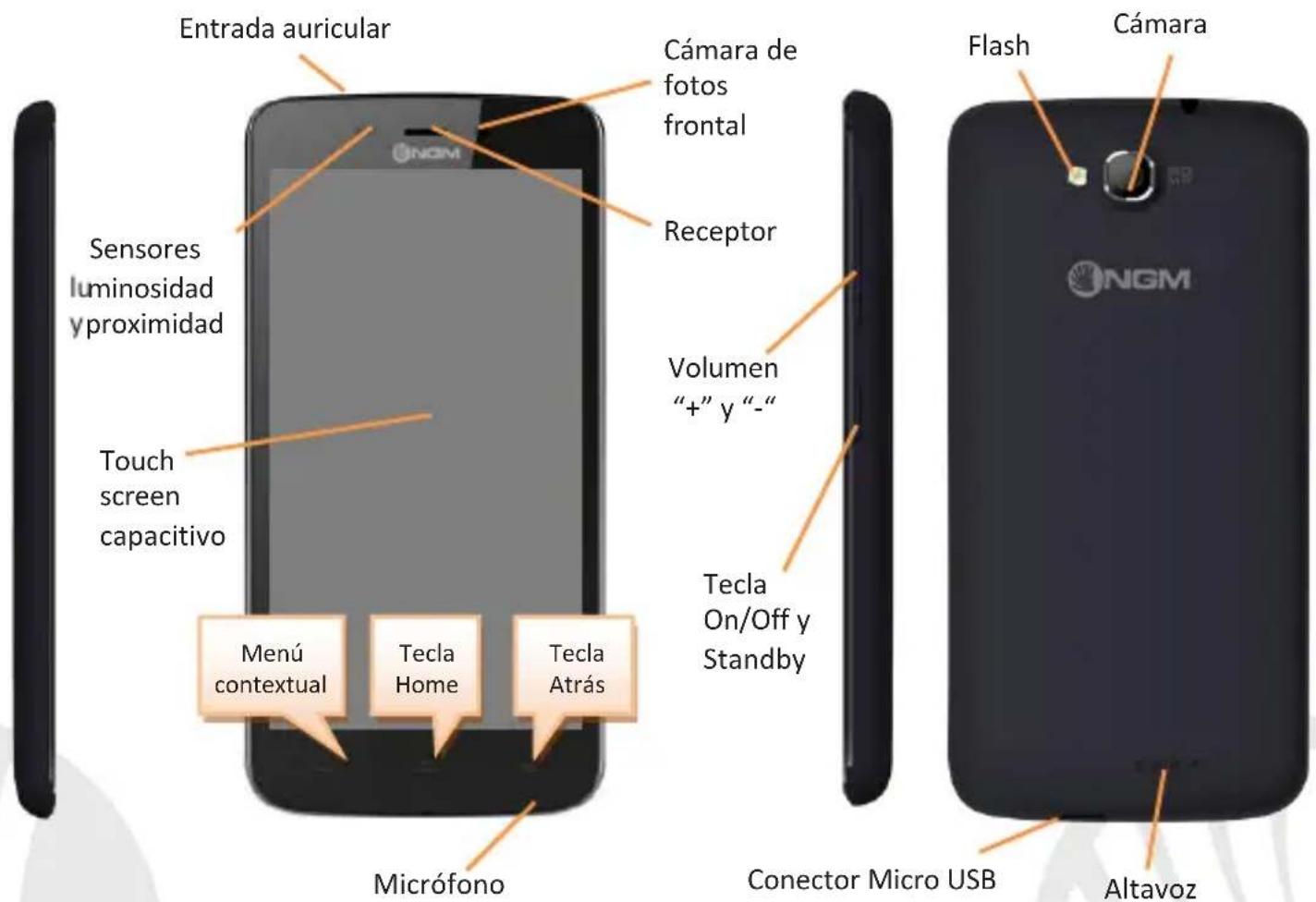

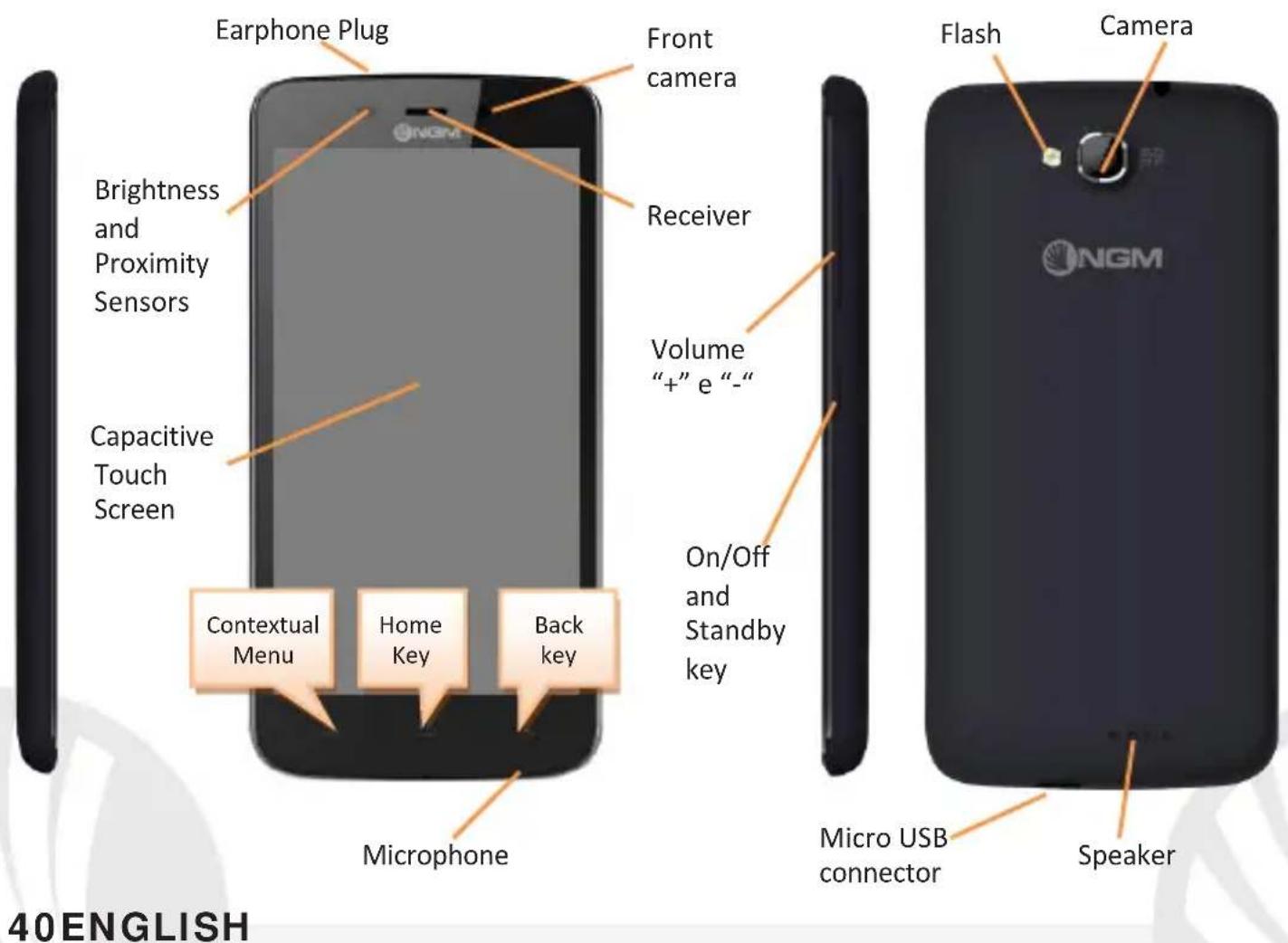

On/Off and Standby key Capacitive Touch Screen Flash Camera Micro USB connector Earphone Plug Front camera Receiver

Brightness and Proximity Sensors Speaker Volume “+” e “-“ Microphone Contextual Menu Back key Home Key41ENGLISH RAPID ACCESS Notification panel To open the Notification Panel, touch the upper bar containing the battery and signal- intensity icons and drag it downwards. Touch Notification to display notifications and touch Settings to access the quick setup keys. With , you will erase all notifications in the panel. To hide the panel, drag up the bottom of the panel or tap the Back key. Recent applications When you are inside any application, press the key: a list of the applications you have recently accessed will be shown and can be directly selected. Lock screen and vibration From the main menu, select Settings > Security > Screen Lock. Select the desired unlocking mode (None, Slide, Face Unlock, Pattern, PIN or Password) and confirm. To quickly lock the screen, briefly press the power on/off key. To unlock it, follow the instructions on the screen. Contextual Menu Many apps have a Contextual Menu . By selecting it, you can display a contextual menu referred to the application itself, with related functions.42 ENGLISH Managing the two SIM cards: from the main menu, select Settings > SIM Management. Select the I/O keys next to the phone operators corresponding to "SIM1" and "SIM2" to activate or deactivate selectively the SIM at any time. From this menu you can also customize the color and name for each SIM icon and decide which SIM to use as default for calls, video calls, messages and data connection or choose "always ask" if you don't want to set a SIM as default. Dynamic 4G/3G: In Settings > Mobile Networks > 4G/3G service > Enable 4G/3G you can select the SIM card on which you wish to activate the 3G or 4G service. This is an NGM feature that allows you to move the 3G and 4G connection (normally available on slot1 only) from one SIM to the other without physically having to exchange them. MANAGING CALLS From the main screen touch the Phone icon; use the virtual keypad to enter the desired phone number. Press the handset icon and choose the desired SIM to call with. To end the call press the red end call key. To answer a call, long press the central element and drag it downwards; drag it upwards to reject the call; to reject with SMS, swipe the central element to the left or to the right. To silence an incoming call, press Volume "+" or "-" (on the right side of the phone).43ENGLISH Call a number from the call log From the main menu, select the Phone App; the call log is over the keyboard, showing the missed, received and outgoing calls. In case no default SIM has been set, select the desired number and choose which SIM to call with. MANAGE CONTACTS Add a new contact: From the main menu select the Contacts icon. Press + icon on the bottom bar. Select the storage where you want to save the contact (Account, Phone, SIM1 or SIM2). Insert Name, Number and any other contact detail (if the contact is saved on the SIM card, only the name and phone number can be saved) and confirm with Done. Add a new contact from call log: From Phone menu, access the Call Logs Touch the empty contact picture near the number you want to save among the Missed, Received or Outgoing calls. Select New Contact or add the number to an Existing contact by selecting it from the list. Once you selected the saving path and added name and any further information (when saving in Phone), confirm with Done. Note: In the contact contextual menu, you can access the Import/Export functions and several other settings.44 ENGLISH It is possible to associate contacts to one of the SIM cards in order to automatically call those contacts with a specific SIM; to manage associations with the inserted SIM cards, you can either press the contextual menu of a contact and choose Associate SIM card or, from Settings > Dual SIM Settings, choose Contact Association, select the SIM card and choose the contacts you want to associate to it. Then, activate "Smart Dial" through "Associated contacts to SIM" option Set ringtones From the main menu, select Settings > Ringtones and Vibration > Audio Profiles > General. Select Voice call ringtone > SIM1 or SIM2 and choose the desired ringtone for each SIM card. If you want to set a custom ringtone: from Music select the arrow next to the desired audio track and choose Ringtone. So, the audio file will be added to the available ringtones list. Quickly turn on/off the vibration mode: to quickly disable call and message ringtones press the Volume "-" key. Once the minimum volume has been reached, the phone will enter the vibration mode. By pressing volume "-" again, the phone will enter the silent mode.

Note: you can set ringtones in *mid,*wav, *ogg or *mp3 formats.45ENGLISH Sending and reading SMS and MMS Reading SMS and MMS: when you receive a new SMS or MMS, an icon appears in the notification panel. By clicking on the displayed icon, you can directly access the conversation and read the incoming message. In any case, you can view the incoming messages from the home screen or menu by selecting Messaging. Send SMS and MMS: from the Home page or from the main menu, choose Messaging and then the icon on the bottom. Type the first letters of a name into the recipients field to search for a contact and select it from the pop-up or directly enter the phone number; otherwise select the icon next to the field and select the recipient(s) from the contacts. Write the text into the dedicated space with the virtual keypad. Select the icon to insert multimedia files (the message will automatically be converted into MMS). Press either Send key, selecting the SIM you want to use. CONNECTIVITY To better use the potentiality provided by the device and its operating system, you must have an active data connection; data connection of NGM Dynamic Now is active when you first power ON the phone. If it is not included into your mobile phone plan, data traffic may cause you extra costs, so it is recommended to configure an Internet connection via WiFi. To enable data traffic on one of the SIM cards, select Settings > Dual SIM Settings > Data connection, or activate it from the Quick Setup buttons in the notifications panel.46 ENGLISH Connect to the Internet using Wi-Fi® You can connect to the WLAN using Wi-Fi option. To activate it, choose Settings > WiFi. Please follow all warnings and indications concerning the use of wireless devices in areas where the use of such functions is restricted (airplanes, hospitals, etc.). Go offline mode when you have to use only the functions that do not require Network access. Connecting to a Bluetooth® device: turn ON the Bluetooth device you want to connect with. Refer to the device documentation. From the main menu, choose Settings > Bluetooth on/off to turn on Bluetooth. In the contextual menu you will find additional functions and settings. Choose Search for devices to automatically find other Bluetooth devices. Among the discovered devices, select the device name to associate with. The phone will attempt to associate with the device, which may be asked for a pairing code.

Connect to the Internet From the main menu, choose Browser. Type the URL into the address bar to start browsing. If you choose to navigate using data connection, be aware of costs or choose a "flat" data contract with your service provider. Alternatively, use WiFi (see "Connectivity") where possible.47ENGLISH Account setup: in order to better manage the Android

OS functionalities, it is recommended to configure a default account. When you first power on the phone, it will guide you in configuring a default account that allows you to access Android

applications like Email sync, for example. E-mail: by configuring a default account you can easily manage your e-mails and display them automatically on your phone. If you want to use also a different Email account, you can configure a new account with another provider within the Email app in the Main Menu. Synchronization Synchronization is the most efficient approach to manage your useful data because it allows you to make a backup of the data on your device with an internet account. In case of replacement, loss or damage of the phone you will not experience loss of data. The synchronization can be automatic (Settings > Data usage > Contextual menu > Auto-sync data) or can be activated manually, individually for each installed application to be synchronized; you can find the list of such applications in Settings > Account [installed App list]. To add a new account, select Add Account. The synchronization uses an active data connection, which could result in data traffic costs. It is advisable to use a WiFi connection when available.48 ENGLISH GPS geolocalization: The Global Positioning System (GPS) is a satellite-based positioning system, with a global and continuous coverage. To access GPS, select Settings > Localization access I/O. When the GPS function is activated, the phone starts to collect data from satellites and determines the current position. The Fix Times (position detection) are variable and can be affected by several external factors (clouds, high buildings, etc.). Limit the use of battery and memory by switching off this function when you don’t need it.

Warning: formatting and delivery of this user manual is based on the Android

operating system , NGM Italia will not bear responsibility for any incompliance with the above guidelines or improper use of the mobile phone. NGM reserves the right to modify any of the content in this user guide without previous public announcement. The content of this manual may vary from the actual content displayed in the mobile phone. In that case, the latter shall govern.

Copyright © 2014 NGM Italia No part of this manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of NGM Italia. Bluetooth® is a registered trademark of the Bluetooth SIG, Inc. worldwide. Wi-Fi® and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance.49ESPAÑOL Bienvenido al mundo de NGM Android
