WINN - Smartphone NGM - Free user manual and instructions

Brand	NGM
Model	WINN
Product Type	Smartphone
Battery Type	Lithium-ion
Battery Charging	Via USB cable and wall socket adaptor; also via PC USB port
Memory Card Support	MicroSD (8 GB included)
SIM Card Type	USIM
Front Camera	Yes, for video calls
Connectivity	Wi-Fi, Bluetooth, GPS
Text Input	SwiftKey keyboard with predictive text
Operating System	Android (based on manual context, not explicitly stated)
SAR Value (Head)	0.497 W/kg
SAR Standard	EU Council limit 2.0 W/kg over 10g tissue
Certifications	CE, R&TTE Directive 1999/5/EC
Energy Saving Modes	Eco key with Sleep, Cinema, Meeting modes
Notifications Panel	Quick access to Vibration, Bluetooth, Wi-Fi, 3G Data, GPS, Screen rotation
Ringtone Formats	MID, WAV, MP3
Recommended Accessories	Original NGM batteries, chargers, and accessories
Body Distance (Safety)	At least 1.5 cm from body when using non-metal accessories
Manual Language	English (and other languages available)

Frequently Asked Questions - WINN NGM

How do I insert the USIM card?

Remove the back cover, then the battery. Insert the USIM card into the slot with gold contacts facing downwards.

How do I install the memory card?

Power off the phone and remove the battery. Insert the microSD card into the dedicated slot beside the SIM slot with gold contacts facing downwards.

How do I insert and charge the battery?

Insert the lithium-ion battery aligning contacts with the phone connector, then replace the cover. Charge using the provided USB cable and wall adaptor; the screen shows charging progress. Use only original NGM chargers.

How do I turn on/off or put the phone to standby?

Press and hold the Power key to turn on/off. A quick press puts the phone in standby mode (screen off).

How do I make a voice call?

From the main screen, touch the green phone icon. Use the virtual keypad to enter the number, then press the green receiver to call. To end, press End call. To answer, slide the arrowed bar left; to reject, slide right.

How do I set a custom ringtone?

Go to Settings > Audio. For incoming calls, select Voice call ringtone or Video call ringtone. Choose from the list. To use a song, open Music, press and hold a song, then select Set as ringtone. Supported formats: MID, WAV, MP3.

How do I connect to Wi-Fi?

Activate Wi-Fi from Settings > Wireless and Nets > Wi-Fi, or from the notification panel. Then select your network from the list and enter the password if required.

How do I use the GPS function?

Go to Settings > Position and Security > use GPS satellites. You can also enable Use Wireless Networks for faster positioning. Turn off GPS when not in use to save battery.

What is the SAR value and is it safe?

The SAR value for this phone at the ear is 0.497 W/kg, well below the EU limit of 2.0 W/kg. The WHO states no special precautions are needed, but NGM recommends keeping the phone at least 1.5 cm from the body or using hands-free devices.

How can I quickly access settings or recent apps?

Open the notification panel by dragging down from the top. For recent apps, press and hold the Home key. Use the Eco key for quick energy saving modes.

USER MANUAL WINN NGM

Black and white image of two NGM smartphones with a Shell logo, one displaying its screen, against a textured gray background (no text or symbols on the devices themselves)

Close-up of a device casing with highlighted internal components and a red arrow indicating a specific area (no text or symbols present)

Interior view of a smartphone showing internal components and a highlighted red dotted area (no text or symbols)

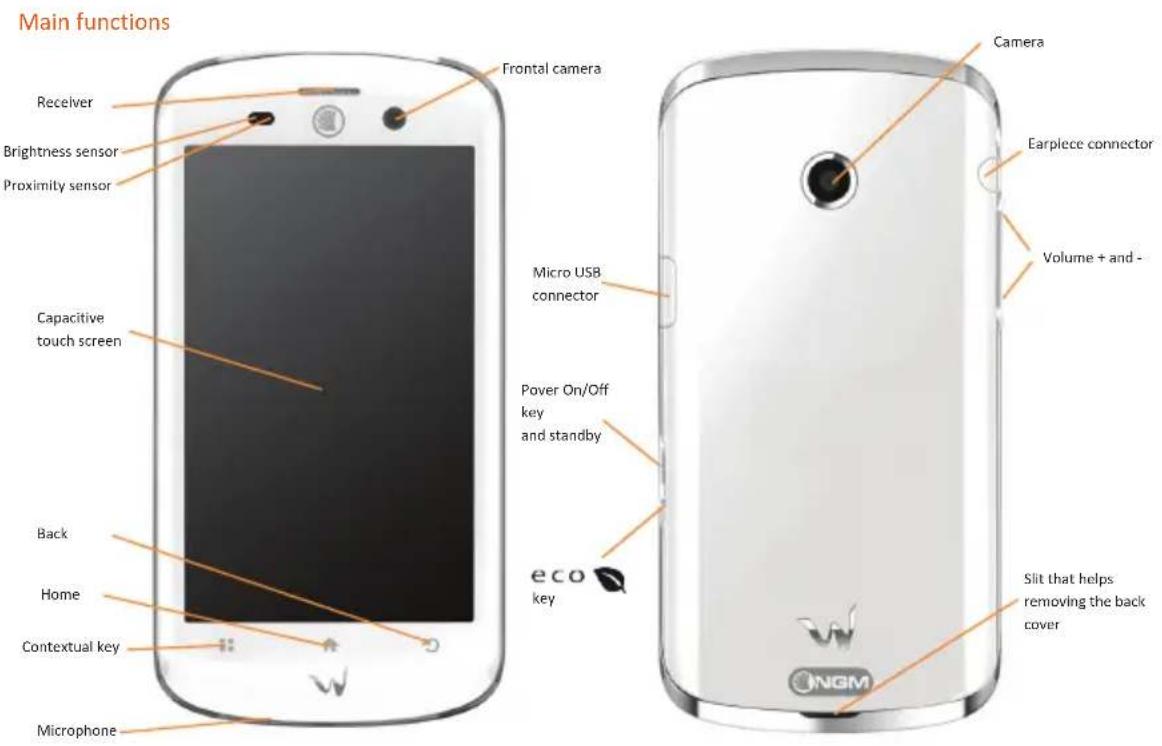

WINN

S.A.R. (Specific Absorption Rate)

http://www.who.int/peh-emf/publications/facts/fs193_italian_2010.pdf

Copyright © 2012 NGM Italia

Installing the USIM card

The USIM card stores information as your personal phone number, PIN code, carrier services numbers, contacts and other important details. First, remove the back cover from the phone by sliding a thin small object such as the corner of a credit card or a fingernail into the slit at the base of the cover to dislodge it from the chassis.

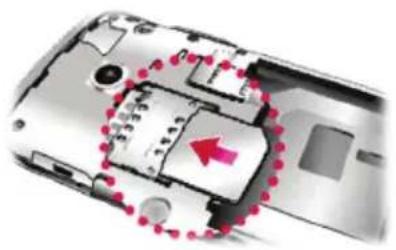

The USIM card must be inserted into the slot placed on the back side of the phone, with the gold contacts facing downwards after removing the battery.

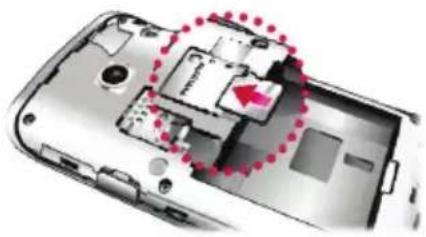

Installing the Memory card

In order to correctly use all functions, the 8 GB micro-5D card contained in the selling package must be correctly installed. It must be inserted in the back side of the phone, after powering it off and removing the battery. A dedicated slot for the memory card is placed beside SIM-slot. Slide in the memory card with the gold contacts facing downwards.

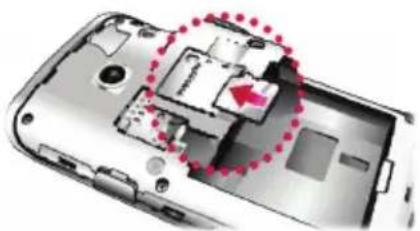

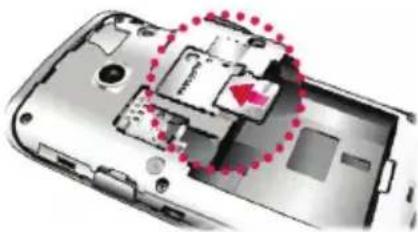

Close-up of a device's internal components with a red dotted circle highlighting a specific area (no text or symbols visible)

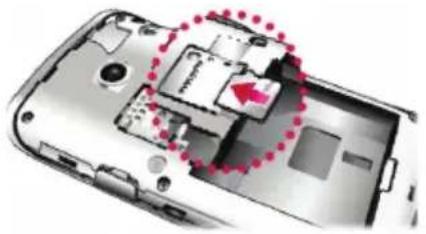

Interior view of a smartphone showing internal components and a highlighted area with a red arrow (no text or symbols present)

Inserting the battery

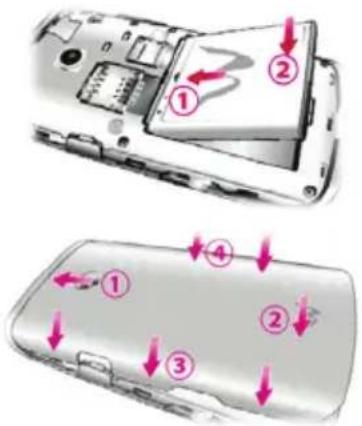

Your device is provided with a lithium-ion battery and is designed to be used exclusively with original NGM batteries and chargers. The battery must be inserted into the backside of the phone (see illustration below). Align the battery contacts with the phone connector inside the battery tray, and let it slide down in position. When done, put the hind cover of the phone back and make slight pressures along the cover rim, as shown with the arrows.

Charging the battery

Please charge the battery completely before starting to use the device. Use the provided USB cable, connecting one end to the USB connector placed on the side of the phone (first remove the protection cover) and the other end to the provided wall socket adaptor. While the battery is charging, an animation on screen will show the charging progress. Once charge is completed, the phone can be disconnected from the grid. The phone can also be charged by connecting it to a PC USB port.

Warning: Do not connect the phone to a booting-up or running down PC to avoid voltage jumps.

While the battery is charging, an animated icon on screen will show the charging progress. Once that the battery icon is full, the phone can be disconnected from the grid.

Note: use only the provided USB cable for recharging the device. Please charge the battery indoors, in a dry and favorable environment. It's normal for the battery to get slightly warm during the charging process. The battery will reach the full capacity when cycled several times.

Warning: in order to preserve the correct functioning of the device and in order not to compromise warranty, the sole use of original NGM battery chargers and accessories are recommended.

WINN

Turn on, turn off and standby

Press and hold the Power key to turn the phone on. Follow the instructions on screen on the first start. Press and hold the same key to turn off the phone. A quick pressure sets the phone on standby-mode (screen off) or to go back to the standby screen (see below).

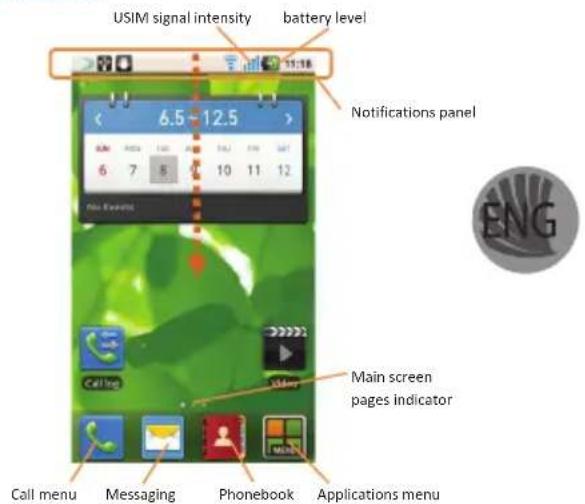

The main screen

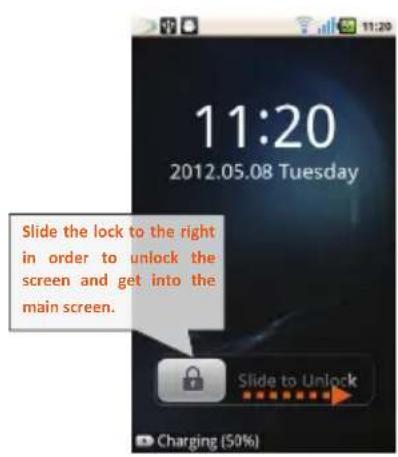

The main screen is the starting point for the use of all applications of the phone. Three main screens are available, as indicated by the white spots. These pages can be freely personalized with one's favorite applications, shortcuts and widgets. Just keep pressed the icon of the wished function in the application menu and then place the icon on the preferred main screen.

WINN

The main menu

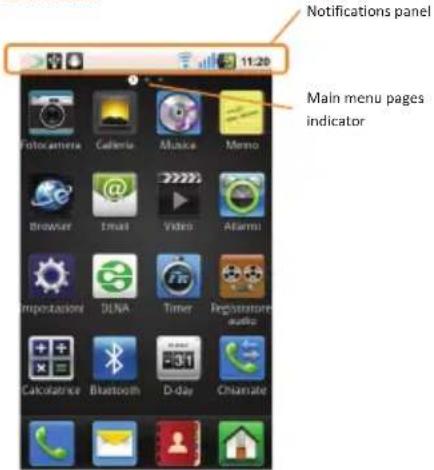

Use the touch screen by touching, pressing, sliding your finger over it. Select an application from the main menu or scroll the main menu pages right/left to find the desired one. The number of indicators show your position and the number of main menu pages. Press the back key to get back to the previous screen or press Home to get back into the main screen.

Managing calls

Voice calls

From the main screen, touch the icon representing the green phone in order to open the calling screen. Use the virtual keypad to digit the desired phone number.
Press the green receiver to start the call.
To end the call, press End call.
To answer a call, slide the arrowed bar to the left on the green icon. To reject it, slide the same bar to the right onto the red icon. To silence an incoming call, briefly press the + or - volume keys on the phone side.

Call a number from the call history

From the main menu, select call menu and the Calls folder to access rapidly all last sent and received calls.
Dal menu principale, selezionare il menu di chiamata e la cartella Chiamate per accedere rapidamente alle ultime chiamate effettuate/ricevute e perse.
Select the green phone icon to the right of the desired number in order to call it.

Video calls

Thanks to the frontal camera, you can make video calls with NGM Winn.

In the phonebook, select the contact image (or generic icon) of the desired contact.
Select Video call from the opening popup list.

Managing contacts

Add a new contact

From the main screen/menu, select the Phonebook icon.
Select the icon with the "+" on the upper left side.
Insert Name, Number and eventual other details (if saving on the phone memory).
Confirm by selecting Save.

Add a new contact from the call logs

From the main menu, select Call menu and the Calls folder.
Keep the desired number pressed until a popup with various options appears.
Select Add to phonebook and confirm if you want to add the number to an existing contact or if you want to create a new one.
After having inserted name and eventual other information, select Save.

Set ringtones

Select a ringtone

From the main menu, select Settings >Audio.
In incoming calls, select Voice call ringtone or Video call ringtone.
Select the desired ringtone from the list.

If you wish to set a personalized ringtone, from Music you can select a song and by pressing the contextual menu, choose Set as ringtone. After, the song will be available in the list of selectable ringtones.

Note: you can use *mid, *wav or *mp3 files as ringtones.

Screen lock and shortcuts

From the main menu, select Settings > Position and Security > Set screen lock. Select the desired unlocking mode (None, Sequence, PIN or Password) and confirm. In order to quickly lock the screen, briefly press on the power on/off key of the phone. To unlock it, follow the instructions on the screen.

Rapid activation of vibration mode

Rapidly disable ringtones and message alerts by pressing Volume "-" from the main screen until it gets to minimum and then switches to Silent mode.
From the notifications panel, select the "vibration" option. Select it again to go back to the previous mode.
From the virtual keyboard, keep the #-key pressed. Press it again to go back to the previous mode.

Navigate the Web

Connect to the Internet

From the main screen or the main menu, select Browser. Write the URL into the address bar to start navigation.

Email

Send and receive messages

Send SMS and MMS

From the main screen or menu, select Messaging > New message to access the text input screen.
Write the first few letters of a contact name into the recipients bar and select the desired contact from the popup contact list that will appear, or directly insert the recipients number.
Write the text into the dedicated space using the virtual keyboard.
Open the contextual menu and Attach to insert multimedia files (the message will automatically be converted into MMS).
Press Send.

Connectivity

The operation system requires an active data connection. If data traffic is not included in your phone contract, it could imply extra costs. In that case it is advisable to configure the internet access through WiFi. The activation/deactivation of the data traffic on the USIM is in Settings > Wireless and Nets > Data Connection or in the rapid access key of the notification panel.

Connect to the Internet using Wi-Fi

Connect to the wireless net using the Wi-Fi function. In order to activate it, from the main menu choose Settings > Wireless and Nets > Wi-Fi. Configure Wi-Fi and manage the access points with the Wi-Fi Options. Rapid activation/deactivation is possible on the notification panel with the dedicated key.

Please follow all warnings and indications concerning the use of wireless devices in areas where the use of such functions is restricted (airplanes, hospitals, etc.). Switch to Offline mode when you have to use only the functions that do not need Network access.

Connect to a Bluetooth device

Switch on the other Bluetooth™ device. Refer to the documentation of the device.
From the main menu, select Settings > Wireless and Networks > Bluetooth to activate Bluetooth. For a rapid activation/deactivation use the dedicated key on the notification panel.
Select Bluetooth settings > Search device to start a search for Bluetooth devices.
Between the found devices, select the name of the device that you want to pair. The phone will try to pair the device, eventually asking for a pairing code.

GPS geolocalization

The Global Positioning System (GPS) is a system based on the satellite-related position determination, with global and continuous covering. In order to access the function, select Settings > Position and Security > use GPS satellites. Inside the same menu you can also activate Use Wireless Networks, that contributes in the position finding using the available Wireless Networks. When the GPS function is active, the phone begins to collect data from the available satellites and determines the current position. Limit the use of battery and memory by switching off this function when you don't use it.

Rapid access

Notification panel

Open the notification panel by touching the upper area containing the battery and signal-intensity icons and drag it downwards. To hide the panel, push it up again starting from the bottom. From the panel you have rapid access to a list of notifications from the USIM or the System and in the upper part, to 6 management widgets: Vibration, Bluetooth, Wi-Fi, 3G Data, GPS, Block rotation.

Rapid access to recent applications

When you are inside any application, press and hold the Home key: a list of the most recent applications that have been opened will be shown and can be directly selected.

Contextual menu

Inside every application, press the menu key to visualize a contextual menu, that refers to the application with related functions.

The Eco key is a function that permits rapid access to the management of the phone functions. By activating the key, a screen will open, showing in the upper part the percentages of memory use of the memory card, the phone memory and the battery charge. In the lower part, after selecting Personalize mode you can set the energy saving modes you prefer or you can select between the pre-set energy saving modes: Sleep mode, Cinema mode and Meeting mode.

Insert text with SwiftKey

The default text input method is the SwiftKey keyboard. SwiftKey is an advanced predictive text input system; when writing SMS, MMS or E-mails, this mode predicts the word while you are writing it, changing it at every key pressure. During the first use, the program will suggest with popups the innovations and peculiarities of this writing system.

SwiftKey has an "intelligent" Dictionary that retrieves words also from other applications in the phone, such as the phonebook or the social networks etc. For the correct use of this function, the micro-SD contained in the selling package has to be installed into the phone.

To change the text input parameters, select Settings > Language and Keyboard > SwiftKey for NGM-Mobile

Warning: NGM Italia will not bear responsibility for any incompliance with the above guidelines or improper use of the mobile phone. The company reserves the right to modify any of the content in this user guide without previous public announcement. The content of this manual may vary from the actual content displayed in the mobile phone. In such case, the latter shall govern.

Certifications

Declaration of conformity (R&TTE)

We, NGM Italia

Declare under our sole responsibility that the product identified as GSM/WCDMA/Wi-Fi Mobile Phone: NGM WINN

Conforms to the following standards and specifications:

Health EN 50360, EN 62209-1

Safety EN 60950-1+A11

EMC EN 301 489-1/-7/-17

Radio EN 301 511

EN 300 328

We declare that all the series of fundamental radio test have been conducted and that the aforesaid product meets all the essential requirements of the Directive 1999/5/EC.

The conformity assessment procedure referred to in Article 10 and detailed in Annex IV of Directive 1999/5/EC has been followed with the involvement of the following notified bodies:

PHOENIX TESTLAB GmbH

Königswinkel 10,

D-32825 Blomberg,

Germany

CE 0700 Ⓙ

All technical documents conserved at NGM Italia S.r.l.

Available on request.

(UE Authorized Representative)

WINN

NGM Italia S.r.l.

Via L. Da Vinci, 7 – Ponticelli

56020 Santa Maria a Monte (Pi)

S.A.R. (Specific Absorption Rate)

Information on SAR certifications

Cell phones are radio transceivers. They have been projected not to exceed the radio wave exposition limits recommended by international guidelines. These guidelines have been determined by the international independent scientific organizations ICNRP and IEEE and include security limits to ensure protection to all persons, independently from their age and health conditions.

This phone meets European Union (EU) requirements concerning exposure to radio waves coming from telecommunication and radio devices. The exposure standard for mobile phones employs a unit of measurement known as SAR (Specific Absorption Rate). The SAR limit recommended by the EU Council is 2.0 W/kg averaged over ten grams of body tissue.

The highest SAR value for this model phone when tested for use at the ear was 0,497 watt/kg [1,2]. Although the SAR is determined at the highest certified power level, the actual SAR of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a base station, the lower the power output of the phone. The

Declaration of Conformity here above proves that the designated product is in compliance with the essential requirements and other relevant provisions of the R&TTE - Directive (European Radio & Terminal Telecommunications Equipment)1999/5/EC

[1] These controls have been made according to international guidelines on controls.

[2] For the use next to the body, this telephone model has been controlled and is conform to the directives for the exposition to electromagnetic radiation, when used with accessories provided by or approved by NGM and not containing metallic parts and that position the mobile phone at least at 1.5 cm distance from the body.

Warnings

WHO (World Health Organization) confirms that the actual scientific information does not indicate the necessity to adapt particular precautions for the use of cell phones.

Nevertheless, for all those users not comforted by these data, NGM advises to limit their own and their children's exposure, for instance by reducing the calling time, or by using earpieces or hands-free devices to keep the mobile phone distant from the body and the head.

For more information on the argument, NGM invites to consult the WHO document (Fact sheet N°193, June 2011) entitled Electromagnetic fields and public health: mobile phones at the following web address:

http://www.who.int/mediacentre/factsheets/fs193/en/index.html

NGM advises to use mobile devices of any brand or model with moderation and to keep them at a minimum distance of 1.5cm from the body or to use earpieces or other hands-free devices.

Copyright © 2012 NGM Italia

No part of this manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of NGM Italia.

Bluetooth® is a registered trademark of the Bluetooth SIG, Inc. worldwide.

Wi-Fi® and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance.

Close-up of a smartphone internal component with highlighted areas and a red arrow indicating a specific area (no text or symbols present)

Interior view of a smartphone showing internal components and a highlighted area with a red arrow (no text or symbols present)

WINN

WINN

Cargar la batería

S.A.R. (Specific Absorption Rate)

Copyright © 2012 NGM Italia

Close-up of a device's internal components with red dotted lines highlighting areas, no visible text or symbols

Interior view of a smartphone showing internal components and a highlighted red dotted area (no text or symbols)

Akku einsetzen

Aufladen des Akkus

S.A.R. (Specific Absorption Rate)

Copyright © 2012 NGM Italia

Pure vertical black bar with horizontal lines at both ends, no text or symbols present

www.ngm.eu
