Product Type	Wristwatch
Brand	Swatch
Model	Azul'Heure GE260
Movement	Analog quartz
Power Source	Battery (type SR920SW)
Battery Life	Approximately 2 to 3 years
Display	Hands (hours, minutes, seconds), day and date
Main Functions	Time, date, day, alarm, Loomi lighting, Touch function, unidirectional rotating bezel
Time Setting	Crown in position C, turn slowly for minutes, quickly for hours
Day/Date Setting	Crown in position B, turn counterclockwise for date, clockwise for day
Alarm	Adjustable via crown, on/off by pressing, demonstration by pressing 2 seconds
Lighting (Loomi)	Activation by light tap on the glass
Touch Function	Random movement of hands to show alarm time or play
Rotating Bezel	Unidirectional, for measuring elapsed time (Scuba)
Case Material	Plastic or resin
Strap Material	Silicone
Dimensions (Diameter)	Approximately 34 mm
Weight	Approximately 25 g
Care and Cleaning	Rinse with fresh water after immersion in salt water
Safety	Do not use for professional diving
Spare Parts	Standard battery available from a watchmaker
Repairability	Battery replacement by a watchmaker
Test and Initialization	Press crown for 5 seconds, adjust hands if necessary
Warranty	Consult the retailer

Frequently Asked Questions - Azul'Heure GE260 SWATCH

How to set the time on the Swatch Azul'Heure GE260?

Pull the crown to position C (second click). Turn it gently to correct the minutes, quickly for the hours. Push the crown back to position A to finish.

How to set the date and day?

Pull the crown to position B (first click). Turn it counterclockwise to set the date, clockwise for the day. Push the crown back to position A.

How to use the alarm?

Press the crown to toggle between ON/OFF mode. To set the alarm time, pull the crown to position A (first click) and turn it (slowly = minutes, quickly = hours). Push the crown back to activate the alarm. For a demonstration, press the crown for 2 seconds.

How to turn on the Loomi lighting?

Lightly tap on the glass of your Swatch to activate the lighting. Wear the watch on your wrist or attach it to your clothing.

How to use the Touch function?

Press on your Swatch. The hands move to show noon/midnight and then turn randomly to play. After a few seconds, they return to the current time.

How to use the rotating bezel for diving?

Place the bezel marker exactly opposite the minute hand at the start of your activity. The elapsed time is read on the bezel facing the minute hand.

What to do if the hands are not at noon/midnight during testing?

Pull the crown to position C (second click). Turn it clockwise to adjust the hour hand, counterclockwise for the minutes. Push the crown back to finish.

How to stop the alarm when it rings?

Press once on the crown or on the glass (Touch) to stop the alarm.

Is the watch water-resistant?

Yes, but avoid prolonged immersion. After contact with salt water, rinse it with fresh water.

Where can I replace the battery?

Have the battery replaced by a professional watchmaker. Use a type SR920SW battery.

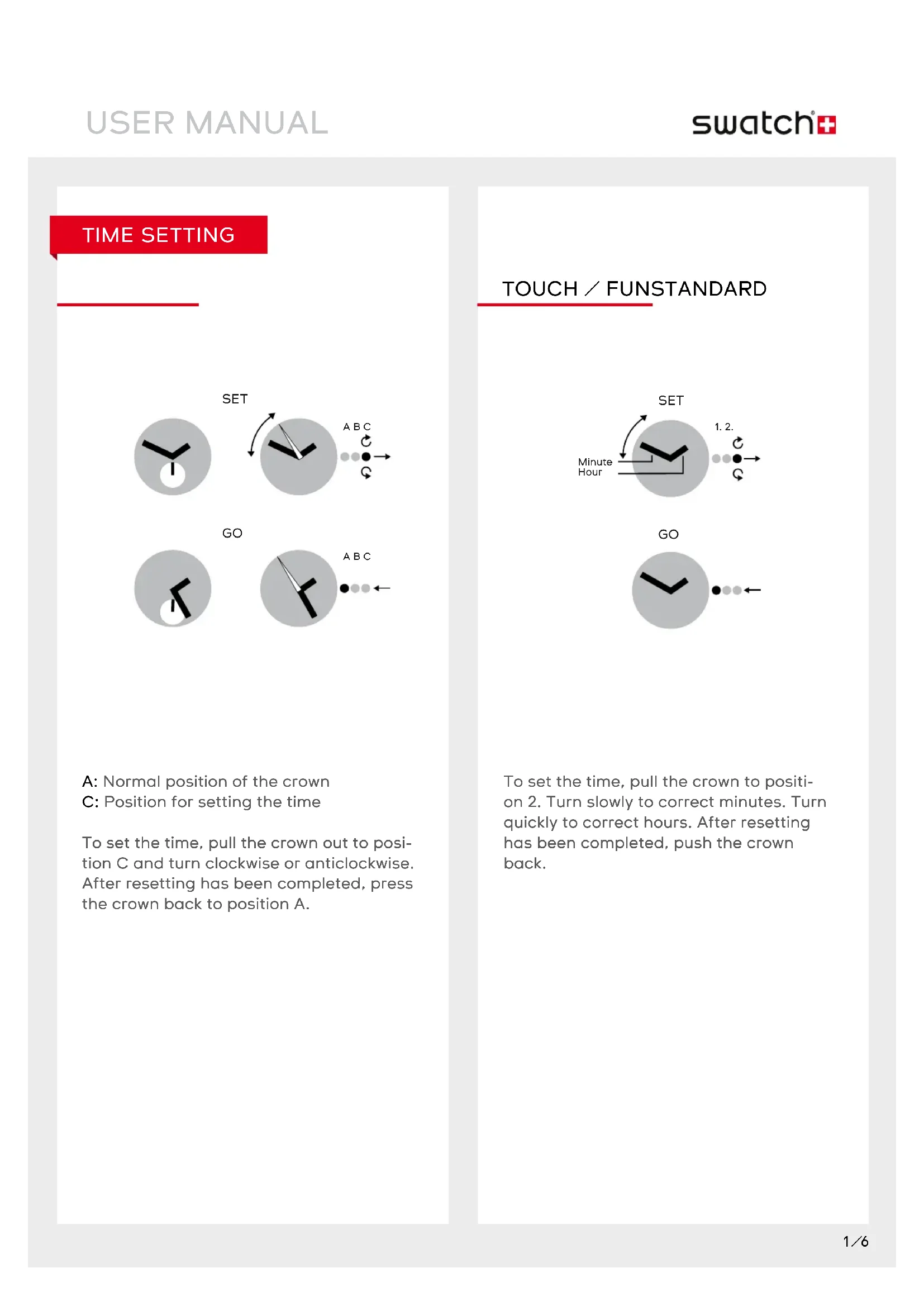

USER MANUAL Azul'Heure GE260 SWATCH

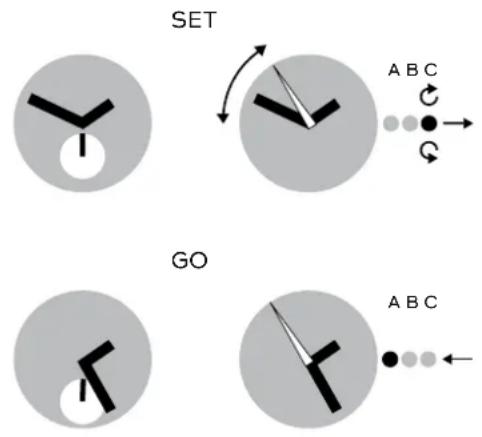

A: Normal position of the crown
C: Position for setting the time

To set the time, pull the crown out to position C and turn clockwise or anticlockwise. After resetting has been completed, press the crown back to position A.

TOUCH / FUNSTANDARD

To set the time, pull the crown to position 2. Turn slowly to correct minutes. Turn quickly to correct hours. After resetting has been completed, push the crown back.

DATE OR DAY SETTING

STANDARD

To set the date, pull the crown out to position B, and turn anticlockwise. To set the day, turn the crown in a clockwise direction. After resetting has been completed, press the crown back to position A.

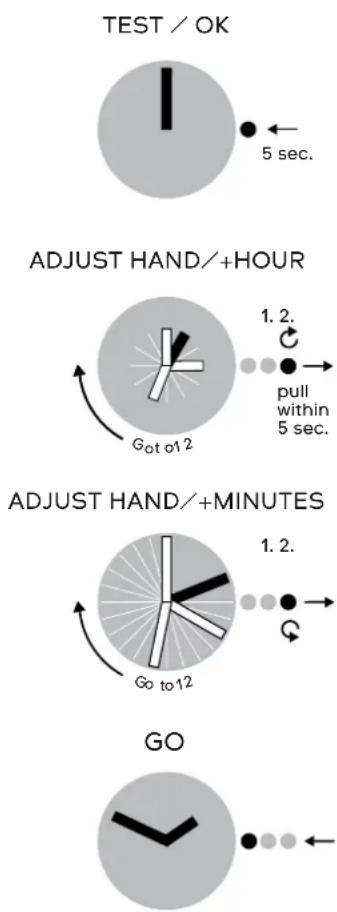

READJUSTMENT

TOUCH / FUN

Push crown for 5 seconds. If both hands go to 12 o'clock, test is ok. Push crown again and hands go back to time.

If hands are not exactly at 12 o'clock, pull crown to position 2. Turn clockwise to readjust hour hand. Turn counter clockwise to readjust minute hand. Push crown back and hands turn back to show time.

LOOMI FUNCTION: DISPLAY

TOUCH LOOMI

TOUCH YOUR SWATCH

Illustration of a hand holding a small object with an arrow symbol (no text or labels)

LOOMI ON

LOOMI

LIGHT FUNCTION

POP

POP-IN

POP-OUT

Abstract graphic with a clock icon and curved arrows, no text or symbols present

POP ON CLOTHES

Note: Wear your Swatch simply with its band or try „popping“ it directly onto your clothes.

TOUCH ALARM

SHOW ALARM TIME

Simple line drawing of a hand with fingers and a curved arrow, no text or symbols present

\~4 secs.

Touch your Swatch.

Hands move to show alarm time for approx. 4 seconds.

STOP ALARM

Illustration of a hand holding a triangular object with a bell symbol nearby (no text or labels)

Touch your Swatch to stop alarm.

ALARM ON/OFF

...CHANGE ON/OFF

SHOW LAST ALARM

...SET NEW ALARM

GO

Switch alarm on/off and set alarm time Press crown and hands go to actual mode on or off.

Press crown again to change mode.

Pull crown to position 1 and the hands go to the last alarm time.

To set a new alarm time, turn crown (turn slowly = minutes, turn quickly = hours).

Then push crown back and hands turn back to time and alarm mode will be "on".

ALARM DEMO

Press crown for 2 seconds to start alarm demo.

To stop, press crown again.

IMPORTANT: When the hands do not show correctly ON-OFF (alarm mode), the Touch Alarm must be adjusted (e.g. after battery change or a hard knock).

TOUCH GAME

Illustration of a hand with fingers and a curved arrow, no text or symbols present

Touch your Swatch.

Hands come together at 12 o'clock and start to rotate at least on full turn.

IMPORTANT: If hands are not exactly at 12 o'clock, they have to be readjusted.

\~4 secs.

Hands stop by accident and show the result of your game for some seconds... ...then, hands turn back to time.

SCUBA FUNCTION: ELAPSED TIME

Using the adjustment ring

For setting the start time and duration of an activity, line up the marker on the adjustment ring with the minute hand. Timing starts at the time indicated by the marker. The elapsed time is indicated by the minute hand pointing the number on the adjustment ring.

WARNING NOTE

IMPORTANT: After being submerged in salt water, the Scuba 200 Chrono should always be rinsed with fresh water.

CAUTION: The Irony Scuba 200 Chrono is not a professional diving watch.

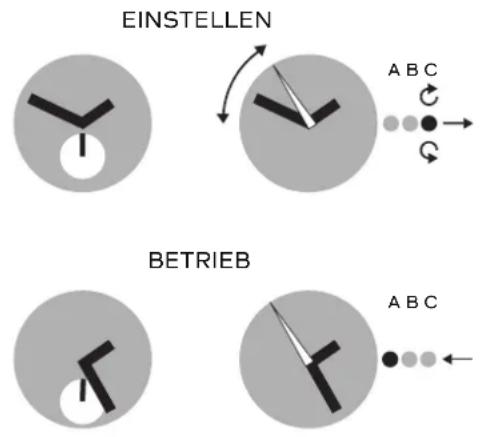

ZEIT EINSTELLEN

TIPPEN SIE AUF IHRE SWATCH

Illustration of a hand holding a small object with a circular arrow symbol (no text or labels)

LOOMI GEHT AN

LOOMI

BELEUCHTUNG

POP

Abstract graphic with a clock icon and curved arrows, no text or symbols present

Simple line drawing of a hand pressing a button with a downward arrow (no text or symbols)

\~4 Sek.

Illustration of a hand holding a finger with two triangular warning symbols (no text or labels)

Simple line drawing of a hand with an arrow indicating clockwise motion (no text or symbols)

Simple analog clock face showing 10:30 (no text or numbers beyond clock face and arrow)

ABLESEN

Circular dial with a black hand pointing down to 30, showing time (no text or symbols beyond numbers)

Simple line drawing of a hand holding a small object with an arrow symbol (no text or labels)

LA LOOMI S'ALLUME

LOOMI

LUMIÈRE

POP

INSÉRER

RETIRER

Abstract graphic with a checkmark inside a circle and curved arrow, no text or symbols present.

FIXER AUX VÊTEMENTS

Simple line drawing of a hand with a curved arrow and a circular background (no text or symbols)

\~4 s

Illustration of a hand holding a finger with a circular button containing triangular arrows (no text or symbols)

Illustration of a hand with fingers and a circular arrow symbol (no text or labels)

Simple analog clock face showing 10:30 (no text or numbers beyond clock face and arrow)

LIRE

Circular dial with a black hand pointing down to 30, showing time (no text or symbols beyond numbers)

LOOMI-FUNCTIE: SCHERM

TOUCH LOOMI

RAAK JE SWATCH AAN

Simple line drawing of a hand holding a bird, with a circular arrow symbol above (no text or labels)

LOOMI ON

LOOMI

LICHT-FUNCTIE

POP

ERIN DRUKKEN

UITWIPPEN

Abstract graphic with a checkmark inside a circle and curved arrow, no text or symbols present.

AAN KLEDING BEVESTIGEN

Simple line drawing of a hand with a curved arrow pointing downward (no text or symbols)

\~4 sec.

Raak je Swatch aan.

Illustration of a hand holding a triangular object with a bell icon nearby (no text or symbols)

Illustration of a hand with fingers and a circular arrow symbol (no text or labels)

Raak je Swatch aan.

Simple analog clock face showing 10:30 (no text or numbers beyond clock face and arrow)

AFLEZEN

Circular dial with a black-and-white clock face showing 10:30 (no text or numbers beyond clock numerals)

Simple line drawing of a hand holding a bird, with a circular arrow symbol above (no text or labels)

LOOMI SE ENCIENDE

LOOMI

ILUMINACIÓN

POP

ENGANCHAR

SOLTAR

Abstract graphic with a clock icon and curved arrow, no text or symbols present

ENGANCHAR EN LA ROPA

Simple line drawing of a hand with a curved arrow pointing downward (no text or symbols)

\~4 seg.

Illustration of a hand holding a small object with two triangular shapes and a circular background (no text or symbols)

Toque su Swatch para detener la alarma.

Illustration of a hand with fingers and a curved arrow, no text or symbols present

Golpee ligeramente en su Swatch.

Simple analog clock face showing 10:30 (no text or numbers beyond clock face and arrow)

LEER

Circular dial with a black hand pointing down to 30, showing time (no text or symbols beyond numbers)

Uso del aro de ajuste (luneta)

Simple line drawing of a hand holding a bird, with a circular arrow symbol above (no text or labels)

IL LOOMI SI ACCENDE

LOOMI

POP

INSERISCI

ESTRAI

Abstract graphic with a clock icon and curved arrow, no text or symbols present

PINZA SUI VESTITI

Simple line drawing of a hand with a curved arrow pointing downward (no text or symbols)

\~4 sec.

Illustration of a hand holding a circular object with triangular shapes and a bell icon (no text or symbols)

Illustration of a hand with fingers and a circular arrow symbol (no text or labels)

Circular analog clock face with hour and minute hands (no numbers or text)

Illustration of a hand holding a small object with a circular arrow symbol (no text or labels)

LOOMI ACENDE

LOOMI

Abstract graphic with a clock icon and curved arrow, no text or symbols present

COLOCAR NA ROUPA

Simple line drawing of a hand with a curved arrow pointing downward (no text or symbols)

\~4 seg.

Toque o seu Swatch.

Illustration of a hand holding a small object with two triangular shapes and a circular background (no text or symbols)

Illustration of a hand with a curved arrow and a circular button, no text or symbols present

Toque o seu Swatch.

Simple analog clock face showing 3:00 (no text or numbers beyond clock face markings)

LER

Circular dial with a black hand pointing down to 30, showing time (no text or symbols beyond numbers)

Uso da catraca (luneta)
