Astilbe GP140 - Wristwatch SWATCH - Free user manual and instructions

Product type	Wrist watch
Brand	Swatch
Model	Astilbe GP140
Movement	Analog quartz
Display	Hands
Main functions	Time, day, date, alarm, chronograph (rotating bezel), Loomi lighting, Touch game
Power	Button cell battery
Weight	Approximately 30 g
Case diameter	Approximately 34 mm
Case material	Synthetic resin
Strap material	Silicone
Clasp	Pin buckle
Crown positions	A (normal), B (date/day adjustment), C (time adjustment)
Time setting	Pull crown to position C, turn slowly for minutes, quickly for hours
Date and day setting	Pull crown to position B, turn counterclockwise for date, clockwise for day
Alarm setting	Press crown to toggle ON/OFF, pull to position 1 to set alarm time
Loomi function (lighting)	Tap lightly on the watch to activate lighting
Scuba function (elapsed time)	Turn the bezel to align the marker with the minute hand, read elapsed time on the bezel
Maintenance	Rinse with fresh water after contact with salt water, clean with a soft cloth
Repairability	Battery replaceable by an authorized watchmaker

Frequently Asked Questions - Astilbe GP140 SWATCH

How to set the time on my Swatch Astilbe GP140?

Pull the crown to position C. Turn it slowly to change the minutes, quickly to change the hours. Then push the crown back to position A.

How to set the date and day?

Pull the crown to position B. Turn it counterclockwise to set the date, clockwise to set the day. Then push the crown back.

How to set the alarm?

Press the crown to switch ON or OFF. Pull the crown to position 1 to set the alarm time (turn slowly for minutes, quickly for hours). Push the crown back to save.

How to use the Touch function for lighting?

Tap lightly on your Swatch to activate Loomi lighting. Wear the watch with its strap or attached to your clothing.

How to use the rotating bezel to measure elapsed time?

Place the bezel marker exactly opposite the minute hand. As time elapses, read the time indicated by the minute hand on the bezel.

How to stop the alarm when it sounds?

Press your Swatch (on the crystal or crown) to stop the alarm.

What to do if the hands do not display the correct time after a shock?

Perform an initialization test: press the crown for 5 seconds. If the hands do not show exactly noon/midnight, adjust them by pulling the crown to position 2 and turning.

How to initialize the hands (test and initialization)?

Press the crown for 5 seconds. The hands should show noon/midnight. If not, pull the crown to position 2 and adjust the hands (clockwise for hour, counterclockwise for minutes). Push the crown back.

How to play with the Touch function (game)?

Press your Swatch. The hands spin and stop randomly to display a result. After a few seconds, they return to the correct time.

How to maintain my watch after immersion in salt water?

Rinse your watch with fresh water after each contact with salt water. Wipe it with a soft cloth.

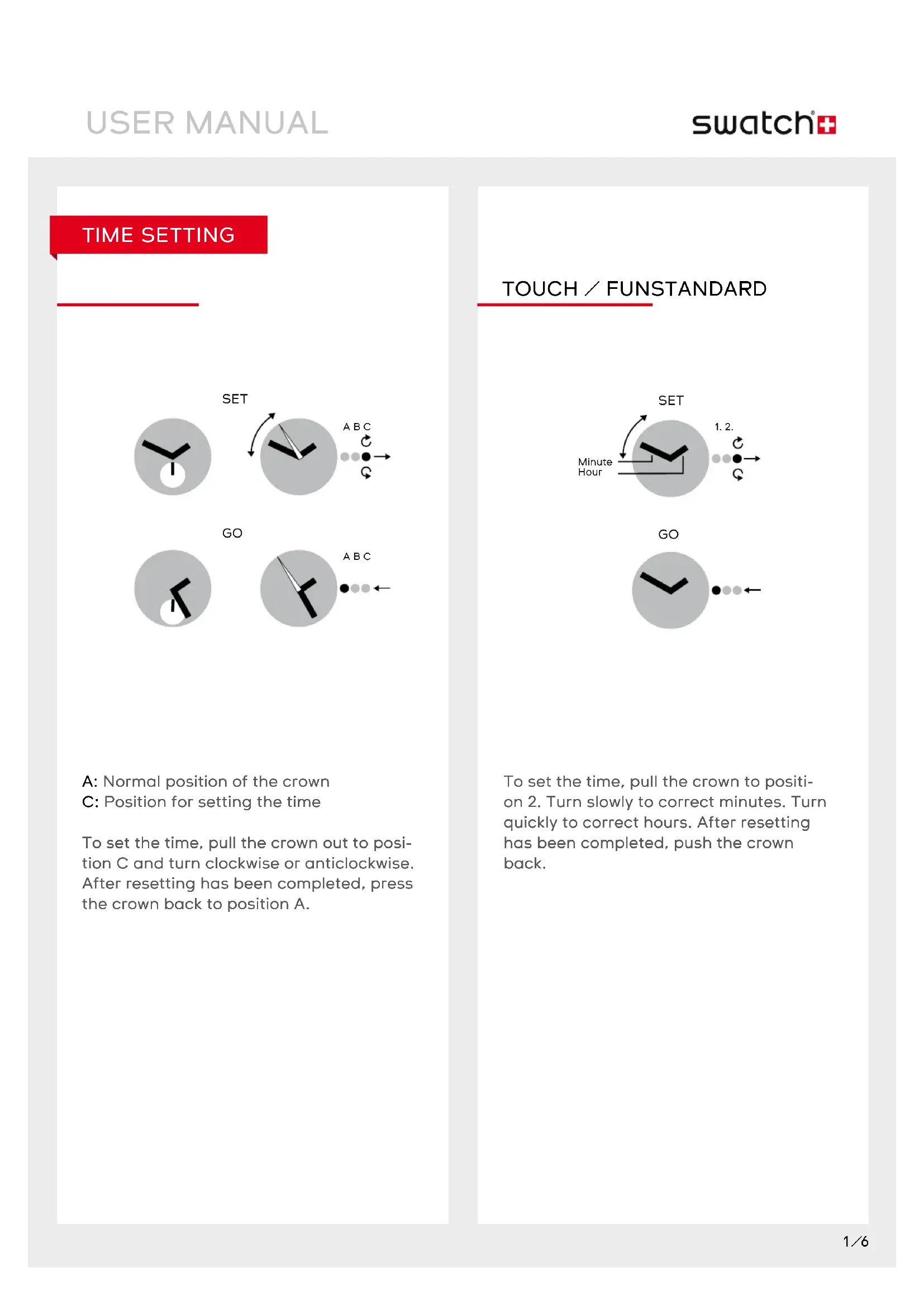

USER MANUAL Astilbe GP140 SWATCH

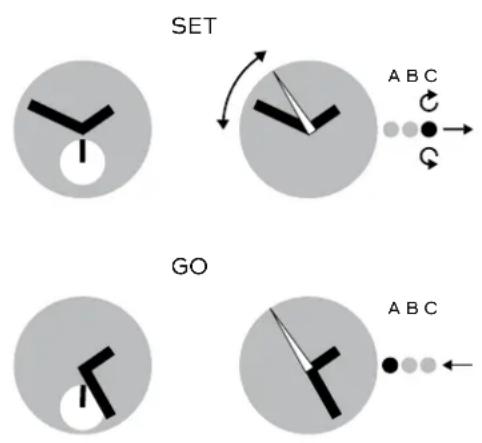

A: Normal position of the crown
C: Position for setting the time

To set the time, pull the crown out to position C and turn clockwise or anticlockwise. After resetting has been completed, press the crown back to position A.

TOUCH / FUNSTANDARD

To set the time, pull the crown to position 2. Turn slowly to correct minutes. Turn quickly to correct hours. After resetting has been completed, push the crown back.

DATE OR DAY SETTING

STANDARD

To set the date, pull the crown out to position B, and turn anticlockwise. To set the day, turn the crown in a clockwise direction. After resetting has been completed, press the crown back to position A.

READJUSTMENT

TOUCH / FUN

Push crown for 5 seconds. If both hands go to 12 o'clock, test is ok. Push crown again and hands go back to time.

If hands are not exactly at 12 o'clock, pull crown to position 2. Turn clockwise to readjust hour hand. Turn counter clockwise to readjust minute hand. Push crown back and hands turn back to show time.

LOOMI FUNCTION: DISPLAY

TOUCH LOOMI

TOUCH YOUR SWATCH

Illustration of a hand holding a small object with an arrow symbol (no text or labels)

LOOMI ON

LOOMI

LIGHT FUNCTION

POP

POP-IN

POP-OUT

Abstract graphic with a clock icon and curved arrows, no text or symbols present

POP ON CLOTHES

Note: Wear your Swatch simply with its band or try „popping“ it directly onto your clothes.

TOUCH ALARM

SHOW ALARM TIME

Simple line drawing of a hand with fingers and a curved arrow, no text or symbols present

\~4 secs.

Touch your Swatch.

Hands move to show alarm time for approx. 4 seconds.

STOP ALARM

Illustration of a hand holding a triangular object with a circular background showing two triangular shapes (no text or symbols)

Touch your Swatch to stop alarm.

ALARM ON/OFF

...CHANGE ON/OFF

SHOW LAST ALARM

...SET NEW ALARM

GO

Switch alarm on/off and set alarm time Press crown and hands go to actual mode on or off.

Press crown again to change mode.

Pull crown to position 1 and the hands go to the last alarm time.

To set a new alarm time, turn crown (turn slowly = minutes, turn quickly = hours).

Then push crown back and hands turn back to time and alarm mode will be "on".

ALARM DEMO

Press crown for 2 seconds to start alarm demo.

To stop, press crown again.

IMPORTANT: When the hands do not show correctly ON-OFF (alarm mode), the Touch Alarm must be adjusted (e.g. after battery change or a hard knock).

TOUCH GAME

Illustration of a hand with fingers and a curved arrow, no text or symbols present

Touch your Swatch.

Hands come together at 12 o'clock and start to rotate at least on full turn.

IMPORTANT: If hands are not exactly at 12 o'clock, they have to be readjusted.

\~4 secs.

Hands stop by accident and show the result of your game for some seconds... ...then, hands turn back to time.

SCUBA FUNCTION: ELAPSED TIME

Using the adjustment ring

For setting the start time and duration of an activity, line up the marker on the adjustment ring with the minute hand. Timing starts at the time indicated by the marker. The elapsed time is indicated by the minute hand pointing the number on the adjustment ring.

WARNING NOTE

IMPORTANT: After being submerged in salt water, the Scuba 200 Chrono should always be rinsed with fresh water.

CAUTION: The Irony Scuba 200 Chrono is not a professional diving watch.

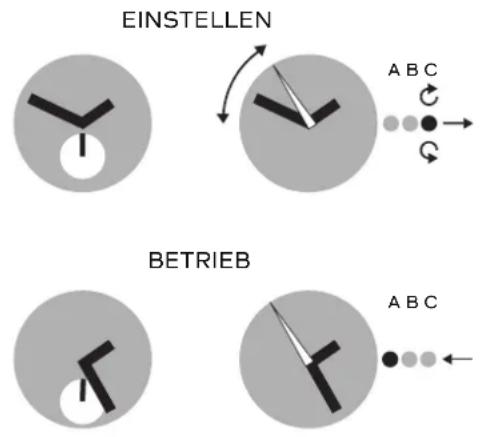

ZEIT EINSTELLEN

TIPPEN SIE AUF IHRE SWATCH

Illustration of a hand holding a small object with a circular arrow symbol (no text or labels)

LOOMI GEHT AN

LOOMI

BELEUCHTUNG

POP

Abstract graphic with a clock icon and curved arrows, no text or symbols present

Simple line drawing of a hand pressing a button with a downward arrow (no text or symbols)

\~4 Sek.

Illustration of a hand holding a finger with two triangular warning symbols (no text or labels)

Simple line drawing of a hand with a curved arrow and a circular background (no text or symbols)

Simple analog clock face showing 10:30 (no text or numbers beyond clock face and arrow)

ABLESEN

Circular dial with a black-and-white clock face showing 10:30 (no text or numbers beyond clock numerals)

Simple line drawing of a hand holding a small object with an arrow symbol (no text or labels)

LA LOOMI S'ALLUME

LOOMI

LUMIÈRE

POP

INSÉRER

RETIRER

Abstract graphic with a checkmark inside a circle and curved arrow, no text or symbols present.

FIXER AUX VÊTEMENTS

Simple line drawing of a hand with a curved arrow pointing downward (no text or symbols)

\~4 s

Illustration of a hand holding a finger with a circular button containing triangular arrows (no text or symbols)

Illustration of a hand with fingers and a circular arrow symbol (no text or labels)

Simple analog clock face showing 10:30 (no text or numbers beyond clock face and arrow)

LIRE

Circular dial with a black-and-white clock face showing 10:30 (no text or numbers beyond clock numerals)

LOOMI-FUNCTIE: SCHERM

TOUCH LOOMI

RAAK JE SWATCH AAN

Illustration of a hand holding a bird, with a circular arrow symbol indicating wind direction (no text or labels)

LOOMI ON

LOOMI

LICHT-FUNCTIE

POP

ERIN DRUKKEN

UITWIPPEN

Abstract graphic with a checkmark inside a circle and curved arrow, no text or symbols present.

AAN KLEDING BEVESTIGEN

Simple line drawing of a hand with a curved arrow pointing downward (no text or symbols)

\~4 sec.

Raak je Swatch aan.

Illustration of a hand holding a triangular object with a bell icon nearby (no text or symbols)

Illustration of a hand with fingers and a curved arrow, no text or symbols present

Raak je Swatch aan.

Simple analog clock face showing 10:30 (no text or numbers beyond clock numerals)

AFLEZEN

Circular dial with a black-and-white clock face showing 10:30 (no text or numbers beyond clock numerals)

Simple line drawing of a hand holding a bird, with a circular arrow symbol above (no text or labels)

LOOMI SE ENCIENDE

LOOMI

ILUMINACIÓN

POP

ENGANCHAR

SOLTAR

Abstract graphic with a clock icon and curved arrow, no text or symbols present

ENGANCHAR EN LA ROPA

Simple line drawing of a hand with a curved arrow pointing downward (no text or symbols)

\~4 seg.

Illustration of a hand holding a small object with two triangular shapes and a circular background (no text or symbols)

Toque su Swatch para detener la alarma.

Illustration of a hand with fingers and a curved arrow, no text or symbols present

Golpee ligeramente en su Swatch.

Simple analog clock face showing 10:30 (no text or numbers beyond clock face and arrow)

LEER

Circular dial with a black hand pointing down to 30 degrees, no text or symbols present.

Uso del aro de ajuste (luneta)

Simple line drawing of a hand holding a bird, with a circular arrow symbol above (no text or labels)

IL LOOMI SI ACCENDE

LOOMI

POP

INSERISCI

ESTRAI

Abstract graphic with a clock icon and curved arrow, no text or symbols present

PINZA SUI VESTITI

Simple line drawing of a hand with a curved arrow pointing downward (no text or symbols)

\~4 sec.

Illustration of a hand holding a finger with two triangular warning symbols around it (no text or labels)

Illustration of a hand with fingers and a circular arrow symbol (no text or labels)

Circular analog clock face with hour and minute hands (no numbers or text)

Illustration of a hand holding a bird, with a circular arrow symbol above (no text or labels)

LOOMI ACENDE

LOOMI

Abstract graphic with a clock icon and curved arrows, no text or symbols present

COLOCAR NA ROUPA

Simple line drawing of a hand with a curved arrow pointing downward (no text or symbols)

\~4 seg.

Toque o seu Swatch.

Illustration of a hand holding a small object with two triangular shapes and a circular background (no text or symbols)

PARTIDA

Desligar/ligar o Alarm Modus, ajuste da hora de alarme

Simple line drawing of a hand with a curved arrow and a circular background (no text or symbols)

Toque o seu Swatch.

Simple analog clock face showing 3:00 (no text or numbers beyond clock numerals)

LER

Circular dial with a black hand pointing down to 30 degrees, no text or symbols present.

Uso da catraca (luneta)
