Brand	Swatch
Model	Blue Choco GM145
Product type	Analog wristwatch with alarm and touch functions
Case dimensions	Approximately 40 mm diameter, 10 mm thickness (estimate)
Weight	Approximately 80 g (estimate)
Case material	Resin/plastic
Glass	Mineral
Water resistance	Water resistant to 3 ATM (splash and rain resistant)
Power supply	Button cell battery (type CR2016 or equivalent)
Display	Hands (hours, minutes, seconds)
Main functions	Time, date, day, alarm, Touch Loomi function, Touch game, rotating Scuba bezel for elapsed time
Time setting	Crown in position C, turn to set
Date and day setting	Crown in position B, turn counterclockwise for date, clockwise for day
Alarm setting	Press crown for ON/OFF mode, pull to position 1 to set
Touch function	Tap the watch to display alarm, stop alarm, or play
Scuba bezel	Rotating to measure elapsed time
Test and initialization	Press crown for 5 seconds to check hands
Care and cleaning	Rinse with fresh water after immersion in salt water
Safety	Not for professional diving
Repairability	Battery replacement by a watchmaker

Frequently Asked Questions - Blue Choco GM145 SWATCH

How do I set the time on my Swatch Blue Choco GM145?

Pull the crown to position C (time setting position). Turn it in the desired direction to adjust hours and minutes. Push the crown to position A to finish.

How do I set the date and day?

Pull the crown to position B. Turn it counterclockwise to set the date, then clockwise to set the day. Return to position A.

How do I set the alarm?

Press the crown to enter alarm mode (ON/OFF). Pull the crown to position 1 to adjust the alarm time (turn slowly for minutes, quickly for hours). Return to normal position to activate the alarm.

How do I use the Touch (Loomi) function?

Tap gently on your Swatch to display the alarm time for 4 seconds or to stop the alarm. You can also play by tapping: the hands spin and stop randomly.

What if the hands do not show noon/midnight during the test?

Pull the crown to position 2. Turn it clockwise to adjust the hour hand, counterclockwise to adjust the minute hand. Return to normal position.

How do I use the Scuba bezel to measure elapsed time?

Place the bezel marker exactly opposite the minute hand. The duration is read directly on the bezel thanks to the position of the minute hand.

Is the watch waterproof?

Yes, it is splash and rain resistant (3 ATM). After immersion in salt water, rinse it with fresh water. It is not designed for professional diving.

How do I change the battery?

The battery is a button cell (type CR2016 or equivalent). Have it replaced by a watchmaker to avoid damaging the watch.

How do I stop the alarm when it rings?

Press your Swatch (tap) to stop the alarm.

What if the watch stops working after a shock?

Perform a test: press the crown for 5 seconds. If the hands are not at noon/midnight, adjust them as described in the manual. If the problem persists, contact Swatch after-sales service.

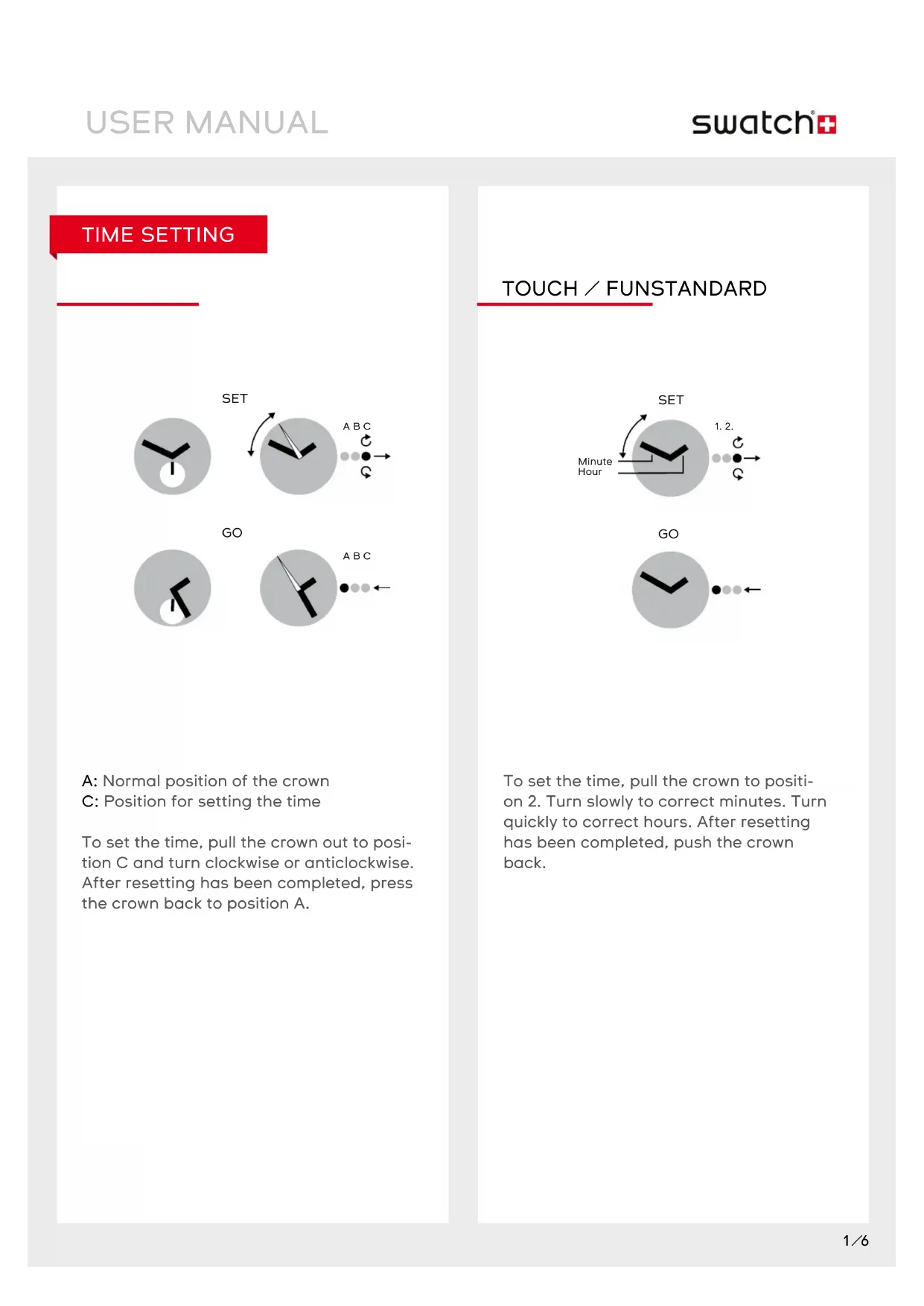

USER MANUAL Blue Choco GM145 SWATCH

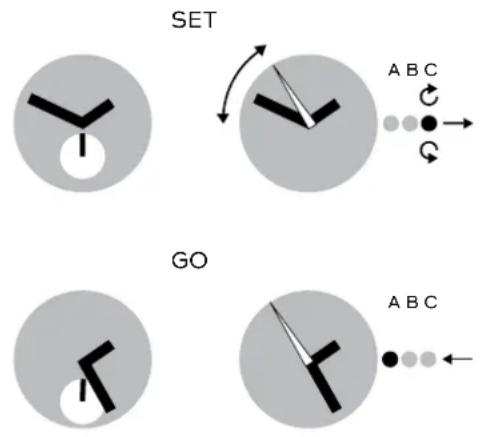

A: Normal position of the crown
C: Position for setting the time

To set the time, pull the crown out to position C and turn clockwise or anticlockwise. After resetting has been completed, press the crown back to position A.

TOUCH / FUNSTANDARD

To set the time, pull the crown to position 2. Turn slowly to correct minutes. Turn quickly to correct hours. After resetting has been completed, push the crown back.

DATE OR DAY SETTING

STANDARD

To set the date, pull the crown out to position B, and turn anticlockwise. To set the day, turn the crown in a clockwise direction. After resetting has been completed, press the crown back to position A.

READJUSTMENT

TOUCH / FUN

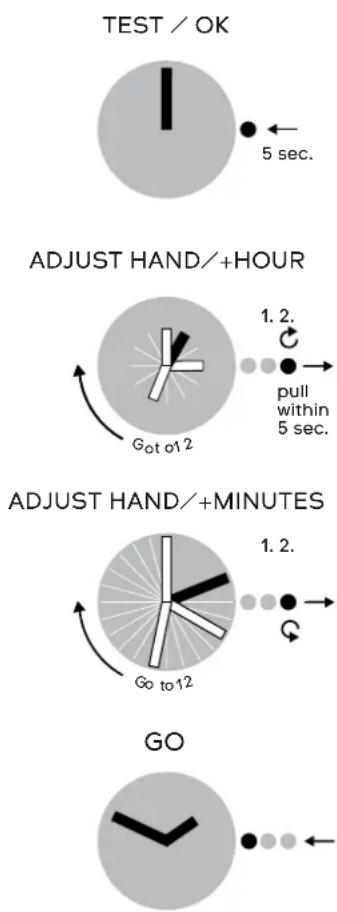

Push crown for 5 seconds. If both hands go to 12 o'clock, test is ok. Push crown again and hands go back to time.

If hands are not exactly at 12 o'clock, pull crown to position 2. Turn clockwise to readjust hour hand. Turn counter clockwise to readjust minute hand. Push crown back and hands turn back to show time.

LOOMI FUNCTION: DISPLAY

TOUCH LOOMI

TOUCH YOUR SWATCH

Illustration of a hand holding a bird, with a circular arrow symbol pointing to it (no text or symbols present)

LOOMI ON

LOOMI

LIGHT FUNCTION

POP

POP-IN

POP-OUT

Abstract graphic with a clock icon and curved arrows, no text or symbols present

POP ON CLOTHES

Note: Wear your Swatch simply with its band or try „popping“ it directly onto your clothes.

TOUCH ALARM

SHOW ALARM TIME

Illustration of a hand touching a circular arrow symbol (no text or labels)

\~4 secs.

Touch your Swatch.

Hands move to show alarm time for approx. 4 seconds.

STOP ALARM

Illustration of a hand holding a triangular object with a circular background showing two triangular shapes (no text or symbols)

Touch your Swatch to stop alarm.

ALARM ON/OFF

...CHANGE ON/OFF

SHOW LAST ALARM

...SET NEW ALARM

GO

Switch alarm on/off and set alarm time Press crown and hands go to actual mode on or off.

Press crown again to change mode.

Pull crown to position 1 and the hands go to the last alarm time.

To set a new alarm time, turn crown (turn slowly = minutes, turn quickly = hours).

Then push crown back and hands turn back to time and alarm mode will be "on".

ALARM DEMO

Press crown for 2 seconds to start alarm demo.

To stop, press crown again.

IMPORTANT: When the hands do not show correctly ON-OFF (alarm mode), the Touch Alarm must be adjusted (e.g. after battery change or a hard knock).

TOUCH GAME

Illustration of a hand with fingers and a curved arrow, no text or symbols present

Touch your Swatch.

Hands come together at 12 o'clock and start to rotate at least on full turn.

IMPORTANT: If hands are not exactly at 12 o'clock, they have to be readjusted.

\~4 secs.

Hands stop by accident and show the result of your game for some seconds... ...then, hands turn back to time.

SCUBA FUNCTION: ELAPSED TIME

Using the adjustment ring

For setting the start time and duration of an activity, line up the marker on the adjustment ring with the minute hand. Timing starts at the time indicated by the marker. The elapsed time is indicated by the minute hand pointing the number on the adjustment ring.

WARNING NOTE

IMPORTANT: After being submerged in salt water, the Scuba 200 Chrono should always be rinsed with fresh water.

CAUTION: The Irony Scuba 200 Chrono is not a professional diving watch.

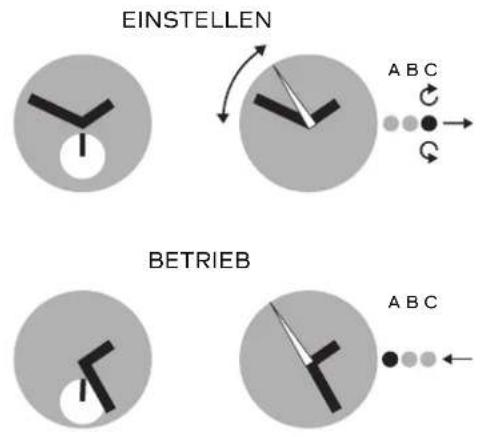

ZEIT EINSTELLEN

TIPPEN SIE AUF IHRE SWATCH

Illustration of a hand holding a small object with a circular arrow symbol (no text or labels)

LOOMI GEHT AN

LOOMI

BELEUCHTUNG

POP

Abstract graphic with a clock icon and curved arrows, no text or symbols present

Simple line drawing of a hand pressing a button with a downward arrow (no text or symbols)

\~4 Sek.

Illustration of a hand holding a finger with two triangular warning symbols (no text or labels)

Simple line drawing of a hand with a curved arrow and a circular background (no text or symbols)

Simple analog clock face showing 10:30 (no text or numbers beyond clock face and arrow)

ABLESEN

Circular dial with a black hand pointing down to 30, showing time (no text or symbols beyond numbers)

Simple line drawing of a hand holding a small object with an arrow symbol (no text or labels)

LA LOOMI S'ALLUME

LOOMI

LUMIÈRE

POP

INSÉRER

RETIRER

Abstract graphic with a checkmark inside a circle and curved arrow, no text or symbols present.

FIXER AUX VÊTEMENTS

Simple line drawing of a hand with a curved arrow pointing downward (no text or symbols)

\~4 s

Illustration of a hand holding a circular object with triangular arrows indicating motion or force (no text or symbols)

Simple line drawing of a hand with a finger pointing at a circular button containing a downward arrow (no text or symbols)

Simple analog clock face showing 10:30 (no text or numbers beyond clock face and arrow)

LIRE

Circular dial with a black hand pointing down to 30, showing time (no text or symbols beyond numbers)

LOOMI-FUNCTIE: SCHERM

TOUCH LOOMI

RAAK JE SWATCH AAN

Simple line drawing of a hand holding a bird, with a circular arrow symbol above (no text or labels)

LOOMI ON

LOOMI

LICHT-FUNCTIE

POP

ERIN DRUKKEN

UITWIPPEN

Abstract graphic with a checkmark inside a circle and curved arrow, no text or symbols present.

AAN KLEDING BEVESTIGEN

Simple line drawing of a hand with a curved arrow pointing downward (no text or symbols)

\~4 sec.

Raak je Swatch aan.

Illustration of a hand holding a triangular object with a bell icon nearby (no text or symbols)

Illustration of a hand with fingers and a curved arrow, no text or symbols present

Raak je Swatch aan.

Simple analog clock face showing 10:30 (no text or numbers beyond clock face and arrow)

AFLEZEN

Circular dial with a black-and-white clock face showing 10:30 (no text or numbers beyond clock numerals)

Simple line drawing of a hand holding a bird, with a circular arrow symbol above (no text or labels)

LOOMI SE ENCIENDE

LOOMI

ILUMINACIÓN

POP

ENGANCHAR

SOLTAR

Abstract graphic with a clock icon and curved arrow, no text or symbols present

ENGANCHAR EN LA ROPA

Simple line drawing of a hand with a curved arrow pointing downward (no text or symbols)

\~4 seg.

Illustration of a hand holding a small object with two triangular shapes and a circular background (no text or symbols)

Toque su Swatch para detener la alarma.

Illustration of a hand with fingers and a curved arrow, no text or symbols present

Golpee ligeramente en su Swatch.

Simple analog clock face showing 10:30 (no text or numbers beyond clock face and arrow)

LEER

Circular dial with a black hand pointing down to 30, showing time (no text or symbols beyond numbers)

Uso del aro de ajuste (luneta)

Simple line drawing of a hand holding a bird, with a circular arrow symbol above (no text or labels)

IL LOOMI SI ACCENDE

LOOMI

POP

INSERISCI

ESTRAI

Abstract graphic with a clock icon and curved arrow, no text or symbols present

PINZA SUI VESTITI

Simple line drawing of a hand with a curved arrow pointing downward (no text or symbols)

\~4 sec.

Illustration of a hand holding a finger with two triangular warning symbols around it (no text or labels)

Illustration of a hand with fingers and a circular arrow symbol (no text or labels)

Circular dial with a black hand pointing upward from center, showing time markings (no text or symbols beyond numbers)

Illustration of a hand holding a bird, with a circular arrow symbol pointing to it (no text or symbols present)

LOOMI ACENDE

LOOMI

Abstract graphic with a clock icon and curved arrows, no text or symbols present

COLOCAR NA ROUPA

Simple line drawing of a hand with a curved arrow pointing downward (no text or symbols)

\~4 seg.

Toque o seu Swatch.

Illustration of a hand holding a small object with two triangular shapes and a circular background (no text or symbols)

Simple line drawing of a hand with a curved arrow and a circular background (no text or symbols)

Toque o seu Swatch.

Simple analog clock face showing 3:00 (no text or numbers beyond clock face markings)

LER

Circular dial with a black hand pointing down to 30, showing time (no text or symbols beyond numbers)

Uso da catraca (luneta)
