Technical Specifications	Klarstein electric oven 10030225, 30-liter capacity, 1500 W power, adjustable temperature up to 2306C.
Cooking Modes	Cooking functions: convection, grill, and traditional cooking.
Dimensions	External dimensions: 50 x 38 x 30 cm.
Weight	Weight: 10 kg.
Usage	Easy to use with an intuitive control panel and rotary knobs.
Included Accessories	Included grill rack and baking tray.
Maintenance	Easy cleaning thanks to a non-stick interior coating.
Safety	Overheat protection and non-slip feet for optimal stability.
General Information	Ideal for small kitchens, easy to store, and modern design.

Frequently Asked Questions - 10030225 Klarstein

How do I preheat the Klarstein 10030225 oven?

To preheat the oven, set the desired temperature using the temperature control knob and turn on the oven. Wait for the indicator light to go off to indicate the temperature has been reached.

Why is the oven not heating?

Check that the oven is properly plugged into a working electrical outlet. Also ensure the temperature is set and the cooking mode is selected.

How do I clean the Klarstein 10030225 oven?

Turn off the oven and let it cool. Use a damp cloth with a mild detergent to clean the inside and outside of the oven. Avoid abrasive products.

The oven emits a strange smell during first use, is this normal?

Yes, it is normal for the oven to emit a slight odor during first use due to heat burning off manufacturing residues. This should disappear after a few uses.

How do I set the timer on the oven?

To set the timer, turn the timer knob clockwise to the desired duration. The timer will sound when the time is up.

Does the oven turn off automatically?

Yes, the oven is equipped with an automatic shut-off function for safety reasons. Make sure not to exceed the recommended cooking time.

Can I use metal dishes in the oven?

Yes, you can use metal dishes, but avoid dishes with gold or silver decorations as this may damage the oven.

What should I do if the oven door does not close properly?

Check if objects are blocking the door or if the hinges are dirty. If the problem persists, contact customer service for assistance.

Does the oven have a grill function?

Yes, the Klarstein 10030225 oven has a grill function. You can activate it by selecting the appropriate cooking mode on the control panel.

Where can I find the oven's user manual?

The user manual can be downloaded from the official Klarstein website in the support or documentation section.

USER MANUAL 10030225 Klarstein

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability.

Contents

Specifications 17

Safety Instructions. 18

Usage 20

Maintenance 23

Installation 24

Troubleshooting 27

Disposal Considerations 29

Declaration of Conformity 29

Characteristics

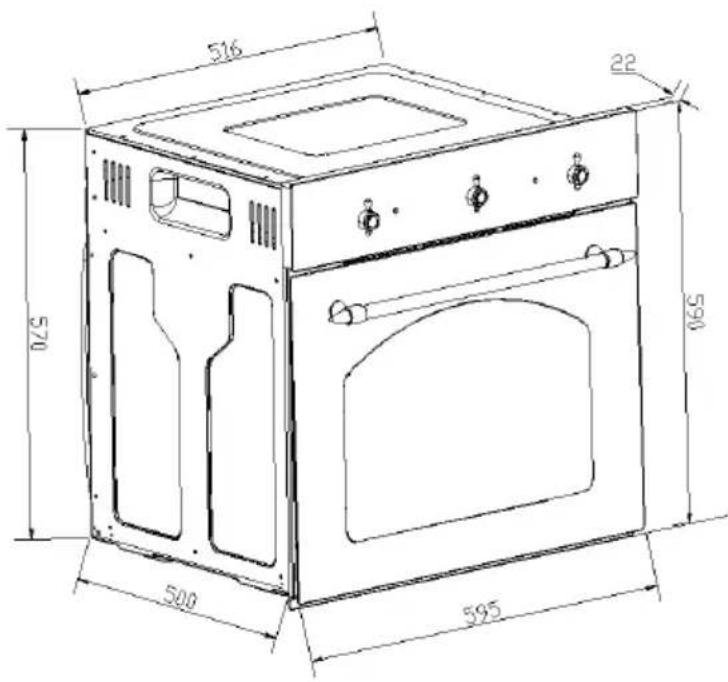

Measurements

Characteristics

• 5 functions
  Oven capacity: 57 litres
  Thermostatically controlled grill
  Cooling fan

The oven should be thoroughly cleaned before it is operated for the first time and after each use. This will avoid residual food stuffs becoming baked on the oven cavity. After residues have been baked on several times, they are far more difficult to remove.

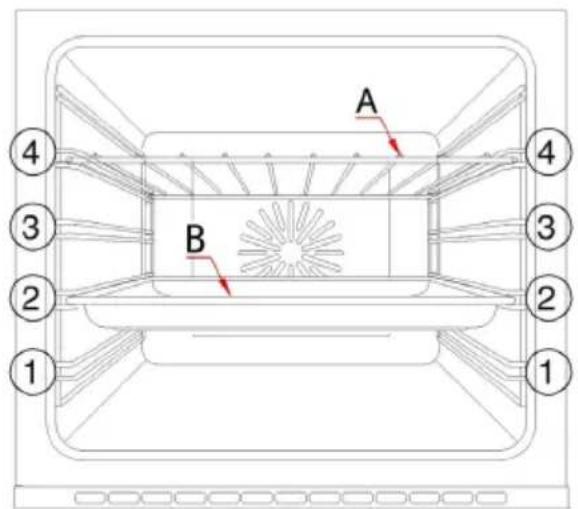

Accessories

Your oven will come supplied with the following oven furniture:

A Oven rack B Dip tray

The numbers 1 - 4, indicate the different shelf positions that you can utilise within the oven.

Safety Instructions

Your safety is of the utmost importance to our company. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the customer service.

Intended usage

• This appliance is designed for domestic household use and can be built into a standard kitchen cabinet or housing unit.
• The adjacent furniture or housing and all materials used in the installation must be able to withstand a minimum temperature of 85^ above the ambient temperature of the room it is located in, whilst in use.
• Certain types of vinyl or laminate kitchen furniture are particularly prone to heat damage or discolouration at temperatures below the guidelines given above.
• Any damage caused by the appliance being installed in contravention of this temperature limit, or by placing adjacent cabinet materials closer than 4mm to the appliance, will be the liability of the owner.
• For use in leisure accommodation vehicles, please refer to the appropriate information given in the installation instructions for this appliance.
• The use of this appliance for any other purpose or in any other environment without the express agreement of our company will invalidate any warranty or liability claim.

Product safety

• The appliance surfaces will become hot during use and retain heat after operation.
• We strongly recommend that babies and young children are prevented from being near to the appliance and not allowed to touch the appliance at any time.
• If it is necessary for younger family members to be in the kitchen, please ensure that they are kept under close supervision at all times.
• Do not place heavy objects on the oven door or lean on the oven door when it is open, as this can cause damage to the oven door hinges.
• Do not leave heated oil or fat unattended, as this is a fire risk.
• Do not place pans or baking trays directly on the base of the oven cavity, or line it with aluminium foil.
• Do not allow electrical fittings or cables to come into contact with areas on the appliance that get hot.
• Do not use the appliance to heat the room it is located in or to dry clothing.
• Do not install the appliance next to curtains or soft furnishings.
• Do not attempt to lift or move cooking appliances by using the oven door or handle, as this may cause damage to the appliance or result in injury to the person lifting the appliance.

Cleaning

• Cleaning of the oven should be carried out on a regular basis.
• Great care should be taken whilst using this appliance and when following the cleaning procedure.

Installation

• This appliance must be correctly installed by a suitably qualified person, strictly in accordance with the manufacturer's instructions.
• We decline any responsibility for injury or damage, to person or property, as a result of improper use or installation of this appliance.
• Heat, steam and moisture will be created during use of the appliance, take care to avoid injury and ensure that the room is adequately ventilated. If the appliance is going to be used for prolonged periods of time, then additional ventilation may be required.

Repairs

• If your appliance appears not to be operating correctly, please contact the distributor. Do not attempt to repair the appliance yourself.

Usage

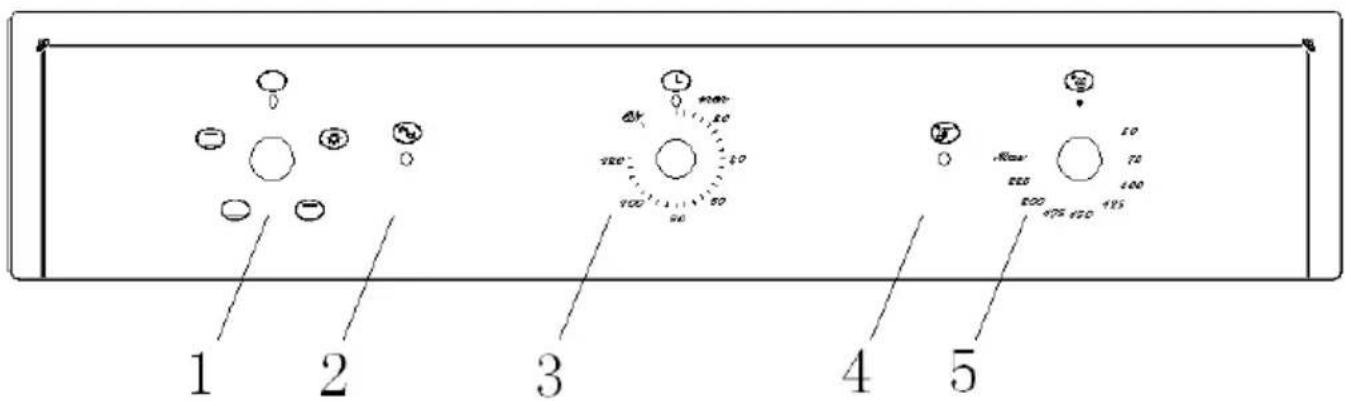

Control panel

1 Oven function selector knob
2 Indicator light
3 Oven programmer
4 Oven operating light
5 Thermostat control knob

The oven timer

1. If no need to use the oven programmer, setting the timer on "NO" and connected to your mains supply, see the picture.
2. If need to timing, you could turn the timer knob as you wish, the choose time is 0~120 mins, the oven power off when the timing finished

Note: The oven power off when the alarm silenced. If you have finished cooking, then you should turn the oven function selector and thermostat control knob to 0.

Selecting a cooking function and temperature

1

When your appliance is connected to your mains supply for the first time, the power indicator light will come on, after selecting the cooking function and setting a temperature, the operating light will come on and the oven will start working.

2

Finally setting the cooking time; (the cooking time is from 0min to 120mins, revolving the knob in clockwise direction to the corresponding time on panel when setting the cooking time.

3

The oven function selector knob should be used to select the particular mode of cooking that you require. The appliance will utilise different elements within the oven cavity, depending on the oven function that you select. When a function is selected, the power indicator light will come on.

Light

By setting the knob to this position the lighting inside the oven is switched on, e.g. use when washing the oven chamber.

Bottom heat on

When the knob is set to this position the oven is heated using only the bottom heater. Use for e.g. final baking from the bottom.

Bottom and top heater on (convention cooking)

Setting the knob to this position allows the oven to be heated conventionally. The oven must be preheated before food is placed inside.

Top heat on

The oven is heated using only the heater, e.g. use for final baking from above.

Thermostat control knob

Temperature setting

The oven thermostat control knob sets the required temperature of the oven. It is possible to regulate the temperature within a range of 50 - 250^ .

Heating light

This light will come on to indicate that the oven's heating elements are in operation. The light will turn off when the temperature set on the thermostat control knob has been reached. It will cycle on and off throughout the cooking time.

Cooking guidelines

• Please refer to the information given on food packaging for guidance on cooking temperatures and times. Once familiar with the performance of your appliance, temperatures and times can be varied to suit personal preference.
• If you are using the fan oven function, then you should follow the information given on the food packaging for this particular mode of cooking.
• Make sure that frozen foods are thoroughly thawed before cooking, unless the instructions on the food packaging advise that you can "cook from frozen".
• You should pre-heat the oven and not place food inside of it until the oven operating light has gone off. You can choose not to pre-heat when using the fan oven mode; however you should extend the cooking time given on the food packaging by approximately ten minutes.
• Before cooking, check that any accessories that are not required are removed from the oven.
• Place cooking trays in the centre of the oven and leave gaps between the trays to allow air to circulate.
• Try to open the door as little as possible to view the dishes.
• The oven light will remain on during cooking.

Safety during cooking

• Keep the oven door closed when using any of the grill functions.
• Do not use aluminium foil to cover the grill pan or heat items wrapped in aluminium foil under the grill. The high reflectivity of the foil could potentially damage the grill element.
• You should also never line the base of your oven with aluminium foil.
• During cooking, never place pans or cookware directly onto the bottom of your oven. They should always be placed on the shelves provided.
• The grill heating element and other internal components of the oven becomes extremely hot during operation, avoid touching it inadvertently when handling the food which you are grilling.

Maintenance

Cleaning

Caution: Danger of scalding

The oven must only be cleaned when it is cooled down.

• The oven should be thoroughly cleaned before it is operated for the first time and after each use. This will avoid residual food stuffs becoming baked on the oven cavity. After residues have been baked on several times, they are far more difficult to remove.
• Never clean the oven surfaces by steam cleaning.
• The oven cavity should only be cleaned with warm soapy water, using either a sponge or soft cloth. No abrasive cleaners should be used.
• Any stains that may appear on the bottom of the oven will have originated from food splashes or spilt food, these splashes occur during the cooking process. These could possibly be a result of the food being cooked at an excessively high temperature or being placed in cookware that is too small.
• You should select a cooking temperature and function that is appropriate for the food that you are cooking. You should also ensure that the food is placed in an adequately sized dish and that you use the drip tray where appropriate.
• Outer parts of the oven should only be cleaned with warm soapy water, using either a sponge or soft cloth. No abrasive cleaners should be used.
• If you use any form of oven cleaner on your appliance, then you must check with the manufacturer of the cleaner that it is suitable for use on your appliance.

Replacing the oven bulb

• Unscrew the lamp cover anti-clockwise.
• Unscrew the bulb anti-clockwise and remove from its holder.
• Replace the bulb with a 25 ~W / 300^ C , screw type pigmy.
• Do not use any other type of bulb.
• Screw the lamp cover back into position and then restore power to the appliance.

Installation

Elektrical connection

The electrical connection must be done by a professional.

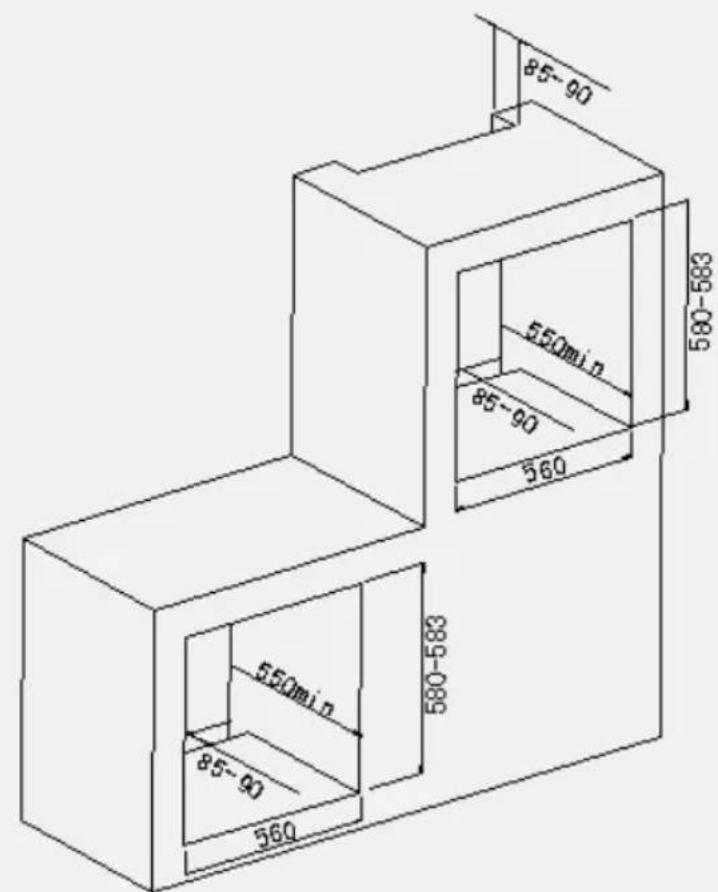

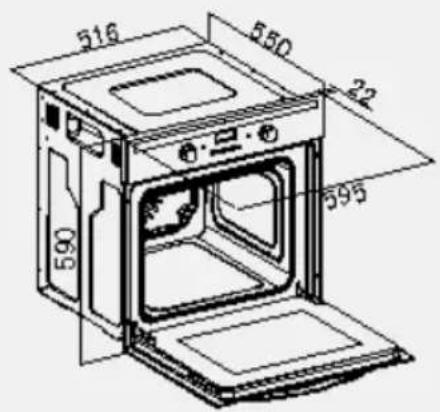

Installing the oven into the kitchen cabinet

Positioning the appliance

• Ensure that the aperture that you will be fitting the oven into is of the size given in the above diagram.
• The oven must be fitted into an oven housing with the ventilation cut-outs shown in the "Ventilation requirements" section on the next page.
• Ensure that the rear panel of the furniture housing unit has been removed.

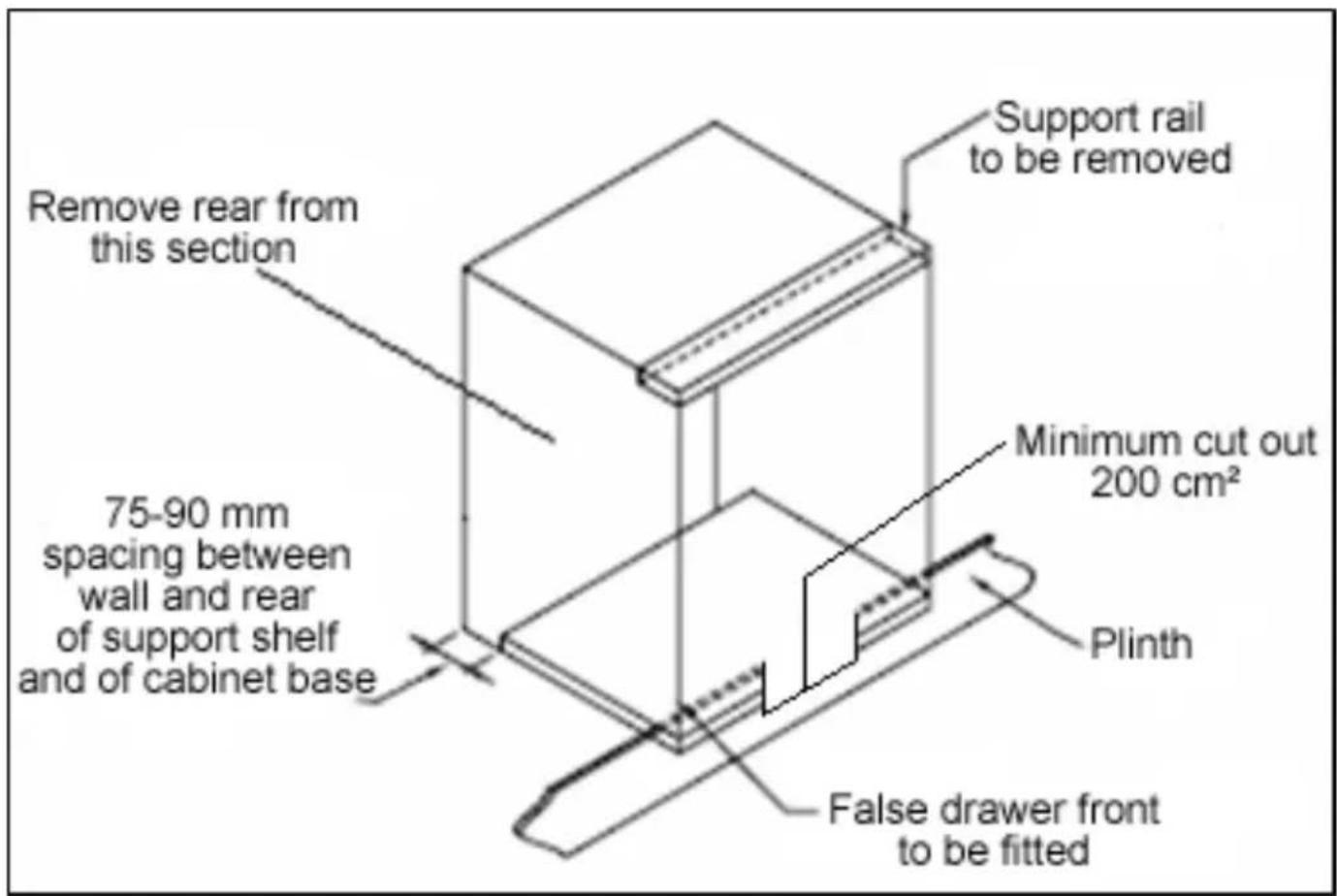

Figure shows the ventilation and cut-out requirements for the installation of the appliance into a standard kitchen unit.

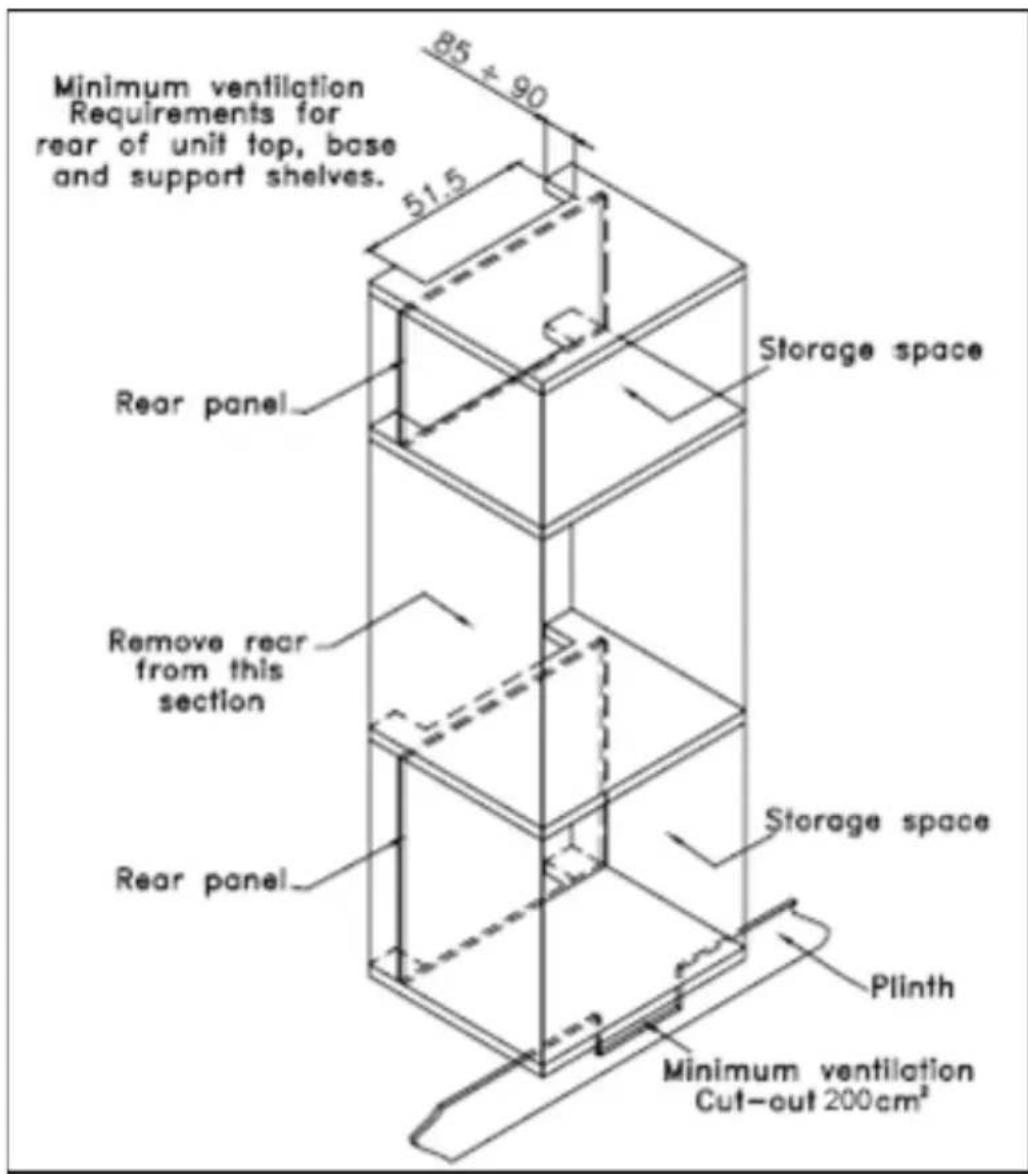

Figure shows the ventilation and cut-out requirements for the installation of the appliance into a tall housing unit.

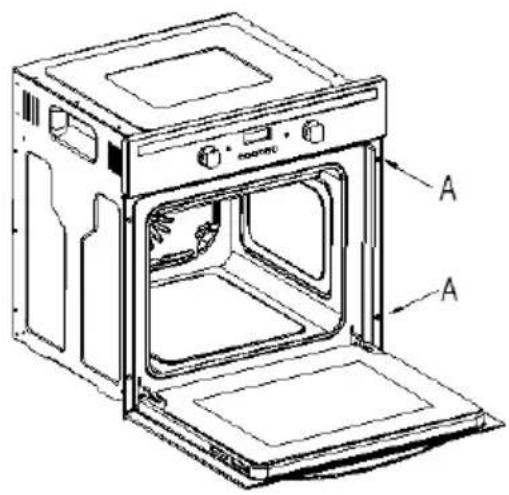

Ensure that the oven has been securely fixed into the housing unit. The fixing of the oven into the housing is made by using four screws. These should be screwed through the oven cabinet and into the housing unit.

Troubleshooting

Problem Solution

The oven is not coming on.	Check that the oven is in manual operation mode.
	Check that you have selected a cooking function and a cooking temperature
There appears to be no power to the oven and grill.	Check that the appliance has been connected to the electrical mains supply correctly?
	Check that the mains fuses are in working order?
	Check that the operating instructions for setting the time of day and putting the appliance into manual operation mode have been followed?
The grill function works but the main oven does not.	Check that you have selected the correct cooking function
The grill and top oven element is not working, or cuts out for long periods of time during use.	Allow the oven to cool for approximately 2 hours. Once cool, check whether the appliance is again working properly.
My food is not cooking properly.	Ensure that you are selecting the correct temperature and the correct cooking function for the food that you are cooking. It may be appropriate to adjust your cooking temperature by plus or minus \( {10}^{ \circ }\mathrm{C} \) ,to achieve the best cooking results.
	Check that the oven has been installed correctly and is level
	Check that the correct temperatures and shelf positions are being used
The oven light is not working Change the bulb. Refer to "Maintenance" on page 23.
I am getting condensation in my oven.	Steam and condensation is a natural by product of cooking any food with high water content, such as frozen food, chicken etc.
	You may get condensation in the oven cavity and forming between the oven door glasses. This is not necessarily a sign that the oven is not working correctly.
	Do not leave food in the oven to cool after it has been cooked and the oven has been switched off.
	Use a covered container, where practical, when cooking to reduce the amount of condensation that forms.

Warning: Danger of electric shock

If your appliance appears not to be operating correctly, please contact the distributor.

Disposal Considerations

According to the European waste regulation 2002/96/EC this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service..

Declaration of Conformity

CE

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin. Germany

This product is conform to the following European Directives:

2004/108/EC (EMC)

2006/95/EC (LVD)

2009/125/EC (ErP)

2010/30/EU (Energy Labelling)
