USER MANUAL 10030554 Klarstein

Row of white icons representing kitchen appliances including blender, blender, kettle, blender, heater, fan, air conditioner, and microwave (no text or symbols)

Line drawing of a simple industrial machine with wheels and a handle (no text or symbols)

KLARSTEIN

Teileliste

Two identical hexagonal nut diagrams side by side, no text or symbols present

M8 2x

Illustration of two threaded fasteners with caps (no text or symbols)

M6*20 2x
M6*40 7x

Pure geometric pattern of repeating rectangular blocks with no text or symbols

M6 16x

M6 8x

Diagram of six identical screwdrivers arranged in a row (no text or symbols)

Diagram of two identical mechanical or structural components with repeating arches and flanges (no text or symbols)

M6*15 36x

3D wireframe diagram of a rectangular metal frame structure with two vertical supports and a labeled section (13), no text or symbols present.

Technical illustration of a portable oven or storage unit with labeled component '23', showing internal structure and side view (no text or symbols beyond labels)

Illustration of a portable oven with wheels and a cabinet, labeled with numbers 13 and 4 (no text or symbols on the device itself)

2 Rippenhaken montieren.

Illustration of a portable oven with wheels and a door open, labeled with number 14 (no text or symbols on the device itself)

Würstchenhaken monitieren.

Illustration of a laboratory oven with internal compartments and a side view showing a clamp or fixture (no text or symbols present)

Technical illustration of a kitchen appliance with labeled parts (no text or symbols present)

Line drawing of a portable industrial machine with wheels and a handle (no text or symbols)

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability.

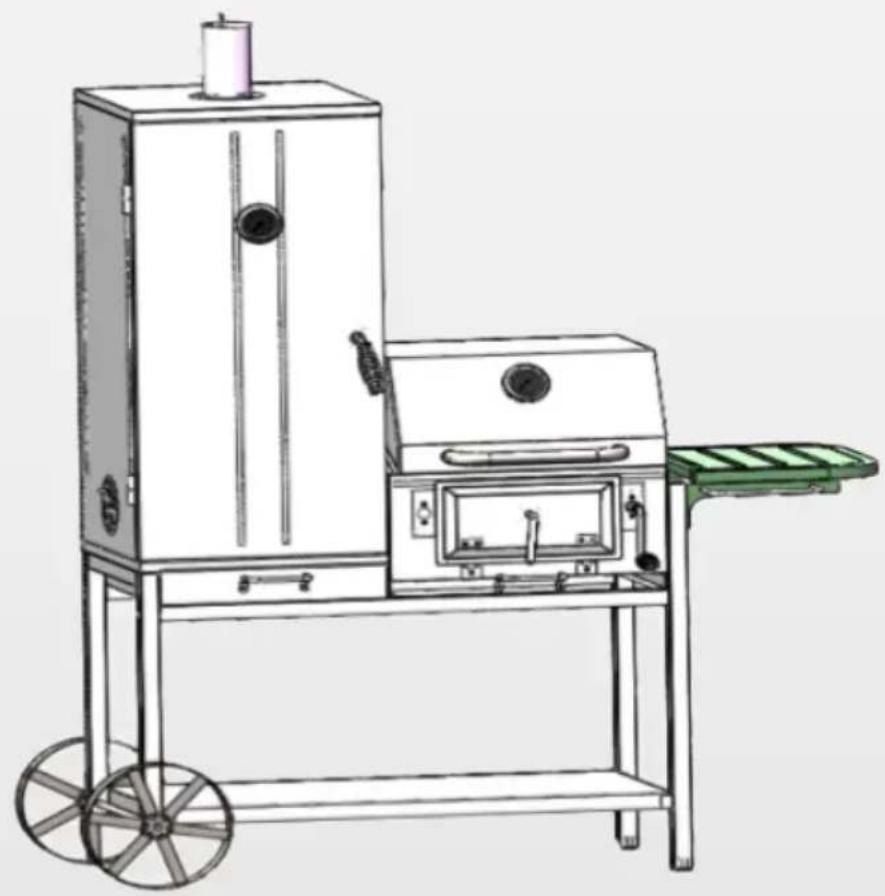

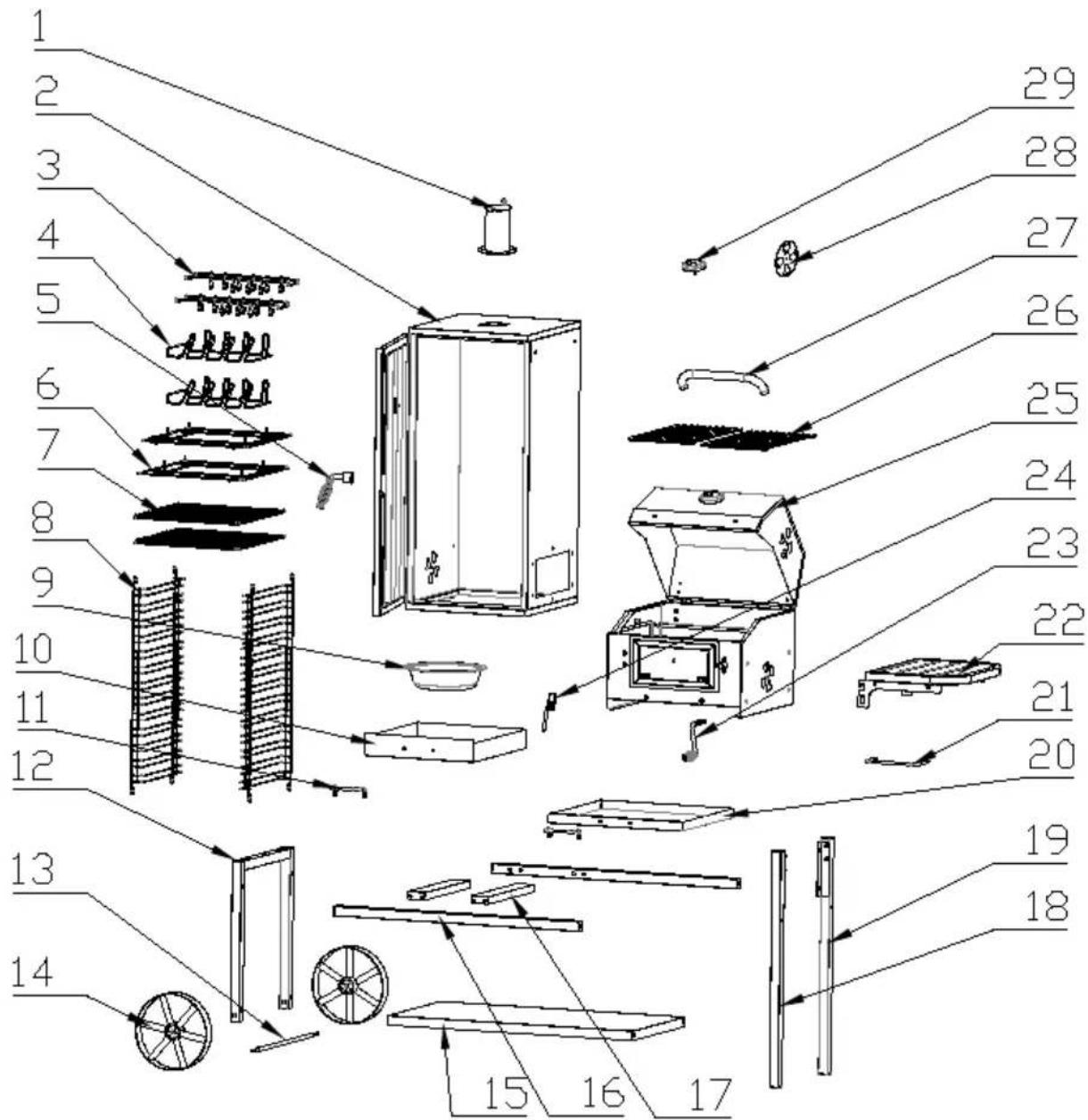

Product Overview

Parts List

Nr Part Qty Illustration
1 Chimney 1
2	Smoker body	1
3 Sausage hook 2
4 Rib rack 2
5	Smoker door handle	1
6	Rib rack support	2
7 Smoker grid 2
8 Support of grid 2
9 Water pan 1
10 Tool box 1
11	Ash tray handle	2
12	Left leg part	1
13 Axle 1
14	Wheel 2
15	Bottom rack	1
16	Support of the legs	2
17	Firebox support 2
18 Right front leg 1
19	Right back leg 1
20 Ash tray 1

Nr	Part Qty Illustration
21	Hook	1
22	Side plate	1
23	Charcoal pan adjust height handle	1
24	Charcoal door handle	1
25	Fire box body 1
26	Fire box grid 2
27	firebox handle 1
28	Air door (pre-assembled)	3
29	Thermometer (pre-assembled)	2

Screws

Two identical hexagonal nut diagrams with concentric rings, no text or symbols present

M8 2x

Technical illustration of two threaded fasteners (no text or symbols)

M6*20 2x
M6*40 7x

Pure geometric pattern of repeating rectangular blocks with no text or symbols

M6 16x

M6 8x

Diagram of six identical screwdrivers arranged in a row (no text or symbols)

Two identical diagrams showing a patterned structure with repeating arches and circular ends, no text or symbols present.

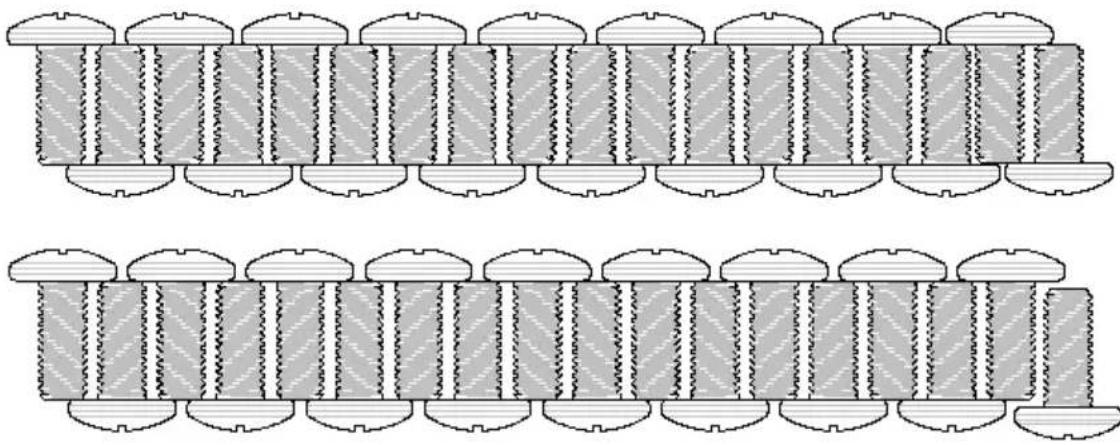

M6*15 36x

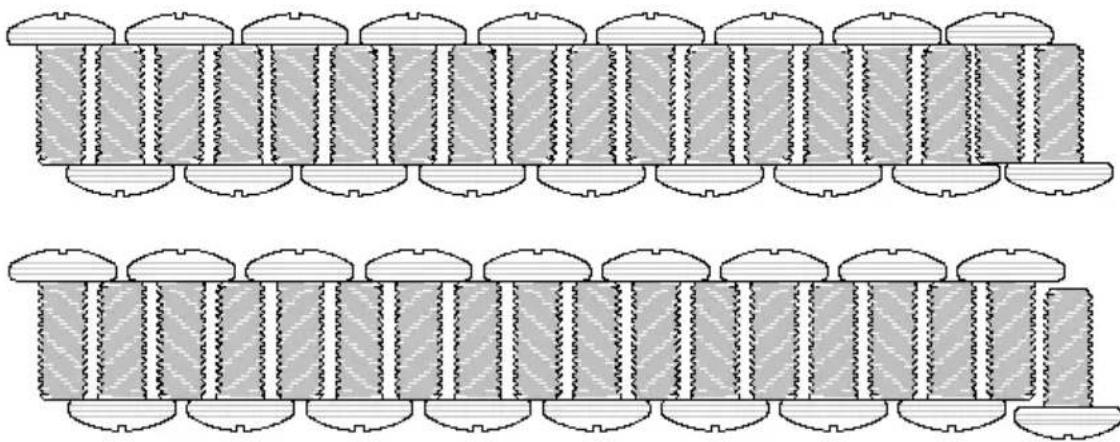

A M6x15 screw 36
B M6x20 screw 2

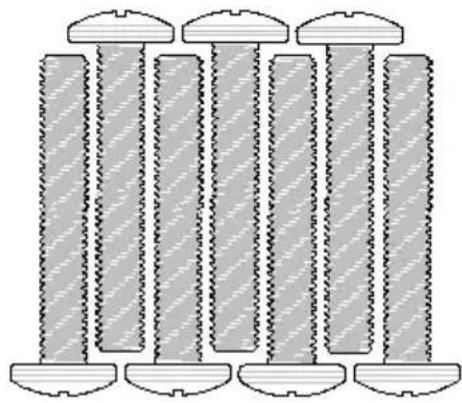

C M6x40 screw 7

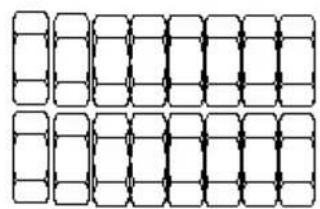

D M6 nut 16
E M8 nut 2
F M6 gasket 8

Assembly

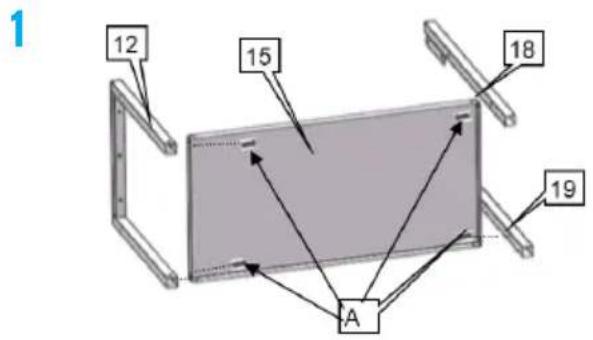

Assemble the bottom rack and legs with A 4PCS.

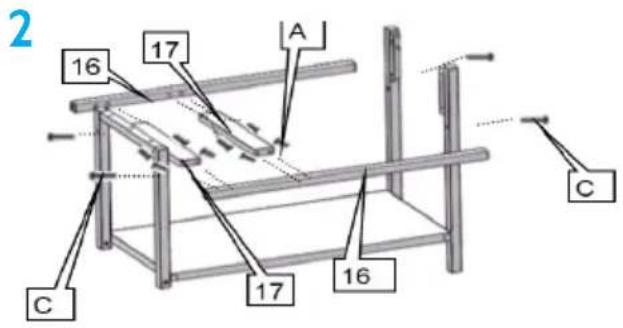

Assemble the support legs and tool box support with C 4pcs and A 8pcs.

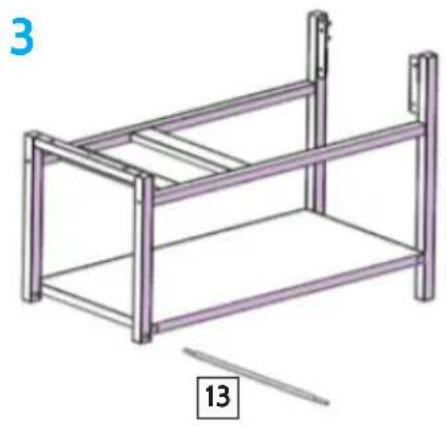

3D wireframe diagram of a metal frame structure with two vertical supports and a horizontal beam, labeled with numbers 3 and 13 (no text or symbols on the diagram itself)

Assemble the axle.

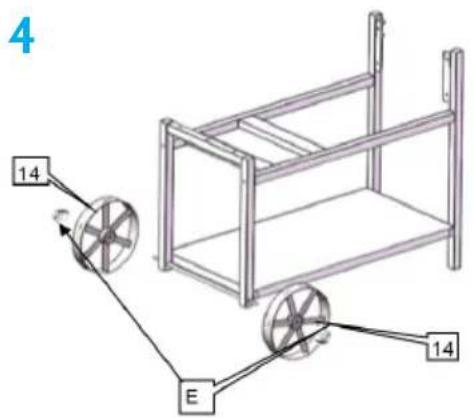

Assemble the wheels with E 2PCS.

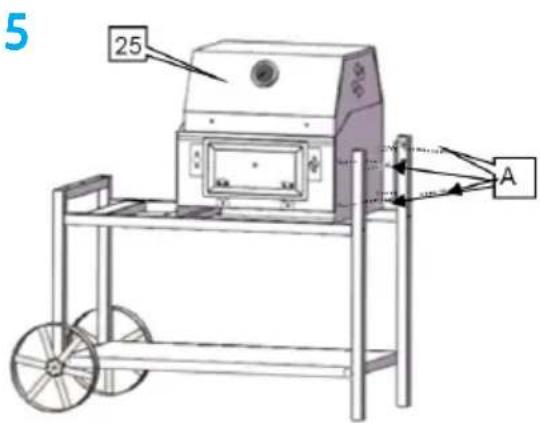

Assemble firebox and lid with A 4PCS.

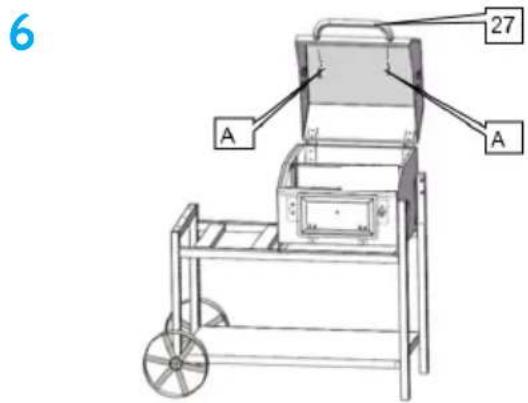

Assemble the lid handle with M4* 10 screws.

KLARSTEIN

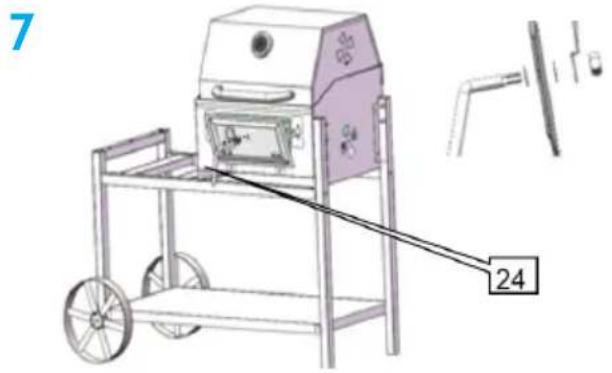

Assemble the charcoal door handle with M10 lock nut (pre-mounted).

Technical illustration of a portable kitchen or oven with labeled component (23), no readable text or symbols present.

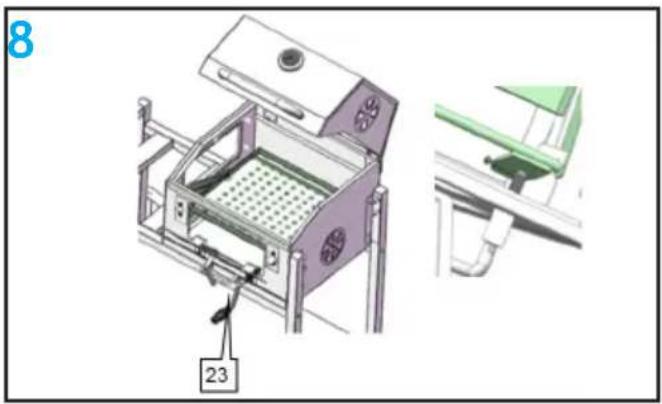

Assemble the charcoal pan adjust height handle with M4* 10 screw (in the bag with the handle).

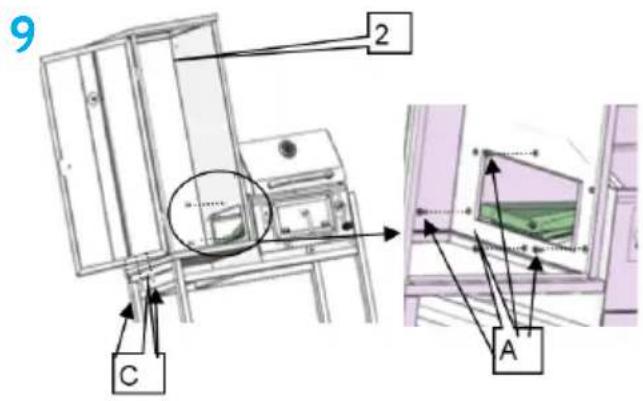

Assemble the smoker body with C 3PCS and A 4PCS.

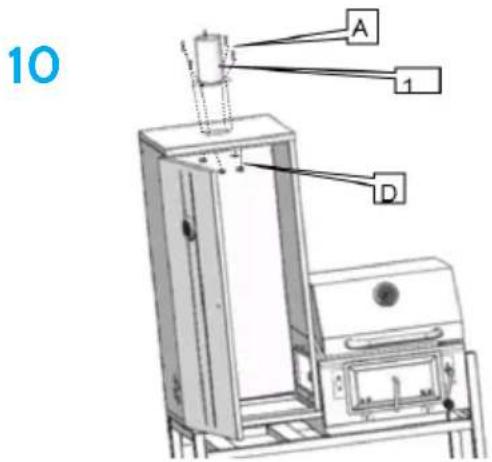

Assemble the Chimney with A 4PCS and D 4PCS.

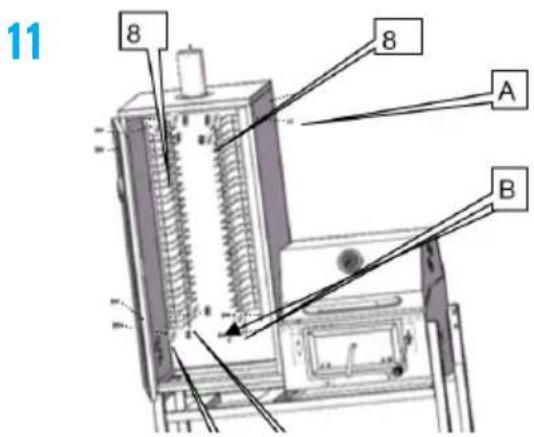

Assemble 2 grid support rack with A 6PCS, B 2PCS, D 6PCS and F 8PCS.

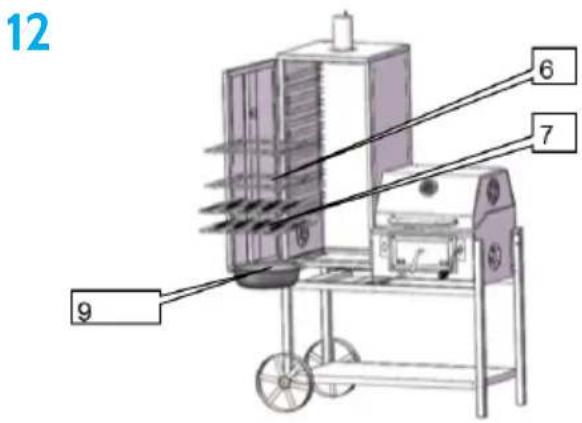

Assemble 1pc water pan and 2pcs grids and 2pcs rib rack support.

Illustration of a portable oven with wheels and a cabinet, labeled with numbers 13 and 4 (no text or symbols on the device itself)

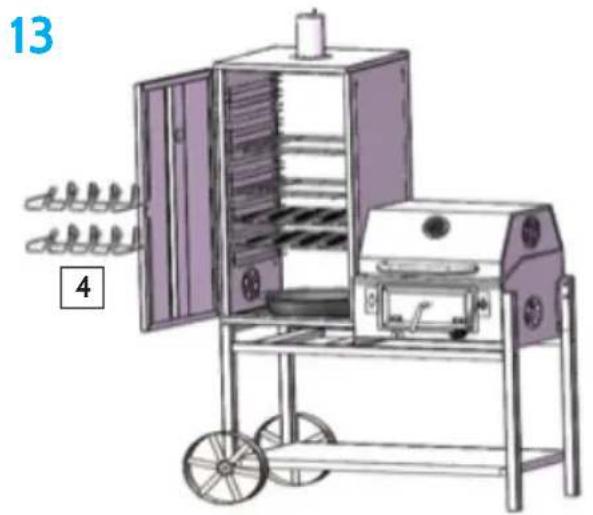

Assemble 2 rib rack.

Illustration of a portable oven with wheels and a cabinet, labeled with number 14 and number 3 (no text or symbols on the device itself)

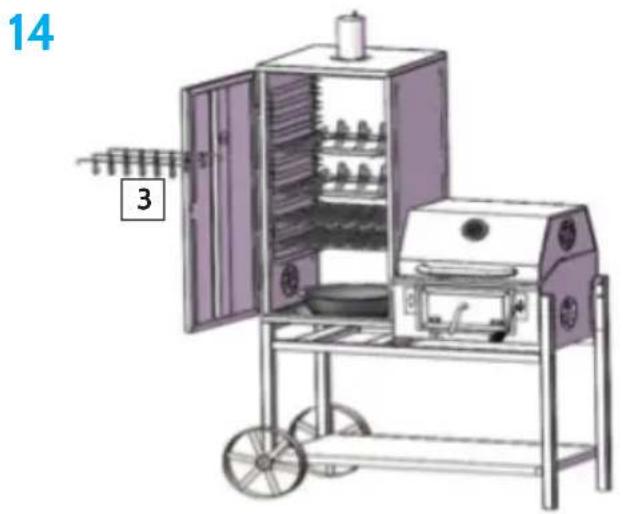

Assemble 2pcs sausage rack support.

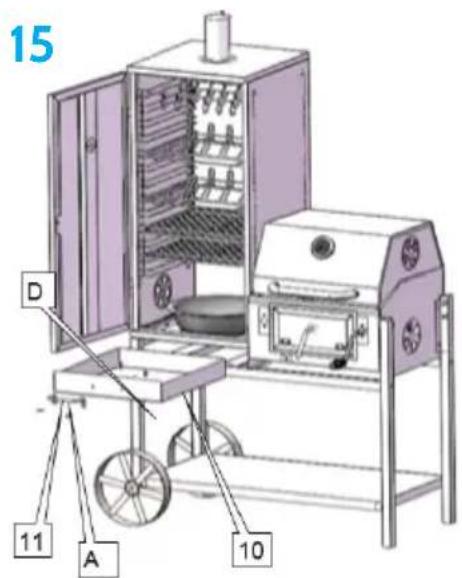

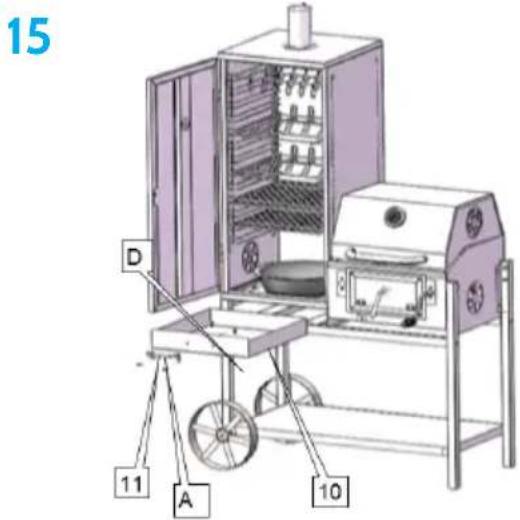

Assemble tool box and hanle with A 2PCS and D 2PCS.

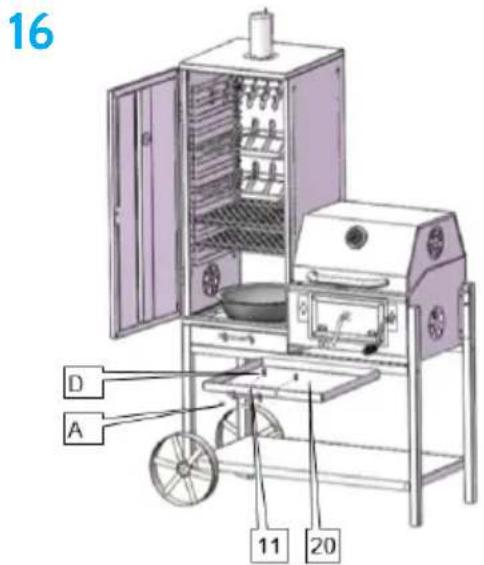

Assemble the Firebox ash tray and hanlde with A 2PCS and D 2PCS.

Illustration of a laboratory oven with internal equipment and a close-up view of a mounted device (no text or symbols)

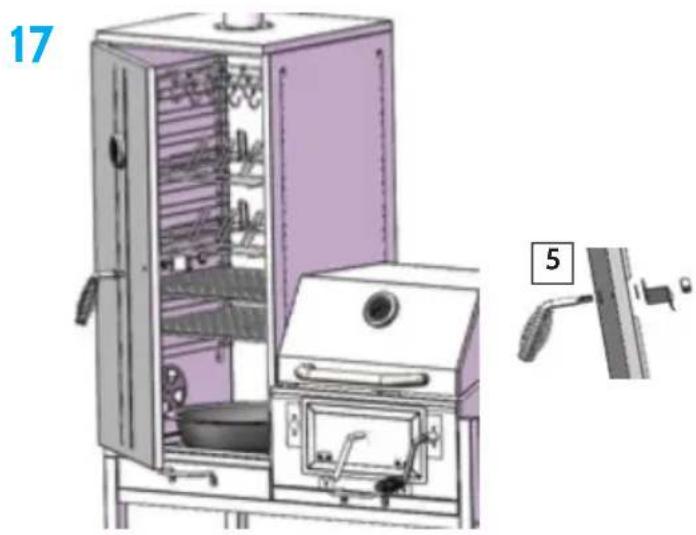

Assemble the smoker door and handle.

Illustration of a portable industrial machine with two units, one labeled '22', and no visible text or symbols.

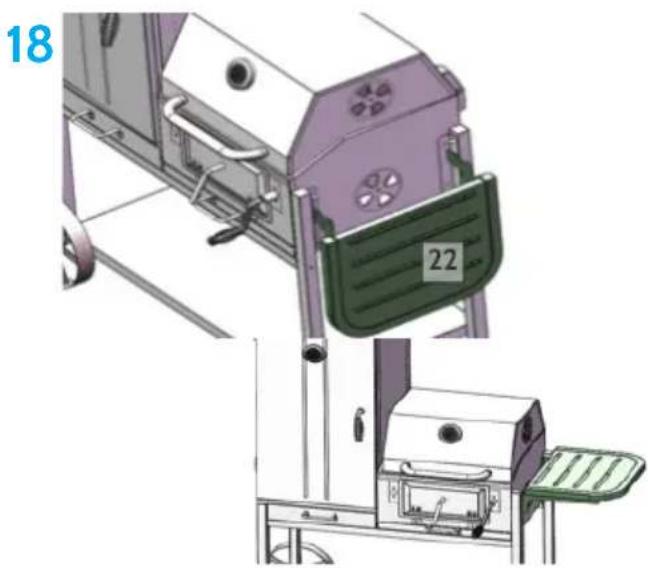

Assemble the side plate.

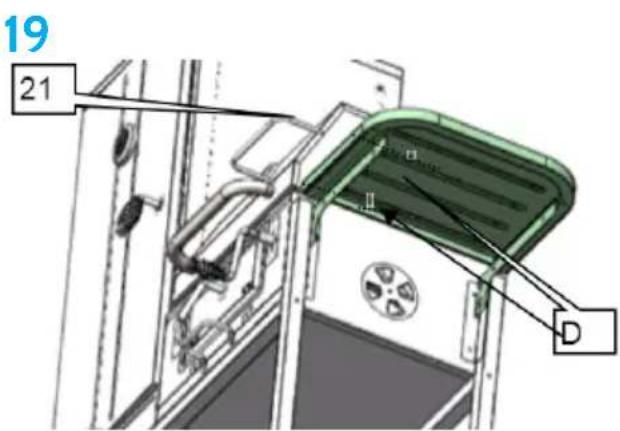

Assemble side plate hook with D 2PCS.

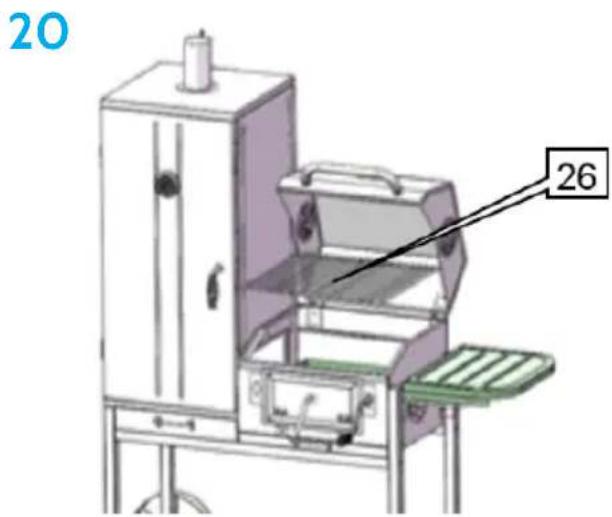

Assemble 2pcs of firebox grid.

Line drawing of a portable kitchen machine with wheels and a green grater (no text or symbols)

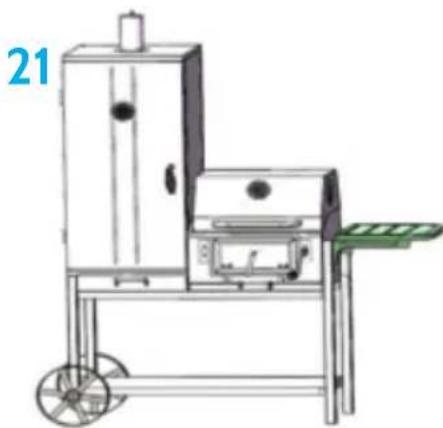

Congratulations. The assembly is finished.
Producer: Chal-Tec GmbH, Wallstr. 16, 10179 Berlin. Germany
