Product Type	Ceramic Tower Heater
Model Number	10032004
Power Supply	220-240 V~ 50 Hz
Power Consumption	2000 W (max)
Heating Levels	Level 1: 1000 W, Level 2: 2000 W
Timer	0 - 8 hours
Oscillation	Yes (activated by button)
Remote Control	Yes (with CR2025 battery)
Temperature Range	10 - 35 °C
Safety Features	Overheat protection, Tip-over switch
Cleaning	Wipe with damp cloth; clean filters regularly
Filters	Removable, washable (pull out and clean)
Dimensions (estimated)	Height: 70 cm, Width: 20 cm, Depth: 20 cm
Weight (estimated)	3.0 kg
Certifications	CE, RoHS, ErP (2009/125/EC, 2011/65/EU, 2014/30/EU, 2014/35/EU)
Usage	Indoor household use only; suitable for well-insulated spaces
Not for	Drying clothes, bathrooms, wet areas

Frequently Asked Questions - 10032004 Klarstein

How do I clean the Klarstein ceramic heater?

Always unplug the heater before cleaning. Wipe the exterior with a damp (not wet) cloth and mild soap. Remove the filters and clean them if dirty. Do not rinse with water directly. Never use abrasive cleaners.

What should I do if the heater turns off unexpectedly?

The heater has overheat protection. If it switches off, unplug it and wait about 30 minutes to cool down. Check for any obstructions blocking the air intake or exhaust. Remove the obstruction and plug it back in. If the problem persists, contact customer service.

How do I replace the remote control battery?

Use a CR2025 lithium battery (3V). Open the battery compartment on the remote, insert the new battery with the correct polarity, and close it securely.

Can I use the heater with a timer or smart plug?

No. The manual explicitly warns not to use the heater with a programmer, timer, or any automatic switching device, as it may cause a fire hazard due to unintended operation.

How does the tip-over protection work?

The heater has a safety switch that automatically turns it off if it falls over or tilts excessively. When placed upright again, it returns to standby mode. Press any button on the control panel or remote to reset it.

What is the maximum heating time with the timer?

The timer can be set from 0 to 8 hours. Press the timer button repeatedly to set the desired shutdown time. The heater will turn off automatically after the set period.

Is the heater safe to leave unattended?

The manual advises not to leave the heater unattended while in use. Always turn it off and unplug when leaving the room. It is equipped with safety features but should still be supervised.

How do I activate the oscillation function?

Press the oscillation button (marked with a fan or oscillation symbol) on the control panel or remote. Press it again to stop oscillation.

What is the correct placement for the heater?

Place the heater on a flat, horizontal surface. Keep all objects at least 1 meter away from the front and sides. Do not place it directly below a socket-outlet, behind doors, or near curtains or combustible materials. Do not use outdoors or in bathrooms.

How do I dispose of the heater and its batteries?

Do not dispose of the heater as household waste. Take it to a designated collection point for electrical and electronic equipment recycling. Batteries (CR2025) should be disposed of separately according to local regulations. Follow the WEEE directive 2012/19/EU and battery directive 2006/66/EC.

USER MANUAL 10032004 Klarstein

Ceramic Heater Tower

Hinweis: Dieses Produkt ist nur für gut isolierte Räume oder für den gelegentlichen Gebrauch geeignet. Note: This product is only suitable for well insulated spaces or occasional use. Advertencia: Este producto está indicado únicamente en lugares abrigados o para una utilización punctual. Remarque : Ce produit ne peut être utilisé que dans des locaux bien isolés ou de manière occasionnelle. Nota: Questo prodotto è adatto solo per spazi ben isolati o uso occasionale.

Symbol of a trash bin with no text or labels, featuring a crossed-out wheel and a solid black rectangle below (no text or symbols present)

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages.

Any failure caused by ignoring the items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability.

CONTENTS

Technical Data 10

Safety Instructions 11

Operation 13

Remote Control 14

Safety Switches 15

Maintenance 15

Disposal Considerations 16

TECHNICAL DATA

Item number 10032004
Power supply 220-240 V~	50 Hz
Power Heating level 1: 1000 W	Heating level 2: 2000 W

SAFETY INSTRUCTIONS

Before using your new heater, please carefully read through the following instructions. KEEP THIS BOOKLET IN A SAFE PLACE SO THAT YOU MAY CONSULT IT LATER.

After removing the packaging, make sure that the appliance is in good condition.

The packaging materials may contain plastic, nails etc., which may be hazardous and therefore should not be left within the reach of children

• Avoid installation behind a door.
• Use only the voltage specified on the rating plate of the heater.
• Do not cover or restrict airflow to the inlet or exhaust grilles in any manner as the appliance may overheat and become a fire risk (for Fan Heaters).
• Do not cover grilles, block entry or exhaust of airflow by placing appliance against any surface. Keep all objects at least 1 metre from the front and sides of the appliance. With exception of appliances designed for wall-mounting, maintain a 1 metre gap from the rear of the unit as well.
• WARNING: FIRE RISK EXISTS IF THE HEATER IS COVERED BY OR
• POSITIONED CLOSE TO CURTAINS OR OTHER COMBUSTIBLE MATERIALS
• Do not place appliance close to a radiant heat source.
• Do not operate in areas where gasoline, paint or other flammable liquids are used or stored.
• This appliance heats up when in use. To avoid burns, do not let bare skin touch hot surfaces. Switch off and use handles where provided when moving.
• Do not use the appliance to dry clothes.
• Do not leave the appliance unattended whilst in use.
• Do not insert or allow foreign objects enter any ventilation or exhaust opening, as this may cause an electric shock, fire or damage to the appliance.
• Do not immerse in liquid or allow liquid to run into the interior of the appliance, as this could create an electrical shock hazard.
• Do not use this appliance on a wet surface, or where it can fall or be pushed into water.
• Do not reach for an appliance that has fallen into water. Switch off at supply and unplug immediately.
• Do not operate any appliance with a damaged cord, plug or after the appliance malfunction or has been dropped or damaged in any manner. Return to a qualified electrical person for examination, electrical or mechanical adjustment, service or repair before further use.
• Do not operate appliance with wet hands.
• This appliance is intended for household use only and not for commercial or industrial use.
• Use this appliance only as described in this manual. Any other use is not recommended by the manufacturer and may cause fire, electric shock or injury.
• A common cause of overheating is deposits of dust or fluff in the appliance. Ensure

these deposits are removed regularly by unplugging the appliance and vacuum-cleaning air vents and grilles, where available.

• Do not use this appliance in a window as rain may cause electric shock.
• Do not use abrasive cleaning products on this appliance. Clean with a damp cloth (not wet) rinsed in hot soapy water only. Always remove plug from the mains supply before cleaning.
• Do not connect the appliance to the mains source until it has been installed in its final location and adjusted to the position it will be used in.
• This appliance is not intended for use in bathrooms, laundry or similar locations which may be exposed to water, moisture or humidity.
  • Always operate on a flat horizontal surface.
• Switch off the appliance, then use handles (where provided) to change its position.
• Do not operate with the cord coiled up as this could cause a build up of heat, which could pose a hazard.
• The use of an extension cord with this appliance is not recommended.
• Do not remove the power plug from the socket by pulling the cord – grip the plug instead.
  • Always unplug appliance when not in use.
• Do not allow cord to come in contact with heated surfaces during operation.
• Do not run cord under carpeting, throw rugs or runners etc. Arrange cord away from areas where it is likely to be tripped over.
• Do not twist, kink or wrap the cord around the appliance, as this may cause the insulation to weaken and split. Always ensure that the cord has been fully removed from any cord storage area before use.
• Do not store appliance in a box or closed space until it has cooled down sufficiently.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Young children should be supervised to ensure they do not play with the appliance.
• The appliance must not be located immediately below a socket-outlet.
• Do not use this appliance with a programmer, timer or any other device that switches the heater on automatically, since a fire risk exists if the appliance is covered or positioned incorrectly.
• If the supply cord is damaged, it must be replaced by a qualified electrical person in order to avoid a hazard.
• Do not use this appliance outdoors, or on wet surfaces. Avoid spilling liquid on the appliance.
• In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

OPERATION

1. Before inserting the plug into an electrical outlet, make sure that the electrical supply in your area matches that on the rating label on the unit.

2. When plugged in, turn on the Main power switch at the back of the unit.

3. When in Standby mode, only the switch on the control panel will respond to your touch, and the LED display shows the room temperature. Press to access the rest of the control panel.

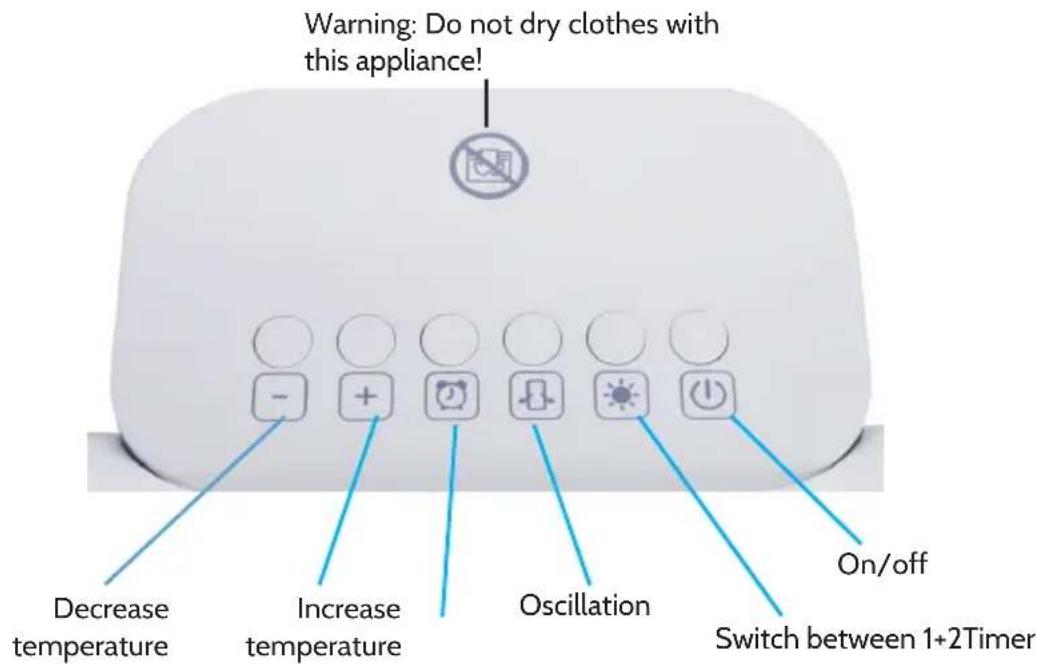

Settings

Button Setting
	Low heating level (1000 W)Press key to switch between heating levels.
	Low heating level (2000 W)Press key to switch between heating levels.
	TimerPress this button repeatedly to set a period after which the heater will turn itself off (From 0 hour - 8 hours)
+/-	Adjust the desired room temperature (10-35 °C)
	Press this button to activate oscillation. Press it again to cancel.
	Press to turn off the heater, the unit will keep working 30 seconds of cool air after turn off it . this design can protect item use longer.

CAUTION: DANGER OF SCALDING

The heater will remain hot for some time after it is turned off; handle with care.

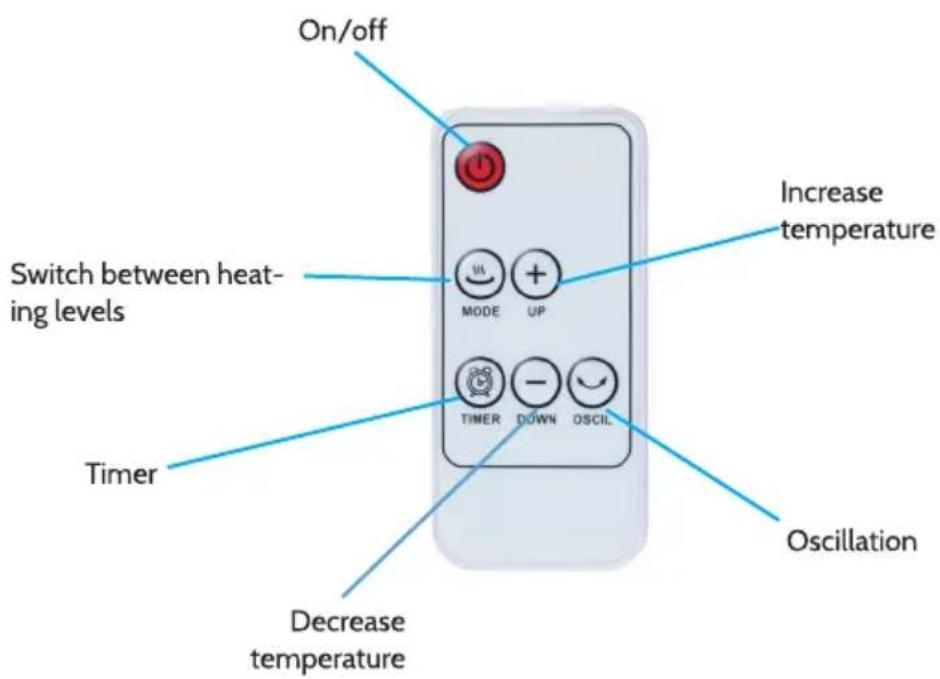

REMOTE CONTROL

The remote control buttons perform the same functions as those on the control panel on the unit.

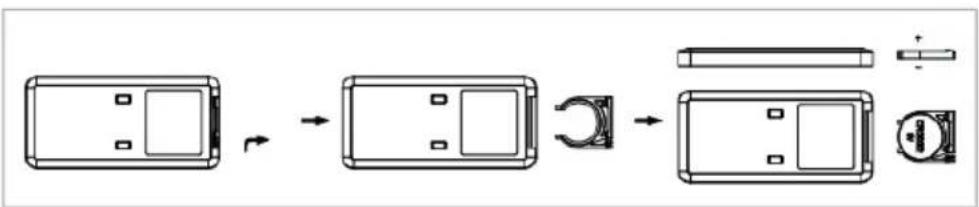

Replacing batteries of the remote control

Replace with Lithium battery CR2025 3V.

SAFETY SWITCHES

Overheat protection

This heater is protected with an overheat protection that switches off the appliance automatically in case of overheat, e.g. due to the total or partial obstruction of the grids. In this case, unplug the appliance, wait about 30 minutes for it to cool and remove the object which is obstructing the grids. Then switch it back on as described above. The appliance should operate normally. Should the problem persist, please contact the nearest customer service.

Tip-over protection

This heater is protected with a safety switch that turns off the appliance automatically when the heater falls over, or is at an excessive angle from the horizontal. This helps prevent accidents, and the heater will back to the standby mode when it is put back upright, press the buttons on control panel or remote control to reset the heater.

MAINTENANCE

When your heater needs cleaning, wipe exterior surfaces of the heater with a moistened cloth. Not rinse with water directly. Be sure to unplug before cleaning.

Pull out filters and clean them, when it is very dirty.

To prolong the heater life, not disassemble it personally when malfunction occurs. Send your heater to relative identification after-sold service center or provider for the convenience inspecting.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin with no text or labels, crossed by diagonal lines and a solid rectangle below (no readable text or symbols)

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Your product contains batteries covered by the European Directive. 2006/66/EC, which cannot be disposed of with normal household waste. Please check local rules on separate collection of batteries. The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health.

Declaration of Conformity

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany

This product is conform to the following European Directives:

2009/125/EC (ErP)

2011/65/EU (RoHS)

2014/30/EU (EMC)

2014/35/EU (LVD)

TECHNICAL PARAMETERS

Model identifier(s):	10032004
Item Symbol Value Unit Item Unit
Heat output Type of heat input, for electric storage					local space heaters only
Nominal heat output Pnom 2.0	kW manual	heat charge	control,		with integrated thermostat	N/A
Minimum heat output (indicative)	Pmin 0	kW manual	heat charge	control with room and/or outdoor temperature feedback		N/A
Maximum continuous heat output	Pmax,c 2	0 kW electronic heat charge control with room and/or outdoor temperature feedback				N/A
Auxiliary electricity consumption					fan assisted heat output	N/A
At nominal heat output (fan motor)	elmax	N/A	kW		Type of heat output/room temperature control
At minimum heat output (fan motor)	elmin	N/A	kW		single stage heat output and no room temperature control	no
In standby mode	elSB	0,003	kW		Two or more manual stages, no room temperature control	no
					with mechanic thermostat room temperature control	no
					with electronic room temperature control	yes
					electronic room temperature control plus day timer	no
					electronic room temperature control plus week timer	no
					Other control options (multiple selections possible)
					room temperature control, with presence detection	no
					room temperature control, with open window detection	no
					with distance control option	no
					with adaptive start control no
					with working time limitation	no
					with black bulb sensor	no
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany
