Mini 10030766 - Oven Klarstein - Free user manual and instructions

Product type	Oven
Brand	Klarstein
Model	Mini 10030766
Article number	10030866, 10030867
Power supply	220-240 V ~ 50-60 Hz
Power	2700 W
Maximum temperature	230 °C
Timer	Yes, with automatic shut-off and audible signal
Cooking modes	Top heat, bottom heat, combined heat, rotisserie, air circulation
Included accessories	Baking tray, grill, rotisserie, tray handle, rotisserie handle
Grill levels	4
Door	Glass door
Housing material	Stainless steel
Safety	Insulated handle for accessories, automatic shut-off, avoid contact with hot surfaces
Cleaning	Housing: dry cloth; interior: damp cloth; tray and grill: soapy water; do not use abrasive products
Use	Cooking, roasting, grilling, baking

Frequently Asked Questions - Mini 10030766 Klarstein

How to use the rotisserie?

Insert the spit into the right cavity, secure the left side, then use the handle to handle the rotisserie. The spit supports up to 3 kg of meat.

What temperature to cook a chicken?

For half a chicken, set the thermostat to about 190-220 °C and the timer to 30 to 40 minutes.

How to clean the interior of the oven?

Let it cool, then clean the interior with a slightly damp cloth. Do not use excessive water to avoid damaging the electronics.

What to do if the oven does not heat?

Check that the power cord is plugged in and the thermostat is set to a temperature. If the problem persists, contact customer service.

Can I use aluminum foil?

Yes, to avoid splatters, cover the tray and the top of the dish with aluminum foil. Do not cover the ventilation slots.

How to set the timer?

Turn the knob clockwise to the desired time (in minutes). For a time less than 5 minutes, first set to 6, then turn back to the desired time.

Why is there smoke during first use?

This is normal: the oven heats up manufacturing residues. Heat empty at 230 °C for 10 minutes to eliminate odors.

How to install the rails?

The rails are already installed. You can insert the tray or grill on one of the 4 levels as needed.

Can I put metal dishes?

Yes, oven-safe metal dishes are suitable. Avoid glass or plastic containers that are not heat-resistant.

How to replace the bulb?

The bulb is not user-accessible. Contact a qualified professional for replacement.

USER MANUAL Mini 10030766 Klarstein

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

Contents

Technical Data 8

Safety Instructions 8

Product Description 9

Use and Operation 9

Cleaning and Care 12

Hints on Disposal 13

Declaration of Conformity 13

Technical Data

Item number 10030866, 10030867
Power supply 220-240 V ~ 50-60 Hz
Power consumption 2700 W

Safety Instructions

• Always use the Food Fork when inserting or removing the tray. Touching these will cause severe burns.
• When hot, do not apply water to the glass window. It may cause the glass to break.
• When unplugging the cord, always take hold of the plug itself. Never pull on the cord. Doing so could break the wires inside the cord.
• Do not position the unit close to a gas burner or other source of high temperature or do not direct an electric fan, etc, at the unit during USE. Doing so could prevent correct temperature control.
• Do not wet the power cord nor handle the unit with wet hands. Always unplug the cord after use, or whenever the unit is to be left unattended. A malfunction while the plug is inserted into the outlet could cause a fire.
• When cooking oil-splashing dishes such as roast chicken, it is recommended to put 2 sheets of aluminum foils on a tray in order to diminish oil splashing. Put one on a tray. Then oil will drip to a gap between foils.
• If the oven is positioned too close to a wall, the wall will be burned or stained. Be sure the curtain, etc. are not in contact with the body. Do not put anything between the bottom of the body and the surface on which it is set. An object so placed could be burned.
• Do not put anything on the oven while using it, the heat could cause deformation, cracking, etc.
  Any bottled or tinned food can not be heated directly as the bottle or tin would be broken out and scald the person.
• Be careful! Not to burn yourself during use or immediately after use. The metal parts and glass window of the door become extremely hot during use. Be careful not to touch them when opening and closing the door.

• If the supply cord is damaged, the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard must replace it.

• AC power must be taken from a properly wired outlet. Insert the plug completely into the socket. If it is not, it could become abnormally hot. Do not use an electric light outlet. Never connect multiple plugs to the same outlet.

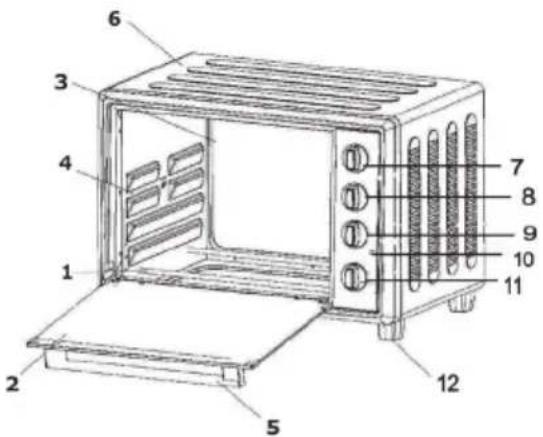

Product Description

1 Heating element
2 Glassdoor
3 Inner case
4 Rack support
5 Door handle
6 Housing
7 Thermostat
8 Switch knob
9 Switch knob
10 Indicator light
11 Timer
12 Stand

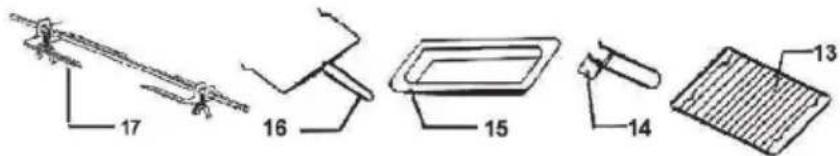

13 Wire rack
14 Tray Handle
15 Baking tray
16 Rotisserie handle
17 Rotisserie

Use and Operation

How to use the Accessory

	Food tray: Roast Chicken, Hamburg steak, Gratin, Sponge cake, almost all other oven-cooked foods.
	Wire rack: Baked potatoes and dry food.
	Food tray and wire rack: For food which will drip/boiled fish, etc.
	Rotisserie: to make the food toasted more evenly.

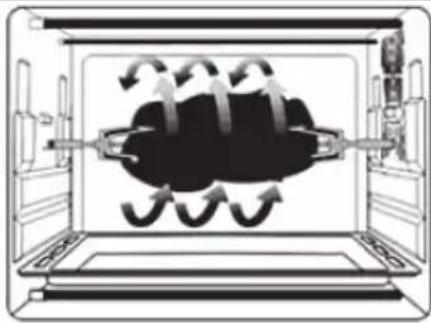

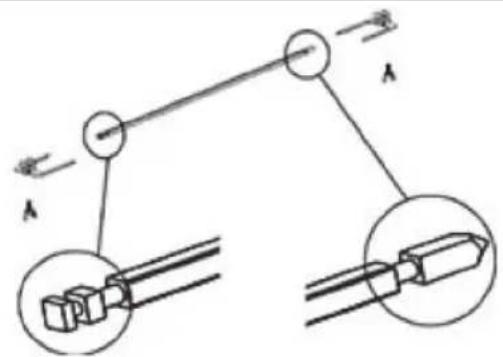

Use with Rotisserie Forks Install Rotisserie Forks

With this function, even baking will be provided. Rotisserie forks can carry food under 3 kilograms.

left right

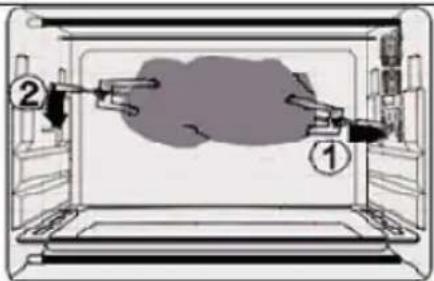

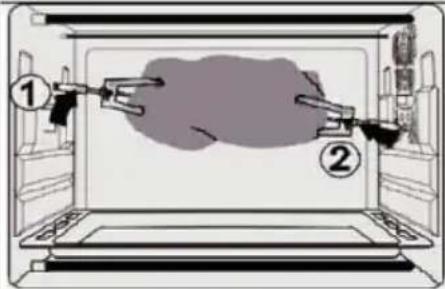

Install Rotisserie Forks Remove Rotisserie Forks Rotisserie Handle

Install the Rotisserie Forks to the rotisserie hole, and then put it to the rotisserie tray.

Use Rotisserie Handle to take out the Rotisserie Forks from the rotisserie tray, and then remove it from the rotisserie hole. CAUTION: Beware of HOT dripping oil!

Please always use Rotisserie Handle to take out the Rotisserie Forks.

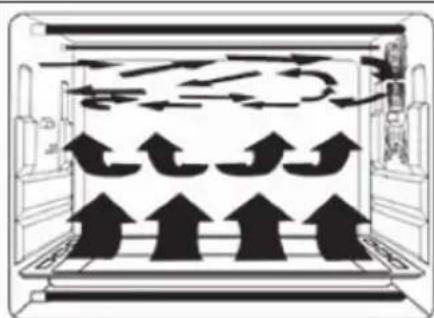

Convection Function

Featured with a special convection function, strong and absolute cycling airflow by making the heating more complete. Original flavor can be kept.

Functional Control

TEMP/C 140 190 20 100 250 TIMER/min OFF 60 30	Set the “Temperature Control” by turning clockwise to select the suitable temperature according to the dishes you are going to cook.
	Set the “Timer” to the number which indicates the cooking time (minutes). Now, the oven is Working. Beware of the HOT surface, and DO NOT open the glass door during cooking!

Other Controls and Functions

Rotisserie & Convection Off

Rotisserie & Convection

Convection

Rotisserie

□ ○ ·	□ Heating Off
	Upper Heating
	Lower Heating
	Upper & Lower Heating

Operating Instructions

Before using the unit for the first time: (1) Insert the tray and baking net. (2) Set the heater operating switch to UPPER \& LOWER , set the temperature control dial to 230 · " and heat the empty oven for about 10 minutes. Note: There may be some smoke and a burning smell at first, but this is not a malfunction.

1. Set the Temperature Control Dial for the dishes which you are going to cook.
2. Select "Upper" "Lower" or ,Upper and Lower according to the dishes you are going to cook. You can observe whether the heaters are working or not by observing the front Indicator light.
3. Set the Timer by turning it clockwise. The oven will turn off automatically at the end of the selected time and a bell will ring. When setting the Timer to less than 5 min, turn it to more than 6 min. and then back to the selected time. The oven can be turned off manually during cooking by turning the Timer counter-clockwise to the .OFF" position.

Note: If the inside of the oven is dirty, cooking may take slightly longer than usual. Clear all left over food residues in the oven before each use.

Baking Reference of Common Food

Type of Food Thickness /pcs Timer
Sandwich 2-3 pcs 2-3 minutes
Toast 2-4 pcs 2-5 minutes
Hamburger 2-3 pcs 3-5 minutes
Fish - 7-10 minutes
Ham 2 cm 7-12 minutes
Sausages 3-4 pcs 8-10 minutes
Cake - 20-30 minutes
Steak	1-2 cm
Chicken	half chicken

Cleaning and Care

Take off the plug and cool down before cleaning.
- Use dry cloth to clean outer surface of oven and glass window.
- When cleaning inside of oven, mopping with cloth can be applied. Never wash it with water as it may cause current leakage when electric parts are wet.
- Food tray, wire rack and tray handle can wash with soft cotton(or sponge) and neutral cleaner. Then rinse thoroughly with clean water, then wipe dry. Do not use hard bruch that will scratch the interior surface of the oven, and to protect the tray, wire rack and tray handle.
- Do not use the toxic and abrasive cleaners such as gasoline, polishing powder, solvent.

Hints on Disposal

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)
