USER MANUAL 10031904 Klarstein

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Safety Instructions 20

Installation 22

Operation 25

Cleaning and Maintenance 26

Installing a Carbon Filter (optional) 27

Troubleshooting 28

Product Data Sheet 29

Notes on Environmental Protection 31

Disposal Considerations 32

Manufacturer & Importer (UK) 32

TECHNICAL DATA

Item number	10031904, 10032765, 10032766, 10032767
Power supply 220-240 V ~ 50/60 Hz

SAFETY INSTRUCTIONS

• Thank you for purchasing this cooker hood. Please read the instruction manual carefully before you use the cooker hood, and keep it in a safe place.
• The installation work must be carried out by a qualified electrician or competent person. Before you use the cooker hood, make sure that the voltage (V) and the frequency (Hz) indicated on the cooker hood are exactly the same as the voltage and the frequency in your home.
• The manufacturer and the agent will not bear any responsibility for the damage caused by inappropriate installation and usage.
  Children under the age of 8 must not use the cooker hood.
• The appliance is not intended for commercial use, but only for household and similar environments.
• The cooker hood and its filter mesh should be cleaned regularly in order to keep it in good working order.
• Before cleaning, switch the power off at the main supply.
• Clean the cooker hood according to the instruction manual and keep the cooker hood from the danger of burning.
• Prohibit putting the cooker hood by fire.
• If the appliance does not function normally, contact the manufacturer or a specialist company.
• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• If the range hood is used at the same time as appliances burning gas or other fuels, the room must be adequately ventilated.
• Do not flambé under the range hood. Accessible parts may become hot when used with cooking appliances.

Important hints on installation

• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
• Regulations concerning the discharge of air have to be fulfilled.

WARNING

Risk of poisoning from exhaust gases sucked back. Never operate the device in extraction mode simultaneously with an open flue appliance when there is not adequate airflow guaranteed.

Open flue combustion equipment (for example, gas, oil, wood or coal-fi red heaters, tankless water heaters, water heaters) pulls combustion air from the room and runs it through an exhaust pipe or chimney to the outside. In the extraction mode, indoor air is removed from the kitchen and the adjacent rooms

• without sufficient air intake this creates a vacuum. Toxic gases from the chimney or extraction flue can thereby be sucked back into the living spaces.

• Always ensure that a sufficient supply of fresh air is guaranteed and that the air can circulate.

• An air supply / extractor box alone does not ensure compliance with the limit value.

Safe operation is only possible when the negative pressure in the room where the appliance is located does not exceed 4 Pa (0.04 mbar). This can be achieved when the air required for combustion can flow through openings that are not closable, for example in doors, windows, in conjunction with an air supply / extractor box or through other technical measures. In any case, consult a qualified chimney sweep who can assess the entire ventilation of your house and propose appropriate measures for adequate ventilation.

If the hood is used exclusively in the recirculation mode, unrestricted operation is possible.

Important note on disassembly of the device

• Disassembly is similar to installation/assembly in reverse order.
• Take a second person to help you during disassembly to avoid injuries.

INSTALLATION

Installation (Vent outside)

Note: When the range hood and appliance supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must be not exceed 4Pa (4× 10^-5Bar)

Installation (Vent inside)

If you do not have an outlet to the outside, exhaust pipe is not required and the installation is similar to the one show in section "Installation (Vent outside)".

Important Information for the Installation of Exhaust Air Ducts

The following rules must be strictly observed to ensure optimum air extraction. Failure to follow these instructions will reduce performance and increase the noise level of the cooker hood.

• Lay the exhaust pipe as short and straight as possible.
• Do not use a smaller exhaust duct and do not confine it.
• If flexible ducts are used, the duct must always be mounted tightly in order to minimise pressure loss.
• All installation work may only be carried out by a qualified electrician or a qualified person.
• Do not connect the exhaust duct of the cooker hood to an existing ventilation system used for another appliance, such as a chimney.
• The angle of the exhaust pipe bend should not be less than 120^ . Align the pipe horizontally. Alternatively, the duct should go up from the starting point and be led to an outer wall.
• After installation, make sure that the cooker hood is level to prevent grease from accumulating on one side.
• Make sure that the exhaust duct selected for the installation complies with the relevant standards and is fire-resistant.

Preparation

If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminium, flexible pipe or inflammable material with an interior diameter of 150 mm).

• Before installation, turn the unit off and unplug it from the outlet.
• The cooker hood should be placed at a distance of 65 - 75cm above the cooking plane for best effect.

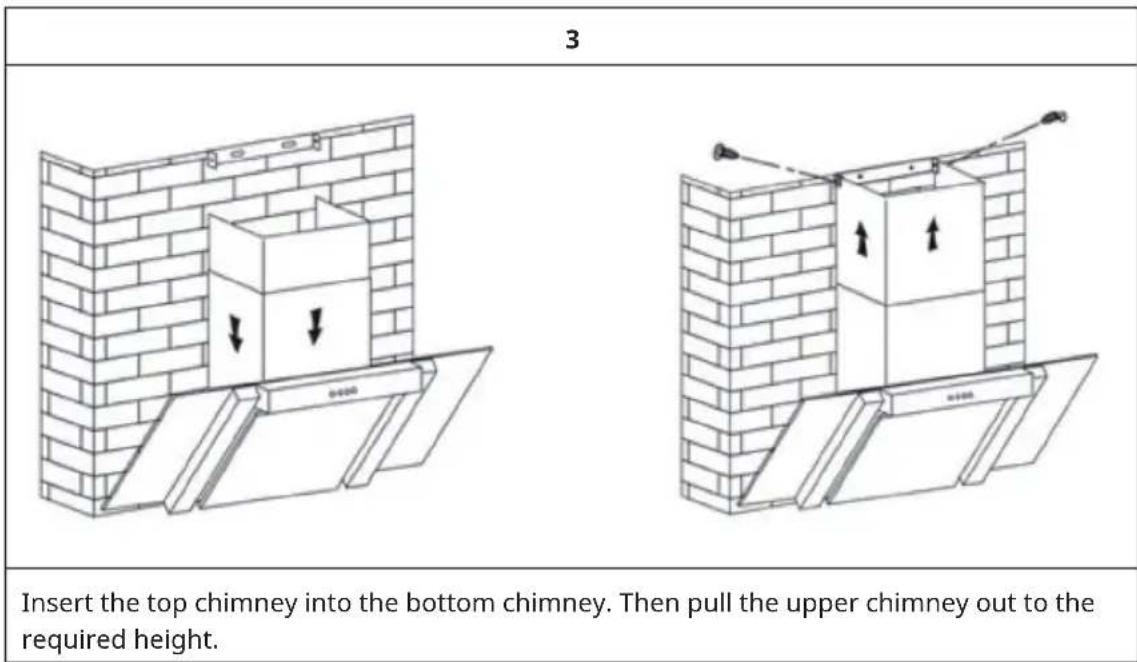

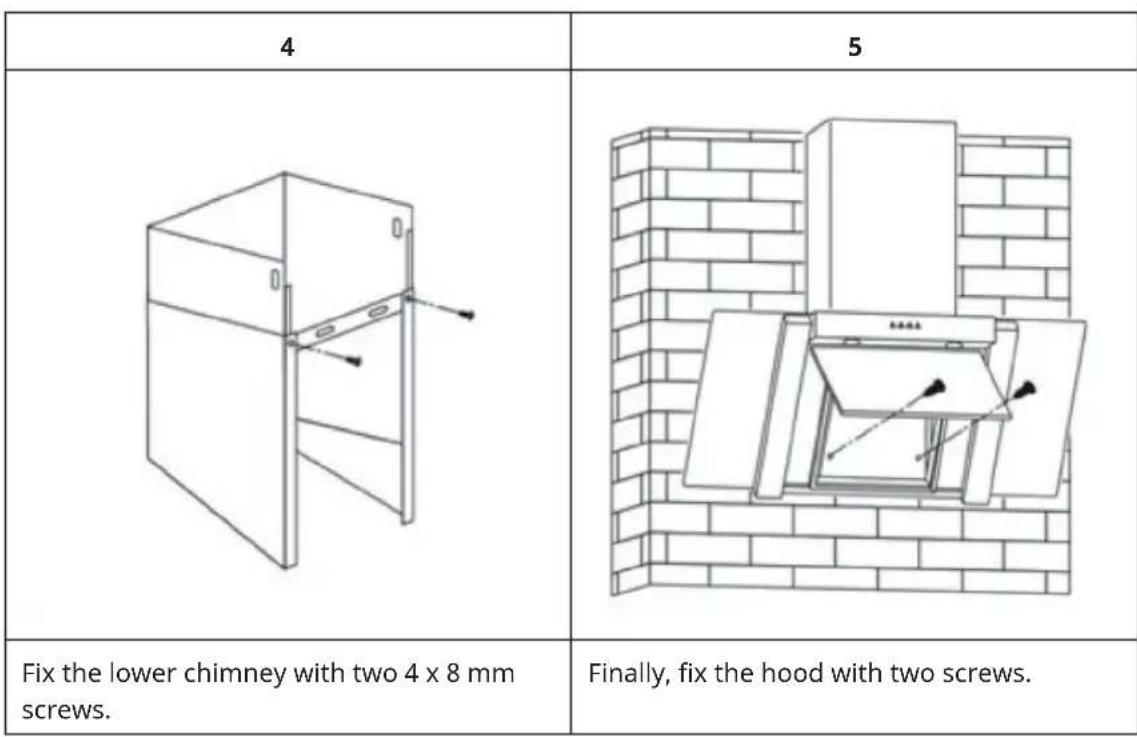

Installation with external venting

1	2
Drill 3 x 8 mm holes for the bracket. Fix the bracket to the wall using the dowels and screws supplied.	Hang the exhaust hood on the hooks of the bracket.

OPERATION

(1)	- (2)	8 (3)	+ (4)	(5)
1 Switch motor on and off
2 Decrease fan speed
3	Indicates the fan speed
	1 = Low speed
	2 = Medium speed
	3 = High speed
4 Decrease fan speed
5 Switch light on and off

CLEANING AND MAINTENANCE

Turn off the cooker hood before cleaning and maintenance and unplug the appliance from the wall outlet. The exterior surfaces are susceptible to scratches and stains. Therefore, do not use abrasive cleaners and wipe away any alkaline or acidic residue (lemon juice, vinegar) immediately after cleaning.

Stainless Steel Surfaces

The stainless steel must be cleaned regularly to ensure a long service life. Use stainless steel cleaner. Always wipe along the grain of the stainless steel to prevent scratching.

Control Panel

The control panel can be cleaned with a damp cloth and a mild dishwashing detergent. Before cleaning, make sure the cloth is clean and well wrung. Use a dry, soft cloth to remove excess moisture after cleaning.

Monthly Cleaning for Grease Filter

Clean the filter every month can prevent any risk of fire. The filter collects grease, smoke and dust, so the filter is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.

INSTALLING A CARBON FILTER (OPTIONAL)

1	2
Activated carbon filter can be used to trap odours.	In order to install the activated carbon filter, the grease filter should be detached first. Press the lock and pull it downward.
3
	Plug the activated carbon filter into the unit and turn it in clockwise direction. Repeat the same on the other side. Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous. When activated carbon filter attached, the suction power will be lower.

TROUBLESHOOTING

Fault Possible Cause Solution
Light on, but motor does not work.	The leaf blocked. Get rid of the blocking.
	The capacitor damaged. Replace capacitor.
	The motor jammed bearing damaged.	Replace motor.
	The internal with of motor off or a bad smell from the motor.	Replace motor.
Light does not work, motor does not work.	Light damaged. Replace lights.
	Power cord looses. Connect the wires as per the electric diagram.
Shake of the body. The leaf	damaged and causes shaking.	Replace the leaf.
	The motor is not tightly hanged.	Lock the motor tightly.
	The body is not tightly hanged.	Fixed the body tightly.
Insufficient suction. The d	stance between the body and the gas top too long.	Readjust the distance.
	Too much ventilation from open doors or windows.	Choose a new place and resemble the machine.

PRODUCT DATA SHEET

Information according to Regulation (EU) No. 65/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:2011+A11:2014+A12:2015

Item number 10031904, 10032765,	10032766, 10032767
Description Symbol Value Unit
Annual Energy Consumption AEC	hood	59 kWh/Jahr
Energy Efficiency class B
Fluid Dynamic Efficiency FDE	hood	22,9
Fluid Dynamic Efficiency class C
Lighting Efficiency LE	hood	34 Lux/W
Lighting Efficiency class A
Grease Filtering Efficiency GFE	hood	68,3 %
Grease Filtering Efficiency class D
air flow at minimum and maximum speed in normal use, intensive or boost excluded		355,0 / 607,2 m³/h
air flow at intensive or boost setting		-	m³/h
airborne acoustical A-weighted sound power emissions at minimum and maximum speed available in normal use		55/71	dB
airborne acoustical A-weighted sound power emissions at intensive or boost setting		-	dB
power consumption in off mode	Po	0.48 W
power consumption in standby mode	Ps	-	W
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

Information according to Regulation (EU) No. 66/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:2011+A11:2014+A12:2015

Item number 10031904, 10032765,	10032766, 10032767
Description Symbol Value Unit
Annual Energy Consumption AEC	hood	59 kWh/Jahr
Time increase factor f 1,2
Fluid Dynamic Efficiency FDE	hood	22,9
Energy Efficiency Index EEI	hood	66,8
Measured air flow rate at best efficiency point	QBEP	326,1 m³/h
Measured air pressure at best efficiency point	PBEP	326 Pa
Maximum air flow Q	max	607,2 m³/h
Measured electric power input at best efficiency point	WBEP	129,0 W
Nominal power of the lighting system	WL	3	W
Average illumination of the lighting system on the cooking surface	Emiddle	101 Lux
Measured power consumption in standby mode	Po	-	W
Measured power consumption off mode	Ps	0.48 W
Sound power level L	WA	71 dB
Contact details Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

NOTES ON ENVIRONMENTAL PROTECTION

• During cooking, make sure that there is sufficient air supply so that the cooker hood can operate efficiently and with low operating noise.
• Adjust the fan speed to the amount of steam produced during cooking. Use the intensive mode only when necessary. The lower the fan speed, the less energy is consumed.
• If large amounts of steam are produced during cooking, select a higher fan speed in good time. If the cooking steam has already dispersed in the kitchen, the cooker hood must be operated longer.
• Switch off the cooker hood when you no longer need it.
• Switch off the lighting when you no longer need it.
• Clean the filter at regular intervals and replace it if necessary to increase the effectiveness of the ventilation system and prevent fire hazards.
• Always put the lid on when cooking to reduce cooking steam and condensation.

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom
