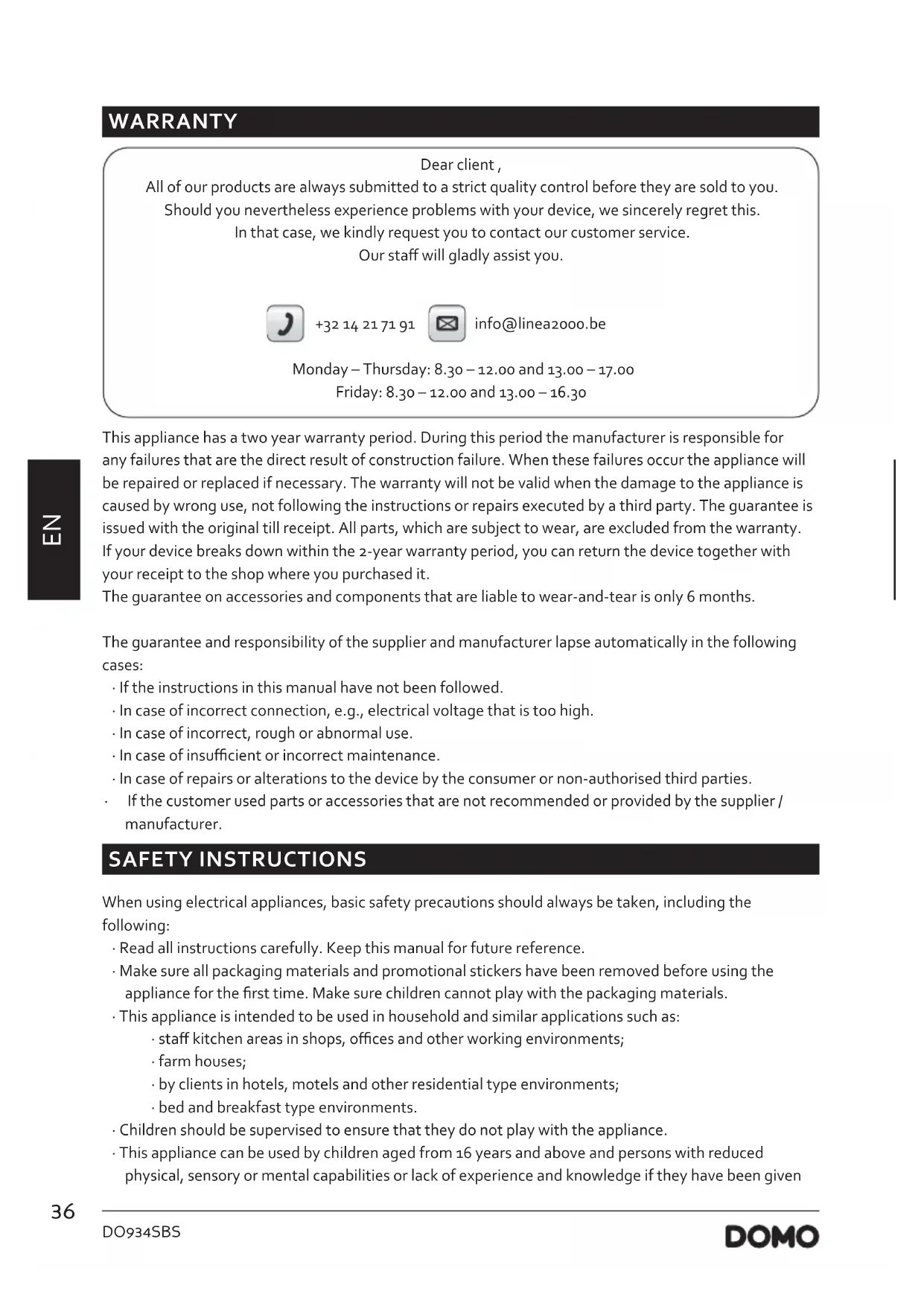

USER MANUAL DO934SBS DOMO

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday-Thursday:8.30-12.oo and 13.oo-17.oo

Friday: 8.30-12.00 and 13.00-16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

If the instructions in this manual have not been followed.
In case of incorrect connection, e.g., electrical voltage that is too high.
In case of incorrect, rough or abnormal use.
In case of insufficient or incorrect maintenance.
In case of repairs or alterations to the device by the consumer or non-authorised third parties.

If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETYINSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
  -farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

Children should be supervised to ensure that they do not play with the appliance.
This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.

• Keep the appliance and its cord out of reach of children younger than 16 years.
• Attention: This appliance cannot be used with an external timer or a separate remote control.
• Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.
• Do not let the cord hang on a hot surface or on the edge of a table or counter top.
• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.

• Close supervision is necessary when the appliance is used near or by children.

• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.

• Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the 'off' position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.

• Do not leave a working appliance unattended.

• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.
• Do not use the appliance outdoors.
• Only use the appliance for its intended use.
• Always use the appliance on a steady, dry and level surface.
• Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.
  All repairs should be carried out by the manufacturer or its aftersales service.
• Never immerse the appliance, the cord or the plug in water or any other liquid.
• Make sure that children do not touch the cord or appliance.
• Keep the cord away from sharp edges and hot parts or other heat sources.
• Before use, remove all packaging materials and any promotional stickers.
• Keep the ventilation openings free of obstructions.
• Do not use any mechanical or other devices to speed up the defrosting process.
• Do not use any other electrical appliance inside the fridge, unless they are approved for this purpose by the manufacturer.
• Do not keep any explosive substances inside the appliance, like for instance aerosol cans with a flammable propellant.
• Make sure that the refrigerant circuit does not get damaged, for instance during transportation or installation.
• Make sure that the plug does not get squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause fire.
• Make sure that you have access to the plug of the appliance.
• Do not pull the cord.
• If the socket is loose, do not plug in the appliance. (risk of electric shock or fire)
  This is a heavy appliance. Be careful when moving it.
• Do not touch anything that comes out of the freezer with damp or wet hands. This could cause skin burns.

• Avoid long exposure to direct sunlight.

• The appliance may not be used with an extension lead or a multiple socket.

• This cooling unit is not intended for use as a built-in appliance.

• Follow the instructions below to prevent contamination of food:

• Keeping the door open for long periods may cause the temperature in the compartments of the appliance to rise considerably.

• Clean the surfaces that could come into contact with food regularly. Keep the condensation channel and drainage hole at the back of the appliance clean.
• Store raw meat and fish in suitable containers in the refrigerator so that they do not come into contact with or drip onto other food.
• If the appliance is left empty for longer periods, it should be turned off, defrosted and cleaned. Allow it dry and leave the door ajar to prevent mould from growing in the appliance.

WARNING! Never place this appliance on or in the neighbourhood of a gas or electric fire or in a place where it could come into contact with a heat source. There are flammable materials located on the back of the appliance.

Pay attention to the symbol 'Fire risk – flammable materials' located on the back of the appliance.

INSTALLATION

• Remove the exterior and interior packing, wipe the outside thoroughly with a soft dry cloth and the inside with a wet, lukewarm cloth.
• Avoid placing the cabinet in a narrow recess or near any leave source, direct sunlight, or moisture.
• Let air circulate freely around the cabinet. Keep the rear of the refrigerator 7,5 ~cm away from the wall.

• Select a place with a strong, level floor.

• Avoid direct sunlight and heat. Direct sunlight may affect the acrylic coating. Heat sources nearby will cause higher electricity consumption.

• Avoid very moist places. Too much moisture in the air will cause frost to from very quickly on the evaporator, and your refrigerator.
• Before connecting your refrigerator to the power supply, check that the voltage stated on the rating label of your appliance corresponds to the voltage in your home. A different voltage could damage the appliance.
• The appliance must be grounded. The manufacturer is not responsible for damages that may occur as a result of usage without grounding.
• For uneven surfaces, front feet can be aligned.
• After installation, leave the freezer for 24 hours before turning it on. This way the refrigerant can settle.

• Allow the appliance to run empty for 12 hours so the compartment can cool to the appropriate temperature.

• The climate class indicates the minimum and maximum ambient temperature for the proper operation of an appliance. You can find the climate class on the type plate on the back of the appliance.

SN: Subnormal: ambient temperature between 10^ and 32^
N: Normal: ambient temperature between 16^ and 32^
ST: Subtropical: ambient temperature between 16^ and 38^
T: Tropical: ambient temperature between 16^ and 43^

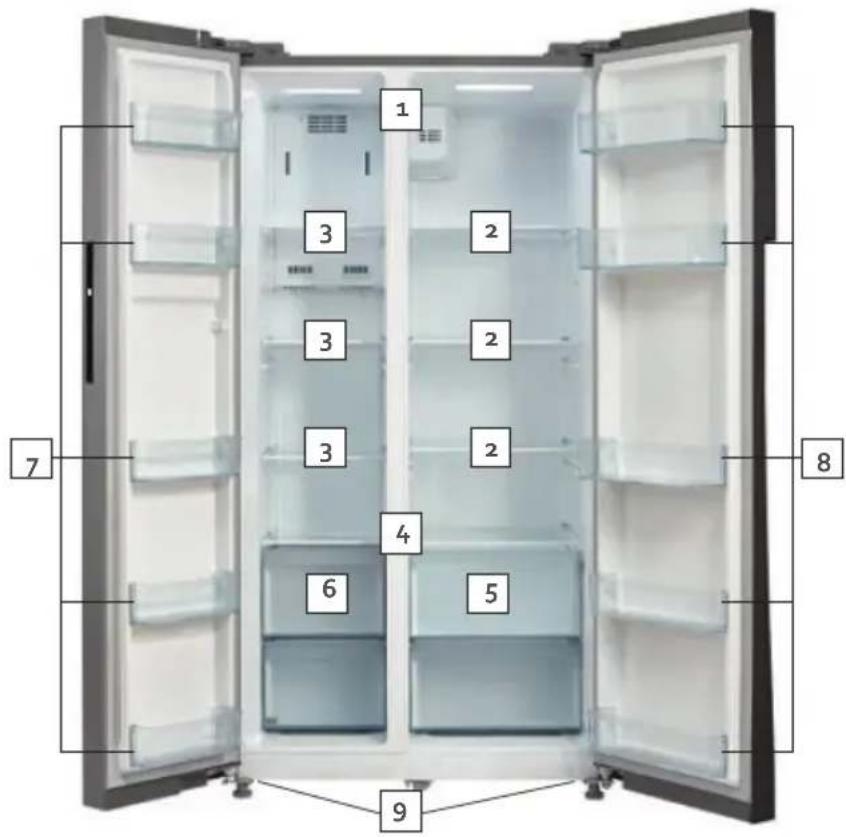

PARTS

1. Lighting
   2.Shelves fridge
2. Shelves freezer
3. Lid for loading
4. Vegetable drawers
5. Freezer drawers
6. Door shelves freezer
7. Door shelves fridge
8. Levelling feet

BEFORE THE FIRST USE

• Remove the exterior and interior packing, wipe the outside thoroughly with a soft dry cloth and the inside with a wet, lukewarm cloth.
• Set the temperature. See "Instructions>Temperature control". Close the doors.

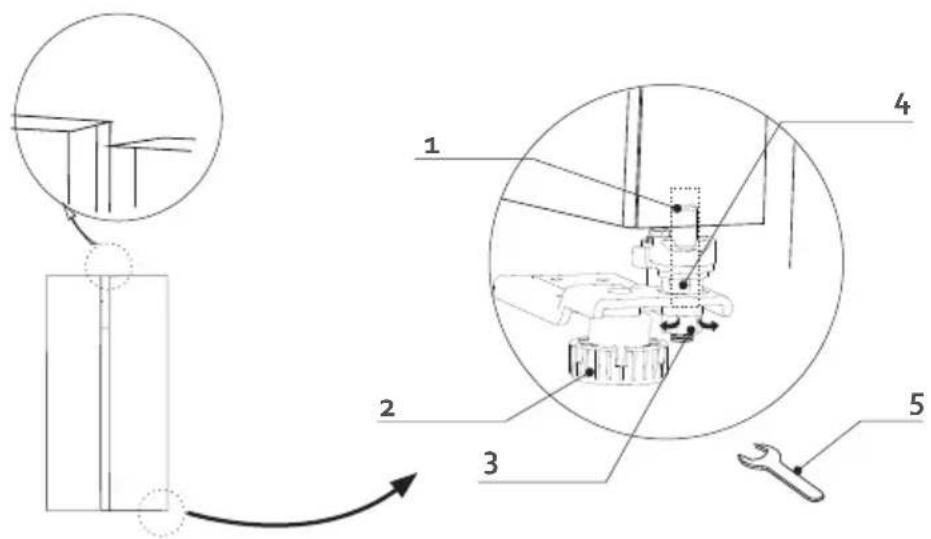

ADJUSTING THE DOORS

If the doors are not aligned in height, they can be adjust up to a maximum of 5 mm.

1. fixed axis
2. adjustable foot
3. security nut
4. adjusting nut
5. spanner

• Turn the security nut clockwise with a spanner to loosen it. (2 full rotations).

• Now you can adjust the adjusting nut to raise or lower the door.

• The door is too low: turn the adjusting nut counter-clockwise to raise the door.

• The door is too high: turn the adjusting nut clockwise to lower the door.

• Once the doors are correctly aligned, retighten the security nut.

USE

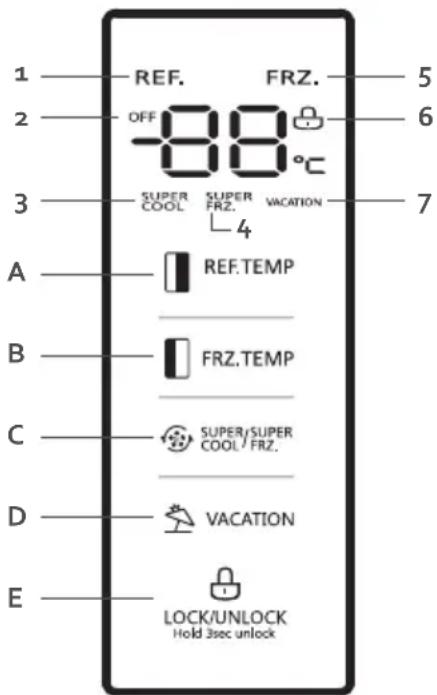

Touch screen buttons

A. Temperature of fridge
B. Temperature of freezer
C. Functions
D. Vacation mode
E. Child safety lock

Display

1. Temperature of fridge
2. Off mode
3. Quick cool
4. Quick freeze
5. Temperature of freezer
6. Child safety lock
7. Vacation mode

The control panel goes into sleep mode automatically. The display lights up when a button is touched and when the doors are opened.

TEMPERATURE CONTROLS

The temperature of the fridge can be set between 2 and 8^ Under normal conditions, it is best to select 4^ Press REF. TEMP." button (temperature fridge) and continue to press until the desired temperature is displayed.

The freezer can be set between -16 and -24^ . Under normal conditions, it is best to select -18^ . Press the "FRZ.TEMP." button (temperature freezer) and continue to press until the desired temperature is displayed.

• The operating time and temperature is influenced by the location of the fridge, the number of times the door is opened and the temperature of the room the fridge is in.

SETTING THE FUNCTIONS

Vacation mode VACATION

• This function helps save energy during those periods when the appliance is used irregularly, such as, for example, during vacations.
• By selecting this function, the freezer temperature is set at -18°C. The fridge is turned off.

This function can be turned on and off with the "VACATION" button. The VACATION symbol (vacation mode) will be displayed.
- Important: with this function in operation, make sure that all food and drink have been removed from the fridge compartment.

• Select this function if you want to freeze fresh foods.
• By selecting this function, the freezer temperature is lowered to -24^ . It is recommended that this function be selected 12 hours prior to the freezing. After 26 hours, the setting will be switched back automatically. The previously set temperature will once again be maintained.
• If the temperature of the freezer goes below -24^ before the 26 hours have elapsed, the setting will automatically be switched off.
  This function can be turned on and off with the "SUPER COOL/SUPER FRZ" button (functions). The SUPER FRZ symbol (quick freeze) will be displayed.

Quick cool and freeze SUPER/SUPER COOL/FRZ.

• Select this function if the standard temperature does not cool sufficiently. For example: with extremely hot weather, if the doors are opened often, with a high environmental temperature, if a large quantity of uncooled/unfrozen food is placed in the appliance, etc.
• By selecting this function, the freezer temperature is lowered to -24^ for a maximum of 26 hours. The fridge temperature is set at 2^ for 2 1/2 hours. This function is switched off automatically after the time has elapsed. The previously set temperature will once again be maintained.
• If the temperature of the freezer goes below -24^ before the 26 hours have elapsed, the setting will automatically be switched off.
  This function can be turned on and off with the "SUPER COOL/SUPER FRZ" button (functions). Both the SUPER FRZ symbol (quick freeze) and the SUPER COOL (quick cool) symbol will be displayed.

• Select this function if the standard temperature does not cool sufficiently. For example: with extremely hot weather, if the fridge door is opened often, with a high environmental temperature, if a large quantity of uncooled food is placed in the fridge, etc.
• By selecting this function, the fridge temperature is set at 2^ for a period of 2 1/2 hours. This function is switched off automatically after the time has elapsed. The previously set temperature will once again be maintained.
  This function can be turned on and off with the "SUPER COOL/SUPER FRZ" button (functions). The SUPER COOL symbol (quick cool) will be displayed.

CHILD SAFETY LOCK LOCKONLOCK Hold 3sec unlock

The child safety lock automatically blocks the buttons for safety. The display will show a closed lock. Press the "UNLOCK" button (child safety lock) for 3 seconds to unblock the panel. The lock icon will disappear from the display.

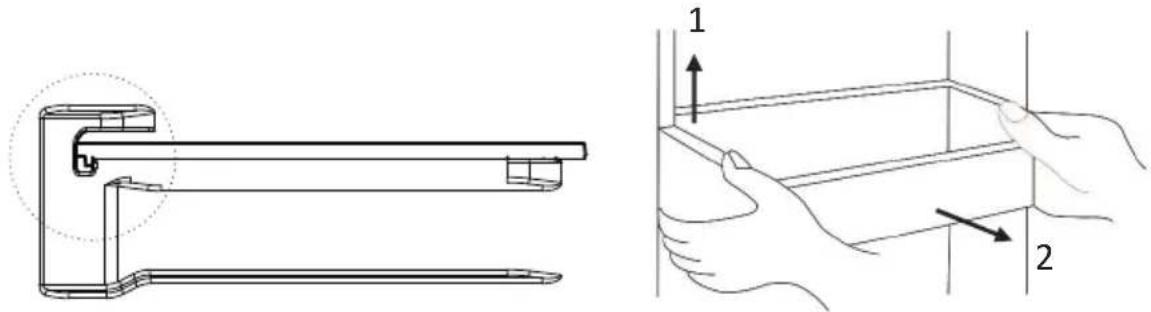

MOVING THE SHELVES AND DOOR RACK

• Empty the fridge before moving the shelves or the door racks.
• The shelves have a stopper at the back so they stay in place. To move a shelf, raise it and pull it towards you.

To move a door rack, grip it firmly with 2 hands. Raise the door rack and pull it towards you.

LIGHTING

The lighting in the freezer and the fridge are LED lights. These are more ecological and manufactured for a long life. For this reason, these may not be replaced. If there is a problem with the lighting, contact a qualified service centre in your area.

MOVING YOUR APPLIANCE

If the appliance is turned off for any reason, wait for 10 minutes before turning it back on. This will allow the refrigeration system pressures to equalise before restarting.

• Turn off the appliance and unplug it from the mains socket. Remove all food. Also remove all mobile parts (shelves, accessories, etc.) or fix them into the fridge to avoid any shock.
• Relocate and install. If the appliance has been left on its side for any length of time, leave it standing upright for at least 10 minutes before turning on.

Your appliance uses isobutane (R600a) as a refrigerant. Although R600a is an environmentally friendly and natural gas, it is explosive. Therefore you should be careful during shipment and installation to prevent your appliance's cooler elements from being damaged. In the event of a leak caused by damage to the cooler elements, move your fridge from open flame or heat sources and ventilate the room where the appliance is located for a few minutes.

STORING FOOD IN THE FRIDGE

The fridge helps to extend the storage times of fresh perishable foods.

Fresh food care for best results:

• Store foods that are very fresh and of good quality.
• Ensure that food is well wrapped or covered before it is stored. This will prevent food from dehydrating, deteriorating in colour or losing taste and will help maintain freshness. It will also prevent odour transfer.
• Make sure that strong smelling foods are wrapped or covered and stored away from foods such as butter, milk and cream which can be tainted by strong odours.
  Cool hot foods down before placing them in the fridge.

FREEZING AND STORING FOOD IN THE FREEZER

Use the freezer

To store deep-frozen food.
- To make ice cubes.
To freeze food.

Note: Ensure that the freezer door has been closed properly. Avoid opening the freezer drawers unnecessarily.

Purchasing frozen food

• Packaging must not be damaged.
• Use by the 'use by /best before/best by/' date.

If possible, transport deep-frozen food in an insulated bag and place quickly in the freezer.

Freezing fresh food

Freeze fresh and undamaged food only. To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing.

Aubergines, peppers, zucchini and asparagus do not require blanching.

Note: Keep food to be frozen away from food which is already frozen.

The following foods are suitable for freezing: Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese and butter, ready meals and leftovers such as soups, stews, cooked meat and fish, potato dishes, souffles and desserts.

• The following foods are not suitable for freezing: Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hard-boiled eggs, yoghurt, soured milk, sour cream, and mayonnaise.

Packing frozen food

To prevent food from losing its flavour or drying out, place food in airtight packaging.

1. Place food in packaging.
2. Remove air.
3. Seal the wrapping.
4. Label packaging with contents and dates of freezing.

Suitable packaging:

Plastic film, tubular film made of polyethylene, aluminium foil, freezer containers.

Recommended storage times of frozen food in the freezer

These times vary depending on the type of food. The food that you freeze can be preserved from 1 to 12 months (minimum at -18^ ).

Food Storage time
Bacon, casseroles, milk 1 month
Bread, ice cream, sausages, pies, prepared shellfish, oily fish 2 months
Non-oily fish, shellfish, pizza, scones and muffins 3 months
Ham, cakes, biscuits, beef and lamb chops, poultry pieces 4 months
Butter, vegetables (blanched), eggs whole and yolks, cooked crayfish, minced meat (raw), pork (raw)	6 months
Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes	12 months

Never forget:

• When you freeze fresh foods whit a 'use by /best before/best by/' date, you must freeze them before the expiry of this date.
• Check that the food was not already frozen. Indeed, frozen food that has thawed completely must not be refrozen.
• Once defrosted, food should be consumed quickly.

STORAGEGUIDE

For the best storage, set up your refrigerating appliance as follows:

Refrigerator compartment Type of food
Door rack · Food with natural preservatives such as jams, juices, drinks, spices, etc. · Do not store food with a limited shelf life here
Crisper drawer · Fruits, herbs, and vegetables · Do not refrigerate bananas, onions, potatoes, or garlic
Middle shelf · Dairy and eggs
Top shelf · Food that does not need to be cooked, such as ready-made meals, leftovers, spreads, etc.
Freezer compartment Type of food
Top drawer Ice cream, frozen fruit, frozen baked goods
Middle drawer Frozen vegetables and fries
Bottom drawer Raw meat, poultry, fish

POWER FAILURE

Most power failures are corrected within an hour or two and will not affect your refrigerator temperatures. However, you should minimize the number of door openings while the power is off. During power failures of longer duration, take steps to protect your food by blacking dry ice on top of packages.

Frozen food should not be affected if the power failure lasts for less than 15 hours.

Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat.

IMPORTANT RULES

• Never place hot foods in the appliance
• Beverages should be stored in sealed containers.
• Foods to be stored for a long time should be wrapped in cellophance or polyethylene, or kept in glass containers.
• Never place spoiled foods in the cabinet.

• Don't overload the cabinet.

• Caution: please keep the products away from the fire or similar glowing substance before you dispose the refrigerator.

• Caution: Not for outer camping use (ex. Tent)

• Caution: For indoor use only.
• Caution: The appliance can not be used in public transportation.
• Do not freeze food again after it has been defrosted already.
• Do not place carbonated liquids such as fizzy drinks into the freezer.
• Be careful when consuming ice lollies straight from the freezer to avoid freeze burns.
• Do not take anything out of the freezer with wet hands.
• The freezer produces sounds when the compressor pumps the refrigerant around. This is normal.
• Make sure that all food in the freezer is covered.
• Do not press together the food. The air should be able to circulate around the food.
  Do not leave the door open for too long. Also make sure that the door is always properly closed.
• Label the food with the date to be able to check the expiration in the freezer.

CLEANING AND MAINTENANCE

CLEANING

Do not use abrasive cleaning agents or solvents.

1. Turn the appliance off. Disconnect the mains plug from the mains socket.
2. Take out the food and store in a cool location.
3. Clean the appliance with a soft cloth, warm water and detergent.
4. Wipe the door seal with clear water only and then wipe dry thoroughly.
5. After cleaning, put the plug in the socket and set the desired temperature.
6. Put the food back into the appliance.

ERROR CODES

E1 Failure of temperature sensor in refrigerator
E2 Failure of temperature sensor in freezer
E5 Failure of defrost sensor
E6 Communication error
E7 Failure of ambient temperature sensor

ENVIRONMENTAL GUIDELINES

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.

GARANTIA

MANIPULSCE S PRISTROJEM

OHLED NA ZÍVOTNÍ PROSTřEDÍ
