Product type	Combined fridge-freezer
Brand	DOMO
Model	DO91402C
Climate class	SN, N, ST, T (10 °C to 43 °C)
Refrigerant	Isobutane (R600a)
Power supply voltage	230 V ~ 50 Hz
Lighting type	LED (non-user-replaceable)
Main functions	Refrigeration, freezing, automatic defrost of the refrigerator
Temperature setting	Rotary control from 0 (off) to 7
Door reversal	Possible (requires professional intervention)

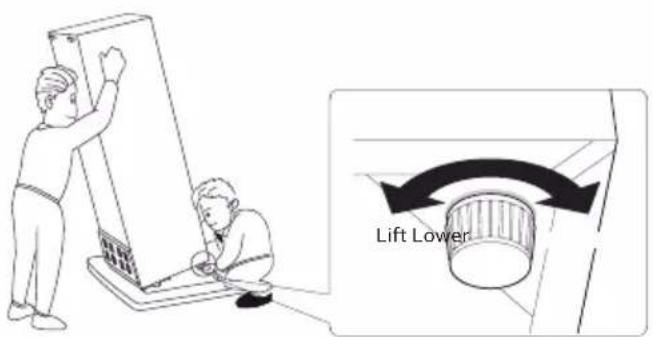

Adjustable feet	Yes, for leveling
Maintenance and cleaning	Clean with a soft cloth and soapy water; do not use abrasive products

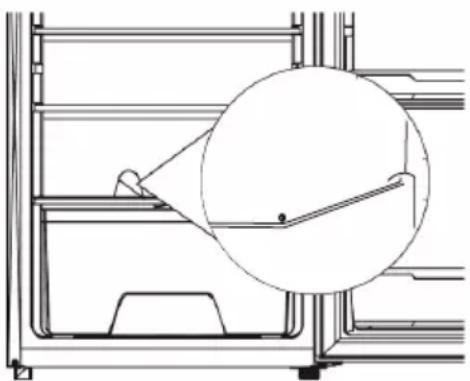

Defrosting	Automatic for the refrigerator; manual for the freezer
Safety	Use of flammable gas R600a; do not obstruct ventilation openings
Warranty	2 years (parts and labor), 6 months for accessories and wear parts
After-sales service	[phone], [e-mail]
Spare parts and repairability	Contact after-sales service; repairs exclusively by an approved professional

Frequently Asked Questions - DO91402C DOMO

How to adjust the refrigerator temperature?

Use the control button located inside the refrigerator. The higher the number, the lower the temperature. Position 4 is recommended for normal use. Wait 24 hours after a setting for a correct evaluation.

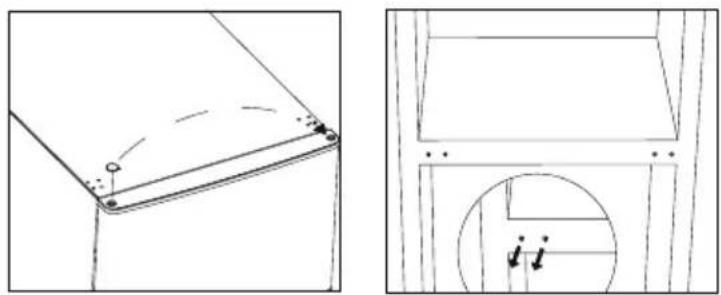

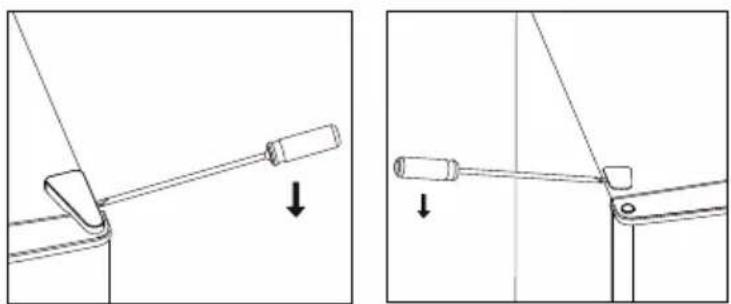

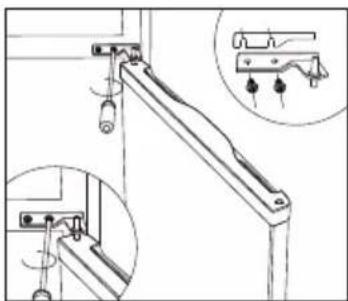

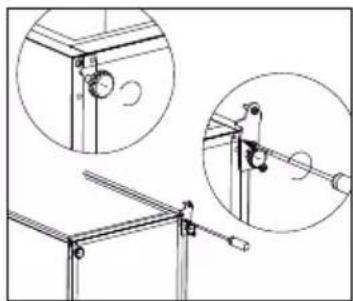

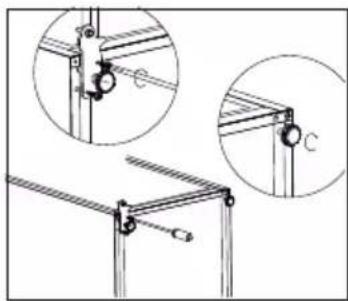

Can I reverse the door opening direction?

Yes, it is possible to reverse the door. It is recommended to call an approved technician. Before the operation, unplug and empty the appliance. After reversal, leave the appliance in an upright position for 12 hours before restarting.

How to clean my refrigerator?

Unplug the appliance, remove food and clean the inside and outside with a soft cloth soaked in warm water and mild detergent. Do not use abrasive products. Clean the door seal with clear water and dry it thoroughly.

What to do in case of a power failure?

Most power failures are restored within 1 to 2 hours. Limit door openings. For a prolonged outage, protect food with dry ice. Frozen food stays good for up to 15 hours. Do not refreeze completely thawed food.

How to defrost the freezer?

Remove food and unplug the appliance. To speed up defrosting, place a pan of hot water in the freezer. Never use a sharp object to remove frost. Wipe up the water, then plug back in and set the temperature.

What foods can be stored in the vegetable drawer?

The vegetable drawer is ideal for fruits, vegetables and fresh herbs. Avoid putting bananas, onions, potatoes and garlic which do not require refrigeration.

Why is my refrigerator making noise?

First check that the appliance is level (adjust the feet). Make sure it is not touching a wall or furniture. If the noise persists, contact after-sales service.

What is the warranty period of the appliance?

The appliance is warranted for 2 years from the date of purchase. Accessories and wear parts are warranted for 6 months. The warranty requires presentation of the receipt.

Can I freeze hot food?

No, you must first let food cool to room temperature before placing it in the freezer. Never put hot food in the refrigerator or freezer.

What to do if the door does not close properly?

Check that nothing is blocking the door. If the gasket is deformed, gently heat it with a hairdryer to soften it, then let it cool in place. If the problem persists, contact after-sales service.

USER MANUAL DO91402C DOMO

White double refrigerator with 'DOMO' branding on top (no other text or symbols visible)

DO91402C

Handleiding Koel-vriescombinatie

Mode d'emploi Combi frigo-congélateur

Gebrauchsanleitung Kühl-Gefrierkombination

Instruction booklet Fridge-Freezer combination

Manual de instrucciones Frigorífico con congelador

Istruzioni per l'uso Frigo-congelatore

Návod k použití Kombinovaná lednice

Návod na použitie Kombinovaná chladnička

Two black-and-white icons: a triangular warning triangle with an exclamation mark and an open book with stacked pages (no text or symbols)

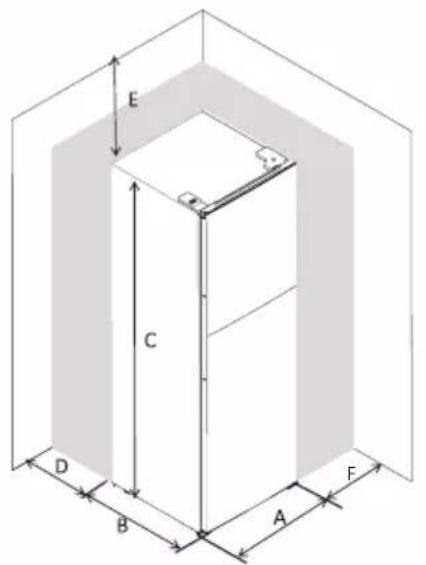

F H F 90° I G

A 54,5	cm
B 55,5	cm
C 143	cm
D MIN	= 5 cm
E MIN	= 5 cm
F MIN	= 5 cm
G 109	cm
H 111	cm
I 135°

Two labeled diagrams showing checkmark and cross symbols, likely indicating approval or rejection status.

Technical line drawing showing two mechanical assembly steps with arrows indicating motion (no text or symbols)

Technical line drawing of a sewing machine needle stitching a fabric edge (no text or symbols)

Technical line drawing of a mechanical lever assembly with inset detail (no text or symbols)

Pure technical line drawing of a corner joint or bracket (no text or symbols)

Pure geometric diagram with lines and circles, no text or symbols present

Technical line drawing of a mechanical assembly with two views (top and side), no visible text or symbols

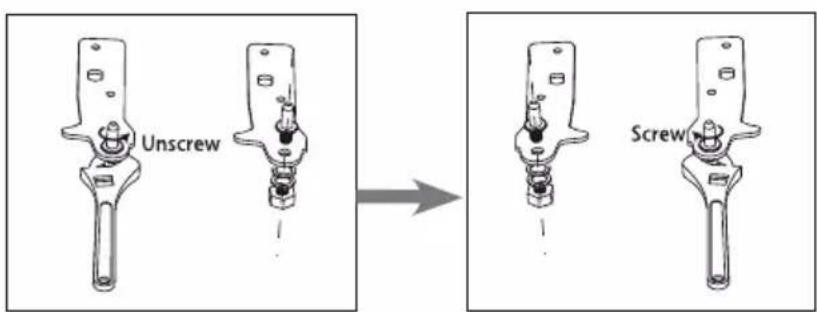

Unscrew Screw

Technical line drawing of a mechanical assembly with two circular insets showing close-ups of components (no text or symbols)

Simple line drawing of a cabinet or storage unit with no text, numbers, or symbols

Pure architectural line drawing of a window frame with no text, numbers, or symbols

Technical line drawing of a mechanical assembly with a circular inset showing a rotating component (no text or symbols)

Simple line drawing of a rectangular object with two downward arrows indicating orientation or force (no text or symbols)

Abstract diagram of a document with arrows indicating rotational movement (no text or symbols)

GEBRUIK

TEMPERATUURREGELING

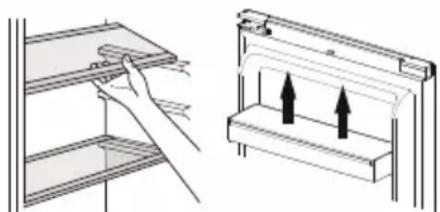

Diagram showing a hand interacting with a shelf and a mechanical component with upward arrows (no text or symbols)

VERLICHTING

APPARAAT VERPLAATSEN

Technical line drawing of a mechanical assembly with a magnified circular detail (no text or symbols)

ONTDOOIEN DIEPVRIEZER

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

F H F 90° I G

A 54,5	cm
B 55,5	cm
C 143	cm
D MIN	= 5 cm
E MIN	= 5 cm
F MIN	= 5 cm
G 109	cm
H 111	cm
I 135°

Technical line drawing showing two mechanical assembly steps with arrows indicating motion direction (no text or symbols)

Technical line drawing of a sewing machine needle stitching a fabric edge (no text or symbols)

Technical line drawing of a mechanical lever assembly with inset close-ups showing internal components (no text or symbols)

Pure technical line drawing of a 3D mechanical part with no text, numbers, or symbols

Simple line drawing of a ladder with a circular inset showing two positions labeled 'i' and 'j' (no text or symbols beyond basic lines)

Technical line drawing of a mechanical assembly with two views (top and side), no visible text or symbols

Unscrew Screw

Technical line drawing of a mechanical assembly with two circular insets showing close-ups of components (no text or symbols)

Simple line drawing of a cabinet or storage unit with no text, numbers, or symbols

Pure architectural line drawing of a window frame with no text, numbers, or symbols

Technical line drawing of a mechanical assembly with a circular component and mounting base (no text or symbols)

Simple line drawing of a rectangular object with two downward arrows indicating measurement or alignment (no text or symbols)

Abstract diagram of a document with curved arrows indicating rotation or movement (no text or symbols)

UTILISATION

RÉGLAGE DE LA TEMPÉRATURE

Diagram showing a hand inserting a component into a shelf, and a close-up of a mechanical component with upward arrows (no text or symbols)

ÉCLAIRAGE

Technical line drawing of a mechanical component with a magnified circular detail (no text or symbols)

DÉGIVRAGE DU CONGÉLATEUR

Prohibition sign with a trash bin crossed out and a black rectangle below, indicating no waste or plastic discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

H F F 90° I G

A 54,5	cm
B 55,5	cm
C 143	cm
D MIN	= 5 cm
E MIN	= 5 cm
F MIN	= 5 cm
G 109	cm
H 111	cm
I 135°

Technical line drawing showing two mechanical assembly steps with downward arrows indicating motion (no text or symbols)

Line drawing of a sewing machine needle stitching fabric (no text or symbols)

Technical line drawing of a mechanical lever assembly with inset close-ups showing pin alignment (no text or symbols)

Pure technical line drawing of a 3D mechanical part with no text, numbers, or symbols

Simple line drawing of a ladder with a circular inset showing two labeled segments (i, j), no text or symbols present.

Technical line drawing of a mechanical assembly with two views (top and side), no visible text or symbols

Unscrew Screw

Technical line drawing of a mechanical assembly with two circular insets showing close-up views of components (no text or symbols)

Simple line drawing of a cabinet or shelf with no text, numbers, or symbols

Pure architectural line drawing of a window frame with vertical supports and horizontal beams (no text or symbols)

Technical line drawing of a mechanical assembly with a circular component and mounting base (no text or symbols)

Simple line drawing of a rectangular object with two downward arrows indicating measurement or alignment (no text or symbols)

Abstract diagram of a document with arrows indicating rotation or movement (no text or symbols)

GEBRAUCH

TEMPERATURREGELUNG

Diagram showing a hand interacting with a shelf and a mechanical component with upward arrows (no text or symbols)

BELEUCHTUNG

Technical line drawing of a mechanical assembly with a magnified circular detail (no text or symbols)

ABTAUEN: GEFRIERSCHRANK

Prohibition sign depicting a trash bin crossed out by a diagonal line, with a blank rectangular base below.

Recycling symbol icon with three chasing arrows inside a rounded square (no text or labels)

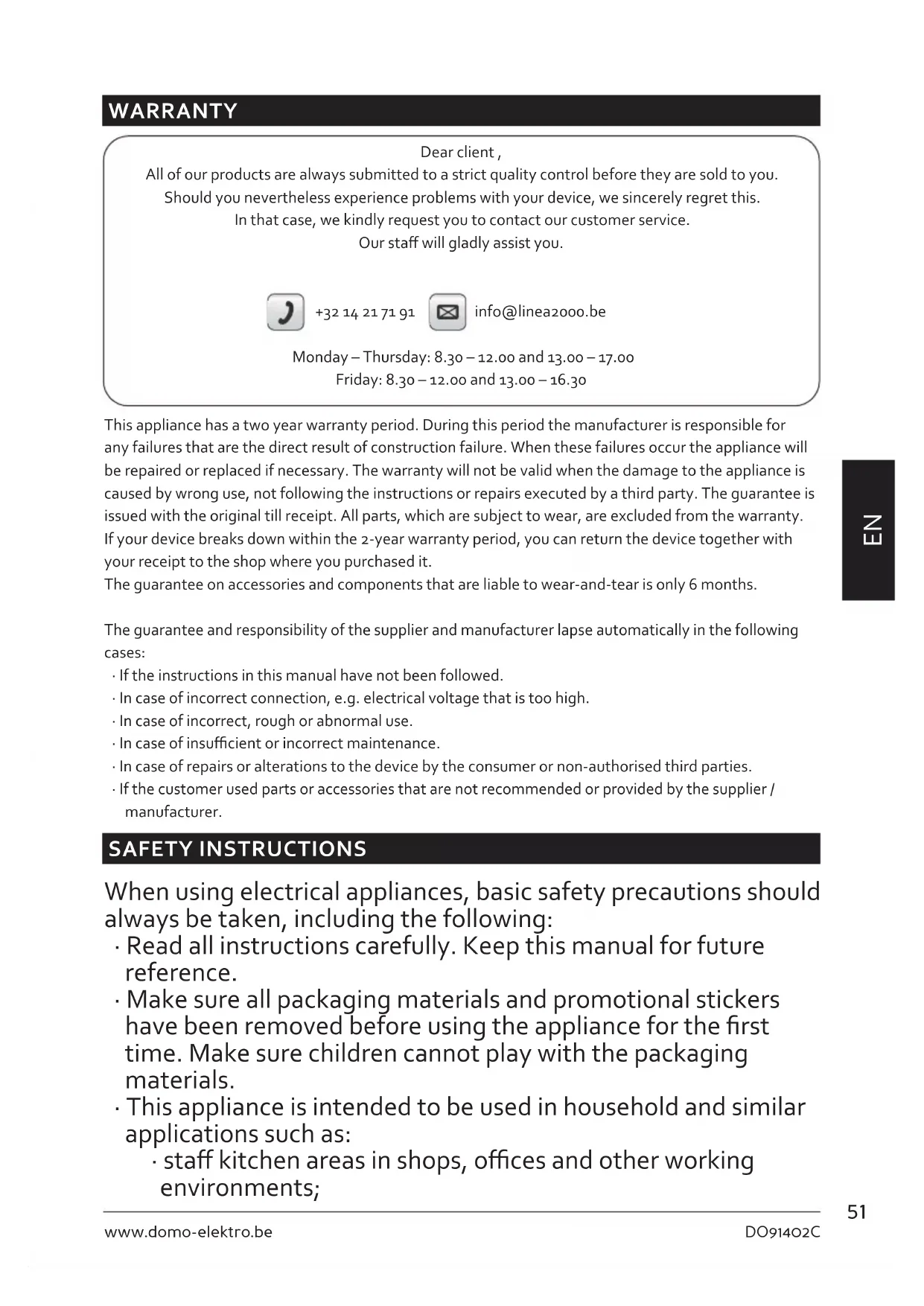

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g. electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
  · In case of insufficient or incorrect maintenance.
  · In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
  • Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

- This appliance is intended to be used in household and similar applications such as:

· staff kitchen areas in shops, offices and other working environments;

· farm houses;
- by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.
  · This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  · Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.
• Keep the appliance and its cord out of reach of children younger than 16 years.
• All repairs should be carried out by the manufacturer or its aftersales service.
  · Make sure that children do not touch the cord or appliance.
  · Your appliance uses isobutane (R600a) as a refrigerant.

Despite the fact that R600a is an environmentally friendly and natural gas, it is highly flammable. Therefore you should be careful during shipment and installation to prevent your appliance's cooler elements from being damaged. In the event of a leak caused by damage to the cooler elements, move your refrigerator from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.

▲ELECTRICAL WARNINGS

• Attention: This appliance cannot be used with an external timer or a separate remote control.
• Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.
• The appliance must be plugged into an appropriate outlet that is installed and grounded in accordance with local installation regulations.

• Do not let the cord hang on a hot surface or on the edge of a table or counter top.

• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.

• It is prohibited to alter or modify the device and its specifications.
• When disposing of the appliance, remove the plug from the power socket, cut the power cord (as closely as possible to the appliance), and remove the door to prevent playing children getting an electrical shock or shutting themselves in the appliance.
• The lamp in the appliance is intended for use in this cooling device only. Do not use the lamp as a household light.
• Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the 'off' position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.

⚠️INSTALLATION

• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.
  · Always use the appliance on a steady, dry and level surface.
• Keep the cord away from sharp edges and hot parts or other heat sources.
• Keep the ventilation openings free of obstructions.
• The appliance may not be used with an extension lead or a multiple socket.
  · Avoid long exposure to direct sunlight.
  · Make sure that you have access to the plug of the appliance.
• Make sure the plug and cord are not crushed or damaged by the back of the appliance. This can cause short circuits and, as a result, overheating and fire.
  · This is a heavy appliance. Be careful when moving it.
  · This cooling unit is not intended for use as a built-in appliance.
• Do not place a power strip or other portable power supply behind the appliance.
• After installation, it is advisable to wait 24 hours before connecting the appliance to allow the oil to flow back in the compressor.

⚠ USE

· Do not use the appliance outdoors.
- Only use the appliance for its intended use.
- Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.
- Do not use any other electrical appliance inside the refrigerator, unless they are approved for this purpose by the manufacturer.
- Do not keep any explosive substances inside the appliance, like for instance aerosol cans with a flammable propellant.
- Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in injury or damage to the appliance.
· Do not use the appliance without a lamp.
- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.
- Ensure the food in the appliance does not touch the back wall.
· Do not touch anything that comes out of the freezer with damp or wet hands. This could cause skin burns.
- Be careful when consuming ice cubes or ice creams that come from the freezer. These can cause frostbite on the lips or tongue.
- Follow the instructions below to prevent contamination of food:

- Keeping the door open for long periods may cause the temperature in the compartments of the appliance to rise considerably.

- Clean the surfaces that could come into contact with food regularly.

- If the appliance is left empty for longer periods, it should be turned off, defrosted and cleaned. Allow it to dry and leave the door ajar to prevent mould from growing in the appliance.

⚠️ CLEANING AND MAINTENANCE

- Never immerse the appliance, the cord or the plug in water or any other liquid.

· Do not place warm or hot objects on top of the appliance.
· Do not clean the appliance with anything made of metal.
- Make sure that the refrigerant circuit does not get damaged, for instance during transportation or installation.
- Do not use mechanical appliances or other means to speed up the defrosting process, unless approved by the manufacturer.

• WARNING! Never place this appliance on or in the neighbourhood of a gas or electric fire or in a place where it could come into contact with a heat source. There are flammable materials located on the back of the appliance.
  · Pay attention to the symbol 'Fire risk – flammable materials' located on the back of the appliance.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

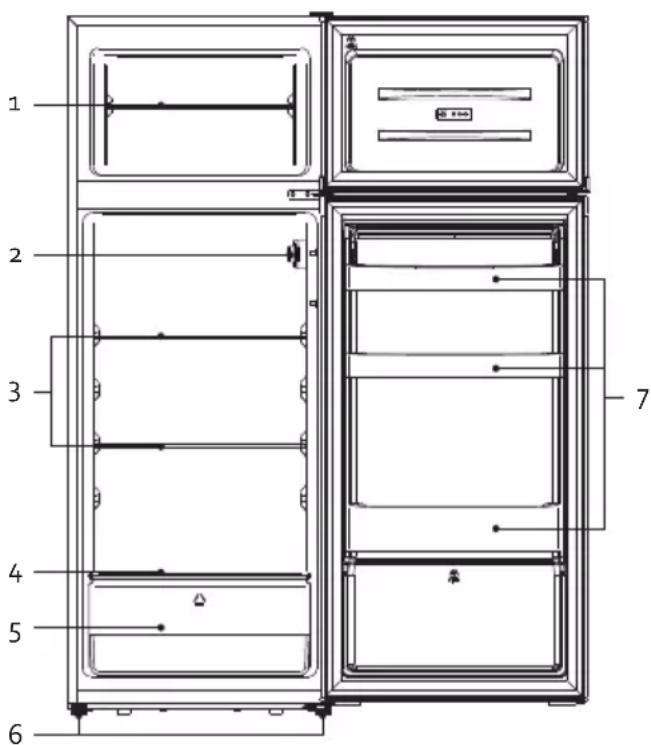

PARTS

1. Shelf
2. Temperature control knob
3. Glass shelves
4. Cover for vegetable container
5. Vegetable container
6. Levelling feet
7. Door shelves

1 2 3 4 5 6 7

INSTALLATION

- Remove the exterior and interior packing, wipe the outside thoroughly with a soft dry cloth and the inside with a wet, lukewarm cloth. Dry the appliance off well.

- Let air circulate freely around the cabinet.

E C D B A F

F H G 90° I F

A 54,5	cm
B 55,5	cm
C 143	cm
D MIN	= 5 cm
E MIN	= 5 cm
F MIN	= 5 cm
G 109	cm
H 111	cm
I 135°

· Make sure there is sufficient space to open the door.
· This cooling unit is not intended for use as a built-in appliance.
- Select a place with a strong, level floor.

- Avoid direct sunlight and heat. Direct sunlight may affect the acrylic coating. Heat sources nearby will cause higher electricity consumption.

- Avoid very moist places. Too much moisture in the air will cause frost to form very quickly on the evaporator, and your refrigerator.

- Before connecting your refrigerator to the power supply, check that the voltage stated on the rating label of your appliance corresponds to the voltage in your home. A different voltage could damage the appliance.

- After installation, leave the fridge-freezer for 24 hours before turning it on. This way the refrigerant can settle.

- Allow the appliance to run empty for 12 hours so the compartment can cool to the appropriate temperature.

- One can level the appliance using the adjustable legs. The adjustable legs can be adjusted by screwing them in or out of the appliance.

Lift Lower

Two simple diagrammatic boxes with checkmark and cross symbols, likely indicating approval or cancellation.

- The climate class indicates the minimum and maximum ambient temperature for the proper operation of an appliance. You can find the climate class on the type plate on the back of the appliance.

· SN: Subnormal: ambient temperature between 10^ C and 32^ C

· N: Normal: ambient temperature between 16°C and 32°C

- ST: Subtropical: ambient temperature between 16°C and 38°C

· T: Tropical: ambient temperature between 16°C and 43°C

DOOR CONVERSION

If you need to hinge your door on the opposite side, it is recommended that you call your local authorised service agent to make this conversion or ask a technician. Before you reverse the door, you should ensure the appliance is unplugged and empty. After reversing the door, leave the appliance alone for 12 hours before switching it on. This allows the coolant to set.

It is recommended that two people carry out the works.

1. Remove the upper hinge cover plates.

Technical line drawing showing two mechanical assembly steps with arrows indicating direction of movement (no text or symbols)

1. Remove the upper hinge, then remove the upper door and place it on a soft surface to avoid scratches.

Technical line drawing of a sewing machine needle stitching fabric (no text or symbols)

1. Remove the middle hinge. Remove the bottom door and place it on a soft surface to avoid scratching.

Technical line drawing of a mechanical lever assembly with inset detail (no text or symbols)

1. Move the cover plates from one side to the other.

Technical line drawing showing two views of a mechanical component with mounting holes and a circular inset detail (no text or symbols)

1. Remove the bottom hinge and adjustable foot.

Technical line drawing of a mechanical assembly with two views showing components (no text or symbols)

Attention: the inclination of the refrigerator must be less than 45^ so that the compressor oil does not enter the cooling circuit. If you do shut down the unit completely, wait 24 hours before turning it back on.

1. Reattach the pin in the hinge so the pin is pointing upwards when the hinge is turned.

Unscrew Screw

1. Attach this hinge at the bottom of the appliance. Reattach the bottom door to the unit. Swap the adjustable feet.

Technical line drawing of a mechanical assembly with two circular insets showing close-ups of components (no text or symbols)

1. Move the cover plates from one side to the other.

Simple line drawing of a cabinet or shelf with no text, numbers, or symbols

1. Stand the appliance upright. Fasten the bottom door back on the appliance with the middle hinge.

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

1. Mount the upper door back on the appliance and fasten the top hinge.

Technical line drawing of a mechanical assembly with a circular inset showing a rotating component (no text or symbols)

1. Install the hinge plate back on top of the appliance.

Simple line drawing of a rectangular object with two downward arrows indicating force or alignment (no text or symbols)

1. Remove the rubber seals from both doors, turn them over, and then put them back on.

Abstract diagram of a document with arrows indicating rotation or movement (no text or symbols)

USE

TEMPERATURE CONTROL

The fridge is controlled with a temperature control knob located inside the appliance. Adjust the control knob as desired to suit your individual preference. The higher the number, the colder the temperature. Position 4 is the recommended position for normal use.

4 5 3 6 2 7 0 1

Depending on the ambient temperature and the contents used, we recommend changing the setting to 5 or 6 (for more cooling) or setting 2 or 3 (if too cold). We recommend waiting one day after adjusting the temperature to be able to correctly assess it.

• In the o position the appliance does not operate (the cooling system is switched off), but power supply is not interrupted.
• The running time and temperature are affected by where the fridge is located, how often the door is opened and the temperature of the room the fridge is located in.

STORAGE GUIDE

For the best storage, set up your refrigerating appliance as follows:

Refrigerator compartment Type of food
Door rack · Food with natural preservatives such as jams, juices, drinks, spices, etc.· Do not store food with a limited shelf life here
Crisper drawer · Fruits, herbs, and vegetables· Do not refrigerate bananas, onions, potatoes, or garlic
Middle shelf Dairy and eggs
Top shelf Food that does not need to be cooked, such as ready-made meals, leftovers, spreads, etc.

MOVING THE SHELVES AND DOOR RACK

· Empty the fridge before moving the shelves or the door racks.
· To move a shelf, raise it and pull it towards you.
- To move a door rack, grip it firmly with 2 hands. Raise the door rack and pull it towards you.

Diagram showing a hand placing a component into a shelf and then moving a device with upward arrows (no text or symbols)

LIGHTING

The lighting in the freezer and the fridge are LED lights. LED lights are more ecological and manufactured for a long life. For this reason, these may not be replaced. If there is a problem with the lighting, contact a qualified service centre in your area.

MOVING YOUR APPLIANCE

If the appliance is turned off for any reason, wait for 10 minutes before turning it back on. This will allow the refrigeration system pressures to equalise before restarting.

- Turn off the appliance and unplug it from the mains socket. Remove all food. Also remove all mobile parts (shelves, accessories, etc.) or fix them into the fridge to avoid any shock.

- Relocate and install. If the appliance has been left on its side for any length of time, leave it standing upright for at least 10 minutes before turning on.

STORING FOOD IN THE FRIDGE

The fridge helps to extend the storage times of fresh perishable foods.

Fresh food care for best results:

• Store foods that are very fresh and of good quality.
• Ensure that food is well wrapped or covered before it is stored. This will prevent food from dehydrating, deteriorating in colour or losing taste and will help maintain freshness. It will also prevent odour transfer.
• Make sure that strong smelling foods are wrapped or covered and stored away from foods such as butter, milk and cream which can be tainted by strong odours.
• Cool hot foods down before placing them in the fridge.

FREEZING AND STORING FOOD IN THE FREEZER

Use the freezer

· To store deep-frozen food.
· To make ice cubes.
· To freeze food.

Note: Ensure that the freezer door has been closed properly. Avoid opening the freezer drawers unnecessarily.

Purchasing frozen food

• Packaging must not be damaged.
• Use by the 'use by/best before/best by/' date.
  • If possible, transport deep-frozen food in an insulated bag and place quickly in the freezer.

Freezing fresh food

Freeze fresh and undamaged food only. To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing.

Aubergines, peppers, zucchini and asparagus do not require blanching.

Note: Keep food to be frozen away from food which is already frozen.

The following foods are suitable for freezing: Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese and butter, ready meals and leftovers such as soups, stews, cooked meat and fish, potato dishes, soufflés and desserts.
- The following foods are not suitable for freezing: Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hard-boiled eggs, yoghurt, soured milk, sour cream, and mayonnaise.

Packing frozen food

To prevent food from losing its flavour or drying out, place food in airtight packaging.

1. Place food in packaging.
2. Remove air.
3. Seal the wrapping.
4. Label packaging with contents and dates of freezing.

Suitable packaging:

Plastic film, tubular film made of polyethylene, aluminium foil, freezer containers.

Recommended storage times of frozen food in the freezer

These times vary depending on the type of food. The food that you freeze can be preserved from 1 to 12 months (minimum at -18°C).

Food Storage time
Bacon, casseroles, milk 1 month
Bread, ice cream, sausages, pies, prepared shellfish, oily fish 2 months
Non-oily fish, shellfish, pizza, scones and muffins 3 months
Ham, cakes, biscuits, beef and lamb chops, poultry pieces 4 months
Butter, vegetables (blanched), eggs whole and yolks, cooked crayfish, minced meat (raw), pork (raw)	6 months
Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes	12 months

Never forget:

• When you freeze fresh foods with a 'use by/best before/best by/' date, you must freeze them before the expiry of this date.
• Check that the food was not already frozen. Indeed, frozen food that has thawed completely must not be refrozen.
  · Once defrosted, food should be consumed quickly.

VACATION TIME

For short vacation periods, leave the control knobs at their usual settings. During longer absences:

• Remove all foods.
• Disconnect from electrical outlet.
• Clean the refrigerator thoroughly, including defrost pan.
• Leave door open to avoid possible formations of condensate, mould or odours.

POWER FAILURE

• Most power failures are corrected within an hour or two and will not affect your refrigerator temperatures. However, you should minimize the number of door openings while the power is off.
• During power failures of longer duration, take steps to protect your food by putting dry ice on top of packages.
• Frozen food should not be affected if the power failure lasts for less than 15 hours. Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat.

SOME IMPORTANT RULES FOR THE CORRECT USE OF THE REFRIGERATOR

• Never place hot foods in the refrigerator.
• Beverages should be stored in sealed containers.
• Foods to be stored for a long time should be wrapped in cellophane or polyethylene foil, or kept in glass containers.
• Never place spoiled foods in the cabinet.
• Don't overload the cabinet.
• Don't open the door unless necessary.

• Caution: please keep the product away from fire or similar glowing substances before you dispose of the refrigerator.

• Caution: Not for outer camping use (e.g. in a tent).

• Caution: For indoor use only.
• Caution: The appliance can not be used in public transportation.
• Keep all accessories, such as shelves, door racks, and drawers, in the appliance to minimise energy consumption.
• Please read the storage instructions on the food packaging. Always check the storage date.
  · Do not place carbonated drinks in the freezer. The bottle/can is pressurised and may explode.
• Be careful when consuming ice creams that come from the freezer. These can cause frostbite.
• An empty fridge consumes more energy. After all, when the door is opened, warm air enters the space and needs to be cooled. More air enters when there are fewer products, meaning that more energy needs to be consumed to cool that air. So fill your fridge properly or choose a model sized for your needs.

CLEANING AND MAINTENANCE

· Do not use abrasive cleaning agents or solvents.
- Turn the appliance off. Disconnect the mains plug from the mains socket.
· Take out the food and store in a cool location.
· Clean the appliance with a soft cloth, warm water and detergent.
- Wipe the door seal with clear water only and then wipe dry thoroughly.
· After cleaning, put the plug in the socket and set the desired temperature.
- Put the food back into the appliance.

DEFROSTING THE REFRIGERATOR

The refrigerator defrosts fully automatically.

While the cooling is running, beads of condensation or hoarfrost form at the back of the refrigerator. This is normal. It is not necessary to wipe off the condensation or frost. The rear panel defrosts automatically. The condensation runs into the condensation channel and is conveyed to the compressor from where it evaporates.

Note: Keep the condensation channel and drainage hole clean, so that the condensation can run out.

Technical line drawing of a mechanical assembly with a magnified circular detail (no text or symbols)

DEFROSTING THE FREEZER

A layer of frost in the freezer will impair refrigeration of the frozen food and increases power consumption. Remove the layer of frost regularly. Do not scrape off frost or ice with a knife or pointed object. Doing this may damage the refrigerant tubes.

1. Remove the frozen food and place temporarily in a cool location.
2. Disconnect the appliance from the mains socket.
3. To accelerate the defrosting process, place a pan of hot water on a stand in the freezer.
4. Wipe up condensation with a cloth or sponge.
5. Wipe dry the freezer compartment.
6. Plug in the appliance and adjust the temperature control knob as desired.
7. Put the frozen food back in the freezer.

TROUBLE SHOOTING

Frequently, a problem is minor and a service call may not be necessary, use this trouble shooting guide for a possible solution.

Does not work

• Check connection of power cord to power source.
• Check that the temperature controller is not in the o position.
• Plug in unit.
• Use proper voltage.

Cools too frequently

· The temperature setting is too cool.
- Close door securely.
- Be sure that food is cool before inserting.
- Do not keep door open for too long and minimize door openings.
- Use proper voltage.
- Do not place unit close to heat sources or direct sunlight.

Internal temperature not cold enough

• Check connection of power cord to power source.
• Plug in unit.
• Check setting and adjust as needed.
• Close door securely.
• Be sure that food is cool before inserting.
• Do not keep door open for too long and minimize door openings.
• Allow room for air to circulate around unit.
• Use proper voltage.
• Do not place unit close to heat sources or direct sunlight.

Unusual sounds

· The appliance is not level. Readjust the adjusting feet and level the unit.
· The unit is touching a wall or another object. Gently move the appliance.

There is water on the floor.

· The condensation duct is blocked. See the chapter on cleaning.
- Too much condensation has formed in the fridge, causing the reservoir to overflow. Too much condensation is caused by a heat difference. Is the door closed properly? Have you put hot food in the fridge? Does the seal still close properly?

The door does not close properly.

- The door seal is deformed. Heat it gently using a hairdryer. The rubber seal will become flexible and the magnetic strip in the rubber will automatically pull towards the appliance. After cooling, the rubber stays in that position.

ENVIRONMENTAL GUIDELINES

Prohibition sign with a trash bin crossed out by two crossed lines, indicating no waste or discharge.

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

GARANTIA

F H G 90° I F

A 54,5	cm
B 55,5	cm
C 143	cm
D MIN	= 5 cm
E MIN	= 5 cm
F MIN	= 5 cm
G 109	cm
H 111	cm
I 135°

Two diagrams showing a checkmark and a cross symbol on vertical bars, likely indicating approval or cancellation.

Technical line drawing showing two mechanical assembly steps with arrows indicating motion (no text or symbols)

Technical line drawing of a sewing machine needle and base (no text or symbols)

Technical line drawing of a mechanical bracket assembly with inset detail (no text or symbols)

Technical line drawing showing two views of a mechanical component with mounting holes and a circular inset detail (no text or symbols)

Technical line drawing of a mechanical assembly with two views showing components (no text or symbols)

Unscrew Screw

Technical line drawing of a mechanical assembly with two views (top and side), no visible text or symbols

Simple line drawing of a cabinet or shelf with a handle and lid (no text or symbols)

Pure architectural line drawing of a window frame with no text, numbers, or symbols

Technical line drawing of a mechanical assembly with a circular inset showing a rotating component (no text or symbols)

Line drawing of a flat panel or shelf with two arrows pointing to the edges (no text or symbols present)

Abstract diagram of a document with curved arrows indicating rotation or movement (no text or symbols)

USO

Diagram showing a hand placing a component into a shelf and then adjusting a rectangular device with upward arrows (no text or symbols present)

ILUMINACIÓN

Technical line drawing of a mechanical assembly with a magnified circular detail (no text or symbols)

Prohibition sign for a trash bin crossed out, indicating no waste or discharge

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

F H F 90° I G

A 54,5	cm
B 55,5	cm
C 143	cm
D MIN	= 5 cm
E MIN	= 5 cm
F MIN	= 5 cm
G 109	cm
H 111	cm
I 135°

Technical line drawing showing two mechanical assembly steps with arrows indicating motion direction (no text or symbols)

Technical line drawing of a sewing machine needle stitching fabric (no text or symbols)

Technical line drawing of a mechanical lever assembly with inset close-ups showing pin connections (no text or symbols)

Pure technical line drawing of a 3D rectangular component with corner holes and dashed lines indicating hidden edges (no text or symbols)

Simple line drawing of a basketball court with an oval cutout showing positions i and j (no text or symbols)

Technical line drawing of a mechanical assembly with two views showing different components (no text or symbols)

Unscrew Screw

Technical line drawing of a mechanical bracket assembly with two circular insets showing close-up views (no text or symbols)

Simple line drawing of a cabinet or shelf with a lid and windows (no text or symbols)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Technical line drawing of a mechanical assembly with a circular component and mounting bracket (no text or symbols)

Simple line drawing of a rectangular object with two downward arrows indicating force or movement (no text or symbols)

Simple line drawing of a document with arrows indicating rotation around it (no text or symbols)

UTILIZZO

CONTROLLO DELLA TEMPERATURA

Illustration showing a hand holding a shelf next to a device with three upward arrows (no text or symbols)

ILLUMINAZIONE

Technical line drawing of a mechanical assembly with a magnified circular detail (no text or symbols)

SBRINAMENTO: CONGELATORE

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

F H F 30° I G

A 54,5	cm
B 55,5	cm
C 143	cm
D MIN	= 5 cm
E MIN	= 5 cm
F MIN	= 5 cm
G 109	cm
H 111	cm
I 135°

Two simple diagrams showing a checkmark and a cross symbol on vertical bars, likely indicating cancellation or rejection.

Technical line drawing showing two mechanical assembly steps with arrows indicating motion (no text or symbols)

Technical line drawing of a sewing machine needle stitching fabric (no text or symbols)

Technical line drawing of a mechanical lever assembly with inset detail (no text or symbols)

Pure technical line drawing of a 3D mechanical part with no text, numbers, or symbols

Simple line drawing of a ladder with an oval opening and horizontal lines, no text or symbols present.

Technical line drawing of a mechanical assembly with two views (top and side), no text or symbols present.

Unscrew Screw

Technical line drawing of a mechanical linkage assembly with two circular insets showing close-ups of components (no text or symbols)

Simple line drawing of a cabinet or storage unit with no text, numbers, or symbols

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Technical line drawing of a mechanical assembly with a circular component and mounting base (no text or symbols)

N

Simple line drawing of a rectangular object with two downward arrows indicating force or alignment (no text or symbols)

Abstract diagram of a document with curved arrows indicating rotation or movement (no text or symbols)

POUŽITÍ

NASTAVENÍTEPLOTY

Diagram showing a hand holding a shelf and a close-up of a device with upward arrows (no text or symbols)

OSVĚTLENÍ

MANIPULSCE S PŘÍSTROJEM

Technical line drawing of a mechanical assembly with a magnified circular detail (no text or symbols)

ODMRAŽOVÁNÍ: MRAZÁK

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

H F F 90° I G

A 54,5	cm
B 55,5	cm
C 143	cm
D MIN	= 5 cm
E MIN	= 5 cm
F MIN	= 5 cm
G 109	cm
H 111	cm
I 135°

Two simple diagrams showing a checkmark and an X symbol inside vertical bars, likely indicating approval or rejection.

Technical line drawing showing two mechanical assembly steps with arrows indicating motion (no text or symbols)

Technical line drawing of a sewing machine needle and base mount (no text or symbols)

Technical line drawing of a mechanical lever assembly with inset close-ups showing internal components (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Simple line drawing of a basketball court with an oval cutout showing positions i and j (no text or symbols)

Technical line drawing of a mechanical assembly with two views (top and side), no text or symbols present.

Unscrew Screw

Technical line drawing of a mechanical assembly with two circular insets showing close-ups of components (no text or symbols)

Simple line drawing of a cabinet or storage unit with no text, numbers, or symbols

Pure architectural line drawing of a window frame with no text, numbers, or symbols

1. Na spotrebič (na strednej záves) primontujte horné dvierka a upevnite ich horným závesom.

Technical line drawing of a mechanical assembly with a circular component and mounting bracket (no text or symbols)

Simple line drawing of a rectangular object with two downward arrows indicating force or alignment (no text or symbols)

Abstract diagram of a document with curved arrows indicating rotation or movement (no text or symbols)

POUŽITIE

NASTAVENIE TEPLOTY

Diagram showing a hand placing a component into a shelf and then moving an upward arrow inside a container (no text or symbols present)

OSVETLENIE

Technical line drawing of a mechanical assembly with a magnified inset showing a circular detail (no text or symbols)

ODMRAZOVANIE: MRAZNIČKA

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Two cylindrical white objects with a small label on top, placed side by side on a plain white background (no text or symbols visible)

Three product photos: square covers, a clear glass coffee maker, and a rectangular container with dark liquid (no text or symbols visible)

of scan hier:

ou scannez ici:

oder hier scannen:

or scan here:

QR code image containing encoded data, no visible human-readable text
