Product type	Domestic refrigerator
Brand	Domo
Model	DO91703R
Refrigerant	R600a (isobutane) – flammable, environmentally friendly
Climate class	SN, N, ST, T (10°C to 43°C)
Power supply	220-240 V ~ 50 Hz
Temperature setting	Rotary knob (0 = off, 1-4, level 4 recommended)
Interior lighting	LED (not user-replaceable)
Shelves	1 adjustable glass shelf
Vegetable drawer	1 vegetable drawer
Door balconies	Adjustable balconies
Defrosting	Automatic (no manual defrosting needed)
Adjustable feet	Front leveling feet
Estimated capacity	Approximately 100-150 L (not specified)
Estimated dimensions (H x W x D)	85 x 55 x 55 cm (approximate)
Estimated weight	Approximately 30 kg (approximate)
Cleaning and maintenance	Soft cloth, warm water and mild detergent; do not immerse
Safety	Do not use an extension cord; disconnect before cleaning; keep out of reach of children
Warranty	2 years (accessories and wear parts: 6 months)
Customer service	[phone], [e-mail]

Frequently Asked Questions - DO91703R DOMO

How to set the refrigerator temperature?

Use the control knob located inside. Turn it from 1 (less cold) to 4 (colder). Position 4 is recommended for normal use. Position O stops cooling but does not cut off the power supply.

What to do if the appliance does not work?

First check that the plug is properly inserted and the socket is powered. Make sure the temperature knob is not on O. Check the voltage (220-240 V). If the problem persists, contact after-sales service.

Why is there water on the floor in front of the refrigerator?

This may be due to a blocked condensation channel. Clean the channel and the drain hole with a cloth. Also check that the door closes properly and the seal is tight.

How to clean the inside of the refrigerator?

Unplug the appliance and remove food. Clean with a soft cloth dampened with warm water and a mild detergent. Do not use abrasive products. Dry thoroughly before plugging back in.

The door does not close properly, what to do?

If the gasket is deformed, gently heat it with a hairdryer. The softened rubber will allow the magnetic strip to reposition. Let it cool in the closed position.

Can I use an extension cord?

No, the appliance must not be used with an extension cord or a power strip. Plug it directly into a grounded wall outlet.

How long should I wait after installation before plugging in?

Let the appliance rest for 24 hours to allow the refrigerant gas to stabilize. Then plug it in and let it run empty for 8 hours before placing food inside.

What to do in case of a power outage?

Most outages last 1 to 2 hours without affecting the temperature. Avoid opening the door. For a prolonged outage, cover food with dry ice.

How to store food to optimize preservation?

Place dairy products and eggs on the middle shelf, fruits and vegetables in the drawer, drinks in the door. Cooked foods and leftovers go on top. Always cover food to avoid odors.

The interior light bulb does not work, can I replace it?

The lighting is a LED not user-replaceable. If it does not work, contact an authorized service for repair.

USER MANUAL DO91703R DOMO

Red compact refrigerator with 'DOMO' branding on top (no other text or symbols visible)

DO91703R

Handleiding Koelkast
Mode d'emploi Réfrigérateur
Gebrauchsanleitung Kühlschrank
Instruction booklet Refrigerator
Manual de instrucciones Frigorífico
Istruzioni per l'uso Frigorifero
Návod k použití Lednice
Návod na použitie Chladnička

Two black-and-white icons: a triangular warning symbol with an exclamation mark and a stack of open books (no text or symbols present)

Two labeled diagrams showing checkmark and cross symbols, likely indicating approval or rejection status.

Diagram showing a hand placing a component into a shelf and then moving a device with three upward arrows (no text or symbols present)

VERLICHTING

APPARAAT VERPLAATSEN

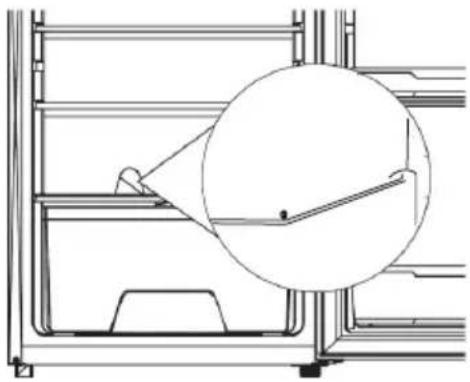

Technical line drawing of a mechanical assembly with a magnified circular detail (no text or symbols)

PROBLEMEN EN HUN OPLOSSINGEN

Prohibition sign with crossed-out trash bin and no text or symbols

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Two vertical signs with checkmarks and an 'X' symbol, likely indicating approval or rejection status.

Diagram showing a hand interacting with a shelf and a mechanical component with upward arrows (no text or symbols)

ÉCLAIRAGE

Technical line drawing of a mechanical assembly with a magnified circular detail (no text or symbols)

PROBLÈMES ET LEURS SOLUTIONS

Prohibition sign with crossed-out trash bin and no text, indicating no waste or discharge

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Diagram showing a hand using a tool to clean or install a shelf, and a device with three upward arrows inside a container (no text or symbols)

BELEUCHTUNG

Technical line drawing of a mechanical assembly with a magnified circular detail (no text or symbols)

Prohibition sign with crossed-out trash bin and no text or symbols

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

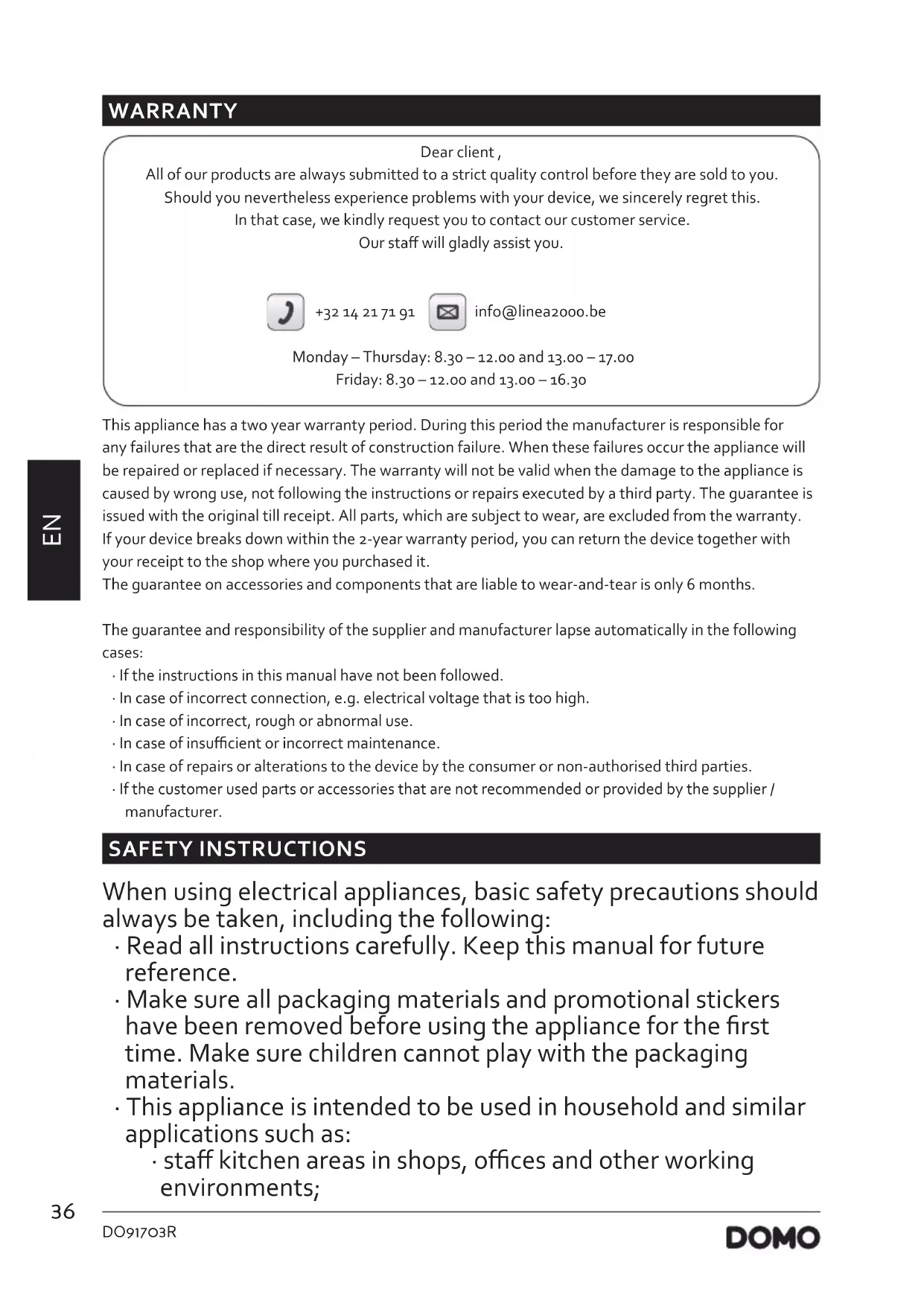

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g. electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
  · In case of insufficient or incorrect maintenance.
  · In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
  • Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

- This appliance is intended to be used in household and similar applications such as:

· staff kitchen areas in shops, offices and other working environments;

· farm houses;
- by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.
• This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  · Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.
• Keep the appliance and its cord out of reach of children younger than 16 years.
• All repairs should be carried out by the manufacturer or its aftersales service.
  · Make sure that children do not touch the cord or appliance.
  · Your appliance uses isobutane (R600a) as a refrigerant.

Despite the fact that R600a is an environmentally friendly and natural gas, it is highly flammable. Therefore you should be careful during shipment and installation to prevent your appliance's cooler elements from being damaged. In the event of a leak caused by damage to the cooler elements, move your refrigerator from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.

▲ELECTRICAL WARNINGS

• Attention: This appliance cannot be used with an external timer or a separate remote control.
• Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.
• The appliance must be plugged into an appropriate outlet that is installed and grounded in accordance with local installation regulations.

• Do not let the cord hang on a hot surface or on the edge of a table or counter top.

• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.

• It is prohibited to alter or modify the device and its specifications.
• When disposing of the appliance, remove the plug from the power socket, cut the power cord (as closely as possible to the appliance), and remove the door to prevent playing children getting an electrical shock or shutting themselves in the appliance.
• The lamp in the appliance is intended for use in this cooling device only. Do not use the lamp as a household light.
• Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the 'off' position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.

⚠️INSTALLATION

• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.
  · Always use the appliance on a steady, dry and level surface.
• Keep the cord away from sharp edges and hot parts or other heat sources.
• Keep the ventilation openings free of obstructions.
• The appliance may not be used with an extension lead or a multiple socket.
  · Avoid long exposure to direct sunlight.
  · Make sure that you have access to the plug of the appliance.
• Make sure the plug and cord are not crushed or damaged by the back of the appliance. This can cause short circuits and, as a result, overheating and fire.
  · This is a heavy appliance. Be careful when moving it.
  · This cooling unit is not intended for use as a built-in appliance.
• Do not place a power strip or other portable power supply behind the appliance.
• After installation, it is advisable to wait 24 hours before connecting the appliance to allow the oil to flow back in the compressor.

⚠ USE

· Do not use the appliance outdoors.
· Only use the appliance for its intended use.
- Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.
- Do not use any other electrical appliance inside the refrigerator, unless they are approved for this purpose by the manufacturer.
- Do not keep any explosive substances inside the appliance, like for instance aerosol cans with a flammable propellant.
· Do not use the appliance without a lamp.
- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.
- Ensure the food in the appliance does not touch the back wall.
- Follow the instructions below to prevent contamination of food:

• Keeping the door open for long periods may cause the temperature in the compartments of the appliance to rise considerably.
• Clean the surfaces that could come into contact with food regularly.
• If the appliance is left empty for longer periods, it should be turned off, defrosted and cleaned. Allow it to dry and leave the door ajar to prevent mould from growing in the appliance.

⚠ CLEANING AND MAINTENANCE

• Never immerse the appliance, the cord or the plug in water or any other liquid.
  · Do not place warm or hot objects on top of the appliance.
  · Do not clean the appliance with anything made of metal.
• Make sure that the refrigerant circuit does not get damaged, for instance during transportation or installation.
• Do not use mechanical appliances or other means to speed up the defrosting process, unless approved by the manufacturer.

- WARNING! Never place this appliance on or in the neighbourhood of a gas or electric fire or in a place where it could come into contact with a heat source. There are flammable materials located on the back of the appliance.

· Pay attention to the symbol 'Fire risk – flammable materials' located on the back of the appliance.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

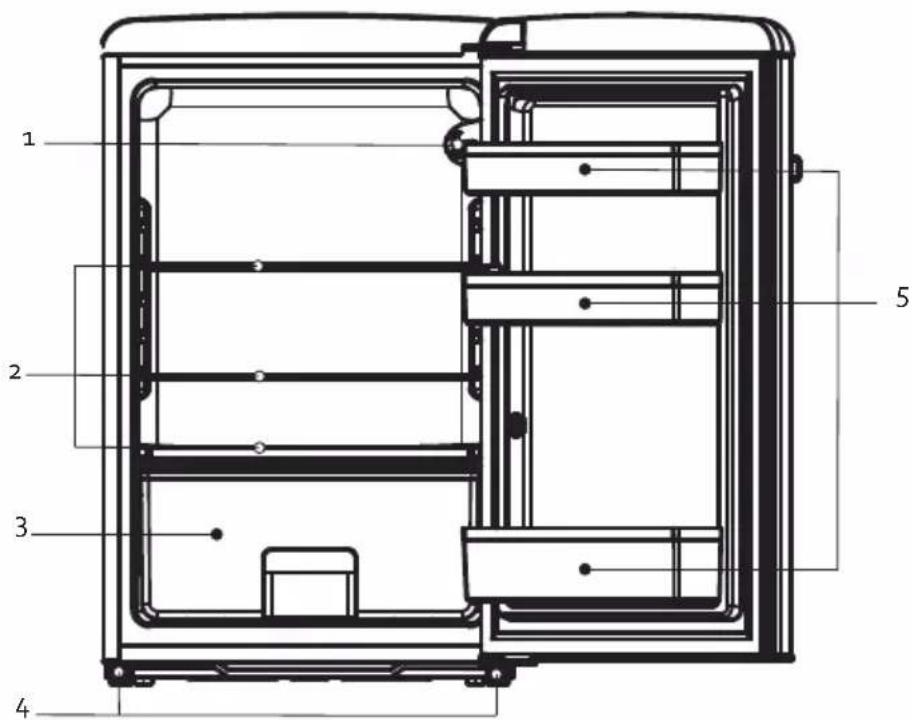

PARTS

1. Temperature control knob
2. Glass shelves
3. Vegetable drawer
4. Levelling feet
5. Door shelves

1 2 3 4 5

INSTALLATION

• Remove the exterior and interior packing, wipe the outside thoroughly with a soft dry cloth and the inside with a wet, lukewarm cloth. Dry the appliance off well.

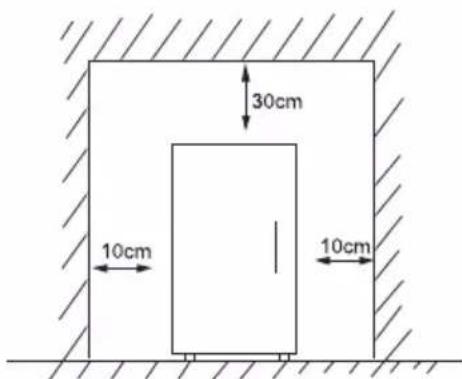

• Let air circulate freely around the cabinet.

30cm 10cm 10cm

10 cm

• Make sure there is sufficient space to open the door.
  · This cooling unit is not intended for use as a built-in appliance.
• Select a place with a strong, level floor.
• Avoid direct sunlight and heat. Direct sunlight may affect the acrylic coating. Heat sources nearby will cause higher electricity consumption.
• Avoid very moist places. Too much moisture in the air will cause frost to form very quickly on the evaporator, and your refrigerator.
• Before connecting your refrigerator to the power supply, check that the voltage stated on the rating label of your appliance corresponds to the voltage in your home. A different voltage could damage the appliance.
  · After installation, leave the fridge for 24 hours before turning it on. This way the refrigerant can settle.
• Allow the appliance to run empty for 8 hours so the compartment can cool to the appropriate temperature.

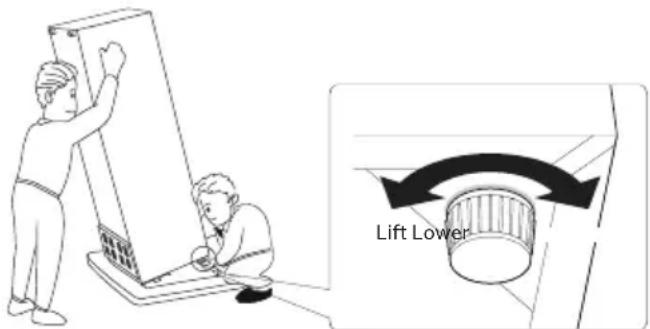

• One can level the appliance using the adjustable legs. The adjustable legs can be adjusted by screwing them in or out of the appliance.

Lift Lower

Two simple diagrams showing a checkmark and a cross symbol on vertical bars, likely indicating cancellation or rejection.

- The climate class indicates the minimum and maximum ambient temperature for the proper operation of an appliance. You can find the climate class on the type plate on the back of the appliance.

· SN: Subnormal: ambient temperature between 10^ C and 32^ C
· N: Normal: ambient temperature between 16°C and 32°C
· ST: Subtropical: ambient temperature between 16°C and 38°C
· T: Tropical: ambient temperature between 16°C and 43°C

USE

TEMPERATURE CONTROL

The fridge is controlled with a temperature control knob located inside the appliance.

Adjust the control knob as desired to suit your individual preference. The higher the number, the colder the temperature. Position 4 is the recommended position for normal use.

• In the o position the appliance does not operate (the cooling system is switched off), but power supply is not interrupted.
• The running time and temperature are affected by where the fridge is located, how often the door is opened and the temperature of the room the fridge is located in.

STORAGE GUIDE

For the best storage, set up your refrigerating appliance as follows:

Refrigerator compartment Type of food
Door rack · Food with natural preservatives such as jams, juices, drinks, spices, etc. · Do not store food with a limited shelf life here
Crisper drawer · Fruits, herbs, and vegetables	· Do not refrigerate bananas, onions, potatoes, or garlic
Middle shelf Dairy and eggs
Top shelf Food that does not need to be cooked, such as ready-made meals, leftovers, spreads, etc.

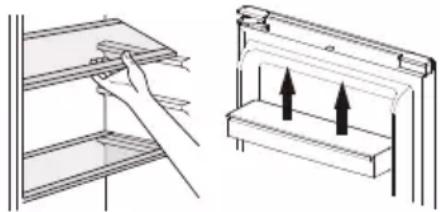

MOVING THE SHELVES AND DOOR RACK

· Empty the fridge before moving the shelves or the door racks.
· To move a shelf, raise it and pull it towards you.
- To move a door rack, grip it firmly with 2 hands. Raise the door rack and pull it towards you.

Diagram showing a hand holding a shelf and a device with three upward arrows (no text or symbols)

LIGHTING

The lighting in the fridge is a LED light. LED lights are more ecological and manufactured for a long life. For this reason, these may not be replaced. If there is a problem with the lighting, contact a qualified service centre in your area.

MOVING YOUR APPLIANCE

If the appliance is turned off for any reason, wait for 10 minutes before turning it back on. This will allow the refrigeration system pressures to equalise before restarting.

• Turn off the appliance and unplug it from the mains socket. Remove all food. Also remove all mobile parts (shelves, accessories, etc.) or fix them into the fridge to avoid any shock.
• Relocate and install. If the appliance has been left on its side for any length of time, leave it standing upright for at least 10 minutes before turning on.

STORING FOOD IN THE FRIDGE

The fridge helps to extend the storage times of fresh perishable foods.

Fresh food care for best results:

• Store foods that are very fresh and of good quality.
• Ensure that food is well wrapped or covered before it is stored. This will prevent food from dehydrating, deteriorating in colour or losing taste and will help maintain freshness. It will also prevent odour transfer.
• Make sure that strong smelling foods are wrapped or covered and stored away from foods such as butter, milk and cream which can be tainted by strong odours.
• Cool hot foods down before placing them in the fridge.

VACATION TIME

For short vacation periods, leave the control knobs at their usual settings. During longer absences: · Remove all foods.

• Disconnect from electrical outlet.
• Clean the refrigerator thoroughly, including defrost pan.
• Leave the door open to avoid possible formations of condensate, mould or odours.

POWER FAILURE

Most power failures are corrected within an hour or two and will not affect your refrigerator temperatures.

However, you should minimize the number of door openings while the power is off.

During power failures of longer duration, take steps to protect your food by putting dry ice on top of packages.

SOME IMPORTANT RULES FOR THE CORRECT USE OF THE REFRIGERATOR

• Never place hot foods in the refrigerator.
• Beverages should be stored in sealed containers.
• Foods to be stored for a long time should be wrapped in cellophane or polyethylene foil, or kept in glass containers.
• Never place spoiled foods in the cabinet.
• Don't overload the cabinet.
• Don't open the door unless necessary.
• Caution: please keep the products away from fire or similar glowing substances before you dispose of the refrigerator.
• Caution: Not for outer camping use (e.g. in a tent).
• Caution: For indoor use only.
• Caution: The appliance can not be used in public transportation.
• Keep all accessories, such as shelves, door racks, and drawers, in the appliance to minimise energy consumption.
• Please read the storage instructions on the food packaging. Always check the storage date.
• An empty fridge consumes more energy. After all, when the door is opened, warm air enters the space and needs to be cooled. More air enters when there are fewer products, meaning that more energy needs to be consumed to cool that air. So fill your fridge properly or choose a model sized for your needs.

CLEANING AND MAINTENANCE

• Do not use abrasive cleaning agents or solvents.
• Turn the appliance off. Disconnect the mains plug from the mains socket.
  · Take out the food and store in a cool location.
  · Clean the appliance with a soft cloth, warm water and detergent.
• Wipe the door seal with clear water only and then wipe dry thoroughly.
• After cleaning, put the plug in the socket and set the desired temperature.
• Put the food back into the appliance.

DEFROSTING THE REFRIGERATOR

The refrigerator defrosts fully automatically.

While the cooling is running, beads of condensation or hoarfrost form at the back of the refrigerator. This is normal. It is not necessary to wipe off the condensation or frost. The rear panel defrosts automatically. The condensation runs into the condensation channel and is conveyed to the compressor from where it evaporates.

Note: Keep the condensation channel and drainage hole clean, so that the condensation can run out.

Technical line drawing of a mechanical assembly with a magnified circular detail (no text or symbols)

TROUBLE SHOOTING

Frequently, a problem is minor and a service call may not be necessary, use this trouble shooting guide for a possible solution.

Does not work

• Check connection of power cord to power source.
• Check that the temperature controller is not in the o position.
• Plug in unit.
• Use proper voltage.

Cools too frequently

· The temperature setting is too cool.
- Close door securely.
- Be sure that food is cool before inserting.
- Do not keep door open for too long and minimize door openings.
- Use proper voltage.
- Do not place unit close to heat sources or direct sunlight.

Internal temperature not cold enough

• Check connection of power cord to power source.
• Plug in unit.
• Check setting and adjust as needed.
• Close door securely.
• Be sure that food is cool before inserting.
• Do not keep door open for too long and minimize door openings.
• Allow room for air to circulate around unit.
• Use proper voltage.
• Do not place unit close to heat sources or direct sunlight.

Unusual sounds

· The appliance is not level. Readjust the adjusting feet and level the unit.
· The unit is touching a wall or another object. Gently move the appliance.

There is water on the floor.

· The condensation duct is blocked. See the chapter on cleaning.
- Too much condensation has formed in the fridge, causing the reservoir to overflow. Too much condensation is caused by a heat difference. Is the door closed properly? Have you put hot food in the fridge? Does the seal still close properly?

The door does not close properly.

- The door seal is deformed. Heat it gently using a hairdryer. The rubber seal will become flexible and the magnetic strip in the rubber will automatically pull towards the appliance. After cooling, the rubber stays in that position.

ENVIRONMENTAL GUIDELINES

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

GARANTIA

Two simple diagrams showing a checkmark and a cross symbol on separate vertical bars, likely indicating approval or rejection.

Diagram showing a hand holding a shelf and a device with upward arrows (no text or symbols)

ILUMINACIÓN

Technical line drawing of a mechanical assembly with a magnified circular detail (no text or symbols)

PROBLEMAS Y SUS SOLUCIONES

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Two simple diagrammatic boxes with checkmark and cross symbols, likely indicating approval or rejection actions.

Diagram showing a hand interacting with a shelf and a mechanical device with three upward arrows (no text or symbols)

ILLUMINAZIONE

Technical line drawing of a mechanical assembly with a magnified circular detail (no text or symbols)

Prohibition sign for a trash bin with crossed and unexposed lines, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Two labeled diagrams showing checkmark and cross symbols, likely indicating approval or rejection actions.

Diagram showing a hand placing a component into a shelf and then moving a rectangular device with upward arrows (no text or symbols)

OSVĚTLENÍ

MANIPULSCE S PŘÍSTROJEM

Technical line drawing of a mechanical component with a magnified circular detail (no text or symbols)

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Two simple diagrams showing a checkmark and a cross symbol on separate vertical bars, likely indicating approval or rejection.

Technical illustration showing a hand holding a shelf and a mechanical device with three upward arrows (no text or symbols)

OSVETLENIE

Technical line drawing of a mechanical component with a magnified circular detail (no text or symbols)

vlhkost nijako utierat. Zadný panel sa odmrazuje automaticky a roztopená voda steká priamo do výparníka, odkial' sa odparuje.

RIEŠENIE MOŽNÝCH PROBLÉMOV

Prohibition sign with crossed-out trash bin and no text, indicating no waste or discharge

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Two cylindrical milk containers on a plain white surface (no text or symbols visible)

Three product photos: square cards, a clear glass coffee maker, and a rectangular baking bowl (no text or symbols visible)

of scan hier:

ou scannez ici:

oder hier scannen:

or scan here:

QR code image containing encoded data, no visible human-readable text
