Technical Features	Drive: DC motor, autonomy: 60 minutes, charging time: 8 hours, number of cutting lengths: 13, cutting width: 32 mm
Usage	Ideal for beard trimming, adjustable cutting length, cordless use, ergonomic for comfortable grip
Maintenance and Repair	Stainless steel blade, washable under water, regular cleaning recommended, no spare parts available
Safety	Do not use on irritated skin, keep out of reach of children, do not immerse in water
General Information	Weight: 150 g, dimensions: 15 x 4 x 4 cm, warranty: 2 years, color: black

Frequently Asked Questions - MC 3342 GRUNDIG

How can I clean my GRUNDIG MC 3342 beard trimmer?

To clean your trimmer, remove the blades and rinse them under running water. Use a soft brush to remove any remaining hairs. Make sure to dry the parts thoroughly before putting them back in place.

The trimmer does not turn on, what should I do?

Check that the trimmer is fully charged. If it still does not turn on, try plugging it into a different outlet. If the problem persists, contact customer service.

How do I adjust the cutting length of the GRUNDIG MC 3342 trimmer?

Use the length adjustment lever located on the side of the trimmer. Slide the lever to select the desired cutting length, ranging from 1 mm to 18 mm.

Can I use my beard trimmer in the shower?

No, the GRUNDIG MC 3342 trimmer is not waterproof. It is recommended to use it on dry skin and avoid using it in humid environments.

How can I tell if my trimmer's battery is running low?

The trimmer is equipped with a charge indicator. If the light blinks or turns red, it means the battery needs to be recharged.

Can I use the trimmer while it is charging?

It is recommended not to use the trimmer while charging to avoid any risk of accident or damage to the device.

What should I do if the blades of my GRUNDIG MC 3342 trimmer are not cutting properly?

Make sure the blades are clean and well lubricated. If they are damaged, they may need to be replaced. Also check that you are using the appropriate length setting.

What is the battery life of the trimmer?

The battery life is approximately 60 minutes of use after a full 8-hour charge.

How can I store my beard trimmer?

Store your trimmer in a dry place, away from heat and humidity. Use the provided storage stand if available.

USER MANUAL MC 3342 GRUNDIG

Hair and Beard Clipper

User Manual

MC 3342

DE-EN-TR-ES-FR-HR-PL

DEUTSCH 07-20

ENGLISH 21-30

TÜRKÇE 31-43

ESPNOL 44-55

FRANÇAIS 56-66

HRVATSKI 67-76

POLSKI 77-86

DE	BETRIEB REINIGUNG UND PFLEGE
EN	OPERATION CLEANING AND CARE
TR	KULLANIM TEMİZLEME	VE BAKIM
ES	FUNCIIONAMIENTO LIMPIEZA Y CUIDADOS
FR	FONCTIONNEMENT NETTOYAGE ET ENTRETIEN
HR	RAD ČIŠÇENJE I ODRŽAVANJE
PL	OBSŁUGA CZYSZCZENIE I KONSERWACJA

Hersteller: E-TEK Electronics
Manufactory Co., LTD

Modellidentifikator: ZDM036100EU

Please read this instruction manual thoroughly before using this appliance! Follow all safety instructions in order to avoid damages due to improper use!

Keep the instruction manual for future reference. Should this appliance be given to a third party, then this instruction manual must also be handed over.

• The appliance is designed for domestic use only.
• This appliance is designed solely for trimming human hair and beards. Any other use is expressly prohibited.
• Never use or charge the appliance in the bath, shower or over a wash basin filled with water; nor should it be operated with wet hands.

• Never use the appliance if it, the cutting head, or the power adapter show any signs of damage.

• Only use the appliance with the parts and power adapter supplied.

• Caution! Always keep the power adapter dry.
• When the appliance is being charged, on no account should it come into contact with water or any other liquid.
• Do not immerse the appliance in water.
• After charging, always unplug the cable from the socket and disconnect the power adapter from the wall socket.
• Do not drop the appliance.
• To avoid damaging the power cord, prevent it from being squashed, bent or from rubbing on sharp edges. Keep the power cord away from hot surfaces and open flames.
• Never place the appliance, accessories or power adapter on or near hot surfaces.
• Check that the mains voltage on the rating label corresponds to your local mains supply.

• Keep the appliance out of the reach of children.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Do not open the appliance under any circumstances. No warranty claims are accepted for damage caused by improper handling.
• Charging adaptor and power cable cannot be repaired once damaged. Please make sure that you dispose the charging adaptor in accordance with environmental directions. You can get your new charger from the manufacturer or authorised service provider.

• Before cleaning or user maintenance operation first plug out.

• Instructions for appliances containing non-user-replaceable batteries shall state the substance of the following:

• This appliance contains batteries that are only replaceable by skilled persons.
• Instructions for appliances containing non-replaceable batteries shall state the substance of the following:
• This appliance contains batteries that are non-replaceable.
• WARNING: For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance.

Dear Customer,

Congratulations on the purchase of your MC 3342 hair and beard clipper.

Please read the following user notes carefully to ensure you can enjoy your quality GRUNDIG product for many years to come.

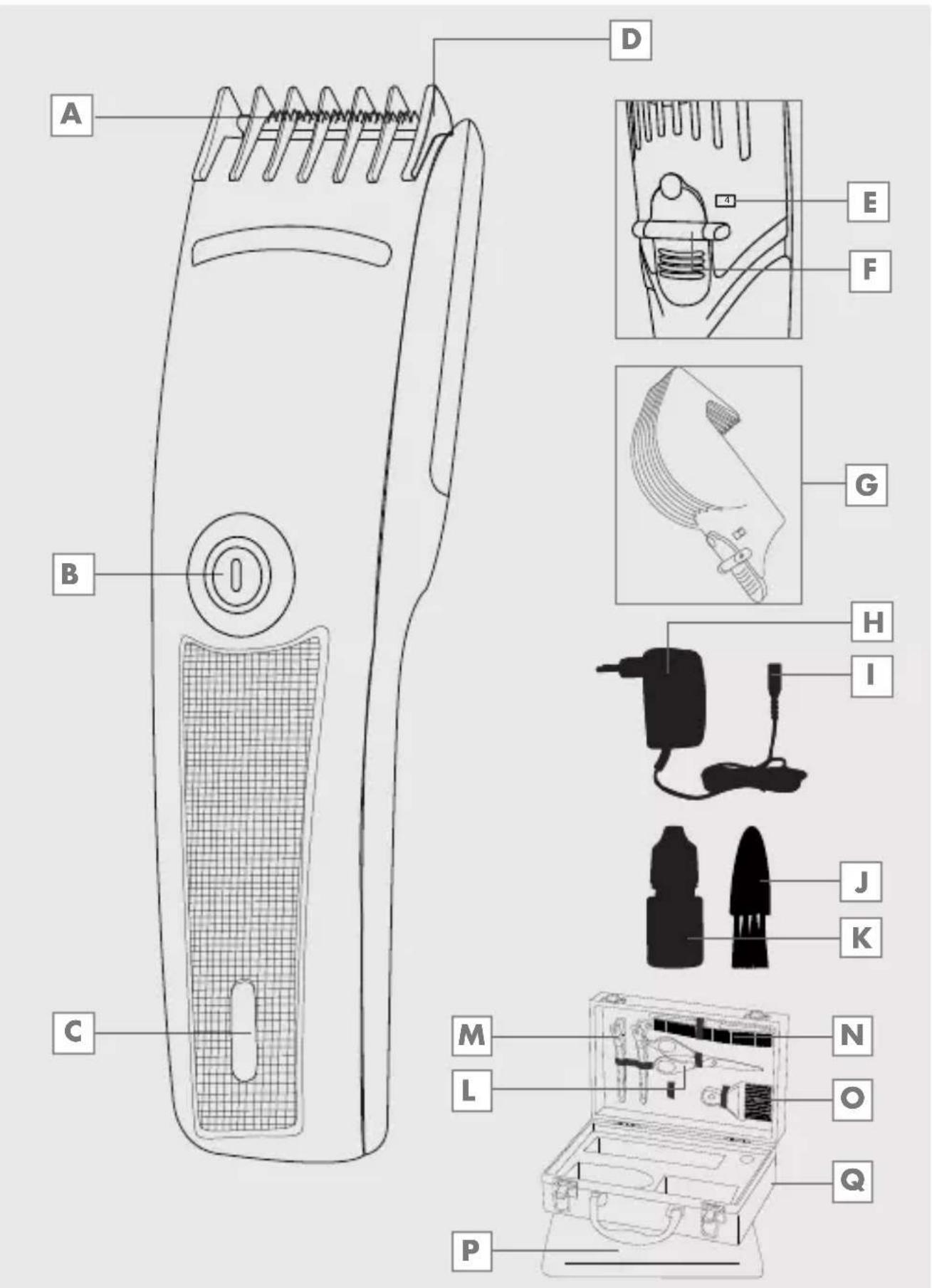

Controls and parts

See the figure on page 3.

A Cutting head - stainless steel blade

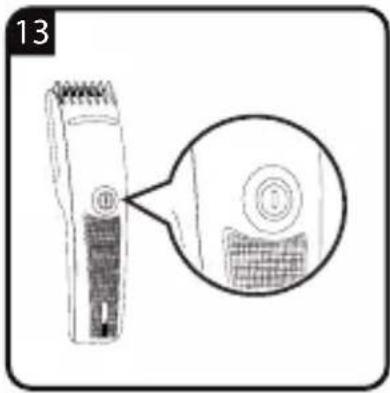

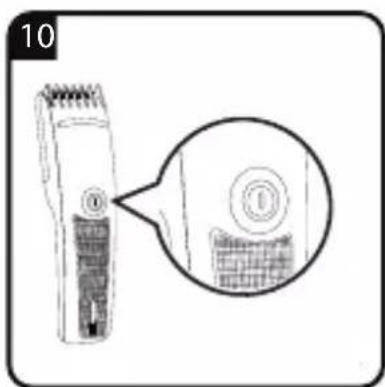

B On/Off switch
C Blue charge indicator LED

Meanings of the symbols

Following symbols are used in various sections of this manual:

Important information and useful hints about usage.

WARNING:

Warnings against dangerous situations concerning the security of life and property.

Electrical insulation class.

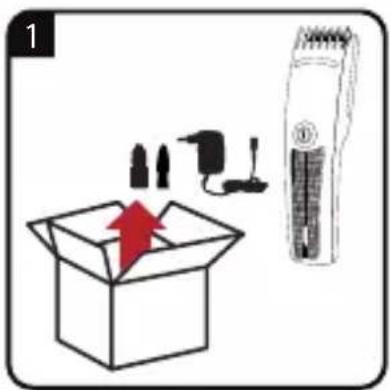

Accessories

D Adjustablecomb1
E Cutting length indicator
F Comb latch
G Adjustablecomb2
H Power adapter
Charging plug
J Cleaning brush
K Oil
L Scissors
M Hair clips
N Comb
Hair-removal brush
Hairdressing cape
Q Storage case

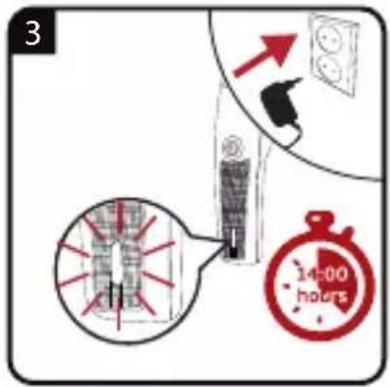

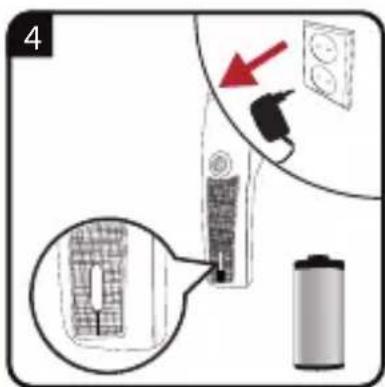

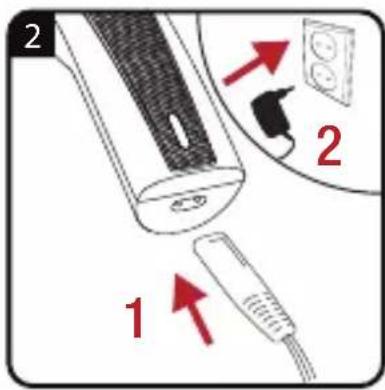

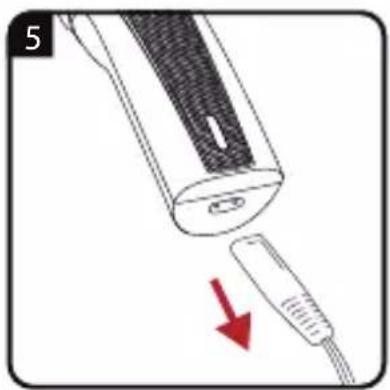

Rechargeable battery operation

When operating the appliance with the built-in nickel metal hydride battery, only use the power adapter supplied for charging.

Check that the voltage indicated on the rating plate of the power adapter corresponds to your local power supply.

The power adapter has an automatic 100 - 240V 50 / 60Hz transformer which works anywhere in the world. This allows it to adjust to all international AC voltages.

Caution

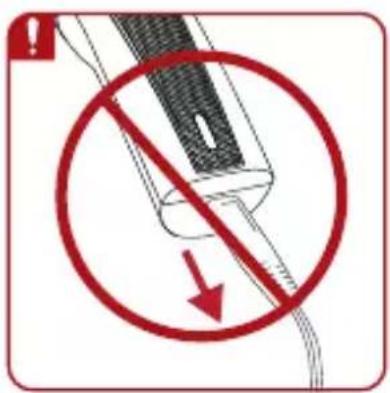

The groove on the charging plug must match the notch in the appliance socket.

Notes

The charge indicator LED lights up blue.
- When the appliance is fully charged, the charge indicator LED disappears.

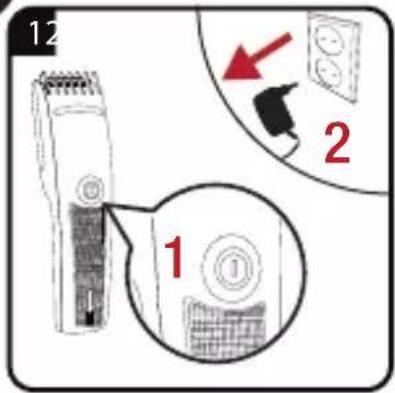

Operating with the power adapter

Check that the voltage indicated on the rating plate of the power adapter corresponds to your local power supply.

The only way to disconnect the appliance from the power supply is to unplug the power adapter.

Note

The groove on the charging plug must match the notch in the appliance socket.

Caution

• When in the bathroom or beside a water connection, only use the appliance in battery mode; never run it from the mains.

Notes

The trimming length without combing system is 1.5mm
- Trimming without a comb is perfect for designer stubble.
Width of cutting head 40~mm

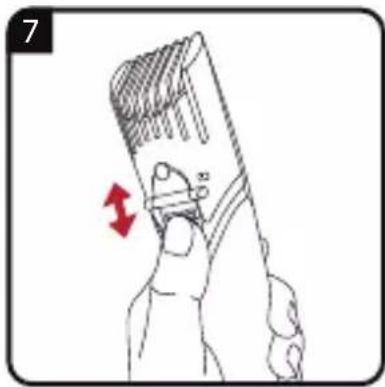

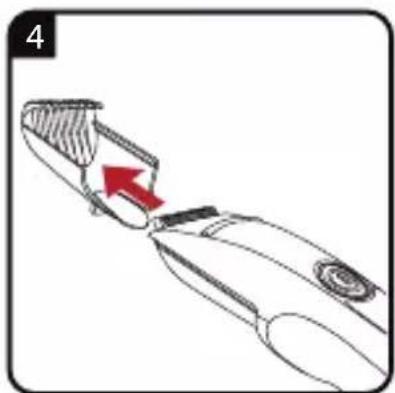

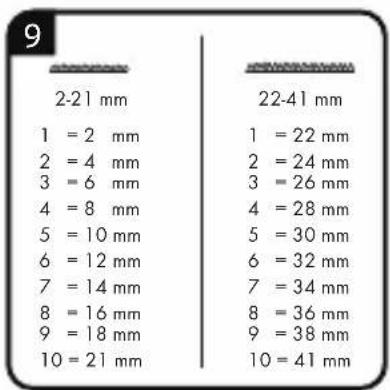

Setting the trimming length

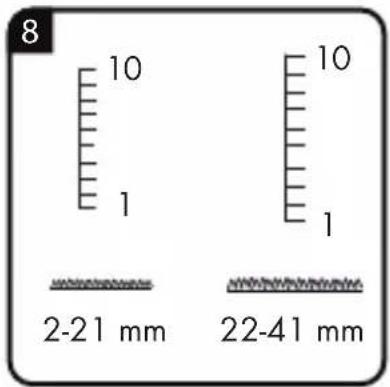

The adjustable comb 1 D and comb 2 G allow the appliance to adjust in 20 different lengths:

Note

The position indicator E shows the adjusted length position.

Trimming hair

Make sure that the hair is clean and completely dry.

Place a towel around the neck and shoulders of the person whose hair you are trimming. Make sure that the person is seated so that their head is roughly at your eye level. Before trimming, comb the hair so that it falls naturally and you can see the direction in which it grows.

Useful tips

Hold the appliance with a relaxed and comfortable grip.
Always cut against the natural direction of the hair.
As you cut, take a break at regular intervals. You can always make a correction, but not once the hair has been cut.

Only cut a small amount the first time you use it. This is the only way to get used to the variable positions.
- Keep combing the hair. Only look for hair which is too long and comb out clippings.

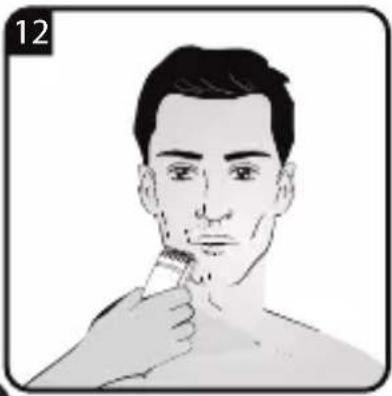

Beard trimming

Notes

If the appliance is blocked by thick hair while you are using it, switch it off. If running it from the mains, unplug the socket. Remove the adjustable comb and clean the cutting head with the brush supplied. Clean the appliance as described in the "Cleaning and Care" section.

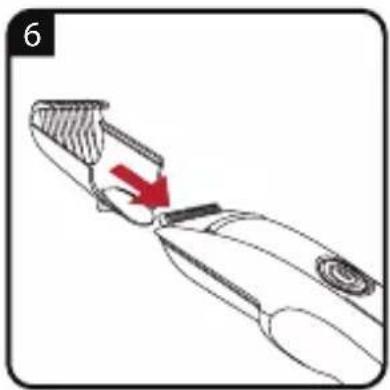

For trimming contours, remove the adjustable comb 1 D or 2 G. Use the appliance without the combs (cutting length is 1.5mm

General information

The appliance must be cleaned regularly so that you can continue to enjoy its top performance and optimum results.

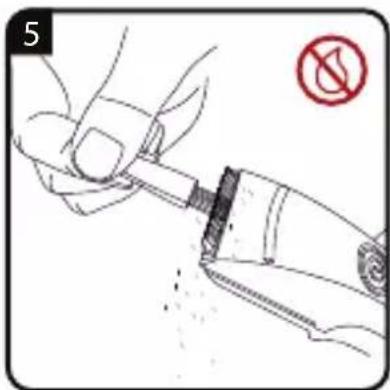

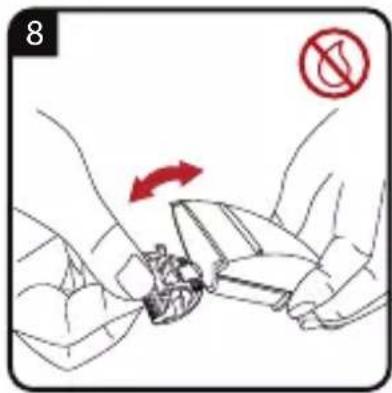

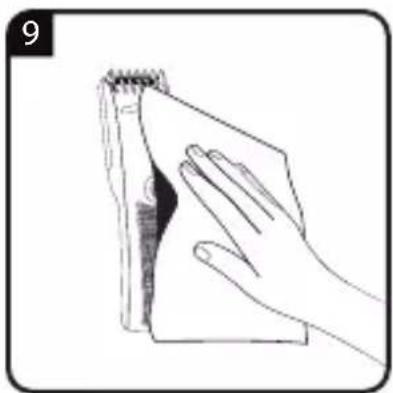

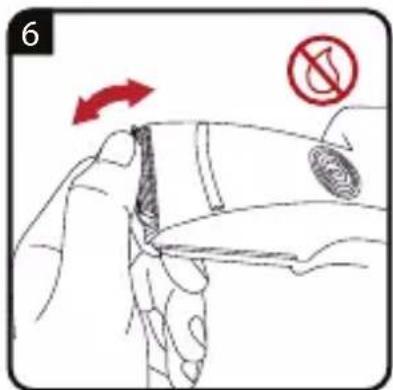

Cleaning and care

Notes

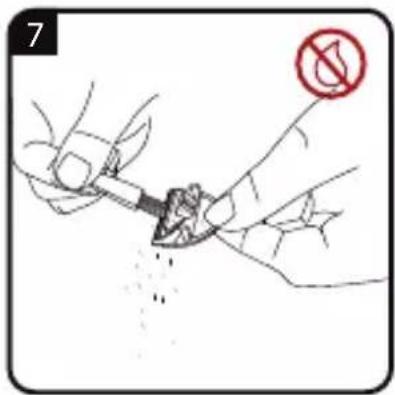

• Never use water or any other liquids to clean the appliance. Only use the cleaning brush provided.
• You can rinse the cutting head and the two adjustable combs with water, but you must remove them from the appliance first.
• Remove any clippings after each use.
  The cutting head of your appliance does not normally need to be oiled. If you want to maintain the original condition of the cutting head for as long as possible, it is worth oiling it at regular intervals (with the oil provided).

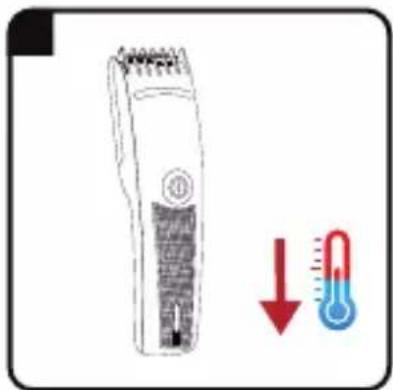

Storage

If you do not plan to use the appliance for a long period of time, please store it carefully.
Make sure that it is unplugged and is completely dry.

Store the appliance in a cool, dry place.
Make sure that the appliance is kept out of the reach of children.

Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must

be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance.

Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with

our National Environment

Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Information on Waste Batteries

This symbol on rechargeable batteries/batteries or on the packaging indicates that the rechargea

ble battery/battery may not be disposed of with regular house hold rubbish. For certain rechargeable batteries/batteries, this symbol may be supplemented by a chemical symbol. Symbols for mercury (Hg) or lead (Pb) are provided if the rechargeable batteries/batteries contain more than 0,0005% mercury or more than 0,004% lead.

Rechargeable batteries/batteries, including those which do not contain heavy metal, may not be disposed of with household waste. Always dispose of used batteries in accordance with local environmental regulations. Make enquiries about the applicable disposal regulations where you live.

Technical data

Parameter of External Power Supply

Manufacturer: E-TEK Electronics

Manufactory Co., LTD

Model Identifier:

ZDM036100EU

Input Voltage: 100-240V~

Input Frequency: 50/60Hz

Input Current: 0.2A

Output Voltage: 3.6V

Output Current: 1.0A

Output Power: 3.6W

Average active efficiency: 74.04%

Efficiency at low load(10%): 66.63%

No-load power consumption: 0.061W

Batteries: Nickel metal hydride Ni-MH

Ni-MH

Electrical insulation class: II

Technical and design modifications reserved.
