MC 8840 - Shaver GRUNDIG - Free user manual and instructions

Product type	Trimmer
Brand	Grundig
Model	MC 8840
Power supply	Mains 100-240 V~50/60 Hz 0.2 A and rechargeable Ni-MH battery
Charger output voltage	3.8 V DC, 1.3 A
Battery type	Nickel-metal hydride (Ni-MH)
Cutting length without guide	1.5 mm
Cutting lengths with guides	From 4 to 30 mm (6 guides)
Blade height adjustment	0.5 / 1.2 / 1.9 / 2.5 mm
Cutting head width	40 mm
Number of cutting guides	6
Usage	Cordless and corded (with mains adapter)
Cleaning	Cleaning brush included; head washable under water after disassembly
Lubrication	Oil provided for regular maintenance
Included accessories	Mains adapter, cleaning brush, oil, 6 cutting guides
Operating temperature	+5°C to +40°C
Safety	Do not use in water; unplug before cleaning; keep out of reach of children
Environmental compliance	WEEE Directive (2012/19/EU) and RoHS (2011/65/EU)

Frequently Asked Questions - MC 8840 GRUNDIG

How to adjust the cutting length?

Use the adjustable cutting guides provided (6 sizes from 4 to 30 mm) or adjust the blade height directly (0.5/1.2/1.9/2.5 mm) without guide. Push the guide forward or backward until it clicks.

Can I use the device while charging?

Yes, you can use the device plugged into the mains. However, avoid prolonged use to avoid damaging the adapter. In the bathroom, use only on battery.

How to clean the trimmer?

Turn off and unplug the device. Remove the guide and the cutting head. Use the provided cleaning brush to remove hair. The head and guides can be rinsed with water, but dry them before reassembling.

Do I need to lubricate the blade?

The cutting head does not need frequent lubrication, but it is advisable to apply a little of the provided oil at regular intervals to extend its lifespan.

What if the trimmer gets stuck?

Turn off the device and unplug it if on mains. Remove the adjustable guide and clean the cutting head with the brush to remove trapped hair.

How to charge the device?

Connect the charging plug to the device and the adapter to a wall socket. The LCD screen shows the progress. Once charged, the battery symbol stays lit. Disconnect after charging.

Is the device waterproof?

No, the device is not waterproof. Do not use it in water and avoid any contact with liquids. Only the cutting head can be rinsed after disassembly.

What is the battery life?

The manual does not specify the exact battery life. The Ni-MH battery reaches its maximum capacity after several charge/discharge cycles. For optimal use, charge fully before first use.

Can I use the device cordless while plugged in?

Yes, the device can operate plugged into the mains. However, it is recommended to use it on battery in humid rooms (bathroom) for safety reasons.

Where can I find spare parts?

Accessories (guides, cutting head, adapter) are available from the manufacturer or an authorized supplier. The damaged adapter cannot be repaired and must be replaced.

USER MANUAL MC 8840 GRUNDIG

Hair and Beard Clipper

User Manual

MC8840

DE-EN-TR-ES-FR-HR-PL

DEUTSCH 05-17

ENGLISH 18-29

TÜRKÇE 30-45

ESPANOL 46-57

FRANÇAIS 58-69

HRVATSKI 70-81

POLSKI 82-93

Manufactory CO., LTD

Modellidentifikator:

ZDJ038130EU

Eingangsspannung:

100-240 V~

Eingangsfrequency: 50 / 60Hz

Eingangsstrom: 0.2A

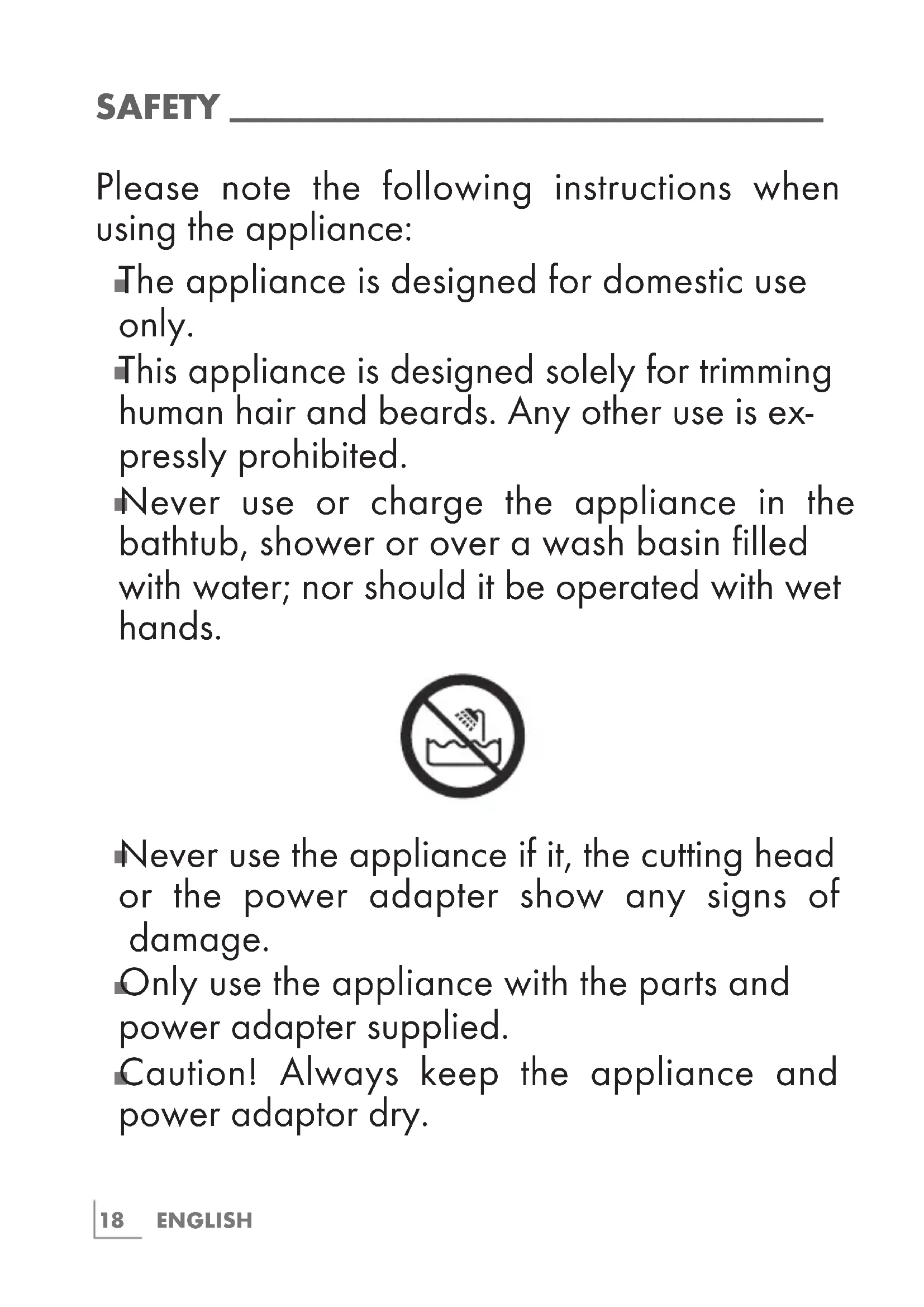

Please note the following instructions when using the appliance:

The appliance is designed for domestic use only.

This appliance is designed solely for trimming human hair and beards. Any other use is expressly prohibited.

• Never use or charge the appliance in the bathtub, shower or over a wash basin filled with water; nor should it be operated with wet hands.

• Never use the appliance if it, the cutting head or the power adapter show any signs of damage.

Only use the appliance with the parts and power adapter supplied.

Caution! Always keep the appliance and power adaptor dry.

When the appliance is being charged, on no account should it come into contact with water or any other liquid.

Do not immerse the appliance in water.

After charging, always unplug the cable from the socket and disconnect the power adapter from the wall socket.

Do not drop the appliance.

• Charging adaptor and power cable cannot be repaired once damaged. Please make sure that you dispose the charging adaptor in accordance with environmental directions. You can get your new charger from the manufacturer or authorised service provider.

• Never place the appliance, accessories or power adapter on or near hot surfaces.

Check that the mains voltage on the rating label corresponds to your local mains supply.

• Keep the appliance out of the reach of children.

Before cleaning or user maintenance operation first plug out.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Do not open the appliance under any circumstances. No warranty claims are accepted for damage caused by improper handling.

Dear Customer,

congratulations on the purchase of your GRUNDIG MC 8840 hair and beard clipper.

Please read the following user notes carefully to ensure you can enjoy your quality GRUNDIG product for many years to come.

A responsible approach!

GRUNDIG focuses on contractually agreed social working conditions with fair wages for both internal employees

and suppliers. We also attach great importance to the efficient use of raw materials with continuous waste reduction of several tonnes of plastic every year. Furthermore, all our accessories are available for at least 5 years.

For a future worth living.

Grundig.

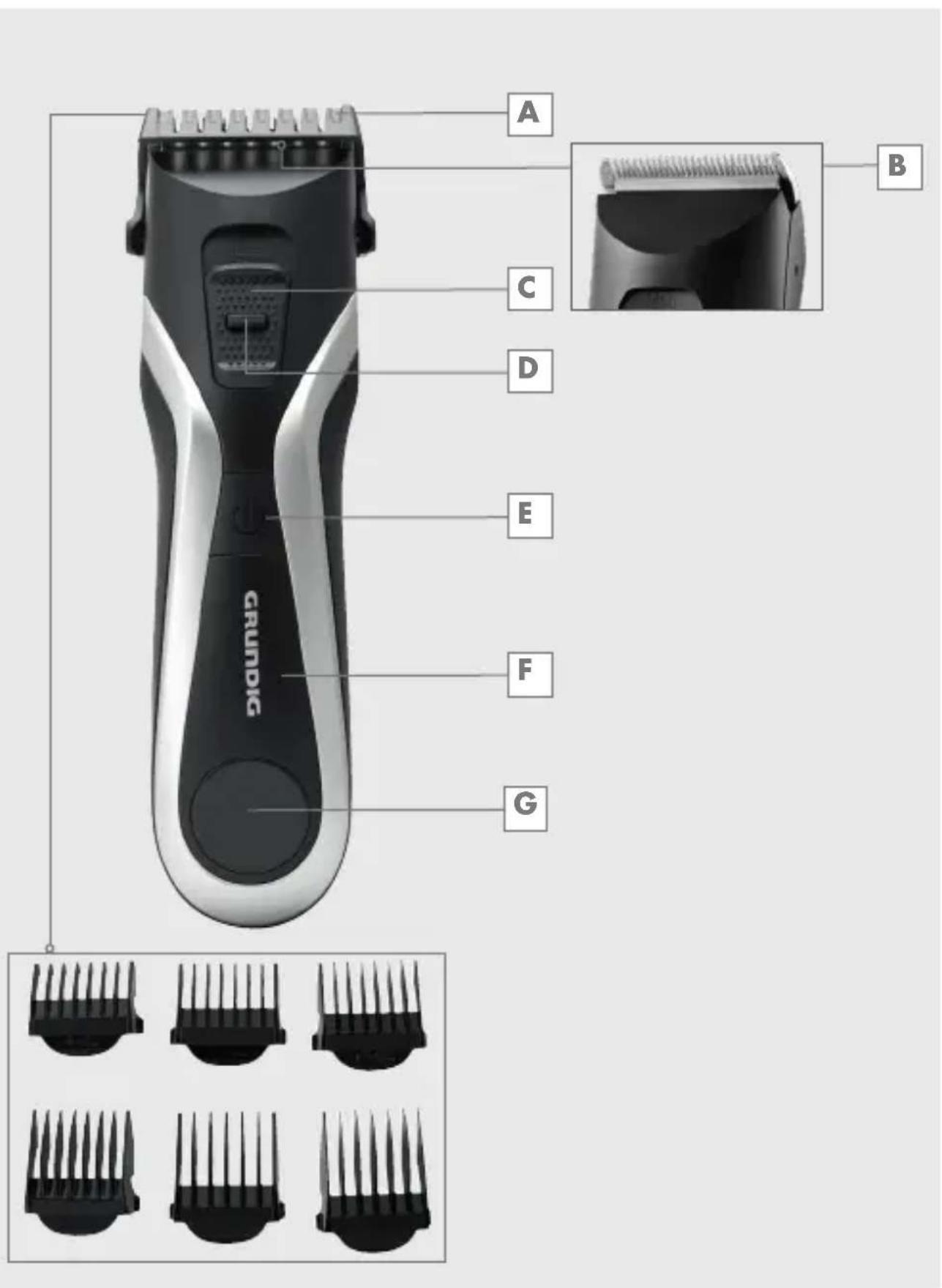

Controls

See the illustrations on page 3.

A Comb attachment (6 units)
B Adjustable cutting head (0.5,1.2,1.9,2.5mm)
C Adjustbladebutton
D Lock for adjust blade button
E On/Off switch
F Body
G LCD display

Accessories

Power adapter

Charging plug

Cleaning brush

Oil

Operating with the power adapter

Check that the voltage indicated on the rating plate of the power adapter corresponds to your local power supply.

The only way to disconnect the appliance from the power supply is to unplug the power adapter.

Plug the charging plug into the appliance socket and the power adapter into the wall socket.

Note

The groove on the charging plug must match the notch in the appliance socket.

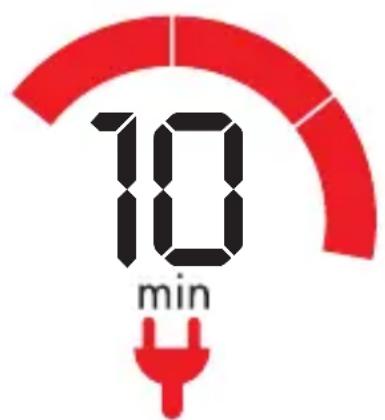

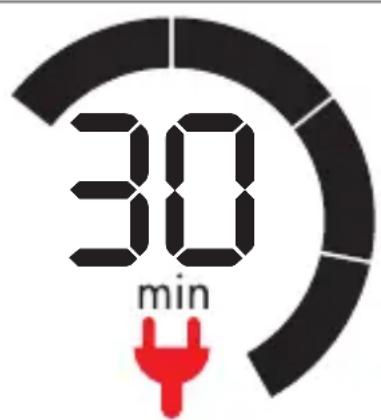

• When the appliance are charged, charge/discharge current capacity display symbol will display and start flashing, red plug symbol will display continually;

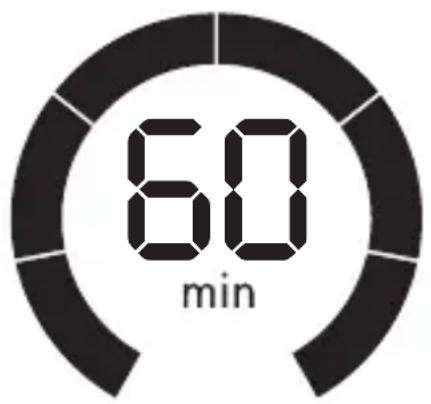

• Once the appliance is completely charged, charge/discharge current capacity display symbol will display continually.

2 Red plug symbol and red charge/ discharge current capacity display symbol start flashing when the unit reaches low battery capacity during operation, It is time to recharge.

Notes

Discharge the appliance through normal use. Then recharge to full capacity. Maximum battery capacity will only be reached after several charging/discharging cycles.
When charging the unit, it can be used to cut the hair.
The adapter H and unit F may become warm while charging; this is normal operation.

Caution

Please do not operate the unit connected to the power adapter for a long time or it may burn out the adapter.
3 Unplug the adapter H from the wall and the base when not in use.

Caution

When in the bathroom or beside a water connection, only use the appliance in battery mode; never run it from the mains.

Notes

The trimming length without combing system is 1.5mm
Trimming without a comb is perfect for designer stubble.
Width of cutting head is 40~mm

Setting the trimming length

You can choose between 6 comb A attachments and 6 hair length after cutting:

1 Slide the adjustable comb A over the cutting head B. Make sure that the notches on the adjustable combs are properly inserted into the grooves on the sides of the appliance.
2 Adjust the trimming length by pressing it forwards or backwards into the required position. Make sure that the adjustable comb clicks into its place.
3 After use, remove the adjustable comb A from the appliance.

Comb 4-6 mm 4-6 mm hair length

Comb 7-9 mm 7-9 mm hair length

Comb 10-12 mm 10-12 mm hair length

Comb 16-18 mm 16-18 mm hair length

Comb 22-24 mm 22-24 mm hair length

Comb 28-30 mm 28-30 mm hair length

Hair trimming

Make sure that the hair is clean and completely dry.

Place a towel around the neck and shoulders of the person whose hair you are trimming. Make sure that the person is seated so that their head is roughly at your eye level. Before trimming, comb the hair so that it falls naturally and you can see the direction in which it grows.

1 Adjust the trimming length by referring to the "Preparation" section.
2 Press the On/Off switch E to switch on the appliance.
3 Place the cutting head on the person's hair.
4 Move the cutting head against the direction of hair growth. Apply only a slight pressure when cutting with slow, gentle movements.
5 After use, switch off the appliance with the On/Off switch E.

Useful tips

Always cut against the natural direction of the hair.
As you cut, take a break at regular intervals. You can always make a correction, but not once the hair has been cut.

Only cut a small amount the first time you use it. This is the only way to get used to the variable positions.
Keep combing the hair. Only look for hair which is too long and comb out clippings.

Beard trimming

1 Adjust the trimming length by referring to the "Preparation" section.
2 Press the On/Off switch E to switch on the appliance.
3 Place the cutting head on the beard.
4 Move the cutting head against the direction of hair growth. Apply only a slight pressure when cutting with slow, gentle movements.
5 After use, switch off the appliance with the On/Off switch E.

Notes

If the appliance is blocked by thick hair while you are using it, switch it off. If running it from the mains, unplug the socket. Remove the adjustable comb A and clean the cutting head B with the brush supplied. Clean the appliance as described in the "Cleaning and Care" section.

For trimming contours, remove the adjustable comb. Use the appliance without the combs (then, depending on the setting, the cut length amounts to 0.5,1.2,1.9 or 2.5mm

CLEANING AND CARE

General information

The appliance must be cleaned regularly so that you can continue to enjoy its top performance and optimum results.

Cleaning

1 Press the On/Off switch E to switch off the appliance and unplug the power adapter if you are running it from the mains.

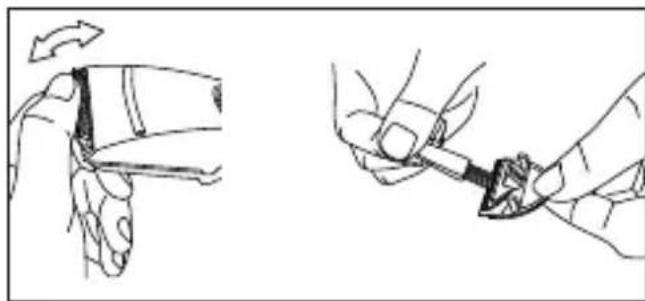

2 Remove the adjustable comb A from the appliance. Clean the cutting head B with the cleaning brush J provided.

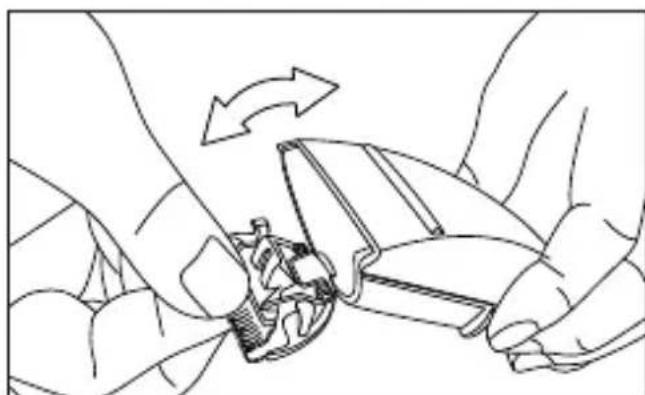

3 Remove the cutting head by pushing the blade outwards. Clean the cutting head and the cavity in the appliance with the cleaning brush provided.

4 Insert the cutting head by first placing the claw into the cavity and pressing on the cutting head until it clicks on its place.

Notes

Never use water or any other liquids to clean the appliance. Only use the cleaning brush provided.

You can rinse the cutting head and the adjustable combs with water, but you must remove them from the appliance first.
Remove any clippings after each use.

The cutting head of your appliance does not normally need to be oiled. If you want to maintain the original condition of the cutting head for as long as possible, it is worth oiling it at regular intervals (with the oil provided).

INFORMATION

Storage

If you do not plan to use the appliance for a long period of time, please store it carefully.
Make sure that it is unplugged and is completely dry.
Store the appliance in a cool, dry place.
Make sure that the appliance is kept out of the reach of children.

Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service

life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance

with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Technical data

Input:

100-240V~50/60Hz 0.2A

Output: 3.8 V DC 1300 mA

Operating temperature:

+5°C- +40°C

Storage temperature:

0^ C + 40^ C

Electrical insulation class: II

Batteries: Nickel metal hydride Ni-MH

Ni-MH

Design and specifications subject to change without notice.

Parameter of External Power Supply

Manufacturer: E-TEK Electronics

Manufactory CO., LTD

Model Identifier: ZDJ038130EU

Input Voltage: 100-240V~

Input Frequency: 50/60Hz

Input Current: 0.2A

Output Voltage: 3.8V

Output Current: 1.3A

Output Power: 4.94W

Average active efficiency: 76.03%

Efficiency at low load(10%): N/A

No-load power consumption: 0.07W
