Technical Specifications	GRUNDIG MC 3320 Beard Trimmer
Power Supply Type	Mains power
Adjustable Cutting Length	From 1 to 10 mm
Number of Length Settings	5 settings
Included Accessories	Cutting comb, cleaning brush
Weight	Approximately 300 g
Dimensions	Not specified
Usage	Ideal for beard trimming and styling
Maintenance	Regular cleaning with the supplied brush
Safety	Use only according to manufacturer\'s instructions
Warranty	2 years

Frequently Asked Questions - MC 3320 GRUNDIG

How do I clean the GRUNDIG MC 3320 beard trimmer?

To clean the trimmer, remove the cutting head and rinse it with lukewarm water. Use the supplied brush to remove any remaining hairs.

What is the charging time for the GRUNDIG MC 3320 trimmer?

The GRUNDIG MC 3320 trimmer fully charges in about 8 hours for cordless use.

Can I use the GRUNDIG MC 3320 trimmer in the shower?

No, the GRUNDIG MC 3320 trimmer is not waterproof. It is recommended to use it on dry skin.

How do I adjust the cutting length on the GRUNDIG MC 3320 trimmer?

You can adjust the cutting length using the different supplied guide combs. Simply clip them onto the cutting head.

What should I do if the trimmer does not work?

Check if the trimmer is charged. If it still does not work, try resetting the device by turning it off and on again after a few minutes.

Is the GRUNDIG MC 3320 trimmer suitable for body and face?

Yes, the trimmer is designed for use on the face and body, but it is advised to use the appropriate combs for each area.

Where can I buy replacement parts for the GRUNDIG MC 3320 trimmer?

You can buy replacement parts on the official GRUNDIG website or at specialized electronics stores.

How do I know if the trimmer\'s battery is fully charged?

The indicator light on the trimmer turns off when the battery is fully charged.

USER MANUAL MC 3320 GRUNDIG

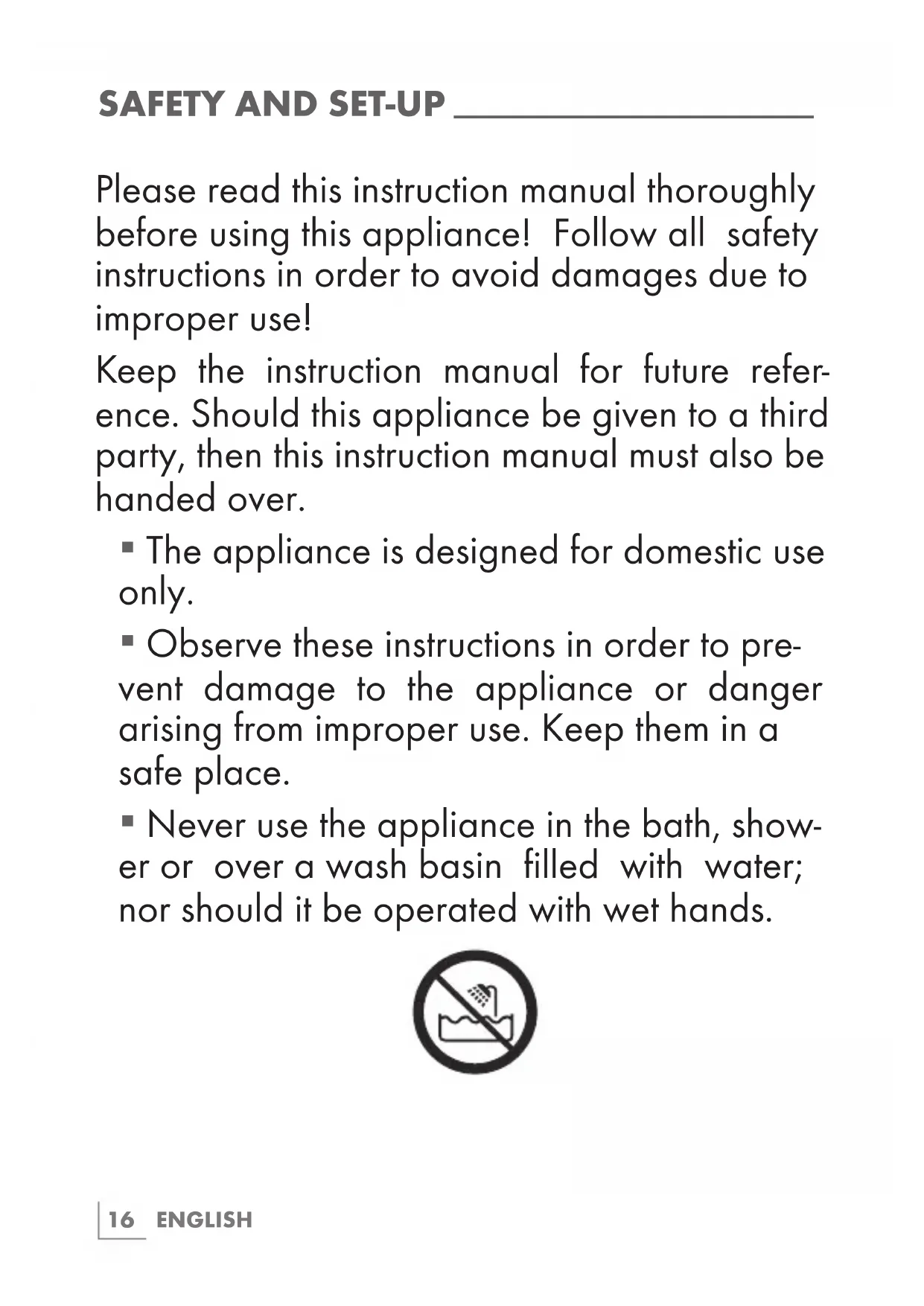

Please read this instruction manual thoroughly before using this appliance! Follow all safety instructions in order to avoid damages due to improper use!

Keep the instruction manual for future reference. Should this appliance be given to a third party, then this instruction manual must also be handed over.

• The appliance is designed for domestic use only.
• Observe these instructions in order to prevent damage to the appliance or danger arising from improper use. Keep them in a safe place.
• Never use the appliance in the bath, shower or over a wash basin filled with water; nor should it be operated with wet hands.

• Do not immerse the appliance in water or let it come into contact with water, even during cleaning.
• Do not drop the appliance.
• Pull out the power plug after use. Do not disconnect the plug by pulling on the cable.
• If the appliance is used in the bathroom, it is essential that the power plug is pulled out after use, as water close to the appliance can still constitute a danger, even if the appliance is switched off.
• If not already present, for additional protection it is recommend to install a residual-current-operated protective device (RCD) with a rated residual operating current not exceeding 30mA in the electrical circuit of your bathroom. Ask your plumber for advice.
• Keep the appliance away from children.
• Do not open the appliance under any circumstances. No warranty claims are accepted for damage resulting from improper handling.

If the power cord is damaged, it must be replaced by the manufacturer, its service centre or a similarly qualified person to prevent danger arising.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Your clippers were carefully examined to ensure that the blades were oiled and aligned before leaving our factory.

• Blades must be realigned if they have been removed for cleaning or replacement.

• To realign the blades, simply match the upper and bottom blades teeth up, point for point. (End of top blade teeth should be approximately 1.2 ~mm back from bottom blade. Compare your clipper blades with the sketch.)

• If blade alignment is incorrect, add a few drops of oil to the blades, turn clipper on for a few moments, turn off and unplug. Loosen screws slightly and adjust. Tighten screws after blade is aligned.
• To maintain your clipper in peak condition, the blades should be oiled every few hair-cuts.
• Do not use hair oil, grease, oil mixed with kerosene or any solvent. As the solvent will evaporate and leave the thick oil which may slow down the blades motion.

Dear Customer,

Congratulations on the purchase of your new GRUNDIG Hair Clipper MC 3320.

Please read the following user notes carefully to ensure you can enjoy your quality GRUNDIG product for many years to come.

A responsible approach!

GRUNDIG focuses on contractually agreed social working conditions with fair wages for both internal employees

and suppliers. We also attach great importance to the efficient use of raw materials with continuous waste reduction of several tonnes of plastic every year. Furthermore, all our accessories are available for at least 5 years.

For a future worth living.
For a good reason.Grundig.

Controls and parts

See the figure on page 3.

A Carbon stainless steel bottom blade
B Carbon stainless steel top blade
C Power cord
On/Off switch
E Blade lever

Accessories

Four combs of various sizes for different trimming grades (#1 to #4).

Comb #1	3 mm
Comb #2	6 mm
Comb #3	9 mm
Comb #4	12 mm

Other accessories

Blade protection cap

Cleaning brush

Oil for cutting head

Preparation

1 Remove all packaging and keep safe for future storage.
2 Inspect the appliance before use to ensure the blades are free of hair, debris etc.
3 Check if the mains voltage of the type plate of the appliance corresponds to your local mains supply.
4 Plug the power cord into the wall socket.

Trimming hair

1 Put on a comb F for the cutting grade you need (see Controls and parts).
2 To do this, put the teeth of the cutting head in the central groove of the comb and gently press on the bottom blade A of the top blade B until it catches.
3 Place a towel around the neck and shoulder of the person whose hair you are trimming. Make sure the person is seated so that their head is roughly at your eye level. This allows ease of visibility while cutting and a relaxed hold on the appliance.

4 Switch on the appliance using the switch D and start trimming.
5 Turn off the appliance using the switch D when you have finished trimming.
6 Take off the comb. Gently pull the bottom catch away from the cutting head until it comes loose. Then lift off the comb.

Using the blade lever

Notes

The lever adds versatility to your clipper by allowing you to gradually change the closeness of your cut without an attachment comb.
When the lever is in the uppermost position, the blades will give you the closest cut and leave the hair very short. Pushing the lever downward gradually increase the cutting length.
In its lowest position, the lever will leave the hair approximately the same length as comb #1.
The lever will also extend the use of your blades since the different cutting edge is used in each setting.

OPERATION

In addition, if extremely heavy hair cutting has jammed the blades, it will help you remove hair that has become wedged between the two blades without removing the blades.
- When you have finished trimming, clean the blades of hair clippings by quickly moving the blade lever F from maximum to minimum with the appliance still on.

Comb attachment grades

Note

All the lengths here are approximate. (see the table on page 15)

Useful tips

Hold the appliance with a relaxed and comfortable grip.
Always cut against the natural direction of the hair.
As you cut, take a break at regular intervals. You can always make a correction, but not once the hair has been cut.

When you first use it, begin with a longer comb for trimming so that you get a good feel for the appliance. Then you can attach a shorter comb.
Do not force the comb through the hair. Let it guide you.
- Keep combing the hair. Only look for hair which is too long and comb out clippings.
To ensure good results, the hair should be dry.

Cleaning and care

Turn the appliance off and unplug it from the mains socket.
Take off the comb and clean the cutting head with the brush supplied.
Only clean the housing and the comb with a damp, soft cloth.

Caution

• Never put appliance or power cord in water or any other liquid.
  Before using the appliance again, dry all parts properly using a soft towel.
  Do not use cleaning agents.

Note

Remove any clippings after each use.

Adjusting the blades

When new, the blades are optimally aligned. However, you need to readjust the blades if you replace them or if you have removed the bottom blade A for cleaning.

1 Loosen the screws.

2 Align the teeth of the bottom blade A and the top blade B The points of the teeth on the bottom blade A should be roughly 1.2 mm behind those of the top blade B
3 If the blades are not correctly aligned, switch off the appliance, loosen the screws again and readjust the blades.
4 Tighten the screws once you have aligned the blades.

Note

If you want to maintain the original condition of the cutting head for as long as possible, it is worth oiling the cutting head at regular intervals.

Storage

If you do not want to use the appliance for a long period of time, please store it carefully.

Ensure that it is unplugged and is completely dry.
- Pack the parts in the original packaging and store them in a cool, dry place.
Make sure the appliance is kept out of reach of children.

Environmental note

This product has been manufactured with high-quality parts and materials which can be re-used and are suitable for recycling.

Therefore, do not dispose of the product with normal domestic waste at the end of its service life. Take it to a collection

point for the recycling of electrical and electronic appliances. This is indicated by this symbol on the product, in the operating manual and on the packaging.

Please consult your local authorities to find out where the nearest collection point is.

Help protect the environment by recycling used products.

Technical data

This product conforms to the European directives

2004/108/EC,

2006/95/EC,2009/125/EC

and 2011/65/EU.

Power supply:

230V ,50Hz

Power: 7W

KB/MAX 20MIN.

Technical and design modifications reserved.

This user manual is available for review and download at www.grundig.com
