USER MANUAL KA 4821 SEVERIN

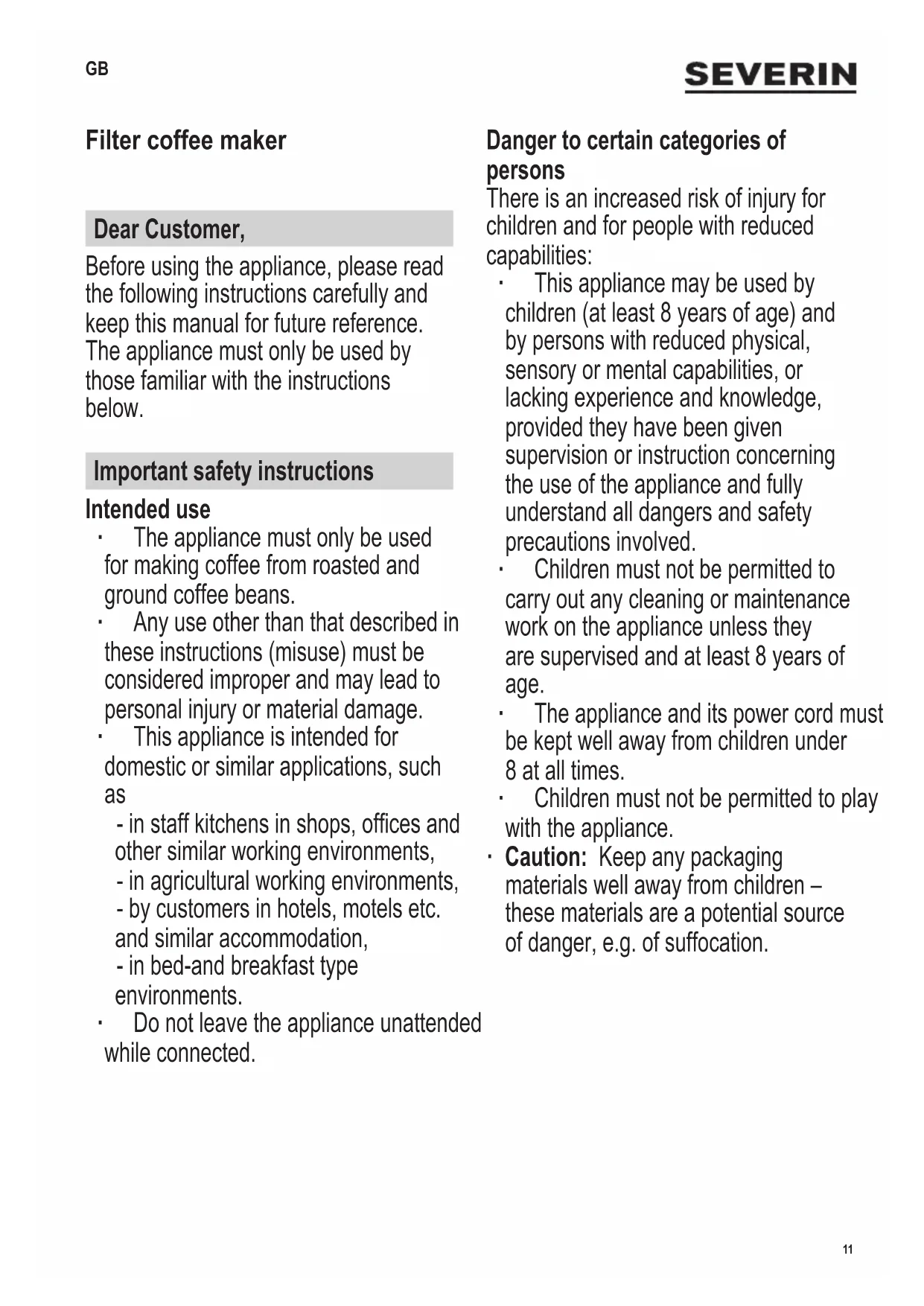

Aromawahlschalter auf Position stellen. Wenn das Problem nicht mithilfe der Tabelle gelöst werden konnte, unseren Kundendienst kontaktieren. Die Kontaktdaten benden sich im Anhang der Anleitung.11 142 x 208 mm Filter coffee maker Dear Customer, Before using the appliance, please read the following instructions carefully and keep this manual for future reference. The appliance must only be used by those familiar with the instructions below. Important safety instructions Intended use ∙ The appliance must only be used for making coffee from roasted and ground coffee beans. ∙ Any use other than that described in these instructions (misuse) must be considered improper and may lead to personal injury or material damage. ∙ This appliance is intended for domestic or similar applications, such

- in staff kitchens in shops, ofces and other similar working environments, - in agricultural working environments, - by customers in hotels, motels etc. and similar accommodation, - in bed-and breakfast type environments. ∙ Do not leave the appliance unattended while connected. Danger to certain categories of persons There is an increased risk of injury for children and for people with reduced capabilities: ∙ This appliance may be used by children (at least 8 years of age) and by persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, provided they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved. ∙ Children must not be permitted to carry out any cleaning or maintenance work on the appliance unless they are supervised and at least 8 years of age. ∙ The appliance and its power cord must be kept well away from children under 8 at all times. ∙ Children must not be permitted to play with the appliance. ∙ Caution: Keep any packaging materials well away from children – these materials are a potential source of danger, e.g. of suffocation. GB12 142 x 208 mm Risk of electric shock The device is powered by electricity, and so there is always a risk of electric shock. The following precautions are therefore to be taken: ∙ Every time the appliance is used, the main body including the power cord as well as any attachment tted should be checked thoroughly for any defects. Should the appliance, for instance, have been dropped onto a hard surface, or if excessive force has been used to pull the power cord, it must no longer be used: even invisible damage may have adverse effects on the operational safety of the appliance. ∙ The appliance should only be connected to a socket installed in accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the rating label. ∙ Always remove the plug from the wall socket - after use, - in case of any malfunction, - before cleaning the appliance. ∙ When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself. ∙ Do not touch the plug with wet hands. ∙ Do not clean the appliance with liquids or immerse it; do not clean under running tap water. Danger of burns and scalding The appliance heats up water and keeps it hot. The exterior surfaces, jug and hot- plate become hot during use, and will retain some heat even afterwards. There is thus a danger of burns or scalding. ∙ Do not touch those components during use: after use, allow them to cool down rst. ∙ Do not open the swing-out lter during use. ∙ Always allow the appliance to cool down for about 5 minutes after use and before opening the swing-out lter or lling with fresh water. Lack of hygiene Lack of hygiene may result in germs forming inside the appliance: ∙ Clean the appliance thoroughly before using it for the rst time. ∙ Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely. ∙ The lter insert and jug should be cleaned on a daily basis. ∙ Do not leave any residual water in the container. ∙ The appliance must be descaled at regular intervals. ∙ Detailed information on cleaning the appliance can be found in the section Cleaning and care.13 142 x 208 mm Danger of damage to the unit Incorrect handling of the appliance can cause damage

∙ Always place the unit on a dry, level surface that is water- and heat- resistant, and unaffected by contact with the rubber feet. ∙ Do not operate the appliance below a hanging cupboard or similar object; there is a risk that escaping steam may be trapped underneath. ∙ Do not let the power cord hang free.

Do not kink or pinch the power cord. Keep both the cord and the appliance itself well away from heat sources (eg hot-plates, gas ames)

∙ Use only cold tap water to ll the container. In case of a defective appliance A defective appliance can cause material damage and injury

∙ Check the appliance for damage before every use. Do not operate if the appliance shows any sign of damage. ∙ In the event that you detect damage, please contact our customer service department by phone or email (see appendix). ∙ Repairs to this appliance or its power cord must only be carried out by our customer service. Technical specications Device category, Art. no. Filter coffee maker KA 4820 / KA 4821 KA 4825 Voltage 220-240 V~, 50/60 Hz Output 850 - 1000 W Dimensions (W x H x D) 235 x 340 x 290 mm Weight approx. 2,1 kg Special markings Do not dispose of in domestic garbage This product complies with all binding CE labelling directives. On/Off button For models with aroma selection switch Coffee ‘mild’ Coffee ‘strong’ Overview and parts included

1. Lid for water container

2. Water level indicator

3. Swing-out lter with removable lter

6. On/Off switch with indicator light

7. Rating label (on underside)

8. Power cord with plug

9. Cable storage space (at the rear)

Models with aroma selection switch

10. Aroma selection switch14

142 x 208 mm Before using for the rst time ∙ Unpack the appliance completely and remove all packaging materials and stickers. ∙ Clean the jug and lter insert as described in the section Cleaning and care. ∙ Before making coffee for the rst time, let the appliance go through two or three ltration cycles using the indicated maximum amount of cold water, but without using ground coffee. ∙ This should also be done if the appliance has not been used for an extended period of time, and after descaling. Automatic switch-off To save energy, the appliance (including the hot-plate) will switch itself off automatically about 35 minutes after the brewing cycle is complete. Power-cord storage compartment The integrated power-cord storage compartment at the rear is used for storing the power cord. The recess at the bottom facilitates limiting the length of the power cord. Making coffee - general information ∙ The measuring scales on the water container and glass jug help measuring the correct amount of clean water. The left scales are used for standard-sized cups of approx.125ml, the right scales for smaller cups. ∙ Make sure that the indicated maximum amount of water or number of cups is not exceeded. ∙ If several consecutive brewing cycles are required, switch off the coffee maker after each cycle and let the appliance cool down for approx. 5 minutes. ∙ Caution: When lling the appliance with fresh water shortly after a brewing cycle is completed, there is a danger of scalding from hot water or steam escaping through the water outlet. Making coffee

1. Fillingwithwater:

Open the water container and ll it with the desired quantity of water, then close the lid.

Replace the lid on the jug, and then place it in the appliance. If correctly inserted, the lid will disable the drip-stop mechanism in the lter holder during the brewing cycle.

3. Insertingthepaperlter:

Open the swing-out lter sideways and insert a size-4 paper lter into the lter holder, rst folding down the perforated sides of the lter.

4. Fillingwithgroundcoffee:

For each regular-sized cup (125ml), a measure of about 6 g (= 1½ - 2 teaspoons) of medium or nely ground coffee will be required. Close the swing-out lter afterwards.

5. Connectingtheappliance:

Insert the power plug.

6. Startingthebrewingcycle:

Use the button to switch the coffee maker on. The ltration cycle starts and the water passes through the lter.

Wait until all the water has passed through; the jug can now be removed.

8. Keepingthecoffeewarm:

The coffee may be kept warm in the jug by leaving it standing on the hot-plate, which remains hot for about 35 minutes after brewing is complete.15 142 x 208 mm

9. Interruptingthebrewing/keeping-

warmcycle: To interrupt the brewing cycle, or if the keeping-warm function is not needed, use the button to turn the appliance off.

10. Switchingoffthecoffeemaker:

Once keeping-warm is complete, remove the plug from the wall socket. Models with aroma selection switch: This appliance features a special aroma function, allowing the user to choose coffee with a normal strong avour, or alternatively a very mild coffee. Turn the aroma selection switch to the desired setting before the brewing cycle is started: for mild coffee

for normal coffee Recipes Are you in the mood for some delicious coffee specialities? or under www.severin.de/Service/Rezepte Cleaning and care Descaling ∙ Depending on the water quality (lime content) in your area as well as the frequency of use, all thermal household appliances using hot water need descaling (i.e. removal of lime deposits) on a regular basis to warrant proper functioning. ∙ Any warranty claim will be null and void if the appliance malfunctions because of insufcient descaling. ∙ A lengthening of the brewing time, increased noise during brewing or residual water remaining in the container indicate that descaling has become necessary. ∙ An excessive build-up of lime deposits is very difcult to remove, even when strong descaling agents are used. It may also cause the brewing system to leak. We therefore strongly recommend descaling the appliance after each thirty to forty brewing cycles. ∙ For descaling, a vinegar solution may be used as follows: ∙ Mix 80 ml of vinegar essence with the indicated maximum amount of cold water. ∙ Pour the descaling solution into the water container, insert a paper lter without adding any ground coffee, as described in section Making coffee, and let the appliance run through one ltration cycle. Models with aroma selection switch: Turn the switch to the position for normal coffee. ∙ Repeat the procedure if necessary. ∙ During descaling, ensure sufcient ventilation and do not inhale any vinegar vapours.16 142 x 208 mm ∙ To clean the appliance after descaling, let it run through 2-3 ltration cycles using clean water only. ∙ Do not pour descalers down enamel sinks. Daily cleaning ∙ Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely. ∙ To avoid the risk of electric shock, do not clean the appliance with liquids or immerse it; do not clean under running tap water. The appliance may be cleaned with a slightly damp cloth, using a mild detergent. Wipe dry afterwards. ∙ Do not use abrasives or harsh cleaning solutions. ∙ To remove the used coffee grounds, open the swing-out lter, lift out the paper lter and dispose of the grounds (as a natural substance they may be composted). Wipe the inside of the swing-out lter with a damp cloth, dry it and close it again. ∙ The jug with lid and the lter insert may be cleaned with warm water or in a dishwasher after use. ∙ For easy cleaning, open the jug lid and remove it by pulling it up. Replace it after cleaning, applying light pressure. Disposal Devices marked with this symbol must be disposed of separately from your household waste, as they contain valuable materials which can be recycled. Proper disposal protects the environment and human health. Your local authority or retailer can provide information on the matter. Guarantee This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modied, repaired or interfered with by any unauthorised person, or damaged through misuse. This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.17 142 x 208 mm Trouble shooting Problem Cause Remedy Functions cannot be activated. Appliance is not plugged in. Connect appliance to mains. Socket is defective. Check the socket with a different appliance. The appliance switches off before brewing is complete; residual water remains inside the container. Descaling required. Descale the appliance (see Cleaning and care). No coffee comes out of the swing-out lter. The glass jug is not properly placed underneath the outlet. Check that the jug is properly positioned on the hot-plate, pushing the outlet valve up. Not enough water. Replenish water. Water overow in swing-out lter. Grind level too ne. Select coarser grind level. The coffee is too thin. Too little ground coffee was used. Increase the amount. Paper lter inserted incorrectly, or collapsed. Fold down the perforated sides rst before insertion. Models with aroma selection switch: Wrong switch position

Set switch to position

5. Plaque chauffante

6. Lancementducyclepercolation:
