PORTABLE WIRELESS SPEAKER INSTRUCTION MANUAL

LT

NEŠIOJAMASIS BELAIDIS GARSIAKALBIS INSTRUKCIJŲ VADOVAS

HR/BIH

PRIJENOSNI BEŽIČNI ZVUČNIK UPUTE ZA UPORABU

LV

PORTATIVS BEZVADU SKALRUNIS ROKASGRAMATA

SI

BREZŽIČNI PRENOSNI ZVOČNIK NAVODILA

BEZPEČNOSTNÍ POKYNY

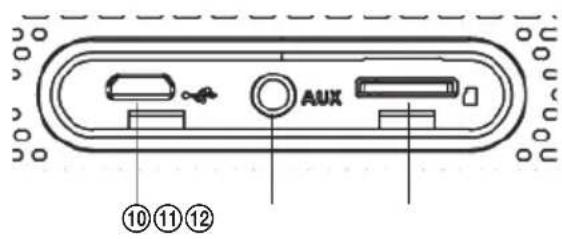

Diagram of a device rear panel with labeled buttons and icons, numbered 1 to 9 pointing to specific buttons.

AUX ⑩⑪⑫⑫

Diagram of a device rear panel with labeled buttons and icons, numbered 1 to 9 pointing to specific buttons.

AUX ⑩⑪⑫

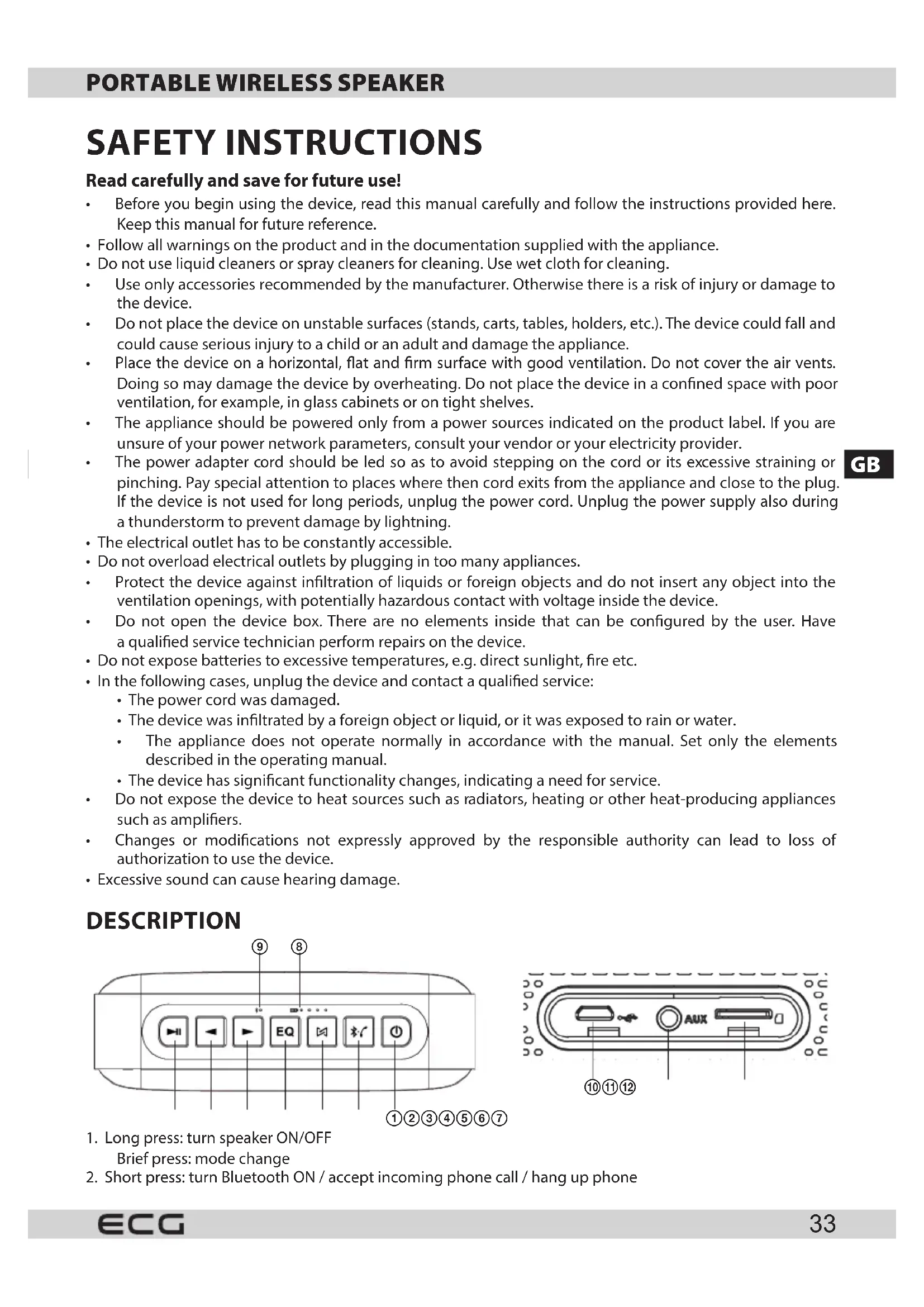

Read carefully and save for future use!

• Before you begin using the device, read this manual carefully and follow the instructions provided here. Keep this manual for future reference.
• Follow all warnings on the product and in the documentation supplied with the appliance.
• Do not use liquid cleaners or spray cleaners for cleaning. Use wet cloth for cleaning.
• Use only accessories recommended by the manufacturer. Otherwise there is a risk of injury or damage to the device.
• Do not place the device on unstable surfaces (stands, carts, tables, holders, etc.). The device could fall and could cause serious injury to a child or an adult and damage the appliance.
• Place the device on a horizontal, flat and firm surface with good ventilation. Do not cover the air vents. Doing so may damage the device by overheating. Do not place the device in a confined space with poor ventilation, for example, in glass cabinets or on tight shelves.
• The appliance should be powered only from a power sources indicated on the product label. If you are unsure of your power network parameters, consult your vendor or your electricity provider.
• The power adapter cord should be led so as to avoid stepping on the cord or its excessive straining or pinching. Pay special attention to places where then cord exits from the appliance and close to the plug. If the device is not used for long periods, unplug the power cord. Unplug the power supply also during a thunderstorm to prevent damage by lightning.
• The electrical outlet has to be constantly accessible.
• Do not overload electrical outlets by plugging in too many appliances.
• Protect the device against infiltration of liquids or foreign objects and do not insert any object into the ventilation openings, with potentially hazardous contact with voltage inside the device.
• Do not open the device box. There are no elements inside that can be configured by the user. Have a qualified service technician perform repairs on the device.
• Do not expose batteries to excessive temperatures, e.g. direct sunlight, fire etc.
• In the following cases, unplug the device and contact a qualified service:

• The power cord was damaged.
- The device was infiltrated by a foreign object or liquid, or it was exposed to rain or water.
- The appliance does not operate normally in accordance with the manual. Set only the elements described in the operating manual.
- The device has significant functionality changes, indicating a need for service.

• Do not expose the device to heat sources such as radiators, heating or other heat-producing appliances such as amplifiers.
• Changes or modifications not expressly approved by the responsible authority can lead to loss of authorization to use the device.
• Excessive sound can cause hearing damage.

DESCRIPTION

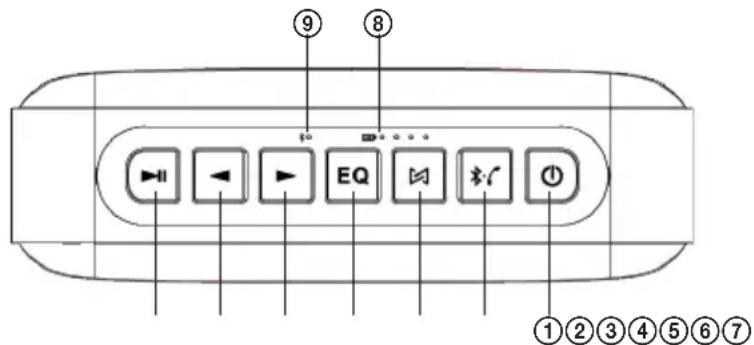

Diagram of a device control panel with labeled buttons and indicators, numbered 1 to 9.

AUX ⑩⑪⑫⑫

1. Long press: turn speaker ON/OFF

Brief press: mode change

1. Short press: turn Bluetooth ON / accept incoming phone call / hang up phone

Long press: disconnect paired device/incoming call rejection

Double short press: redial previously called number

1. TWS (True wireless stereo)

Short press: enable/disable TWS

Long press: delete stored TWS pairing

1. Equalizer

Short press: switching equalizer profiles – normal, bass, treble

1. Brief press: next track/ next FM channel/ switching call between the phone and the wireless speaker

Long press: increase volume

1. Brief press: previous track/ previous FM channel /switching call between the phone and the wireless speaker

Long press: decrease volume

1. Short press: PLAY/PAUSE/MUTE

Long press for 3 seconds: Automatically search for FM stations (in FM mode), change folder on SD card (in memory card playback mode)

1. Battery charge level indicator

2. Bluetooth indicator

3. Charging connector

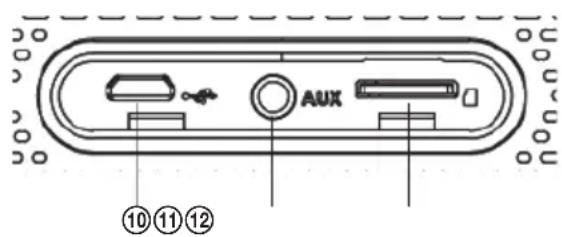

4. Analogue input AUX

5. Micro SD memory card slot

Features

• Wireless music playback (Bluetooth 4.2 stereo) and hands-free function
• Powerful amplifier with DSP (Digital Signal Processor)
• Analogue input AUX-IN – available to use as an external computer speaker, mobile phone, PSP/MP3/MP4 player etc.
• TWS support – pairing 2 of the same speakers delivers a stereo sound experience
• Micro SD memory card playback
  • FM radio with integrated antenna, station auto-tune support
  • Memory card reader and charging via the same USB cable
• Stored equalizer profiles – normal, bass, treble
• Voice guide – for changing modes and overall control

Package contents

Wireless Bluetooth speaker, Micro USB cable, AUX-IN cable, Operating manual

USING THE SYSTEM

Before using the device for the first time, fully charge the integrated battery.

If you do not plan to use the speaker for a longer period of time, charge the device once a month to prevent problems or damage caused by an excessively discharged battery.

1. Turn the speaker ON/OFF

Long press ① for 2 seconds to turn the speaker ON or OFF.

After being turned OFF and ON again, the speaker remembers the settings, playback mode and volume from the previous session.

After each charging cycle, the volume is adjusted up to 40% of the maximum volume.

2. Bluetooth mode

1) Bluetooth pairing

Turn ON the speaker and enter Bluetooth mode, the LED indicator will begin flashing. Next, enable Bluetooth on your mobile phone or other device and initiate the search for Bluetooth devices. The BTS Elysium M1 device will appear among the available devices. Connect to this device. Once connected, the speaker will indicate "Device paired" and the LED indicator will stop flashing.

Short press ② to quickly enable Bluetooth.

2) Wireless music playback

Simply start the playback on your mobile phone or music player and listen to music from your speaker.

3) Hands-free paired with your mobile phone

Accepting an incoming call

Short press ② to accept an incoming call.

Hang up

Short press ② again to hang up.

Redial

Double press ② to initiate a call to the previously called number.

Private call

Press ⑤ or ⑥ to switch between speaker and phone during a call.

Reject an incoming call

Long press ② to reject an incoming call.

4) Disconnect an existing Bluetooth connection

The speaker will automatically pair with the last known Bluetooth device. Long press ② to disconnect from the current Bluetooth connection, the speaker will indicate "Device disconnected". The speaker is then ready to be paired with another device.

GB

3. Voice guide

Once enabled, the speaker plays information regarding the current playback mode, e.g.: Bluetooth mode, Aux in mode, device paired, device disconnected etc.

The voice guide can be disabled by long pressing EQ ④.

4. TWS (Stereo playback)

Turn ON two BTS Elysium M1 speakers and switch both into Bluetooth mode.

Short press ③ on one of the speakers to begin searching the second BTS Elysium M1 speaker. During the search a beep sounds and the speaker LED flashes alternately orange and blue. Both speakers are automatically paired. After a successful pairing of the speaker that plays the left channel, the LED flashes blue and on the speaker playing the right channel the LED is orange.

Next, enable Bluetooth on your mobile phone or other player and initiate the search for Bluetooth devices. "BTS Elysium M1" appears, connect the speakers. When the left channel speaker is connected, it announces "Device paired" and the LED will stop and will light up blue. You can then begin playing music on the Bluetooth speakers in stereo mode.

Both paired speakers can be disconnected from your mobile phone/player by short pressing ③. The speaker will indicate "TWS disconnected".

Long press ③ on any of the speakers to disable TWS. The speaker will indicate "TWS Cleared".

Note:

1. Two adapters are required for powering the speakers, one adapter for each.
2. Before pairing the speakers to use TWS, neither of the speakers shall be paired with any other device. LED indicators on both devices should flash blue.
3. If either of the two speakers is paired with another BTS Elysium M1 speaker, you must first unpair this connection; otherwise you will not be able to pair the speaker. Long press ③ on each speaker to delete the existing TWS connection.

5. Equalizer settings

The default setting is normal mode. Press briefly the button ④ to switch to bass mode and press the button ④ again to switch to treble mode.

6. Playing music from micro SD card

After inserting your Micro SD card into the speaker, short press ① to switch the speaker into memory card playback mode and play music directly from the Micro SD card. The speaker will indicate "Memory card mode" before playing.

Note: You can select the next folder in the playback from memory card by long pressing the button ⑦.

7. AUX IN mode

Connect the speaker to an audio source (PC, MP3MP4, mobile phone) via 3.5mm audio cable. Short press ① to enter "AUX IN" mode (speaker indicates "AUX IN"). Music begins to play from the audio source.

Notes:

• If you are connecting the speaker to a computer with a 3.5 mm audio cable, we recommend using a genuine adapter (5 V / 1 A) to charge the speaker instead of the computer USB port. Powering the device from the computer may be insufficient.
• Short press ⑦ to lower the music volume. The source of music continues to play the music at a lower volume.

8. FM tuner

Short press ① to initiate FM mode (the speaker indicates "Mode FM"). While in FM mode, long press ⑦ to initiate the auto-tuning of FM stations. Short press ⑤ / ⑥ to tune to previous/next station.

9. Card reader

Insert your Micro SD card into the speaker and switch OFF. Connect the speaker to the computer via USB cable. After the speaker switches to memory card mode, files can be read and written to the computer from the Micro SD card.

Note: The necessary computer driver is installed when using this feature for the first time.

10. Intelligent energy-saving feature

The speaker automatically switches OFF in the following cases:

- The speaker in Bluetooth mode waits longer than 10 minutes to pair.

- Press ⑦ while in Memory card mode / FM mode / AUX IN mode to stop playback after a period exceeding 10 minutes.

Note:Longpress⑦ again to switch the speaker ON again.

11. Charging

If the speaker battery is almost empty, the speaker will indicate "battery low". Immediately charge the battery using the USB adapter. When fully charged, all 4 battery charge indicators light up.

Notes:

• Only use a quality adapter to charge the speaker.
  • We recommend using an adapter with the following parameters: 5 V / 1 A, full charge takes about 4 hours.
  • Always charge the speaker immediately after the speaker indicates the battery is empty.
• The speaker can also be charged with a lower charging current. The charging cycle can take a very long time when the battery is charged via standard USB port with a current of 500 mA.

TROUBLESHOOTING

Problem Solution
The speaker cannot connect to the Bluetooth device and play music.	1. Check the specifications / manual of the Bluetooth device (mobile phone or computer) and make sure the device supports A2DP stereo audio transmission. If the device does support A2DP, enable A2DP stereo mode.2. Make sure the speaker is in Bluetooth mode. If there are many Bluetooth devices in your vicinity, it can be difficult to find the correct device. In such a case, turn off all other devices.
The micro SD card does not work.	1. Make sure that the Micro SD card is in good condition. Check the audio files for supported format: MP3/WMA/WAV/APE/FLAC.2. In addition to the above mentioned, there may be a problem with Micro SD card compatibility.When formatting the Micro SD card or USB flash drive, we recommend using a FAT 32 file format.
The speaker does not play FM stations.	1. Make sure the speaker is in an area covered by FM signal.2. Adjust the speaker orientation to improve the antenna direction.This may improve reception quality.3. Make sure that, while in FM mode, you long pressed 7 and activated the auto-tuning of FM stations.

TECHNICAL SPECIFICATIONS

Bluetooth version: 4.2

Power: DC 5 V / 1 A (Max)

Impedance: 6 × 2 + 4

Power: 2,5 W × 2 + 10 W

Analogue input AUX IN: 3.5 mm

FM frequency range: 87.5–108 MHz

Integrated battery: 3.7 V / 4400 mAh

Size: 205 × 128 × 64 mm

Charging time: 5–6 hours (using the adapter 5 V / 1 A)

Playing time: 8 hours at 70 % volume

Weight: 970 g

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers.

PRODUCT DISPOSAL AFTER END OF LIFE

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product. Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

Hereby, K+B Progres, a.s. declares that the radio equipment type ECG BTS Elysium M1 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.ecg-electro.eu.

08/05

The operating manual is available on internet at www.ecg-electro.eu. Changes of text and technical parameters are reserved.

SIGURNOSNE UPUTE

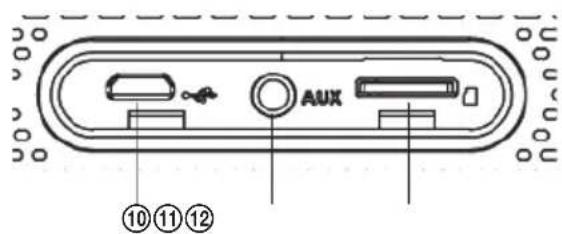

Diagram of a device rear panel with labeled buttons and icons, numbered 1 to 9 pointing to specific buttons.

AUX ⑩⑪⑫

1. Appui bref: lecture/pause/silence

Diagram of a device rear panel with labeled buttons and icons, numbered 1 to 9 pointing to specific buttons.

AUX ⑩⑪⑫

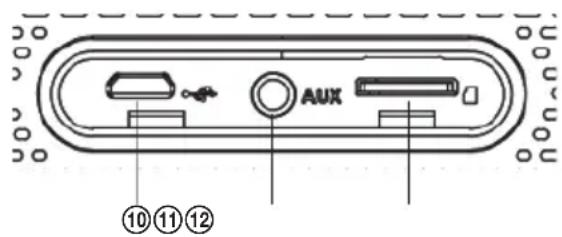

Diagram of a device rear panel with labeled buttons and icons, numbered 1 to 9 pointing to specific buttons.
