USER MANUAL VP 3143 S ECG

Read carefully and save for future use!

Warning: The safety measures and instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into any product. Therefore, these factors shall be ensured by the user/s using and operating this appliance. We are not responsible for damage caused during transportation, by improper use, voltage fluctuation or by changing or modifying any part of the appliance.

To prevent fire or electric shock, the following safety measures when using electrical equipment should always be observed:

1. Read all instructions before using the appliance.
2. Make sure the voltage in your outlet corresponds to the voltage provided on the appliance label and that the socket is properly grounded. The outlet must be installed according to valid safety instructions.
3. Do not use the vacuum cleaner if the power cord is damaged. All repairs including cord replacements shall be performed by a professional service centre! Never remove the protective covers of the appliance, risk of electric shock!
4. Protect the vacuum cleaner from direct contact with water and other liquids, do not place on it containers with liquids to prevent electric shock.
5. Do not use the vacuum cleaner in upright position. Never use the vacuum cleaner without the inserted dust bag, motor fi Iter and HEPA fi Iter.
6. Do not leave the plugged in vacuum cleaner unattended. Disconnect the cord from the electrical outlet prior to performing maintenance.
7. Do not use the vacuum cleaner outdoors or in a damp environment. Risk of electric shock.
8. Be more attentive if you are using the vacuum cleaner near children.
9. Use only accessories approved by the manufacturer.
10. If the vacuum cleaner does not work properly, if it fell (e.g. into water), if it is damaged or if it was forgotten outdoors, have it inspected professionally at an authorized service center.
11. Do not hold the vacuum cleaner by the power cord when moving it. Make sure that the power cord is not broken or bent over sharp objects and edges. When working with the vacuum cleaner, do not drive over the power cord. Keep the power cord away from heat sources.
12. Do not pull the cord from the outlet by yanking

the cable. Unplug the cable from the outlet by grasping the plug.

1. Do not touch the power cord or the vacuum cleaner with wet hands.

2. Do not insert any objects into the vacuum cleaner openings. Do not use the vacuum cleaner if the openings are blocked in any way. Make sure that the vacuum cleaner is clean, without dirt and any dirt residue, which can reduce the suction power of the vacuum cleaner.

3. Keep hair, loose clothing, hands and other parts of the body away from openings or moving parts of the vacuum cleaner.

4. Never vacuum the following objects, which can cause damage to the appliance or injury to a person:

5. sharp objects like glass, screws, coins, nails, etc.

6. hot or smouldering objects like embers, cigarettes or flammable and volatile liquids

7. wet surfaces, water and other liquids.

8. Use extra care when cleaning stairs.

9. Use the vacuum cleaner only in accordance with instructions in this manual. This vacuum cleaner is designed for home use only. The manufacturer is not liable for damages caused by the improper use of this appliance.
10. The appliance may be used by children 8 years or older and by persons with reduced physical or mental capabilities, if they are under supervision or if they have been instructed in the use of the appliance in a safe manner and understand the potential risks. Children must not play with the appliance. Children must not carry our cleaning and maintenance of the appliance, unless they are 8 years or older and under supervision. Children younger than 8 years have to be kept away from the appliance and its power supply.

VACUUM CLEANER DESCRIPTION

GB

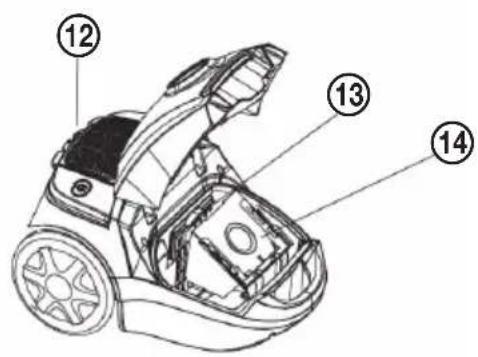

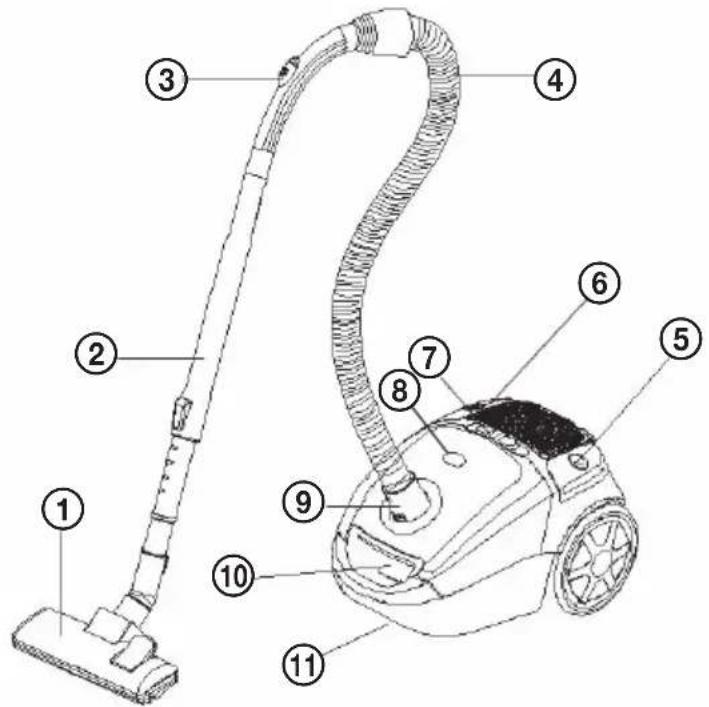

List of parts

1. FLOOR BRUSH
2. TELESCOPIC TUBE
3. SUCTION POWER REGULATION
4. SUCTION HOSE
5. ON/OFF BUTTON
6. CABLE REWIND BUTTON

7. POWER CONTROL

8. DUST BAG FULL INDICATOR

9. SUCTION HOSE CONNECTION
10. DUST BAG COVER LOCK
11. CARRYING HANDLE
12. COVER OF THE AIR OUTFLOW FILTER
    13.MOTOR FILTER
13. REPLACEABLE DUST BAG

Accessories

Floor brush

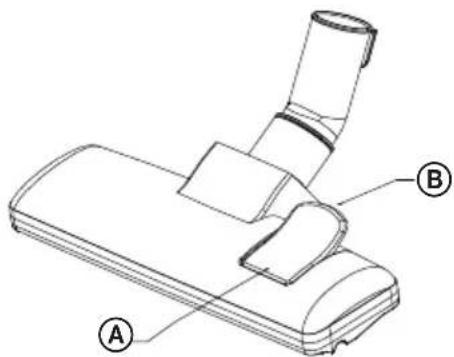

Can be switched to a position for carpets (press pedal A - brush retracted) or to a position for hard floors (press pedal B - brush is out).

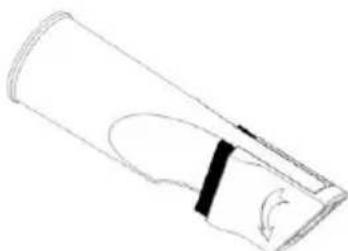

Combined nozzle

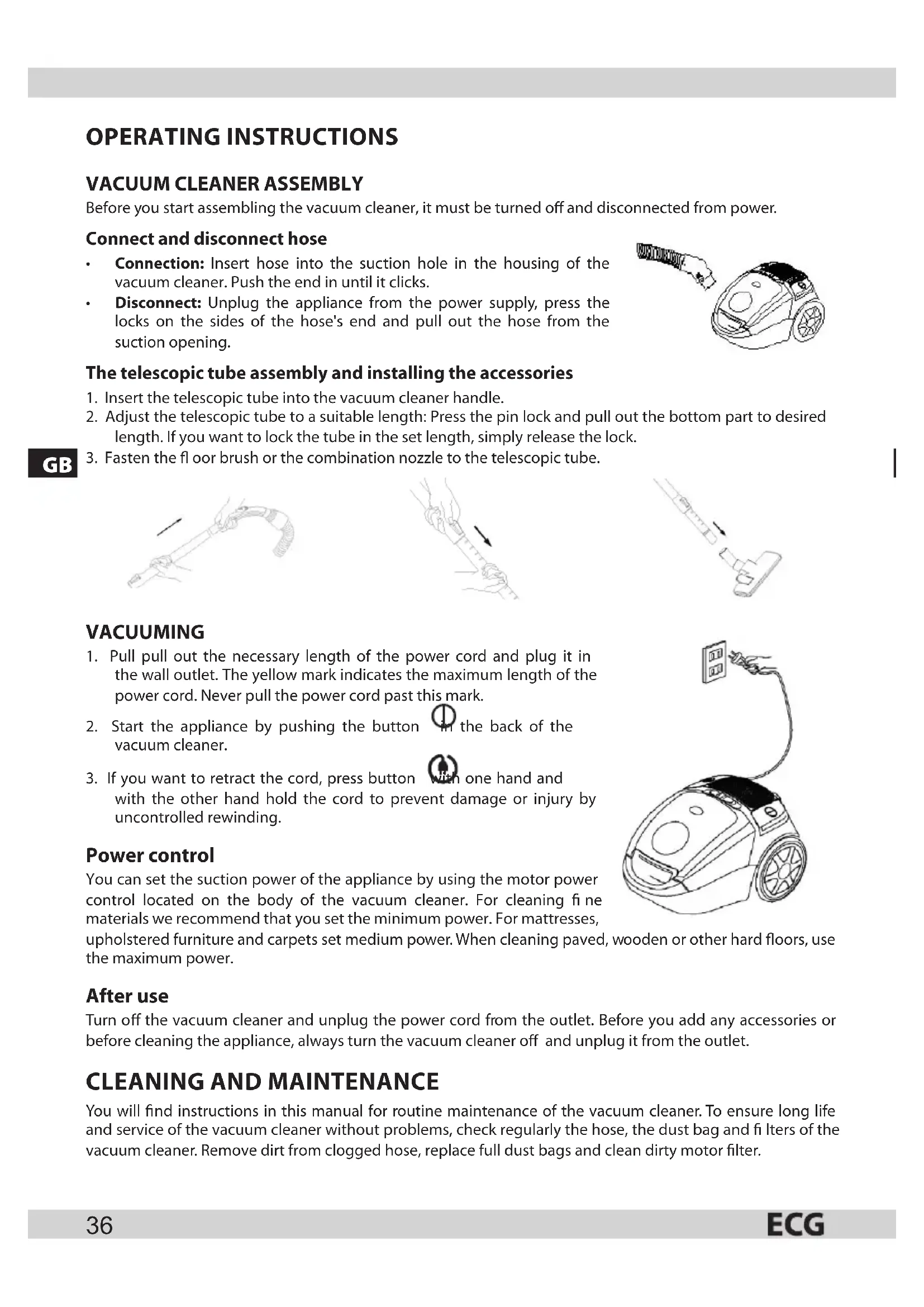

OPERATINGINSTRUCTIONS

VACUUM CLEANER ASSEMBLY

Before you start assembling the vacuum cleaner, it must be turned off and disconnected from power.

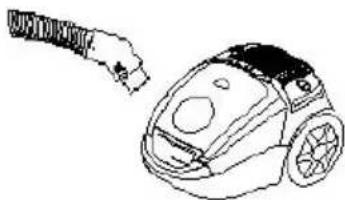

Connect and disconnect hose

• Connection: Insert hose into the suction hole in the housing of the vacuum cleaner. Push the end in until it clicks.

• Disconnect: Unplug the appliance from the power supply, press the locks on the sides of the hose's end and pull out the hose from the suction opening.

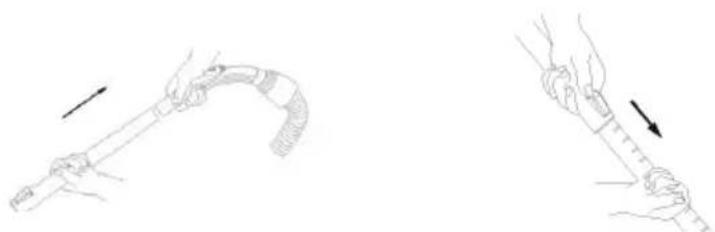

The telescopic tube assembly and installing the accessories

1. Insert the telescopic tube into the vacuum cleaner handle.
2. Adjust the telescopic tube to a suitable length: Press the pin lock and pull out the bottom part to desired length. If you want to lock the tube in the set length, simply release the lock.
3. Fasten the floor brush or the combination nozzle to the telescopic tube.

GB

VACUUMING

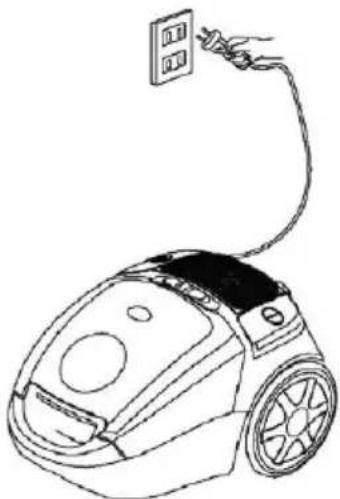

1. Pull pull out the necessary length of the power cord and plug it in the wall outlet. The yellow mark indicates the maximum length of the power cord. Never pull the power cord past this mark.

2. Start the appliance by pushing the button vacuum cleaner.

in the back of the

1. If you want to retract the cord, press button with one hand and with the other hand hold the cord to prevent damage or injury by uncontrolled rewinding.

Power control

You can set the suction power of the appliance by using the motor power control located on the body of the vacuum cleaner. For cleaning fine materials we recommend that you set the minimum power. For mattresses,

upholstered furniture and carpets set medium power. When cleaning paved, wooden or other hard floors, use the maximum power.

After use

Turn off the vacuum cleaner and unplug the power cord from the outlet. Before you add any accessories or before cleaning the appliance, always turn the vacuum cleaner off and unplug it from the outlet.

CLEANING AND MAINTENANCE

You will find instructions in this manual for routine maintenance of the vacuum cleaner. To ensure long life and service of the vacuum cleaner without problems, check regularly the hose, the dust bag and fi iters of the vacuum cleaner. Remove dirt from clogged hose, replace full dust bags and clean dirty motor filter.

Replacement dust bags and fi Iters

The dust bag and the motor filter are very important for optimum efficiency of the vacuum cleaner. The purpose of the dust bag is to capture dirt, but in the same time it has to be sufficiently porous to let air through. If the dust bag or the filter is clogged, which is indicated by the full bag indicator ⑧, the air cannot flow through the vacuum cleaner and it becomes ineffective, regardless of how much power the motor has. In order for the vacuum cleaner to work with maximum effectiveness, replace the dust bag regularly and clean the motor filter when necessary. Some fine particles can very quickly reduce the air flow and reduce the suction power already before the dust bag seems full. Therefore when vacuuming the residue of carpet cleaner, powder, dust from plaster and similar fine materials you should replace the dust bag more often.

CHANGING DUST BAG

• Before opening the cover, the vacuum cleaner has to be unplugged and the hose has to be disconnected from the vacuum cleaner!
• Never use the vacuum cleaner without the inserted dust bag and filter!

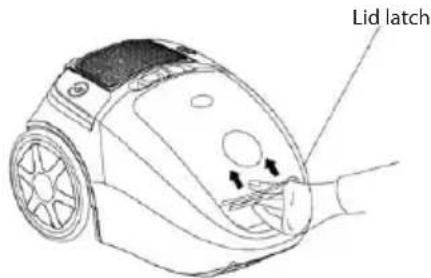

• After unplugging it and disconnecting the hose, you open the cover of the dust bag by pressing the lock upward and opening the cover.
• Take the holder of the dust bag by its handle and remove it together with the dust bag from the vacuum cleaner.

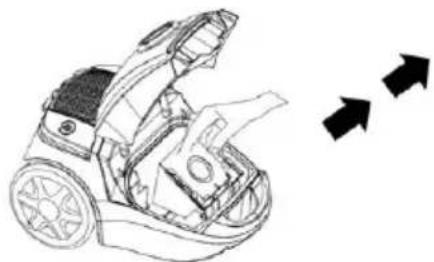

1. Remove bag from its holder.

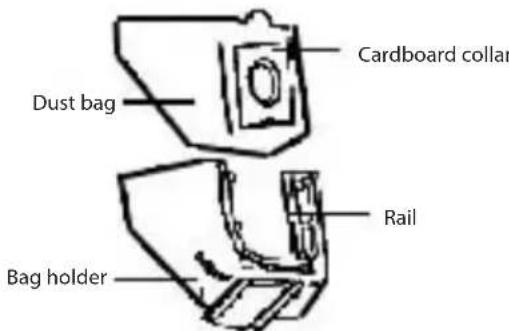

2. To insert a new dust bag in the holder: Unfold the bag carefully and insert the cardboard collar of the bag into the rail on the holder. Insert the collar fully.
3. Return the holder with the bag in the dust bag space, taking care that the holder is properly inserted in the guides in front of the dust bag space.
4. Close the dust bag cover and secure it by a gentle push.

Motor fi Iter cleaning

• The vacuum cleaner must be turned off and disconnected from power!

• Never use the vacuum cleaner without the inserted dust bag and fi lter!

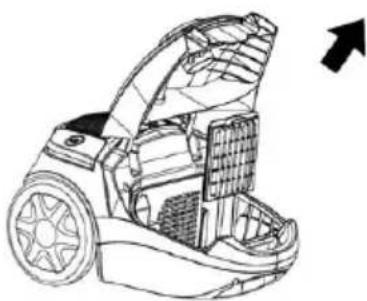

• After unplugging, open the cover of the dust bag by pressing the lock upward and opening the cover.

• Remove the motor fi lter and if it is very dirty, rinse it with warm water.
• Before you insert the fi Iter back in the vacuum cleaner let dry thoroughly.

Cleaning output air fi Iter

Before leaving the vacuum cleaner, the air is cleaned in the output filter. You can clean the output filter as follows:

1. Turn off power and unplug the power cord from the outlet.
2. Open the output grid 12 in the back of the vacuum cleaner.
3. After opening the grid you will see the output fi iter.

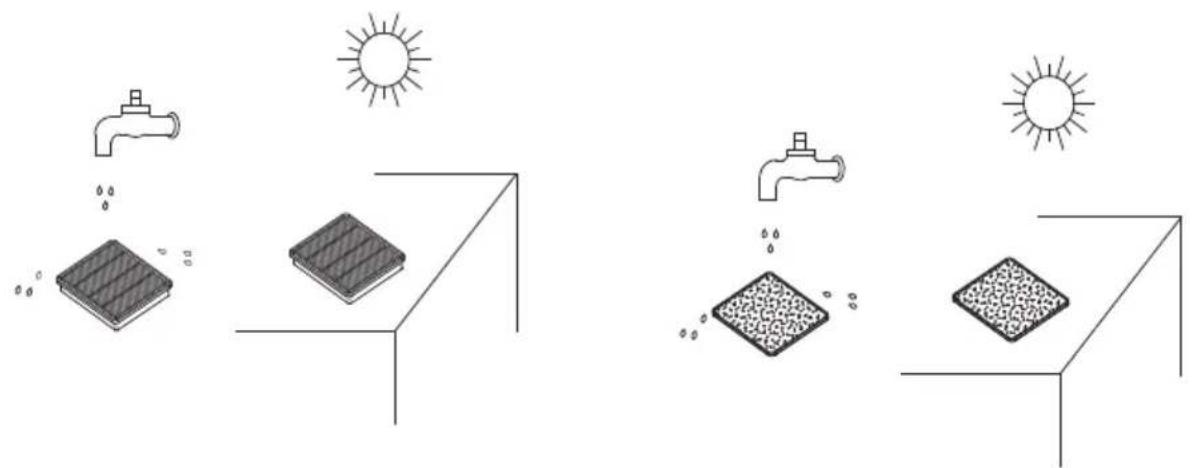

4. Rinse the fiiter under running water and let it dry thoroughly.
5. Return filter back to its place (or replace with a new one) and snap on the grid in the back of the vacuum cleaner.

GB

TROUBLESHOOTING

Before requesting service, check the following list of possible common problems and their solution.

Problem Possible cause	Solution
Motor does not switch on.	Vacuum cleaner is without power supply	Check power supply cord and the electric outlet. If the device remains inoperative, contact the authorized service.
The suction power gradually decreases.	Full dust bag, clogged hose or tubes or dirty fi Iters.	Replace dust bag, remove foreign objects from the hose or tube, replace fi Iters.

TECHNICAL SPECIFICATIONS

Suction power: max. 325 W

Thermostat fuse against motor overheating

Variable electronic suction power

Dustbag capacity: 2.0 l

Stainless steel telescopic tube

Rubber wheels for easier handling

Automatic cord rewind

Full dustbag indicator

7.5 m operating radius

Weight: 5.45kg

Nominal voltage: 230 - 240V 50 / 60Hz

Nominal input power: 1200 W

Max. input power: 1400 W

Noise level: < 83 dB

Attention

You can find alternative dust bags for this vacuum cleaner under the name KOMA ECG VP 3161 S. You can also use universal bags Swirl Y101* MicroPor Plus and BASE BA 4000.

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard - deliver to scrapyard. Packing foil, PE bags, plastic elements - throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product.

Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

The instruction manual is available at website www.ecg.cz. Changes in text and technical parameters reserved.

08/05
