USER MANUAL BL 7680 GRUNDIG

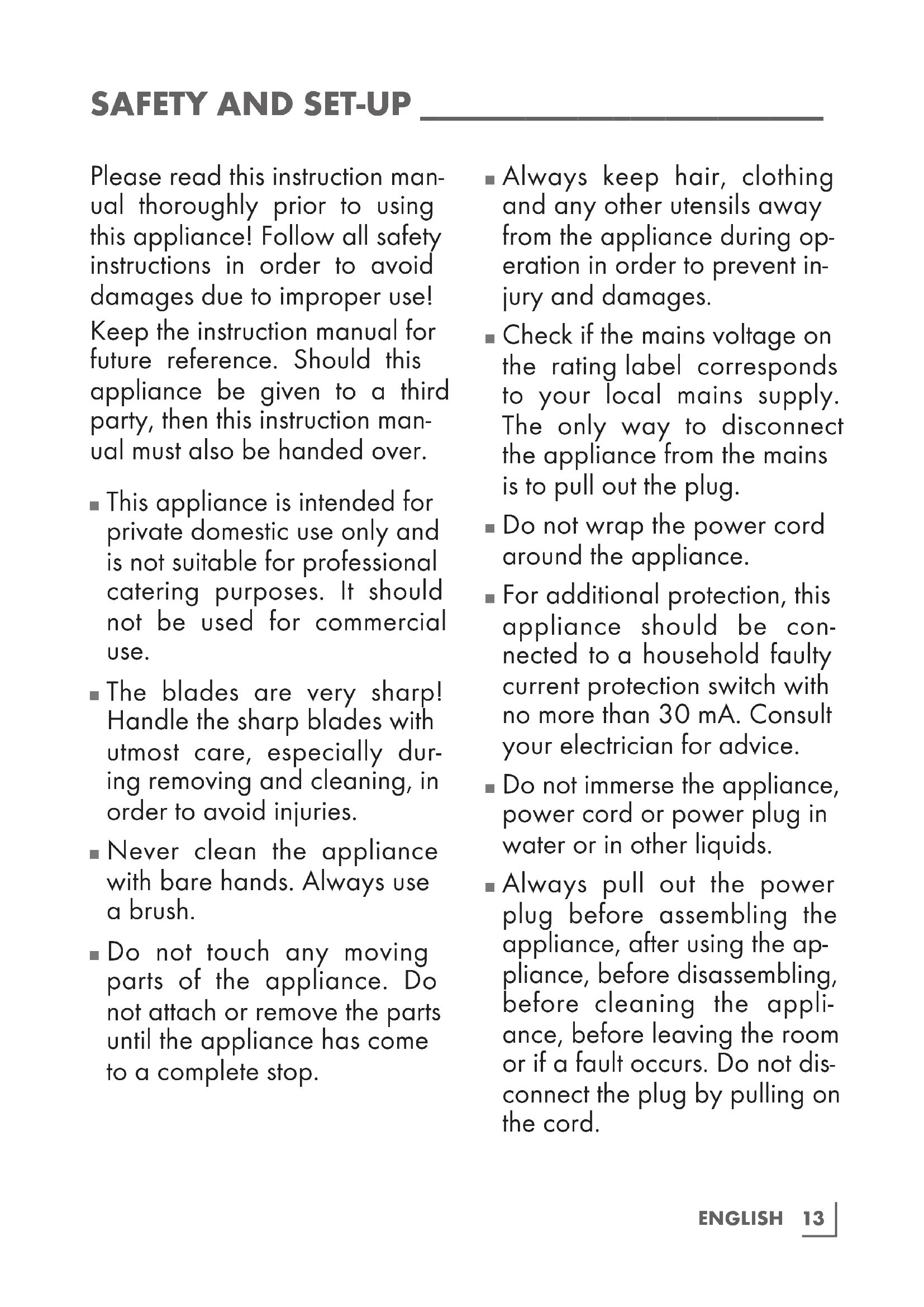

Please read this instruction man- ual thoroughly prior to using this appliance! Follow all safety instructions in order to avoid damages due to improper use! Keep the instruction manual for future reference. Should this appliance be given to a third party, then this instruction man- ual must also be handed over.

This appliance is intended for private domestic use only and is not suitable for professional catering purposes. It should not be used for commercial use.

The blades are very sharp! Handle the sharp blades with utmost care, especially dur- ing removing and cleaning, in order to avoid injuries.

Never clean the appliance with bare hands. Always use a brush.

Do not touch any moving parts of the appliance. Do not attach or remove the parts until the appliance has come to a complete stop.

Always keep hair, clothing and any other utensils away from the appliance during op- eration in order to prevent in- jury and damages.

Check if the mains voltage on the rating label corresponds to your local mains supply. The only way to disconnect the appliance from the mains is to pull out the plug.

Do not wrap the power cord around the appliance.

For additional protection, this appliance should be con- nected to a household faulty current protection switch with no more than 30 mA. Consult your electrician for advice.

Do not immerse the appliance, power cord or power plug in water or in other liquids.

Always pull out the power plug before assembling the appliance, after using the ap- pliance, before disassembling, before cleaning the appli- ance, before leaving the room or if a fault occurs. Do not dis- connect the plug by pulling on the cord.14 ENGLISH

Do not squeeze or bend the power cord and do not rub it on sharp edges in order to prevent any damage.

Keep the cord away from hot surfaces and open flames.

Do not use an extension cord with the appliance.

Never use the appliance if the power cord or the appliance is damaged.

Our GRUNDIG Household Appliances meet applicable safety standards, thus if the appliance or power cord is damaged, it must be repaired or replaced by the dealer, a service centre or a similarly qualified and authorized service person to avoid any dangers. Faulty or unqualified repair work may cause dan- ger and risks to the user.

Do not dismantle the ap- pliance under any circum- stances. No warranty claims are accepted for damage caused by improper handling.

Cleaning and user mainte- nance shall not be made by children without supervision.

This appliance can be used by people who have limited physical, sensory or mental capacity or who do not have knowledge and experience, provided that they are super- vised or they understand the instructions with regard to safe use of the product and potential dangers. Children should not play with the ap- pliance. Cleaning and main- tenance works should not be performed by children.

Keep the appliance and the power cable out of the reach of children.

This appliance cannot be used by children.

Do not leave the appliance unattended as long as it is in use. Extreme caution is ad- vised when the appliance is being used near children and people with limited physical, sensory or mental capabilities.

Before using the appliance for the first time, clean all parts which come into contact with food carefully. Please see details in the “Cleaning and Care” section.ENGLISH

Dry the appliance and all parts before connecting it to the mains supply and before attaching the accessories.

Do not operate the appliance without ingredients in the measuring beaker or chop- ping bowl.

Never place the appliance, attachments, power cord or plug on hot surfaces such as gas or electric burners or hot oven surfaces and never use with hot liquids or food. Let hot food and liquids cool down to min.

Do not use the appliance for anything other than its in- tended use.

Never switch on the appli- ance for longer than neces- sary for processing the food.

Never use the appliance with damp or wet hands.

Operate the appliance with the delivered parts only.

The appliance is designed to process common household quantities only.

Do not use the appliance if the blades are damaged or show signs of wear.

Make sure that there is no danger that the power cord could be accidentally pulled or that someone could trip over it when the appliance is in use.

Position the appliance in such a way that the plug is always accessible.

A spatula may be used to re- move the food from the meas- uring beaker and chopping bowl. Make sure that the ap- pliance is switched off before doing this.

We do not recommend oper- ating the appliance with dry or hard foods or for ice crush- ing as this may conclude in dull or damaged blades.

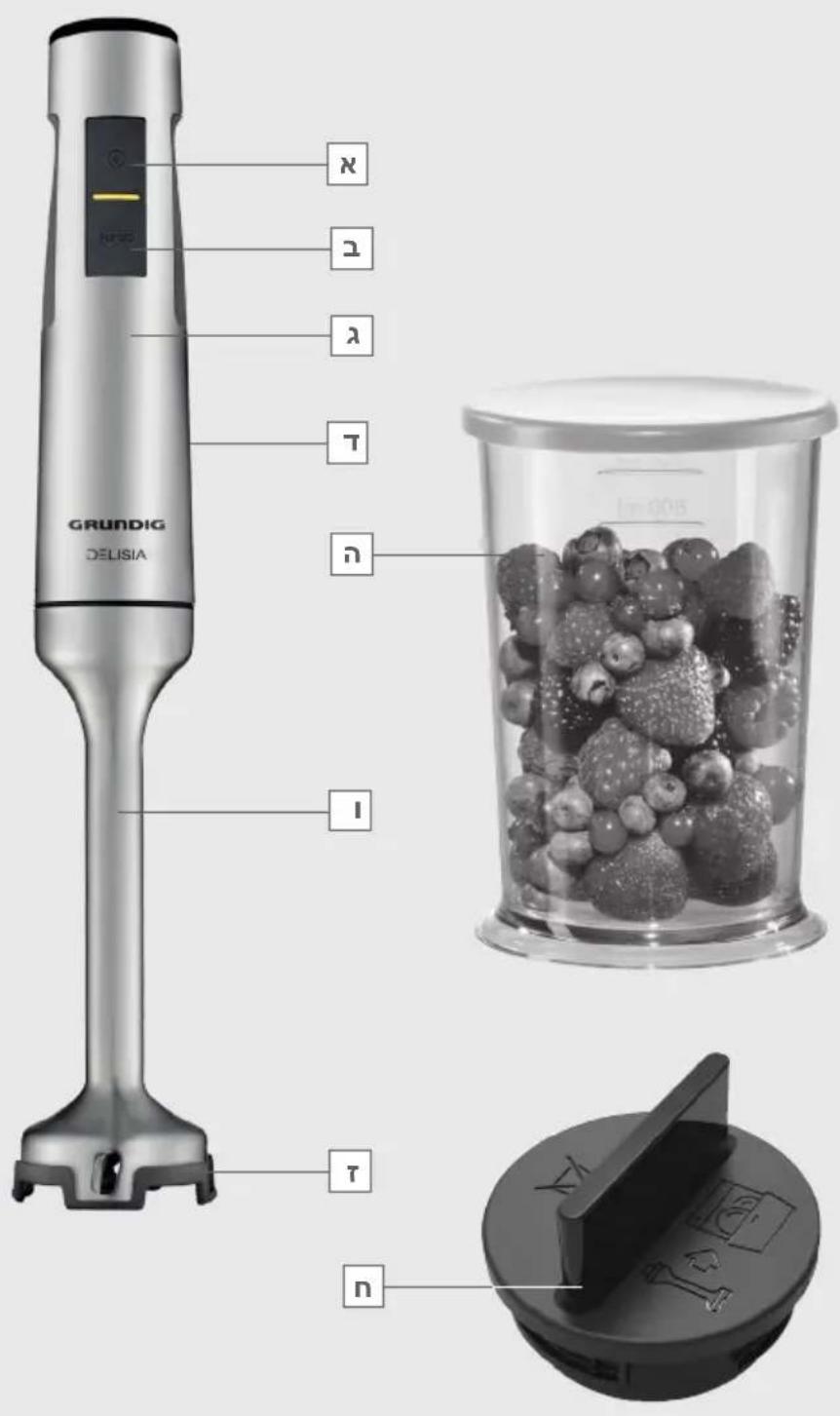

Remove bones and stones from food to prevent the blades and the appliance from being damaged.16 ENGLISH Dear Customer, Congratulations on the purchase of your new GRUNDIG Hand Blender BL 7680. Please read the following user notes carefully to ensure full enjoyment of your quality product from GRUNDIG for many years to come. A responsible approach! GRUNDIG focuses on contractu- ally agreed social working condi- tions with fair wages for both internal employees and suppliers. We also attach great importance to the efficient use of raw materials with continuous waste reduction of several tonnes of plastic every year. Furthermore, all our acces- sories are available for at least 5 years. For a future worth living. Grundig. Controls and parts See the figure on page 3.

OPERATION ______________________________ Preparation 1 Remove all packaging and sticker materials and dispose of them according to the applica- ble legal regulations. 2 Before using the appliance for the first time, clean the parts which come into contact with food (see the “Cleaning and care” section). 3 Cut the food into small pieces before process- ing it with the appliance. Blending 1 Put the food that you would like to puree or mix in the measuring beaker

or a similar bowl. 2 Attach the blending attachment

by pushing the attachment to the motor until it locks. Make sure the blend- ing attachment is properly attached to the motor unit. 3 Insert the plug into the wall socket. 4 Immerse the blending attachment

in the measuring beaker

, that contains the ingre- dients to be blended. Note

until the blending attachment has been im- mersed in the ingredients. 5 Press and hold on the Start button

button. ― The appliance starts operating. 6 Use the speed control

illuminates according to the desired speed 1-6. Notes

When you use the turbo button the appliance operates at maximum speed. In this case you cannot adjust the speed with the speed control

The processing time for about 100-400 ml of baby food or soup is 20 seconds. 7 Move the appliance slowly up and down and in circles to blend the ingredients. Note

Always switch off the appliance before taking out the processed food. 8 Release the Start button

when you are finished and disconnect the power plug from the wall socket. Remove the mixture from the measuring beaker

9 Remove the blending accessory

by rotating it anti-clockwise. Notes

To prevent overheating do not operate the ap- pliance continuously for more than 10 seconds.

Never switch on the appliance for longer than necessary for processing the food.

To prevent overflowing of the mixture do not overfill the measuring beaker

or bowl. Smaller amounts are easier to process.

To prevent any accidents use the beaker lid as a anti-slip rubber pad by putting the beaker base on the lid.

If you would like to use the blending attach- ment directly in the pot, first take the pot off the stove to prevent the blending attachment from overheating.18 ENGLISH INFORMATION ___________________________ Cleaning and care Caution

Never use petrol, solvents or abrasive clean- ers, metal objects or hard brushes to clean the appliance.

Do not touch the blades with your bare hands. The blades are very sharp. Use a brush!

or power cord in water or any other liquids and never hold them under running water. 1 Turn the appliance off and disconnect it from the wall socket. 2 Let the appliance cool down completely. 3 Use a damp soft cloth to clean the motor unit

4 Before washing the blending shaft

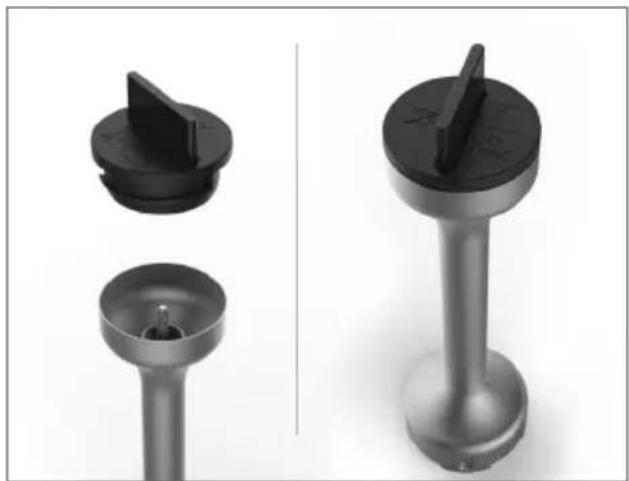

on the upper side of the shaft and turn clockwise to lock. Note

You can wash the blending shaft

in the dishwasher. 5 Immediately after using, clean the blending attachment

and measuring beaker

with warm, soapy water and dry them thoroughly. Never wash them in the dishwasher. Note

Before using or storing the appliance after cleaning, dry all parts carefully using a soft cloth. Storage

If you do not plan to use the appliance for a long period of time, please store it carefully.

Make sure the appliance is unplugged and completely dry.

Store the appliance in a cool, dry place.

Make sure the appliance is kept out of the reach of children. Compliance with the WEEE Directive and Disposing of the Waste Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classifica- tion symbol for waste electrical and electronic equipment (WEEE). This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of elec- trical and electronic equipment. Please consult your local authorities to learn about these collec- tion centers. Compliance with RoHS Directive The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials speci- fied in the Directive.ENGLISH

INFORMATION ___________________________ Package information Packaging materials of the product are manufactured from recyclable ma- terials in accordance with our Na- tional Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points desig- nated by the local authorities. Technical data Power supply: 220-240 V

, 50/60 Hz Power: 600 W Technical and design modifications reserved.20
