USER MANUAL 90.890 Beper

FOUR MICRO-ONDES -MANUEL D'INSTRUCTIONS

For further information and/or for instructions for use in other languages, please visit: beper.com

Fig.1 Fig.2

AVVERTENZE GENERALI

LEGGERE QUESTE ISTRUZIONI PRIMA DI USARE L'APPARECCHIO.

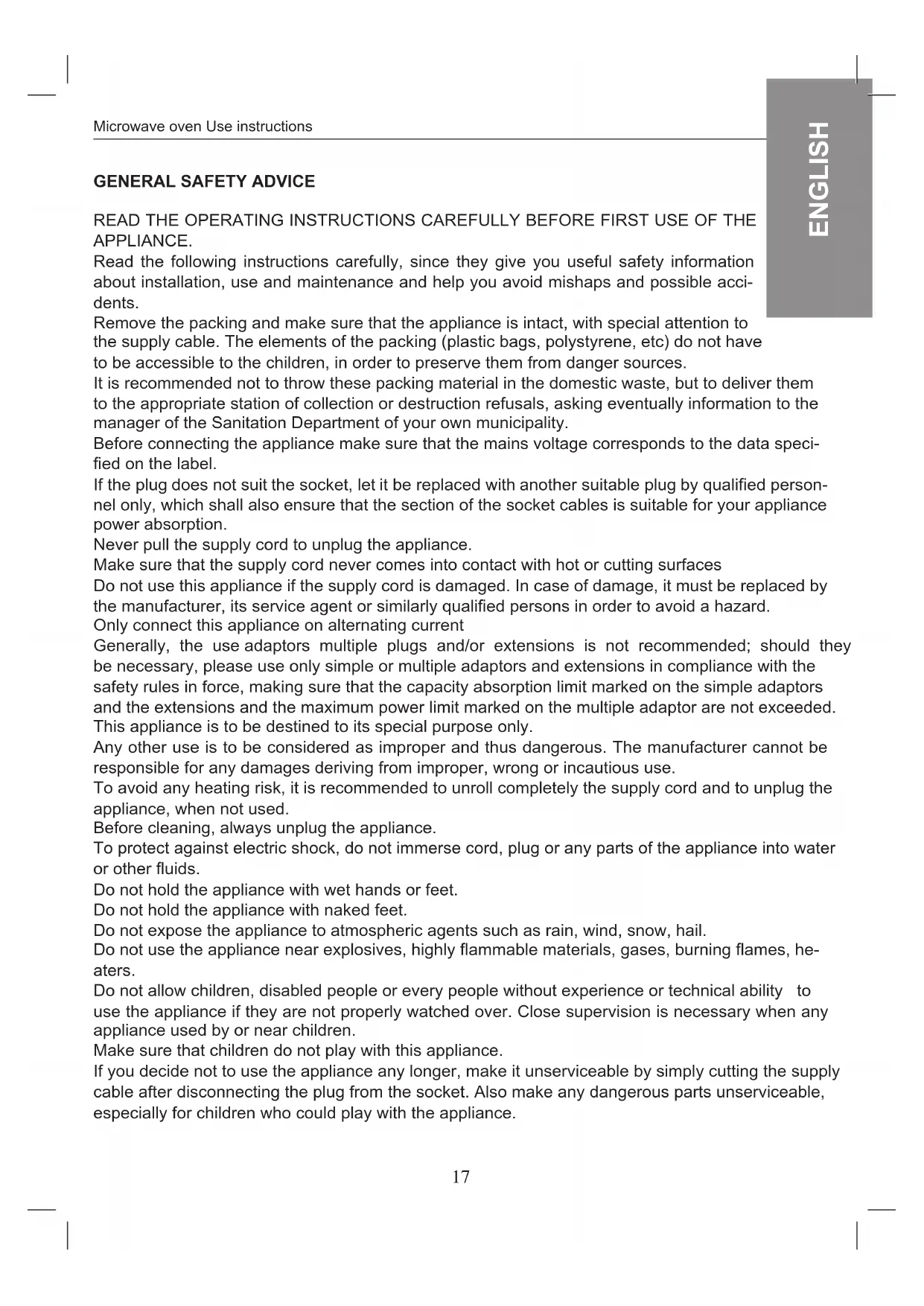

GENERAL SAFETY ADVICE

READ THE OPERATING INSTRUCTIONS CAREFULLY BEFORE FIRST USE OF THE APPLIANCE.

Read the following instructions carefully, since they give you useful safety information about installation, use and maintenance and help you avoid mishaps and possible accidents.

Remove the packing and make sure that the appliance is intact, with special attention to the supply cable. The elements of the packing (plastic bags, polystyrene, etc) do not have to be accessible to the children, in order to preserve them from danger sources.

It is recommended not to throw these packing material in the domestic waste, but to deliver them to the appropriate station of collection or destruction refusals, asking eventually information to the manager of the Sanitation Department of your own municipality.

Before connecting the appliance make sure that the mains voltage corresponds to the data specified on the label.

If the plug does not suit the socket, let it be replaced with another suitable plug by qualified personnel only, which shall also ensure that the section of the socket cables is suitable for your appliance power absorption.

Never pull the supply cord to unplug the appliance.

Make sure that the supply cord never comes into contact with hot or cutting surfaces

Do not use this appliance if the supply cord is damaged. In case of damage, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Only connect this appliance on alternating current

Generally, the use adaptors multiple plugs and/or extensions is not recommended; should they be necessary, please use only simple or multiple adaptors and extensions in compliance with the safety rules in force, making sure that the capacity absorption limit marked on the simple adaptors and the extensions and the maximum power limit marked on the multiple adaptor are not exceeded.

This appliance is to be destined to its special purpose only.

Any other use is to be considered as improper and thus dangerous. The manufacturer cannot be responsible for any damages deriving from improper, wrong or incautious use.

To avoid any heating risk, it is recommended to unroll completely the supply cord and to unplug the appliance, when not used.

Before cleaning, always unplug the appliance.

To protect against electric shock, do not immerse cord, plug or any parts of the appliance into water or other fluids.

Do not hold the appliance with wet hands or feet.

Do not hold the appliance with naked feet.

Do not expose the appliance to atmospheric agents such as rain, wind, snow, hail.

Do not use the appliance near explosives, highly flammable materials, gases, burning flames, heaters.

Do not allow children, disabled people or every people without experience or technical ability to use the appliance if they are not properly watched over. Close supervision is necessary when any appliance used by or near children.

Make sure that children do not play with this appliance.

If you decide not to use the appliance any longer, make it unserviceable by simply cutting the supply cable after disconnecting the plug from the socket. Also make any dangerous parts unserviceable, especially for children who could play with the appliance.

SAFETY AND USE ADVICE

Before every use check that the oven door is hermetic and not damaged.

!ATTENTION!

If the door or the plastic seal are damaged, the oven must not be used before being repaired by a professional.

Do not use the microwave oven while empty, that could damage the appliance.

Do not use the microwave oven without the glass turntable and rotating plastic ring.

If burning smell from the oven or in case of smoke, turn off the oven immediately and disconnect the cord from the socket and let the oven door closed to contain any flames.

The temperature of accessible surfaces may be high when using the oven; keep the cord away from hot surfaces and do not cover the microwave oven.

Do not let cord hang over edge of table or countertop.

Do not use the microwave oven for storing containers or food, as in case of accidental ignition, it could cause damage or incidents.

Do not put objects onto the microwave oven.

Make sure the microwave oven is away from curtains, inflammable substances, heater source, cold or steam.

Do not use near to water.

Place the microwave oven on stand and stable surfaces, that can support the weight of the microwave oven, approx. 10kg .

It is necessary to ensure adequate ventilation to the microwave oven, to keep at least a 15cm distance from each side, 10cm on the back and 30cm above the appliance.

Place the microwave oven at least at 85~cm from the floor, away from children.

While using, the oven heats. Be careful and not to touch the resistances inside the oven.

Only use utensils and containers compatible with the microwave cooking.

Paper or plastic containers can cause fire while cooking, be very careful.

Remove any metal films or metal handles from the containers before putting them into the microwave oven.

Utensils should not touch the inside of the microwave oven while cooking.

Liquids and other food must not be heated into closed containers, they are likely to explode.

Regarding bottled foods and food for children especially, it is necessary to shake the vial after heating to have a uniform temperature of food, before eating.

Heat liquids in a microwave can cause delayed boiling, always observe when handling containers with liquids just heated.

Eggs and boiled eggs should not be reheated in the microwave oven as they may explode after heating.

After cooking the container may be hot, use oven gloves and take care that steam that could get out.

Do not cook food excessively.

Do not cook food excessively.

Do not use the oven as a container. Do not leave food such as bread, biscuits, etc., inside the oven.

To avoid breaking the glass tray:

• Let the tray cool down before cleaning;

• Do not set food or utensils on the cold glass tray ;

• Do not place frozen foods on the hot glass tray.

The lack of cleaning the microwave oven can cause surface damage and adversely affect the life of the oven and may cause dangerous situations.

Do not use too aggressive detergents or metallic spatula to clean the glass oven door that could scratch the surface and cause damage to the device.

While using the microwave oven, children must use only under adult supervision.

THE GRID MUST NOT GO IN CONTACT WITH FOOD

ELECTRIC SAFETY

The oven must be plugged into a mains outlet with grounded. In case of over-supply circuits, grounding reduces the risk of electric shock. The microwave oven is equipped with an electric cord compatible with a plug with earthing. The plug must be plugged into an outlet properly installed and equipped with grounding. Consult a qualified electrician if the update instructions to land would not be properly understood or in case of doubt concerning the connection to a socket with grounding. The power cord of the microwave oven is deliberately short to reduce the risks associated with the ability to pull the plug.

The rated voltage on the power cord or extension cord should be at least equivalent to the nominal voltage of the oven.

MATERIAL ANS UTENSILS

Material that can be used into the microwave oven

Terra cotta containers Follow	w the instructions of the manufacturer. The bottom of the terra cotta must be placed at least 5 cm above the glass plate. A bad use can damage the plate.
Plates Only plates able to support cooking into the microwave oven. Follow the instructions of the manufacturer. Do not use plates if broken and chipped.
Glass Product Only use heat resistant glass product and that can support cooking into the microwave oven. Make sure there are no metal edges. Do not use if broken or chipped.
Cooking bags Follow the instructions of the manufacturer. Do not close with metal fasteners. Cut slits to allow steam to get out.
Paper plates or cups Use only for short periods only to cook / reheat. The not leave oven unattended while cooking.
Paper towels Use when reheating to cover food and absorb any fat. Use only for short cooking times and under constant.
Ordinary plastic Only if the plastic is suitable for cooking into the microwave. Follow the instructions of the manufacturer. Should be stamped with the mark for use in microwave oven. Some plastic containers are deformed when the food placed inside heat. Bags for cooking and sealed plastic bag should be punched as indicated on the package.
Thin Plastic film Only the one suitable for cooking in microwave oven. Use to cover food during cooking and maintain moisture. Make sure the plastic wrap does not come into contact with food.

The accessible surface may be hot while working

Material to avoid into the microwave oven

Do not use aluminium containers into the microwave oven, paper container with metallic handle, metallic utensil, paper bags, polystyrene container, polyurethane or wood, that could damage the appliance and could be harmful to food.

MAIN CHARACTERISTICS OF A MICROWAVE OVEN

The operating principle of a microwave oven is the use of magnetic waves to cook food.

The heart of the technology is a device that can generate electromagnetic waves that led into the microwave oven heats the water molecules into the food. Water molecules are agitated and produce heat that spreads uniformly reaching the deeper layers of the food.

Food cooks more quickly and evenly when the water content is more important. Indeed for example vegetables need only few minutes, depending on the quantity, precisely because of the quantity of water.

Compared to traditional cooking methods, which can burn more easily foods, with the microwave oven that does not occur, if the advice on cooking times are applied.

The main advantages of microwave ovens are a part of the reduced cooking time compared to traditional cooking, with a significant energy saving. Exposure of food at high temperatures is limited, for a better nutritional properties.

The microwave oven is also very useful to defrost and reheat food.

Cooking in a microwave oven is safe, does not produce permanent changes in the molecular structure of foods.

The downside of cooking in the microwave is the difficulty of assaying the exact cooking time for each food.

Food

Few foods are not suitable for cooking in microwave oven as the eggs that could explode, while foods with a skin (such as apples, pears, sausages, etc.) must be punched before cooking. The closed bottles should not be reheated in the microwave oven, alcohols are potential sources of fire.

Containers

Electromagnetic waves are repelled by metals, not suitable for use in microwave oven. Even if the crystal contains some lead, plastic contains melanin, trays and aluminum foil are not suitable. Glass, terra cotta, paper are suitable if they were studied for cooking into microwave oven (they are engraved on the bottom or on the package suitable for cooking in microwave oven).

Porcelain and ceramics that have metal edging or gilt edges are excluded.

It is advisable to use oval containers without corners or edges, the bottles should not be put in the microwave oven with the plastic parts.

USEFUL ADVICES

Cooking depends on the homogeneity, quantity and type of food.

It is redommanded to cut the vegetables into strips or pieces for cooking.

Add water if necessary or if written on the package.

ADVICE FOR DEFROST

Frozen foods in bags or in plastic wrap or own packaging can be put directly into the microwave oven, provided they are no metal parts (ex: aluminum attachment).

Some foods, as vegetables and fish, do not need to be defrosted completely before you begin cooking.

While defrosting meat, fish lose their liquid. It is recommended to defrost them in a tray.

Defrosting food into the microwave oven does not contribute to the growth of bacteria.

ADVICES FOR REHEAT FOOD

Food must be defrosted before reheating.

Remove the packages and containers with metal parts.

Choose the correct function based on weight, temperature and type of food.

Mix the food during heating.

Cover foods with a transparent film, suitable for the microwave oven, so as to maintain oven cleaned.

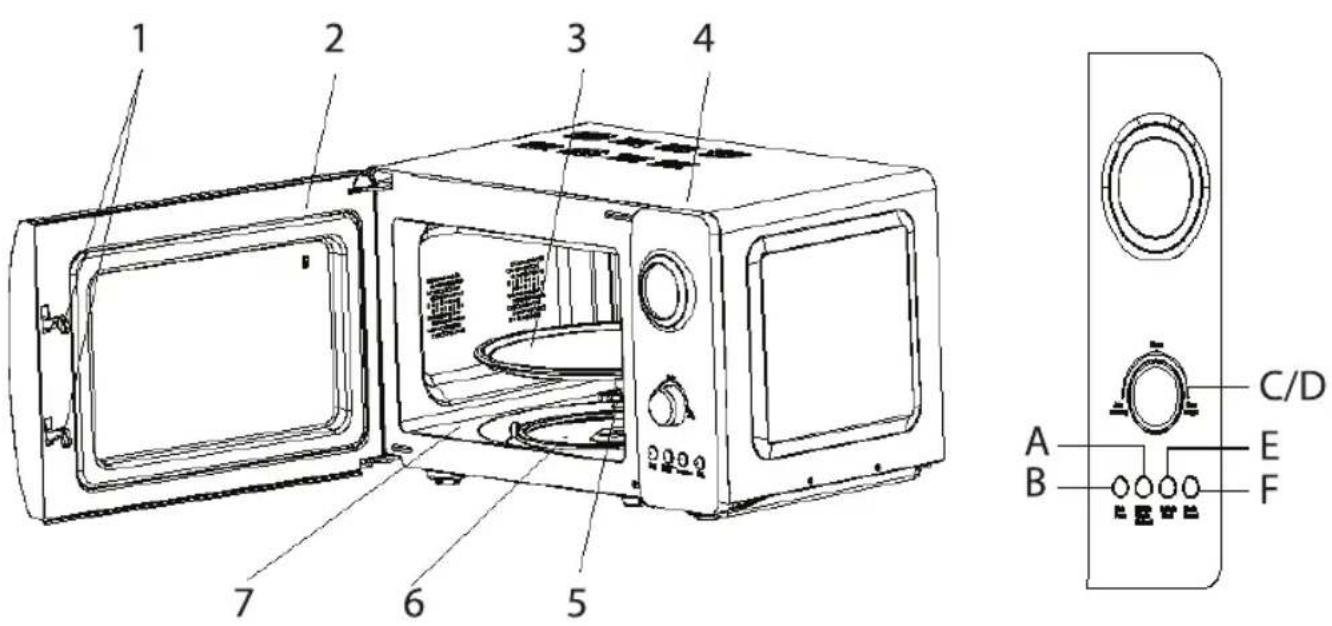

Product description

1- Door interlock
2-Oven door
3-Glass turntable
4-Housing
5- Rotating axis
6- Rotating ring
7-Oven door

Control panel

A- Set clock or defrost menu
B- Set power level
C- Set auto cooking menu
D- Set cooking time or weight
E-Start
F- Press once stop cookin Press twice clear settings

CAUTION

The LED flashes 3 times when plugged in power supply. Then it flashes "::", prompting you to input the cooking menu and time.

1. Auto reminder

When your preset cooking procedure have finished, the LED Display will show End and three beeps sound will be heard to prompt you to take out food. If you do not press Pause/Cancel button once or open the door, the beep will be sounded at an interval of 3 minutes.

2. Clock setting

Preset/Clock/Defrost button make it available for you to input current or preset time when “:” flashes onto LED display after plugged in, or try to skip it over to continue if unnecessary.

Example: to set 12:30
	Steps	Display
1	After power-up, the colon flashes	:
2	Hold Preset/Clock/Defrost button three seconds	0:00
3	Turn Auto Cooking/Time. Weight knob to set exact hours.	12:00
4	Press Preset/Clock/Defrost button once again.	12:00
5	Turn Auto Cooking/Time.Weight knob to set exact minutes.	12:30
6	Press Preset/Clock/Defrost button once again or wait for 5 seconds, and the numbers will go steadily.

3. Microwave cooking

This function is used for cooking and heating food. Press Micro Power button, LED cycles to show 100P—80P—60P—40P—20P

High power	100% microwave power. Applicable for quick and thorough cooking
Medium High power	80% microwave power. Applicable for medium express cooking
Medium power	60% microwave power. Applicable for steaming food
Medium Low power	40% microwave power. Applicable for defrosting food
Low power	20% microwave power. Applicable for keeping warm

CAUTION

a. The max time which can be set is 60 minutes.
b. Never operate the oven empty.
c. At the maximum microwave power, the oven will automatically lower the power after a certain time of cooking to lengthen the service life.
d. If you turn the food during operation, press the Instant/Start button once and the preset cooking procedure will continue.
e. If you intend to remove the food before the preset time, you must press Pause/Cancel button once to clear the preset procedure to avoid unintended operation of next time use.

Example: To cook at P80 for 10 minutes.
Steps		Display
1	After power-up, the colon flashes	:
2	Select the desired microwave power by pressing Micro Power button consecutively	80P
3	Set cooking time by turning Auto Cooking/Time. Weight knob	10:00
4	Press Instant/Start button and LED will count down to show running time.

CAUTION

You may change the cooking time during cooking. And it is recommended turning the food halfway, after you turn the food. Press Instant/Start button once to continue.

4. Defrost

This function use for defrost food; Press the Preset/Clock/Defrost button and the LED display will cycle to show d.1-d.2-d.3.

d.1	For defrosting meat, the weight range from 0.1 to \( {2.0}\mathrm{\;{kg}} \) .
d.2	For defrosting poultry, the weight range from 0.2 to 3.0kg.
d.3	For defrosting seafood, the weight range from 0.1 to 0.9kg.

CAUTION

a. It is necessary to turn over the food during operation to obtain uniform effect.
b. Usually defrosting will need longer time than that of cooking the food.
c. If the food can be cut by knife, the defrosting process can be considered completed.
d. Microwave penetrates around 4cm into most food
e. Defrosted food should be consumed as soon as possible, it is not advised to put back to fridge and freeze again

Example: To defrost 0.4kg poultry
	Steps	Display
1	After power-up, the colon flashes	:
2	Press Preset/Clock/Defrost button to set the food kind.	d.2
3	Turn Auto cooking/Time. Weight knob to set the defrost weight	0.4
4	Start cooking by pressing Instant/Start button	5:16
5	In half way during defrosting 3 beep sound will be heard two times to prompt you turn over the food. Open the door and turn over the food. Then close the door. Press Instant/Start button again to continue defrosting

5. Auto cooking

The oven has default cooking menu for simple operation. When the LED flash colon, turn the knob and LED will cycle to show A-01, A-02 ....... A-12. After setting auto cooking menu, pressing Enter button is available to set the cooking weight.

Choose the appropriate menu according to the food type and weight and strictly observe the directions in below table, otherwise the cooking effect will be largely influenced.

Display	Kind	Weight
A-01	Popcorn	All together there are two choices (3.0Oz and 3.5Oz)
A-02	Potato	All together there are two choices (0.45Kg and 0.65Kg)
A-03	Vegetable	All together there are five choices (0.1 0.2-----0.5Kg)
A-04	Meat	All together there are six choices (0.2 0.3-----0.7Kg)
A-05	Fish	All together there are six choices (0.2 0.3-----0.7Kg)
A-06	Chicken	All together there are six choices (0.2 0.3-----0.7Kg)
A-07	Reheat	All together there are five choices (0.2 0.4-----1.0Kg)
A-08	Beverage	All together there are two choices (250MI and 500MI)
A-09	Rice	All together there are five choices (0.1 0.2-----0.5Kg)
A-10	Pasta	All together there are five choices (0.1 0.2-----0.5Kg)
A-11	Bread	All together there are five choices (0.1 0.2-----0.5Kg)
A-12	Pizza	All together there are two choices (1 share and 2 share)

CAUTION

a. The temperature of food before cooking would be 20 - 25^ . Higher or lower temperature of the food before cooking would require increase or decrease of cooking time.
b. The temperature, weight and shape of food will largely influence the cooking effect. If any deviation has been found to the factor noted on above menu, you can adjust the cooking time for best result.

Example: Steam 0.4kg fish
Steps	Display
1. After power-up, the colon flashes	:
2. Turn the knob and the oven enter cooking menu mode
3. Then set the cooking menu by turning the knob	A-05
4. Press Enter button to affirm	A-05
5. Turn Auto Cooking/Time. Weight knob to set the weight	0.4
6. Start cooking by pressing Instant/Start button	10:00

6. Automatic starting (delayed function)

If you do not want the menu be started immediately, you can preset the cooking menu and time and the preset menu will be automatically started at your set time. The setting will consist of 2 steps:

• Setting the current Clock;
• Setting the cooking menu and time.

Example: Now it is 12:30 Clock, if you hope that the microwave oven will automatically start cooking with 100P microwave power for 9 minutes and 30 seconds at 14:20
	Steps	Display
1	After power-up, the colon flashes	:
1.1	Hold Preset/Clock/Defrost button three seconds	0:00
1.2	Set hours by turning Auto Cooking/Time. Weight knob	12:00
1.3	Press Preset/Clock/Defrost button again to confirm hours	12:00
1.4	Set minutes by turning Auto Cooking/Time. Weight knob	12:30
1.5	Press Preset/Clock/Defrost button once or waiting for 5 seconds, and the numbers will go steady.	12:30
2	Set the cooking menu and time
2.1	Select cooking power by pressing Micro Power button	100P
2.2	Turn Auto Cooking/Time. Weight knob to set cooking time	9:30
2.3	Press and hold Preset/Clock/Defrost button for 3 seconds to return to current Clock.
3	Set the time you expect to start. Repeat the steps of 1.2, 1.3, 1.4
4	Press Preset/Clock/Defrost button to confirm the delayed menu. Now the program has been activated. And the menu will be started at 14:20.
5	You may check the preset starting time by pressing Preset/Clock/Defrost button.

CAUTION

If you want to start the set program immediately without waiting, just press Instant/Start button; if "Automatic starting" need to be cancelled, press Pause/Cancel button.

7. Multi-sequence cooking

To obtain best cooking result, some recipes call for different cook mode and time. You may program your personalized menu as follow:

Example: You want cook food with 100P microwave for 3 minutes then 20P for 9 minutes. This is 2 sequence setting.
	Steps	Display
1	100P microwave for 3min
1.1	Press Micro Power button to select power level.	100P
1.2	Turn Auto Cooking/Time. Weight knob to set cooking time.	3:00
2	20P for 9min
2.1	Press Micro Power button to select power level	20P
2.2	Turn Auto Cooking/Time. Weight knob to set cooking time.	9:00
3	Start cooking by pressing Instant/Start button

CAUTION

a. When microwave 100 power cooking is finished, microwave oven will begin next operation automatically.

b. Max 4 sequences can be set per time, repeat the steps

1. Child lock function

Use this feature to lock the control panel when you are cleaning or so that children can not use the oven unsupervised. . All the buttons are rendered inoperable in this mode.

• To set child lock, press and hold Pause/Cancel button about 3 seconds.
• To cancel child lock, press and hold Pause/Cancel button about 3 seconds.

Utensils guideline

It is strongly recommended to use the containers which are suitable and safe for microwave cooking. Generally speaking, the containers which are made of heat-resistant ceramic, glass or plastic are suitable for microwave cooking. Never use the metal containers for microwave cooking and combination cooking as spark is likely to occur. You can take the reference of below table.

Material of container	Microwave	Notes
Heat-resistant ceramic	Yes	Never use the ceramics which are decorated with metal rim or glazed
Heat-resistant plastic	Yes	Can not be used for long time microwave cooking
Heat-resistant glass	Yes
Plastic film	Yes	It should not be used when cooking meat or chops as the over-temperature may do damage to the film
Grill rack	No
Metal container	No	It should not be used in microwave oven .Microwave can not penetrate through metal.
lacquer	No	Poor heat-resistant. Can not be used for High-temperature cooking
Bamboo wood and paper	No	Poor heat-resistant. Can not be used for High-temperature cooking

Cooking tips

The following factors may affect the cooking result:

Food arrangement

Place thicker areas towards outside of dish, the thinner part towards the centre and spread it evenly. Do not overlap if possible.

Cooking time length

Start cooking with a short time setting, evaluate it after it times out and extend it according to the actual need. Over cooking may result in smoke and burns.

Cooking food evenly

Food such as chicken, hamburger or steak should be turned once during cooking.

Depending on the type of food, if applicable, stir it from outside to centre of dish once or twice during cooking

Allow standing time

After cooking times out, leave the food in the oven for an adequate length of time, this allows it to complete its cooking cycle and cooling it down in a gradual manner

Whether the food is done

Color and hardness of food help to determine if it is done, these include:

Steam coming out from all parts of food, not just the edge

Joints of poultry can be moved easily

Pork or poultry shows no signs of blood

Fish is opaque and can be sliced easily with a fork

Browning dish

When using a browning dish or self-heating container, always place a heat-resistant insulator such as a porcelain plate under it to prevent damage to the turntable and rotating ring.

Microwave safe plastic wrap

When cooking food with high fat content, do not allow the plastic wrap come into contact with food as it may melt

Microwave safe plastic cookware

Some microwave safe plastic cookware might not be suitable for cooking foods with high fat and sugar content. Also, the preheating time specified in the dish instruction manual must not be exceeded

Maintenance

Servicing

Please check the following before calling for services.

1. Place one cup of water (approx. 150ml ) in a glass measure in the oven and close the door securely. Oven lamp should go off if the door is closed properly. Let the oven work for 1 min.
2. Does the oven lamp light?
3. Does the cooling fan work?
   (Put your hand over the rear ventilation openings.)
4. Does the turntable rotate?
   (The turntable can rotate clockwise or counter clockwise. This is quite normal.)
5. Is the water inside the oven hot?

If "NO" is the answer to any of the above questions, please check your wall socket and the fuse in your meter box. If both the wall socket and the fuse are functioning properly, CONTACT YOUR NEAREST SERVICE CENTER APPROVED.

Servicing safeguards

Caution: MICROWAVE RADIATION

1. The high voltage capacitor remains charge after disconnection; short the negative terminal of H. V capacitor to the oven chassis (use a screwdriver) to discharge before touching.

2. During servicing below listed parts are liable to be removed and give access to potentials above 250V to earth.

3. Magnetron
   High voltage transformer
   High voltage capacitor
   High voltage diode
   High voltage fuse

4. The following conditions may cause undue microwave exposure during servicing.

Improper fitting of magnetron;

Improper matching of door interlock, door hinge and door;

Improper fitting of switch support;

Door, door seal or enclosure has been damaged.

TECHNICAL DATA

Output 700 W

Grill Output: 800 W

Frequency 2450 MHz

Power supply: 220-240V~50Hz

For any improvement reasons, Beper reserves the right to modify or improve the product without any notice.

The European directive 2011/65/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

GUARANTEE CERTIFICATE

This appliance has been checked in the factory. From the date of original purchase a 24 month guarantee applies to material and production defects. The purchase receipt and the guarantee certificate must be submitted together in case of claim to guarantee.

The guarantee is valid only with a guaranty certificate and proof of purchase (fiscal receipt) indicating the date of purchase and the model of the appliance

For any technical assistance, please contact directly the seller or our head office in order to preserve the appliance's efficiency and NOT TO void the guarantee. Any intervention on this appliance by non-authorized persons will automatically void the guarantee.

Guarantee conditions

If the appliance shows defects as a result of faulty material and/or production during the period of guarantee, we guarantee repair free of charge on condition that:

• The appliance has been used properly and for the purpose for which it has been intended.
• The appliance has not been tampered with, otherwise it is not maintainable.
• The purchase receipt shall be presented.
• The appliance showing a fair wear and tear shall not be covered by this guarantee.

Therefore, any part that could be accidentally broken or having visible signs of use in consumable products (such as lamps, batteries, heating elements...) the aesthetic parts are excluded from the guarantee, and any defect whatsoever resulting from non-respect of the rules for use, negligence in usage and/or maintenance of the appliance, carelessness, wrong or improper installation, damage during transport and any other damage not attributable the supplier.

For every defect that could not be repaired within the guarantee period, the appliance will be replaced free of charge.

In any case, if the part to be replaced for defect, breakage or malfunction is an accessory and/or a detachable part of the product, Beper reserves the right to replace only the very part in question and not the entire product

Technical assistance

Even after the guarantee period we will always pay attention to repairs for defective appliances. For technical assistance and/or repairs after the guarantee period you can directly contact the below address:

PRECAUTIONS GENERALES

LIRE ATTENTIVEMENT LES INSTRUCTIONS SUIVANTES AVANT LA PREMIÈRE UTILISATION DE L'APPAREIL.

Assistance technique
