USER MANUAL 90.635G Beper

For further information and/or for instructions for use in other languages, please visit: www.beper.com
Fig.1

Fig.2

Fig.3

Fig.4

Fig.5

AVVERTENZE GENERALI

LEGGERE QUESTE ISTRUZIONI PRIMA DI USARE L'APPARECCHIO.

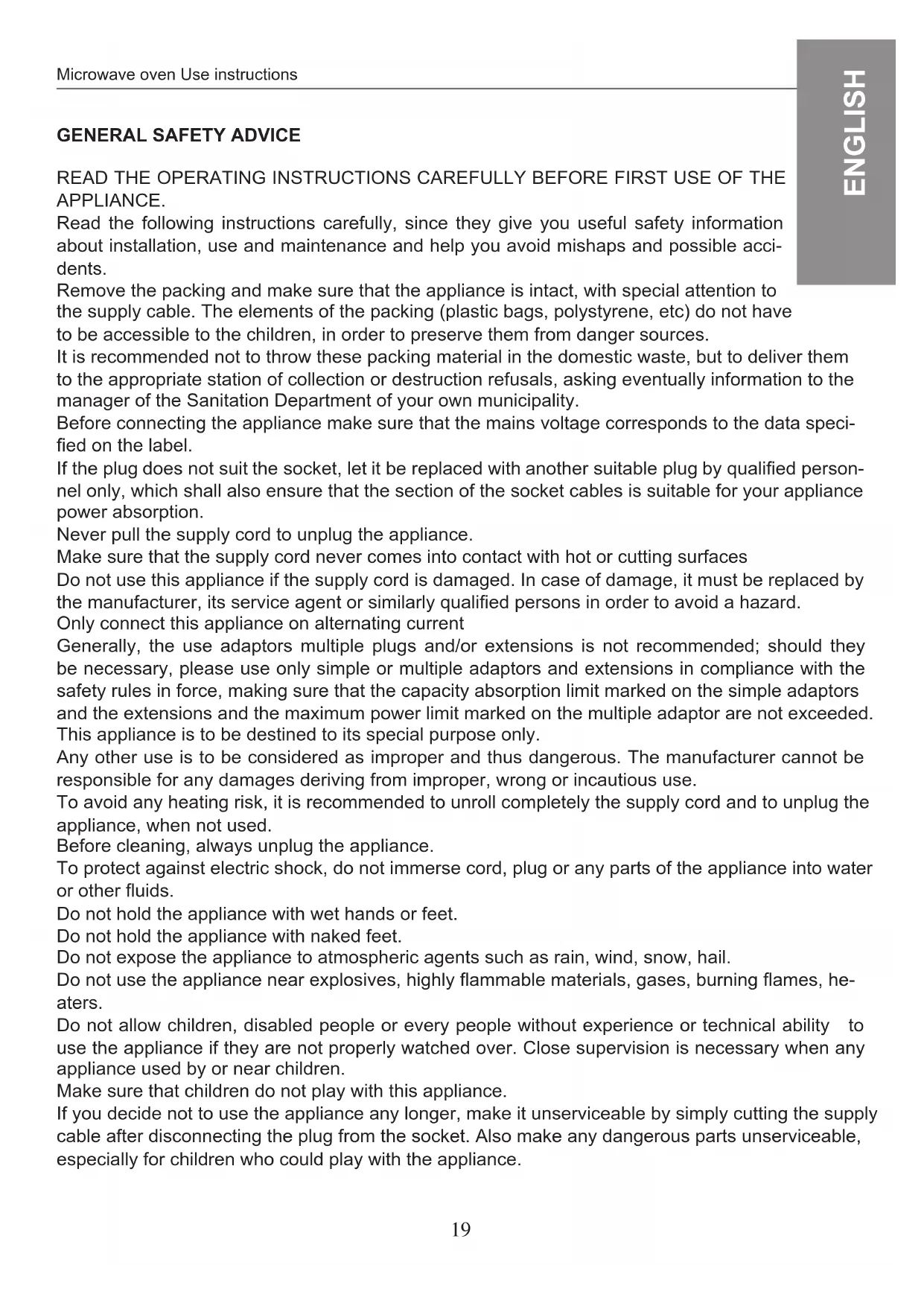

GENERAL SAFETY ADVICE

READ THE OPERATING INSTRUCTIONS CAREFULLY BEFORE FIRST USE OF THE APPLIANCE.

Read the following instructions carefully, since they give you useful safety information about installation, use and maintenance and help you avoid mishaps and possible accidents.

Remove the packing and make sure that the appliance is intact, with special attention to the supply cable. The elements of the packing (plastic bags, polystyrene, etc) do not have to be accessible to the children, in order to preserve them from danger sources.

It is recommended not to throw these packing material in the domestic waste, but to deliver them to the appropriate station of collection or destruction refusals, asking eventually information to the manager of the Sanitation Department of your own municipality.

Before connecting the appliance make sure that the mains voltage corresponds to the data specified on the label.

If the plug does not suit the socket, let it be replaced with another suitable plug by qualified personnel only, which shall also ensure that the section of the socket cables is suitable for your appliance power absorption.

Never pull the supply cord to unplug the appliance.

Make sure that the supply cord never comes into contact with hot or cutting surfaces

Do not use this appliance if the supply cord is damaged. In case of damage, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Only connect this appliance on alternating current

Generally, the use adaptors multiple plugs and/or extensions is not recommended; should they be necessary, please use only simple or multiple adaptors and extensions in compliance with the safety rules in force, making sure that the capacity absorption limit marked on the simple adaptors and the extensions and the maximum power limit marked on the multiple adaptor are not exceeded.

This appliance is to be destined to its special purpose only.

Any other use is to be considered as improper and thus dangerous. The manufacturer cannot be responsible for any damages deriving from improper, wrong or incautious use.

To avoid any heating risk, it is recommended to unroll completely the supply cord and to unplug the appliance, when not used.

Before cleaning, always unplug the appliance.

To protect against electric shock, do not immerse cord, plug or any parts of the appliance into water or other fluids.

Do not hold the appliance with wet hands or feet.

Do not hold the appliance with naked feet.

Do not expose the appliance to atmospheric agents such as rain, wind, snow, hail.

Do not use the appliance near explosives, highly flammable materials, gases, burning flames, heaters.

Do not allow children, disabled people or every people without experience or technical ability to use the appliance if they are not properly watched over. Close supervision is necessary when any appliance used by or near children.

Make sure that children do not play with this appliance.

If you decide not to use the appliance any longer, make it unserviceable by simply cutting the supply cable after disconnecting the plug from the socket. Also make any dangerous parts unserviceable, especially for children who could play with the appliance.

SAFETY AND USE ADVICE

Before every use check that the oven door is hermetic and not damaged.

!ATTENTION!

If the door or the plastic seal are damaged, the oven must not be used before being repaired by a professional.

Do not use the microwave oven while empty, that could damage the appliance.

Do not use the microwave oven without the glass turntable and rotating plastic ring.

If burning smell from the oven or in case of smoke, turn off the oven immediately and disconnect the cord from the socket and let the oven door closed to contain any flames.

The temperature of accessible surfaces may be high when using the oven; keep the cord away from hot surfaces and do not cover the microwave oven.

Do not let cord hang over edge of table or countertop.

Do not use the microwave oven for storing containers or food, as in case of accidental ignition, it could cause damage or incidents.

Do not put objects onto the microwave oven.

Make sure the microwave oven is away from curtains, inflammable substances, heater source, cold or steam.

Do not use near to water.

Place the microwave oven on stand and stable surfaces, that can support the weight of the microwave oven, approx. 10kg .

It is necessary to ensure adequate ventilation to the microwave oven, to keep at least a 15~cm distance from each side, 10~cm on the back and 30~cm above the appliance.

Place the microwave oven at least at 85~cm from the floor, away from children.

While using, the oven heats. Be careful and not to touch the resistances inside the oven.

Only use utensils and containers compatible with the microwave cooking.

Paper or plastic containers can cause fire while cooking, be very careful.

Remove any metal films or metal handles from the containers before putting them into the microwave oven.

Utensils should not touch the inside of the microwave oven while cooking.

Liquids and other food must not be heated into closed containers, they are likely to explode.

Regarding bottled foods and food for children especially, it is necessary to shake the vial after heating to have a uniform temperature of food, before eating.

Heat liquids in a microwave can cause delayed boiling, always observe when handling containers with liquids just heated.

Eggs and boiled eggs should not be reheated in the microwave oven as they may explode after heating.

After cooking the container may be hot, use oven gloves and take care that steam that could get out.

Do not cook food excessively.

Do not cook food excessively.

Do not use the oven as a container. Do not leave food such as bread, biscuits, etc., inside the oven.

To avoid breaking the glass tray:

• Let the tray cool down before cleaning;

• Do not set food or utensils on the cold glass tray ;

• Do not place frozen foods on the hot glass tray.

The lack of cleaning the microwave oven can cause surface damage and adversely affect the life of the oven and may cause dangerous situations.

Do not use too aggressive detergents or metallic spatula to clean the glass oven door that could scratch the surface and cause damage to the device.

While using the microwave oven, children must use only under adult supervision.

THE GRID MUST NOT GO IN CONTACT WITH FOOD

ELECTRIC SAFETY

The oven must be plugged into a mains outlet with grounded. In case of over-supply circuits, grounding reduces the risk of electric shock. The microwave oven is equipped with an electric cord compatible with a plug with earthing. The plug must be plugged into an outlet properly installed and equipped with grounding. Consult a qualified electrician if the update instructions to land would not be properly understood or in case of doubt concerning the connection to a socket with grounding. The power cord of the microwave oven is deliberately short to reduce the risks associated with the ability to pull the plug.

The rated voltage on the power cord or extension cord should be at least equivalent to the nominal voltage of the oven.

MATERIAL ANS UTENSILS

Material that can be used into the microwave oven

Terra cotta containers Follow	ow the instructions of the manufacturer. The bottom of the terra cotta must be placed at least 5 cm above the glass plate. A bad use can damage the plate.
Plates Only plates able to support cooking into the microwave oven. Follow the instructions of the manufacturer. Do not use plates if broken and chipped.
Glass Product Only use heat resistant glass product and that can support cooking into the microwave oven. Make sure there are no metal edges. Do not use if broken or chipped.
Cooking bags Follow the instructions of the manufacturer. Do not close with metal fasteners. Cut slits to allow steam to get out.
Paper plates or cups Use only for short periods only to cook / reheat. The not leave oven unattended while cooking.
Paper towels Use when reheating to cover food and absorb any fat. Use only for short cooking times and under constant.
Ordinary plastic Only if the plastic is suitable for cooking into the microwave. Follow the instructions of the manufacturer. Should be stamped with the mark for use in microwave oven. Some plastic containers are deformed when the food placed inside heat. Bags for cooking and sealed plastic bag should be punched as indicated on the package.
Thin Plastic film Only the one suitable for cooking in microwave oven. Use to cover food during cooking and maintain moisture. Make sure the plastic wrap does not come into contact with food.

The accessible surface may be hot while working

Material to avoid into the microwave oven

Do not use aluminium containers into the microwave oven, paper container with metallic handle, metallic utensil, paper bags, polystyrene container, polyurethane or wood, that could damage the appliance and could be harmful to food.

MAIN CHARACTERISTICS OF A MICROWAVE OVEN

The operating principle of a microwave oven is the use of magnetic waves to cook food.

The heart of the technology is a device that can generate electromagnetic waves that led into the microwave oven heats the water molecules into the food. Water molecules are agitated and produce heat that spreads uniformly reaching the deeper layers of the food.

Food cooks more quickly and evenly when the water content is more important. Indeed for example vegetables need only few minutes, depending on the quantity, precisely because of the quantity of water.

Compared to traditional cooking methods, which can burn more easily foods, with the microwave oven that does not occur, if the advice on cooking times are applied.

The main advantages of microwave ovens are a part of the reduced cooking time compared to traditional cooking, with a significant energy saving. Exposure of food at high temperatures is limited, for a better nutritional properties.

The microwave oven is also very useful to defrost and reheat food.

Cooking in a microwave oven is safe, does not produce permanent changes in the molecular structure of foods.

The downside of cooking in the microwave is the difficulty of assaying the exact cooking time for each food.

Food

Few foods are not suitable for cooking in microwave oven as the eggs that could explode, while foods with a skin (such as apples, pears, sausages, etc.) must be punched before cooking. The closed bottles should not be reheated in the microwave oven, alcohols are potential sources of fire.

Containers

Electromagnetic waves are repelled by metals, not suitable for use in microwave oven. Even if the crystal contains some lead, plastic contains melanin, trays and aluminum foil are not suitable. Glass, terra cotta, paper are suitable if they were studied for cooking into microwave oven (they are engraved on the bottom or on the package suitable for cooking in microwave oven).

Porcelain and ceramics that have metal edging or gilt edges are excluded.

It is advisable to use oval containers without corners or edges, the bottles should not be put in the microwave oven with the plastic parts.

USEFUL ADVICES

Cooking depends on the homogeneity, quantity and type of food.

It is redommanded to cut the vegetables into strips or pieces for cooking.

Add water if necessary or if written on the package.

ADVICE FOR DEFROST

Frozen foods in bags or in plastic wrap or own packaging can be put directly into the microwave oven, provided they are no metal parts (ex: aluminum attachment).

Some foods, as vegetables and fish, do not need to be defrosted completely before you begin cooking.

While defrosting meat, fish lose their liquid. It is recommended to defrost them in a tray.

Defrosting food into the microwave oven does not contribute to the growth of bacteria.

ADVICES FOR REHEAT FOOD

Food must be defrosted before reheating.

Remove the packages and containers with metal parts.

Choose the correct function based on weight, temperature and type of food.

Mix the food during heating.

Cover foods with a transparent film, suitable for the microwave oven, so as to maintain oven cleaned.

DESCRIPTION Fig.1

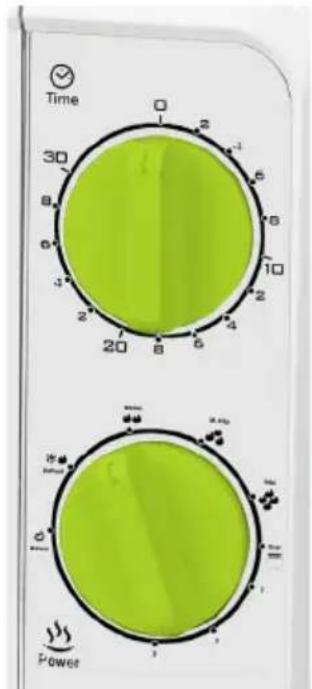

1-Control panel
1A - Power setting button
1B - Timer
2-Opening door button
3 - Rotating axis
4 Rotating
5-Turntable
6 - Viewing window
7 - Door interlock
8-Vents
9-Cord supply

USEINSTRUCTION

Remove all the packaging and accessories. Examine the oven to make sure the inside part or the door (6) are not damaged. Do not install the oven if it is damaged.

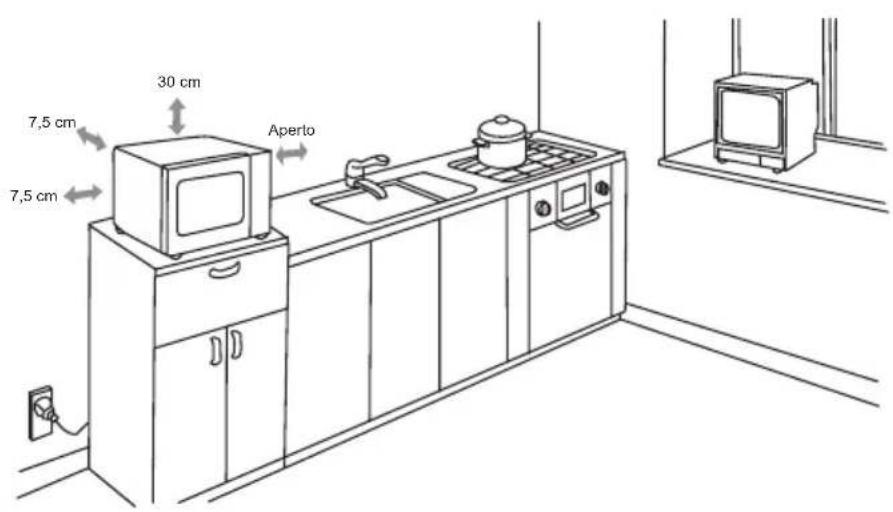

Place the microwave oven on a flat surface with enough space for ventilation inlet and outlet.

A minimum space of 7.5cm is required between the microwave oven and adjacent walls. One side must be open.Fig.2

Allow a minimum clearance of 30~cm above the oven.

Blocking the entrance and/or output can damage the oven.

Do not remove the feet located on the bottom of the oven.

Place the oven as far as possible from the radio or television. The operation of the microwave oven can cause interference to radio or television.

Connect the microwave oven to the electrical outlet, make sure the voltage is equal to that indicated on the label of the oven.

!ATTENTION!

Do not install the microwave oven on a stove or other appliances that produce heat. If the unit is installed on or near a heat source, the oven could be damaged and make void the warranty.

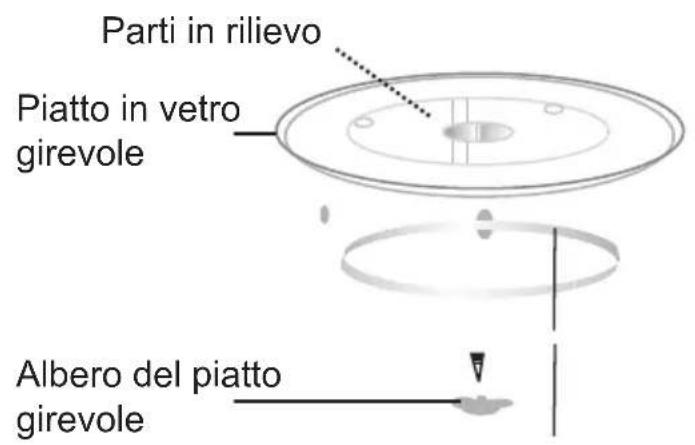

INSTALLATION OF TURNTABLE Fig.4

Place the rotating ring (4) on the rotating axis inside the microwave oven.

Place the turntable (5) on the rotating ring and fit on the rotating axis (3) so that the turntable fits well on the rotating axis (3).

It is very important that the turntable is placed safely to ensure correct rotation of the food while cooking.

Do never place the turntable (5) in reverse, the turntable must not be fixed.

Both the turntable (5) that the rotating ring (4) is required while cooking.

Food and containers should always be placed on the turntable (5) for cooking.

USE

Connect the power cord (9) on the socket.

Cooking

Turn the power setting (1A) to select the power level and type of desired cooking.

Turn the timer settings (1B) to select the cooking time.

After selecting the power level and cooking time, the oven will begin cooking automatically. during microwave oven operation, the internal led light for the duration of cooking.

At the end of the set time, the oven automatically stops and a beep sounds.

When the oven is off, check that the timer knob (1B) is in position 0.

The oven has a security system which does not allow the starting of the system if the door (6) is open or if it opens during cooking, the cooking stops until the door is closed.

The mechanism of rotation of the microwave oven allows to standardize the best maintaining cooking food in constant motion during cooking.

Defrost

Place the knob of the power (1A) on MEDIUM LOW.

With the timer adjustment knob (1B) selecting the weight of the food from 0 to 1kg .

Check that door (6) is closed and the oven will begin defrosting.

This function is set to a maximum weight of 1kg

FUNCTION/ POWER POWER (%) SUITABLE FOR
Low 18% microwave Keepi ng food warm, get the ice -cream softened
Defrost 36% microwave Defrost
Medium 58% microwave Meat, cakes
Medium High 81% microwave Rice, meat, fish, biscuits
High	100% microwave	Reheat, boiling water, cooking vegeta- bles, chicken, wild meats
Grill Grill 100% Keeping food warm, get the ice-cream soften
Comb 1 70% grill + 30%	micro-wave	Steakpork chops, meat, poultry, etc.
Comb 2 49% grill + 51%	micro-wave	Steak, pork chops, meat, poultry, etc.
Comb 3 67% grill + 33%	micro-onde	Chicken, duck, to make food crispy and tasty

CLEANING AND CARE

A good cleaning of the microwave oven allows to keep it safe, in good conditions and guaranty an optimal use.

Before cleaning the microwave oven turn the timer adjustment knob (1B) on 0 and disconnect the cord from the socket.

Wait for each part of the microwave oven cool down, especially external ones, the doors and the heating elements.

For cleaning use a non abrasive sponge or a soft cloth, lightly damp with water, and non abrasive detergent.

Do never spray detergent directly on the microwave oven but on the sponge.

Clean inside the microwave oven after use with a lightly damp cloth.

Clean the turntable (5), the rotating ring (4) with water and non abrasive detergent.

All the external parts have to be cleaned with a lightly damp cloth.

Be very careful not to spill liquids into the holes inside the oven, in the openings of ventilation and external control panel.

Clearing the microwave oven is very important especially after every use. Indeed food residues that are deposited inside the oven are dangerous because they can cause fires when lighting the oven.

The heating elements should not be cleaned, but if necessary remove the residues of food, but do never use an abrasive sponge.

Unpleasant odors coming from inside the oven can be removed with lemon juice combined with a neutral detergent.

Wipe each part of the microwave oven and its accessories before using the oven.

SOLVING PROBLEMS

In case of breakdown, before contacting the manufacturer or the Technical Assistance Center, check the following indications :

Interference of the microwave oven with the reception of television	It is possible that there is interference to radio or television for the operation of the microwave. This is a phenomenon similar to that which may occur with small appliances. This is normal.
Low light While cooking in a microwave oven at low pressure, the oven light may decrease. This is normal.
Steam builds up on the door, warm air come out from openings	During cooking it is possible that steam escapes from the food. Part of this steam is expelled through the openings, but the vapors may accumulate on cold surfaces such as door. This is normal.
The oven is turned on accidentally when empty	Turning on the microwave oven when empty does not create any damage to the appliance, but this is avoid.

Problem Possible causes	Solutions
The microwave oven does not turn on	The cord supply is not correctly connected to the socketThe fuse blows or the circuit breaker tripsProblem with the output terminal	Disconnect from the socket, and connect again after 10 secondsReplace the fuse or reset the circuit breaker (request the intervention of skilled personnel)Check the outlet with another device
The microwave oven does not heat	The door is not correctly closed	Close the door correctly
The turnplate is noisy when the microwave oven is in use	The wheels are dirty or food residue in the bottom the microwave oven	Please refer to the paragraph « cleaning and care»

TECHNICAL DATA

Capacity: 20 litres

Microwave power: input 1150 W

output 700 W

Grill Output:700-800 W

Frequency 2450 MHz

Power supply: 220-240V~50Hz

For any improvement reasons, Beper reserves the right to modify or improve the product without any notice.

The European directive 2011/65/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

This appliance has been checked in the factory. From the date of original purchase a 24 month guarantee applies to material and production defects. The purchase receipt and the guarantee certificate must be submitted together in case of claim to guarantee.

For any technical assistance, please contact directly the seller or our head office in order to preserve the appliance's efficiency and NOT TO void the guarantee. Any intervention on this appliance by non-authorized persons will automatically void the guarantee.

Guarantee conditions

If the appliance shows defects as a result of faulty material and/or production during the period of guarantee, we guarantee repair free of charge on condition that:

• The appliance has been used properly and for the purpose for which it has been intended.
• Repairs are professionally carried out by qualified persons who are appointed by the supplier.
• The purchase receipt shall be presented.
• The appliance showing a fair wear and tear shall not be covered by this guarantee.

Therefore, any part that could be accidentally broken or having visible signs of use in consumable products (such as lamps, batteries, heating elements...) is excluded from the guarantee, and any defect whatsoever resulting from non-respect of the rules for use, negligence in usage and/or maintenance of the appliance, damage during transport and any other damage not attributable the supplier.

For every defect that could not be repaired within the guarantee period, the appliance will be replaced free of charge.

Technical assistance

Even after the guarantee period we will always pay attention to repairs for defected appliances. For technical assistance and/or repairs after the guarantee period you can directly contact the below address:

CONTACT YOUR DISTRIBUTOR IN YOUR COUNTRY OR AFTER SALES DEPARTMENT

BEPER. E-MAIL [e-mail]

WHICH WILL FORWARD YOUR ENQUIRIES TO YOUR DISTRIBUTOR.

Recipes

Risotto with mushrooms and saffron

Function: microwave

Preparation: 10 minutes

Cooking: 20-23 minutes

Ingredients :

1 small chopped onion

1 crushed garlic clove

25g of butter

30g of dried mushrooms

1 packet of saffron

350g of rice

100ml of dry white wine

50g of grated cheese (parmesan)

700ml of hot broth

Salt

Put the mushrooms in warm water, then cut into small pieces and add to onion and butter in a container for microwave oven, cover and cook for 4 minutes at medium-high and mix once during cooking.

Add rice and wine, stir and allow to boil uncovered for 3 minutes at medium-high.

Pour the hot broth and saffron. The broth may be reheated in microwave oven for 5-6 minutes at high temperature. Mix, cover and cook on medium-high for 6-7 minutes.

Continue cooking with the lid on medium-high for 7-8 minutes. Remove from oven, add cheese and mix well, add salt to your liking and let stand a few minutes before serving.

Recipes

Meat skewers

Function : microwave + grill

Preparation: 15 minutes + 1 hour for the marinade

Cooking: 16-19 minutes

Ingredients :

600g of meat (veal, pork, sausage, and diced)

Vegetables (peppers, onions and mushrooms)

1 small chopped onion

For the marinade :

1 small chopped onion

4-5 oil spoon

1 teaspoon of salt

12 spoon of pepper

Garlic, rosemary, sage

Thread the meat on wooden spikes, alternating with vegetables, diced or sliced.

Chop the garlic, rosemary and sage, and put everything into a small container suitable for microwave oven with oil, salt and pepper.

Warm the marinade covered for 1 minute on medium power.

Pour the marinade over the skewers and let stand for one hour, turning occasionally.

Preheat the turntable for 3 minutes with the Grill.

Place skewers on the turntable.

Grill for 8-10 minutes with the grill, turning and broil again for 4-6 minutes always with the grill.

You can vary the amount of meat and vegetables to suit your tastes.

You can use whole onions, put them in a container that can go in the microwave oven and cook for a few minutes on medium heat.

Recipes

Sponge cake

Function : grill

Preparation: 10 minutes

Cooking: 10-12 minutes

Ingredients :

225g of floor

225g of sugar

225g of soft butter

2 tablespoon of water

4 eggs

8g vanilla sugar

2 tablespoons of baking powder

Grated peel of orange

icing sugar

Mix all ingredients with mixer and pour into the mold.

If the butter is not soft, put it in a suitable container into the microwave oven and soften, covered, for 2-3 minutes on low power.

Bake for 10-12 minutes with the Grill.

Sprinkle the surface with icing sugar.

You can stuff with vanilla cream.

PRECAUTIONS GENERALES

LIRE ATTENTIVEMENT LES INSTRUCTIONS SUIVANTES AVANT LA PREMIÈRE UTILISATION DE L'APPAREIL.

DESCRIPTION DU PRODUIT Fig.1

INSTALLATION DU FOUR

Assistance technique

Preparation: 10 minutes

Cuisson:20-23minutes

Ingrédients :

1 petit oignon haché
