USER MANUAL Peppo Springlane

Red Peppo cooking appliance with black handles and a circular top (no visible text or symbols)

Peppo

PIZZAOFEN

Bedienungsanleitung

Instruction manual

Pizza oven Peppo Instruction manual

Technical data 17

Safety information 19

Before first use 22

Using your pizza oven Peppo 22

Cleaning and care 24

Customer service 24

Disposal/Recycling 25

Declaration of conformity 25

Labeled diagram of a cooking appliance showing internal components and parts with numbered annotations

Material: coated steel (pizza oven), ceramic (pizza stone), enamel (pan), stainless steel (pizza shovels)

Equipment: Pizzaoven, pizzastone, pan, 2 pizza shovels

Cable length: 90 cm

Changes and errors in specifications, attributes, colour, and design reserved.

SYMBOL EXPLANATION

The WARNING sign warns of a serious injury hazard.

This symbol warns of hot surfaces on the appliance that may cause burnings or damage to heat-sensitive objects.

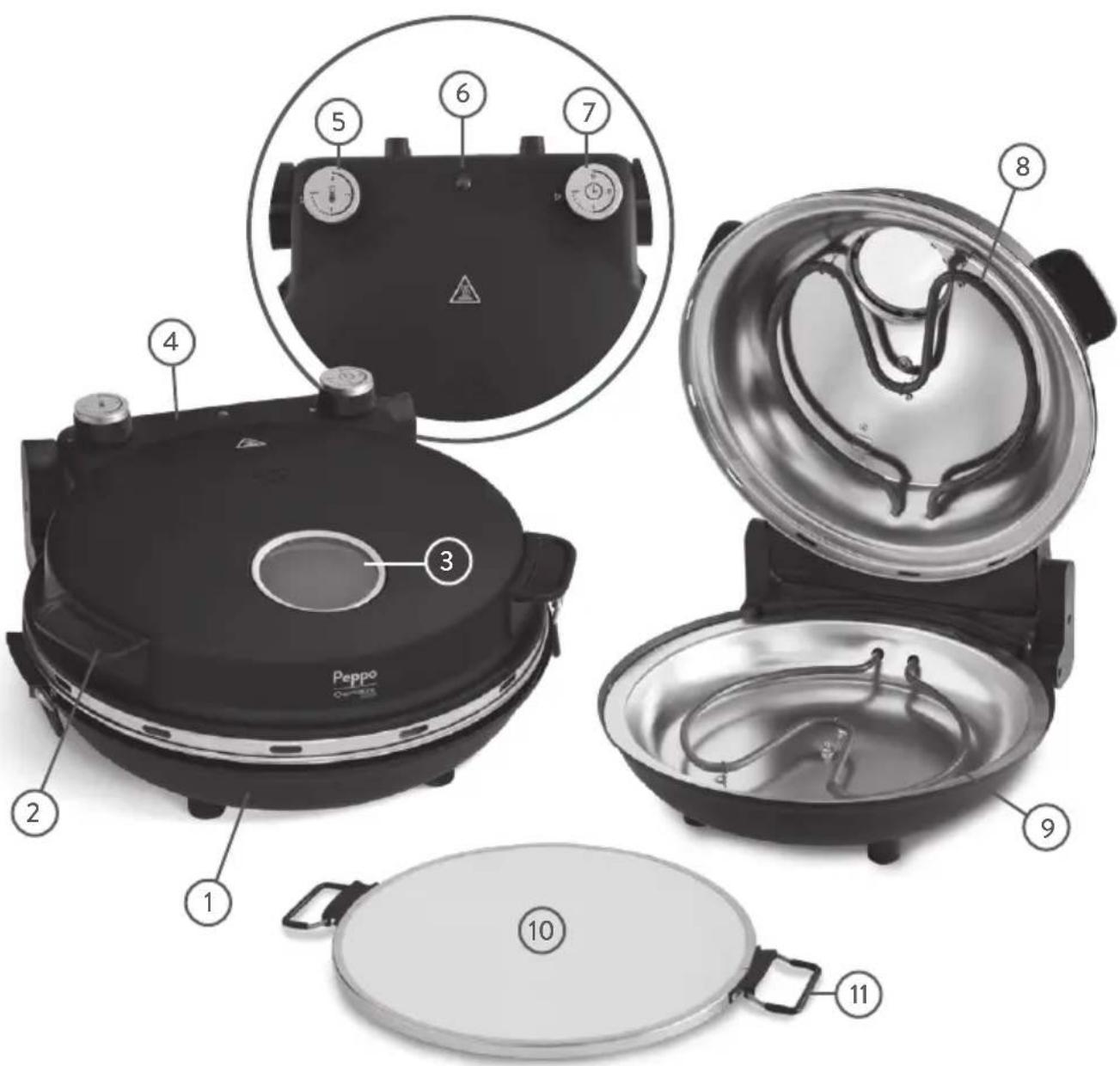

Labeled diagram of a cooking appliance showing internal components and parts with numbered annotations

1. Appliancebody
2. Lidhandles
3. Sight glass
4. Commands
5. Temperature adjusting dial (Min temperature pos. 1 - Max temperature pos. 5)
6. Indicator light
7. Power on and timer dial
8. Upper heating element
9. Lower heating element
10. Baking stone plate
11. Plate handles

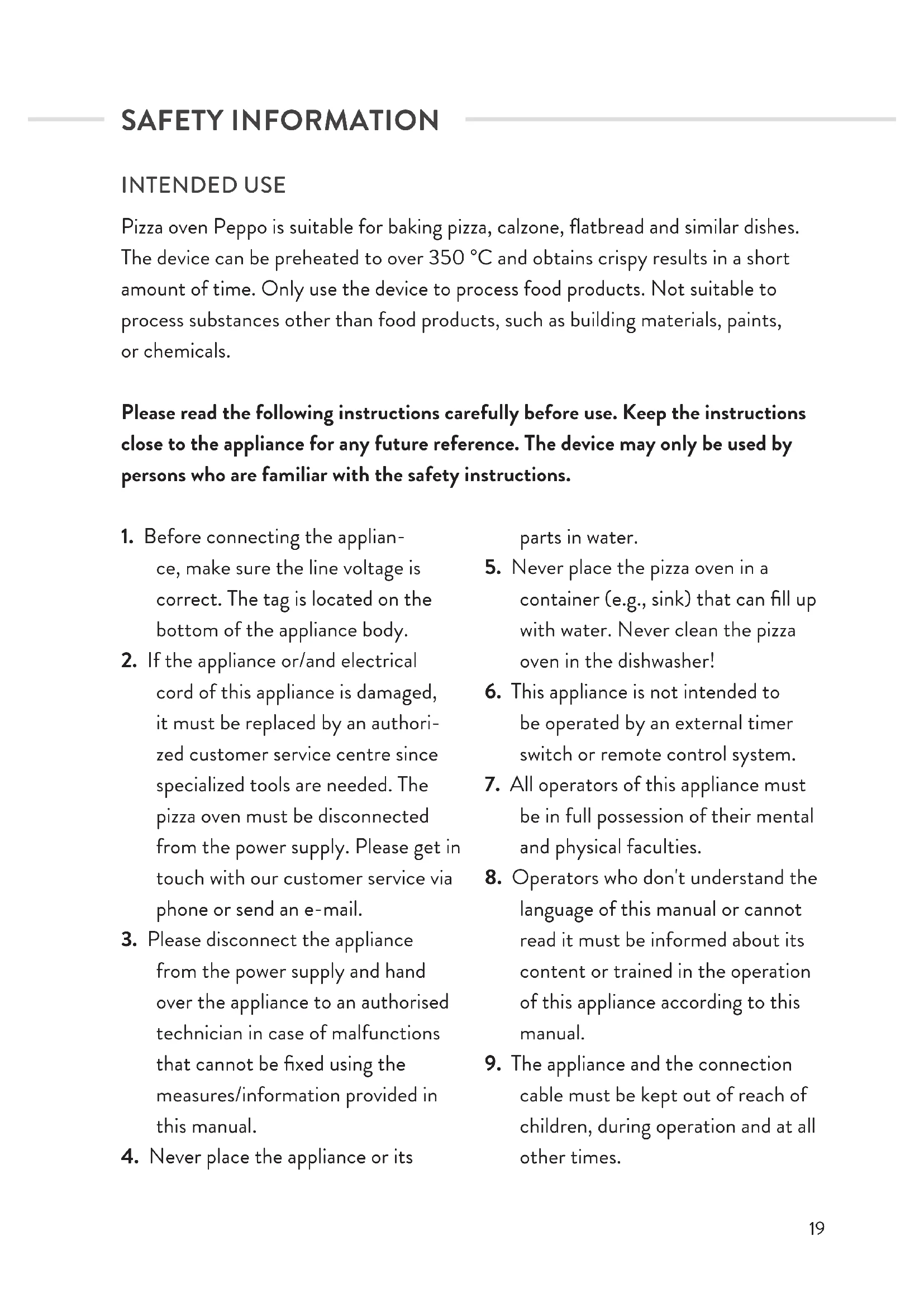

INTENDED USE

Pizza oven Peppo is suitable for baking pizza, calzone, flatbread and similar dishes. The device can be preheated to over 350 °C and obtains crispy results in a short amount of time. Only use the device to process food products. Not suitable to process substances other than food products, such as building materials, paints, or chemicals.

Please read the following instructions carefully before use. Keep the instructions close to the appliance for any future reference. The device may only be used by persons who are familiar with the safety instructions.

1. Before connecting the appliance, make sure the line voltage is correct. The tag is located on the bottom of the appliance body.
2. If the appliance or/and electrical cord of this appliance is damaged, it must be replaced by an authorized customer service centre since specialized tools are needed. The pizza oven must be disconnected from the power supply. Please get in touch with our customer service via phone or send an e-mail.

3. Please disconnect the appliance from the power supply and hand over the appliance to an authorised technician in case of malfunctions that cannot be fixed using the measures/information provided in this manual.

4. Never place the appliance or its

parts in water.

1. Never place the pizza oven in a container (e.g., sink) that can fill up with water. Never clean the pizza oven in the dishwasher!
2. This appliance is not intended to be operated by an external timer switch or remote control system.
3. All operators of this appliance must be in full possession of their mental and physical faculties.
4. Operators who don't understand the language of this manual or cannot read it must be informed about its content or trained in the operation of this appliance according to this manual.

5. The appliance and the connection cable must be kept out of reach of children, during operation and at all other times.

6. Children are not allowed to play with the device. They must be kept away from the device or/and electrical cord.

7. The packing materials (plastic bags, expanded polystyrene, nails, etc.) should be kept away from children since they are potential sources of danger.
8. Inspect the power cord for damages regularly. Do not use the appliance if the power cord is damaged. Should this be the case get in contact with our customer service instead.

9. This appliance is intended for household use or similar, as

10. Kitchen areas in shops
    • Offices and other working places

11. Farmhouses
12. Bed and breakfasts and similar structures

13. Hotels, motels and other residential environments (for customer's use only)

14. Use the appliance for its intended use. Springlane assumes no liability whatsoever in the following cases:

15. failure to observe the instructions for proper operation

16. improper use of the appliance
    • works or repairs executed by yourself or unauthorised personnel
    • use of non-original spare parts or

parts not intended for this model

1. This appliance was designed to grill food and must be used for this purpose only. Any other use would be improper and therefore dangerous. The manufacturer cannot be held responsible for any damage deriving from improper, incorrect or unreasonable uses.
2. After removing the packaging, and before using the appliance, make sure the appliance and all the attachments are working well. The power cable and its plug should not be cracked or in any way damaged or broken. If the conditions described above occur, immediately unplug the appliance from mains outlet and take it to an authorized after-sales service centre for necessary checking.
3. Do not put the appliance and/or electrical cord close to/on hot surfaces as heaters, cooking hob, flames and similar.
4. Do not use the device outdoors.
5. Never cover the oven with a blanket or other flammable objects.
6. Do not use the appliance near or underneath inflammable materials (curtains, etc.).
7. Place the appliance on a work surface that bears a temperature of at least 90^ C
8. Make sure there are no objects

above that may impede the air passage.

1. Never insert metallic objects or fingers through the air vents.
2. Do not cover the inner sides of the oven with aluminium foils.
3. Allow the appliance to cool down to room temperature before moving or cleaning it, to avoid injuries caused by touching hot device parts.
4. Do not put the wire close to sharped edges, do not fix it and do not leave it hang. Keep it away from

children.

1. Connect the appliance to the power mains through an earthed socket.
2. Do not leave the appliance connected when not in use. Remove the plug from the mains outlet when the appliance is not used, before cleaning and in case of technical troubles during the operation.
3. Avoid unplugging the appliance by pulling the power cord.

Never operate the oven unsupervised, in particular while baking goods. The appliance gets very hot during use. To prevent burn hazard, use with care to avoid touching appliance accessible parts at high temperature (such as the baking stone plate, the heating element, the appliance body). Allow the appliance to cool before touching it, moving it or carrying out maintenance operations. During the removal of food use heat-protective gloves or attachments (not supplied).

BEFORE FIRST USE

1. Remove all protective films and packaging materials.
2. Before first use, all detachable parts must be cleaned according to the manufacturer's instructions.
3. During the first operating cycles, the oven might emit smoke. This is normal and will disappear with the use.

USING YOUR PIZZA OVEN PEPPO

GENERAL INFORMATION

1. Put the appliance on a heat-resistant, stable and even surface.
2. Put the appliance so that it is protected against overheating.
3. Plug the power cord into the power socket.
4. Set the required temperature level, according to your needs, using the dial.
5. Set the baking time by rotating power on and timer dial.
6. The indicator light is on during pre-heating and goes out once the appliance is ready for use.
7. The pizza dough should not have any cracks or holes in order to prevent leaking of pizza sauce. Persistent residues can not be removed from the pizza stone.

For the best pizza baking results, it is recommended to pre-heat the oven along with the pizza stone at the highest temperature for about 10 minutes.

USING PIZZA OVEN PEPPO

1. Use the handles to raise the lid of the appliance.
2. Place the pizza or any other food to be baked on the baking stone and close the appliance lid.
3. Make sure the ingredients do not get in touch with the upper or lower heating element.
4. Keep the lid closed during the baking phase.
5. You can check the baking progress through the sight glass situated on the lid.
6. At the end of baking, the timer dial emits a sound to signal the end of baking cycle.
7. Always use the handles to open the lid of the appliance. The oven surface gets very hot during operation.

Frozen pizza bake for 5-7 minutes. It is recommended to take pizza out of freezer 20-30 minutes before putting it in the oven. Hand-made pizza bake for 6-8 minutes.

Anyhow, follow times indicated on the package or recipe.

USING PIZZA OVEN PEPPO WITH THE PAN

You can use the pan of your pizza oven as a conventional frying pan (with a lid) e.g. to fry eggs and bacon, cook omelettes and frittata or to reheat baked goods.

1. Use the handles to raise the lid of the appliance.
2. Remove the baking stone.
3. Put the pan into the device.
4. Depending on your requirements, you can prepare your dishes with the lid open or closed. Make sure to open it after 5 minutes at most, otherwise the pan-coating could be damaged. Keep the upper part open during the remaining cooking time. Make sure that the handles of the pan are turned outside of the appliance when the lid is closed. Be aware that the lid cannot be closed completely when using the pan – this is normal and doesn’t impair the oven’s function.
5. Make sure that the ingredients do not get in touch with the upper or lower heating elements.

6. At the end of baking, the timer dial emits a sound to signal the end of baking cycle.

7. Pan and handles reach high temperatures during operation. Be careful when removing dishes from the device.

AFTER USAGE

1. Rotate the temperature dial to "0" and disconnect the plug from the socket.
2. Wait for the appliance to cool completely.
3. Please note the manufacturer's instruction concerning cleaning and maintaining the device.

CLEANING AND CARE

The appliance must be cleaned according to the manufacturer's instructions. In-correct maintenance could cause damage to person, animals and things, for which the manufacturer cannot be held responsible.

1. Before cleaning, always disconnect the plug from the electrical socket.
2. Wait for the appliance to cool completely.
3. Clean the casing with a slightly damp and soft cloth.
4. Never immerse the baking stone plate in water or other liquids. Remove any baking residue on the baking stone plate with a spatula.
5. Avoid the use of abrasive products or any other cleaning agent.
6. Avoid using abrasive detergents.
7. The pizza shovels are dishwasher-safe. We recommend to wash the pan by hand.
8. Owing use, the baking stone plate tends naturally to brown and show spots. This does not jeopardize the oven operation or baking results.

CUSTOMER SERVICE

In principle, our products have a legal warranty duty of 2 years. Further claims can only be processed in conjunction with a proof of purchase. Wearing parts exclude any warranty claims, when usual abrasion has occurred. The durability is determined by the respective handling and use of the products and is thus variable.

For questions concerning handling and functionality of our products, please contact

our customer-service:

Telephone number: [phone]

Our products are manufactured with the highest degree of care and are designed for a long durability. Regular maintenance and cleaning help to prolong durability. If the device is defective and cannot be repaired, it must not be disposed at home.

You must dispose the device at a respective place for recycling of electronic devices. With correct disposal and recycling you contribute to preserving the environment.

This appliance complies with the WEEE-Directive 2002/96/EC on the disposal of electrical and electronical equipment (WEEE).

DECLARATION OF CONFORMITY

This appliance complies with:

• European Directives for electromagnetic compatibility (EMC) 2014/30/EU
• Low Voltage Directive (LVD) 2014/35/EU
• RoHS 2011/65/EU

This appliance complies with: LFGB 2005, §30+31
