USER MANUAL FC 31611IN ROSIERES

HCTyKcnn dny noIb3OBaTeJe

RU

PIEKARNIKI DO ZABUDOWY

INSTRUKKA OBSLUGI

PL

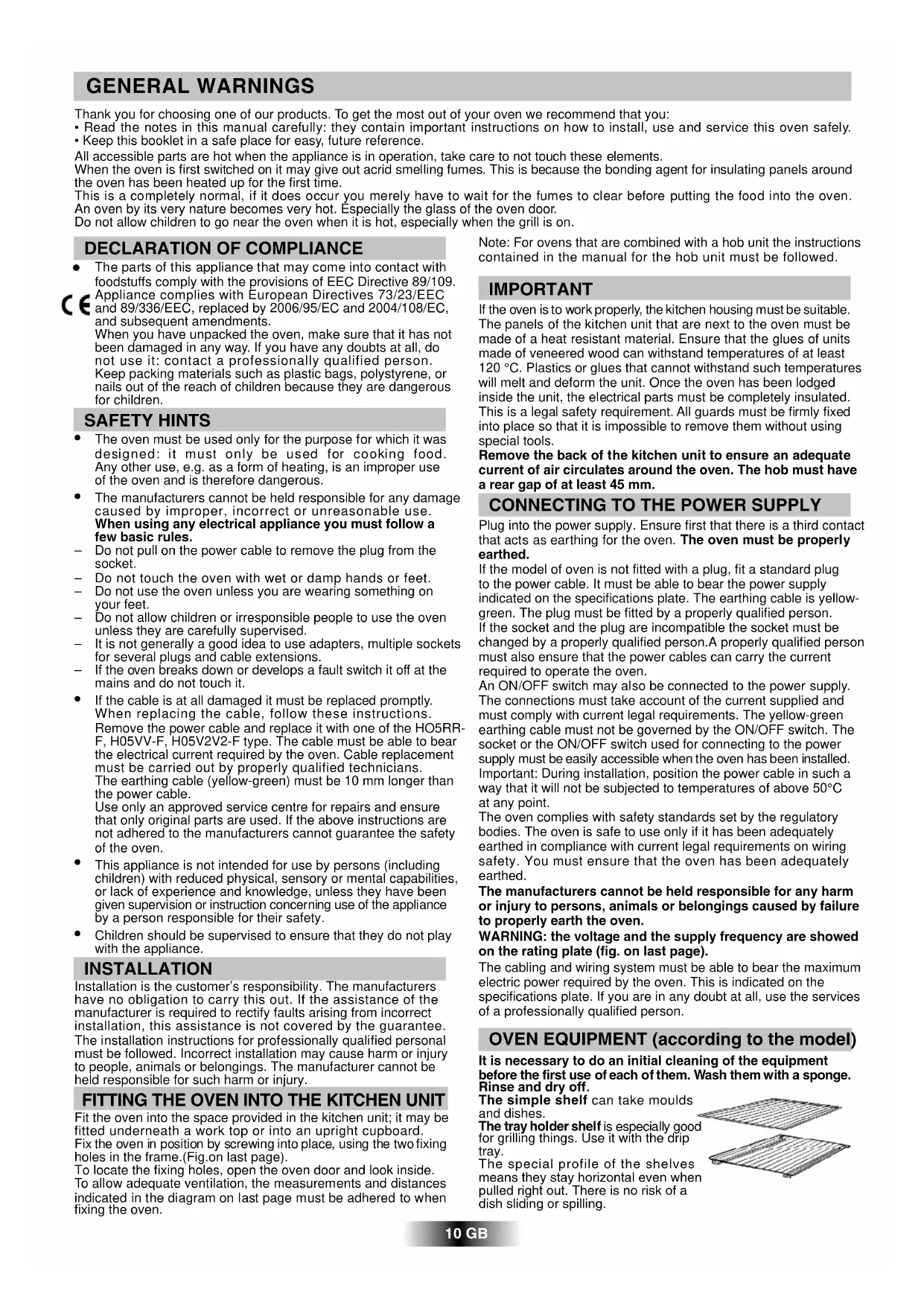

AVVERTENZE GENERALI

Thank you for choosing one of our products. To get the most out of your oven we recommend that you:

• Read the notes in this manual carefully: they contain important instructions on how to install, use and service this oven safely.
• Keep this booklet in a safe place for easy, future reference.

All accessible parts are hot when the appliance is in operation, take care to not touch these elements.

When the oven is first switched on it may give out acrid smelling fumes. This is because the bonding agent for insulating panels around the oven has been heated up for the first time.

This is a completely normal, if it does occur you merely have to wait for the fumes to clear before putting the food into the oven. An oven by its very nature becomes very hot. Especially the glass of the oven door.

Do not allow children to go near the oven when it is hot, especially when the grill is on.

DECLARATION OF COMPLIANCE

The parts of this appliance that may come into contact with foodstuffs comply with the provisions of EEC Directive 89/109.

C E Appliance complies with European Directives 73/23/EEC and 89/336/EEC, replaced by 2006/95/EC and 2004/108/EC, and subsequent amendments.

When you have unpacked the oven, make sure that it has not been damaged in any way. If you have any doubts at all, do not use it: contact a professionally qualified person. Keep packing materials such as plastic bags, polystyrene, or nails out of the reach of children because they are dangerous for children.

SAFETY HINTS

• The oven must be used only for the purpose for which it was designed: it must only be used for cooking food. Any other use, e.g. as a form of heating, is an improper use of the oven and is therefore dangerous.
• The manufacturers cannot be held responsible for any damage caused by improper, incorrect or unreasonable use. When using any electrical appliance you must follow a few basic rules.
• Do not pull on the power cable to remove the plug from the socket.
• Do not touch the oven with wet or damp hands or feet.
• Do not use the oven unless you are wearing something on your feet.
• Do not allow children or irresponsible people to use the oven unless they are carefully supervised.
• It is not generally a good idea to use adapters, multiple sockets for several plugs and cable extensions.
• If the oven breaks down or develops a fault switch it off at the mains and do not touch it.
• If the cable is at all damaged it must be replaced promptly. When replacing the cable, follow these instructions. Remove the power cable and replace it with one of the H05RR-F, H05VV-F, H05V2V2-F type. The cable must be able to bear the electrical current required by the oven. Cable replacement must be carried out by properly qualified technicians. The earthing cable (yellow-green) must be 10mm longer than the power cable. Use only an approved service centre for repairs and ensure that only original parts are used. If the above instructions are not adhered to the manufacturers cannot guarantee the safety of the oven.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.

INSTALLATION

Installation is the customer's responsibility. The manufacturers have no obligation to carry this out. If the assistance of the manufacturer is required to rectify faults arising from incorrect installation, this assistance is not covered by the guarantee. The installation instructions for professionally qualified personal must be followed. Incorrect installation may cause harm or injury to people, animals or belongings. The manufacturer cannot be held responsible for such harm or injury.

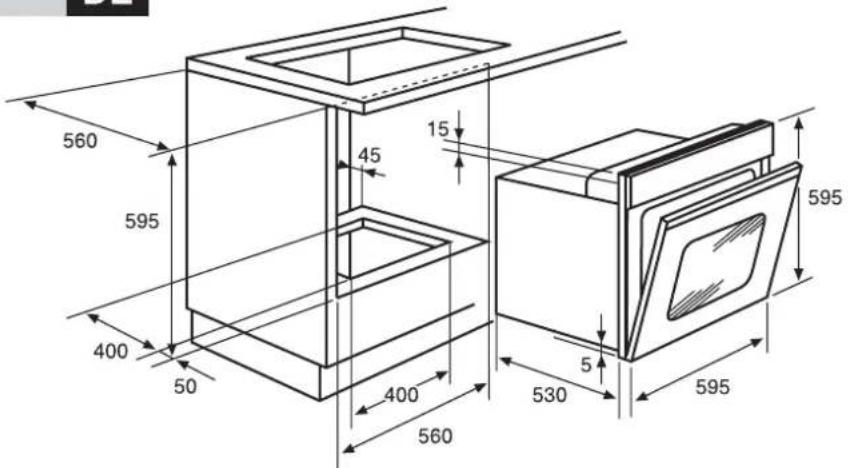

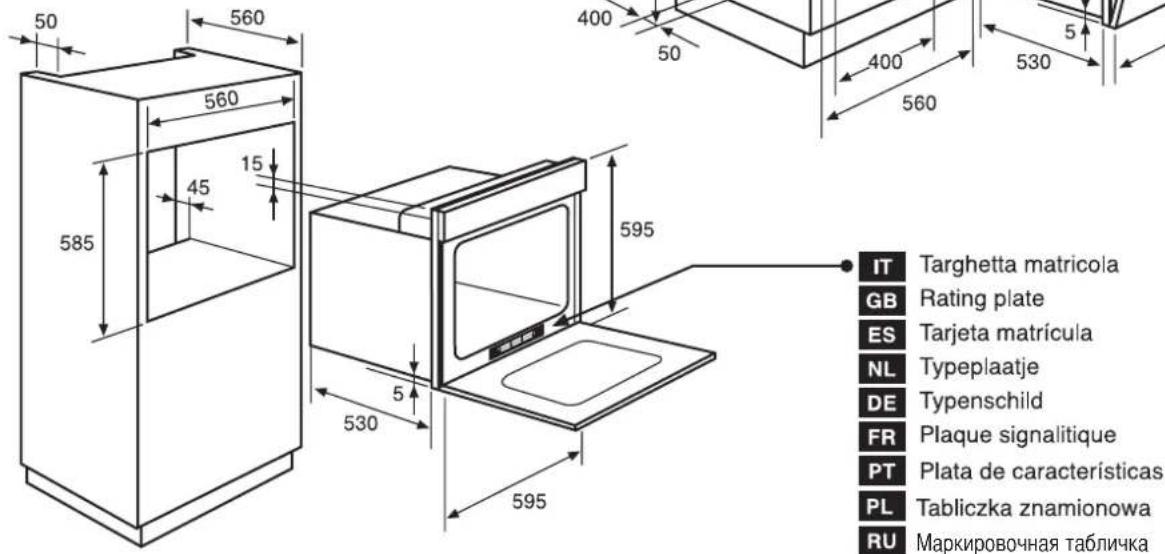

FITTING THE OVEN INTO THE KITCHEN UNIT

Fit the oven into the space provided in the kitchen unit; it may be fitted underneath a work top or into an upright cupboard. Fix the oven in position by screwing into place, using the two fixing holes in the frame.(Fig.on last page).

To locate the fixing holes, open the oven door and look inside. To allow adequate ventilation, the measurements and distances indicated in the diagram on last page must be adhered to when fixing the oven.

Note: For ovens that are combined with a hob unit the instructions contained in the manual for the hob unit must be followed.

IMPORTANT

If the oven is to work properly, the kitchen housing must be suitable. The panels of the kitchen unit that are next to the oven must be made of a heat resistant material. Ensure that the glues of units made of veneered wood can withstand temperatures of at least 120^ . Plastics or glues that cannot withstand such temperatures will melt and deform the unit. Once the oven has been lodged inside the unit, the electrical parts must be completely insulated. This is a legal safety requirement. All guards must be firmly fixed into place so that it is impossible to remove them without using special tools.

Remove the back of the kitchen unit to ensure an adequate current of air circulates around the oven. The hob must have a rear gap of at least 45mm .

CONNECTING TO THE POWER SUPPLY

Plug into the power supply. Ensure first that there is a third contact that acts as earthing for the oven. The oven must be properly earthed.

If the model of oven is not fitted with a plug, fit a standard plug to the power cable. It must be able to bear the power supply indicated on the specifications plate. The earthing cable is yellowgreen. The plug must be fitted by a properly qualified person. If the socket and the plug are incompatible the socket must be changed by a properly qualified person.A properly qualified person must also ensure that the power cables can carry the current required to operate the oven.

An ON/OFF switch may also be connected to the power supply. The connections must take account of the current supplied and must comply with current legal requirements. The yellow-green earthing cable must not be governed by the ON/OFF switch. The socket or the ON/OFF switch used for connecting to the power supply must be easily accessible when the oven has been installed. Important: During installation, position the power cable in such a way that it will not be subjected to temperatures of above 50^ at any point.

The oven complies with safety standards set by the regulatory bodies. The oven is safe to use only if it has been adequately earthed in compliance with current legal requirements on wiring safety. You must ensure that the oven has been adequately earthed.

The manufacturers cannot be held responsible for any harm or injury to persons, animals or belongings caused by failure to properly earth the oven.

WARNING: the voltage and the supply frequency are showed on the rating plate (fig. on last page).

The cabling and wiring system must be able to bear the maximum electric power required by the oven. This is indicated on the specifications plate. If you are in any doubt at all, use the services of a professionally qualified person.

OVEN EQUIPMENT (according to the model)

It is necessary to do an initial cleaning of the equipment before the first use of each of them. Wash them with a sponge. Rinse and dry off.

The simple shelf can take moulds and dishes.

The tray holder shelf is especially good for grilling things. Use it with the drip tray.

The special profile of the shelves means they stay horizontal even when pulled right out. There is no risk of a dish sliding or spilling.

The drip tray catches the juices from grilled foods. It is only used with the Grill, Rotisserie, or Fan Assisted Grill; remove it from the oven for other cooking methods. Never use the drip tray as a roasting tray as this creates smoke and fat will spatter your oven making it dirty.

The pizza set is designed for pizza cooking. In order to obtain the best results the set must be used together with Pizza function.

The tray holder

The tray holder shelf is ideal for grilling. Use it in conjunction with the drip tray. A handle is included to assist in moving the both accessories safely. Do no leave the handle inside the oven.

USEFUL TIPS

SHELF SAFETY SYSTEM

The oven features a new shelf safety system. This allows you to pull out the oven shelves when inspecting the food without danger of food spillages or shelves falling accidentally out of the oven. To remove the shelves pull out and lift.

GRILLING

Grilling makes it possible to give food a rich brown colour quickly. For browning we recommend that you insert the grill onto the fourth level, depending on the proportions of the food (see fig. page 16).

Almost all food can be cooked under the grill except for very lean game and meat rolls.

Meat and fish that are going to be grilled should first be lightly doused with oil.

The UMODELS

U-COOK ovens have an electronic control of the fan speed, called and patented VARIOFAN. During the cooking, this system changes automatically the speed of the fan (in multifunction mode) in order to optimize the air flow and the internal temperature in the cavity of the oven.

All bovenst feature the

This allows a management of the distribution of moisture and temperature. It reduces the loss of humidity of the 50% which guarantees the food remains tender and tastes better. This a delicate cooking is recommended for the baking of the bread and pastry.

It reduces the time of preheating of ovens: only 8 minutes to reach 200 degrees Celsius.

It gives the possibility of setting level and intensity of grilling, up to 50% more power in comparison with a traditional multifunction oven.

Some ovens are equipped with the new door "WIDE DOOR" which has a bigger window area, this allows better maintenance and a improved thermal insulation.

According to the model U·S∈E

Is an illumination system which replaces the traditional « light bulb ». 14 LED lights are integrated within the door. These produce white high quality illumination which enables to view the inside of the oven with clarity without any shadows on all the shelves.

Advantages :

U-SS system, besides providing excellent illumination inside the oven, lasts longer than the traditional light bulb its easier and to maintain and most of all saves energy.
Optimum view
- Long life illumination
- Very low energy consumption, -95% in comparison with the traditional illumination High
"Appliance with white light LED of the 1M Class according to IEC 60825-1:1993 + A1: 1997 + A2: 2001 (equivalent to EN 60825-1: 1994 + A1: 2002 + A2: 2001); the maximum light power emitted 459nm < 150 W . Not observed directly with optical instruments."

COOKING TIME

For recommended cooking times and temperatures the first time you use the oven, refer to the tables on pages 16, 17. You may then wish to vary these times and settings in the light of your own experience.

SELF-CLEANING OVEN WITH CATALYTIC

Special self-cleaning panels covered in a micro-porous coating are available as optional extras for all models. If they are fitted, the oven no longer needs to be cleaned by hand.

The fat that is splattered onto the sides of the oven during roasting is eliminated by the microporous coating which breaks the fat down by catalysis and transforms it into gas.

Excessive splattering may nevertheless block the pores and therefore hinder self-cleaning. The self-cleaning capacity may be restored by switching on the empty oven to maximum for about 10-20 minutes.

Do not use abrasive products, metal cleaning wads, sharp objects, rough cloths, or chemical products and detergents that may permanently damage the catalytic lining.

It is a good idea to use deep roasting trays to roast fatty foods such as joints of meat etc. and to put a tray underneath the grill to catch surplus fat. If the walls of the oven are so thickly coated in grease that the catalytic lining is no longer effective remove surplus grease with a soft cloth or sponge soaked in hot water.

The lining must be porous for self-cleaning to be effective.

N.B.: All catalytic linings currently on the market have a working life of about 300 hours. They should therefore be replaced after about 300 hours.

CLEANING AND MAINTENANCE

Never use a steam or high pressure spray to clean the appliance. Never use abrasive cleaners, wire wool or sharp objects to clean the glass oven door.

Clean the stainless steel and enamelled surfaces with warm, soapy water or with suitable brand products. On no account use abrasive powders that may damage surfaces and ruin the oven's appearance. It is very important to clean the oven each time that it is used. Melted fat is deposited on the sides of the oven during cooking. The next time the oven is used this fat could cause unpleasant odours and might even jeopardise the success of the cooking. Use hot water and detergent to clean; rinse out thoroughly. To make this chore unnecessary all models can be lined with catalytic self-cleaning panels: these are supplied as an optional extra (see the section SELF-CLEANING OVEN WITH CATALYTIC LINING).

Use detergents and abrasive metal pads like «brillo pads» for the stainless steel grills.

The glass surfaces as the top, oven door and warming compartment door must be cleaned when they are cold. Damage that occurs to them because this rule was not adhered to are not covered by the guarantee.

To replace the interior light:

switch off the mains power supply and unscrew bulb. Replace with an identical bulb that can withstand very high temperatures.

SERVICE CENTRE

Before calling the Service Centre

If the oven is not working, we recommend that:

you check that the oven is properly plugged into the power supply. If the cause of the fault cannot be detected: disconnect the oven from the mains, do not touch the oven and call the after sales service.

Before calling the Service Centre remember to make a note of the serial number on the specifications plate (see fig. on last page).

The oven is supplied with a guarantee certificate that ensures that it will be repaired free of charge by the Service Centre.

USING THE MINUTE TIMER

To set the cooking time, turn dial one complete revolution and then position the index to the required time. When the time has lapsed, the signal will ring for a few seconds.

USING THE END OF COOKING TIMER

This control enables to set the desired cooking time (max. 120 min.) the oven will automatically switch off at the end of the set time.

The timer will count down from the set time return to the 0 position and switch off automatically.

For normal use of oven set the timer to the position.

To set the oven ensure the timer is not on the 0 position.

Reading of the time selected

To set the time, push the control knob and turn anti-clockwise to position at the correct time. To set as minute minder, set the cooking time by turning anticlockwise the knob without pushing, until the desired time is shown at the small window on the left of the clock (max. 180 minutes). When the preset time is elapsed the alarm will ring and the oven must be switched off manually. To stop the alarm turn the knob until appears in the window.

USE OF THE ELECTRONIC PROGRAMMER

FUNCTION	HOW TO ACTIVATE IT	HOW TO SWITCH IT OFF	WHAT IT DOES	WHAT IT IS FOR
MINUTE MINDER	• Press and hold the button • Press the buttons▼ to set the required time • Release all the buttons	• When the set time as elapsed an audible alarm is activated (this alarm will stop on its own, however it can be stopped immediately by pressing the button)	• Sounds an alarm at the end of the set time. • To check how long is left to run press the button	• Allows to use the oven as alarm clock (could be activated either with operating the oven or with out operating the oven)
MANUAL FUNCTION	• Press the button • Set the cooking function with the oven function selector	• Turn the oven function selector to position 0.	• Enables you to operate the oven.	• For cooking the desired recipes
COOKING TIME	• Press and hold the TIMER button • Press the buttons▼ to set the lenght of coo-king required • Release all buttons • Set the cooking function with the oven function selector	• When the time is elapsed the oven will switch off automatically. Should you wish to stop cooking earlier either turn the function selector to 0, or set time to 0:00 (TIMER and 🤩).	• It allows to preset the cooking time required for the recipe chosen • To check how long is left to run press the TIMER button. • To alter/change the preset time press TIMER and 🤩 buttons	• At the end of the cooking set time, the oven will switch off automatically and an audible alarm will ring.
END OF COOKING	• Press and hold the END button • Press the buttons▼▲ to set the time at which you wish the oven to switch off • Release the buttons • Set the cooking function with the oven function selector	• At the time set, the oven will switch off. To switch off manually, turn the oven function selector to position 0.	• Enables you to set the end of cooking time • To check the preset time press the END button • To modify the preset time press buttons END + 🤩	• This function is typically used with “cooking time” function. For example if the dish has to be cooked for 45 minutes and needs to be ready by 12:30, simply select the required function, set the cooking time to 45 minutes and the end of cooking time to 12:30.

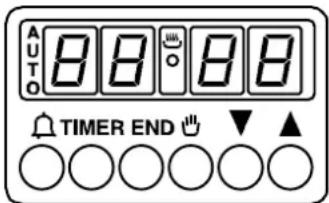

SETTING THE CORRECT TIME

WARNING: the first operation to carry out after the oven has been installed or following the interruption of power supply (this is recognizable the display pulsating and showing 0.0) is setting the correct time. This is achieved as follows

• Press and hold the TIMER and END buttons ( and TIMER on some
  models
• Set time with tns
• Release all buttons

ATTENTION the oven only operates if set on manual function or preset time.

N.B.: on some models the symbols are replaced by + and - .

• Cooking will start automatically at 11:45 (12:30 minus 45 mins) and will continue until the pre-set end-of-cooking-time, when the oven will switch itself off automatically.

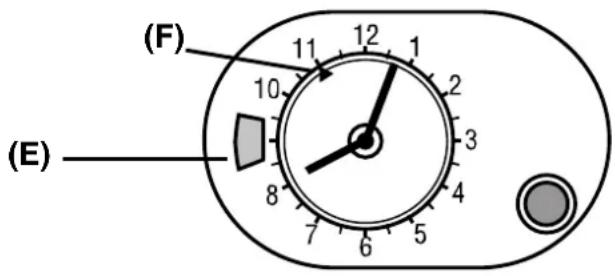

WARNING.

If the END of cooking is selected without setting the length of cooking time, the oven will start cooking immediately and it will stop at the END of cooking time set.

SETTING THE CORRECT TIME

To set the correct time push and turn anti-clockwise the knob until the clock shows the correct time. Once this is done release the control.

ATTENTION: the oven only operates if set on manual function or preset time.

FUNCTION	HOW TO ACTIVATE IT	HOW TO SWITCH IT OFF	WHAT IT DOES WHAT	IT IS FOR
MANUAL FUNCTION	·Turn the control knob anticlockwise, without pushing, until the symbol appears in the window (E)	·Turn the oven function selector to position 0.	·Enables you to operate the oven.	·For cooking the desired recipes
COOKING TIME	·First of all select the cooking function and the temperature required ·Set the length of cooking required by turning the control knob anticlockwise until the time matches the length of time shown in the window (E) ·The oven will start immediately and it will switch off automatically at the end of the preset time ·Max time 180 minutes (3 hours)	·At the end of the set time the oven switches off automatically, this is indicated by an audible alarm. ·To cancel the setting turn the control knob until the symbol appears in the window (E)	·It allows you to preset the cooking time required for the recipe chosen.	·At the end of the cooking time set, the oven will switch off automatically and an audible alarm will ring.
END OF COOKING (Not available on model 2D 364.)	·First of all select the cooking function and the temperature required. ·To set the cooking start time pull and turn the control knob anticlockwise until the hand F is in the position indicating the start time required. ·To set the length of cooking required turn clockwise the control knob without pushing it, until the time required appears in the window (E).	·At the end of cooking time set the oven will switch off automatically and an audible alarm will ring. ·To cancel the set function turn the control knob anticlockwise until the symbol appears in the window (E) ·The alarm have to be stopped by turning the control knob until the symbol appears in the window (E)	·Enables to program the oven so that the recipe is ready at the desired time	·Example: if the dish has to be cooked for 45 minutes and needs to be ready by 12:30; - Select the required function - Set start cooking time at 11:45 (12:30 minus 45 minutes) - Set cooking time at 45 minutes At the end of cooking the oven will automatically switch off.

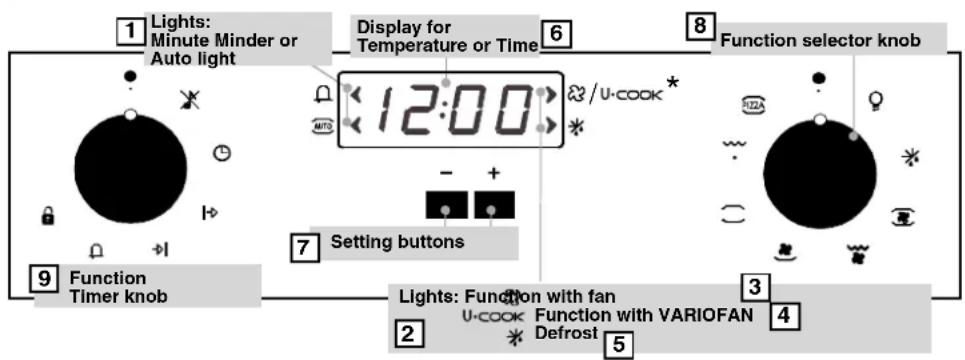

USE THE ELECTRONIC PROGRAMMER (Type A)

1. Minute Minder or Auto light
2. Lights
3. Function with fan
4. Function with VARIOFAN
5. Defrost
6. Display for Temperature or Time
7. Setting buttons
8. Function selector knob

9. Function Timer knob

10. according to the model

WARNING!

The first operation to carry out after the oven has been installed or following the interruption of power supply (this is recognizable the display pulsating and showing12:00) is setting the correct time.

The Led "o" of the temperature indicator pulsates until the pre-set temperature is not reached.

HOT: When a cooking program is finished, if the oven is still hot, « HOT » appears on the display, alternately with the time displays, even if the two function selectors are switched on OFF.

FUNCTION	HOW TO ACTIVATE IT?	HOW TO SWITCH IT OFF?	WHAT IT DOES ?	WHAT IT IS FOR ?
SILENCE MODE	·Rotate the left function selector to the position " Silence mode"	·Rotate the function selector to the position OFF.	·Enables you to turn off the sound of the minute minder	·To turn off the sound of the minute minder
SET THE TIME	·Rotate the left function selector to the position "Set the time". ·Use the buttons "+" or "-" to set the time	·Rotate the function selector to the position OFF.	·Enables you to set the time which appears on the display	·To set the time NB : Set the time when you first install your oven or just after a black out (the clock is showing a pulsating 12.00)
COOKING TIME DURATION	·Turn the right function selector to a cooking function ·Rotate the left function selector to the position "Cooking Time Duration" ·Set the time of cooking by using buttons "+" and "-" ·Lighting Auto appears	·When the cooking time has elapsed, the oven switch off automatically and the alarm rings for few seconds To stop the cooking functions early, turn the function control to OFF or set the time on 00.00 ; by rotating the function selector to Cooking Time Duration and by using the buttons "+" and "-"	·It allows to preset the cooking time required for the recipe chosen. ·When the cooking time is set, turn the function selector to OFF to go back to actual time. ·To view the cooking time selected, turn the left function selector to Cooking Time duration.	·For cooking the desired recipes
END OF COOKING TIME	·Turn the right function selector to a cooking function ·Rotate the left function selector to the position "End of cooking" ·Set the end time of cooking by using buttons "+" and "-" ·Lighting Auto appears.	·When the cooking time has elapsed, the oven switch off automatically. ·To stop the cooking functions early, turn the function control to OFF	·It allows to preset the end of cooking time you want. ·When the cooking time is set, turn the function selector to OFF to go back to actual time. ·To view the cooking time selected, turn the left function selector to End of cooking Time	·This function is used for cooking we want to program in advance. For example, your recipe needs to be cooked 45 min and to be ready at 12.30pm; simply set the cooking time duration on 45 min and the end of cooking time on 12.30pm. The cooking will start automatically at 11.45 (12.30 minus 45 min) and will continue until the pre set end of cooking time, then the oven will switch itself off automatically
MINUTE MINDER	·Turn the left function selector to the position Minute Minder ·Set the time of cooking by using buttons "+" and "-"	·Set the time on 00.00 by turning the left function selector to the position Minute Minder, and using the button "-"	·Sounds an alarm at a few seconds at the end of the set time	·Allow to use the oven as alarm even if the oven is switch off
CHILD LOCK	·Turn the left function selector to the position Child lock. Press the button "+" during 3 seconds ·Child lock is available when " STOP " appears on display	·Turn back the left function selector to Child lock and press button "+" during 3 seconds ·Indication STOP disappears	·The oven cannot be used	·Useful especially when children are at home

OPERATING INSTRUCTIONS

Function dial	Temperature pre-set and setting. (Model with electronic programmer) (Type A)	Thermostat dial	Function
			Turns on the oven lightThis will automatically activate the cooling fan (on fan cooled models only)
			DefrostingWhen the dial is set to this position. The fan circulates air at room temperature around the, frozen food so that it defrosts in a few minutes without the protein content of the food being changed or altered.
Sprinter =	MAX MAX		Super GrillThis function allows to set food crunchiness. The Super Grill function is characterized by a 50% power increase in comparison to the standard grill.
	22050 ÷ 240	50 ÷ MAX	Natural convectionBottom and top oven elements are used. This is the traditional form of baking and roasting. It is ideal for roasting joints of meat and game, baking biscuits and apples and making the food nice and crunchy.
	20050 ÷ 230	50 ÷ MAX	Fan cookingBoth top and bottom heating elements are used with the fan circulating the air inside the oven. We recommend you use this method for poultry, pastries, fish and vegetables. Heat penetrates into the food better and both the cooking and preheating times are reduced. You can cook different foods at the same time with or without the same preparation in one or more positions. This cooking method gives even heat distribution and the smells are not mixed. Allow about ten minutes extra when cooking foods at the same time.
	20050 ÷ 230	-	Soft Cook (a)Soft Cook is the function for the confectionery and the bread. Thanks to its reduced fan speed, this function increases oven internal damp. The increased damp creates the ideal conditions of cooking for those foods that need to maintain an elastic consistence while they are cooking (ex. cakes, bread, biscuits) avoiding surface breakages.
	16050 ÷ 220	50 ÷ MAX	Fan plus lower elementThis function is ideal for delicate dishes (pies-souffle).
	Level 41 ÷ 4	50 ÷ MAX	GRILL: use the grill with the door closed. The top heating element is used alone and you can adjust the temperature. Five minutes preheating is required to get the elements red-hot. Success is guaranteed for grills, kebabs and gratin dishes. White meats should be put at a distance from the grill; the cooking time is longer, but the meat will be tastier. You can put red meats and fish fillets on the shelf with the drip tray underneath.
SUPERGrillW	Level 41 ÷ 4	50 ÷ MAX	SUPER GRILL: the oven has two grill positionsGrill : 2200 W Grill SUPER : 3000 W
	190180 ÷ 200	50 ÷ 200	FAN ASSISTED GRILL (a): use the turbo-grill with the door closed. The top heating element is used with the fan circulating the air inside the oven. Preheating is necessary for red meats but not for white meats. Ideal for cooking thick food items, whole pieces such as roast pork, poultry, etc. Place the food to be grilled directly on the shelf centrally, at the middle level. Slide the drip tray under the shelf to collect the juices. Make sure that the food is not too close to the grill. Turn the food over halfway through cooking.
	Level 41 ÷ 4	50 ÷ 200	Grill/spit element.This is used for roasting on the spit.
PIZZA	220	50 ÷ MAX	Function PizzaThis function with hot air circulated in the oven ensure perfect result for dishes such as pizza or focaccia.

(a) on some models : function with “Vario Fan” is the exclusive system developed by Candy to optimize the cooking results, temperature management and damp management. The Vario Fan system is a self-activating system that changes automatically fan speed when a fan function is chosen: the fan functions are the one inside the outlined area on control panel.
Tested in accordance with the CENELEC EN 50304.
* Tested in accordance with the CENELEC EN 50304 used for definition of energy class.

TABLES OF COOKING TIMES

The overall suggested cooking times set out below are intended as a rough guide only. They may in fact vary according to the quality, the freshness, the size and the thickness of the food cooked and of course cooking time is also partly a matter of taste. Let the food stand for a few minutes before serving because the ingredients continue cooking after they have been removed from the oven.

HANDY TIP: Lower the temperature so as to avoid the surface of the food becoming hard and dry.

Shelf position

Static electric oven Electric fan oven
Food Quantity Shelf Oven			Time of cooking in minutes	tempe- rature	Shelf	Time of cooking in minutes	Oven tempe- rature	Remarks
• Pasta
Lasagne	Kg 3,5	2	70 ÷ 75	220	2	60 ÷ 65	200	Put the lasagne into an unheated oven
Cannelloni	Kg 1,8	2	50 ÷ 60	220	2	40 ÷ 50	200	Put the cannelloni into an unheated oven
Oven baked pasta	Kg 2,5	2	55 ÷ 60	220	2	45 ÷ 50	200	Put the oven baked pasta into an unhea- ted oven
• Baking (not cakes)
Bread	Kg 1 di pasta	2	35 10 (pre-heating)	200 2		30 ÷ 35 10 (pre-heating)	180	Form the dough into a loaf and make a cross with a knife on top of the dough leave the dough to rise for at least 2 hours. Grease the baking tin and put the dough in the middle of it.
Pizza	Kg 1	1	25 ÷ 35	190	1	20 ÷ 25	190	Warm the oven for 15 minutes and place the pizzas on the greased baking tray. Garnish them with tomatoes, mozzarella, ham, oil, salt and origano.
Pastry (frozen) vol au vents	n° 24	1	30 ÷ 35	220	2	25 ÷ 30	200	Place 24 vol au vents in the oven and bake.
Focaccia (n° 4)		2	25 ÷ 30	200	2	20 ÷ 25	180	Warm the oven for 15 minutes, grease the baking tray, season the 4 focaccia with oil and salt and leave them to rise at room temperature for at least 2 hours before putting them in the oven.
• Meat
All meats can be roasted in shallow or deep roasting trays. It is advisable to cover the shallow trays to avoid splattering the sides of the oven with grease. The roasting times are the same whether the meat has been covered up or not.
Whole joint of beef	Kg 1	3	70 ÷ 80	220	3	50 ÷ 60	200	Put the meat into a deep Pyrex dish and season with salt and pepper; turn the meat half way through cooking.
Joint of deboned	Kg 1	2	100 ÷ 110	220	2	80 ÷ 90	200	Cook the meat in a covered Pyrex dish with herbs, spice, oil and butter.
Joint of deboned veal	Kg 1,3	1	90 ÷ 110	220	2	90 ÷ 100	200	Cook as indicated above.
Joint of fillet of beef	Kg 1	2	80 ÷ 90	220	2	80 ÷ 90	200	Cook as indicated above.
• Fish
Trout	3 whole trout or /Kg 1	2	40 ÷ 45	220	2	35 ÷ 40	200	Cover the trout with salt, oil and onions and cook in a Pyrex dish.
Salmon	700 g 2,5 cm slice	2	30 ÷ 35	220	2	30 ÷ 25	200	Cook the salmon in an open Pyrex dish with salt, pepper and oil.
Sole	Kg 1	2	40 ÷ 45	220	2	35 ÷ 40	200	Cook the sole with salt and a spoonful of oil.
Bream	2 whole ones	2	40 ÷ 45	220	2	35 ÷ 40	200	Cook the bream in oil and salt in a covered dish.

Static electric oven Electric fan oven

Food Quantity Shelf Oven			Time of cooking in minutes	tempe- rature	Shelf	Time of cooking in minutes	Oven tempe- rature	Remarks
Rabbits and Poultry
Guinea fowl Kg 1-1,3260+80220260-70200								Place the guinea fowl in a deep Pyrex or pottery dish with very little oil and season with herbs and spices.
chicken	Kg 1,5-1,7	2	110÷120	220	2	100÷110	200	Follow the procedure for cooking the guinea fowl.
Rabbit pieces	Kg 1-1,2	2	55÷65	220	2	50÷60	200	Put all the pieces of the same size in the glazed tray. Season with herbs and spices. Turn the pieces as and when required.
Cakes
Coconut cake baked in a tin		1	55	180	1	50	160	Use a tin that is 22 cm deep. Pre-heat for 10 mins.
Sponge cake		1	55	175140÷45160				Use a tin that is 22 cm deep. Pre-heat for 10 mins.
Carrot cake baked in a tin		1	65	180150÷60160				Use a tin that is 22 cm deep. Pre-heat for 10 mins.
Apricot pie	700 gr	1	40	200	2	30÷35	180	Use a tin that is 22 cm deep. Pre-heat for 10 mins.
Vegetable
Fennel	800 gr	1	70÷80	220	1	60÷70	200	Cut the fennel into four pieces, add butter, salt and potatoes if required and place in a Pyrex face up. Cover the dish.
Courgettes	800 gr	1	70	220	1	60÷70	200	Slice the courgettes, place in a Pyrex dish and add butter and salt.
Potatoes	800 gr	2	60÷65	220	2	60÷65	200	Cut the potatoes into equal parts and place in a Pyrex dish. Season with salt, origano and rosemary. Cook in oil.
Carrots	800 gr	1	80÷85	220	1	70÷80	200	Slice the carrots, place in a Pyrex dish and cook.
Fruit
Whole apples	Kg 1	1	45÷55	220	2	45÷55	200	Bake the fruit in an open Pyrex or earthen- ware dish. Leave it to cool inside the oven.
Pears	Kg 1	1	45÷55	220	2	45÷55	200	Follow procedure above.
Peaches	Kg 1	1	45÷55	220	2	45÷55	200	Follow procedure above.
Grilling
Place the food to be grilled underneath the infra-red grill. Warning: When the grill is on it takes on a bright red colour. Place the tray underneath the grill to collect juices and fat from the food being grilled.
Squares of bread for toasting	4 pieces 4		5(5 to heat up grill)	grill	4	5(10 to heat up grill)	grill	Lay the bread on the grill tray. When one side of the bread has been toasted, turn over and toast the other side. Remember: keep the toast warm at the bottom of the oven until you are ready to serve it.
Toasted sandwiches	4	3	10(10 to heat up grill)	grill	3	5/8(10 to heat up grill)	grill	Lay the bread on the grill tray. When one side of the sandwich has been toasted, turn over and toast the other side.
Sausages	n°6/Kg 0,9	4	25/30(5 to heat up grill)	grill	4	15/20(10 to heat up grill)	grill	Cut the sausages in half and lay them face down on the grill. Half way through grilling turn them over. Every so often, check that they are being cooked equally all over. (If this is not happening, turn and reposition the ones being cooked ether less or more than the others.
Ribs of beef	n°4/Kg 1,5	4	25(5 to heat up grill)	grill	4	15/20(10 to heat up grill)	grill	Make sure that the ribs of beef are exposed to the full effect on the main grill.
Chicken legs	n°4/Kg 1,5	3	50/60(5 to heat up grill)	grill	3	50/60(10 to heat up grill)	grill	Turn them over twice during grilling.

INSTRUCCIONES GENERALES

DECLARATION DE CONFORMITE:

MISE EN PLACE DU FOUR DANS SON MEUBLE

Bce ynaKOBOuHbIe MaTePnAbl, TaKHe KAK NoIM3TuHIOHObIe MeUKN, DeTALN N3 NeHONJIaCTa NN IBO3DN, CJeDyET y6paTb B HeIOCTyHoe dJRA DetEe MeCTO, NOckoMbky OHn PpeCTaBnIOT DnI HIN ONACHOCTb.

Bce doctynbIe deTaN HArpeBaOTcBO Bpempa60bI pnp6op, 6yIte octopokHbI He npkacaiTeC b KHM. Pn npepbOM BKNOHeHH NINbIMoKET NOBtcbdBM Cpe3KIM 3aIaxOM. 3TO pONCXODIT npn npEBom HArpeBE TepMO3OJIuHN DxyOBKn I CHTaETcH HopMaJIbHbIM AIBHeHEM. Nocne toro, KaK dbIM nepeCTaHET BIDJeTbCS, B DxyOBKY MOXHO NOMEaTaB PNOyKTb I nPnFOToBNeHn.

DyXOBKa BO BpEMpaObTb CnIbHO HaPeBaETc,OCo6eHNO CTekNIO DBePcbl.He pa3peaIte DeTm HaxoOntbcra PraOM C dYxOBKO Bo Bpemr ee pa60tbl,OCo6eHNO npin nCnoB3OBAHn rpnJ.

DeknapauncooTBeTCTBnA.

Yactn daHnHO np6oBa, HmEOnue HeNoCpeDCTBeHHbIKoHTaKcT C npOyKTAMPiTaHnA, COOTBETCTByOT PpeINCAHnM DnpKeTMBbCEE

89/109. Pnp6op COOTBCTBYET EBponeckm DnpektnBaM 73/23/EEC n 89/336/EEC, BmecTo KOTobx6bnn npnrHtby 2006/95/EC n 2004/108/EC C nocndyooummn NmmeHneHn m n donoNHeHnMn.

NHCTPYKUINIPOB3ONACHOCTN

3TOT npn60p DOJIXeH NcNoB3oBaTbC TOnIbKO B CENX, DJI KOTOpbix OH 6blN cKOHCTpyuPBOAH, TO eCTb DJI pRTOTOBHeH NmU B DoMaunHX YCNOBHX. NcNoB3OBAHne Pn60pa Da JKAUX-JIN6o Dpyrnx CJeH (HaNPmE, DJI OOBpeBa NOMeH) CHNTaeTC NcNoB3oBAHem He No Ha3HaueHIO, TO eCTb PnDCTABNJHOUM ONaCHOCTb.

Dpma-pon3BODntel He Hecet OTBETCTBEHHOCTb 3a yuepe6, KOtob moKet B03HKNHYb BCneCTBnE nCOnIb3OBAHna daHnHO npnbopa He no Ha3HaehnIO,

a TaKxE BcneDCTBnE HApyWeHn npaBn erO 3KnnyatauN.

PnnoB30BaHm 3neKtpueckmnpnbopamCJeNyETco6nOdaTb pAn OCHOBhix npabn 6e3oNaCHOCTn.

Bce doctynbIe DetanCnIbHO harpeBaIOTcBO BpEmpa60bI np6opa, 6yDbTe OTOPOXKnI H He PnPKACAaTecb K HIM.
-He TAHNTe UHyp NHTaHn, YTO6bI BbHyTb BNJky n3 po3ETKn.
-He npnkaaTecbKdyXOBKe MOKpbIMNINBnaKhbIMPyKaMnINHOrAMN.
-He noIb3yItebc dyXOBko,ecn Bbl pa3ytbl.
- He pa3pewaIte IOnlb30BaTbc8 dyXOBKo 6e3 npMCOTpa DeTAM ININ 6OJIbHbIM JIOJAM.
-HepeKOMEHdyETcNcNOJb3OBAtB aADANTepbl, TPOHNIKN yDINHHTeJI.
B cnhye HnncpabHOCTM nHnN OTKNOHEHnO T HopMaIbHOro peXnMa paOTobl dyOBKY CNEyET BIKIOHTb N He nbITbCra cMOCTOTeNb HO OTPMOHTIPOBATb.
-BcnyaepnoBpeKJHnIuHpyeraeroCneDyET,HeOTKlaDbIBaR，3aMeHHTb, DJIaHrOeBbINHnTE CNEdyIOUne ONEpaun:

OtkpoTeKpbIky KJIeMMHOn KOPO6Kn,OTCOeINHtSe UHyp NITaHnN 3aMeHNTe ero Ha HObBn UHyp Tpe6yEm OJINHb (TIN HO5RR-F,H05VV-F,H05V2V2-
F),coOTBeTCTByHouMmMoUHocTN npHbopa.JaHHaOnepauNdoJXHa BbIIOHNrTcBAKnHmPPOBaHHbIM CneuaHmCTOM.3a3eMaHOuI npBOoD (XeHTo-3eHeB) doJIKeH o83aTeNbHO bIt npImepHo Ha 10 MM dnnHHee OCTaJIbHbIX pOBODB.
Pn Heo6xOIMOCTN IpOBeHnpeMOHTa CneUyET ObpaatcbcB A bAtOp30BaAHhBcSEPBCNCHbI ueHTp,NCIOJIb3yIOuIN OPINHANbHe 3anaChbIe cactn. Heco6HnEHeNe PabIN, INIOJKeHHbIX BbIe, MOKeT npInBeCTN K HApuyEnHO 6e3OpachOCTn pnp6opa.
DyoxOBKa 6bnaaet TOUHO 3aahHHbIMn TEXHueCKMm XapaKTepNCTKaMM, NO3TOMY B Hee HEBO3MOKHO BHOCNTb N3MeHeHn.
Helen38 noIb30BaTbcra npnbopamn, ouuauounmnpn nmoan npa noB BbICOKM daBHeHem.
-HeJIb3aCTaBnTB BdyXOBky BOCIIaMeHryIOUmeCRApeMTebl. Pm CnyaHOM BKIOUeHHN OHMOrT 3aTOpeTbcRc.
He 06nokauBaItecb n He caKaaTe dTee Ha DBepuy duXOBKn.
YTO6bI NOCTABNTB B DxyOBky N BbyHyTb N3 Hee Nocydy, 6JIOda NDOJINHTeBHOE O6OpyOBOAHN IONb3yHTEc bCNEUaJIbHOpyKAbuieiDyOxOBKa HE npEDyCMOTpeHa IIN CNOJIb3OBAHn IIOJBMn (BKIOHua DETei) C ORPAHNHEHBMIM CNH3NECKHM, CECOPHBIM NIN yMCTBEHHBMIO3MOXHOCTMa, ECIM TOJIbKO OHn HE HaxOJaTCn IOd HA6IOHeHEMOTBETCEHHBHX 3a IN 6e3OnaCHOCTNII.
CJeIeHTe, YTo6bI DeTn He IrgpaIc C dyXOBkoJ.

YCTAHOBKA

YCTAHOBKa npmbopa npon3BODHTC8a cHTNOKyNAteTn. Dpma-npON3BODHTeNB He Hecet o6BaTeNbCTB NO daHHo ycnye. Ha pEmOH, KOtOpb moKet 6blb Bb3BaHnepraBnHbO yCTAHOBKO, He paCnPoCTpaHaETcRApaHTN, n DpMa npON3BODHTeNB ERO HE KOMNEHCNPyET.

YcTaHOBka DOnJXHa npON3BOOHTbcB C COOTBeTCTBm C N HcHcTyKUeH KBAINdMnPOBaHbHM CneuaNtCTOM. HenpabInhAry YcTaHOBka np60pa MoKeT npIBeTn K TpaBMnPOBaHIOIIOe N JxMBOTbIX, a TaKke HaHeCTn yUepe MmUeCTBy, 3a YTO pnpMa-nPOn3BOOHTeNb He 6yTeT HeCTN OTBeTBeHHoCTb.

Me6enb, B KOTopyHIOJINHA BCTpaBbC8IyXOBKa, I0JINHa 6bITb BblONHeHa H3 MaTePnAIOB YCTOINBbIX K BICOKIM TEMpePaTyPam.

DyXOBKa MOKeT BCTpaNBaTbC KAK NOI CTOneUHnU, TAK IN KOLOHky. NpepeKpEnJIeHMe: Heo6xOJIMo PnpEycmOTpeTB XopoWuY BOHTINJRAIO NOMeueHnR, rge yctaHabNBAeTcR pnp60, rTObI oBceNeHTb HOpMaJIbHyIO UkpKyJauNo BO3dyxa, Heo6xOJIMoro DnO xONaxKeHnA BHYTeHHx Detanien. Jn 3TOrO CJeDeYt PnpEycmOTpeTB CneuaNaNbHbIe OTBepCTra (CM. NocPeHHOCTpaHcy).

yctaHObKa dYXOBOrO uKaΦa B KkyOHHbI rAPHTyp

PomeeH KAK NOI CTONEHUY, TAK N B BEPTKANBHy IKA.3aKeNITe dYxOBky, npBHTNB ee Hepe3 CNEUAnbHbe OTBpCTNA JKNPEnexHa pame (CM.pCNYOK HA NOCEHNCTPAHUE).TTO6bH HAIIN TOBpCTNA JKNPEnEXA, OKPOITE BEPu 3aFJIHNTBEHYTpB. TTO6bI ObceNeHTb Heo6XoMMyIO BEHTNJUHO,napaMeTpbu NPACOTHNA, yka3aHHb B DnApaPMME Ha NOcNEHRe CTpAHUE,doJNXHb HeyKOCHTeBHO CO6HNODaTcBpy nypCTAHOBKe. O6paTIne BHIMAHHe: JIN dyXOBbIX WKAFOB, KOM6HNHPoBAHbX C BapOHO NaHEbHO, Heo6XoDMo CJeOBOaTB NHCTpyKUmM DnBapOHO NaHEnI.

3JIKTPNUECKOE NOKJIIOUOHEHNE

YCTAHOBKA DUYXOBKN DOJIXHA IPON3BOIDNTBCOTPYDHNKOM ABTOPN3OBAHHORO CEPBNCHOTGUEHTPA NIN CNELNAIMCTOM, IMEIOUIM COOTBETCTBYOUI KBAJIINΦUKAUNI.

AaHHb npi6op DoJIxH yCTaHaBnBaTbCBA COOTBeTCTBnC DeIcTByUOUMN HOpMaMn I npaBnAmn.

B cnyae Heco6JIOeHnA 3Tnx Hopm PnpMa-1pOu3BOuNTeNb He Hecet HnKaKoI OTBeTCTBEHHOCTN.

DyXOBKa COOTBETCTBYET Tpe6oBaHnM 6e3OnaCHOCTN, PpeDyCMOTpeHHbIM HOpMaMn, INJKNHa 6bITb ChabKHe TAPEXIOIOCHO BNIKO C 3a3EmNEHHbIM NIOHOCOM, OeCEneHBAIOUM HADEXHOE 3a3EMNEHne.

PnIeKTPueckOM NOJKIOHcEHN CNEyDeT PneDyCMOTpebYcTaHOBky COOTBeTCTBYIOUX NpeDOxPAHHTEnE INCIOJI3OBATKAbEB CdoTAOTUHBM IAN HOpMaIbHorO FyHKUNOHINPOBAHmI dyXOBKM CEHeHEM.

IIOKJIIOUeyHNE:

AnHHN pIb6p OyKOMnNEkTOBAN UHypoM NHTaHry IJrnpCoeDInHEHry TOnbKO K 3eKtPPOO6OpOBaHIO C HAprrKeHEm 230 B Mekdy Faz30 nn MeKdy Faz30 n HeITpaBIO.

Peped nodknuehenm CneJeYeT npOBepntb:

• HanpЯЖeHne, yKa3aHHoe Ha 3JIeKTpNueCKOM CcETYnKe,

• HANMNE ABTOMATNUECKOBO BbIKIOUaTeJIa

3aemnno npoBOd (xenTO-3eHb) dYXOBKn DOJnxH 6bIb CoeINHeK 3aemnnoymy yCTPOINCTBY 3NEKTPOO6OpD0BAHNDAOMA. HAdexHOCTb3aemnnoyero yCTPOINCTBA 3NEKTPOO6OpD0BAHNDAOMA DOJNXO 6bITnpoBepeno KBaINpUPOBaHHbIM 3NEKTPNKOM nepeD 3NEKTPNueckm NOkLIQUEHME.

PnmeaHne: He 3a6yIbTe, YTO MOKeT BO3HNKHyTB Heo6XoIMOCTB TexHHeCKOM O6CnyKINBAHm Pn60opa, KOTOPoe DoJxhen Ipnu3BODHT cepBCHsIeHTp.10ToMcy CNEyET ObcNeHTB JERKNIOCTYK BUNKE. 3aMeHa UHPa NITAHNA DOnJHKA PnO3BOHTBC SOTpydNHKOM cepBCHORO CEHTPA INN KBANMnIPPOBAHBM CNEuaNtCMT. Pn3aMeHe CNEyET pykoBOCTBOBaTcB yka3aHHbIM XapaKTepnCTNKAMn Pnp6opa.

DONOHINTEJIbHOEOBOPYIOBAHNE DYXOBKN

PepnepBbIM nCnoB3ObaHHeM npEeMetOB DOnonHnteBHoro 6obopyoBaHmnx Cneyet NOMbTb, nCNoB3yry6Ky. 3aTeM KAK CNeDyET OONOCHTe INx YHCTOBNBOJN BbITpNTe HAcYXO.

Ipocta peWetka CnyKNT IJIpa3MeueHn foPm IINBbIneKNI Nocybl.

PeWetKa C HnPaBnIoumMn Iy nOdoHOB

Ncnoj3yETcra，BcaCTHO,

PnroTOBJIeHMa RaHa rpnJe, TaK KaK K Hei

KpeHITcN IOOOH DnA Ccbopa BbIeJeHOeOcR

B npouecce Xkapn Knpa.

CneuaIbHbIe TeleckOnuYeCKHe HnpaBJIouUe ObecneuBaHT Rop30HTaIbHOe NOLOKeHHe peWetOK pN BbIHMaHm INx IN3 DyXOBKn, YTO npEoTbPaauet ONpOKNbIBaHne Nocybl.

HABOPIINIINIpaaspa0taHJnI npiroTOBNEHNIUJIyTObI NOUYHTb HANyWnepe3yIbTaIberoeO6xOIMo INCIOB3OBaTB BmecTe CpyHKuee「Tua

PeWetka pI rPnI. IeaeIbHa IJI npriroToBHeHn Ha rpIne.
CnOIp3yITBe BmEcTe C nIOAOHOM IJRA c6Opa cKa. B KOMIJIeKT
BXoINr PykA, npN NOMOuN KOtopoN MOKHO 6e3OnaCHO
pepeBiratb o6a 3TN PpEmTa. He octabTne pyKU BVHTPN
DyXOBKn

Ecn npedmetb dononHntelbHoro 6obopyoBaHn He nCnoB3yOTCx CneDyET BblHyb N3 dyXOBKn.

CNCTEMABE3OBACTHOCTNIIOJIOK

IyXOBoW kaObOpYOBaH cnCTeMoB 630nachOHT NOK. OHa N03BOJReT BvIDBnATb NOKn DnI POBEPKn 6bnDa 6e3 PNCKa ERO COKcAJIb3bIBAHN INN CnyauHOrO BInaJeHnN NOKn IN3 IyXOBoFO Wkapa. YTO6bl NONHOCTbO BbHyTB NOky NotHnTe eE K Ce6e N BBepx.

PPIIOTOBJIEHNE HA IPIJIJE

Pnncno30BaHm npnMoKHO 6bCTpo pnproTOBn6IHO CpyMaHO KopoKoH. NnNoDpymraHHaHnpeKOMeHyETcRyCTAHOBnTpeWETky HA YTeBepTb npOBeH, B3AHCIMOCtN OT pa3Mepa 6JIIOda (CM. cTp. 65). PpakTuueckn HIO6bIe npOyKbT MoKOHO rOToBnHa rPnne, KpOME OHeh NOCTHOHN MRCbIXpyNEToB.

Maco npb6y nepeipnroTOBHeHMe Ha rpiIe CneJeT Cma3aTb Maclom.

MODEJI U-COOK

MoJEn OdaHcNEKToHHbIM ynpaBHeHem CKOpocTn KOHBekm, 3anaTeHToBaHHe Hae3BaHne KOTopoRo Vario Fan. Bo BpeM npiroTOBJIeMa 3Ta CnTEMa ABToMaTHueCKn MEHRe TCKOpOCTb KOHBekLIM (B MHOrOdyKIOHOAbHbHO MOJEn, YTObI ONTNMI3pOBAbT N0TOK BO3Dyxa HByTpEHIO TOmepaTy DyXOBKn.

Bce LyxobKnOoHcHb cyhKcnei. Soft BnAorapra 3OMy MOXHO npabJrB paCnpedeJeHMeB BlaXHOCTn TEMNepaTpyb.3TO CHNXaET NOTEPBO BIAHXOCTn Ha 50% ,YTO oBeCeNeuBaET HeXHOCTb NOTINHb BKC6NoD.3TO DeNkATbI CNOC6 npiROTOBHeJIe,peKOMeHDoBAHbI dJIra BIIneKx XnE6a H KOHNTePCKHX H3dJIIN.

YmehbIuaeT Bpem IpeBapntelhoro HarpBa DyXOBK:200 rpaDycob No Cenbcno DocturaHOTc Bcero 3a 8 MnHyT.

Jaet BO3MOxHbIM ycTaHaBnMaBt ypoBeH b HHTeHCnBHOCTb NOJXapuBaHnHa rPnE,do 50 % npoTeHbO BoJbwe MoHcOtn No cpaBHeHIO C TpaDnOHHO MHOFOyHKnOHaHbHO dyXOBKo.

HeKOTOpBleIyXOBKnOChAaHbI DBePcE HOBONHOCTpyKmN WIDE DOOR, CTeKIO KOTopo60JbIeRo pa3Mepa, YTO N03BOJnEeT Lyuye yxaXnBaTb 3a IyXOBKO IN OecneueHBAeT LyuYIO TEPMOIN3oJIaHIO.

3aMeHa NODCBETKN BMOeJIU·S∈E

3To CnCTema NoCBETK, KOTOPaY 3aMeHReT 0bIyHyo JAmNoQy. 14 CBTeOIOIOB BCTPOEHB I DBEPU. OH N CBeTcRApKIM 6eJbIM CBeTOM, KOTOpB IO3BOJARET XOPLOI BNDtB BHYTpHee INPoCTpaHCTBO DyXOBKn 6e3 3aTEMHeH H BAce XPOBHX.

PpemmyeCTBa

CCTEMA U.SEE, NOMMIMO OTNIHORO OCBUEHIN, OTNHAETCG 60blmm CPOKOM cnkyb no cpabHnEO hOBHNO JAMNQKO, yXoJ 3a He npOe n OHa 60one KOKOHMOB H BNOTpeBHeHHHEPBN.

-OTnHb063Op

-ONROBeyHOCTb

Hn3Koe 3HeepronoTpe6neHne,Ha95%MeHbIe 06bHHoJ lamnoKn

-BbICOKOEKaueCTBO

Pn6bococBcEeHemCBetOnoAMN6BenoTcBtACa1M8co0BtCTBMNCIEC 60825-1:1993+A1:1997+A2:2001(3KbBnBHeN EN 60825-1:1994+A1:2002+A2:2001) MakChmBnaHaeXOJRAaONTHeCKaMOHOCbT459nm<150uW. He CMOTpEB HENOpCECTBEHO HA HcTOHNNK CBETa pnoMOUINOTHTHECKNX Pn6bOBo

BPEMIIPIIOTOBJIEHNA

Pn npBOM hCNoB3OBAHm DxyOBKn IpaI paChTa BpeMeHN pnproTOBHeHn CneJeT 6bpaatbcra K TaBnue Ha cTpaHnuax 65-66. BnocJeCTBn Bbl MOKeTe N3MeHrTB 3TO BpE M B 3aBNCMOCTN OT BaUHX JInhBIX PpeIOHTeHn IN ONbITa.

KATAJINTHUeCKAR CAMOQUHUAIOUARCA DYXOBKA

CneuaHbIe naHeIN, NOKpbTbe 3MaJIbHO C MNIKpOIOpCTO CTpykTyPOI npOdaBaEMbIE B KaHECTBE DOnOIHNITeBHO OOBpyDOBAHnA IINBCexMOdeJeOCBO60KaIaOT OT Heo6xOIMOCTN OHHaTb DYXOBky BpyHyHO.

Xn, ocedaun Ha cTeHKax dYxOBKn B npoucepe npiroTOBHeHna paueeJAE TcAmaIbHO NOpceDCTBOM KATAINTHeCKOTo PPOeCCA OKNCHeHn nPneO6pa3yETCB R a300o6pa3Hoe BeueCTBO.
Bp3rN Xn mory MOrT 3aKypopntb NpO, n, TaKIM Opa3OM, NOMEuATb CAMooCHTE. 3TO CBOJCTBO 3aunHTbX NaHEJI MOXHO BOCCTAHOBNT, HarpBaR NcyTuO DxyOBky B TeUeHne 10-20 MNHyT npn MaKCMaIBHO TEMNEpatye. He NoIb3yIeCb abpa3NBbHM MoOuMM CpeCTBaAM, MOaANKAMN I3 CTALbHNO pOBOJOKO, OCTpbIMnpPeDMaTM, JCKCTKMM R6kAMN XmMueckNM BVEcTBAMN INMOUUMC pCECTBAAM, KOtOpBe MOYr HENOpPABIMO NOpeDHTbMaIb. PekOMeHnyETcA TAKKe NOIb3oBATc NOcyDo CB BCOKIMM BOPTKAMN B CUYae pNIROTOBHNe HA O6BEHN XnHPbIX 6NJOD (XapKO rIO T.D.) , a npn XkapRe Ha prnile CLeDeYET NCIOJIb3OBAb TPOTNBbE. EcInn 3-3a OCObOxo xapaTepa 3arpy3HeHNA, BwIepepeHCNEHBx MEp 6yTeT HeDCOTAOHO, peKOMeHnyETcYdANITb Xkp npn NOMOU MRKo TKAH INN r6KN, CMoeyHbX IbropHe BOIDOn. NpncCTOCT bMaIy RBJeTcO CHOBHIM ycNoBnEM IAn oEcecneHcyamooNuaQUeero aΦfekTa. N.B PnmeuHaHHe: Bce camoOHuaHOuNEcraHenn, MehoUeNEcB npOdaKe, paccHTaHb IpN6nHteBHo Ha 300 yacob pa60tb dyXOBKn. Iocne 3TO rOco KaNaHEn ClneyEt 3AmEHNTb.

YXODI OCHCTKA

• IpeT KAK pncTyNaB K Ounchke npnbopa, CneNyET nooJdaTb, noka OH OCTbHET.

-HeIb3a IcIIOb3OBA Tb abpa3INBhIE MOUINe CpeDCTBa,MOaJIKN 13 MeTaNIIuecko npOBJOKn Hn pexyUne npEIMeTbI, KOTOpBie MOrTy NOBpeNTb 3MaIIMPOBaHHyIO CTaJIbHyIO NOBepxHOCTN.

-NCNoB3yIeMbIbHpaCTbOpnnCpeCTBaHaOCHOBaMMnka. IYXOBKBA-OChEBBaJHO BbIMbITdyXOBKYNOCNEKaJDOIRO NcNoB30BaHn. BoBpEMnPiRTOBHeNHnHaCTEHKAX dyXOBKn OceAet Knp. PnIOoNEyOuE MNCNoB30BaHN 3OT JmP MoKET N3DaBaTb HENPnA rTHbN 3aNaX M oKET NOBnAHTb HA KaecCTBO6nOda.DnOOnCTKN DxyOBKn NCNoB3yIte BOy n MOoHoe CpeCTBO, TuaTeNbHO pOmbiBaIe YnCTOBo BODO. CTEKJIaHHBIE DETAJIN

Nocne kaxdo nCnoB3oBaHn DyOBKn BbITPnTe CTeKNo DBepuB yMaXhbIM NOIOTeHcE.McNHa NOBepxHOCTn OCTaINCB CmIKOM 60BbUHe NpTHa OT XkPa, CMIOte PnPi NMOOu INy6Kn MHOUero CpeCTBA. PpOMIoTE YCHTOI BOOn I BbTPnTe HAcYxo. HeJb3r NcNoB3oBaTb abpa3NBHeIe CpeCTBa INIPEKxyUne NepeMeTb.IPoknaDky DBepuB cNeEy TOnuTaB npN NOMOu INy6Kn MNOUero CpeCTBA.

JIOJIHHTENbHOE OOBAHME

CJeNyET OuyuTaB Pnnp NMOUg Ry6Kn, CMOeHHO BMbIbHOM pACTBOpe, 3aTEM BbMbITb HCTOEN BOOIN BbTepeTb HAcxO.

NODOH

Iocne npiroTOBHeHnHa rPIne BbIHbTe nOdoHn3dyoxOBKn. BblneTe er0 CoepKmoe B KakyHO-HbHybNocyDu, NOMOte RopRcHn BODo nCMoHHeHO MOUHM CpeCTBOM RKOHN, B 3AKIOHcHMe BbMOHTe FOPRcHn BODo nBbITnE HAcxO. IaToro YTO6bI ydaNtB pnpRoBeBWe OctAKn Niu, 3AmOHTe NOdOH B BoDE, OoBaNB MoOuuee CpeCTBO. PNO DOH MOKHO MbTb NOCyDAMoEOH MaunHe IIN Prn NOMOu CneuaNbHbIX CpeCTB, IMHoUHXCB B PPODAKe. HIKOr Da He OCTaBnTe Tpr3HbI NODOH B DxyOBKe.

IPOCBETKA DYXOBKN

PepaONePAUINo OHCTKe Nn3aMeHE NaMPOKn BbHIMaTEBNIky n3 po3ETKn. NaMOnOka N 3aUnTHbIK KOJIaK IN3rTOBJIeHbI IN3MaTePnaIOB, yCTouNBBIX K BBICOKIM Tempeatypam.

Texnueckne xapaKTepeNCTMkn JAmNoOyKn: 230 B\~-25 Br- zuokolb E 14-TemepaT

Ecn Heo6xOHNMO 3aMeHnTB HeCNpABHyO NaMNOHY, CNeJeT ChrTa 3aunTHbI CTKJIaHHb KOJnAkB, BbIKpyNTb NaMNOyK, ZMeHnTB ee Ha aHaJIoNHyO HOByu YcTAHOBnTB Ha MeCTO 3aunTHbI CTKJIaHHb KOJnAkB.

CEPBNUCHOE OBCJNYKUBAHNE

IpeTeK KAK 6bpaTaBcB C cepBncBtCHTp.

B cnyuae ecn nyxOBka he paobotaet, pekomehyem Bam:

• npOBepntb, npabnblho JIN BCTaBHeHa BnKa B pO3eKy; Ecn He ydaTc6oHApxNtB npuHHy HncnPabHOCTn:

BbIKIOHHTe np6Op, He npEipnHHMaTe NObltOK CaOcToTEnbHO OTpeMOHTPOBAtb Ero N03BOHIne B ABTOP3OBAHb CEpBNCHbI cHTp. PnO6paueHN B ATOPTIN3OBaHHb CEPBNCbHc UeTHp O63ATEbHO CNEyET COo6UHTb H3BaBHHe MOeHN I cepHNbHOMep H3dJIeN, KOtBopeB MeKTe HAHTB RapAHTHHOM CBnTeBCTBe NnHa MapKnPOBOHO TaONHKe.

Kn3dHIO npnaIraetc rapaHTmHOe CBNTeJIbCTBO, HA OCHOBAHN KOTOPOrO OHO6yET 6ecIIaTHo OTpeMOHTnpOBaHO B ABTOpN30BAHHOM CepBnCHOM CEHTpe B TeeyHe rapaHTmHorO cpoKa.

NCIOJIb3OBAHNE TAIMEPA

IyctaHOBKn BpeMeHH PnirTOBHeHH COBMeCTNTe Yka3aTeJIb pyuKc T Tpe6yEmbIM BpeMeHem, NO tceUHHm YCTaHOBHeHHOro nepnoJa B TeueHne HeckOblknx MInHy 6yDet 3ByHaTb 3ByKOBoi CnHAn.

ИСПОЛБОBAHNE TAIMEPA OKOHЧАньВРЕМИ ППГOTOBЛECHИ

PnH NOMOUI 3ToI dyHKUIM MOJHO yCTaHOBNtB Tpe6yEMOE BPEM nproTOBNEHnA (MAKc.120 MHN), PO nCteUeHN KOTOPOr dYxOBKa ABOTMATHECKN BbIKIOHNTCR.

TaimepOTCHTaETBpEMOYCTAHOBNEHNO FO NOIOXeHHN O NABTomATueckn BbIKJHOHTC.

ДяИСПОЛБЗOBАнгДУХOBКВБОьИЧOM pexKIMe，yCTaHOBITe NOIOKHeHc

ДяВКЛIOЧЕНЯ ПЛNTБΙΝΟВЕРБTe，УTOББΙΤaIMМeР He HaxOДИСВЕВ NIOLOXΕHIN 0.

YctaHOJIeHHeB Bpemr

IyCTAHOBKn BpeMeHN HAXMHTe HA KHONKY perynIOBKN N NOBEPHNT npOTNB YACOB CTpeJIKN Do npABINbHO R BpeMeHN. IyCTAHOBKn Taimepa BpeMeHN prrnoTOBJIeHNA NOBEPHNT, He Haxmarn, KhoNkY peYrnpOBNKn. IIO nCTeEHMN yCTAHOBJIeHHORo BpeMeHN pio3ByHT 3ByKOBo CNIHAN, NOcNE KOtporo DxyOBky cJeDyET BbIKJIOUHTb.

ДяOTKЛHOUeHЯ3ByKOBOrO CnHana NOBepHInTe KHOKNy, NOKA BOKoUke He NOBaTcR O6O3HaueHne ()

ИСПОЛьЗOBAHNE 3ЛЕКТPOHHOГ ПОГРAMMATOPA

,bINEyK- IN KO(NTEPCKNE N3JINNA

136eraTne nCnOJIb3OBaHnIe 6JIeCTaIuX foOpM, nockoNbky OOn OTpaKaHOT TepNo, n BepxHra YAcTB N3dEINr MoKet NoIropeB. EcIn n3dEInme CnUWkOM 6bICTpo IIOpymHBAeTcR, HAKPOTe erO bMyarO INIy BInEKAHnINn AIIOMNHHeBOI FOJIbTOI.

BHHMaHHe: KlaIaIte foIbIg IpaBnIbHOI CTOpOH, 6IecTlaua CTOpOHa DOJIxHa 6blb NOBepHyTa K 3dEInIO, INaue TENIO 6yJeT OtpaxKaTcR H He IpOnHKHT BHTpb npOdykTA.

CTapainecb He OTKpBbAtb DBeepuy B TeueHne NepBbX 20-25 MmHyT BbIeKn, HnAe BCE KOHInTePcckne N3dEIna, KOTOpbe IOnKbI NOoTn BO BPem npiroTOBHeHna, TAKHe KaK cyfpe, 6yIOChn n T. d. HemeJeHHO OnaDyT. Jn KOHTpONPiouceca pnpiroTOBHeHna BOTKHnTE B cHTp Ie3BHe HOXA nIN 3yboNCTky. Ecln TectO He npinJnno, 3HaHT, IN3dEIne rTOBO mMOxHO BbIKNoCtB dyXOBky. Ecn Ie3Bne CbIpoe IN K Hemy npinJnNO TECTO, npoDOxNKe npiroTOBHeHme, CnerKa y6abNB TemnepaTypy, YTO6bI Bepx IN3dEIn He npiropen.

+ / 0do	C.OCO6 .pHOTOB/EN2	Ko/n°ecTBo	Te).epaTpya °C	pe)2 .pHOTOB/EN2	YPOBEH0	COBETb
Булочи	Приночтеловая KOнВЕКця	800 rp	200 °C	40 MmH	1
Пирог сkanystоя	Приночтеловая KOнВЕКця	40 kucKB	190 °C	35 MmH	1/3	2 поотиня
Осюва дя ТорТа	Приночтеловая KOнВЕКця	Ha 6 nepcoH	180-220 °C	20-30 MmH	1	Ø 27
Пирожhoe ИЗ заварно TECTa	Приночтеловая KOнВЕКця	6 shTyK	200 °C	15-20 MmH	1
Бeze	Конвекция снижим HarpeBaTeMbHbIM 3Лем entOM*	1 поТИВeь	80-85 °C	4 уca 30 MmH	1	r пофп troли
Фруктоь{Tort	Конвекция снижим HarpeBaTeMbHbIM 3Лем entOM*	Ha 6 nepcoH	220 °C	35-40 MmH	1
Пирожhoe CanT Onope	Конвекция снижим HarpeBaTeMbHbIM 3Лем entOM*	6 shTyK	190 °C	30-35 MmH	1

Pn nCnoJIb3OBAHmpeKIMa KOBekcIg C HxKHM HarpeBaTeIbHbIM 3JIeMeHTOM" peKOMeHdyem npedBapntbHbHnHarpeB npn IOMoI KOBekcIg nnEKOHOOMN BpemeH

INSTALLAZIONE	IT
INSTALLATION	GB
INSTALACION	ES
INSTALLATIE	NL
INSTALLATION	DE

INSTALLATION	FR
INSTALAÇÃO	PT
YCTAHOBKA	RU
INSTALACJA	PL

1211082P00·6002-0 VCH

IT

The manufacturer will not be responsible for any inaccuracy resulting from printing or transcript errors contained in this brochure. We reserve the right to carry out modifications to products as required, including the interests of consumption, without prejudice to the characteristics relating to safety or function.

ES
