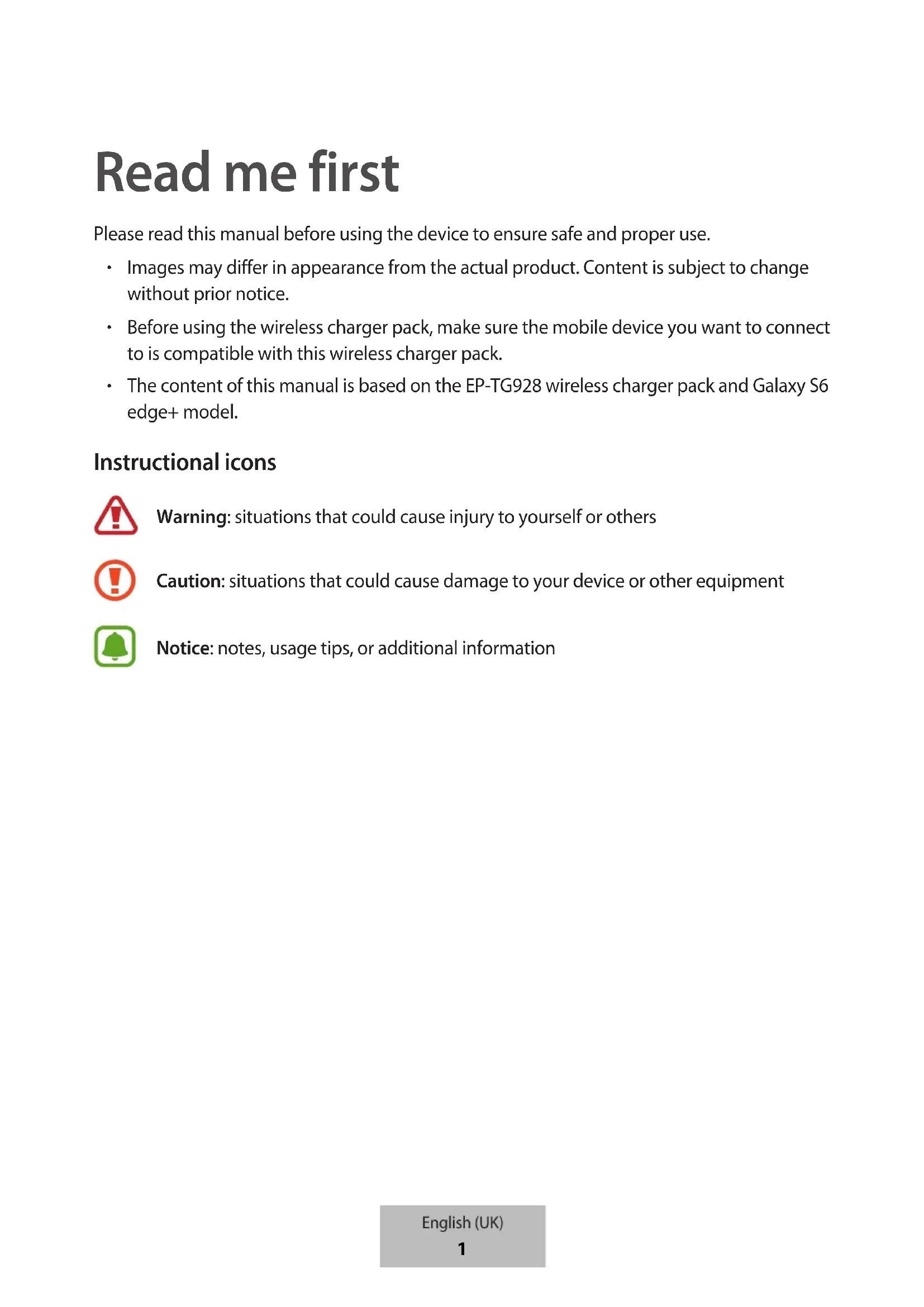

USER MANUAL EPTG928 SAMSUNG
Please read this manual before using the device to ensure safe and proper use.
- Images may differ in appearance from the actual product. Content is subject to change without prior notice.
- Before using the wireless charger pack, make sure the mobile device you want to connect to is compatible with this wireless charger pack.
- The content of this manual is based on the EP-TG928 wireless charger pack and Galaxy S6 edge+ model.
Instructional icons
Warning: situations that could cause injury to yourself or others
Caution: situations that could cause damage to your device or other equipment
Notice: notes, usage tips, or additional information
Getting started
Package contents
Check the product box for the following items:
- Wireless charger pack
- Quick start guide
- The items supplied with the device and any available accessories may vary depending on the region or service provider.
- The supplied items are designed only for this device and may not be compatible with other devices.
- Appearances and specifications are subject to change without prior notice.
- You can purchase additional accessories from your local Samsung retailer. Make sure they are compatible with the device before purchase.
- Use only Samsung-approved accessories. Using unapproved accessories may cause the performance problems and malfunctions that are not covered by the warranty.
- Availability of all accessories is subject to change depending entirely on manufacturing companies. For more information about available accessories, refer to the Samsung website.

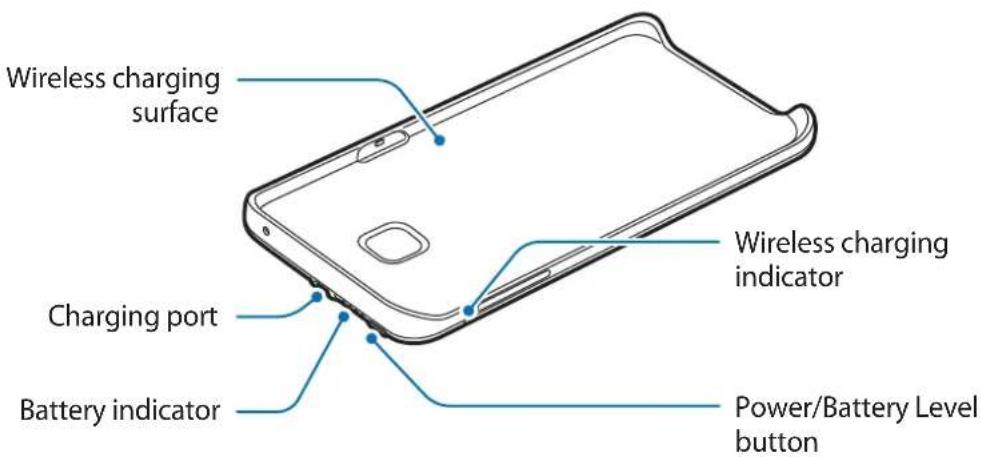

Device layout
Use the charger to charge the battery before using it for the first time.
Use only Samsung-approved chargers and cables. Unapproved chargers or cables can cause the battery to explode or damage the wireless charger pack.

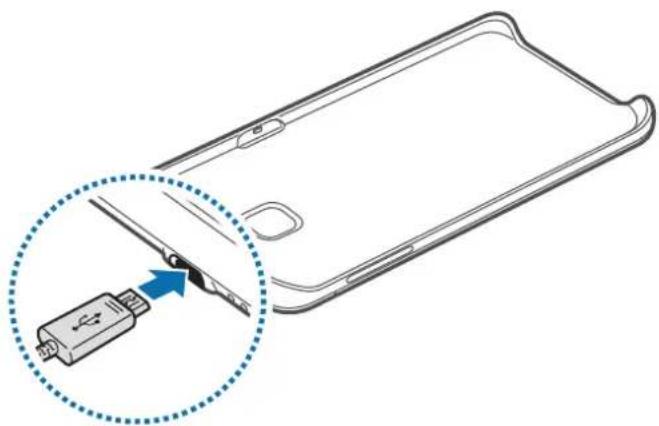

1 Connect the wireless charger pack to a charger.
Connecting the charger improperly may cause serious damage to the wireless charger pack. Any damage caused by misuse is not covered by the warranty.
2 After fully charging, disconnect the wireless charger pack from the charger.
- To save energy, unplug the charger when not in use. The charger does not have a power switch, so you must unplug the charger from the electric socket when not in use to avoid wasting power. The charger should remain close to the electric socket and easily accessible while charging.
- The socket-outlet shall be installed near the equipment and shall be easily accessible.
Battery charging tips and precautions
- Chargers are sold separately.
- The charger can simultaneously charge the wireless charger pack and a mobile device when both are connected, but charging may take longer.
- While charging, the wireless charger pack may heat up. This is normal and should not affect the wireless charger pack's lifespan or performance. If the battery gets hotter than usual, the charger may stop charging.
- If the wireless charger pack is not charging properly, take the wireless charger pack and the charger to a Samsung Service Centre.
Checking the battery status
While the wireless charger pack is charging, the battery indicator will flash according to the charging status.
Charging status Battery indicator status
| 100% Four indicator lights on | |
| 75–99% Three indicator lights on and one indicator light blinking | |
| 50–75% Two indicator lights on and one indicator light blinking | |
| 25–50% One indicator lights on and one indicator light blinking | |
| 0–25% One indicator light blinking |
If the wireless charger pack is exposed to extremely hot or cold temperatures or an error occurs, the four indicator lights will blink. Disconnect the charger from the wireless charger pack, and then reconnect them.
Checking the remaining battery power
Check the remaining battery power by pressing the Battery level button.
The battery indicator will activate according to the remaining battery power.
| Remaining battery power | Battery indicator status |
| 75–100% Four indicator lights on | |
| 50–75% Three indicator lights on | |
| 25–50% Two indicator lights on | |
| 5–25% One indicator light on | |
| less than 5% One indicator light blinking | |
Using the wireless charger pack
Charging your mobile device

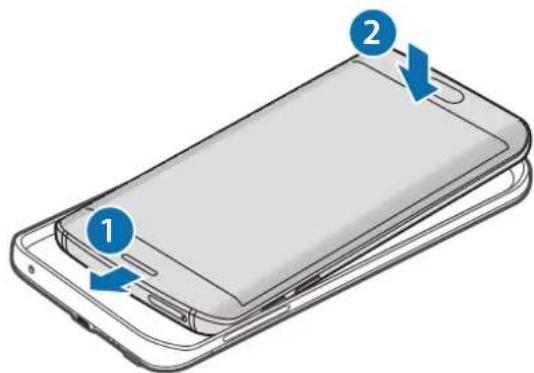

1 Insert your mobile device into the wireless charger pack.
Wireless charging will start.
To deactivate wireless charging, press and hold the Power button. To activate wireless charging again, press the Power button.
3 When the mobile device is fully charged, disconnect it from the wireless charger pack.
- The wireless charger pack and mobile device may vibrate while charging due to high power frequency.
- Do not place any objects between the mobile device and the wireless charger pack. Doing so may prevent the mobile device from charging properly.
- If you use the wireless charger pack in areas with weak network signals, your mobile device may lose network reception.
- If you connect a charger to the mobile device during wireless charging, the wireless charging feature will be unavailable.
- While the mobile device is charging, you cannot use some mobile device features, such as Near Field Communication (NFC), Magnetic Secure Transmission (MST), and Heart rate measurement (HRM).
Checking the wireless charging status
You can check the mobile device's charging status via the wireless charging indicator.
| Colour Wireless charging status | |
| Blue → Green When in standby mode | |
| Blue When charging | |
| Green When fully charged | |
| Flashing blue When not charging properly due to a general error | |
| Off | When the wireless charger pack is off or when the mobile device is disconnected from the wireless charger pack |
- If the mobile device is not charging after being connected to the wireless charger pack, turn off the mobile device and then turn it on again.
- The wireless charger pack is an auxiliary external battery. It may not fully charge some mobile devices.
- If the wireless charger pack and the mobile device is exposed to extremely hot or cold temperatures or an error occurs, the wireless charging indicator will flash in blue. Disconnect the mobile device from the wireless charger pack, and then reconnect them.
Declaration of Conformity
Product details
For the following
Product : WIRELESS CHARGER Battery Pack
Model(s): EP-TG928
C € 0678
Declaration & Applicable standards
We hereby declare, that the product above is in compliance with the essential requirements of the R&TTE Directive (1999/5/EC) by application of:
EN 301 489-1 V1.9.2
EN 300 330-1 V1.7.1
EN 60950-1:2006+A11:2009+A1:2010+A12:2011
EN 301 489-3 V1.6.1
EN 300 330-2 V1.5.1
EN 62311:2008
and the Directive (2011/65/EU) on the restriction of the use of certain hazardous substances in electrical and electronic equipment by application of EN 50581:2012.
Representative in the EU
Samsung Electronics Euro QA Lab. (YEAR TO
Blackbushe Business Park BEGIN AFFIXING
Saxony Way, Yateley, Hampshire CE MARKING 2015)
GU46 6GG, UK
Sholdough
21 August 2015 Stephen Colclough / EU Representative
(Place and date of issue) (Name and signature of authorised person)
* This is not the address of Samsung Service Centre. For the address or the phone number of Samsung Service Centre, see the warranty card or contact the retailer where you purchased your product.
Declaration of Conformity
Product details
For the following
Product : WIRELESS CHARGER Battery Pack
Model(s): EP-TN920
C € 0678
Declaration & Applicable standards
We hereby declare, that the product above is in compliance with the essential requirements of the R&TTE Directive (1999/5/EC) by application of:
EN 301 489-1 V1.9.2
EN 300 330-1 V1.7.1
EN 60950-1:2006+A11:2009+A1:2010+A12:2011
EN 301 489-3 V1.6.1
EN 300 330-2 V1.5.1
EN 62311:2008
and the Directive (2011/65/EU) on the restriction of the use of certain hazardous substances in electrical and electronic equipment by application of EN 50581:2012.
Representative in the EU
Samsung Electronics Euro QA Lab. (YEAR TO
Blackbushe Business Park BEGIN AFFIXING
Saxony Way, Yateley, Hampshire CE MARKING 2015)
GU46 6GG, UK
Sholdough
21 August 2015 Stephen Colclough / EU Representative
(Place and date of issue) (Name and signature of authorised person)
* This is not the address of Samsung Service Centre. For the address or the phone number of Samsung Service Centre, see the warranty card or contact the retailer where you purchased your product.
Copyright
Copyright © 2015 Samsung Electronics
This manual is protected under international copyright laws.
No part of this manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics.
Trademarks
• SAMSUNG and the SAMSUNG logo are registered trademarks of Samsung Electronics.
- All other trademarks and copyrights are the property of their respective owners.
