USER MANUAL TM1975 Tomado

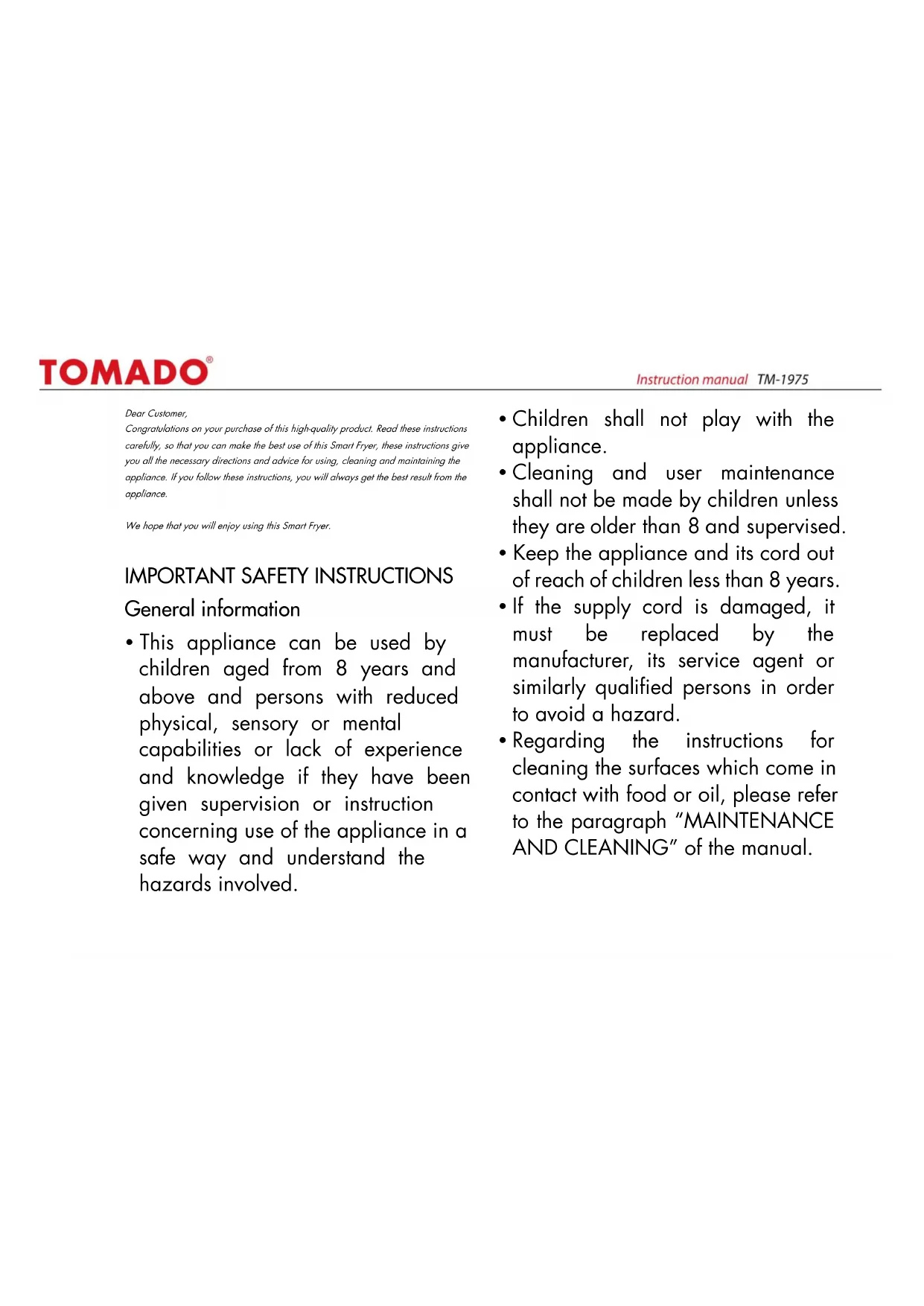

Congratulations on your purchase of this high-quality product. Read these instructions carefully, so that you can make the best use of this Smart Fryer, these instructions give you all the necessary directions and advice for using, cleaning and maintaining the appliance. If you follow these instructions, you will always get the best result from the appliance.

We hope that you will enjoy using this Smart Fryer.

IMPORTANT SAFETY INSTRUCTIONS General information

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.
- Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
- Keep the appliance and its cord out of reach of children less than 8 years.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Regarding the instructions for cleaning the surfaces which come in contact with food or oil, please refer to the paragraph "MAINTENANCE AND CLEANING" of the manual.

TOMADO

Instruction manual TM-1975

• This appliance is intended to be used in household and similar applications such as:
• staff kitchen areas in shop, offices and other working environment;
  o farm houses;
  by clients in hotels, motels and other residential type environments;
  o bed and breakfast type environments.
• Read all instructions before using.
• Only use the appliance as described in this manual.
• In case of damage, caused through not paying attention to this instruction manual, the warranty expires at once. The manufacturer/importer does not

accept any liability for damage caused as a result of ignorance of the user manual, careless usage or the usage against the instructions in this manual.

Always remove the power cord and let it cool:
Before moving the unit;
Before the unit is stored:
o Before you go mounting or dismantle parts;
Before cleaning or maintenance work:
o After use.
- Only have the appliance repaired by a qualified service center*.
Qualified service center: after-sales service of the manufacturer/importer,

which is qualified to carry out repair to avoid any kind of danger. In case of problems please return the appliance to this service.

Electricity and heat

• Before use, check that the mains power supply voltage is the same as the voltage indicated on the appliance.
  Always plug the appliance into an earthed plug socket.
• Regularly check the power cord for damage.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner.

Return appliance to manufacturer or the nearest authorized service agent for examination, repair or electrical or mechanical adjustment.

• To remove the plug from the plug socket, pull the plug. Do not pull the power cord.
• Make sure the power cord does not come into contact with hot surfaces or steam.
  Always remove the plug from the plug socket before you move the appliance.
• The machine should not be operated by means of an external timer-switch or by means of a separate system with remote control.

TOMADO

Instruction manual TM-1975

• If an extension cord is absolutely necessary, a 10-ampere cord should be used. Cords rated for less amperage may overheat. Care should be taken to arrange the cord so that it cannot be pulled or tripped over.
• To avoid a circuit overload, do not operate another high voltage appliance on the same circuit.
• To protect against electric shock do not immerse cord, plugs, or housing in water or other liquid.
• Do not touch the appliance if it falls into water. Remove the plug from its socket, turn of the appliance and do not use it again.
• Do not use the appliance close to hot objects such as a stove or oven.

Using the appliance

• The use of accessory attachment not recommended by the appliance manufacturer may cause injuries.
• Only use the appliance indoors, in dry areas away from water.
• Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
  To reduce the risk of electric shock, do not use the appliance outdoors on wet surfaces.
• Place the appliance on a stable, level surface from which it cannot fall off.
• Use the appliance on a flat, dry and heat resistance surface, not on varnished furniture.

TOMADO

Instruction manual TM-1975

• Place the appliance at least 30cm off the wall or flammable objects (such as curtains, candles or towels).
• Place the appliance on a stable, level surface and not close to hot objects or open flames (e.g. hotplates).
• Disconnect the mains plug: after each time operating; if there is any interference with operation; before cleaning.
• Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.
• Do not use the appliance if the mains cable or plug show signs of damage, if the appliance has fallen on the

floor or has other parts been damage. In such cases take the appliance to a specialist for checking and repair if necessary.

• Close supervision is necessary for any appliance being used by or near children.
• Never leave the appliance unattended during use.
  It is necessary to keep this appliance clean because it is in direct contact with food.
  WARNING!!

Please do not touch surface while in use. The accessible surface may

get hot when the appliance is operating.

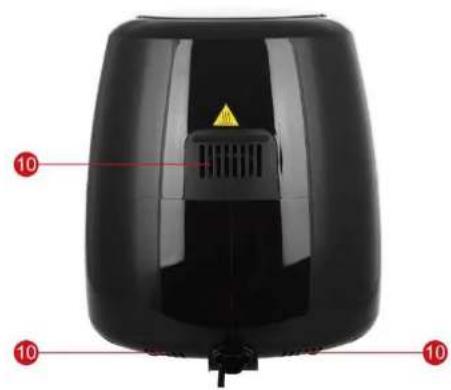

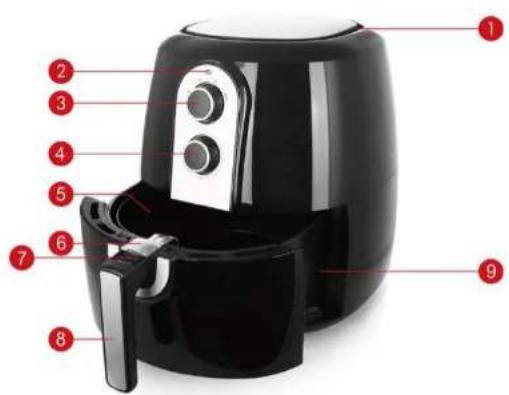

LIST OF COMPONENTS

1. Air inlet
2. Working light
3. Temperature control knob
4. Timer
5. Basket
6. Protection cover for basket release button
7. Basket release button
8. Basket handle
9. Oil catch pan
10. Air outlet

INITIAL USE

• Remove all packaging from the appliance.
• Clean your fryer (see Chapter "MAINTENANCE AND CLEANING").
• Dry well before use. Wipe inside and outside of the appliance with a soft cloth.
• Continue at the section "USE".

This appliance heats food at all directions and most of the ingredients need no oil or less oil.

USE

• Place the appliance on a dry, stable surface.
• Since the appliance becomes hot during use, make sure that it is not too close to other objects.
• Pull out the basket and the oil catch pan from the appliance by the basket handle.
• Place the ingredients into the basket. (Do not exceed the MAX level indicated inside the basket.) Slide the basket and the oil catch pan into the appliance. Make sure they are placed correctly and closed completely. Otherwise the appliance will not work. Caution: Never use the pan without basket in it. Do not touch the pan during use or after use in short time as it gets very hot. Only hold the pan by the handle.

• Connect the power plug to a suitable outlet.

• Set the temperature control knob to the required temperature setting, which is suitable for what you are frying. Consult the temperature table.

• Turn the timer knob to choose the appropriate frying time. The appliance is switched on and the working light illuminates.
• During the hot air frying process, the working light comes on and goes out from time to time. This indicates that the heating element is switched on and off to maintain the set temperature.
• When the cooking is finished, you will hear the timer bell rings.
  Pull out the basket and the oil catch pan from the appliance by the basket handle. Be careful of the hot steam and air when you remove the basket from the appliance.
• Check if the ingredients are ready. If not, simply slide the basket and pan back into the appliance and set the timer to a few extra minutes. Keep all ingredients in the basket to prevent any contact with heating elements.

If the ingredients are ready, remove the protection cover and then press the basket release button to lift the basket out of the pan. Do not turn over the pan. Otherwise the oil collected on the bottom of the pan will leak onto the ingredients. Note: The pan and the ingredients are hot after frying. Depending on the type of the ingredients in the appliance steam may escape from the pan.

• Empty the basket putting the food into a bowl or onto a plate. To remove large or fragile ingredients lift the ingredients out of the basket by a pair of tongs.
• After the cooking is done, the appliance is instantly ready for preparing another batch of ingredients if needed.

FRYING TIPS

The optimal amount for crispy fries is 400 - 600 grams.
- Add 3 minutes to preparation time if the appliance is cold. Preheat the appliance without any ingredients inside. Then fill the basket and turn the timer knob to the required time.
- Shake or turn smaller ingredients halfway during the preparation time. This way food will be fried evenly. Since the basket is locked with the oil catch pan do not press the basket release button during shaking.

• You can also use the fryer to reheat ingredients. To reheat ingredients, set the temperature to 150^ C for up to 10 minutes.
• Products with crust of dry breadcrumbs will get crispier by spraying them with a little vegetable oil.

FRYING TABLE

This table shows the food product quantities and required temperature and frying times. If the instructions on the product pack should deviate from the values shown in this table, the instructions on the pack should be followed.

Food	Min-max Amount (g)	Time (min)	Temperature (℃)	Shake	Notes
Thin frozen fries	350-800	15-25	200	shake
Thick frozen fries	350-700	18-25	200	shake
Home-made fries (8x8 mm)	450-1000	10-16	200	shake	Add 1/2 tbsp of oil
Home-made potato wedges	450-1000	18-22	180	shake	Add 1/2 tbsp of oil
Home-made potato cubes	450-900	12-18	180	shake	Add 1/2 tbsp of oil
Rosti	600-800	10-15	200	shake
Potato gratin	500-800	15-18	200	shake
Sleak	500-900	5-10	200	-
Pork chops	150-750	8-12	200	-
Hamburger	300-800	7-14	200	-
Sausage roll	300-800	13-15	200	-
Drumsticks	300-800	18-22	200	-
Chicken breast	300-800	15-20	200	-
Spring rolls	350-900	5-8	200	shake	Use oven-ready
Frozen chicken nuggets	200-700	6-10	200	shake	Use oven-ready
Frozen fish fingers	200-700	6-10	200	-	Use oven-ready
Frozen bread crumbed cheese snacks	200-750	8-10	180	-	Use oven-ready
Stuffed vegetables	500-1200	10	160	-
Cake	350-850	35-45	180		Use baking tin
Quiche	600	15-20	180		Use baking tin/oven dish
Muffins	450	15-18	200		Use baking tin
Sweet snacks	600	20	160		Use baking tin/oven dish

REFERENCE RECIPES

Asia Spicy Fries
- Potato 4 pcs/600g
-Oil 2 teaspoons
Salt 1 teaspoon
- Pepper powder 1 teaspoon
-Scallion powder
Red chili powder 1/2 teaspoon
Garlic powder 1 teaspoon
- Peel potatoes and cut into strips.
- Dipping potato strips into salt water at least 20 minutes, and then dry with kitchen paper.
Well mix scallion powder, salt and pepper, garlic powder, red chili powder, stir in potato strips.
- Set temperature to 180^ and timer to 5 minutes for preheating.
- Place potato strips into the fry basket evenly; put the fry basket with oil catch pan back to the appliance. Set the timer for 15-20 minutes (depending on the size of fries), or until the fries become golden brown.
*optional: turn over the fries by shaking the basket in the middle of cooking process, for better cooking result.

Fried chicken nuggets

-Fresh chicken nuggets 500g
-Egg [broken up] 3 pcs
Flour 1 cup
-Olive oil 1 spoon
-White pepper powder 1 teaspoon
- Set temperature to 200^ C and timer to 5 minutes for preheating.
- Pat the chicken for 5 minutes with a knife blade.
- Stir eggs, flour, olive oil, white pepper and a liter salt together, and then coated in the chicken nuggets; placed to 20 minutes for well seasoning.
- Put chicken nuggets into the fry basket evenly, put the fry basket with oil catch pan back to the appliance. Set the timer for 15-20 minutes or until golden brown.

Fried Pork Chops

Pork chops 500g (at room temperature)
-Eggs (beaten) 2pcs
- Starch 1 cup
Ginger powder 1/2 teaspoon
Garlic 1/2 teaspoon
Chicken power 1/2 teaspoon
Soy sauce 1/2 teaspoon
Salt 1/2 teaspoon
Oil 1/2 teaspoon
Set temperature to 200^ and timer to 5 minutes for preheating.
Well mix seasoning and then coated in the pork chops; marinate 20 minutes.
- Put the pork chops into the fry basket evenly, put the fry basket with oil catch pan back to the appliance. Set the timer for 10-12 minutes.
- Then open and turn over the chops. Reduce temperature to 150^ C and bake for 10 more minutes or until brown.

CAUTION

• Do not immerse the housing in water or rinse it under the tap.
• Avoid any liquid entering the appliance to prevent from electric shock or short circuit.
• Keep all ingredients in the basket to prevent any contact with heating elements.
• Do not cover the air inlet and the outlet when the appliance is working.
• Filling the oil catch plate with oil may cause a fire hazard!
• Do not touch the inside of the appliance when it is operating.
• Be careful of the hot steam and air when you remove the basket from the appliance.
• During operating, hot steam is released through the air outlet. Keep your hands and face at a safe distance from the steam and the air outlet.
  Before handle or clean the appliance, let it cool down for approximately 30 minutes.

MAINTENANCE AND CLEANING

Warning!!

Before cleaning, make sure that you have switched off the appliance and removed the power plug and cable from the socket. Let the appliance cool down first.

• Clean the appliance on all the inside and outside regularly.
• Clean the outside and inside of the appliance with a damp cloth and dry with a soft, clean cloth.
• Never use abrasive cleaners or sponges.
• The basket and the oil catch plate can be cleaned in warm, soapy water, or in your dishwasher. Dry well before using again.

TECHNICAL DATA

Type nr: TM - 1975

Power: 1800W

Supply voltage: 220-240V ~ 50/60Hz

Dimensions:

Product measurements: 311 × 371 × 381 ~mm

Net weight: 5.0kg

TOMADO

Warranty regulations

We would like to congratulate you on buying an appliance from the TOMADO product range.

Warranty regulations

TOMADO provides a 2-year warranty for all defects caused by hidden deficiencies which render the appliance useless for normal operation.
The warranty runs from the date of purchase; we advise you to carefully save your receipt.
- Within the warranty period any defects in production or material will be resolved free of charge, by means of reparation, replacement of parts or replacement of the appliance as a whole.
- The warranty certificate has to be filled in by the sales person at the moment of purchase.
- Repairs will only be made under warranty in case it can proven (by means of a filled in warranty card and the receipt) that the day the complaint is filed falls into the warranty period.
- The warranty does not apply when defects or damages result from an accident, misuse, negligence (e.g. incorrect cleansing), or when repairs of alterations have been executed outside the authorized TOMADO service centre (excl. disassembling, as stated in the instruction manual).
- The warranty does not cover any defects arising when the appliance is connected to the wrong outlet voltage, not following the guidelines in the instruction manual and usual wear and tear.
- The warranty does not cover any defects arising from the lack of frequent descaling of appliances, whatever type of water has been used (especially for steam irons, coffee machines and water boilers).
TOMADO cannot be held responsible for any material damage or personal accident resulting from connecting

the appliance in breach of the locally applicable safety regulations and technical standards (for instance an inferior AC outlet). The warranty under no circumstances grants the right for any compensation.

All other claims, including damages, are excluded unless the Law states otherwise.
- Other warranty regulations than the warranty regulations stated above are not applicable.

Service

For more information you can write to the following address (postage paid):

TOMADO Consumenservice

Antwoordnummer 19016

NL-1000VC Amsterdam

The Netherlands

What do you do in case your appliance does not work?

When your appliance shows defects, you can refer to your salesperson. Your salesperson will make sure any defect will be repaired as soon as possible.

Repairs outside the warranty period

You can always hand in your appliance to have it repaired outside the warranty period. This will of course not be free of charge.

Guidelines for protection of the environment

This appliance should not be put into the domestic garbage at the end of its useful life, but must be disposed of at a central point for recycling of electric and electronic domestic

appliances. This symbol on appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection..
